Operating Instructions 57.

Line drawing of a portable electronic device with a door and control panel (no text or symbols)

Monitor anschließen

Technical line drawing of a device with a rectangular housing and mounting holes, connected to a dashed line with a black dot (no text or symbols)

Kamera ausrichten

Technical line drawing of a mechanical clamp or bracket assembly with mounting holes and a vertical bar (no text or symbols)

Batterie rechargeable

Line drawing of a portable electronic device with a door and control panel (no text or symbols)

Brancher l'écran

Technical line drawing of a device with a rectangular housing and mounting holes, connected to a screwdriver (no text or symbols present)

Orienter la caméra

Technical line drawing of a mechanical clamp or bracket assembly (no text or symbols)

Batterie rechargeable, 22

Bloc secteur, 22

Line drawing of a device with a lid, showing internal components and a battery (no text or symbols)

Technical line drawing of a device with a rectangular housing and a dashed line indicating a pin or connection (no text or symbols present)

Technical line drawing of a mechanical clamp or bracket assembly (no text or symbols)

Please read this operating instruction manual thoroughly. Always keep this operating manual near the device and hand it over to every user or subsequent owner.

Intended use

The baby monitor serves to monitor a baby/child in a room. The camera transmits audio and video signals from its current location to the monitor. The monitor may only be installed indoors. Any other use is considered unintended use.

The use of this equipment does not substitute personal supervision, e.g. of a child. Users are not relieved of their personal liability.

The devices are not intended for medical purposes. Warning and signal tones from respiratory or heartbeat monitoring equipment are not transmitted.

Unauthorised modification or reconstruction is not permitted. Under no circumstances open the devices or complete any repair work yourself. All rights to claims for damages beyond the scope of legal provisions are excluded.

Medical equipment

Attention: Never use the devices in the vicinity of medical equipment. Effects on such equipment cannot be fully ruled out.

Installation location

• Never lay the transmitter in a baby's/child's bed or playpen.
• Ensure that the baby monitoring units and power cables are out of reach of babies/children, i.e. they are at least one meter away.
  • Babys/Children must not play with the power cables and devices. Risk of suffocation!
• Pay attention that the power cables are laid so they cannot be tripped over resulting in the devices being pulled onto the floor.
• Pay attention that the components are sufficiently well-ventilated when in operation. Do not lay a cushion, towel or such over the devices.
• The installation location plays a decisive role in ensuring proper operation. Maintain a minimum distance of one meter to other electronic equipment, such as microwave ovens or hi-fi systems, since they could cause mutual disturbance.
• Prevent excessive exposure to smoke, dust, vibration, chemicals, moisture, heat and direct sunlight.
• Do not use the equipment in potentially explosive areas.

Power adapter plugs

Attention: Only use the power adapter plugs contained in the material supplied since other power adapter plugs could damage the equipment. Ensure access to the power adapter plugs is not obstructed by furniture or such.

Attention: When using the equipment with a power adapter plug, pay attention that the plug and cable are in perfect condition. Kinked or worn cable represents the risk of a fatal accident!

Rechargeable battery

Attention: Never throw the battery into a fire.

Pay attention to correct polarity.

Power failure

The camera does not work in the event of a power failure. Only the monitor works, as long as the battery was sufficiently charged via the power adapter plug beforehand.

Disposal

In order to dispose of your device, take it to a collection point provided by your local public waste authorities (e.g. recycling centre). According to laws on the disposal of electronic and electrical devices, owners are obliged to dispose of old electronic and electrical devices in a separate waste container. The adjacent symbol indicates that the device must not be disposed of in normal domestic waste!

Risks to health and the environment from batteries!

Never open, damage or swallow batteries or allow them to pollute the environment. They could contain toxic and ecologically harmful heavy metals. You are legally obliged to dispose of batteries at the point-of-sale or authorised collection points where the corresponding containers are provided. Disposal is free of charge. The symbols indicate that the batteries must not be disposed of in normal domestic waste and that they must be brought to collection points provided by local public waste authorities.

Packaging materials must be disposed of according to local regulations.

2 Operating Elements and Indicators

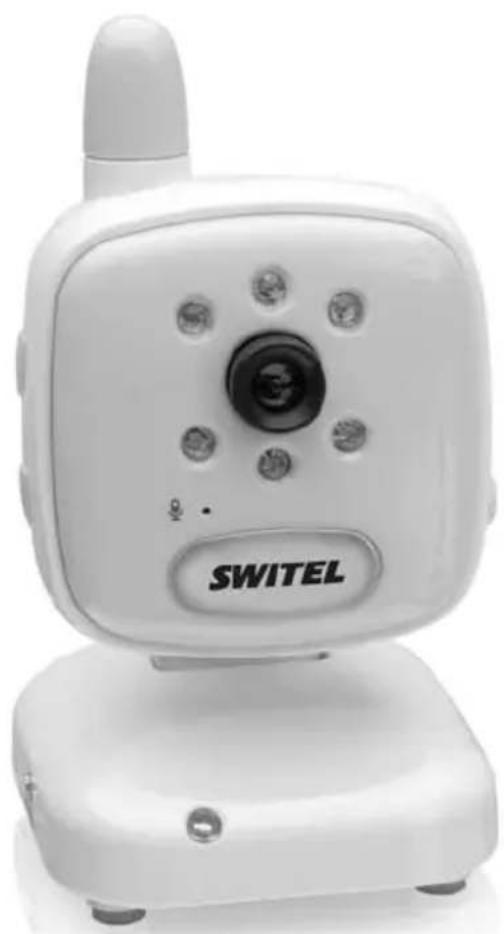

Camera

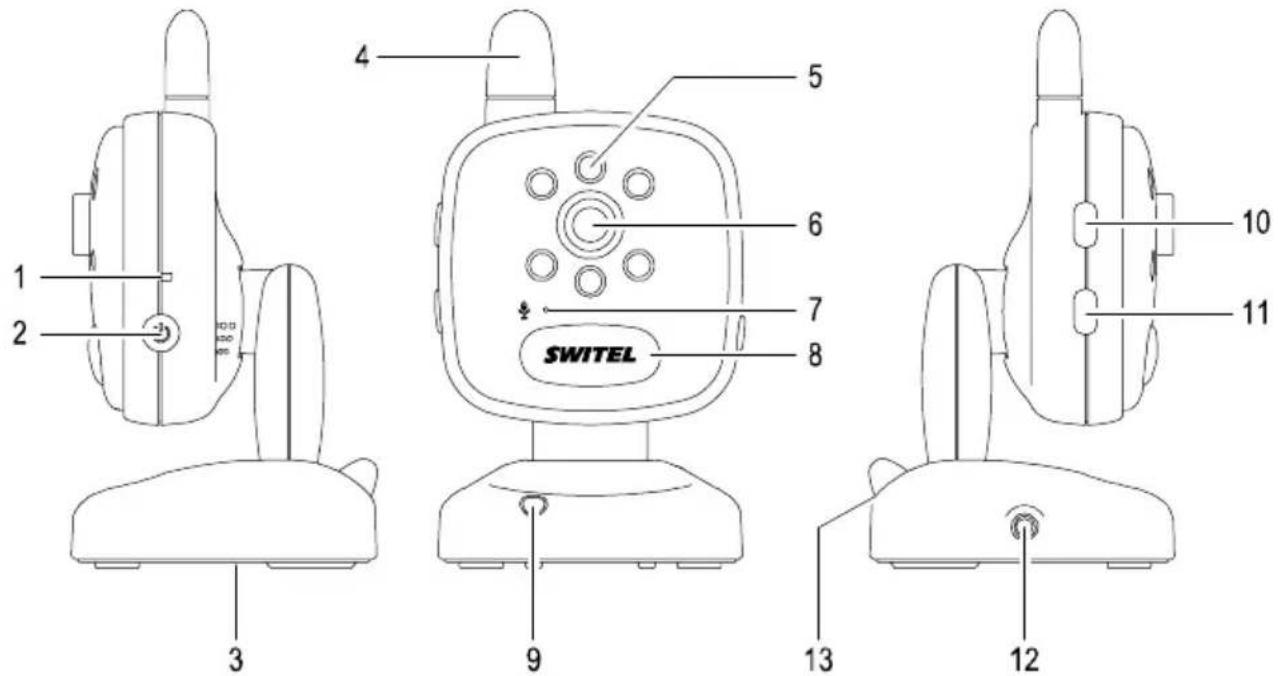

1 2 3 4 5 6 7 8 SWITEL 9 10 11 12

1 On/Off LED 7 Microphone
2 On/Off button 8 Night light
3 Loudspeaker (underside of the unit) 9 Light sensor
4 Antenna 10 Night light / Raise volume button
5 Infrared LEDs (6 lamps) 11 Register / Lower volume button
6 Camera lens 12 Power adapter plug connection

13 Temperature sensor

Monitor

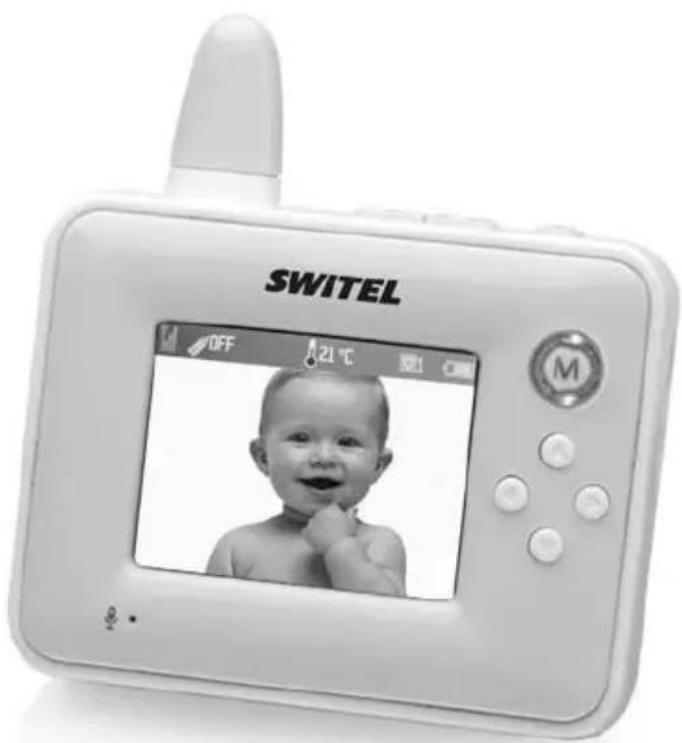

SWITEL 1 2 3 M 4 5 6 7 8 9

DIP / ON 10 11

19 18 17

12 13 16 15 14

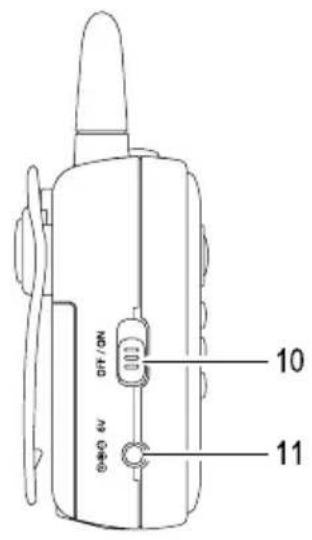

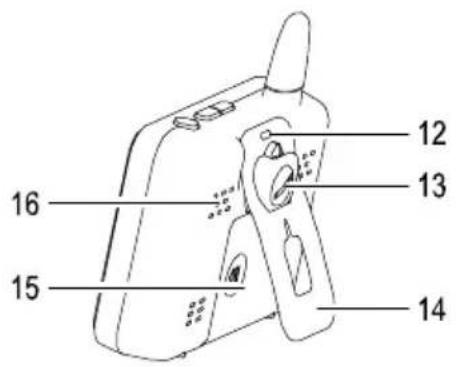

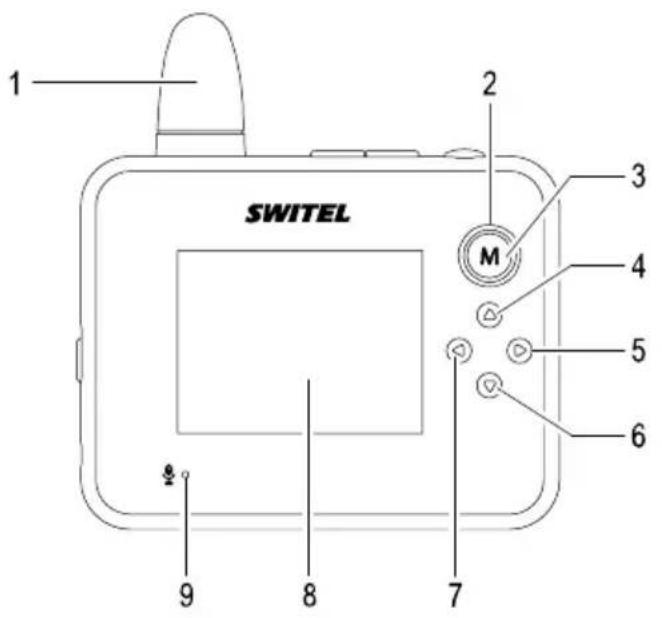

1 Antenna 10 On/Off sliding switch
2 On/Off LED 11 Power adapter plug connection
3 Menu / OK button 12 Eyelet to fit a strap
4 Arrow up button 13 Rotary stand support lock
5 Arrow right button 14 Stand support
6 Arrow down button 15 Battery compartment cover
7 Arrow left button 16 Loudspeaker

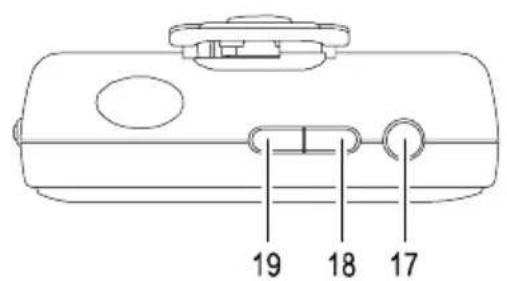

8 Display 17 Monitoring / Speak button
9 Microphone 18 Feed alert / Zoom / Register button

19 Channel selection button

Icon bar in the display

The following icons appear in the icon bar from left to right:

Icon Significance

Range icon Indicates the connection quality to the camera:

Range icon with 3 green bars: Connection is very good.

Range icon with no bars: No connection available. A message also flashes in the display stating that there is no connection to the camera.

Baby bottle icon Indicates whether the baby feed alert is active or not.

Zoom icon A section of an image received has been zoomed.

Temperature icon Displays the current ambient temperature at the camera unit.

Loudspeaker icon Displays the volume level set on the monitor:

Speaker crossed-out icon: Volume is off.

While changing the volume level, the display indicates which level is set (OFF and 5 volume levels). The icon disappears shortly after the setting has been set except when the volume is switched off.

Camera icon Indicates which camera is currently connected to the monitor or which channel is currently set on the monitor.

Battery icon Displays the battery capacity:

Battery party filled green: The battery is no longer fully charged. The green segment give a rough indication of the battery charge status (a total of 7 green segments).

Green segments run though the battery icon: The battery is being charged.

Battery icon filled completely green: The battery is fully charged.

Note icon Indicates that a lullaby is currently being played by the camera unit. The number following the Note icon indicates which lullaby is being played.

3 Menu Structure

To navigate in the menus, open the main menu (level 1) by pressing the Menu/OK button, use the Arrow right and Arrow left buttons to select a menu option and confirm the selection by pressing the Menu/OK button. This procedure applies to all the other menu levels.

There are several ways with which to exit from the menu:

- Press the Monitoring/Speak button to exit the menu immediately.

- Wait a few seconds and the menu is closed automatically.

- Use the Arrow right and Arrow left buttons to select "EXIT" and confirm the selection with "Yes".

ALERT TONE Low Battery Tone On

NO LINK ALERT On		Off
		Off
DISPLAY Brightness Level 1 to Level 5
	Backlight Time Always On
		10 Sec
		1 Min.
		3 Min.
LULLABY	LULLABY 1 to LULLABY 8	Play Once
		Play Repeat
		Stop

SENSITIVITY Low

	Medium
	High
	Off

Temperature Format Celsius

	Minium from 0 °C to 17 °C (in steps of 1 °C)	Fahrenheit
		1
	Maximum	from 18 °C to 35 °C (in steps of 1 °C) ^2
	Beep	On
		Off

LANGUAGE English

	Français
	Deutsch
	Nederlands
	Español
	Português
	Italiano
	Ελληνικά
	Русский
	Magyar

EXIT Yes

No

Putting the Units into Operation

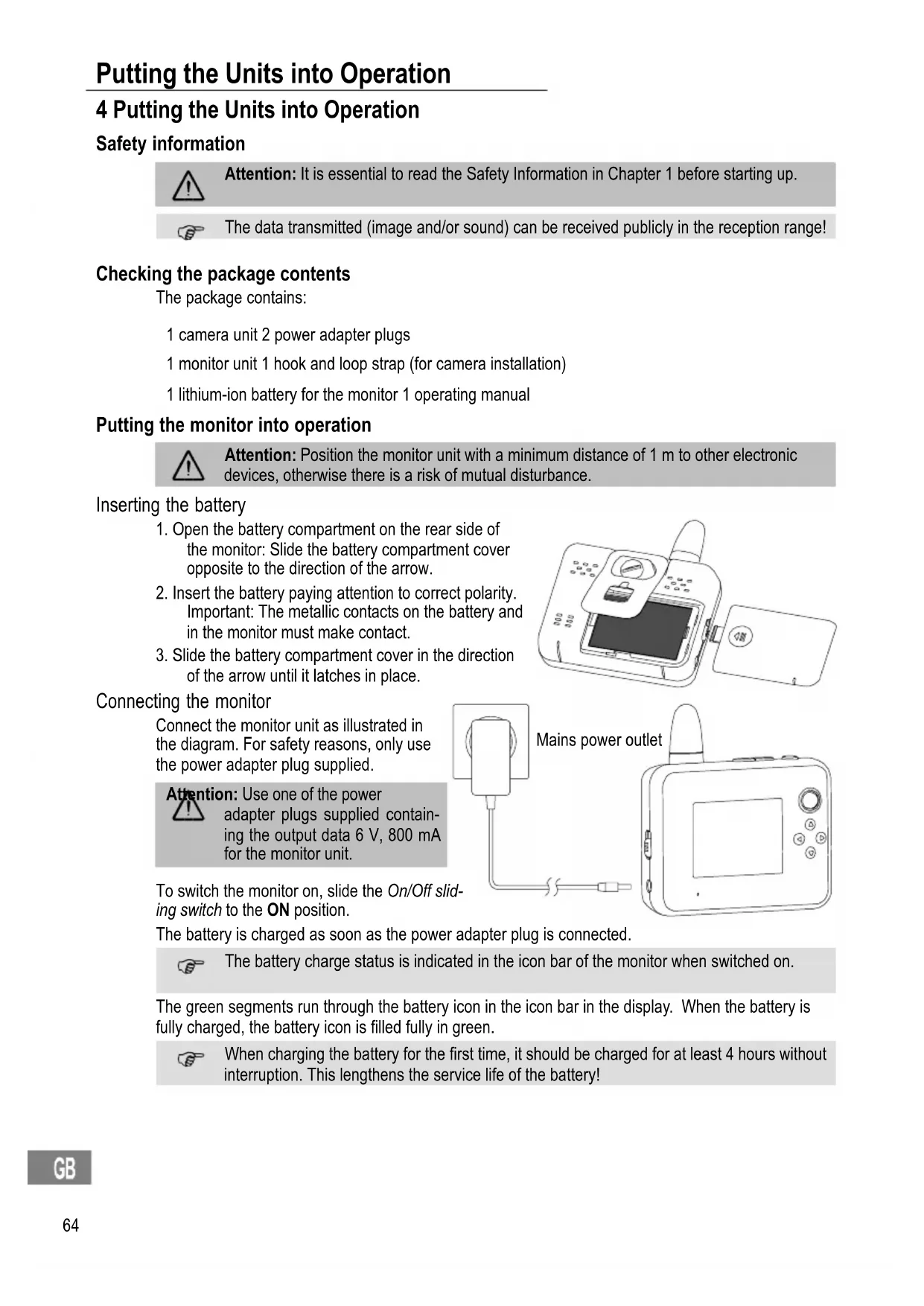

4 Putting the Units into Operation

Safety information

Attention: It is essential to read the Safety Information in Chapter 1 before starting up.

The data transmitted (image and/or sound) can be received publicly in the reception range!

Checking the package contents

The package contains:

1 camera unit 2 power adapter plugs
1 monitor unit 1 hook and loop strap (for camera installation)
1 lithium-ion battery for the monitor 1 operating manual

Putting the monitor into operation

Attention: Position the monitor unit with a minimum distance of 1 m to other electronic devices, otherwise there is a risk of mutual disturbance.

Inserting the battery

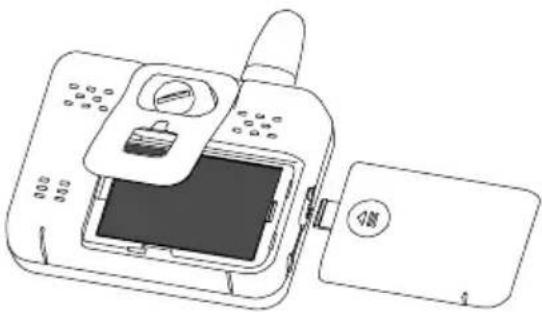

1. Open the battery compartment on the rear side of the monitor: Slide the battery compartment cover opposite to the direction of the arrow.
2. Insert the battery paying attention to correct polarity. Important: The metallic contacts on the battery and in the monitor must make contact.
3. Slide the battery compartment cover in the direction of the arrow until it latches in place.

Line drawing of a portable electronic device with a screen and handle, showing internal components (no text or symbols)

Connecting the monitor

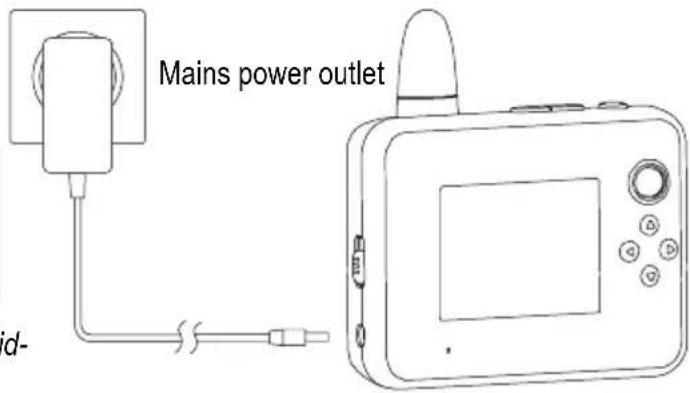

Connect the monitor unit as illustrated in the diagram. For safety reasons, only use the power adapter plug supplied.

on: Use one of the power adapter plugs supplied containing the output data 6 V, 800 mA for the monitor unit.

To switch the monitor on, slide the On/Off sliding switch to the ON position.

Mains power outlet

Mains power outlet d-

The battery is charged as soon as the power adapter plug is connected.

The battery charge status is indicated in the icon bar of the monitor when switched on.

The green segments run through the battery icon in the icon bar in the display. When the battery is fully charged, the battery icon is filled fully in green.

When charging the battery for the first time, it should be charged for at least 4 hours without interruption. This lengthens the service life of the battery!

Stand support

1. Take hold of the stand support on the rear side of the monitor at the bottom and pull it away from the unit.
2. Turn the stand support lock, with a screwdriver for example, counterclockwise to fix it in this position.
   You can also fit a belt or strap to the eyelet in the stand support (not included in the material supplied).

Putting the camera into operation

Connecting the camera

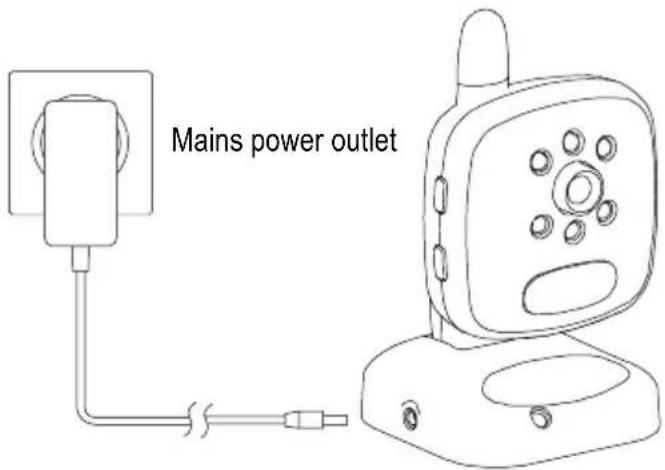

Connect the camera as illustrated in the diagram.

n: Use one of the power adapter plugs supplied containing the output data 6 V, 800 mA for the camera unit.

To switch the camera on, press the On/Off button so that the On/Off LED lights up green.

Mains power outlet

Positioning the camera

You can stand the camera unit or mount it on a wall or support.

Attention: The camera must not be positioned or mounted nearer than 1 m to the baby/child!

Attention: Position the camera unit with a minimum distance of 1 m to other electronic devices, otherwise there is a risk of mutual disturbance.

The camera and monitor must be at least 1 m apart! If the distance is less, an acoustic alert signal is sounded.

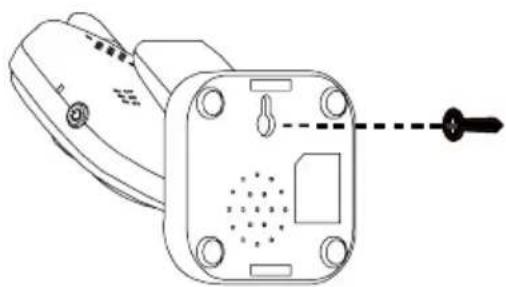

Installation on a wall: Screw a suitable screw (not included in the material supplied) in the wall so that approx. 8-9 mm space remains between the screw head and the wall and hook the camera on it in accordance with the adjacent diagram.

Installation on a support: Thread the hook and loop strap through the eyelets on the underside of the camera in accordance with the adjacent diagram and wrap the hook and loop strap firmly around the support.

Technical line drawing of a device with a rectangular housing and mounting holes, connected to a screwdriver (no text or symbols present)

Aligning the camera

The camera can be pivoted within a limited range enabling slight adjustment up and down and to the left and right. After having positioned the camera as required and then putting the monitor unit into operation, pivot the camera until the section you want to observe appears in the monitor display.

Technical line drawing of a mechanical clamp or bracket assembly (no text or symbols)

GB

Registering the camera on the monitor (registration process)

The monitor and camera are already registered with each other at the factory.

However, up to 4 cameras can be registered on the monitor. Other cameras can be registered on the monitor as follows:

1. Switch the monitor on.
2. Switch the (new) camera off.
3. Press and hold the Feed alert / Zoom / Register button on the monitor and switch the monitor off and on again using the On/Off sliding switch. Continue to press and hold the Feed alert / Zoom / Register button until the Registration screen appears in the display (white text on black background).
4. When the Registration screen appears on the monitor, use the Arrow up or Arrow down button to select the channel (CH) on which the new camera should operate.
5. Then, with the Registration screen still in the monitor display, press the Arrow right or Arrow left button to select "Pair" (for "pairing" = registration).
6. Set the new camera to Registration mode: Press the On/Off button and Lower volume / Register button on the new camera simultaneously for 2 seconds. When the new camera is in Registration mode, the On/Off LED on the camera flashes.
7. Press the Menu/OK button on the monitor to complete the registration process. When the registration process is completed successfully, the corresponding message appears in the display.
8. Conclude the registration process by pressing the Menu/OK button. The Registration screen displays the current status.
9. When the Registration screen appears on the monitor, use the Arrow up or Arrow down button to select "EXIT" and confirm the selection by pressing the Menu/OK button to exit from the Registration screen.

When a connection is established, the image viewed by the camera lens appears in the display.

Deregistering the camera from the monitor (deregistration process)

1. Switch the monitor on.
2. Press and hold the Feed alert / Zoom / Register button on the monitor and switch the monitor off and on again using the On/Off sliding switch. Continue to press and hold the Feed alert / Zoom / Register button until the Registration screen appears in the display (white text on black background).
3. When the Registration screen appears on the monitor, use the Arrow up or Arrow down button to select the channel (CH) to be deleted.
4. Then, with the Registration screen still in the monitor display, press the Arrow right or Arrow left button to select "Del" (for "delete" = deregister).
5. Press the Menu/OK button on the monitor.
6. Conclude the deregistration process by pressing the Menu/OK button. The Registration screen displays the current status.
7. When the Registration screen appears on the monitor, use the Arrow up or Arrow down button to select "EXIT" and confirm the selection by pressing the Menu/OK button to exit from the Registration screen.

Selecting the camera

If several cameras are registered on the monitor, press the Channel selection button on the monitor to select between the different cameras.

5 Operating the Camera

Check the camera and monitor are working properly each time before the equipment is put into operation.

Switching on the camera

1. Press the On/Off button on the camera.
   The On/Off LED lights up green. The camera is now ready to operate.
2. Adjust the camera alignment again, if necessary.

Switching the camera off

Press and hold the On/Off button on the camera until the On/Off LED goes out.

Night vision

The camera is equipped with 6 infrared LEDs. This enables the transmission of pictures from areas which are not illuminated. The night vision function is activated automatically when the light conditions make it necessary.

When the night vision function is activated, the display on the monitor turns to black and white.

Night light

The camera is equipped with a night light which provides a soft, steady light to lend a sense of security for the baby.

• Press and hold the Night light / Raise volume button until the night light comes on.
• Press and hold the Night light / Raise volume button until the night light goes out.

Setting the voice volume on the camera

You can speak into the monitor unit and be heard from the camera unit, e.g. to calm the baby or speak to a person in the room, see Page 68 (Speak function).

Use the Volume buttons on the camera unit to regulate the volume of the voice issued from the camera unit.

• Press the Night light / Raise volume button to increase the volume.
• Press the Register / Lower volume in order to lower the volume.

If the volume can no longer be raised or lowered, an acoustic signal is issued each time the respective Volume button is pressed.

6 Operating the Monitor

Check the camera and monitor units are working properly each time before the equipment is put into operation.

Switching the monitor on

Slide the On/Off sliding switch to its ON position.

The On/Off LED lights up green. The icon bar appears in the display. The monitor is now in Monitoring mode and is operational.

Switching the monitor off

Slide the On/Off sliding switch to its OFF position.

The On/Off LED goes out. The display goes out.

Adjusting the volume on the monitor

Use the Arrow up/down buttons to change the volume at which the sounds detected in the room where the camera stands are played. There are 5 volume levels available. The volume can also be switched off.

• Press the Arrow up button to raise the volume.
• Press the Arrow down button to lower the volume or switch it off.

The volume level currently selected is indicated in the icon bar while altering the volume. If the volume is switched off, the corresponding icon appears continuously in the icon bar (crossed-out loudspeaker).

Speak function

You can speak into the monitor unit and be heard from the camera unit, e.g. to calm the baby or speak to a person in the room being monitored.

1. Press and hold the Monitoring/Speak button on the monitor.
2. Speak into the microphone on the monitor.
3. Release the Monitoring/Speak button in order to be able to hear sounds from the room being monitored again.

Zooming the image section

In order to be able to see more details, you can enlarge (zoom) a section of the image in the display. One zoom level is available.

1. To zoom in, press and hold the Feed alert / Zoom / Register button on the monitor.
2. Press the Arrow up / down / left and right buttons to move the zoomed image section and select the area you want to see in more detail.
3. To zoom out, press and hold the Feed alert / Zoom / Register button on the monitor.
   When the zoom function is currently selected, the magnifying glass icon appears in the icon bar.

Baby feed alert

This function can be used to remind you to feed a baby at fixed, regular intervals.

Activating the baby feed alert

To activate the baby feed alert, press the Feed alert / Zoom / Register button on the monitor, several times if necessary, until the time interval of your choice appears in the icon bar behind the baby bottle icon.

The time interval is increased by 30 minutes each time the button is pressed and can be set to maximally 4:00 hours.

When the set time is reached, a continuous acoustic alarm signal is issued for maximally 1 minute and the "Feed time arrives" message flashes in the display.

Stopping the alert signal

Press any button on the monitor to stop the alarm signal.

If you do not switch the alarm off, it stops automatically after 1 minute. The aert signal begins again after 3 minutes and continues for one minute. If the alarm is not stopped manually, the alert sequence is repeated five times. The number of alert sequences already completed is displayed in the icon bar in front of the baby bottle icon.

Deactivating the baby feed alert

To deactivate the alert, press the Feed alert / Zoom / Register button on the monitor until "OFF" appears in the icon bar behind the baby bottle icon.

Temperature alarm

You can use the menu to set the minimum and maximum temperatures of the room being monitored; see Menu Structure, Page 62. If the ambient temperature of the room being monitored drops below or rises above the respective set value, a correspond- ing warning flashes in the display.

The menu can also be used to activate an acoustic signal to alert you to the situation.

Playing lullabies

The baby can go to sleep listening to gentle lullabies. The baby monitor system has 8 different melodies available which can be played on the camera unit. You can define whether the lullaby selected should be played just once or continuously repeated.

The lullabies are switched on and off via the menu; see Menu Structure, Page 62.

When a lullaby is being played, a note icon appears in the icon bar with the number of the respective lullaby.

Defining personal settings on the monitor

Various settings can be defined according to your personal requirements using the menu.

Battery alert signal

An acoustic alert signal can be activated to sound when the battery capacity is exhausted; see Menu Structure, Page 62.

Range alert signal

An alert signal can be activated to sound when the camera and monitor are no longer within range of each other; see Menu Structure, Page 62.

Display brightness

The brightness of the display can be adjusted to one of 5 levels; see Menu Structure, Page 62.

Backlight time

Use the “Backlight Time” menu option to define how long the monitor display should remain on; see Menu Structure, Page 62. For reasons of increasing the battery charge time, there are 3 different time intervals available after which the display automatically goes out (display turns black).

If the display goes out as a result of this setting, simply press the Monitoring/Speak button in order to restore the image from the camera.

The equipment is provided with voice operated transmission (VOX) which remains active even when the display is switched off. As soon as the camera unit detects a sound above a minimum intensity, the display is automatically switched on again.

Sensitivity to ambient noise, voice operated transmission (VOX) and ECO mode

The baby monitor combines two modern technologies: voice operated transmission (VOX) and ECO mode.

The voice activation (VOX ^1 ) function causes the system to start transmitting automatically from the camera to the monitor immediately a voice or sound is detected. If no voice or sound is detected for longer than one minute, transmission is automatically interrupted.

There is a slight delay in the transmission before the monitor can reproduce the voice/sound and picture.

ECO mode represents a special transmission technology. In ECO mode, the baby monitor system transmits with considerably reduced transmission power or radiation while simultaneously increasing the receiver sensitivity. Voice activation (VOX) is active in ECO mode. When sounds are detected, ECO mode is automatically deactivated. The display then transmits the image from the camera.

In order that the equipment can operate in ECO mode, you must use the "SENSITIVITY" menu option to define whether the camera should operate with a low, medium or high sensitivity; see Menu Structure, Page 62. Only when one of these three settings is set can the baby monitor switch to ECO mode following a short delay when no sounds are detected. The message "ECO Mode activated" then appears in the display. The display then automatically switches to show the image from the camera when a sound at or above the set sensitivity is detected.

A low sensitivity means that the camera reacts to quiet sounds. A high sensitivity means that the camera only reacts to louder noises. Select the setting required according to the ambient noise. Many ambient noises necessitate a high sensitivity.

If the message "ECO Mode activated" appears in the display as a result if this setting, press the Monitoring/Speak button to restore the image from the camera to the display.

If the setting is "OFF", voice activation (VOX) is deactivated. The unit cannot switch to ECO mode.

Temperature display

The camera unit determines the temperature of its immediate surroundings by means of a temperature sensor and indicates it in the icon bar of the monitor display. Use the menu to select whether the temperature display and information should be in degrees Celsius or Fahrenheit; see Menu Structure, Page 63.

It is also possible to activate visual and/or acoustic alert signals should temperatures rise above or drop below defined upper and lower temperature limits; see Page 69 (Temperature alarm).

Language

The menu guidance is available in 10 different languages; see Menu Structure, Page 62.

7 In Case of Problems

Service hotline

Should problems arise with the monitoring set, please refer to the following information first. In the case of technical problems, you can contact our hotline service, Tel. [phone] within Switzerland (Swisscom fees at time of going to print: CHF 2.60/min). In the case of claims under the terms of guarantee, contact your sales outlet. There is a 2 year period of guarantee.

Problems and possible causes

Problem Possible causes
Equipment does not function	- Camera and/or monitor are not switched on.- Power adapter plugs are not connected properly.- The battery is empty or defective.If the problem continues, disconnect all power adapter plugs and the battery and wait for 10 minutes before putting the units into operation again, see Page 64.
No reception with “No connection” message	- Camera is not switched on.- Wrong camera has been selected; see Page 66- Camera and monitor are not registered, see Page 66.
Reception interference - Other	electronic devices are causing interference in the field of transmission.- The monitor and camera are too far apart.- The distance between the monitor and camera is below the minimum limit.- The battery power is too low.
Display is black - Refer to “Backlight time” on Page 69
Beeping noise (acoustic feedback)	- Increase the distance between the monitor and camera.- Reduce the volume on the monitor.
Noise - The battery power is too low.
Image transmission but no sound transmission	- The volume is switched off or set too low.
Picture is in black and white -	The night vision function is active.
The monitor beeps - Battery alert signal, see Page 69- Range alert signal, see Page 69- Baby feed alert signal, see Page 68- The distance between the monitor and camera is below the minimum limit.
The battery in the monitor is not charged	- Power adapter plug is not connected properly.

8 Technical Properties

Technical data

Feature Value
Camera WxHxD: 7.0 x 12.8 x 7.2 cm	Weight: 120 gSwitch: I/OSocket: 6 V DCSensors: Light sensor, temperature sensorNight light: BlueIR LEDs: 6Lullabies: 8
Monitor WxHxD: 9.7 x 10.4 x 3.8 cm	Weight: 137 gDisplay: 2.4" display, resolution 240x320Switch: I/OSocket: 6 V DCIcons: Range, baby feed alert,image zoom temperature,volume, channel/camera, battery capacityAlerts: Range, baby feed, temperature,low battery capacityExtendible up to 4 channels/cameras.Lithium-ion battery
Power supply, camera	Power adapter plug, DC 6 V / 800 mA
Power supply, monitor	Power adapter plug, DC 6 V / 800 mA
Range, monitor	Up to 300 meters under optimum conditions.Range is reduced in buildings through walls, doors etc.
Frequency range	2.4 GHz
Permissible ambient temperature	0°C to 40°C
Permissible relative humidity	20% to 75%

The camera is equipped with an energy-efficient power adapter plug (input 230 V AC , output 6 V DC , 800 mA). The zero load is approx. 0.08 W. The average efficiency is approx. 72%.

The power consumption in operation is maximally approx. 3.1 W.

The monitor is equipped with an energy-efficient power adapter plug (input 230 V AC , output 6 V DC , 800 mA). The zero load is approx. 0.08 W. The average efficiency is approx. 72%.

The power consumption in operation is maximally approx. 4.9 W.

We reserve the right to make technical and visual modifications to the product during the course of product improvement.

Declaration of Conformity

This device fulfils the requirements stipulated in the EU directive:

1999/5/EU directive on radio equipment and telecommunications terminal equipment and the mutual recognition of their conformity. Conformity with the above mentioned directive is confirmed by the CE mark on the device.

To view the complete Declaration of Conformity, please refer to the free download available on our web site at www.switel.com.

9 Maintenance / Guarantee

Maintenance

• Clean the housing surfaces with a soft, fluff-free cloth.
• Never use cleaning agents or solvents.

Guarantee

SWITEL equipment is produced and tested according to the latest production methods. Carefully selected materials and highly developed technology ensure perfect functioning and a long service life. The terms of guarantee do not apply to the batteries or power packs used in the products. The period of guarantee is 24 months from the date of purchase.

All deficiencies related to material or manufacturing errors within the period of guarantee will be redressed free of charge. Rights to claims under the terms of guarantee are annulled following tampering by the purchaser or third parties. Damage caused as the result of improper handling or operation, normal wear and tear, incorrect positioning or storage, improper connection or installation or Acts of God and other external influences are excluded from the terms of guarantee. In the case of complaints, we reserve the right to repair or replace defect parts or provide a replacement device. Replaced parts or devices become our property. Rights to compensation in the case of damage are excluded where there is no evidence of intent or gross negligence by the manufacturer.

If your device does show signs of a defect within the period of guarantee, please contact the sales outlet where you purchased the SWITEL device, producing the purchase receipt as evidence. All claims under the terms of guarantee in accordance with this agreement can only be asserted at the sales outlet. No claims under the terms of guarantee can be asserted after a period of two years from the date of purchase and hand-over of the product.

10 Index

A

Activating the baby feed alert, 68

Adjusting the volume on the monitor, 68

Aligning the camera, 65

B

Baby bottle icon, 61

Backlight time, 69

Battery alert signal, 69

Battery icon, 61

C

Camera, 59

Camera icon, 61

Connecting the camera, 65

Connecting the monitor, 64

D

Deactivating the baby feed alert, 69

Declaration of Conformity, 73

Defining personal settings on the monitor, 69

Deregistering the camera from the monitor, 66

Deregistering the transmitter from the receiver, 66

Deregistration process, 66

Display brightness, 69

Disposal, 59

E

ECO mode, 70

G

Guarantee, 73

|

Icon bar in the display, 61

Icons in the display, 61

Infrared LEDs, 67

Inserting the battery, 64

Installation location, 58

Intended use, 58

L

Language, 70

Loudspeaker icon, 61

M

Maintenance, 73

Medical equipment, 58

Menu Structure, 62

Monitor, 60

N

Night light, 67

Night vision, 67

Note icon, 61

0

Operating elements, 59

Operating the camera, 67

Operating the monitor, 68

P

Package contents, 64

Pairing, 66

Playing lullabies, 69

Positioning the camera, 65

Power adapter plug, 58

Power failure, 58

Problems, 71

Problems and possible causes, 71

Putting the camera into operation, 65

Putting the monitor into operation, 64

R

Range alert signal, 69

Range icon, 61

Rechargeable battery, 58

Reduced radiation, 70

Registering the camera on the monitor, 66

Registration process, 66

S

Safety information, 58

Selecting the camera, 66

Sensitivity to ambient noise, 70

Service hotline, 71

Setting the voice volume on the camera, 67

Stand support, 65

Starting up, 64

Switching on the camera, 67

Switching the camera off, 67

Switching the monitor off, 68

Switching the monitor on, 68

T

Technical data, 72

Temperature alarm, 69

Temperature display, 70

Temperature icon, 61

Troubleshooting, 71

V

VOX, 70

Z

Zoom icon, 61

Zooming, 68

Zooming the image section, 68

Wichtiger Hinweis

Your device (camera) is supplied with an energy-efficient power supply (Input 230 V_AC , Output 6 V_DC , 790 mA). The adaptor input power without load is approx. 0.08 W. The average efficiency is approx. 72 %. The electrical consumption is max. 3.1 W.

Your device (monitor) is supplied with an energy-efficient power supply (Input 230 V_AO , Output 6 V_DC , 790 mA). The adaptor input power without load is approx. 0.08 W. The average efficiency is approx. 72 %. The electrical consumption is max. 4.9 W.

This equipment complies with the European R&TTE directive.

To view the complete Declaration of Conformity, please refer to the free download available at our web site: www.switel.com.

Service Hotline

In the event of technical problems, you can contact our hotline service, Tel. [phone] within Switzerland (cost via Swisscom at time of going to print: CHF 2.60/min).
