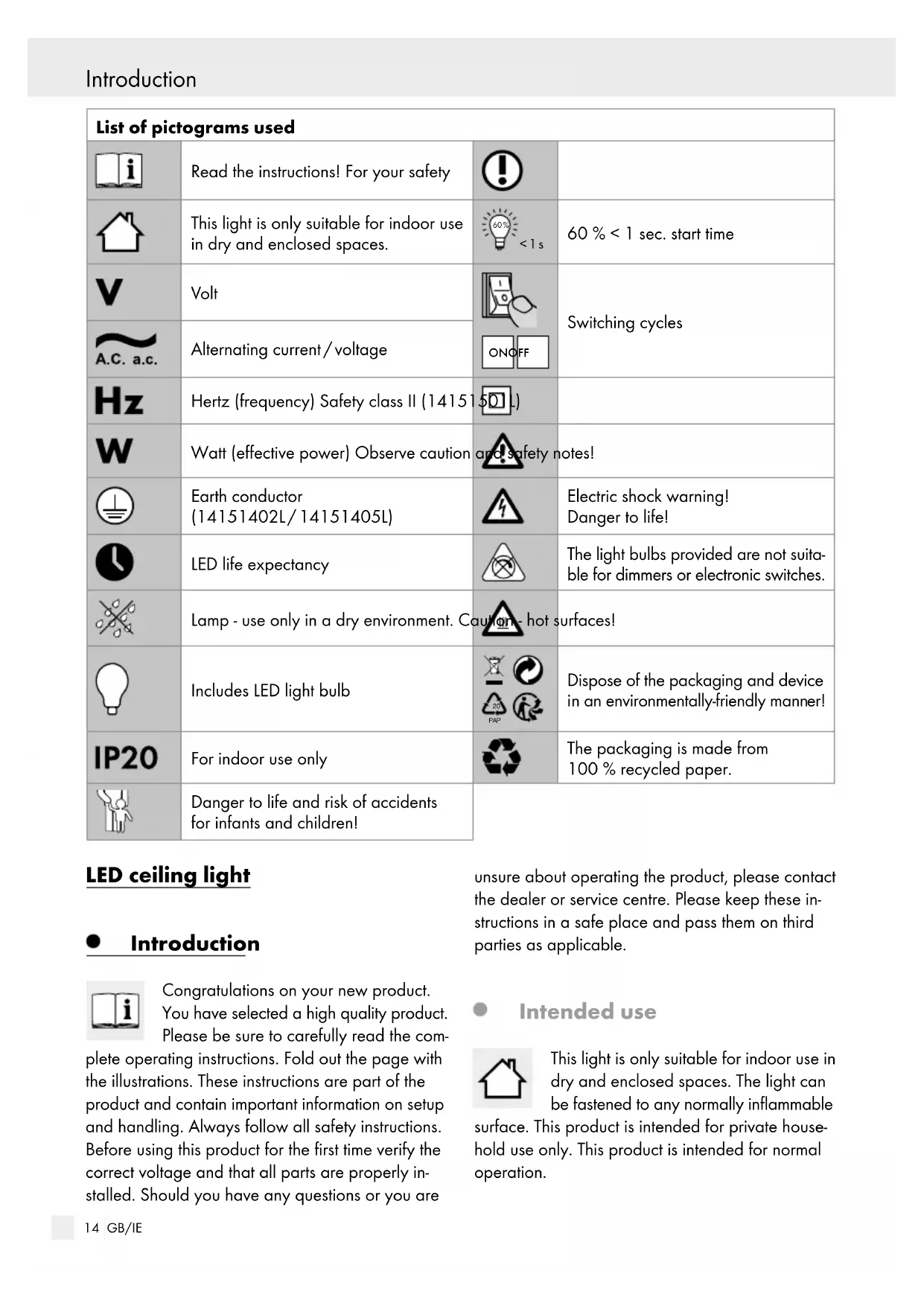

n an environmentally-friendly mann er! For indoor use only The packaging is made from 100 % recycled paper. Danger to life and risk of accidents for infants and children! LED ceiling light Introduction Congratulations on your new product. You have selected a high quality product. Please be sure to carefully read the com- plete operating instructions. Fold out the page with the illustrations. These instructions are part of the product and contain important information on setup and handling. Always follow all safety instructions. Before using this product for the first time verify the correct voltage and that all parts are properly in- stalled. Should you have any questions or you are unsure about operating the product, please contact the dealer or service centre. Please keep these in- structions in a safe place and pass them on third parties as applicable. Intended use This light is only suitable for indoor use in dry and enclosed spaces. The light can be fastened to any normally inflammable surface. This product is intended for private house- hold use only. This product is intended for normal operation.15 GB/IE Introduction / Safety Scope of delivery Check immediately after unpacking that the parts are complete and that the product is in proper condition. 1 LED ceiling light, Model 14151402L / 14151405L / 14151501L 2 Screws (mounting angle) 2 Wall plugs 2 Protective tubes (14151402L / 14151405L) 1 Rubber bushing (14151501L) 3 LED light bulbs 1 S et of installation instructions and instructions for use Parts description

Screw (connection housing)

Mains connection cable (external)

Screw (mounting bracket)

Rubber bushing (14151501L)

Junction box cover (14151501L) Technical data Model no.: 14151402L / 14151405L Operating voltage: 230–240 V∼, 50 Hz Rated power: LED E14, 3 x max. 5 W Light bulb: LED E14, max. 5 W Protection class: I IP rating: IP20 Model no.: 14151501L Operating voltage: 230–240 V∼, 50 Hz Rated power: LED E27, 3 x max. 4 W Light bulb: LED E27, max. 4 W Protection class: II / IP rating: IP20 Safety Safety notices Damage due to failure to comply with these operat- ing instructions will invalidate the guarantee! We assume no liability for consequential damage! We assume no liability for material damage or personal injury due to improper handling or failure to comply with the safety instructions! DANGER TO

LIFE AND RISK OF ACCIDENTS

FOR INFANTS AND CHILDREN! Never leave children unsupervised with the packaging material. The packaging material poses a suffocation hazard. Children frequently underestimate the dangers.

his device may be used by children aged 8 ye ars and up, as well as by persons with reduced phy- sical, sensory or mental capacities, or lacking experience and knowledge, provided that they are supervised or instructed in the safe use of the device and they understand the associated risks. Do not allow children to play with the de- vice. Never allow children to clean or maintain this product unsupervised. Avoid the risk of fatal injury from electric shock Ensure that a qualified electrician, or a person trained to carry out electrical installations, per- forms the electrical installation.

lways check the light, power supply, and m ains cable for damage before plugging it in. Never use the light if it shows any signs of damage.16 GB/IE Safety / Preparation

A damaged mains cable indicates a life-threat- ening danger due to electric shock. In the event of damage, repairs or other problems with the light please contact the service centre or a quali- fied electrician. Prior to installation, remove the fuse or switch off the circuit breaker (0 setting) in the fuse box. Prior to installation verify the mains voltage on site corresponds with the operating voltage re- quired for the light (see chapter “Technical data“). Ensure that the light does not come into contact with water or other liquids under any circum- stances. Never open any of the components of the elec- trical equipment or insert any objects into the same components. This will pose a risk of fatal injury from electric shock. Do not install the light on a wet or conductive substrate! This light is only intended for installation out of normal reach. Cables with basic insulation and permanent wir- ing must be provided with additional insulation. Do not look into the LED from a close distance during operation. Do not look at the LED using optical instruments (e.g. magnifying glass). Prevent fire and injury hazards RISK OF INJURY! Check each lamp and lamp glass for damage immediately after unpacking. Do not mount the light with defective lamps and / or lamp lenses. In this case contact the service centre for a replacement.

CAUTION! RISK OF BURNS -

HOT SURFACES! Ensure that the luminaire has been switched off and has cooled before touching it, to avoid burn injuries. Lamps develop a lot of heat in the area of the lamp head. Allow the lamp to cool off completely. Replace defective bulbs with new ones immedi- ately. Before changing bulbs, always first remove the fuse or switch off the circuit breaker. Do not leave the light or packaging material lying unattended. Plastic film or bags, plastic parts, etc. can be dangerous for children to play with. The light bulbs provided are not suitable for dimmers or electronic switches. Lamp - use only in a dry environment. Safe working Only use lamps as specified in chapter “Technical data“. Mount the light so that it is protected from moisture and dirt. Carefully prepare for assembly and allow your- self adequate time. Organise all parts and any necessary additional tools or materials before starting so they are easy to reach. Always be attentive! Always pay attention to what you are doing and use common sense. Never install the light if you are having difficulty concentrating or do not feel well. Preparation Required tools and material The tools and materials specified are not included. This information and these values are non-binding and are only provided as a reference. The nature of the material is determined by the individual local conditions. - Pencil / making tool - Voltage tester - Screwdriver - Electric drill - Bit (approx. ø 8 mm) - Side cutting pliers - Ladder17 GB/IE Prior to installation / Start-up Prior to installation Important: The electrical connection must be es- tablished by a qualified electrician or a person trained to perform electrical installations. This person must be familiar with the properties of the light and the connection regulations. Familiarise yourself with all the instructions and diagrams in this manual, as well as with the light itself, before you install it. Before installation ensure that the circuit, to which the light will be connected, is not energised. To do so, remove the fuse or switch off the circuit breaker in the fuse box (0 position). Use the voltage tester to verify the de-energised status. Start-up Mounting the light Remove the screws

visible at the side of the connection housing

from the back. Use the slotted holes in the mounting bracket

intended for the screws to mark the bores. Now drill the fixing holes (approx. ø 8 mm, depth approx. 40 mm). Be careful not to damage the supply line. Insert the dowels

asten the mounting bracket

through the protective tubes

Now connect the connection cable of the light t

conductors of the mains connection cable (ex- ternal)

: live conductor, black or brown = symbol L, neutral conductor, blue = symbol N, earth conductor green-yellow = symbol

through the rubber bushing

Open the junction box

by carefully flipping open the cover

to connect the connection cable for the light to the mains con- nection cable (external)

Note: Be sure correctly connect the individual conductors of the mains connection cable (ex- ternal)

: live conductor, black or brow = symbol L, neutral conductor, blue = symbol N. This is a safety class II / light, therefore an earth conductor will not be connected. Be sure the rubber bushing

reaches at least 8 mm into the junction box

and lock into place to close the junction box

Note: You can also remove the lustre terminal

from the junction box

back in the junction box

and ensure it is seated correctly. All models: Now use the screws

to fasten the lamp to the mounting bracket

, carefully screwing it in clockwise. Ensure that it is positi- oned correctly. Your light is now ready to use. Reinsert the fuse or switch the circuit breaker back on. Directing the spotlight

CAUTION! RISK OF BURNS DUE TO

HOT SURFACES! Only change the direction of the spotlights

when the light is switched off. Allow the lamp to cool off completely.18 GB/IE Start-up / Maintenance and cleaning / Disposal / Warranty and service Model 14151402L / 14151405L: Move the individual spotlights

in the desired direction. The spotlights

can be turned app rox. 320 °. To turn the spotlights

on the spotlight brackets. Model 14151501L: Turn the individual spotlights

in the desired direction by the base. The spotlights

can be turned approx. 320 °. Changing the bulb RISK OF ELECTRIC SHOCK! First disconnect the light from the mains when replac- ing the lamp. To do so, remove the fuse or switch off the circuit breaker in the fuse box (position 0). Only use lamps as specified in chapter “Technical data“. Allow the light bulb to cool off completely. Use a clean, lint-free cloth to replace a bulb. Remove the defective light bulb by carefully un- screwing the light bulb (E14 / E27)

, turning anti-clockwise. Install the new light bulb by carefully screwing in the light bulb (E14 / E27)

clockwise. Ensure that it is positioned correctly. Reinsert the fuse or switch the circuit breaker back on. Maintenance and cleaning RISK OF ELECTRIC SHOCK! Disconnect the light from the mains circuit before cleaning. To do so, remove the fuse or switch off the circuit breaker in the fuse box (0 position). RISK OF ELECTRIC SHOCK! For electrical safety, never clean the light with water or other liquids, or immerse it in water.

CAUTION! RISK OF BURNS -

HOT SURFACES! Allow the light to cool completely. Do not use solvents, benzene or similar substances. They could damage the light. Only use a dry, lint-free cloth for cleaning. Disposal The packaging is made entirely of recy- clable materials, which you may dispose of at local recycling facilities.
