Product Type	Under-cabinet low-energy luminaire
Brand	Livarno Lux
Model	14102104L / 14102106L
Dimensions (L x W x H)	575 x 84 x 28 mm
Weight	Approximately 0.8 kg (estimated)
Power supply	230-240 V~, 50 Hz
Rated power	1 x 13 W (T5 fluorescent tube)
Protection rating	IP20 (indoor dry use)
Protection class	II (double insulation)
Bulb type	T5 fluorescent tube, 13 W, replaceable
Max. number of connectable lamps	10 (same type)
Safety distance to illuminated objects	≥ 0.2 m
Surface temperature during operation	Up to > 60°C
Housing material	Metal and plastic
Mounting type	Wall or under-cabinet (screws and wall plugs included)
Power cable	Length approximately 1.5 m (estimated)
Switch	Integrated On/Off
Included accessories	Fluorescent tube, power cord, connection cord, wall plugs, screws, manual
Warranty	36 months (excluding wear parts)
Country of manufacture	Not specified, likely China
Care and cleaning	Unplug, allow to cool, dry lint-free cloth
Safety	Instructions: do not cover, distance ≥ 0.2 m, do not use with dimmer, replace broken glass immediately
Spare parts	T5 13W bulb, protective glass, connection cord, clip
Repairability	Bulb and glass replaceable by user; other parts via customer service

Frequently Asked Questions - 14102104L Livarno Lux

Can I install this lamp in a bathroom?

No, this lamp is designed only for indoor use in dry, enclosed areas (IP20). It must not be exposed to moisture.

What type of bulb should I use for replacement?

Use exclusively a T5 fluorescent tube of 13 W (technical specifications). Using a non-compliant bulb may damage the lamp or pose a risk.

How many lamps can I connect together on a single outlet?

You can connect up to 10 lamps of the same type (14102104L or 14102106L) using the connection cords. The gap between lamps must be between 15 and 21 cm.

How do I replace the fluorescent tube?

Unplug the lamp and let it cool. Remove the clips from the protective glass, slide the glass off, then turn the tube 1/4 turn to remove it. Insert the new tube and reassemble the glass.

What is the minimum distance between the lamp and illuminated objects?

The lamp must be mounted at least 0.2 m (20 cm) from illuminated objects to avoid any fire risk.

Can I use this lamp with a dimmer?

No, this lamp is not designed for use with a dimmer or electronic switch. This could damage it.

How do I clean the lamp?

Unplug it and let it cool completely. Use a dry, lint-free cloth. Never use water or solvents as this poses a risk of electric shock.

Does the lamp get hot normally?

Yes, during operation, the elements can reach over 60°C. Avoid contact and do not cover the lamp.

What is the disposal procedure?

Fluorescent tubes contain mercury (Hg) and are special waste. Do not dispose of them in household waste. Take them to a collection point for electrical and electronic devices. The packaging is recyclable.

How do I contact customer service?

For any questions or warranty claims, contact customer service by phone at +49 (0) 29 61 / 97 12-800 or by email at [e-mail]. Mention the article number 14102104L or 14102106L.

USER MANUAL 14102104L Livarno Lux

Close-up of metallic cylindrical components mounted on a shelf with a light bulb (no text or symbols visible)

Interior architectural view of a modern building corner with a recessed ceiling light and ventilation grilles (no text or symbols visible)

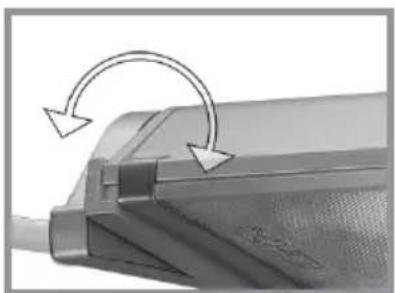

Close-up of a mechanical component with directional arrows indicating motion or rotation (no text or symbols)

ENERGIESPAR-UNTERBAULEUCHTE/ENERGY-SAVING UNDER-CABINET LIGHT / ÉCLAIRAGE SOUS MEUBLE BASSE CONSOMMATION

DE AT CH

ENERGIESPAR-UNTERBAULEUCHTE

Operation and Safety Notes

NL BE

ENERGIEBESPARENDEONDERBOUWLAMP

Before reading, unfold the page containing the illustrations and familiarise yourself with all functions of the device.

FR BE

GB / IE Operation and Safety Notes Page 13

Technical diagram of a lighting fixture assembly with numbered components and directional arrows indicating assembly steps.

Included items Page 14

Description of parts....Page 15

Technical Data Page 15

Safety Page 15

Safety advice......Page 15

Preparation......Page 16

Required tools and materials......Page 16

Preparations for use......Page 16

Fitting the light Page 16

Connecting several lights together....Page 17

Switching On/Off......Page 17

Directing the light Page 17

Changing the bulbs....Page 17

Maintenance and cleaning......Page 18

Disposal Page 18

Warranty and service......Page 18

Warranty Page 18

Declaration of Conformity....Page 19

Manufacturer / Service Page 19

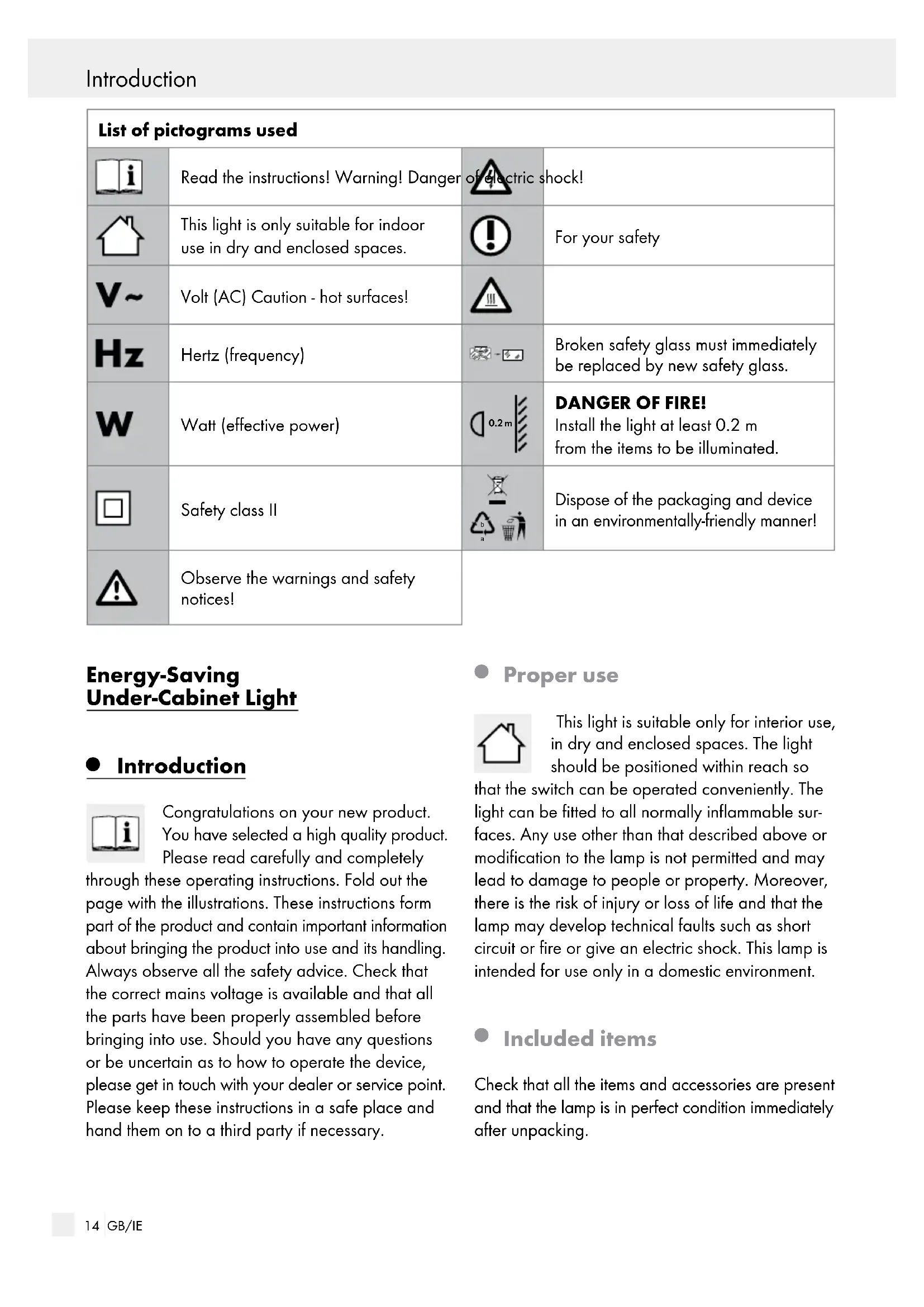

List of pictograms used
	Read the instructions! Warning! Danger c tric shock!
	This light is only suitable for indoor use in dry and enclosed spaces.		For your safety
	Volt (AC) Caution - hot surfaces!
	Hertz (frequency)		Broken safety glass must immediately be replaced by new safety glass.
	Watt (effective power)		DANGER OF FIRE!Install the light at least 0.2 m from the items to be illuminated.
	Safety class II		Dispose of the packaging and device in an environmentally-friendly manner!
	Observe the warnings and safety notices!

Energy-Saving Under-Cabinet Light

- Introduction

Congratulations on your new product. You have selected a high quality product. Please read carefully and completely

through these operating instructions. Fold out the page with the illustrations. These instructions form part of the product and contain important information about bringing the product into use and its handling. Always observe all the safety advice. Check that the correct mains voltage is available and that all the parts have been properly assembled before bringing into use. Should you have any questions or be uncertain as to how to operate the device, please get in touch with your dealer or service point. Please keep these instructions in a safe place and hand them on to a third party if necessary.

• Proper use

This light is suitable only for interior use, in dry and enclosed spaces. The light should be positioned within reach so

that the switch can be operated conveniently. The light can be fitted to all normally inflammable surfaces. Any use other than that described above or modification to the lamp is not permitted and may lead to damage to people or property. Moreover, there is the risk of injury or loss of life and that the lamp may develop technical faults such as short circuit or fire or give an electric shock. This lamp is intended for use only in a domestic environment.

Included items

Check that all the items and accessories are present and that the lamp is in perfect condition immediately after unpacking.

1 Energy-saving under-cupboard light, Model 14102104L or 14102106L
1 T5 fluorescent tube, 13 W
1 Power cable
1 Connection cable
2 Dowels
2 Screws
1 Operating instructions

• Description of parts

1 Light connector socket
2 ON/OFF switch
3 Light body
4 Mounting holes for wall attachment
5 Connecting socket
6 Protective head guard
7 Connecting cable
8 Mounting holes for underside attachment
9 Pivoting strip light
10 Protective glass cover
11 Bulb (fluorescent tube type)
12 Clip
13 Power cable

- Technical Data

Operational voltage: 230-240V\~50Hz

Bulb: T5 fluorescent tube type bulb, 13W

Nominal output: 1 x 13 W

Dimensions: (L x W x H) 575 × 84 × 28 mm

Protection class: II/

Protection type: IP20

● Safety

Safety advice

The right to claim under the guarantee shall be rendered invalid in respect of damage caused by the non-observance of these operating instructions. No liability is accepted for consequent damage. No liability is accepted for damage to property or persons caused by improper handling or non-observance of the safety advice.

To avoid danger to life from electric shock

Before connecting it to the mains, always check the light, the power cable as well as the connecting cable if need be for any damage. Never use the light if you see any damage.

WARNING!

Damaged power cables and connecting cables are a danger to life as you could suffer an electric shock.

Before assembly, ensure that the mains voltage available corresponds to the operating voltage necessary of the light (see „Technical Data“).

■ Never let the lamp come into contact with water or other liquids.

■ Never open or insert anything into electrical fittings or equipment. Doing this sort of thing can lead to a serious danger to life from electric shock.

■ Touch only the insulated part of the plug when connecting to or disconnecting from the mains supply.

If the external flexible cable of this lamp is damaged, it may only be replaced by a special cable or a cable that is only available from the manufacturer or his service representative.

- Only connect the under-cabinet light to the mains current using the original power cable.

■ Only connect original under-cabinet lights of the same type (Model 14102104L or 14102106L) with each other. Only use the original connecting cable supplied to do so.

- Connect the under-cabinet lights that are linked up together to one socket only. Make sure that you only connect a maximum of 10 linked-up under-cabinet lights of the same type to one socket. Otherwise this might overload the connections and cables.

■ Make sure that all under-cabinet lights are linked up via connecting cables before inserting the power cable into the socket.

To avoid danger of fire and injury

RISK OF INJURY!

Check every bulb and lampshade for damage immediately upon unpacking. Do not operate the light with a defective bulb or glass cover. If they are, contact the service point for a replacement.

■ RISK OF INJURY FROM BURNS!

Ensure the lamp has been switched off and allowed to cool before you touch it. In this way you will avoid the danger of burns. Light bulbs develop a great deal of heat.

Do not touch bulb components or bulbs as they can reach temperatures > 60 °C during operation.
- Allow the light to cool down completely before replacing a defective bulb.
- Replace defective bulbs immediately. Before replacing the bulb always remove the mains plug from the socket.
If a protective glass cover breaks have it replaced immediately at the service centre or by an electrician.
Do not operate this light with a dimmer or an electronic switch. It is not suitable for this mode of operation.
FIRE HAZARD! 0.2 m

Fit the light so that it is at least 0.2 m away from the material illuminated. Fire can result from the development of too much heat.

■ Never leave the light operating unattended.
- Do not allow any objects to cover the light. Fire can result from the development of too much heat.
- Do not allow the lamp or the packaging materials to lie around unattended. Plastic film or bags, Styrofoam etc. can turn into dangerous toys for children.

Working safely

• Only use the fluorescent lamps specified in the chapter „Technical Data“.
  ■ Fit the light in such a way to ensure it is protected from damp and dirt.
  ■ Make careful preparations for the assembly and take sufficient time. Clearly lay out all components and any additional tools or materials that might be required so that they are readily to hand.
  ■ Remain alert at all times and always watch what you are doing. Always proceed with caution and do not assemble the lamp if you cannot concentrate or feel unwell.

● Preparation

- Required tools and materials

The tools and materials mentioned are not included in the delivery. The details and values given are non-binding and for guidance only.

The nature of the material depends on the individual circumstances on site.

• Pencil / Marking tool
• Screwdriver
• Electric drill
• Drill
• Spirit level
• Measuring tape

● Preparations for use

- Fitting the light

Note: Prior to installation, verify there is a socket nearby within reach of the included power cable 13.

1. Measure up the wall or mounting surface for drilling the holes. Use a spirit level to improve accuracy.

2. Mark the two mounting holes a distance of 500 mm apart.

3. Now drill the mounting holes (ø approx. 6 mm, depth approx. 30 mm). Make sure that you do not damage any electrical cables during this operation.

4. Insert the supplied dowels into the drilled holes. Insert the supplied screws into the dowels and tighten them. Let them project a distance of about 1.3 mm from the wall or mounting surface.

5. Attach the light using the appropriate mounting holes 4 or 8 to the screws.

6. When securing the light using the mounting holes 8, the light housing 3 must also be pushed all the way to the left, swing the light strip 9 forward and tighten the mounting screws.

7. Insert the light connector plug of the mains lead 13 into the light connector socket 1.

8. Insert the mains plug of the mains lead 13 into a convenient mains socket. Your light is now ready for operation.

- Connecting several lights together

CAUTION!

Make sure that all under-cabinet lights are linked together by means of the connecting cables 7 before inserting the power cable 13 into the socket.

Note: Make sure that you only connect a maximum of 10 linked-up under-cabinet lights of the same type to one socket.

☐ Install up to 10 lights of the same model next to each other. To do so, follow steps 1–5 of the section called "Mounting the lights".

Note: Make sure that the distance between the lights is not more than 21 cm.

Note: Make sure that the distance between the lights is not less than 15 cm.

☐ Remove the protective head guard 6.

☐ Insert the connecting cable 7 into the connecting socket 5 of the light.

☐ Insert the second connection of the connecting cable 7 into the socket 1 of the other light.

☐ Insert the connection of the power cable 13 into the socket 1 of the outer, left-hand light.
☐ Insert the mains plug 13 into the socket. Your light is now ready to use.

- Switching On/Off

☐ Switch the ON / OFF switch 2 to turn the light on or off.

- Directing the light

☐ Never change the direction of the light while it is switched on.

CAUTION! RISK OF BURNS DUE TO HOT SURFACES!

Do not touch bulb components or bulbs as they can reach temperatures > 60 °C during operation.

□ Allow the light to cool down completely.
☐ Turn the strip light 9 into the desired direction.

- Changing the bulbs

WARNING! DANGER OF ELECTRIC SHOCK!

To replace the bulb 11, first of all disconnect the light from the mains circuit. To do this pull the mains plug on the mains lead 13 out of the socket.

☐ Allow the lamp to cool down completely.
☐ Use a clean, lint-free cloth when changing light bulbs 11.
☐ Remove the clips 12 attached at the right and left of the safety glass pane 10.
☐ Pull the protective glass cover 10 out of the guides on both sides. Place the protective glass cover carefully to one side.
☐ Rotate the bulb 11 14 turn and pull it out of the fitting.
☐ Only use the fluorescent lamps specified in the chapter „Technical Data“.
☐ Insert a new bulb 11 carefully into the fitting and turn it through 14 turn to fix it in place. Check that it is correctly seated.

Shift the protecting glass disk 10 (smooth page should indicate outward) again into the guide rail.
☐ Secure the clips 12 at the right and left of the safety glass pane 10.
☐ Turn the strip light 9 into the desired direction.

CAUTION!

Make sure that all under-cabinet lights are linked together by means of the connecting cables 7 before inserting the power cable 13 into the socket.

☐ Insert the mains plug on the mains lead 13 back into the socket. Your light is now ready for operation.

● Maintenance and cleaning

WARNING! DANGER OF ELECTRIC SHOCK!

To do this pull the mains plug on the mains lead 13 out of the socket.

• Do not use solvents, benzene or similar substances. They could damage the light.
  ☐ Allow the lamp to cool down completely.

WARNING! DANGER OF ELECTRIC SHOCK!

For reasons of electrical safety, the light must never be cleaned with water or other fluids or be immersed in water. When cleaning, only use a dry, lint-free cloth.

☐ Do not use any solvents, petrol or similar. This would cause damage to the light.

●Disposal

The packaging is made entirely of recyclable materials, which you may dispose of at local recycling facilities.

Observe the marking of the packaging materials for waste separation, which are marked with abbreviations (a) and numbers (b) with following meaning: 1-7: plastics / 20-22: paper and fibre-board/80-98: composite materials.

The product and packaging materials are recyclable, dispose of it separately for better waste treatment. The Triman logo is valid in France only.

Contact your local refuse disposal authority for more details of how to dispose of your worn-out product.

To help protect the environment, please dispose of the product properly when it has reached the end of its useful life and not in the household waste. Information on collection points and their opening hours can be obtained from your local authority.

Fluorescent lamps are hazardous waste!

They may contain small quantities of harmful substances, e.g. mercury (Hg). Do not dispose of them with normal domestic waste but hand them in to a recycling collection point for electrical and electronic appliances.

- Warranty and service

Warranty

You receive a 36 month warranty on this product, valid from the date of purchase.

The device has been carefully produced under strict quality control.

Within the warranty period we shall rectify without charge all material and manufacturing defects. In the event of a defect arising during the warranty period, please send the device to the listed Service Centre address, making reference to the following article number: 14102104L or 14102106L.

Wear parts (such as bulbs) and damage caused by improper handling, non-observance of the operating instructions or unauthorised interference are excluded from the warranty.

The performance of services under the warranty does not extend or renew the warranty period.

• Declaration of Conformity CE

This product conforms to the requirements of the applicable European and national directives. Conformity has been demonstrated. The relevant declarations and documents are held by the manufacturer.

Manufacturer / Service

When inquiring about your product, please have your receipt and product number (e.g. IAN 12345) ready as your proof of purchase.

Allumage/extinction Page 25

Orientation de la lampe Page 25

Fabricant/service Page 27

- Fabricant / service
