USER MANUAL IAN 327743 Livarno Lux

SPEAKER Assembly, operating and safety instructions

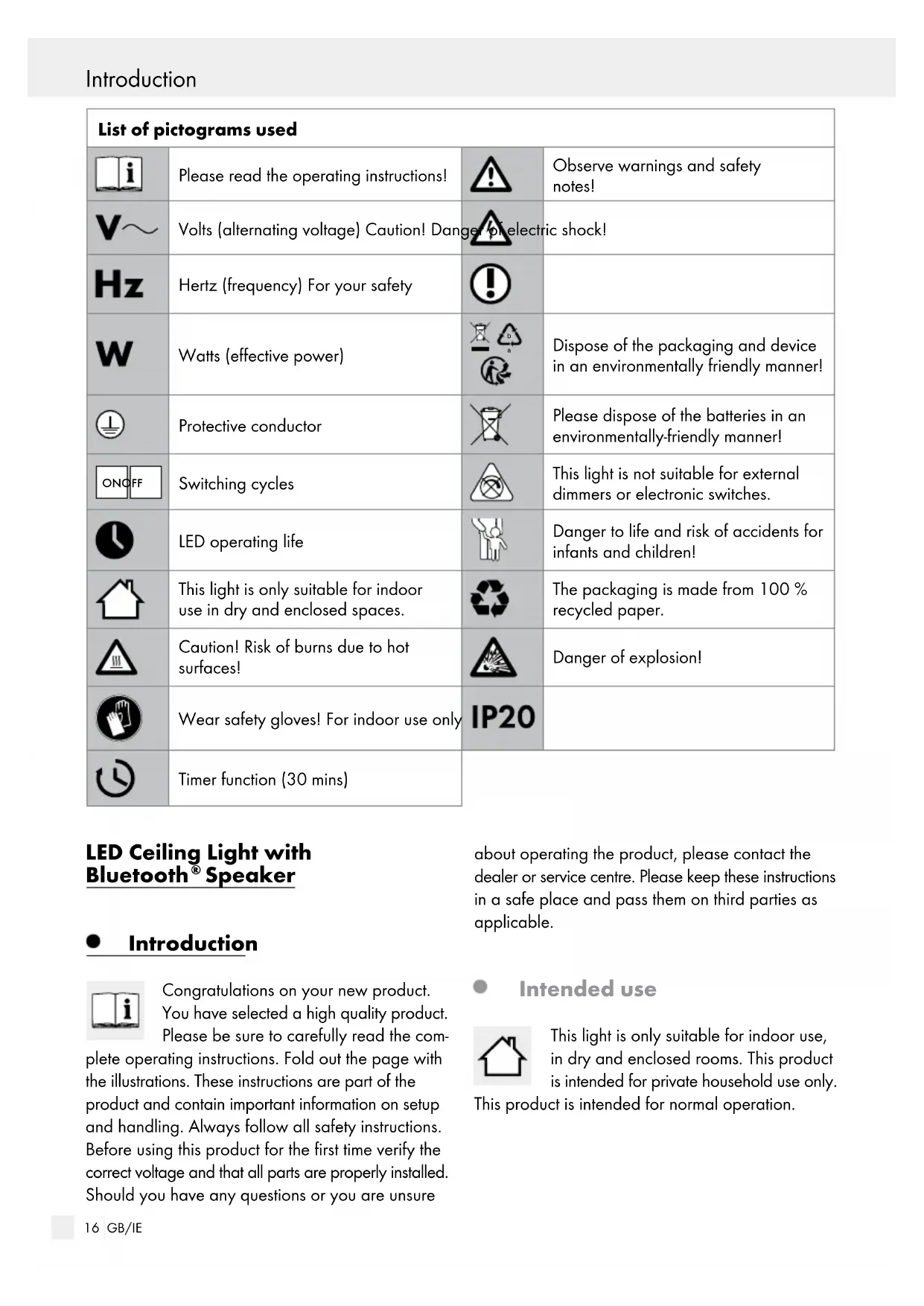

Dispose of the packaging and device in an environmentally friendly manner! Protective conductor Please dispose of the batteries in an environmentally-friendly manner! ON OFF Switching cycles This light is not suitable for external dimmers or electronic switches. LED operating life Danger to life and risk of accidents for infants and children! This light is only suitable for indoor use in dry and enclosed spaces. The packaging is made from 100 % recycled paper. Caution! Risk of burns due to hot surfaces! Danger of explosion! Wear safety gloves! For indoor use only Timer function (30 mins) LED Ceiling Light with Bluetooth

Speaker Introduction Congratulations on your new product. You have selected a high quality product. Please be sure to carefully read the com- plete operating instructions. Fold out the page with the illustrations. These instructions are part of the product and contain important information on setup and handling. Always follow all safety instructions. Before using this product for the first time verify the correct voltage and that all parts are properly installed. Should you have any questions or you are unsure about operating the product, please contact the dealer or service centre. Please keep these instructions in a safe place and pass them on third parties as applicable. Intended use This light is only suitable for indoor use, in dry and enclosed rooms. This product is intended for private household use only. This product is intended for normal operation. Introduction / Safety17 GB/IE Introduction Introduction / Safety Scope of delivery Check immediately after unpacking that the parts are complete and that the product is in proper condition. 1 LED ceiling light with Bluetooth speaker, model 14148106L 1 Remote control 1 Wall bracket for remote control (incl. 1 x adhesive pad, 2 x screws) 2 AAA batteries 3 Wall plugs 3 Screws 2 Protective tubes 1 Set of assembly instructions and instructions for use Parts description Light:

Mains connection cable (external)

Remote control Remote control:

Select song button (next)

Select song button (previous)

, 50 Hz Total rated power: max. 25 W (LED 20 W, speaker 5 W) Protection class: | / IP rating: IP20 LED: Illuminant: LED module Rated power: LED, max. 17.5 W IP rating: IP20 Speaker / bluetooth: Frequency range Speaker: 120 ‒ 20000 Hz Bluetooth version: 5.0 Bluetooth range: < 10 m Frequency range Bluetooth frequency: 2.4 GHz ISM frequency range RF output: max. +2dBm Remote control: Batteries: 2 x 1.5 V AAA Remote control range: 5‒6 m (infrared) Safety Safety information Damage due to failure to comply with these operating instructions will invalidate the guarantee! We assume no liability for consequential damage! We assume no liability for material damage or personal injury due to improper handling or failure to comply with the safety instructions! DANGER TO

LIFE AND RISK OF ACCIDENTS

FOR INFANTS AND CHILDREN! Never leave children unsupervised with the packaging materials. The packaging material18 GB/IE Safety poses a suffocation hazard. Children frequently underestimate the dangers. Do not leave the light or packaging material ly- ing unattended. Plastic film or bags, Styrofoam etc. can turn into dangerous toys for children. Avoid the risk of fatal injury from electric shock Ensure that a qualified electrician, or a person trained to carry out electrical installations, per- forms the electrical installation. Always check the light, power supply, and mains cable for damage before plugging it in. Never use the light if it shows any signs of damage. A damaged mains cable indicates a life-threat- ening danger due to electric shock. In the event of damage, repairs or other problems with the light please contact the service centre or a qualified electrician. Prior to installation, remove the fuse or switch off the circuit breaker (0 setting) in the fuse box. Prior to installation, verify that the mains voltage on site corresponds with the operating voltage required for the light (see

Technical data“). Ensure that the light does not come into contact with water or other liquids under any circum- stances. Never open any of the components of the elec- trical equipment or insert any objects into the same components. This will pose a risk of fatal injury from electric shock. Do not install the light on a wet or conductive substrate! Prevent fire and injury hazards Check the light for damage immediately after unpacking. Contact the service centre if you find any damage.

CAUTION! RISK OF BURNS

DUE TO HOT SURFACES! Ensure that the light has been switched off and has cooled before touching it, to avoid burn injuries. Lamps develop a lot of heat in the area of the lamp head. The illuminant in this light must be replaced by the manufacturer or an authorised technician or a similarly qualified person. This light can be dimmed using a remote control. Do not look directly into the light source (light bulb, LED etc.). Do not use optical instruments to look at the light source (e.g. magnifying glass). Safe working Mount the light so that it is protected from moisture and dirt. Carefully prepare the installation and allow sufficient time. Organise all parts and any necessary additional tools or materials before starting so they are easy to reach. Always be attentive when working! Always pay attention to what you are doing and act with common sense. Never install the light if you are having difficulty concentrating or do not feel well. Safety instructions for batteries / rechargeable batteries DANGER TO LIFE! Keep batteries / rechargeable batteries out of reach of children. If accidentally swallowed seek immediate medical attention. DANGER OF EXPLOSION! Never recharge non-rechargeable batteries. Do not short-circuit batteries / rechargeable batteries and / or open them. Overheating, fire or bursting can be the result. Never throw batteries / rechargeable batteries into fire or water. Do not exert mechanical loads to batteries / rechargeable batteries. Safety / Preparation / Prior to installation / Set-up19 GB/IE Safety Safety / Preparation / Prior to installation / Set-up Risk of leakage of batteries / rechargeable batteries Avoid extreme environmental conditions and temperatures, which could affect batteries / rechargeable batteries, e.g. radiators / direct sunlight. If batteries / rechargeable batteries have leaked, avoid contact with skin, eyes and mucous mem- branes with the chemicals! Flush immediately the affected areas with fresh water and seek medical attention! WEAR PROTECTIVE GLOVES! Leaked or damaged batteries / rechargeable batteries can cause burns on contact with the skin. Wear suitable protective gloves at all times if such an event occurs. In the event of a leakage of batteries / recharge- able batteries, immediately remove them from the product to prevent damage. Only use the same type of batteries / recharge- able batteries. Do not mix used and new bat- teries / rechargeable batteries. Remove batteries / rechargeable batteries if the product will not be used for a longer period. Risk of damage of the product Only use the specified type of battery / recharge- able battery! Insert batteries / rechargeable batteries accord- ing to polarity marks (+) and (-) on the battery / rechargeable battery and the product. Clean the contacts on the battery / rechargea- ble battery and in the battery compartment before inserting! Remove exhausted batteries / rechargeable batteries from the product immediately. Preparation Required tools and material The tools and materials specified are not included. This information and these values are non-binding and are only provided as a reference. The nature of the material is determined by the individual local conditions. - Pencil / marking tool - 2-pole circuit tester - Screwdriver - Electric drill - Drill bit (approx. ø 6 mm) - Hammer - Side cutter - Ladder Prior to installation Important: The electrical connection must be established by a qualified electrician or a person trained to perform electrical installations. This person must be familiar with the properties of the light and the connection regulations. Familiarise yourself with all the instructions and diagrams in this manual, as well as with the light itself, before you install it. Before installation ensure that the circuit, to which the light will be connected, is not energised. To do so, remove the fuse or switch off the circuit breaker in the fuse box (0 position). Check that the power is off using a 2-pole cir- cuit tester. Unpack the LED ceiling light and place it on a non-slip base. (Be careful not to scratch it). Apply light pressure to the plastic cover

with both hands. While pressing on it, turn the plastic cover

anti-clockwise (in the opposite direction of the arrow) as far as it will go and remove the plastic cover

by lifting it up. Set-up Installing the light Before installation, ensure that the circuit to which the light will be connected is not ener- gised. To do so, remove the fuse or switch off the circuit breaker in the fuse box (0 setting).20 GB/IE Set-up Hold the light fixture

to the desired installa- tion position. Bear in mind the drill hole in the light fixture

through which the mains cable will be inserted. Mark three drill holes for the screws

(see fig.). Drill the holes. Be sure not to damage the mains cable (external)

into the drilled holes. If necessary, use a hammer to help you. Guide the mains cable through the drill hole in the light fixture

provided for this purpose and attach the light to the ceiling. Before the light is connected, the insulated ground wiring must be prepared with an addi- tional insulation. Feed the mains connection cable (external)

through the included protective tubes

Note: Be sure to correctly connect the individ- ual leads on the mains cable (external)

Install the plastic cover

of the light. To do this, match the cover‘s three notches to the correspond- ing retaining bolts and press these upwards. Turn the cover clockwise (right, following the direction of the arrow) to fasten it. The adhe- sive label with the arrow can now be removed. Replace the fuse or switch on the circuit breaker (I setting) inside the fuse box. Your LED ceiling light with Bluetooth speaker is now ready for use. Installing the wall bracket Install the wall bracket

for the remote con- trol

requires two AAA batteries (included). Slide the battery cover (reverse) approx. 1 cm downwards to open and then lift off the cover. Insert two of the included AAA batteries in the battery compartment. Ensure correct polarity. Replace the cover and push it back to close the battery compartment. Your remote control

is ready to use. Operating the light by switch The LED ceiling light can be switched on and off using the wall switch. The light intensity al- ways corresponds to the brightness level that was last set. All other functions are controlled solely via remote control

Using the remote control ATTENTION! The functions of the remote control can only be used after switching the LED ceiling light

with the wall switch. Switching the light on / off

1. Switching the light on

Press the “ “ button (lighting)

, to switch the LED ceiling light on.

2. Switching the light off

Press the “ “ button (lighting)

, to switch the LED ceiling light off. Dimming the light

1. Increasing brightness

, to increase the brightness. Briefly pressing this button will gradually increase the brightness as pressed. Holding the “ “ button Dimmer +

will automatically increase the brightness to the maximum. Set-up / Maintenance and cleaning21 GB/IE Set-up Set-up / Maintenance and cleaning

2. Reducing the brightness

Press the “ “ button Dimmer –

, to reduce the brightness. Pressing it briefly will gradually decrease the brightness as pressed. Holding the “ “ button Dimmer –

will auto matically decrease the brightness to the minimu

for approx. 3 seconds to switch on timer mode. The light and the Bluetooth function (music) will automatically switch off after approx. 30 minutes.

2. Deactivating the timer

To deactivate the timer function during the 30 minute period, press the “ “ button

again, holding more than 3 seconds. The timer function is now turned off. Note: You can only turn the timer off when bluetooth is activated. Bluetooth connection

. A b eep confirms reception of the signal. Approx. 1–2 seconds later the Bluetooth con- nection will be accompanied by music and es- tablished automatically, the blue LED inside the LED ceiling light begins to flash rapidly. A brief melody will sound once connected. When connecting with your mobile, tablet, etc. for the first time, select Bluetooth connection „LED Ceiling Lamp“.

. A b eep confirms reception of the signal. Bluetooth has been disconnected. Once connected you may use the following audio controls: Controlling the music volume

1. Lowering the music volume

Press the “ “ button Volume –

to lower the volume. Pressing it briefly will gradually decrease the volume as pressed. Holding the “ “ button Volume –

2. Increasing the music volume

Press the “ “ button Volume +

to increase the volume. Pressing it briefly will gradually in-

ease the volume as pressed. Holding the “ “ button Volume +

will automatically increase the volume to the maximum. Selecting a song

Press the “ “ button Select song (previous)

to select a previous song or to replay the song from the beginning.

Press the “ ” button Select song (next)

select the next song.

will set the Bluetooth connection to standby for approx. 10 min. The Bluetooth con- nection will then be closed. Maintenance and cleaning WARNING! RISK OF ELECTRIC SHOCK! Disconnect the light from the mains circuit before cleaning. To do so, remove the fuse or switch off the circuit breaker in the fuse box (0 position).22 Warranty and serviceMaintenance and cleaning / Disposal / Warranty and service Do not use solvents, petrol, etc. They could damage the light. Allow the light to cool down completely. WARNING! RISK OF ELECTRIC SHOCK! For electrical safety, never clean the light with water or other liquids, or immerse it in water. Only use a dry, lint-free cloth for cleaning. Then replace the fuse or switch on the circuit breaker in the fuse box (I position). Disposal The packaging is made entirely of recyclable mate- rials, which you may dispose of at local recycling facilities.
