Product type	LED ceiling light with white color temperature control
Brand	Livarno Lux
Model	14143406L
Operating voltage	230-240 V~, 50 Hz
Rated power	25 W (LED)
Bulb type	Non-replaceable LED
Protection rating	IP20 (indoor only)
Protection class	I
Functions	White color temperature control (warm, neutral, cold), RGB lighting, night light, 30-minute timer, remote control
Remote control power supply	2 AAA batteries (included)
Package contents	Ceiling light, remote control, wall plugs (4), screws (4), protective caps (3), AAA batteries (2), manual
Warranty	36 months
Intended use	Indoor, dry and enclosed spaces
Dimmer compatibility	Not suitable for external dimmers and electronic switches
Care and cleaning	Disconnect power, let cool, clean with a dry, lint-free cloth
Safety	Do not immerse, do not look directly at the light source, installation by an electrician
Spare parts and repairability	Non-replaceable LED; replace the entire unit at end of life
General information	Domestic use; special color coordinates for RGB LEDs

Frequently Asked Questions - 14143406L Livarno Lux

How to install the ceiling light?

Electrical installation must be carried out by an electrician. Before mounting, turn off the fuse (position 0). Fix the base plate to the ceiling, connect the cables using the terminal block respecting polarity (L, N, ground). Turn the fuse back on after installation.

How to replace the batteries in the remote control?

Slide open the battery compartment cover. Replace the old batteries with 2 new AAA batteries, observing polarity (+/-). Close the cover.

What are the functions of the remote control?

The remote control allows you to turn on/off the light and the RGB frame, adjust brightness, choose between warm, neutral or cold white, activate the night light, vary the frame color, select an individual color (green, blue, red), and set a 30-minute timer.

Can I use an external dimmer with this lamp?

No, this lamp is not suitable for external dimmers or electronic switches. Use only the provided remote control.

How to clean the luminaire?

Before cleaning, disconnect power (fuse in position 0) and let the lamp cool down. Use a dry, lint-free cloth. Never use water or solvents.

What to do if the remote control stops working?

First check the batteries: replace them with new AAA batteries. Make sure nothing blocks the link between transmitter and receiver. If the problem persists, contact customer service.

Can the lamp be used as a night light?

Yes, the remote control has a night light function. However, do not use the RGB LEDs as room lighting or night light, because their color coordinates are special.

What is the lifespan of the LEDs?

The LEDs are not replaceable. At end of life, the entire ceiling light must be replaced. Lifespan depends on usage, but they are designed for a long life.

How to dispose of the product at end of life?

Do not dispose of it with household waste. Take it to an appropriate collection point. Used batteries must be recycled separately (Directive 2006/66/EC).

What warranty applies?

You receive a 36-month warranty from the date of purchase. It covers material and manufacturing defects, but excludes damage due to mishandling or normal wear. Keep the receipt and reference 14143406L.

USER MANUAL 14143406L Livarno Lux

Assembly, operating and safety instructions

NL BE

LED-PLAFONDLAMP MET KLEURTINTREGELING

Before reading, unfold the page containing the illustrations and familiarise yourself with all functions of the device.

FR BE

List of pictograms used

Introduction

Intended use Page 14
Scope of delivery.. Page 15
Parts description.. Page 15
Technical data.. 15

Safety

Safety information.. Page 15
Safety instructions for batteries/rechargeable batteries Page 16

Preparation. Page 17

Required tools and material . Page 17

Prior to installation

Initial use

Mounting the light. Page 17
Inserting/Replacing batteries (remote control) Page 18
Controlling light effects with the remote control. Page 18

Maintenance and cleaning.. Page 18

Disposal

Warranty and service.. Page 19

Warranty declaration.. Page 19
Service address.. Page 19
Declaration of conformity. Page 19
Manufacturer.. Page 19

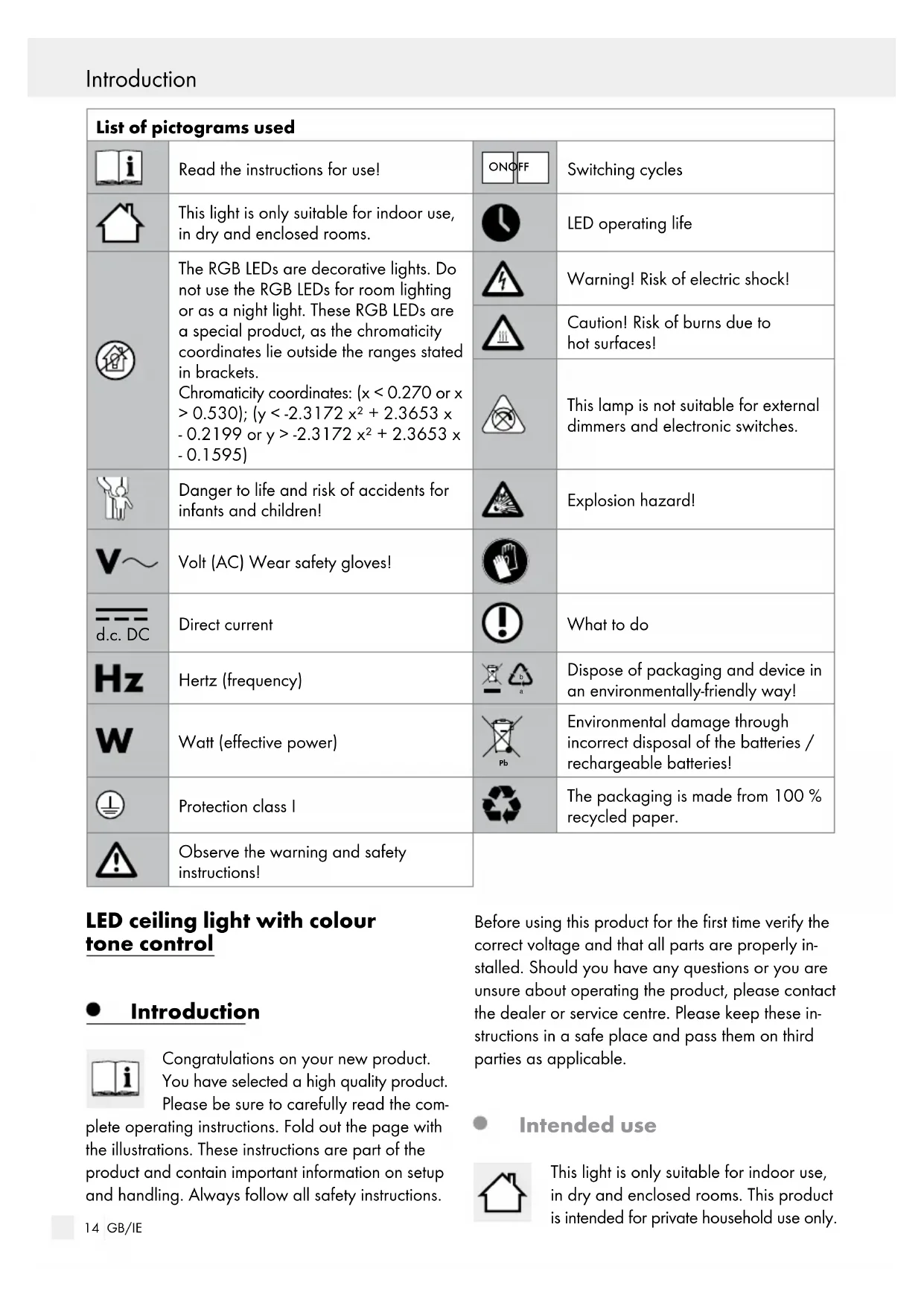

List of pictograms used
i	Read the instructions for use!	ONOFF	Switching cycles
	This light is only suitable for indoor use, in dry and enclosed rooms.		LED operating life
	The RGB LEDs are decorative lights. Do not use the RGB LEDs for room lighting or as a night light. These RGB LEDs are a special product, as the chromaticity coordinates lie outside the ranges stated in brackets. Chromaticity coordinates: (x < 0.270 or x > 0.530); (y < -2.3172 x² + 2.3653 x -0.2199 or y > -2.3172 x² + 2.3653 x -0.1595)		Warning! Risk of electric shock!
			Caution! Risk of burns due to hot surfaces!
			This lamp is not suitable for external dimmers and electronic switches.
	Danger to life and risk of accidents for infants and children!		Explosion hazard!
V~	Volt (AC) Wear safety gloves!
d.c. DC	Direct current		What to do
Hz	Hertz (frequency)	a	Dispose of packaging and device in an environmentally-friendly way!
W	Watt (effective power)	Pb	Environmental damage through incorrect disposal of the batteries / rechargeable batteries!
	Protection class I		The packaging is made from 100% recycled paper.
	Observe the warning and safety instructions!

LED ceiling light with colour tone control

Introduction

Congratulations on your new product. You have selected a high quality produc Please be sure to carefully read the co

plete operating instructions. Fold out the page with the illustrations. These instructions are part of the product and contain important information on setup and handling. Always follow all safety instructions.

Before using this product for the first time verify the correct voltage and that all parts are properly installed. Should you have any questions or you are unsure about operating the product, please contact the dealer or service centre. Please keep these instructions in a safe place and pass them on third parties as applicable.

Intended use

This light is only suitable for indoor use, in dry and enclosed rooms. This product is intended for private household use only.

The RGB LEDs are decorative lights. Do not use the RGB LEDs for room lighting or as a night light. These RGB LEDs are

a special product, as the chromaticity coordinates lie outside the ranges stated in brackets.

Chromaticity coordinates: (x < 0.270 or x > 0.530)

$$ \begin{array}{l} \left| y < - 2. 3 1 7 2 x ^ {2} + 2. 3 6 5 3 x - 0. 2 1 9 9 \text {o r} y > - 2. 3 1 7 2 x ^ {2} \right. \ + 2. 3 6 5 3 \times - 0. 1 5 9 5) \ \end{array} $$

Scope of delivery

Check immediately after unpacking that the parts are complete and that the product is in proper condition.

1 LED ceiling light with colour tone control, model 14143406L
Remote control
4 Wall plugs
4 Screws
3 Protective tubes
2 Batteries AAA
1 Set of assembly instructions and instructions for use

Parts description

1

Dowel

2

Base plate

3

Lustre terminal

4

Mains connection cable (external)

5

Screws

6

Rubber membrane

7

Lampshade

8

Remote control

9

Batteries

10

Battery compartment cover

Technical data

Light:

Model no.: 14143406L

Operating voltage: 230 - 240V 50Hz

Lamps: LEDs (non-replaceable)

Rated power:LED,25W

Protection class: I/

Protection type: IP20 (only suitable for indoor use)

LED:

Illuminant: LEDs (non-replaceable)

Rated power: max. 21 W

Remote control:

Batteries: 2 x 1.5 V AAA

Safety

Safety information

Damage due to failure to comply with these operating instructions will invalidate the guarantee! We assume no liability for consequential damage! We assume no liability for material damage or personal injury due to improper handling or failure to comply with the safety instructions!

1

WARNING! DANGER TO LIFE AND RISK OF ACCIDENTS FOR INFANTS AND CHILDREN!

Never leave children unsupervised with the packaging materials. The packaging material poses a suffocation hazard. Children frequently underestimate the dangers.

Do not leave the light or packaging material lying unattended. Plastic film or bags, Styrofoam etc. can turn into dangerous toys for children.

Avoid the risk of fatal injury from electric shock

Ensure that a qualified electrician, or a person trained to carry out electrical installations, performs the electrical installation.
Always check the light, power supply, and mains cable for damage before plugging it in. Never use the light if it shows any signs of damage.

4

WARNING!

A damaged mains cable indicates a life-threatening danger due to electric shock. In the event of damage, repairs or other problems with the

light please contact the service centre or a qualified electrician.

Prior to installation, remove the fuse or switch off the circuit breaker (O setting) in the fuse box.
Prior to installation, verify that the mains voltage on site corresponds with the operating voltage required for the light (see "Technical data").
Ensure that the light does not come into contact with water or other liquids under any circumstances.
Never open any of the components of the electrical equipment or insert any objects into the same components. This will pose a risk of fatal injury from electric shock.
Do not install the light on a wet or conductive substrate!

Prevent fire and injury hazards

Check the light for damage immediately after unpacking. In this case, contact the service centre for a replacement.

CAUTION! RISK OF BURNS DUE TO HOT SURFACES!

Ensure that the light has been switched off and has cooled before touching it, to avoid burn injuries. Lamps develop a lot of heat in the area of the lamp head.

The lamp's light source is not replaceable, the entire light needs to be replaced if the light source reaches the end of its service life.

This lamp is not suitable for external dimmer and electronic switches.

Do not look directly into the light source (light bulb, LED etc.).
Do not use optical instruments to look at the light source (e.g. magnifying glass).

Safe working

Mount the light so that it is protected from moisture and dirt.
Carefully prepare the installation and allow sufficient time. Organise all parts and any

necessary additional tools or materials before starting so they are easy to reach.
Always be attentive when working! Always pay attention to what you are doing and act with common sense. Never install the light if you are having difficulty concentrating or do not feel well.

Safety instructions for batteries/rechargeable batteries

DANGER TO LIFE!

Keep batteries / rechargeable batteries out of reach of children. If accidentally swallowed seek immediate medical attention.

DANGER OF EXPLOSION!

Never recharge non-rechargeable batteries. Do not short-circuit batteries / rechargeable batteries and / or open them. Overheating, fire or bursting can be the result.
Never throw batteries / rechargeable batteries into fire or water.
Do not exert mechanical loads to batteries / rechargeable batteries.

Risk of leakage of batteries / rechargeable batteries

Avoid extreme environmental conditions and temperatures, which could affect batteries / rechargeable batteries, e.g. radiators / direct sunlight.
If batteries / rechargeable batteries have leaked, avoid contact with skin, eyes and mucous membranes with the chemicals! Flush immediately the affected areas with fresh water and seek medical attention!

WEAR PROTECTIVE GLOVES!

Leaked or damaged batteries / rechargeable batteries can cause burns on contact with the skin. Wear suitable protective gloves at all times if such an event occurs.

In the event of a leakage of batteries / rechargeable batteries, immediately remove them from the product to prevent damage.
Only use the same type of batteries / recharge-able batteries. Do not mix used and new batteries/rechargeable batteries.
Remove batteries / rechargeable batteries if the product will not be used for a longer period.

Familiarise yourself with all the instructions and diagrams in this manual, as well as with the light itself, before you install it.

Before installation ensure that the circuit, to which the light will be connected, is not energised. To do so, remove the fuse or switch off the circuit breaker in the fuse box (0 position).

Use a 2-pole voltage tester to verify cables are not live.

Risk of damage of the product

Only use the specified type of battery / rechargeable battery!
Insert batteries / rechargeable batteries according to polarity marks (+) and (-) on the battery / rechargeable battery and the product.
Clean the contacts on the battery / rechargeable battery and in the battery compartment before inserting!
Remove exhausted batteries/rechargeable batteries from the product immediately.
- Only use the specified type of battery / rechargeable battery! - Insert batteries / rechargeable batteries according to polarity marks (+) and (-) on the battery / rechargeable battery and the product. - Clean the contacts on the battery / rechargeable battery and in the battery compartment before inserting! - Remove exhausted batteries / rechargeable batteries from the product immediately.

Initial use

Mounting the light

Remove the lampshade 7 by turning it counterclockwise from the base plate 2.
Hold the base plate 2 against the ceiling and mark the drill holes using the holes in the base plate 2 intended for the screws 5
Drill the holes ( 06mm approx. 40~mm deep). Be sure not to damage the supply line.
Insert the wall plugs 1 into the drilled holes. If necessary, use a hammer to do so.
Feed the mains connection cord (extern) 4 through the rubber membrane 6. Ensure that the membrane is positioned correctly.
- Attach the base plate 2 to the ceiling using the screws 5.
Pull the protective tubes over the cables L, N and the protective conductor of the mains connection cable (external) 4.
Now use the lustre terminal 3 to connect the connection cable for the light to the mains connection cable (external) 4.
- Be sure to correctly connect the individual conductors of the mains connection cable (external) 4: live conductor, black or brown = symbol L, neutral conductor, blue = symbol N (protection class I/2).
Ensure that it fits securely.
□ Attach the lampshade 7 by twisting it clockwise onto the base plate 2.
Replace the fuse or switch on the circuit breaker in the fuse box.

Your light is now ready to use.

Preparation

- Required tools and material

The tools and materials specified are not included. This information and these values are non-binding and are only provided as a reference. The nature of the material is determined by the individual local conditions.

• Pencil/making tool
• 2-pole voltage tester
• Screwdriver
• Electric drill
• Drill bit (approx. 6mm
• Side cutting pliers
• Ladder

Prior to installation

Important: The electrical connection must be established by a qualified electrician or a person trained to perform electrical installations.

This person must be familiar with the properties of the light and the connection regulations.

• Inserting/Replacing batteries (remote control)

If the range of the remote control reduces, the battery needs to be replaced.

Slide the battery cover on the reverse side of the remote control 8 from the remote control 8 in the direction of the arrow.
Remove the batter.
Insert the new battery (AAA) into the remote control.

Note: The correct polarity is indicated in the battery compartment of the remote control 8.

Slide the battery cover bdd onto the remote control 8.
Controlling light effects with the remote control

Note: The transmitter for the remote control 8 is located on the opposite side of the battery compartment. Ensure there are no obstacles between the transmitter and the receiver.

Light ON/OFF

Frame (RGB) ON/OFF

Increase brightness

Reduce brightness

Cold white

Warm white

Nightlight function

Colour change frame

Green/blue/red single colours

Button has no function

30-minute timer

Warm white/neutral white/cold white

- Maintenance and cleaning

WARNING! RISK OF ELECTRIC SHOCK!

Disconnect the light from the mains circuit before cleaning. To do so, remove the fuse or switch off the circuit breaker in the fuse box (0 position).

WARNING! RISK OF ELECTRIC SHOCK!

For electrical safety, never clean the light with water or other fluids, or immerse it in water.

CAUTION! RISK OF BURNS DUE TO HOT SURFACES!

Allow the lamp to cool down completely.

Do not use solvents, petrol, etc. Otherwise the lamp will be damaged.
Only clean with a dry, lint-free cloth.
Replace the fuse or switch on the circuit breaker (Position I) inside the fuse box.

Disposal

The packaging is made entirely of recyclable materials, which you may dispose of at local recycling facilities.

Observe the marking of the packaging materials for waste separation, which are marked with abbreviations (a) and numbers (b) with following meaning: 1-7: plastics / 20-22: paper and fibreboard/80-98: composite materials.

The product and packaging materials are recyclable, dispose of it separately for better waste treatment. The Triman logo is valid in France only.

To help protect the environment, please dispose of the product properly when it has reached the end of its useful life and not in the household waste. Information on collection points and their opening hours can be obtained from your local authority.

Faulty or used batteries / rechargeable batteries must be recycled in accordance with Directive 2006/66/EC and its amendments. Please return the batteries / rechargeable batteries and/or the product to the available collection points.

Environmental damage through incorrect disposal of the batteries / rechargeable batteries!

Batteries / rechargeable batteries may not be disposed of with the usual domestic waste. They may contain toxic heavy metals and are subject to hazardous waste treatment rules and regulations. The chemical symbols for heavy metals are as follows: Cd = cadmium, Hg = mercury, Pb = lead. That is why you should dispose of used batteries / rechargeable batteries at a local collection point.

Warranty and service

Warrantydeclaration

This product has a warranty of 36 months from the date of purchase. The appliance has been carefully produced under strict quality control. During the warranty period we will repair any defects in material or manufacture free of charge. If defects are detected during the warranty period, please send the product to the service address listed, specifying the following item number: 14143406L.

Wear parts (such as bulbs) and damage caused by improper handling, failure to observe the operating

instructions or unauthorised manipulation are excluded from the warranty. Providing warranty services does not extend or renew the warranty period.

Serviceaddress

For all inquiries about your product, please have your receipt and the article number (e.g. IAN 123456_7890) ready as your proof of purchase.

Declaration of conformity

This product fulfils the requirements of the applicable European and national directives. Conformity has been demonstrated. The relevant declarations and documents are held by the manufacturer.

Manufacturer

NOSTE OCHRANNÉ RUKAVICE!

Vyteklé i poskozené baterie nebo akumulátory mohou pri kontaktu s pokožkou zpúsobit jej poleptán. Noste proto vchodné rukavice.

NOSTE OCHRANNÉ RUKAVICE!
