USER MANUAL TCVC 2045 S EINHELL

Danger! When using the equipment, a few safety pre- cautions must be observed to avoid injuries and damage. Please read the complete operating instructions and safety regulations with due care. Keep this manual in a safe place, so that the in- formation is available at all times. If you give the equipment to any other person, hand over these operating instructions and safety regulations as well. We cannot accept any liability for damage or accidents which arise due to a failure to follow these instructions and the safety instructions. Explanation of the symbols used (see Fig. 12)

1. Danger! - Read the operating instructions to

reduce the risk of injury.

1. Safety regulations

WARNING! Read all safety warnings, instructions, illust- rations and specifi cations provided with this power tool. Failure to follow all instructions listed below may result in electric shock, fi re and/or serious injury. Save all warnings and instructions for future reference.

Danger! Read the operating instructions be- fore assembling and using the appliance for the first time.

Check that the mains voltage is the same as the mains voltage specified on the rating plate.

Pull out the power plug in the following cir- cumstances: whenever the appliance is not in use, before opening the appliance and before all cleaning and maintenance work.

Never clean the appliance with solvents.

Never pull the plug out of the socket by pulling the cable.

Never leave the appliance unattended when operational.

Keep away from children.

Take care to ensure that the power cable does not get damaged by being run over, crushed, pulled or suchlike.

Do not use the machine if the power cable is in a less than perfect condition.

If the power cable has to be replaced, the replacement must comply with the design specifications of the manufacturer. Power cable: H 05 VV - F 2 x 0.75 mm

Never vacuum the following: burning mat- ches, smoldering ash and cigarette butts, combustible, caustic, inflammable or explosi- ve substances, vapor or liquids.

This appliance is not suitable for vacuuming dust which can be harmful to health.

Store the appliance in a dry indoor location.

Never use the appliance if it is damaged.

Only allow the appliance to be serviced by an authorized after sales service outlet.

Only use the appliance to carry out work for which has been designed.

Take extra care when cleaning steps.

Use only genuine accessories and spare parts. This equipment is not designed to be used by people (including children) with limited physical, sensory or mental capacities or those with no experience and/or knowledge unless they are su- pervised by a person who is responsible for their safety or they have received instructions from such a person in how to use the equipment safely. Children must always be supervised in order to ensure that they do not play with the equipment.

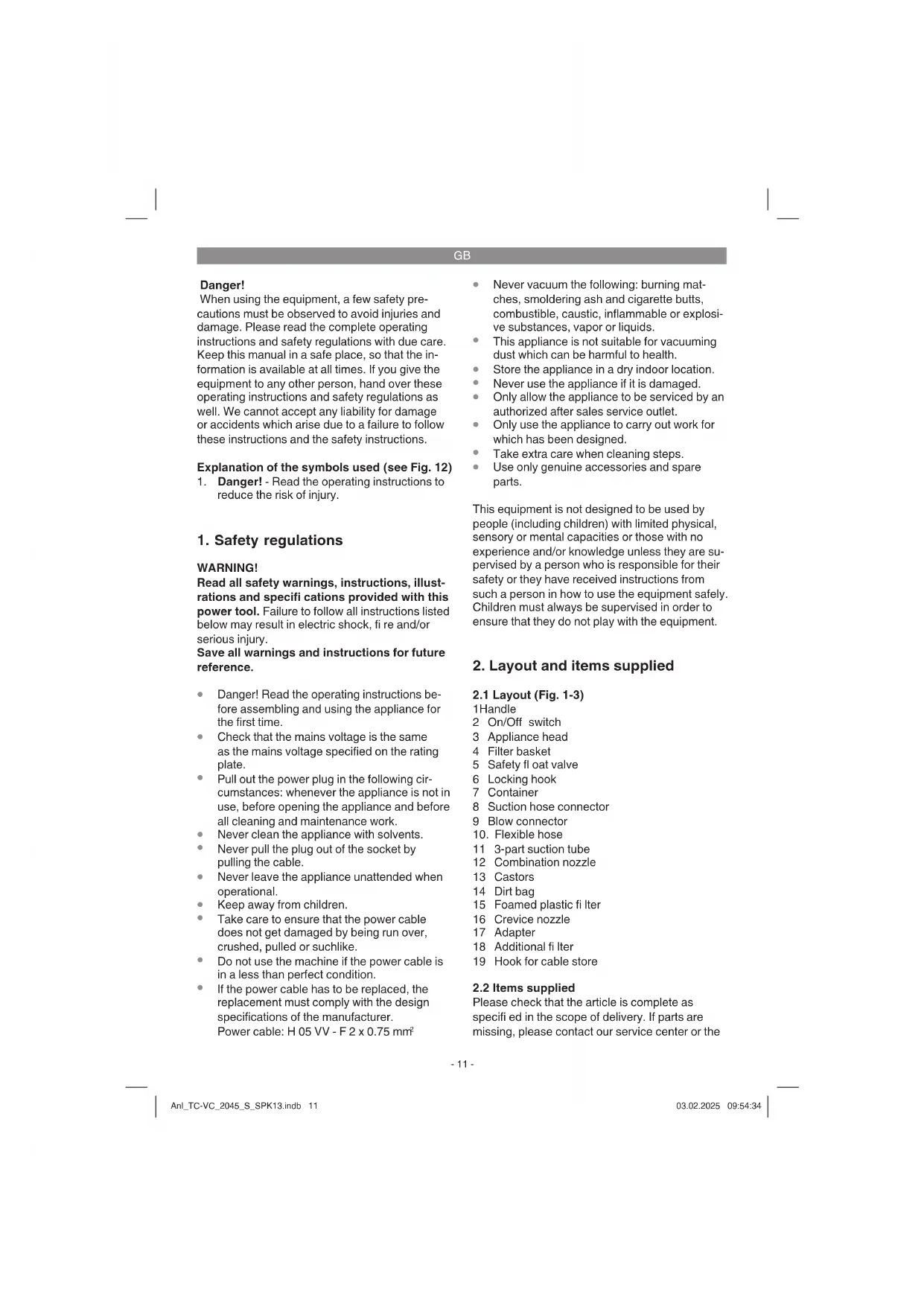

2. Layout and items supplied

11 3-part suction tube 12 Combination nozzle 13 Castors 14 Dirt bag 15 Foamed plastic fi lter 16 Crevice nozzle 17 Adapter 18 Additional fi lter 19 Hook for cable store

Please check that the article is complete as specifi ed in the scope of delivery. If parts are missing, please contact our service center or the Anl_TC-VC_2045_S_SPK13.indb 11Anl_TC-VC_2045_S_SPK13.indb 11 03.02.2025 09:54:3403.02.2025 09:54:34GB

sales outlet where you made your purchase at the latest within 5 working days after purchasing the product and upon presentation of a valid bill of purchase. Also, refer to the warranty table in the service information at the end of the operating instructions.

Open the packaging and take out the equip- ment with care.

Remove the packaging material and any packaging and/or transportation braces (if available).

Check to see if all items are supplied.

Inspect the equipment and accessories for transport damage.

If possible, please keep the packaging until the end of the guarantee period. Danger! The equipment and packaging material are not toys. Do not let children play with plastic bags, foils or small parts. There is a danger of swallowing or suff ocating!

Flexible suction hose

3-piece suction tube

Original operating instructions The equipment comes with a chain (z) on the tank bottom. The chain helps to prevent static charging during use.

The wet and dry vacuum cleaner is designed for wet and dry vacuuming using the approp- riate fi lter. The appliance is not suitable for the vacuuming of combustible, explosive or harmful substances. The equipment is to be used only for its prescri- bed purpose. Any other use is deemed to be a case of misuse. The user / operator and not the manufacturer will be liable for any damage or inju- ries of any kind caused as a result of this. Please note that our equipment has not been de- signed for use in commercial, trade or industrial applications. Our warranty will be voided if the equipment is used in commercial, trade or indust- rial businesses or for equivalent purposes.

5. Before starting the equipment

Warning! Before you connect the equipment to the mains supply make sure that the data on the rating plate are identical to the mains data. The equipment may be connected only to a shock-proof socket-outlet.

5.1 Appliance assembly

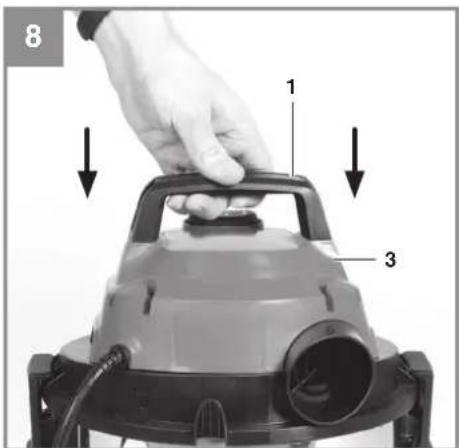

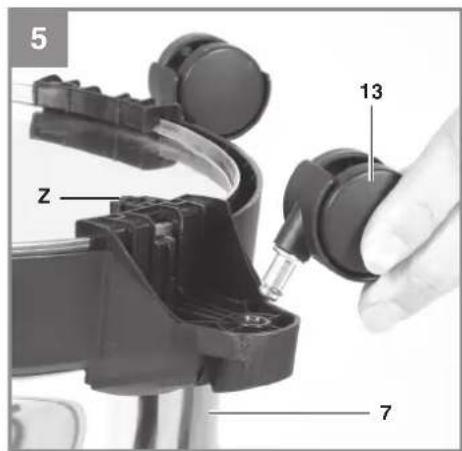

Fitting the appliance head (Fig. 4) The appliance head (3) is fastened to the con- tainer (7) by the locking hook (6). To remove the appliance head (3), open the locking hook (6) and remove the appliance head (3). When fi tting the appliance head (3), make sure that the locking hook (6) locks into place correctly. Fitting the castors (Fig. 5) Fit the castors (13) in accordance with Fig. 5. Fitting the handle (Fig. 8) Fit the handle (1) by pressing it into the opening provided for it in the equipment head (3).

5.2 Fitting the fi lter

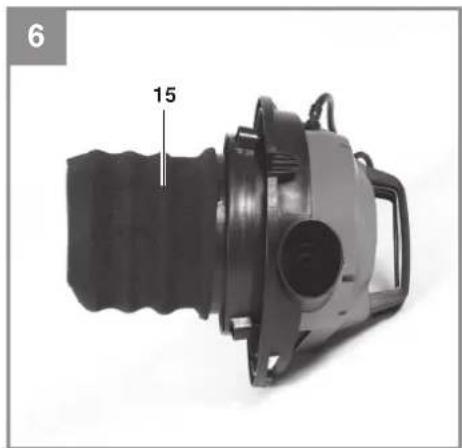

Never use the wet and dry vacuum cleaner wit- hout a fi lter! Always ensure that the fi lters are perfectly secure! Fitting the foam fi lter (Fig. 6) For wet-vacuuming, slip the supplied foamed plastic fi lter (15) over the fi lter basket. Anl_TC-VC_2045_S_SPK13.indb 12Anl_TC-VC_2045_S_SPK13.indb 12 03.02.2025 09:54:3403.02.2025 09:54:34GB

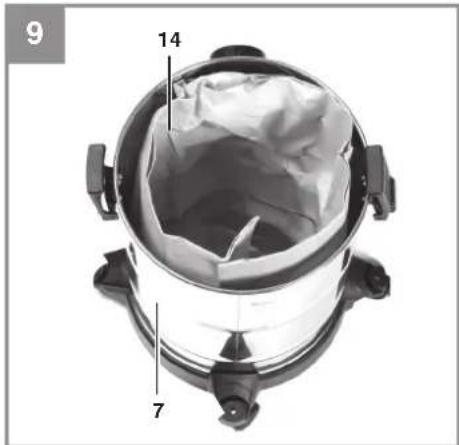

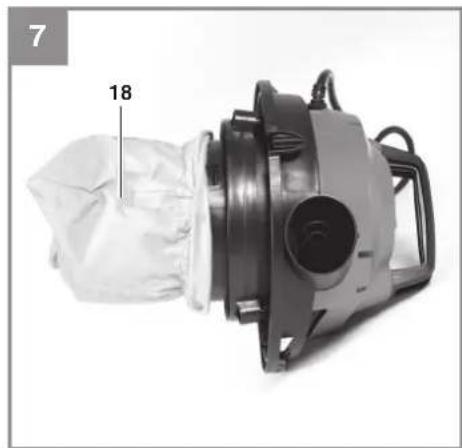

Fitting the additional fi lter (Fig. 7) For dry vacuum cleaning always use the supplied additional fi lter (18). Mount the additional fi lter, so that no air is sucked through the fi lter cage (4) without being fi ltered. Assembling the dirt bag (Fig. 9) For vacuuming fi ne, dry dirt it is recommended that you fi t the dirt bag (14). Slip the dirt bag (14) over the vacuuming hole. The dirt bag (14) is sui- table for dry-vacuuming only. The dirt bag makes it easier to dispose of the sucked-in dust.

5.3 Fitting the suction hose (Fig. 3, 10, 11)

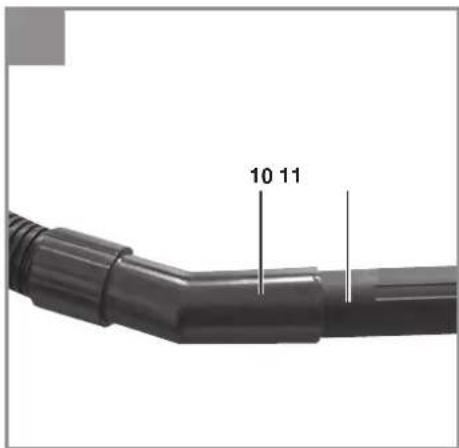

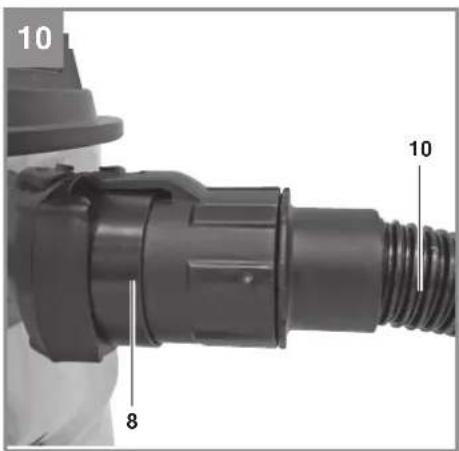

Connect the suction hose (10) to the correspon- ding connector on the wet and dry vacuum clea- ner, depending on the application required. Vacuuming Connect the suction hose (10) to the suction hose connector (8) Blowing Connect the suction hose (10) to the blow con- nector (9) One or more of the elements which make up the 3-part suction tube (11) can be attached to the suction hose (10) to extend it. The adapter (17) must be inserted between the suction tube (10) and the combination nozzle (12) or crevice nozzle (16).

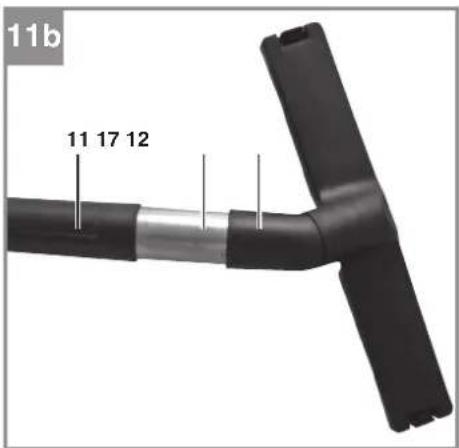

Combination nozzle (Fig. 11b) The combination nozzle (12) is for vacuuming so- lids and liquids over medium to large areas. Crevice nozzle (Fig. 11a) The crevice nozzle (16) is designed for vacu- uming solids and liquids in corners, edges and other areas that are diffi cult to access.

Use the dirt bag (14) and the additional fi lter (18) for dry vacuuming (see point 5.2). Always ensure that the fi lters are perfectly secure.

For wet-vacuuming, use the foam fi lter (15) (see point 5.2). Check that the fi lter is securely fi tted at all times. When wet vacuuming, the fl oating safety switch (5) closes when the maximum tank level is reached. At the same time, the suction noise of the equipment will change and become louder. You must then switch off the equipment and em- pty the tank. Danger! The wet/dry vac is not suitable for the vacuuming of combustible liquids. For wet vacuuming, use only the supplied foam fi lter.

Connect the suction hose (10) to the blow con- nector (9) on the wet/dry vac.

7. Cleaning, maintenance and

ordering of spare parts Danger! Always pull out the mains power plug before star- ting any cleaning work.

Keep all safety devices, air vents and the motor housing free of dirt and dust as far as possible.

We recommend that you clean the equipment immediately after you use it.

7.2 Cleaning the appliance head (3)

Clean the appliance regularly with a damp cloth and some soft soap. Do not use cleaning agents or solvents; these may be aggressive to the plas- tic parts in the appliance.

7.3 Cleaning the container (7)

The container can be cleaned with a damp cloth and some soft soap or under running water, de- pending on the amount of dirt. Anl_TC-VC_2045_S_SPK13.indb 13Anl_TC-VC_2045_S_SPK13.indb 13 03.02.2025 09:54:3403.02.2025 09:54:34GB

7.4 Cleaning the foam fi lter (15)

Clean the foam fi lter (15) with a little soft soap un- der running water and allow it to air-dry.

At regular intervals and before each use, check that the fi lters in the wet and dry vacuum cleaner are securely fi tted.

7.6 Ordering spare parts

Please provide the following information on all orders for spare parts:

Model/type of the equipment

Article number of the equipment

ID number of the equipment

Part number of the required spare part For our latest prices and information please go to www.Einhell-Service.com

8. Replacing the power cable

If the power cable for this equipment is damaged, it must be replaced by the manufacturer or its after-sales service or similarly trained personnel to avoid danger.

9. Disposal and recycling

The equipment is supplied in packaging to pre- vent it from being damaged in transit. The raw materials in this packaging can be reused or recycled. The equipment and its accessories are made of various types of material, such as metal and plastic. Defective components must be dispo- sed of as special waste. Ask your dealer or your local council.

Store the equipment and accessories out of children’s reach in a dark and dry place at above freezing temperature. The ideal storage tempe- rature is between 5 and 30 °C. Store the electric tool in its original packaging. Disposal Power tools, rechargeable batteries, accessories and packaging should be sorted for environmen- tal-friendly recycling. Do not dispose of power tools and batteries/re- chargeable batteries into household waste! Only for EU countries: According to the Directive 2012/19/EU on waste electrical and electronic equipment and its trans- position into national law, power tools that are no longer usable, and, according to the Directive 2006/66/EC, defective or drained batteries must be collected separately and disposed of in an en- vironmentally correct manner. If disposed incorrectly, waste electrical and elect- ronic equipment may have harmful eff ects on the environment and human health, due to the poten- tial presence of hazardous substances. Only for United Kingdom: According to The Waste Electrical and Electronic Equipment Regulations 2013 (SI 2013/3113) (as amended) and the Waste Batteries and Ac- cumulators Regulations 2009 (SI 2009/890) (as amended), products that are no longer usable must be collected separately and disposed of in an environmentally friendly manner. The reprinting or reproduction by any other me- ans, in whole or in part, of documentation and papers accompanying products is permitted only with the express consent of the Einhell Germany AG. Subject to technical changes Anl_TC-VC_2045_S_SPK13.indb 14Anl_TC-VC_2045_S_SPK13.indb 14 03.02.2025 09:54:3403.02.2025 09:54:34GB

Service information We have competent service partners in all countries named on the guarantee certifi cate whose contact details can also be found on the guarantee certifi cate. These partners will help you with all service re- quests such as repairs, spare and wearing part orders or the purchase of consumables. Please note that the following parts of this product are subject to normal or natural wear and that the following parts are therefore also required for use as consumables. Category Example Wear parts* Combination nozzle, crevice nozzle, upholstery nozzle, electric tool adapter, etc. Consumables* Pleated fi lter, foam fi lter, dirt bag, additional fi lter, etc. Missing parts

• Not necessarily included in the scope of delivery! In the eff ect of defects or faults, please register the problem on the internet at www.Einhell-Service.com. Please ensure that you provide a precise description of the problem and answer the following questions in all cases:

Did the equipment work at all or was it defective from the beginning?

Did you notice anything (symptom or defect) prior to the failure?

What malfunction does the equipment have in your opinion (main symptom)? Describe this malfunction. Anl_TC-VC_2045_S_SPK13.indb 15Anl_TC-VC_2045_S_SPK13.indb 15 03.02.2025 09:54:3503.02.2025 09:54:35F
