TH-VC 1318 - Vacuum Cleaner EINHELL - Free user manual and instructions

Product type	Wet and dry vacuum cleaner
Brand	Einhell
Model	TH-VC 1318
Power consumption	1300 W
Tank capacity	18 L
Filter type	Washable cartridge filter
Blower function	Yes
Cable length	3 m
Hose length	2 m
Hose diameter	35 mm
Weight	4.5 kg
Dimensions (L x W x H)	35 x 35 x 45 cm
Power supply	230 V / 50 Hz
Protection class	II
Tank material	Stainless steel
Included accessories	Floor nozzle, crevice nozzle, brush, additional filters
Maintenance	Clean the filter after each use; empty the tank after vacuuming liquids
Spare parts available	Yes, via Einhell after-sales service

Frequently Asked Questions - TH-VC 1318 EINHELL

How to use the blower function on the Einhell TH-VC 1318 vacuum cleaner?

Connect the hose to the air outlet designed for this purpose (usually marked with a blower symbol). Turn on the device and direct the airflow where needed. Refer to the manual for detailed diagrams.

Can I vacuum liquids with this vacuum cleaner?

Yes, the TH-VC 1318 is a wet and dry vacuum cleaner. Make sure to remove the dust filter (cartridge) before vacuuming liquids and use the appropriate filter. Empty the tank after vacuuming.

How to clean the vacuum cleaner filter?

The cartridge filter is washable. Remove it, tap off large residues, then rinse with clear water. Let it dry completely before reinstalling. Do not use harsh detergents.

The vacuum cleaner stops suddenly, what to do?

Check if the tank is full (especially in liquid mode). A stop can also be caused by overheating: unplug, let it cool for 30 min. Check the cable and plug.

What is the tank capacity of the TH-VC 1318?

The tank capacity is 18 liters for solids and approximately 12 liters for liquids (to avoid overflow).

Where can I find spare parts for my Einhell vacuum cleaner?

You can order spare parts on the official Einhell website or from authorized dealers. The filter and accessories are readily available.

How to optimize suction power?

Make sure the filter is clean, the tank is not too full, and the connections are well sealed. Use the appropriate nozzle for the surface.

The vacuum cleaner makes an abnormal noise, is it serious?

An unusual noise may come from an object stuck in the hose or turbine. Unplug the device, inspect the ducts and remove any obstruction. If the noise persists, contact customer service.

Can I use the vacuum cleaner without a bag?

Yes, the TH-VC 1318 is a bagless vacuum cleaner. Waste is collected directly in the tank. The cartridge filter ensures filtration.

How to change the suction hose?

Unplug the device. Remove the old hose by slightly turning the locking ring. Insert the new hose by aligning the notches and lock. Refer to the manual for details.

USER MANUAL TH-VC 1318 EINHELL

Close-up of a cylindrical device with labeled parts, showing internal components and wiring (no readable text or symbols)

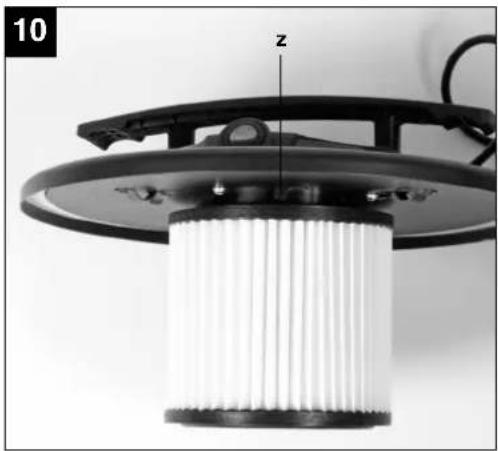

Close-up of a mechanical component with a cylindrical filter and labeled 'z' (no text or symbols beyond label)

"Caution - Read the operating instructions to reduce the risk of inquiry"

Wait at least 24 hours before vacuuming an oven or a fireplace in order to be sure that the fire has gone out and the ash has cooled down. Only for cold ash, see the operating instructions!

GB

⚠️ Important!

When using the appliance, a few safety precautions must be observed to avoid injuries and damage. Please read the complete operating instructions with due care. Keep this manual in a safe place, so that the information is available at all times. If you give the appliance to any other person, hand over these operating instructions as well. We cannot accept any liability for damage or accidents which arise due to a failure to follow these instructions and the safety instructions.

1. Safety regulations

CAUTION

Read all safety regulations and instructions. Any failures made in following the safety regulations and instructions may result in an electric shock, fire and/or serious injury.

Keep all safety regulations and instructions in a safe place for future use.

This appliance is not to be used by people (including children) with disabilities, whether physical, sensory or cognitive, or by people without prior experience/adequate knowledge of the appliance, without supervision by qualified safety personnel, or instructions on how to use it. Children must always be supervised in order to ensure that they do not play with the appliance.

● Important: Read the operating instructions before assembling and using the appliance for the first time.
- Check that the mains voltage is the same as the mains voltage specified on the rating plate.
●Pull out the power plug in the following circumstances: Whenever the appliance is not in use, before opening the appliance and before all cleaning and maintenance work.
●Never clean the appliance with solvents.
●Never pull the plug out of the socket by pulling the cable.
●Never leave the appliance unattended when operational.
- Keep away from children.
●Take care to ensure that the power cable does not get damaged by being run over, crushed, pulled or suchlike.
- Do not use the machine if the power cable is in a less than perfect condition.

• If the power cable has to be replaced, the replacement must comply with the design specifications of the manufacturer. Power cable: H 05 VV - F 2 x 0.75 mm ^2
  ●Never vacuum the following: Burning matches, smoldering ash and cigarette butts, combustible, caustic, inflammable or explosive substances, vapour or liquids.
  ●This appliance is not suitable for vacuuming dust which can be harmful to health.
  ●Store the appliance in a dry indoor location.
  ●Never use the appliance if it is damaged.
  ●Only allow the appliance to be serviced by an authorized customer service center.
  ●Only use the appliance to carry out work for which has been designed.
  ●Use only genuine accessories and spare parts.
  ●The guidelines in the operating instructions must be observed. The safety and accident-prevention regulations from the lawgiver are also to be observed.
  ●Important! Hazardous material must not be extracted with the ash filter.
  ●Do not extract ashes from prohibited fuels.
• Do not use the ash filter to extract hot, glowing or inflammable objects (e.g. charcoal, cigarettes ...).
  ●Important. The ash vacuum cleaner is not suitable for vacuuming soot or fine dust.
  ●Important! The extracted material must not exceed a temperature of 40^ C.
  ●Important! If this temperature of the extracted material exceeds 40^ C, there is a risk of fire.
  ●Important! If the permissible temperature is exceeded, the extractor, the ash filter and the hoses could be damaged.
  ●Important! Extracted material which looks as though it has cooled off on the outside may still be hot on the inside. Hot extracted material could be set alight again in the air current.
  ●Before beginning extraction, please wait until the material is completely cooled off. Hot ashes should not be purged with water, as the sudden temperature difference can cause ruptures to the chimney.
  ●Wait at least 24 hours before vacuuming an oven or a fireplace in order to be sure that the fire has gone out and the ash has cooled down.

• Check the hoses, the ash filter and the extractor regularly when extracting, to assess levels of heating.

• If the appliance heats up, switch it off, pull the mains plug out and remove the filter bag immediately. Separate the ash filter from the extractor and remove the extracted material. Next, let the extractor and the ash filter cool off outside, under supervision.

• If the power cable for this appliance is damaged, it must be replaced by the manufacturer or its after-sales service or similarly trained personnel to avoid danger.
  ●Cold ash is ash which has cooled for a sufficiently long time and no longer contains any glowing embers. This can be checked by combing through the ash with a metal object before you use the ash vacuum cleaner. Cold ash no longer radiates any perceivable heat.
  ●After and before vacuum cleaning, empty and clean the tank in order to prevent the accumulation of materials which could present a fire hazard in the vacuum cleaner.

2. Layout and items supplied

1 Handle
2 On/Off switch
3 Appliance head
4 Filter basket
5 Filling level indicator
6 Locking hook
7 Tank
8 Suction hose connector
9 Suction tube
10 Flexible hose
11 Filter cartridge for fine ash dust.
12 Foam filter

3. Intended use

The ash vacuum cleaner is suitable for vacuuming cold ash or cold material residues from fireplaces, charcoal ovens, ash-trays or barbecues.

The machine is to be used only for its prescribed purpose. Any other use is deemed to be a case of misuse. The user/operator - not the manufacturer - will be liable for any damage or injuries caused as a result thereof.

Please note that our appliance has not been designed for use in commercial, trade or industrial applications. Our warranty will be voided if the appliance is used in commercial, trade or industrial businesses or for equivalent purposes.

4. Technical data

Mains voltage: 230 V \~ 50 Hz

Power input: 500 W

Tank volume: 18 l

Weight: 3.5

5. Before starting the appliance

⚠️ Important!

●Before you connect the appliance to the mains supply make sure that the data on the rating plate are identical to the mains data.
●The appliance may only be connected to a shock-proof socket.

5.1 Assembling the appliance

Fitting the appliance head (Fig. 2)

●The appliance head (3) is fastened to the container (7) by the locking hook (6). To remove the appliance head (3), open the locking hook (6) and remove the appliance head (3). When fitting the appliance head (3), make sure that the locking hook (6) locks into place correctly.
●Plug the vacuum tube (9) onto the end of the suction hose (10).
●Fit the suction hose (10) onto the connection (8) and turn until securely attached.

5.2 Fitting the filter

⚠️ Important!

Never use the ash vacuum without the filter! Always ensure that the filters are perfectly secure.

Dismantling/Assembly of the filter (Fig. 6-8)

Turn the filter cage (4) to the left and remove it from the appliance head (3). Next, remove the filter cartridge for fine ash dust (11). Now remove the foam filter (12).

⚠️ Important!

If there is no filter cartridge for fine ash dust (11) mounted on the appliance head (3), the ash filter cannot be switched on. The equipment comes with a switch (z) which allows operation only when it is pressed and when a filter cartridge is fitted (Fig. 10).

GB

6. Operation

6.1 ON/OFF switch (Fig. 1/2)

Press the ON/OFF switch (2) to switch the equipment ON and OFF.

6.2 Filling level indicator (Fig. 1/9)

The ash vacuum is fitted with a filling level indicator (5). If the filling level indicator (5) shows a red bar, tank contents and filter should be emptied or cleaned. The red bar indicates severe soiling of the filter; this can also be when the tank is not yet full. You must then tap on the filter to clear it again.

⚠️ Important.

The ash vacuum cleaner is not suitable for the vacuuming of combustible materials!

7. Cleaning, maintenance and ordering of spare parts

⚠️ Important!

Always pull out the mains power plug before starting any cleaning work.

7.1 Cleaning

- Keep all safety devices, air vents and the motor housing free of dirt and dust as far as possible.

●We recommend that you clean the appliance immediately after you use it.

7.2 Cleaning the appliance head (3)

Clean the appliance regularly with a damp cloth and some soft soap. Do not use cleaning agents or solvents; these may be aggressive to the plastic parts in the appliance.

7.3 Cleaning the container (7)

The container can be cleaned with a damp cloth and some soft soap or under running water, depending on the amount of dirt.

7.4 Cleaning the filter (Fig. 6-8)

The foam filter (12) can be cleaned with soft soap and running water and dried in the air. Clean the filter basket (4) and the filter cartridge (11), e.g. by tapping and brushing or by blowing out with compressed air at low pressure.

7.5 Servicing

At regular intervals and before each use, check that the filters in the ash vacuum are securely fitted.

7.6. Ordering spare parts

Please provide the following information on all orders for spare parts:

●Model/type of the appliance

●Article number of the appliance

●ID number of the appliance

●Part number of the required spare part

For our latest prices and information please go to www.isc-gmbh.info

8. Disposal and recycling

The appliance is supplied in packaging to prevent its being damaged in transit. This packaging is raw material and can therefore be reused or can be returned to the raw material system. The appliance and its accessories are made of various types of material, such as metal and plastic. Defective components must be disposed of as special waste. Ask your dealer or your local council.

Pričekajte sa usisavanjem peći i ognjišta najmanje 24 sata tako da se vatra sigurno ugasi i ohladi peć. Samo za hladan pepeo, vidi upute za uporabu!

HR/ BIH

⚠ Pozor!

Sačekajte sa usisavanjem peći i ognjišta najmanje 24 časa tako da se vatra sigurno ugasi i ohladi peć. Samo za hladan pepeo, vidi uputstva za upotrebu!

⚠️ Pažnja!

2006/42/EC
□ Annex IV
Notified Body:
Notified Body No.:
Reg. No.:

2000/14/EC_2005/88/EC

Annex V

Annex VI

Noise: measured L_WA = dB(A) ; guaranteed L_WA = dB(A)

P = kW; L/∅ = cm

Notified Body:

2004/26/EC

Emission No.:

Standard references: EN 60335-1; EN 60335-2-2; EN 62233; EN 55014-1; EN 55014-2; EN 61000-3-2; EN 61000-3-3

Weichselgartner/General-Manager Yu Feng Quing/Product-Management

First CE: 12 Archive-File/Record: NAPR005856

Art.-No.:23.516.22 I.-No.:11012

Subject to change without notice Wiesenweg 22, D-94405 Landau/Isar

Documents registrar: Siegfried Roider

Symbol of a trash bin crossed out by two diagonal lines, representing no waste or discharge (no text or labels)

©Nur für EU-Länder

Never place any electric tools in your household refuse.

To comply with European Directive 2002/96/EC concerning old electric and electronic equipment and its implementation in national laws, old electric tools have to be separated from other waste and disposed of in an environment-friendly fashion, e.g. by taking to a recycling depot.

Recycling alternative to the demand to return electrical devices:

As an alternative to returning the electrical device, the owner is obliged to cooperate in ensuring that the device is properly recycled if ownership is relinquished. This can also be done by handing over the used device to a returns center, which will dispose of it in accordance with national commercial and industrial waste management legislation. This does not apply to the accessories and auxiliary equipment without any electrical components which are included with the used device.

The reprinting or reproduction by any other means, in whole or in part, of documentation and papers accompanying products is permitted only with the express consent of ISC GmbH.

F

- Technical changes subject to change

All of our products undergo strict quality checks to ensure that they reach you in perfect condition. In the unlikely event that your device develops a fault, please contact our service department at the address shown on this guarantee card. Of course, if you would prefer to call us then we are also happy to offer our assistance under the service number printed below. Please note the following terms under which guarantee claims can be made:

1. These guarantee terms cover additional guarantee rights and do not affect your statutory warranty rights. We do not charge you for this guarantee.
2. Our guarantee only covers problems caused by material or manufacturing defects, and it is restricted to the rectification of these defects or replacement of the device. Please note that our devices have not been designed for use in commercial, trade or industrial applications. Consequently, the guarantee is invalidated if the equipment is used in commercial, trade or industrial applications or for other equivalent activities. The following are also excluded from our guarantee: compensation for transport damage, damage caused by failure to comply with the installation/assembly instructions or damage caused by unprofessional installation, failure to comply with the operating instructions (e.g. connection to the wrong mains voltage or current type), misuse or inappropriate use (such as overloading of the device or use of non-approved tools or accessories), failure to comply with the maintenance and safety regulations, ingress of foreign bodies into the device (e.g. sand, stones or dust), effects of force or external influences (e.g. damage caused by the device being dropped) and normal wear resulting from proper operation of the device. This applies in particular to rechargeable batteries for which we nevertheless issue a guarantee period of 12 months.

The guarantee is rendered null and void if any attempt is made to tamper with the device.

1. The guarantee is valid for a period of 2 years starting from the purchase date of the device. Guarantee claims should be submitted before the end of the guarantee period within two weeks of the defect being noticed. No guarantee claims will be accepted after the end of the guarantee period. The original guarantee period remains applicable to the device even if repairs are carried out or parts are replaced. In such cases, the work performed or parts fitted will not result in an extension of the guarantee period, and no new guarantee will become active for the work performed or parts fitted. This also applies when an on-site service is used.

2. In order to assert your guarantee claim, please send your defective device postage-free to the address shown below. Please enclose either the original or a copy of your sales receipt or another dated proof of purchase. Please keep your sales receipt in a safe place, as it is your proof of purchase. It would help us if you could describe the nature of the problem in as much detail as possible. If the defect is covered by our guarantee then your device will either be repaired immediately and returned to you, or we will send you a new device.

Of course, we are also happy offer a chargeable repair service for any defects which are not covered by the scope of this guarantee or for units which are no longer covered. To take advantage of this service, please send the device to our service address.
