| Product type | Cordless jigsaw |
| Brand | STANLEY |
| Model | FatMax FMC650M2 |
| Rated voltage | 18 Vdc |
| No-load speed | 0 – 2500 min⁻¹ |
| Stroke length | 19 mm |
| Max. cutting depth (wood) | 55 mm |
| Max. cutting depth (steel) | 8 mm |
| Max. cutting depth (aluminum) | 20 mm |
| Weight | 2.62 kg |
| Battery type | Li-Ion, 4.0 Ah |
| Approximate charging time | 120 min |
| Sound pressure (LpA) | 84.5 dB(A) (uncertainty K=3 dB(A)) |
| Sound power (LWA) | 95.5 dB(A) (uncertainty K=3 dB(A)) |
| Vibration (wood) | 6.0 m/s² (uncertainty K=1.5 m/s²) |
| Vibration (metal) | 4.3 m/s² (uncertainty K=1.5 m/s²) |
| Power supply | Rechargeable battery 18 V |
| Main functions | Variable speed, 45° bevel cut (left/right), 3 cutting modes (straight, elliptical 1 and 2), universal blade shank (U or T) |
| Maintenance | Clean ventilation slots with a soft brush or dry cloth; clean motor compartment with a damp cloth; lubricate the blade support roller axle |
| Safety | Double insulation, automatic stop when trigger is released, use of recommended protective equipment (safety glasses, gloves, dust mask) |
| Spare parts / Repairability | Compatible blades: U or T shank; specific battery and charger; repairs only by qualified personnel |
| Warranty | 12 months (conditions: proper use, normal wear, approved repairs, proof of purchase) |
Frequently Asked Questions - FatMax FMC650M2 STANLEY
User questions about FatMax FMC650M2 STANLEY
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Saw in PDF format for free! Find your manual FatMax FMC650M2 - STANLEY and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. FatMax FMC650M2 by STANLEY.
USER MANUAL FatMax FMC650M2 STANLEY

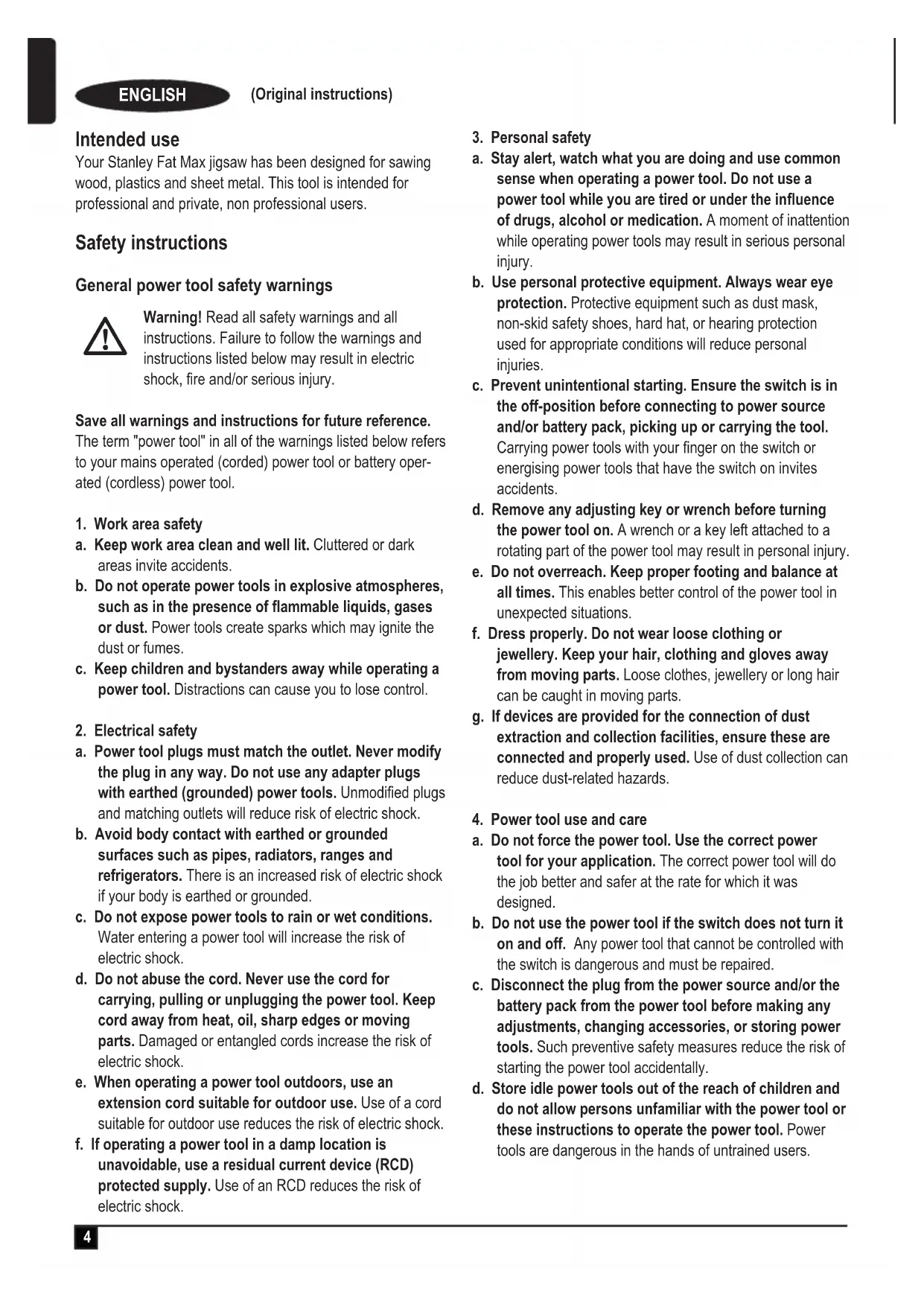

Your Stanley Fat Max jigsaw has been designed for sawing wood, plastics and sheet metal. This tool is intended for professional and private, non professional users.
Safety instructions
General power tool safety warnings
Warning! Read all safety warnings and all instructions. Failure to follow the warnings and instructions listed below may result in electric shock, fire and/or serious injury.
Save all warnings and instructions for future reference. The term "power tool" in all of the warnings listed below refer to your mains operated (corded) power tool or battery operated (cordless) power tool.
1. Work area safety
a. Keep work area clean and well lit. Cluttered or dark areas invite accidents.
b. Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes.
c. Keep children and bystanders away while operating a power tool. Distractions can cause you to lose control.
2. Electrical safety
a. Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any adapter plugs with earthed (grounded) power tools. Unmodified plugs and matching outlets will reduce risk of electric shock.
b. Avoid body contact with earthed or grounded surfaces such as pipes, radiators, ranges and refrigerators. There is an increased risk of electric shock if your body is earthed or grounded.
c. Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electric shock.
d. Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool. Keep cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords increase the risk of electric shock.
e. When operating a power tool outdoors, use an extension cord suitable for outdoor use. Use of a cord suitable for outdoor use reduces the risk of electric shock.
f. If operating a power tool in a damp location is unavoidable, use a residual current device (RCD) protected supply. Use of an RCD reduces the risk of electric shock.
3. Personal safety
a. Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol or medication. A moment of inattention while operating power tools may result in serious personal injury.
b. Use personal protective equipment. Always wear eye protection. Protective equipment such as dust mask, non-skid safety shoes, hard hat, or hearing protection used for appropriate conditions will reduce personal injuries.
c. Prevent unintentional starting. Ensure the switch is in the off-position before connecting to power source and/or battery pack, picking up or carrying the tool. Carrying power tools with your finger on the switch or energising power tools that have the switch on invites accidents.
d. Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left attached to a rotating part of the power tool may result in personal injury.
e. Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations.
f. Dress properly. Do not wear loose clothing or jewellery. Keep your hair, clothing and gloves away from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts.
g. If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used. Use of dust collection can reduce dust-related hazards.
4. Power tool use and care
a. Do not force the power tool. Use the correct power tool for your application. The correct power tool will do the job better and safer at the rate for which it was designed.
b. Do not use the power tool if the switch does not turn it on and off. Any power tool that cannot be controlled with the switch is dangerous and must be repaired.
c. Disconnect the plug from the power source and/or the battery pack from the power tool before making any adjustments, changing accessories, or storing power tools. Such preventive safety measures reduce the risk of starting the power tool accidentally.
d. Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool. Power tools are dangerous in the hands of untrained users.
e. Maintain power tools. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may affect the power tools operation. If damaged, have the power tool repaired before use. Many accidents are caused by poorly maintained power tools.
f. Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier to control.
g. Use the power tool, accessories and tool bits etc. in accordance with these instructions, taking into account the working conditions and the work to be performed. Use of the power tool for operations different from those intended could result in a hazardous situation.
5. Battery tool use and care
a. Recharge only with the charger specified by the manufacturer. A charger that is suitable for one type of battery pack may create a risk of fire when used with another battery pack.
b. Use power tools only with specifically designated battery packs. Use of any other battery packs may create a risk of injury and fire.
c. When battery pack is not in use, keep it away from other metal objects, like paper clips, coins, keys, nails, screws, or other small metal objects, that can make a connection from one terminal to another. Shorting the battery terminals together may cause burns or a fire.
d. Under abusive conditions, liquid may be ejected from the battery; avoid contact. If contact accidentally occurs, flush with water. If liquid contacts eyes, additionally seek medical help. Liquid ejected from the battery may cause irritation or burns.
6. Service
a. Have your power tool serviced by a qualified repair person using only identical replacement parts. This will ensure that the safety of the power tool is maintained.
Additional power tool safety warnings
Warning! Additional safety warnings for jigsaws and reciprocating saws
Hold power tool by insulated gripping surfaces, when performing an operation where the cutting accessory may contact hidden wiring. Cutting accessory contacting a "live" wire may make exposed metal parts of the power tool "live" and could give the operator an electric shock.
Use clamps or another practical way to secure and support the workpiece to a stable platform. Holding the work by hand or against your body leaves it unstable and may lead to loss of control.
- Keep hands away from cutting area. Never reach underneath the work piece any reason. Do not insert fingers or thumb into the vicinity of the reciprocating blade and blade clamp. Do not stabilize the saw by gripping the shoe.
- Keep blades sharp. Dull or damaged blades may cause the saw to swerve or stall under pressure. Always use the appropriate type of saw blade for the workpiece material and type of cut.
When cutting pipe or conduit, make sure that they are free from water, electrical wiring, etc.
Do not touch the workpiece or the blade immediately after operating the tool. They can become very hot.
Be aware of hidden hazards, before cutting into walls, floors or ceilings, check for the location of wiring and pipes.
The blade will continue to move after releasing the switch. Always switch the tool off and wait for the saw blade to come to a complete standstill before putting the tool down.
Warning! Contact with, or inhalation of dusts arising from cutting applications may endanger the health of the operator and possible bystanders. Wear a dust mask specifically designed for protection against dust and fumes and ensure that persons within or entering the work area are also protected.
The intended use is described in this instruction manual. The use of any accessory or attachment or performance of any operation with this tool other than those recommended in this instruction manual may present a risk of personal injury and/or damage to property.
Safety of others
This tool is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
Children should be supervised to ensure that they do not play with the appliance.
Residual risks.
Additional residual risks may arise when using the tool which may not be included in the enclosed safety warnings. These risks can arise from misuse, prolonged use etc.
Even with the application of the relevant safety regulations and the implementation of safety devices, certain residual risks can not be avoided. These include:
Injuries caused by touching any rotating/moving parts.
ENGLISH
(Original instructions)
Injuries caused when changing any parts, blades or accessories.
Injuries caused by prolonged use of a tool. When using any tool for prolonged periods ensure you take regular breaks.
Impairment of hearing.
Health hazards caused by breathing dust developed when using your tool (example:- working with wood, especially oak, beech and MDF.)
Vibration
The declared vibration emission values stated in the technical data and the declaration of conformity have been measured in accordance with a standard test method provided by EN 60745 and may be used for comparing one tool with another. The declared vibration emission value may also be used in a preliminary assessment of exposure.
Warning! The vibration emission value during actual use of the power tool can differ from the declared value depending on the ways in which the tool is used. The vibration level may increase above the level stated.
When assessing vibration exposure to determine safety measures required by 2002/44/EC to protect persons regularly using power tools in employment, an estimation of vibration exposure should consider, the actual conditions of use and the way the tool is used, including taking account of all parts of the operating cycle such as the times when the tool is switched off and when it is running idle in addition to the trigger time.
Labels on tool
The following symbols are shown on the tool:
Warning! To reduce the risk of injury, the user must read the instruction manual.
Additional safety instructions for batteries and chargers
Batteries
Never attempt to open for any reason.
Do not expose the battery to water.
Do not store in locations where the temperature may exceed 40^ .
Charge only at ambient temperatures between 10^ and 40^ .
Charge only using the charger provided with the tool.
When disposing of batteries, follow the instructions given in the section "Protecting the environment".
Do not attempt to charge damaged batteries.
Chargers
Use your Stanley Fatmax charger only to charge the battery in the tool with which it was supplied. Other batteries could burst, causing personal injury and damage.
Never attempt to charge non-rechargeable batteries.
Have defective cords replaced immediately.
Do not expose the charger to water.
Do not open the charger.
Do not probe the charger.
The charger is intended for indoor use only.
Read the instruction manual before use.
Electrical safety
Your charger is double insulated; therefore no earth wire is required. Always check that the mains voltage corresponds to the voltage on the rating plate. Never attempt to replace the charger unit with a regular mains plug.
- If the supply cord is damaged, it must be replaced by the manufacturer or an authorised Stanley Fat Max Service Centre in order to avoid a hazard.
Features
This tool includes some or all of the following features.
- Variable speed trigger switch
- Lock-off button
- Saw blade locking lever
- Blade clamp
- Shoe plate
- Cutting action button
- Battery
fig.A
- Battery charger
- Charge indicator
Assembly
Warning! Before assembly, remove the battery from the tool and make sure that the saw blade has stopped. Used saw blades may be hot.
Fitting and removing the saw blade (fig. B)
Hold the saw blade (10) with the teeth facing forward.
Lift the saw blade locking lever (3) upwards.
Insert the shank of the blade fully into the blade clamp (4) as far as it will go.
Release the lever.
To remove the saw blade (10), lift the saw blade locking lever (3) upwards and pull the blade out.
Fitting and removing the battery (fig. C)
To fit the battery (7), line it up with the receptacle on the tool. Slide the battery into the receptacle and push until the battery snaps into place.
To remove the battery, push the release buttons (11) while at the same time pulling the battery out of the receptacle.
Use
Warning! Let the tool work at its own pace. Do not overload. Warning! Never use the tool when the saw shoe is loose or removed.
Charging the battery (fig. A)
The battery needs to be charged before first use and whenever it fails to produce sufficient power on jobs that were easily done before. The battery may become warm while charging; this is normal and does not indicate a problem.
Warning! Do not charge the battery at ambient temperatures below 10^ or above 40^ . Recommended charging temperature: approx. 24^ .
Note: The charger will not charge a battery if the cell temperature is below approximately 10^ or above 40^ . The battery should be left in the charger and the charger will begin to charge automatically when the cell temperature warms up or cools down.
To charge the battery (7), insert it into the charger (8). The battery will only fit into the charger in one way. Do not force. Be sure that the battery is fully seated in the charger.
Plug in the charger and switch on at the mains.
The charging indicator (9) will blink.
The charge is complete when the charging indicator (9) switches to continuously on. The charger and the battery can be left connected indefinitely. The LED will switch on as the charger occasionally tops up the battery charge.
Charge discharged batteries within 1 week. Battery life will be greatly diminished if stored in a discharged state.
Leaving the battery in the charger
The charger and battery pack can be left connected with the LED glowing indefinitely. The charger will keep the battery pack fresh and fully charged.
Charger diagnostics
If the charger detects a weak or damaged battery, the charging indicator (9) will flash red at a fast rate. Proceed as follows:
Re-insert the battery (7).
If the charging indicators continue flashing red at a fast rate, use a different battery to determine if the charging process works properly.
- If the replaced battery charges correctly, the original battery is defective and should be returned to a service centre for recycling.
- If the new battery gives the same indication as the original battery, take the charger to be tested at an authorised services centre.
Note: It may take as long as 30 minutes to determine that the battery is defective. If the battery is too hot or too cold, the LED will alternately blink red, fast and slow, one flash at each speed and repeat.
Switching on and off (fig. D & E)
To switch on, slide the lock off switch (2) to the left then pull and hold the variable speed trigger switch (1).
To switch off, release the trigger switch (1).
Warning! Do not switch the tool on or off while under load.
Warning! Always slide the lock off switch (2) to the right, the locked position when the tool is not in use.
Variable speed control
The variable speed on/off switch offers a choice of speeds for greatly improved cutting rates in various materials.
The speed is determined by the amount the trigger switch (1) is pulled.
Bevel cutting (fig. F, G & H)
The shoe plate can be set to a left or right bevel angle of 45^ .
To set the bevel angle:
Loosen the shoe retaining bolt (12) with the hex key provided to unlock the shoe plate (5).
Slide the shoe plate (5) forward to release it from the 0^ detent.
Rotate the shoe plate to the desired bevel angle (fig. G).
Slide the shoe plate backwards to engage the left or right detent.
Tighten the shoe retaining bolt (12) with the hex key provided to lock the shoe plate (5) in the required position.
Note: The shoe can be beveled to the left or to the right and has detents at 45^ .
Cutting action (fig.1)
This jig saw is equipped with three cutting actions, two orbital and one straight. Orbital action has a more aggressive blade motion and is designed for cutting in soft materials like wood or plastic. Orbital action provides a faster cut, but with a less smooth cut across the material. In orbital action, the blade moves forward during the cutting stroke in addition to the up and down motion.
Warning! Metal or hardwoods should never be cut in orbital action.
Slide the cutting action button (6) between the three cutting positions: 0, 1 and 2.
Position 0 is for straight cutting.
Positions 1 and 2 are for orbital cutting.
The aggressiveness of the cut increases as the lever is adjusted from one to two, with two being the most aggressive cut.
Sawing
Always hold the tool with both hands.
Let the blade run freely for a few seconds before starting the cut.
Apply only a gentle pressure to the tool while performing the cut.
If possible, work with the shoe plate (5) pressed against the workpiece. This will improve tool control and reduce tool vibration, as well as prevent the blade from being damaged.
Hints for optimum use
General
Use a high speed for wood, a medium speed for aluminium and PVC and a low speed for metals other than aluminium.
Sawing laminates
As the saw blade cuts on the upward stroke, splintering may occur on the surface closest to the shoe plate.
Use a fine-tooth saw blade.
Saw from the back surface of the workpiece.
To minimise splintering, clamp a piece of scrap wood or hardboard to both sides of the workpiece and saw through this sandwich.
Sawing metal
Be aware that sawing metal takes much more time than sawing wood.
Use a saw blade suitable for sawing metal. Use a fine-tooth saw blade for ferrous metals and a coarser saw blade for non-ferrous metals.
When cutting thin sheet metal, clamp a piece of scrap wood to the back surface of the workpiece and cut through this sandwich.
Spread a film of oil along the intended line of cut.
Accessories
The performance of your tool depends on the accessory used. Stanley Fat Max accessories are engineered to high quality standards and designed to enhance the performance of your tool. By using these accessories you will get the very best from your tool.
This tool is suitable both for U-shank and T-shank saw blades.
Maintenance
Your tool has been designed to operate over a long period of time with a minimum of maintenance. Continuous satisfactory operation depends upon proper tool care and regular cleaning.
Warning! Before performing any maintenance, switch off and unplug the tool.
Regularly clean the ventilation slots in your tool and charger using a soft brush or dry cloth.
Regularly clean the motor housing using a damp cloth. Do not use any abrasive or solvent-based cleaner.
- Occasionally apply a drop of oil to the axle of the blade support roller.
Mains plug replacement (U.K. & Ireland only)
If a new mains plug needs to be fitted:
Safely dispose of the old plug.
Connect the brown lead to the live terminal in the new plug.
Connect the blue lead to the neutral terminal.
Warning! No connection is to be made to the earth terminal. Follow the fitting instructions supplied with good quality plugs. Recommended fuse: 5 A.
Protecting the environment
Separate collection. This product must not be disposed of with normal household waste.
Should you find one day that your Stanley Fat Max product needs replacement, or if it is of no further use to you, do not dispose of it with household waste. Make this product available for separate collection.
Separate collection of used products and packaging allows materials to be recycled and used again. Re-use of recycled materials helps prevent environmental pollution and reduces the demand for raw materials.
Local regulations may provide for separate collection of electrical products from the household, at municipal waste sites or by the retailer when you purchase a new product.
Stanley Europe provides a facility for the collection and recycling of Stanley Fat Max products once they have reached the end of their working life. To take advantage of this service please return your product to any authorised repair agent who will collect them on our behalf.
You can check the location of your nearest authorised repair agent by contacting your local Stanley Europe office at the address indicated in this manual. Alternatively, a list of authorised Stanley Europe repair agents and full details of our after-sales service and contacts are available on the Internet at: www.2helpU.com
Batteries
Stanley Fat Max batteries can be recharged many times. At the end of their useful life, discard batteries with due care for our environment:
Run the battery down completely, then remove it from the tool.
NiCd, NiMH and Li- ion batteries are recyclable. Take them to any authorised repair agent or a local recycling station.
Technical data
| FMC650 (H1) | ||
| Voltage | Vdc | 18 |
| No-load speed | min-1 | 0 - 2500 |
| Stroke length | mm | 19 |
| Max depth of cut | ||
| Wood | mm | 55 |
| Steel | mm | 8 |
| Aluminium | mm | 20 |
| Weight | kg | 2.62 |
| Charger | 905765** TYP 1 | |
| Input Voltage | VAC | 220-240 |
| Output Voltage | VDC | 20 (Max) |
| Current | A | 2 |
| Approx. charge time | min | 120 |
| Battery | FMC688L | |
| Voltage | VOC | 18 |
| Capacity | Ah | 4.0 |
| Type | Li-Ion | |
| \( {\mathrm{L}}_{\mathrm{{pA}}} \) (sound pressure) \( {84.5}\mathrm{\;{dB}}\left( \mathrm{A}\right) \) ,Uncertainty (K) 3 dB(A) |
| \( {\mathrm{L}}_{\mathrm{{WA}}} \) (sound power) \( {95.5}\mathrm{\;{dB}}\left( \mathrm{A}\right) \) ,Uncertainty (K) 3 dB(A) |
| Vibration total values (triax vector sum) according to EN 60745: |
| Cutting boards \( \left( {{\mathrm{a}}_{\mathrm{h},\mathrm{B}}}\right) 6{\mathrm{\;m}}^{2} \) ,uncertainty (K) \( {1.5}{\mathrm{\;m}}^{2} \) |
| Cutting sheet metal \( \left( {{\mathrm{a}}_{\mathrm{h},\mathrm{M}}}\right) {4.3}{\mathrm{\;m}}^{2} \) ,uncertainty (K) \( {1.5}{\mathrm{\;m}}^{2} \) |
EC declaration of conformity
MACHINERY DIRECTIVE
Cordless Jigsaw - FMC650
Stanley Europe declares that these products described under "technical data" are in compliance with:
2006/42/EC, EN 60745-1, EN 60745-2-11
These products also comply with Directive 2004/108/EC and 2011/65/EU. For more information, please contact Stanley Europe at the following address or refer to the back of the
manual.
The undersigned is responsible for compilation of the technical file and makes this declaration on behalf of Stanley Europe.
Kevin Hewitt
Vice-President Global Engineering
Stanley Europe, Egide Walschaertsstraat14-18,
2800 Mechelen, Belgium
12/02/2014
Guarantee
Stanley Europe is confident of the quality of its products and offers an outstanding guarantee for professional users of the product. This guarantee statement is in addition to and in no way prejudices your contractual rights as a private non-professional user. The guarantee is valid within the territories of the Member States of the European Union and the European Free Trade Area.
ONE-YEAR FULL WARRANTY
If your Stanley Fat Max product becomes defective due to faulty materials or workmanship within 12 months from the date of purchase, Stanley Europe guarantees to replace all defective parts free of charge or - at our discretion - replace the unit free of charge provided that:
The product has not been misused and has been used in accordance with the instruction manual.
The product has been subject to fair wear and tear;
Repairs have not been attempted by unauthorised persons;
Proof of purchase is produced.
The Stanley Fat Max product is returned complete with all original components
If you wish to make a claim, contact your seller or check the location of your nearest authorised Stanley Fat Max repair agent in the Stanley Fat Max catalogue or contact your local Stanley office at the address indicated in this manual. A list of authorised Stanley Fat Max repair agents and full details of our after sales service is available on the internet at: www.stanley.eu/3
Vice-President Global Engineering
Stanley Europe, Egide Walschaertsstraat 14-18,
2800 Mechelen, Belgien
23/12/2013
Garantie
GARANTIE TOTALE UN AN
Seghetto datraforocordless-FMC650
Vice-President Global Engineering
Stanley Europe, Egide Walschaertsstraat 14-18,
2800 Mechelen, Belgio
23/12/2013
Garanzia
Zaagbeweging (fig.1)
Vice-President Global Engineering
Stanley Europe, Egide Walschaertsstraat14-18
2800 Mechelen, Belgien
23/12/2013
Garanti
ETT ARS FULL GARANTI
Vice-President Global Engineering
Stanley Europe, Egide Walschaertsstraat14-18,
2800 Mechelen, Belgium
23/12/2013
Garanti
Skaering i laminater
Vice-President Global Engineering
Stanley Europe, Egide Walschaertsstraat14-18,
2800 Mechelen, Belgien
23/12/2013
Garanti
Vice-President Global Engineering
Stanley Europe, Egide Walschaertsstraat 14-18,
2800 Mechelen, Belgium
23/12/2013
