Product type	Pool cleaning robot
Brand	GRE
Model	RBR60
Maximum depth	3 m (10 ft)
Water temperature	4°C to 35°C (39.2°F to 95°F)
Power supply	Rechargeable lithium battery
Charging time	4 to 5 hours
Runtime	Approximately 60 minutes
Movement system	180° rotating head, built-in float
Filter type	Bottom compartment filter
Safety functions	Automatic shut-off out of water
Maintenance	Filter cleaning, rinse with clear water
Storage	Clean and dry place, temperature 10-25°C (50-77°F)
Spare parts available	Filter, battery, propeller, wheels, filter cover
Warranty	2 years (subject to conditions)
Use	Pool and spa
Charger	Original external adapter, indoor use

Frequently Asked Questions - RBR60 GRE

What to do if the robot does not pick up debris?

Check the battery: if it is low, charge it for 4 to 5 hours. Inspect the propeller: if it is clogged, turn off the robot and clean it. Make sure the filter compartment is not full; clean it if necessary. If the propeller is damaged, contact the distributor.

Why does the robot stop moving in the middle of the pool?

The robot may stop due to an obstacle. Check if it is stuck or blocked. Disable the pool's filtration system, as water circulation can disturb movement. Make sure the pool floor is flat.

How to clean the robot filter?

Remove the filter cover and take out the filter. Rinse it with clear water without detergent. Let it dry before reassembling. Also clean the filter compartment.

What to do if the battery does not charge?

Check that the charger and cable are properly connected. If the charger indicator does not light up, the charger may be defective. Contact the distributor for a replacement. Do not attempt to replace the battery yourself.

Why does the charger indicator stay red for more than 8 hours?

This indicates a damaged battery. Contact your distributor to replace the battery. Do not turn on the robot and do not replace the battery yourself; this may cause injury and void the warranty.

How to adjust the float cord?

Adjust the cord length so that it is at water level. Tie or cut off the excess. The cord allows you to retrieve the robot at the end of the cycle.

Can I use the robot in a pool with a liner?

Yes, but make sure the liner has no wrinkles. The robot is designed for flat floors. Check that the liner is properly stretched.

How to store the robot when not in use?

Discharge the battery completely (it will self-discharge) then fully charge it before storing. Recharge at least once every three months. Clean and dry the robot. Store in a ventilated place, away from sunlight, heat, and chemicals, at a temperature between 10°C and 25°C.

What to do if the rotating head does not turn?

Check if the filter compartment is full (clean it). Inspect the rotating head for stuck debris. Turn it by hand; if it is blocked, rinse with water. If the problem persists, contact the distributor.

Where can I get spare parts?

Contact your authorized distributor for original parts: filter, battery, propeller, wheels, filter cover, charger. Only use original parts to preserve warranty.

USER MANUAL RBR60 GRE

EN RECHARGEABLE BATTERY ROBOT
ES ROBOT A BATERÍA RECARGABALE
FR ROBOTÀ BATTERIE RECHARGEABLE
DE ROBOTER MIT WIEDERAUFLADBAREN BATTERIEN
ROBOT A BATTERIA RICARICABILE
ROBOT MET OPLAADBARE ACCU
PT ROBOT COM BATERIA RECARREGÁVEL
PL ROBOT-ODKURZACZ Z ZASILANIEM AKUMULATOROWYM

Ref. RBR60

Owner's Manual - Manual de Instrucciones Manuel d'instructions - Bedienungsanleitung Manuale delle instruzioni - Handleiding met instructies Manual de instruções

DISTRIBUTED BY / DISTRIBUIDO POR / DISTRIBUTE PAR / VERTREB DURCH / DISTRIBUTIO DA / GEDISTRUEERD DOOR / DISTRIBUTUIDO PR / WYPRODUKOWANY PRZEZ MANUFACTURAS GRE, S.A. ARITZ BIDEA N° 57 BELAKO INDUSTRIALDEA, APARTADO 69 - 48100 MUNGUA (VIZCAYA) ESPANA N° Reg. Ind. 48-06762 MADE IN CHINA / FABRICADO EN CHINA / FABRIQUE AU CHINE / HERGESTELLIN CHINA / PRODOTTO IN CHINA / GEPRODUCEERD IN CHINA / FABRICADO NA RPC

SAFETYWARNING

When installing and using this electrical equipment, you should always follow the basic safety precautions. Please read the following carefully.

WARNING

The cleaner is not a toy, and is operated by people older than 8 years age.

Any people who operates the cleaner, has to read the manual carefully before work it.

1. The cleaner is designed to clean the swimming pool, SPA.
2. Please use the original batteries and charger when using.
3. Only charging it when the cleaner is power off.
4. Put the cleaner into a clean and dry place. Do not expose it under the sun, or close to explosive.
5. The filter bag is easy to be broken when there is sharp substances under water.
6. The cleaner automatically stops to work when it is out of water.
7. Do not close to the vacuum head when it is working, due to its suction power, especially for the human body, animals, hairs or clothes.
8. Do not disassemble the cleaner without professional guidance or notice from the authorized distributor or manufacturer.
9. Do not leak the lubricant oil, and it causes water polluted.
10. Stop to work the cleaner when there is anything wrong; Please contact with the authorized distributor or replace it to the original parts/accessories.
11. Cleaner working conditions:

11.1 Maximum applicable water depth: 3m (10 ft)

11.2 Water temperature: 4^(39.2^) - 35^(95^)

1. Charger

When installing and using this electrical equipment, you should always follow the basic safety precautions. Please read the following carefully:

1. Use the original charger provided only.
2. For indoor use only. The charger should not be used outdoor and not be exposed to rain, humidity, any liquid or heat.
3. Keep the charger out of children.
4. Never use the charger if any damage is found.
5. Do not handle the cleaner and charger with wet hands and bare feet, when charging the cleaner.
6. Disconnect the charger from power when not in use.
7. If the wire is damaged, it must be replaced by a new charger to avoid danger.
8. Make sure the cleaner and charger are totally dry before charging.
9. Charge the cleaner 4-5 hours prior to the first use. Normally cleaner can be operated about 60 minutes after fully charged.

2. Battery disposal

1. The cleaner battery is a lithium battery, it must be disposed properly, please contact with your local authority for more information.
2. Never attempt to disassemble the lithium battery without the authorization of qualified personnel, service personnel or the manufacturer

Above warning and cautions are not intended to incorporate all possible instances for risks and/or severe injury.

Pool/spa owners should always exercise intensive caution and common sense when operating the cleaner.

INSTRUCTION MANUAL

ASSEMBLY

A: Floater
B: Upper cover
B-1: Jet head
C:Filter
D: Bottom base
E:Charger

There is a rotation jet head at the upper cover, the water is passing from bottom to the jet head to make the robot moving. While facing obstacle, the jet head turns around 180 degrees, the robot rounds the obstacle and moving by another line. The rubbish is collected and installed by the bottom filter cabine.

ASSEMBLY AND OPERATION

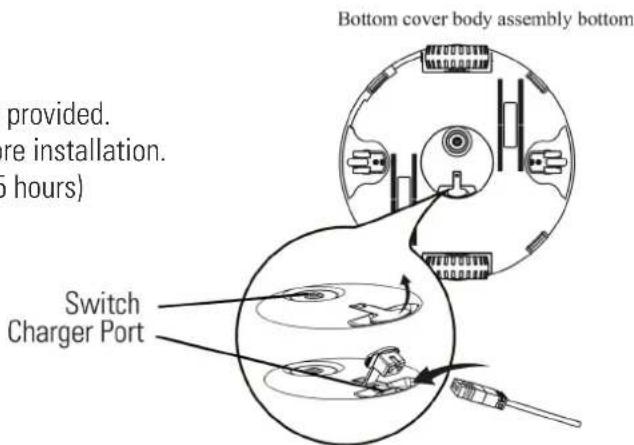

Charging warning

• Use only the original external adapter and the charging cable provided.
• Make sure the robot and charger ports are clean and dry before installation.
  Power up the robot before using it for the first time (about 4-5 hours)

Note:

Once the robot starts charging, the indicator light on the external adapter will turn red. When the robot is fully charged, the indicator light will turn green.

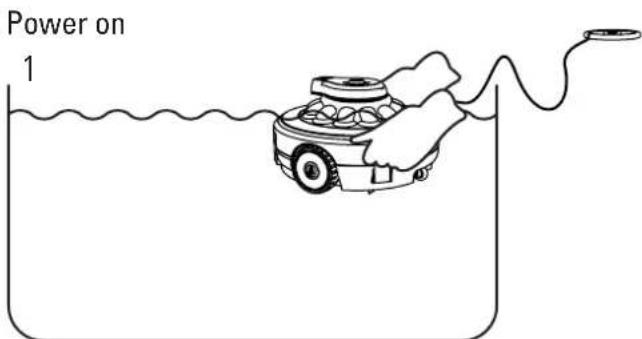

Turn on the switch, loosen the rope on the float, put the robot horizontally into the pool, and wait for the robot to sink freely to the bottom. (if the product is not put into the water, the machine will not rotate because the machine has the function of "stop when leaving water").

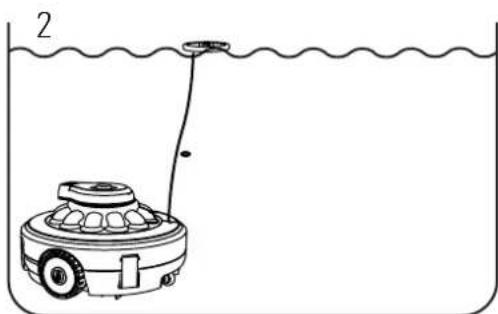

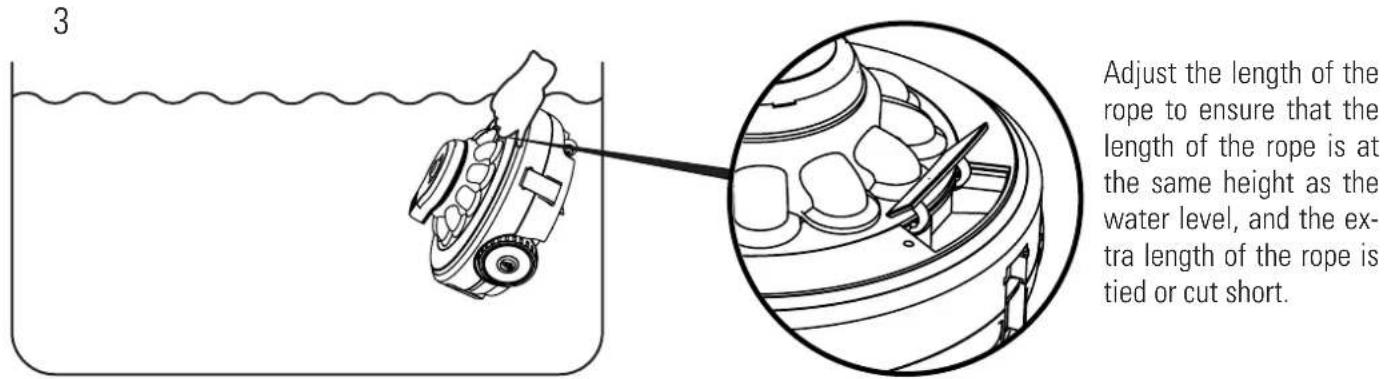

Adjust the length of the rope to ensure that the length of the rope is at the same height as the water level, and the extra length of the rope is tied or cut short.

When the robot has no power, it will automatically stop at the edge of the pool.(may also get stuck in the middle of the pool by obstacles)

Note:

1. It is recommended to turn off the filtration system as the water circulation in the pool may affect the robot's motion mode.
2. Any obstacle in the swimming pool will affect the robot's crawling and cleaning track, such as ladder;
3. If you are using a brine tank, make sure that all the salt is dissolved before putting the robot into the water.

For correct operation of the device the floor must be completely flat and there must not be any wrinkles in the liner (fabric containing the water), in the case that the pool is made of this material

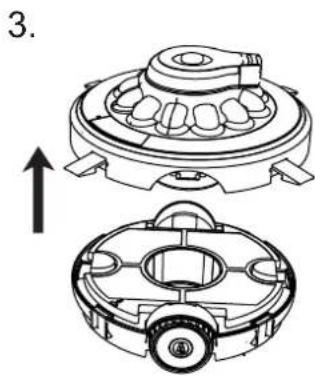

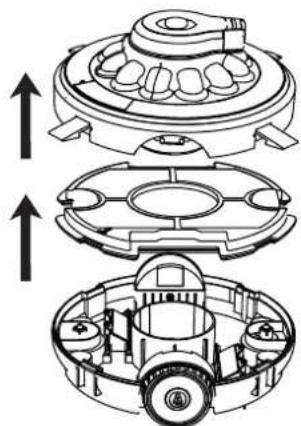

GARBAGE DISPOSAL

MAINTENANCE AND STORAGE

1. The battery discharges itself during storage. Make sure the robot is fully charged before storage.
2. When not in use, you must recharge the battery at least every three months.
3. Unplug the external adapter from the socket and then the charging cable from the external adapter and the robot.
4. Remove the attachment from the robot. If necessary, rinse the robot and accessories with clean water. Do not use detergent.
5. Before storage, make sure the robot is drained.
6. Use a wet cloth to clean and dry the robot and its accessories.
7. Store in a well ventilated place away from sunlight, heat, fire sources, pool chemicals and children.
8. The storage environment temperature should be 10^ - 25^ (50°C–77°C).

Note: higher storage temperatures may shorten battery life.

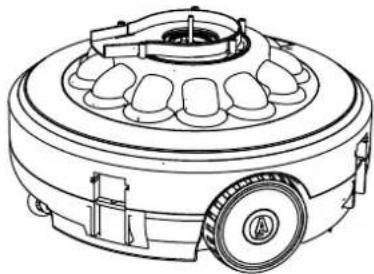

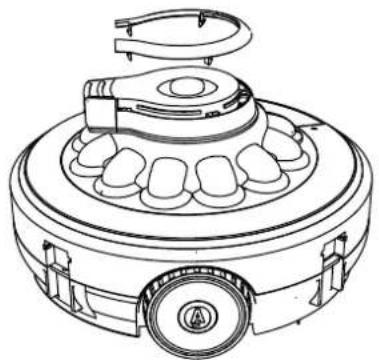

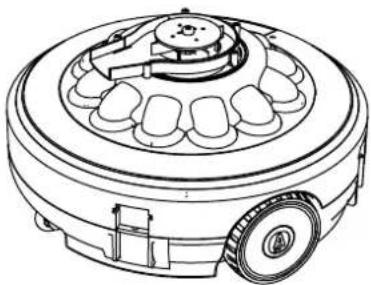

Maintenance and replacement of impeller

Recommended tool (not included): screw driver

1.

2.

3.

3.

Impeller

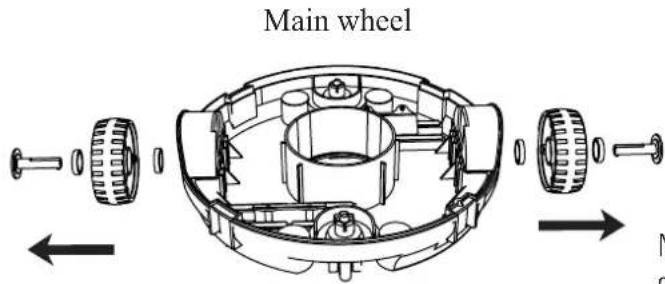

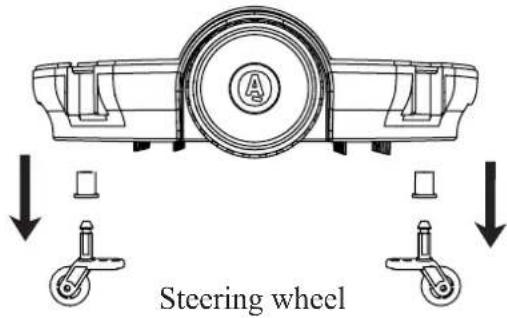

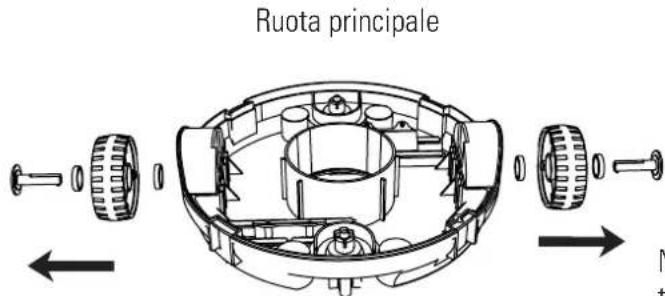

Maintenance and replacement of wheels

Note: the main wheel on this side has magnets. Please contact the dealer for replacement or maintenance.

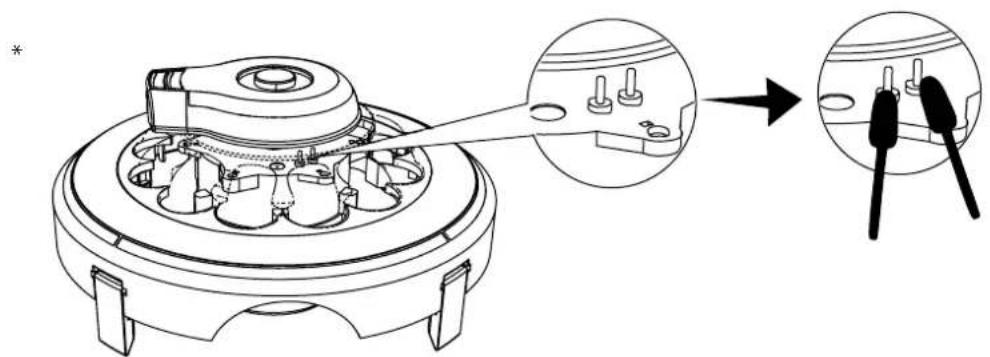

Battery Assembly And Replacement

Attention!

Do not treat electrical appliances as unclassified municipal waste. Use separate collection facilities. For information on available collection systems, contact your local authorities.

• Do not remove the lithium battery without authorization.
• When removing the lithium battery from the vacuum device, please remove any rings, bracelets, necklaces or watch that your are wearing.
  The short-circuit current generated by a battery is enough to suck up rings (or similar items), which can cause severe burns
• Before removing the battery pack, please wear eye protection, gloves and protective clothing.
• Be careful not to touch the wire or any metal parts, as this can cause sparks or a short circuit
• Do not smoke or light naked flames near the robot, as this can set the battery on fire and give off gas
• Avoid exposing the battery to fire or high temperatures, as this could cause an explosion.

Note!

If the battery leaks, avoid contact with the damaged battery and put it in a plastic bag.

If skin or clothing comes into contact with acid, wash immediately with plenty of soap and water.

If the eyes come into contact with acid, rinse them with water for at least 15 minutes and seek treatment from a doctor.

If you have problems with your cleaner, follow the troubleshooting steps below to restore performance. Note: turn off the power before making any repairs.

PROBLEM POSSIBLE CAUSES SOLUTION
Robots don't capture debris.	The battery is low. Then charge the robot.
	Impeller stuck.	Turn off the power supply of the robot and visually check whether the impeller rotates. If necessary, contact your dealer for further instructions. Warning! Before servicing the equipment, make sure that the robot is turned off.
	Impeller damaged.	Please contact your dealer for replacement.
	The glove box is full. Clean the glove box	and filter cover.
The robot stops moving in the middle of the pool (the rotating head is still turning).	The robot was stopped by an obstacle.	Check the cleaner for obstructions. Remove obstacles.
	The robot is blocked by the suction of the main pool floor drain.	Turn off the filtration system (see instructions in the manual).
	The ground is not totally flat	It takes more minutes before moving again or Make the bottom of the pool flat or trim the bottom brush strip. Contact your dealer for replacement parts.
The robot cannot cover the entire pool / move along the wall of the pool.	The glove box is full. Clean the glove box	and filter cover.
	The operation time was shorter than expected.	Clean the filter chamber and recharge the robot for 4-5 hours
	The water circulation generated by the filtration system interrupts the direction of movement.	Turn off the filtration system (see instructions in the manual).
	The wheel is stuck.	Check and remove debris from the wheels.
The robot moves slowly. The glove box is full. Clean the glove box and filter cover.
The turning head does not rotate or rotates obviously slowly.	The bottom of the swivel is stuck.	The glove box is full, check and remove any debris that may be stuck under the rotating head. It can be rotated by hand and rinsed with water until smooth.
	The glove box is full. Clean the glove box	and filter cover.
The debris escaped from the robot.	The valve of the suction nozzle (bottom of the cleaner) is broken.	The baffle at the suction cup is like a door to prevent debris from escaping from the debris chamber. Contact your dealer for replacement parts and instructions.
Debris enters the outside of the filter cover.	The filter cover is damaged.	Replace the filter cover with a new one. Please contact your dealer for replacement parts.
The robot can't charge.	Battery damage.	Please contact the dealer to replace the battery. Warning! Don't turn on the robot and replace the battery yourself. This can cause serious or fatal injury, so the warranty will not be valid.
	The charging cable is not fully connected to the external adapter and the robot.	Make sure the charger cable is properly and completely connected to the external adapter and robot. Please refer to the user manual.
	The external adapter is broken.	Contact the dealer for replacement. Warning! Using the wrong external adapter will result in damage to the robot / battery and void the warranty.
The robot can still work without water.	The water of the robot is not dry, and the contact is short circuited, so the robot can still work without water.	Leave it outside the water for a few seconds and wait for the water to dry
	There is garbage at the contact point, such as wet hair, which causes short circuit of the contact.	Remove hair and other rubbish with tools
	Circuit board damaged	Please contact the dealer for replacement.
If the charger shows red light all the time, it cannot change to green light more than 8h.	Battery damage.	Please contact the dealer to replace the battery. Warning! Don't turn on the robot and replace the battery yourself. This can cause serious or fatal injury, so the warranty will not be valid.
If the charger change to green light in a very short time, and the device also only work for a short time (within half an hour, need multiple validation).
When the product starts to charge after the work is over, if the charger shows green light all the time. (Make sure the charger cable is properly and completely connected to the external adapter and robot.)	Charger is damaged.	Contact the dealer for replacement. Warning! Using the wrong external adapter will result in damage to the robot / battery and void the warranty.
If the charger light does not light any more.
Switch not working or out. *	There is rubbish around the sener or senser oxidataion.	Cleaning the senser by a paper, or a cloth, or a brush, as pics; or see video online.

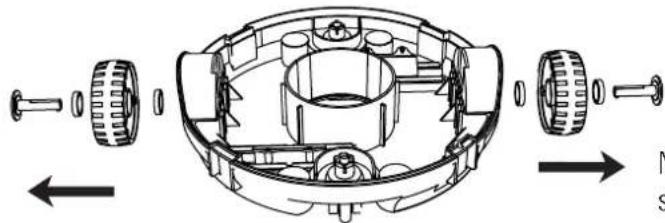

Maintenance and replacement of wheels

VEILIGHEIDSWAARSCHUWING

If you have problems with your cleaner, follow the troubleshooting steps below to restore performance. Note: turn off the power before making any repairs.

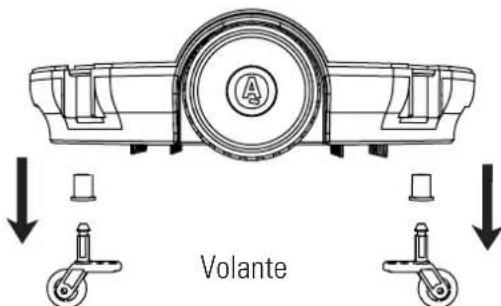

Maintenance and replacement of wheels

Roda principal

In accordance with these provisions, the seller guarantees that the product corresponding to this guarantee ("the Product") is in perfect condition at the time of delivery.
The Guarantee Term for the Product is two (2) years from the time it is delivered to the purchaser.
In the event of any defect in the Product that is notified by the purchaser to the seller during the Guarantee Term, the seller will be obliged to repair or replace the Product, at his own cost and wherever he deems suitable, unless this is impossible or unreasonable.
If it is not possible to repair or replace the Product, the purchaser may ask for a proportional reduction in the price or, if the defect is sufficiently significant, the termination of the sales contract.
- The replaced or repaired parts under this guarantee, will not extend the guarantee period of the original Product, but will have a separate guarantee.
In order for this guarantee to come into effect, the purchaser must provide proof of the date of purchase and delivery of the Product.
If, after six months from the delivery of the Product to the purchaser, he notifies a defect in the Product, the purchaser must provide proof of the origin and existence of the alleged defect.
This Guarantee Certificate is issued without prejudice to the rights corresponding to consumers under national regulations.

INDIVIDUAL TERMS

• This guarantee covers the products referred to in this manual.
  This Guarantee Certificate will only be applicable in European Union countries.
  For this guarantee to be effective, the purchaser must strictly follow the Manufacturer's instructions included in the documentation provided with the Product, in cases where it is applicable according to the range and model of the Product.
• When a time schedule is specified for the replacement, maintenance or cleaning of certain parts or components of the Product, the guarantee will only be valid if this time schedule has been followed.

LIMITATIONS

This guarantee will only be applicable to sales made to consumers, understanding by "consumer", a person who purchases the Product for purposes not related to his professional activities.
The normal wear resulting from using the product is not guaranteed. With respect to expendable or consumable parts, components and/or materials, such as batteries, light bulbs, etc. the stipulations in the documentation provided with the Product will apply.
The guarantee does not cover those cases when the Product; (I) has been handled incorrectly; (II) has been repaired, serviced or handled by non- authorised people or (III) has been repaired or serviced not using original parts. In cases where the defect of the Product is a result of incorrect installation or start-up, this guarantee will only apply when said installation or start-up is included in the sales contract of the Product and has been conducted by the seller or under his responsibility.

2-CROSSED-OUT WASTE CONTAINER

In order to reduce the amount of waste of electric and electronic apparatus, to reduce the danger of components, to encourage the reuse of apparatus, to assess waste and to set up a suitable waste treatment system, with the aim of improving the efficiency of environmental protection, a set of rules has been established applicable to the manufacture of the product and other rules regarding the correct environmental treatment when these products become waste.
It is also intended to improve the environmental practices of all agents involved in electrical and electronic goods, including manufacturers, distributors, users and particularly those directly involved in the treatment of waste derived from these apparatus.
From 13th August 2005, there are two ways of disposing of this apparatus:
If you purchase a new equivalent apparatus or which has the same functions as the one you wish to dispose of, you can hand it over, free of charge, to the distributor when making your purchase, or
- You can take it to local collection points.
We shall cover waste treatment costs
- The apparatus are labelled with a symbol of a "crossed-out waste container". This symbol means that the apparatus is subject to selected waste collection, different from general waste collection.
- Our products are designed and manufactured with top-quality, environmental-friendly materials and components, which can be reused and recycled. In spite of this, several parts of this product are not biodegradable and therefore it should not be left in the environment. For the correct recycling of this product, please completely detach the electrical motor from the rest of the filtration equipment.

1-CERTIFICADO DE GARANTÍA

ASPECTOS GENERALES

• The products listed above are in compliance with the safety prescriptions:

2014/30/EU Electromagnetic compatibility Directive.
2014/35/EU Low voltage Directive.
2011/65/EU European Directive (RoHS).
EU REACH Regulation 1907 /2006.
2012/19/EU WEEE Directive.

Mungia 29 December 2020

Angel Elorduy

General Manager

If You Have Any Problem, Contact Us! www.grepool.com/en/after-sales
Si Tienes Algun Problema, iConsultenos! España www.grepool.com/post-venta
En Cas De Probleme, Nous Consulter!	France/ Belgie	www.grepool.com/fr/apres-vente
Sollten Sie Probleme Haben, Zögern Sieitte Nicht, Uns Zu Kontaktieren!	Deutschland www.grepool.com/de/kundenservice
Per Ogni Vostra Eventuale Occorreza, Interpellateci!	Italia www.grepool.com/it/post-vendita
Em Casa De Problema, iConsultar-Nos! Portugal www.grepool.com/post-venta
Mocht U Een Probleem Hebben, ... iRaadpleeg Ons!	Nederland	[phone] [e-mail]
W razie problemów, skontaktuj噤z nami	Poland www.grepool.com/en/after-sales

DISTRIBUTED BY / DISTRIBUTIDO POR / DISTRIBUTUE PAR / VERTRIEB DURCH / DISTRIBUTUTo DA / GEDISTRUBUEERD DOOR / DISTRIBUTUDo POR / WYPRODUKOWANY PRZEZ: MANUFACTURAS GRE, S.A. ARITZ BIDEA N° 57 BELAKO INDUSTRIALDEA, APARTADO 69 48100 MUNGUIA (VIZCAYA) ESPANA N° Reg. Ind. 48-06762

We reserve the right to change all or part of the articles or contents of this document, without prior notice
- Nos reservamos el derecho de Cambiar total o parcialmente las caracteristicas de nuestros articulos o el contenido de este documento sin previo aviso
- Nous nous réservons le droit de modifier totalement ou en partie les caractéristiques de nos articles ou le contenu de ce document sans préavis
- Wir behalten uns das Recht vor, die technischen Daten unserer Anteil oder den Inhalt these Dokumentes ohne vorherigen Hinweis ganz oder teilweise zu ändern
- Ci riserviamo il diritto diambiare totalmente o parzialmente le caratteristiche tecniche dei nostri prodotti ed il contentuto di questo documento perché nessun preavviso
Wij behouden ons hetrecht voor geheel of gedeeltek de kenmerken van once artikelen of de inhoud van deze handleiding zonder voorafgaand bericht te wizigen
Reservamo-nos o direito de alterar, total ou parcialmente, as caracteristicas dos nosso artigos ou o conteudo deste documento sem aviso precedo.
- Zastrzegamy%Cie prawo do zmiany w calosci lub czeci niniejszej instrukcji bez uprzednej informaci
