USER MANUAL PHANTOM IBIZA SOUND

with BLUETOOTH, USB, MICROSD & REMOTE

CONTROL

ENCEINTE ACTIVE AUTONOME 300W

Blue and black outdoor sound kit with two blue speakers and a green handle (no visible text or symbols)

MANUAL

EN - INSTRUCTION MANUAL - p. 2

FR - MANUEL D'UTILISATION - p. 7

Imported from China by LOTRONIC S.A.

Avenue Zénobe Gramme 9

B-1480 Saintes

©Copyright LOTRONIC 2022

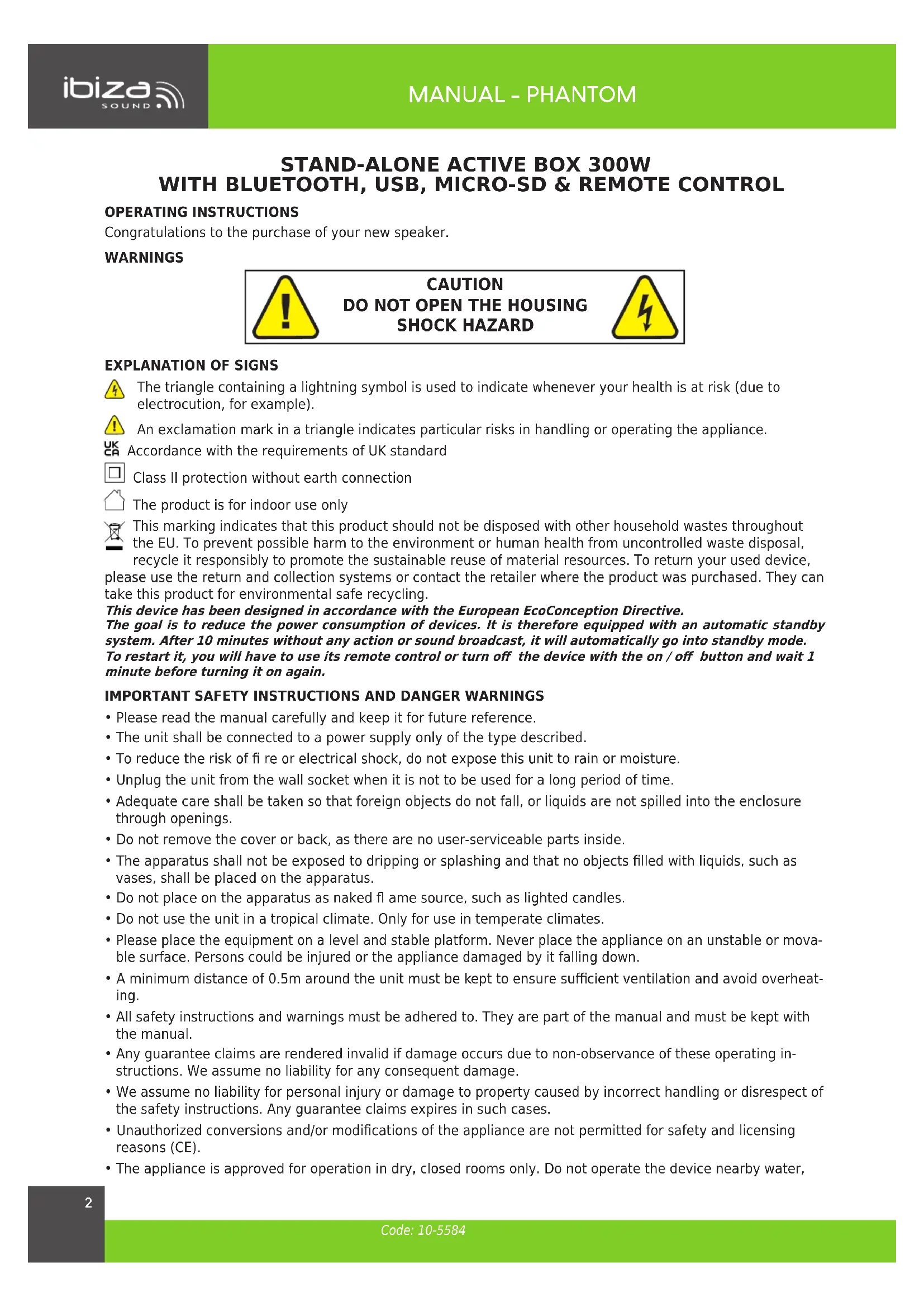

STAND-ALONE ACTIVE BOX 300W WITH BLUETOOTH, USB, MICRO-SD & REMOTE CONTROL

OPERATING INSTRUCTIONS

Congratulations to the purchase of your new speaker.

WARNINGS

CAUTION DO NOT OPEN THE HOUSING SHOCK HAZARD

EXPLANATION OF SIGNS

The triangle containing a lightning symbol is used to indicate whenever your health is at risk (due to electrocution, for example).

An exclamation mark in a triangle indicates particular risks in handling or operating the appliance.

UK CA Accordance with the requirements of UK standard

☐ Class II protection without earth connection

The product is for indoor use only

This marking indicates that this product should not be disposed with other household wastes throughout the EU. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources. To return your used device, please use the return and collection systems or contact the retailer where the product was purchased. They can take this product for environmental safe recycling.

This device has been designed in accordance with the European EcoConception Directive. The goal is to reduce the power consumption of devices. It is therefore equipped with an automatic standby system. After 10 minutes without any action or sound broadcast, it will automatically go into standby mode. To restart it, you will have to use its remote control or turn off the device with the on / off button and wait 1 minute before turning it on again.

IMPORTANT SAFETY INSTRUCTIONS AND DANGER WARNINGS

• Please read the manual carefully and keep it for future reference.
• The unit shall be connected to a power supply only of the type described.
• To reduce the risk of fi re or electrical shock, do not expose this unit to rain or moisture.
• Unplug the unit from the wall socket when it is not to be used for a long period of time.
• Adequate care shall be taken so that foreign objects do not fall, or liquids are not spilled into the enclosure through openings.
• Do not remove the cover or back, as there are no user-serviceable parts inside.
• The apparatus shall not be exposed to dripping or splashing and that no objects filled with liquids, such as vases, shall be placed on the apparatus.
• Do not place on the apparatus as naked flame source, such as lighted candles.
• Do not use the unit in a tropical climate. Only for use in temperate climates.
• Please place the equipment on a level and stable platform. Never place the appliance on an unstable or movable surface. Persons could be injured or the appliance damaged by it falling down.
• A minimum distance of 0.5m around the unit must be kept to ensure sufficient ventilation and avoid overheating.
• All safety instructions and warnings must be adhered to. They are part of the manual and must be kept with the manual.
• Any guarantee claims are rendered invalid if damage occurs due to non-observance of these operating instructions. We assume no liability for any consequent damage.
• We assume no liability for personal injury or damage to property caused by incorrect handling or disrespect of the safety instructions. Any guarantee claims expires in such cases.
• Unauthorized conversions and/or modifications of the appliance are not permitted for safety and licensing reasons (CE).
• The appliance is approved for operation in dry, closed rooms only. Do not operate the device nearby water,

such as in bathrooms or nearby swimming pools.

• The appliance may not be exposed to extreme temperatures (< +5°C / > +35°C) in operation.
• The appliance may not be subject to strong vibrations or heavy mechanical strain.
- DISCONNECT DEVICE: Where the MAINS plug or an appliance coupler is used as the disconnect device, the disconnect device shall remain readily operable.

CHARGING THE BATTERY

Connect the mains power plug to an AC outlet and the built-in battery will start charging. The CHARGE LED lights up in red. Once the battery is fully charged, the LED lights up in green.

For a longer battery life, it is recommended to disconnect the mains power cable after 10h max of recharging. If the battery is empty, please turn the speaker off and recharge for at least half an hour before using it again.

PLEASE NOTE: If the speaker has been switched into standby mode via the remote control, the built-in battery will NOT charge.

After 10 minutes of inactivity, the unit will switch automatically into standby mode.

IMPORTANT NOTE ON LITHIUM-ION BATTERIES

1. PRIOR to using the unit for the first time, please charge fully the battery without any interruption.
2. Charge the battery regularly after each use. Don't wait until it is discharged!
3. DON'T allow the battery to discharge completely, otherwise it will lose 20% of its capacity or even be totally damaged! If the voltage becomes too low, the internal circuits are not powered anymore and it will become impossible to recharge the battery!
4. If you don't use the unit for a longer period of time, it is recommended to charge it at 40% of its capacity and check/charge it once per month.

The life time of the battery depends on the observance of these recommendations.

** BATTERIES ARE NOT COVERED BY THE WARRANTY **

WE CANNOT BE HELD RESPONSIBLE FOR DAMAGED BATTERIES FURTHER TO THE NON-OBSERVANCE OF THESE BASIC RULES.

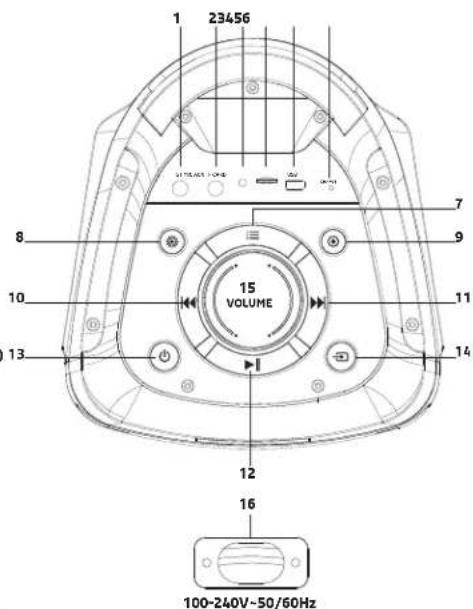

DESCRIPTION OF THE TOP PANEL CONTROLS & CONNECTORS

1. Guitar input
2. MIC input
3. AUX in (3.5mm jack cable)
4. Micro SD card input
5. USB stick input
6. Charge LED
7. MENU: Treble/bass/mic volume/mic echo/guitar vol adjustment
8. LED light on/off
9. Record function
10. Previous song
11. Short press to select the next song
12. Short press to play/pause in USB/TF/Bluetooth mode. Long press to activate TWS function
13. Power on/off
14. Mode: Line in, USB/TF, Bluetooth,
15. Main volume control
16. Mains input (rear panel)

INSTALLING THE BATTERIES IN THE REMOTE CONTROL

Remove the battery cover from the

back of the remote control as shown

and insert 2x AAA size batteries ensuring correct polarity

RECOMMENDATIONS FOR BATTERIES

This symbol indicates that used batteries should not be disposed of with household waste but deposed correctly in accordance with your local regulations.

Batteries shall not be exposed to excessive heat such as sunshine, fire or the like.

When the internal batteries are not to be used, remove them to avoid damage caused by battery leakage or corrosion.

ATTENTION: Danger of explosion if battery is incorrectly placed. Only replace by the same or equivalent type.

WARNING: Do not swallow the battery. Danger of chemical burns. Keep new and old batteries out of the reach of children.

If the battery compartment doesn't close properly, stop using the product and keep it out of the reach of children. If you are in doubt whether the batteries have been swallowed or introduced into any other part of the body, contact immediately a doctor.

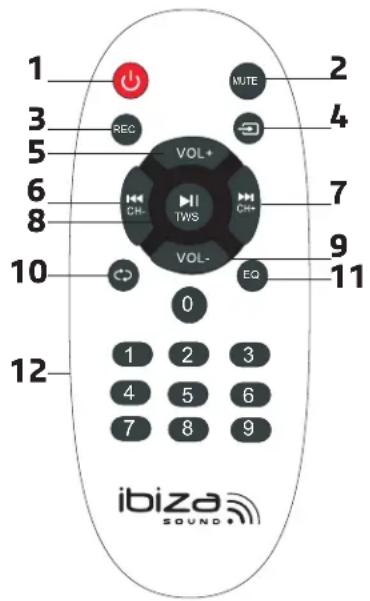

REMOTE CONTROL

1. Power on / Stand by
2. Mutes the sound in any mode
3. Record function: In USB/TF mode, press "REC" button to record

4. Mode: Press shortly to skip to BT/LINE/USB/TF/ mode.

5. Main Volume +

6. Previous Song

7. Next song

8. Play / Pause

9. Main Volume -

10. Repeat one song, repeat all songs

11. EQ sound mode: pop, rock, jazz, classic, flat

12. Number buttons: In USB/TF mode enter directly the number of the desired song

STANDBY MODE

Press the standby button on the remote control to switch the system into standby mode. Press again to switch the system on.

In standby mode, the battery does not recharge and the device has a minimum battery consumption.

When connecting the mains power supply, keep the power button pressed for 3 seconds and the display will turn on. If you press the POWER button shortly, the device will switch into standby mode and the power button illuminates in red.

MODE BUTTON

Press the button 14 on the unit or 4 on the remote control and select BLUETOOTH (BLUE is displayed), USD/SD (only if the USB or TF inputs are connected), AUX (LINE is displayed) or (a frequency is displayed).

VOLUME ADJUSTMENT

Turn the volume control 15 on the unit, or press the buttons 5 & 9 on the remote control to adjust the overall playback volume

Press the MENU button (14) and turn the VOLUME control (15) to adjust the treble / bass / mic volume / Mic echo / guitar volume.

PRE-EQUALIZER

The system has a preset audio equalization system. Press the EQ button on the remote control repeatedly to select one of the 5 audio equalizations available and which best suits the current music.

BASS / TREBLE ADJUSTMENT

Press the MENU button (7) on the unit once to adjust the treble and twice to adjust the bass.

MIC ECHO EFFECT

Press the MENU button (7) on the unit 4 times and rotate the master volume control to adjust the microphone echo effect.

Note: the echo effect only works on the microphone input.

MIC VOLUME

Press the MENU button (7) on the unit 3 times and rotate the master volume control to adjust the microphone sound level.

Note: This function is only available when a wired microphone is connected (not provided)

GUITAR VOLUME

Press the MENU button (7) on the unit 5 times and rotate the master volume control to adjust the guitar volume.

Note: This function is only available when a guitar is connected

LED LIGHT SWITCH

Press the light button (8) to cycle through the various light effects and witch the light off.

VOICE PROMPT FUNCTION

Press and hold the MODE button (14) on the unit or (4) on the remote control to switch the voice prompt feature on and off.

BLUETOOTH FUNCTION

Press MODE button on the unit or the remote control until BLUE is displayed and flashing.

1. Put the cell phone within 10 meters
2. Activate the BT search function on your cell phone to search for the BT device. Please refer to the user manual for details
3. Select PHANTOM in the list of found devices.

Enter the password "0000" if required.

1. Shortly press the PLAY/PAUSE button ▶ II to play or pause the music. Shortly press the “◀◀” or “▶◀” button to select the previous or next track.

AUX MODE:

Press the MODE button on the unit or the remote control until LINE is selected. Play the music of the device connected to the AUX input via a 3.5mm Jack.

USB / MICRO-SD MODE:

1. Insert a USB or TF device and press the MODE button to select "USB" or "TF" mode. The unit will automatically read and play the music in the connected device.
2. Press "▶II" button shortly to pause or play.
3. Shortly press "◀◀" button to go to the previous song.
4. Shortly press "▶" button to go to the next song.
5. Press the Repeat button (10) on the remote control. The display will show "ONE" and the track will be played continuously. Press twice and the display will show "ALL". All songs on the USB/SD will be played continuously.

TWS MODE

1. Turn on the 2 speakers (PHANTOM) and select Bluetooth mode.
2. Keep the play/pause button pressed on one of the 2 speakers. You will hear a beep sound. This becomes the main speaker (left channel) which will automatically search and connect to the other speaker (right channel). After connection, you will hear a beep sound.
3. Turn on your Bluetooth device and put it close to the speaker (within 10 meters).
4. Select 'PHANTOM' in the list of found devices.
5. Now you can listen to the songs from your Bluetooth device in stereo sound.
6. In TWS mode, manipulations to the main speaker will affect the other speaker. E.g. volume adjustment, previous/next song, play/pause and power on/off.

Note: If the speakers don't pair, switch them both off and repeat steps 1, 2 and 3.

The TWS function only works between speakers with the same Bluetooth name

VOICE RECORDING

The unit can record voice from the microphone on a USB stick or microSD card. It will create automatically a folder called 'Record' on the USB stick where it will store all log files.

1. Switch on the unit
2. Insert a USB stick or a microSD card into the socket.
3. Select USB or SD mode via the MODE button on the unit or the remote control.
4. Press the REC button on the unit or the remote control to start recording. The display will show "REC" and time counter will start.
5. Press REC again to stop recording. The unit will play automatically the recorded file.

Note: You can record only voice. During recording, some controls are deactivated; They will resume their normal function when recording is stopped.

BATTERY REMOVAL

Warning: This operation should only be performed by trained staff! The appliance must not be plugged into the mains during battery removal.

1. Remove the screws that secure the battery compartment on the rear panel
2. Remove the metal panel
3. Disconnect the battery and remove it
4. Replace the battery by a new one having exactly the same specifications

TROUBLESHOOTING

Problem Possible cause Solution
No sound when power on	No input sound sourceVolume knob in the lowest positionVoice prompt feature switched offNo USB/SD inserted	Connect an AUX signalAdjust volumeTurn on Voice prompt via MODE buttonInsert a USB/SD Card
Distortion of sound	Volume too loudAudio file error	Reduce volumeCheck and change the audio file
No sound from the Microphone	Microphone socket not fully plugged inMicrophone switch is not onMicrophone volume too low	Completely plug in the microphone socketPower on microphoneAdjust microphone volume
No sound from the USB/SD card	Incompatible song formatUSB/SD Card not inserted properly	File format should be MP3Insert USB/SD card properly
The CHARGE indicator flashes in red when the battery is low	Mains adaptor is not inserted properly This does not affect the speaker system. The charge led is only an indication whether the unit is charging
The battery doesn't charge properly and works only during a very short time	Connect the mains lead to charge the batteryBattery is not fully chargedThe battery is dead	Check if the mains lead is properly connectedExtend charging time. Normally it takes 6-8 hours to fully charge the battery.Replace the battery by a new one with exactly the same specifications
Speaker makes noise	Wired Microphone too close to the speakerWired Microphone is switched on but not in useMicrophone volume too loudMobile phone too close to the speakerWireless equipment too close to the speaker	Keep the wired microphone 2m away from the speakerTurn off the microphone if not in useReduce the microphone volumeKeep mobile away from the speaker during callsKeep the speaker away from other wireless equipment

SPECIFICATIONS

Power supply....100-240V\~50/60Hz

Consumption....40W

Consumption in stand-by mode ....<0.5W

Woofer 2 x 6.5"/16cm

Power 300W

Built-in battery....Li-ion 7.4V== 5Ah

BT freq. band 2402-2480MHz

Max. RF emission power 6.01dBm

Impedance 4 ohms

Frequency response 60Hz - 16kHz

S/N ratio....>70dB

Dimensions 269 x 290 x 626mm

Weight....8.92kg

ENCEINTE ACTIVE AUTONOME AVEC BLUETOOTH, USB, MICRO-SD & TELECOMMANDE

INTRODUCTION

RECOMMANDATIONS POUR LES PILES

EU Declaration of Conformity

Hereby we, LOTRONIC SA

Avenue Zénobe Gramme, 9

1480 SAINTES

Belgique

+32.2.390.91.91

Certify and declare under our sole responsibility that the following product:

Trade name: IBIZA

Product name: Portable speaker

Type or model: PHANTOM

Conforms to the essential requirements of the RED directive 2014/53/EU, ErP directive 2009/125/EC, Commission Regulation (EC) 1275/2008 & 801/20123/EC, 2011/65/EU RoHS directive and the Commission Delegated Directive (EU) 2015/863

Based on the following specifications applied:

EN 62368-1:2014+A11:2017

ETSI EN301 489-1 V2.2.3 : 2019-11

ETSI EN301 489-17 V3.2.4 : 2020-09

EN 55032:2015

EN 55035 : 2017

EN 61000-3-2 : 2019

Place and date of issue:

Saintes ( Belgium ), on 03/12/2021

Manuel De Sousa

Quality Manager

CE
