USER MANUAL Opera Reevo 212 DB Technologies

Line drawing of a dual-tiered industrial machine with mesh ventilation and labeled 'dBi Technologies' (no text beyond labels)

Coax Quasi 3-Way Active Speaker

USER MANUAL - Section 1

The warnings in this manual must be observed in conjunction with the "USER MANUAL - Section 2".

According to the standards EN 55032 and 55035 this is a Class A equipment, designed and suitable to operate for professional use.

Warning: This equipment is compliant with Class A of CISPR 32. In a residential environment this equipment may cause radio interference.

FCC CLASS A STATEMENT

Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment.

This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his own expense.

WARNING: Make sure that the loudspeaker is securely installed in a stable position to avoid any injuries or damages to persons or properties. Before hanging the loudspeaker check all the components for damages, deformations, missing or damaged parts that may compromise safety during installation. If you use the loudspeakers outdoor avoid spots exposed to bad weather conditions. Contact dB Technologies for accessories to be used with speakers. dBTech-nologies will not accept any responsibility for damages caused by inappropriate accessories or additional devices.

Features, specification and appearance of products are subject to change without notice. dBTechnologies reserves the right to make changes or improvements in design or manufacturing without assuming any obligation to change or improve products previously manufactured.

WARNING

Only expert personnel may use the product and its accessories! To prevent hazards to people, animals and/or objects, make sure that the installation is stable and secure. Comply with the safety regulations and laws in force in the country in which you use the product. For safe use, periodically check that all parts are in good working condition before use. Only authorised personnel may carry out design, calculations, installation, testing and maintenance of professional flown or stacked audio systems. AEB Industriale shall not be liable for improper installation carried out without adequate safety measures.

Never suspend the speakers from the handles! Only use the accessories and configurations described in this manual, and proceed in accordance with the instructions given in the manuals for the accessories.

Do not obstruct the amplifier cooling fins at the back. In the event of overheating, the audio volume is gradually reduced until the module is thermally stable. The level is automatically restored on reaching the correct operating temperature. Do not attempt to open the amplifier. In the event of malfunction, immediately turn off the power, disconnect the unit from the mains and contact an authorised service centre.

Only use the power cable provided. Do not use the monitor for a prolonged period with the limiter LED steadily lit or flashing as this indicates operation under stress with excessive distortion.

Check periodically the integrity and the functionality of the accessories and the technical equipments for a safe installation. User should never apply a load that exceeds the working load limits of any rigging components or equipment here presented. Design, calculation, installation, testing and maintenance of suspension and stack systems for audio equipment must be performed only by qualified and authorized personnel. AEB Industriale s.r.l. denies any and all responsibility for improper installations, in the absence of safety requirements.

OPERA REEVO

Cod. 420120426 REV. 1.2

IMPORTANT SAFETY INSTRUCIONS:

1. Read these instructions

2. Keep these instructions.

3. Heed all warnings.

4. Follow all instructions.

5. Do not use this apparatus near water.

6. Clean only with dry cloth.

7. Do not block any ventilation openings. Install in accordance with the manufacturer's instructions.

8. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.

9. Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.

10. Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus.

11. Only use attachments/accessories specified by the manufacturer.

12. Use only with the cart, stand tripod, bracket, or table specified by the manufacturer, or sold with the apparatus. When a cart is used, use caution, when moving the cart/apparatus combination to avoid injury from tip-over.

13. Unplug this apparatus during lightning storms or when unused for long periods of time.

14. Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.

ADDITIONAL SAFETY INSTRUCTIONS:

• No naked flame sources, such as lighted candles, should be placed on the apparatus
• Do not use the apparatus in tropical climates

ITALIANO

ENGLISH

DEUTSCH

FRANÇAIS

ESPAÑOL

OPERA REEVO

Cod. 420120426 REV. 1.2

INDICE

1. INFORMAZIONI GENERALI......6

BENVENUTI! 6

PANORAMICA INTRODUTTIVA....6

RIFERIMENTI PER L'UTENTE....6

CARATTERISTICHE MECCANICHE ED ACUSTICHE ....7

DIMENSIONI E PESO....7

COPERTURA ACUSTICA 8

MECCANICA 8

2. PRIMA ACCENSIONE....11

INGRESSI E USCITE 17

Technical line drawing of a mechanical component with dimension label D (no text or symbols present)

###W

	W H D
OPERA REEVO 210	300mm 604mm	324mm
OPERA REEVO 212	345mm 690mm	376mm

OPERA REEVO Cod. 420120426 REV. 1.2

COPERTURA ACUSTICA

Technical line drawing of a mechanical device with fan blades and internal components (no text or symbols)

V

Technical line drawing of a computer tower with fan blades and ventilation slots (no text or symbols)

MECCANICA

Technical line drawing of a mechanical housing component with mounting holes and a central circular feature (no text or symbols)

OPERA REEVO

Cod. 420120426 REV. 1.2

SEZIONE DI
INGRESSO E USCITA

allTechnologies

dBTechnologies OPERA FEVO P W Balance Input Presets Flat Playback W Wedge Link Limitter Signal Level Max

SEZIONE DI

ALIMENTAZIONE

Power ON OFF FC EAC UK CE MAINS INPUT MAX 100V MAX 100V MAX 100V MAX 100V MAX 100V MAX 100V MAX 100V MAX 100V MAX 100V MAX 100V MAX 100V MAX 100V MAX 100V MAX 100V MAX 100V FUSE

SEZIONE DI INGRESSO E USCITA

1. PRESETS

VDC device complies with, part 35 at the HCC lateral. Operation is subject to the following two conditions in VDC device may not cause mechanical widered, and if this device must accept any Inference rectified, including interference that may cause undated operations. Serial No. FC EC UK CA CE AEB INDUSTRIALE S.R.L. Vib-Industriel, & laucini CompaRan energy VALGAMOGRA (90) ITALP CAUTION AIR OF ELECTRIC SHOCK ATTENTION INPUT OF ON/OFF ELECTRIC IN RUB POWER MAINS INPUT POWER 220-240V™ 50-60Hz 1.3A (T3:15 L 250V*) 110-120V™ 50-60Hz 2.6A (T6:3A L 250V*) Internal voltage setup (10kΩ) 75T (MTH) 64T (RUT/R) (10kΩ) 120T (MTH) 80T (RUT/R) (W/UL) (W/UL/W/UL) FUSE ON OFF 7 -- -8 -- -9

ATTENZIONE!

No connection: complex with part 20 of the FC power required to support to be following an condition (20) that may not use hardware inductors, inductors, or other electronic components. And no connection must not be used for any connection to the power required. The main connection is designed. Power ON OFF CAUTION BEET/HEATING INPUTS ATTENTION RETURN ON THE POWER MAIN INSTITUT FUSE 320-360V~50-60Hz 2.3A (73.15 L 250V*) 110-120V~50-60Hz 2.6A (74.3 A L 250V*) Internal voltage setup Internal voltage set up to 100W (10W) AER INDUSTRIALE S.R.L. File Edit-in-It Bened by: 100W CNC 100W CE (80) CACT CACT CACT CACT CACT CACT CACT CACT CACT CACT CACT CACT CACT CACT CACT CACT CACT CACT

POWER SUPPLY

ATTENZIONE!

Line drawing of a portable electronic device mounted on a tripod stand (no text or symbols)

ATTENZIONE!

Technical line drawing of a mechanical component with internal channels and mounting holes (no text or symbols)

OPERA REEVO

Cod. 420120426 REV. 1.2

Technical line drawing of a mechanical device with symmetrical components and mounting holes (no text or symbols)

Technical line drawing of a device interior showing internal components and casing (no text or symbols)

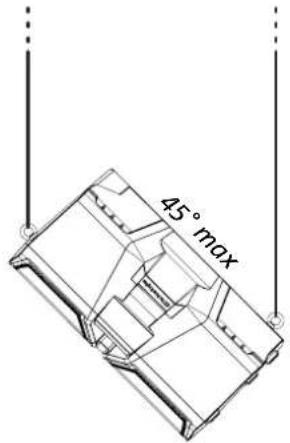

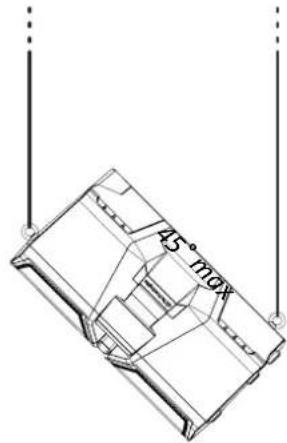

45° max

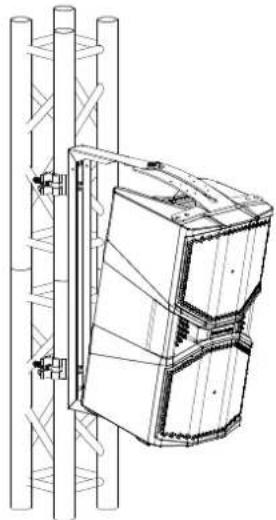

ATTENZIONE!

Technical line drawing of a mechanical device with no visible text or symbols

Technical line drawing of a mechanical assembly with vertical supports and a multi-layered housing (no text or symbols)

OPERA REEVO Cod. 420120426 REV. 1.2

4. RISOLUZIONE DEI PROBLEMI

Presets:	Flat, Playback, Wedge	Flat, Playback, Wedge
Controlli:	Button (Preset), 2 Preset LED, 2 System LED	Button (Preset), 2 Preset LED, 2 System LED

INGRESSI E USCITE

Ingressi audio:	combo XLR/jack	combo XLR/jack
Uscite audio:	XLR Link OUT	XLR Link OUT

OPERA REEVO Cod. 420120426 REV. 1.2

DIMENSIONS AND WEIGHT 21

ACOUSTIC COVERAGE 22

MECHANICAL FEATURES 22

AMPLIFIER AND CONTROL SECTION FEATURES 23

INPUT AND OUTPUT SECTION 24

POWER SUPPLY SECTION 25

2. FIRST POWER-ON 25

PACKAGE CONTENTS 25

USE 26

CONNECTING AND LINKING THE AUDIO SIGNAL....26

CONNECTING THE POWER SUPPLY 26

3. EXAMPLES OF INSTALLATION....27

INSTALLATION ON A STAND 27

INSTALLATION ON A SUBWOOFER....28

WEDGE INSTALLATION....28

INSTALLATION SUSPENDED FROM EYEBOLTS 29

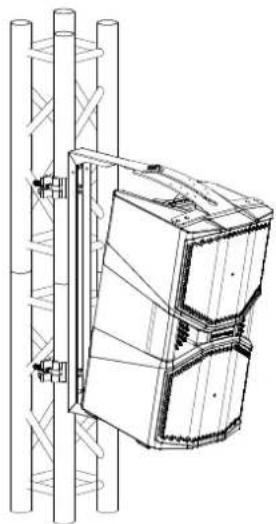

WALL MOUNTING WITH BRACKETS 29

4. TROUBLESHOOTING ....30

5. TECHNICAL SPECIFICATIONS....31

GENERAL 31

ACOUSTIC DATA....31

AMPLIFIER....31

PROCESSOR....31

USER INTERFACE 31

INPUTS AND OUTPUTS....31

POWER SUPPLY SPECIFICATIONS (POWER CONSUMPTION/INSTALLATION)....32

DIMENSIONS 32

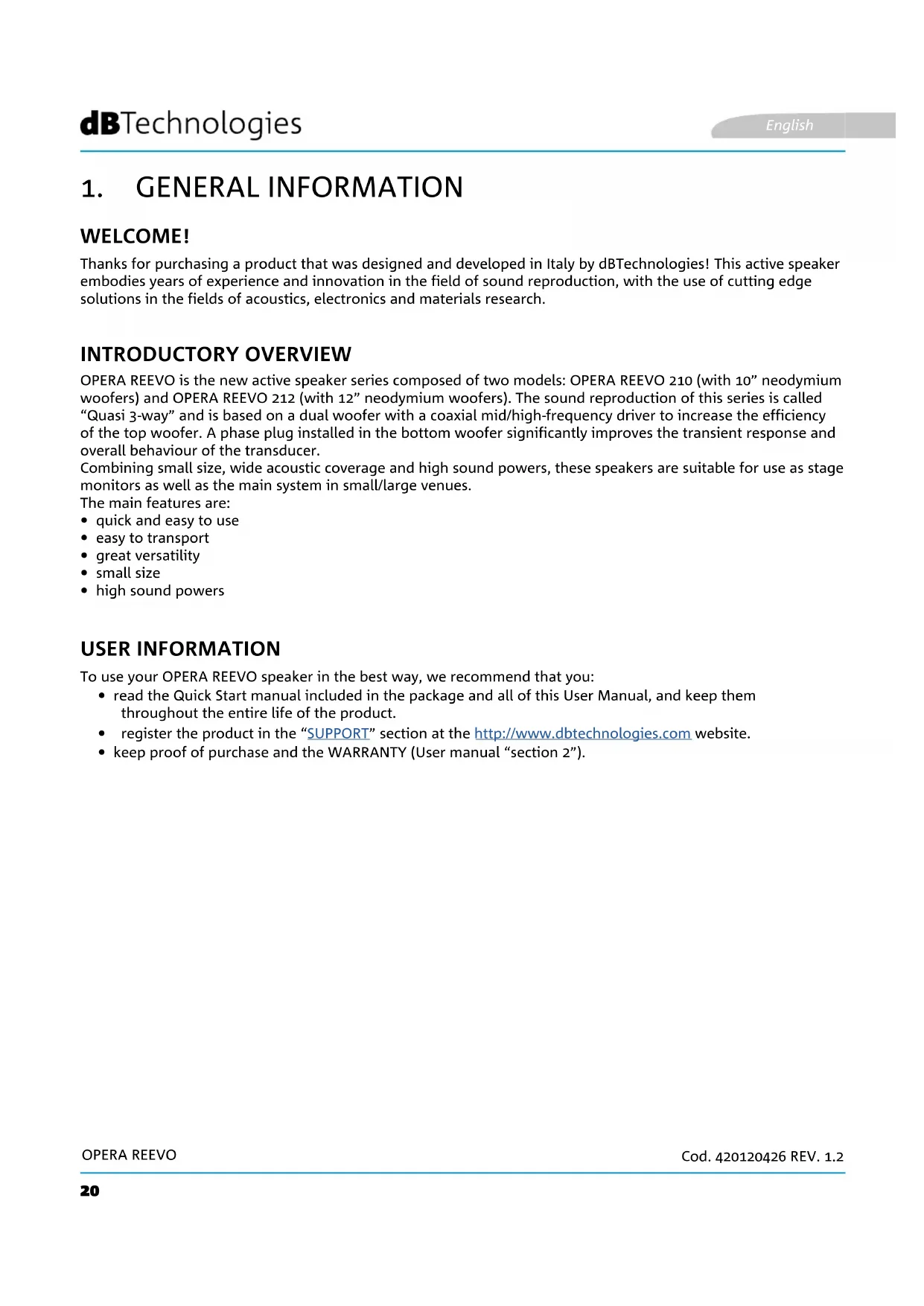

1. GENERAL INFORMATION

WELCOME!

Thanks for purchasing a product that was designed and developed in Italy by dBTechnologies! This active speaker embodies years of experience and innovation in the field of sound reproduction, with the use of cutting edge solutions in the fields of acoustics, electronics and materials research.

INTRODUCTORY OVERVIEW

OPERA REEVO is the new active speaker series composed of two models: OPERA REEVO 210 (with 10" neodymium woofers) and OPERA REEVO 212 (with 12" neodymium woofers). The sound reproduction of this series is called "Quasi 3-way" and is based on a dual woofer with a coaxial mid/high-frequency driver to increase the efficiency of the top woofer. A phase plug installed in the bottom woofer significantly improves the transient response and overall behaviour of the transducer.

Combining small size, wide acoustic coverage and high sound powers, these speakers are suitable for use as stage monitors as well as the main system in small/large venues.

The main features are:

• quick and easy to use
• easy to transport
• great versatility
• small size
• high sound powers

USER INFORMATION

To use your OPERA REEVO speaker in the best way, we recommend that you:

• read the Quick Start manual included in the package and all of this User Manual, and keep them throughout the entire life of the product.
• register the product in the "SUPPORT" section at the http://www.dbtechnologies.com website.
• keep proof of purchase and the WARRANTY (User manual "section 2").

MECHANICAL AND ACOUSTIC FEATURES

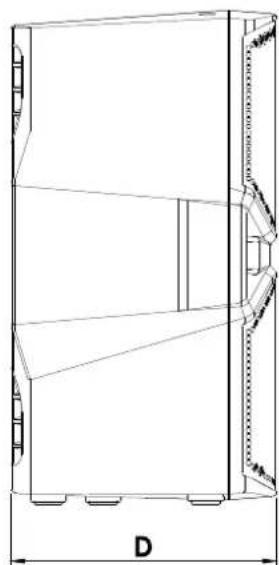

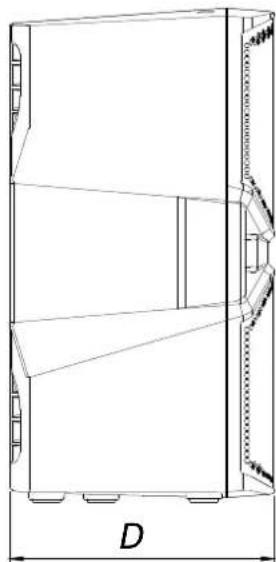

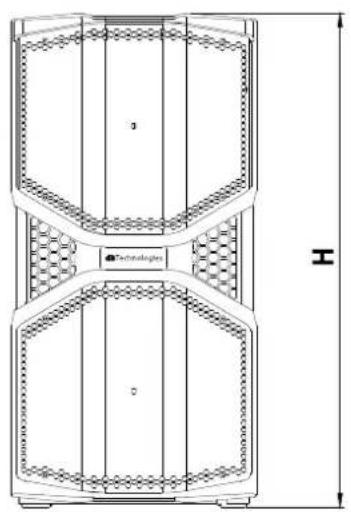

DIMENSIONS AND WEIGHT

The OPERA REEVO speakers have been designed with particular attention to optimising their weight and overall size. The OPERA REEVO 210 model weighs 17.2 kg, while the OPERA REEVO 212 mode weighs 20.4 kg. The box is made of polypropylene.

The dimensions are:

300 mm (W) x 604 (H) x 324 mm (D) - OPERA REEVO 210

345 mm (W) x 690 (H) x 376 mm (D) - OPERA REEVO 212

D H

Technical line drawing of a mechanical or architectural component with dimension label D (no text or symbols present)

W

	W H D
OPERA REEVO 210	300mm 604mm	324mm
OPERA REEVO 212	345mm 690mm	376mm

OPERA REEVO Cod. 420120426 REV. 1.2

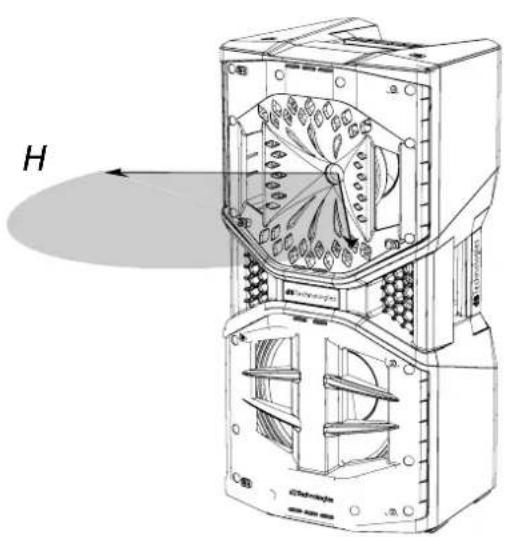

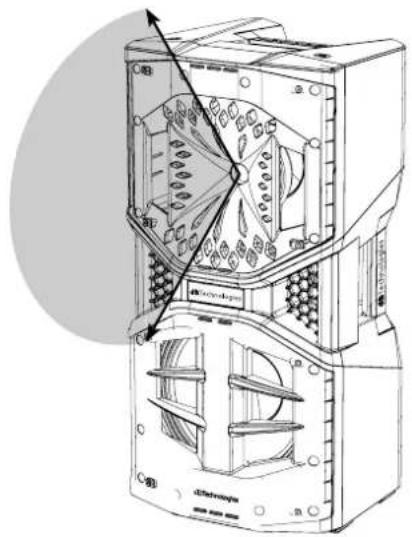

ACOUSTIC COVERAGE

The two models have the following acoustic coverage:

OPERA REEVO 210 100°x90° (HxV)

OPERA REEVO 212 100°×80° (HxV)

Technical line drawing of a mechanical device with fan blades and internal components (no text or symbols)

V

Technical line drawing of a computer tower with fan blades and ventilation slots (no text or symbols)

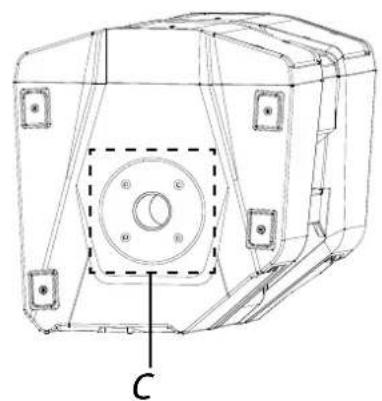

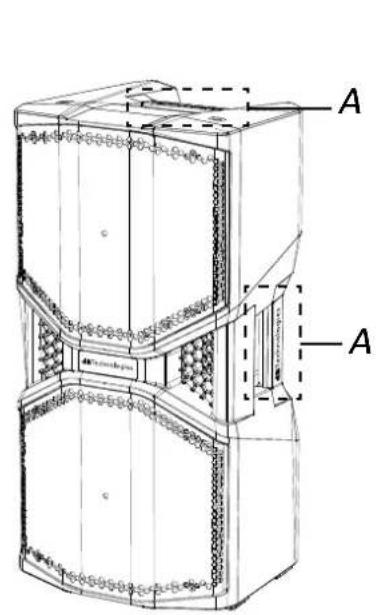

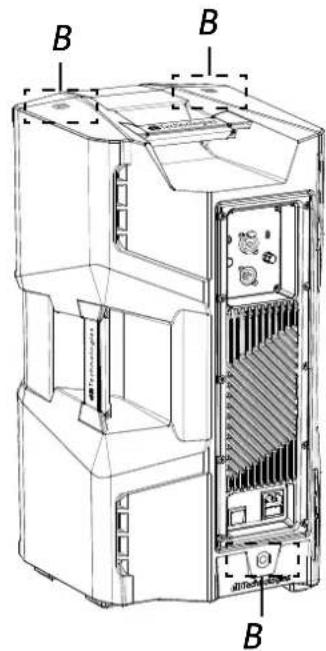

MECHANICAL FEATURES

Both models have two handles (A) for easy transport, one on the right side and one on the top. Three attachment points for lifting with eyebolts (B) and the provision for pole mounting (C) ensure that the speaker is ergonomic and quick to mount.

A A

B B B

Technical line drawing of a mechanical housing component with mounting holes and a central circular feature (no text or symbols)

OPERA REEVO

Cod. 420120426 REV. 1.2

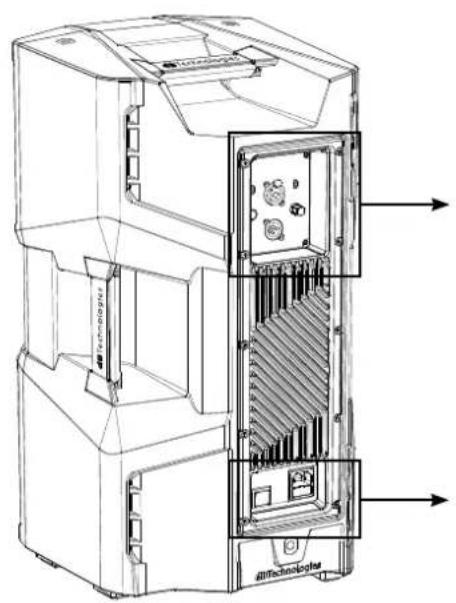

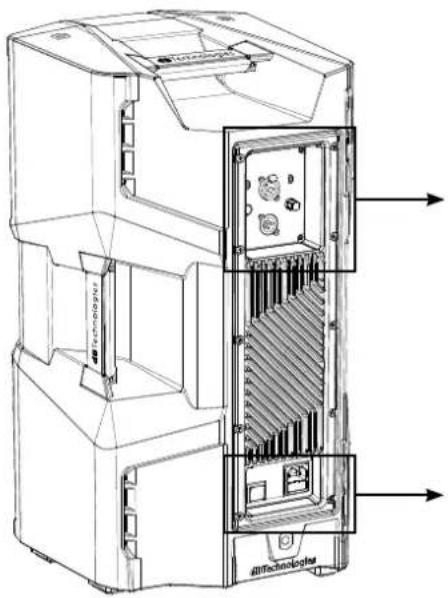

AMPLIFIER AND CONTROL SECTION FEATURES

The new generation Class D digital amplifier is the heart of the OPERA REEVO speakers. Totally silent, it delivers amplification power of 1050 W RMS.

All the inputs and controls are grouped together on the preamp panel.

The connection panel features:

• Input and Output section
  • Power supply section

CAUTION!

• Protect the unit from moisture.
• Do not attempt to open the amplifier.
• In the event of malfunction, immediately turn off the power, disconnect the unit from the mains and contact an authorised service centre.

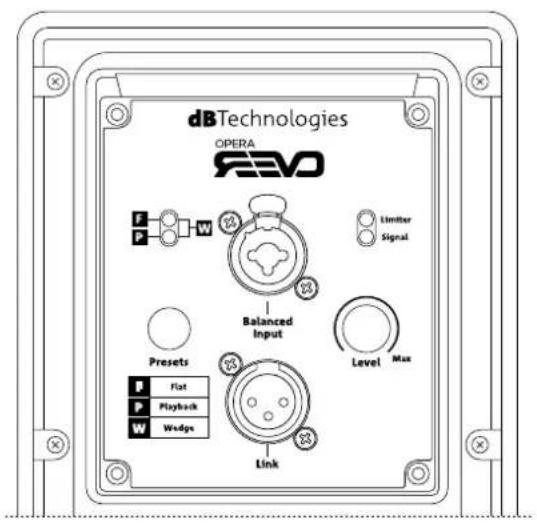

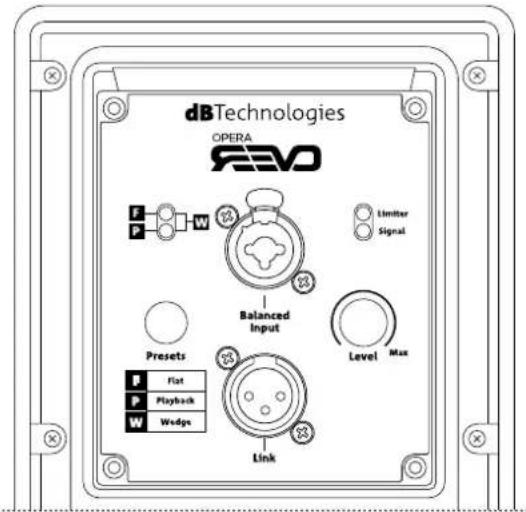

INPUT AND OUTPUT SECTION

Technical diagram of an electronic device showing internal structure with labeled components and directional arrows indicating flow or movement.

dBTechnologies OPERA FEVO P P W Limiter Signal Balanced Input Level Max Presets Flat Playback W W-edges Link

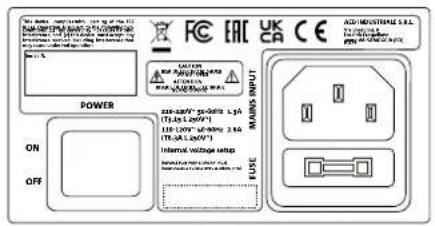

POWER SUPPLY SECTION

FC EAC UK CE POWER ON OFF MAINS INPUT SIZE: 2.04" (5x10^6 L/200V) LTD: 1.0V (5x10^6 L/200V) Internal voltage setup Power: 3.04V (5x10^6 L/200V) FUSE

INPUT AND OUTPUT SECTION

1. PRESETS

This button selects from three speaker equaliser settings:

Flat - default setting, no equalisation active.

Playback - the response is optimised for playing music.

Wedge - choose this setting when the speaker is used as a stage monitor.

2. PRESET LED

The combination of the two LEDs indicates which preset is active. If both are on, the Wedge preset is selected.

3. INGRESSO AUDIO ("Balanced input")

Input compatible with a balanced XLR/jack cable to connect the audio signal from a mixer or another speaker.

4. USCITA AUDIO ("Link")

Output compatible with a balanced XLR/jack cable to link the signal to other speakers in a daisy-chain configuration.

5. STATUS LED Main

The LEDs provide an immediate indication of the speaker status, in accordance with the logic summarised in the table below:

OPERA
Power up OFF OFF
Use	COMPRESSIONLIMITER STATUS	SIGNAL OUTPUTSTATUS
Partial malfunction	ACTIVE ACTIVE
Partial malfunction	CYCLIC FLASHING OFF

6. LEVEL

Knob to adjust the speaker level.

OPERA REEVO

Cod. 420120426 REV. 1.2

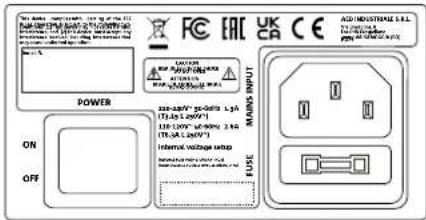

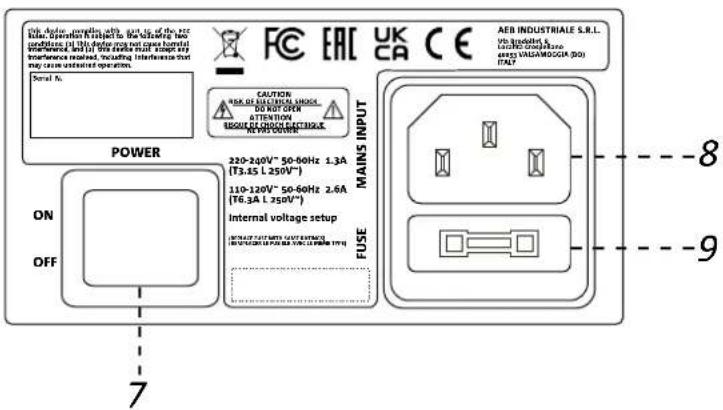

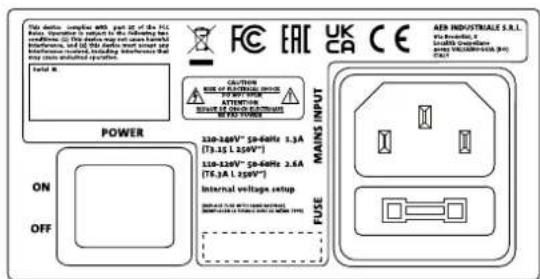

POWER SUPPLY SECTION

7. ON/OFF SWITCH

Switch to turn the device ON or OFF..

8. "MAINS INPUT" POWER SUPPLY CONNECTOR

Mains input for VDE connector.

9. FUSE

Protection fuse.

File: Driver connection with 90% of the one Line. Operator is subject to the following two conditions (in the driver may not case harmful unverified, not in) if the device must be kept up transference retained, including interference that may cause undetected operation. Serial No. FC ERC UK CA CE CAUTION RISK OF ELECTRIC FORCE ATTENTION LIGHT OF ONION ELECTRIC MAINS INPUT POWER 220-240V~ 50-60Hz 1.3A (T3.45 L 250V*) 110-120V~ 50-60Hz 2.6A (T6.3A L 250V*) Internal voltage setup INTUATION WITH CANAL EXTRACT INFORMATION TO PASE 200 V/120V (77V) FUSE AEB INDUSTRIALE S.R.L. Wt. Industrials & Largest Cable/Box EYES VALGAMOCHA (50) ITALP ON OFF 7 8 9

CAUTION!

• Only use the power cable provided or other dBTechologies power cables.
• Do not use the monitor for a prolonged period with the limiter LED steadily lit or flashing as this indicates operation under stress with excessive distortion.

2. FIRST POWER-ON

PACKAGE CONTENTS

On opening the OPERA REEVO speaker package, check that no items are missing. The package contains:

• OPERA REEVO speaker
• power cable with VDE connector
- quick start manual and warranty documentation
- transport case

OPERA REEVO Cod. 420120426 REV. 1.2

USE

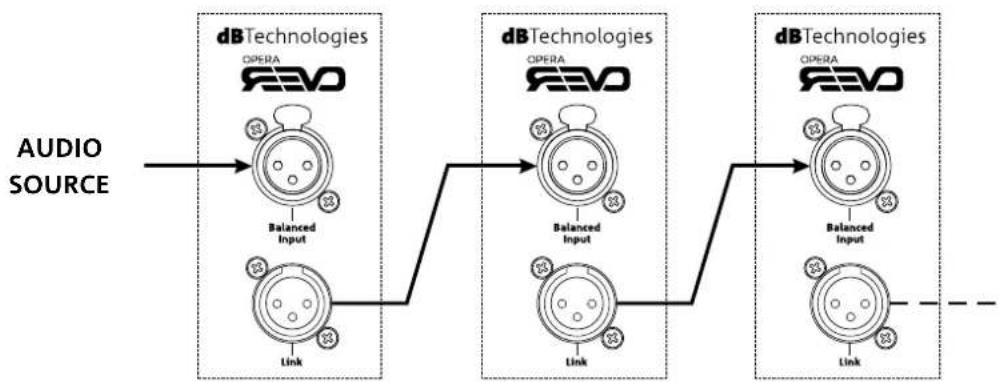

CONNECTING AND LINKING THE AUDIO SIGNAL

When linking the audio signal, connect the sound source to the "INPUT" of the first speaker first of all. Then connect a balanced XLR cable from the "LINK" output of the first speaker to the "INPUT" of the second, and so on. Repeat this step for all the speakers in the chain.

CONNECTING THE POWER SUPPLY

Connect the power cable provided to the MAINS INPUT socket, and then to the mains supply and turn the power switch ON. The Limiter LED will flash briefly. Switch the speaker OFF before disconnecting the power cable.

This device is completely closed, part of the FCC Line. Operation is subject to the following two requirements: UTRD (120V) and ITRD (120V) are not required to be installed. Electrical components including inductors that may require additional specifications. Serial No. POWER ON OFF CAUTION AIR OR ELECTRIC SWITCH ATTENTION SIGHT OF ELECTRIC SWITCH MANS INPUT 120-340V~ 50-60V 2.1A (73.15 L 1.20V*) 110-340V~ 50-60V 2.6A (76.3A L 2.9V*) Internal voltage setup FUSE AER INDUSTRIALE S.R.L. File Description: Analog circuitry and 120mA/80mA (20) Circuit

POWER SUPPLY

CAUTION!

- Check that the power supply voltage indicated corresponds to that in the country of use

OPERA REEVO

Cod. 420120426 REV. 1.2

3. EXAMPLES OF INSTALLATION

CAUTION!

• Only expert personnel may use the product and its accessories!
• To prevent hazards to people, animals and/or objects, make sure that the installation is stable and secure.
• Comply with the safety regulations and laws in force in the country in which you use the product.

- For safe use, periodically check that all parts are in good working condition before use.

- Do not suspend the speakers by the handles.

- Mount on a flat, level surface, otherwise additional safety fixings will be required.

- AEB Industriale shall not be liable for improper installation carried out without adequate safety measures.

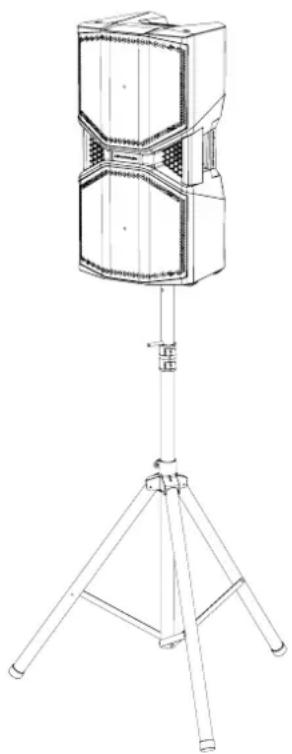

INSTALLATION ON A STAND

The OPERA REEVO speaker can be mounted on the optional standard tripod stand with a 35 mm diameter pole. The maximum permissible height of the speaker base is 160 cm from the floor.

Line drawing of a multi-tiered portable electronic device mounted on a tripod stand (no text or symbols)

CAUTION!

- Use a tripod stand of suitable size with the central foot forward to ensure adequate stability.

OPERA REEVO Cod. 420120426 REV. 1.2

INSTALLATION ON A SUBWOOFER

The OPERA REEVO speaker can be installed on a subwoofer:

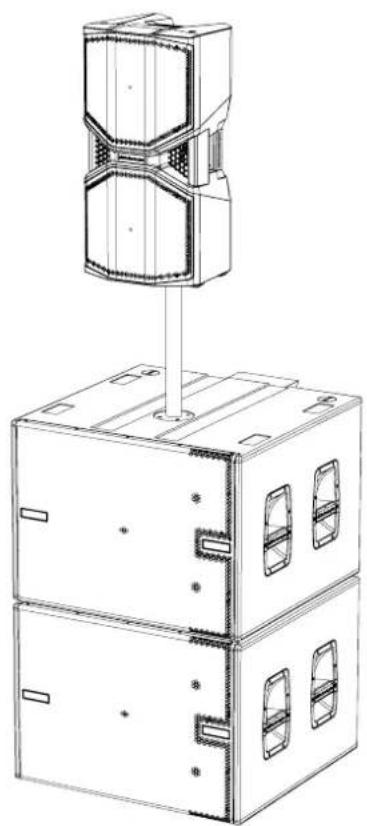

A. using a 35 ~mm diameter pole. In this case, the maximum permissible height of the speaker base is 215 ~cm from the floor.

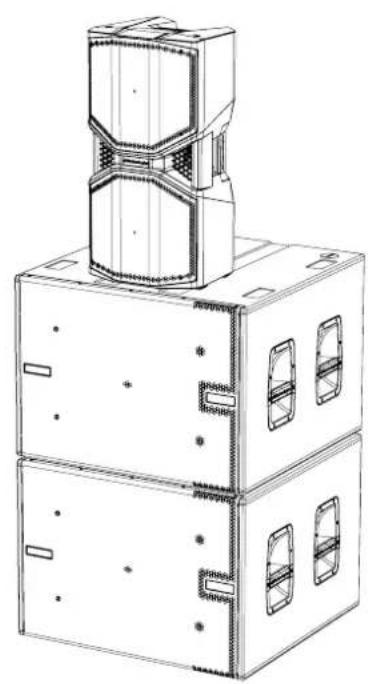

B. stacked with the DS2-S accessory

A. B.

Technical line drawing of a mechanical device with a vertical assembly and two stacked compartments (no text or symbols)

Technical line drawing of a mechanical device with two stacked units and a central tower component (no text or symbols)

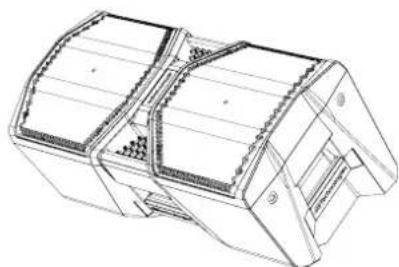

WEDGE INSTALLATION

This type of installation is intended for use as a live monitor. In this case, place the sloping side of the speaker flat on the floor.

For an optimal response, we recommend selecting the WEDGE (W) preset from the amplifier panel.

Technical line drawing of a mechanical component with internal channels and mounting holes (no text or symbols)

OPERA REEVO

Cod. 420120426 REV. 1.2

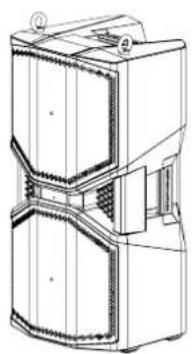

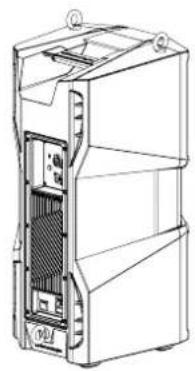

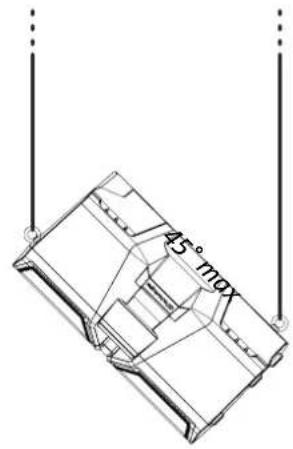

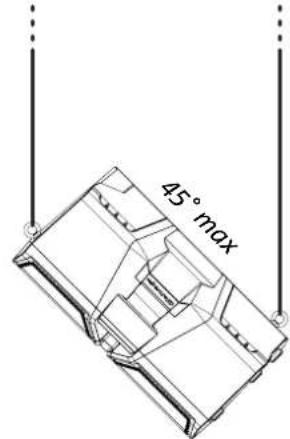

INSTALLATION SUSPENDED FROM EYEBOLTS

The speakers can also be suspended using eyebolts. The positioning is shown in the figure. The rear eyebolt can be used to adjust the tilt angle (MAX 45°).

Technical line drawing of a mechanical device with no visible text or symbols

Technical line drawing of a mechanical device with internal components and mounting holes (no text or symbols)

45° max

CAUTION!

• Screw in the eyebolts until the mating surface of the eyebolt is flush with the surface of the speaker to be lifted.
• When lifting the eyebolts, always pull longitudinally, never sideways.

WALL MOUNTING WITH BRACKETS

The OPERA REEVO models can be wall-mounted in vertical or horizontal position through the WB-REEVO210, WB-REEVO212, accessory, to be used with OPERA REEVO 210, OPERA REEVO 212, respectively. For further details refer to the instructions relevant to this accessory

Technical line drawing of a mechanical component or housing (no text or symbols)

Technical line drawing of a mechanical device mounted on a vertical frame structure (no text or symbols)

OPERA REEVO Cod. 420120426 REV. 1.2

4. TROUBLESHOOTING

The speaker does not power up:

1. Check that the system is connected to a working power supply.
2. Check that the power cord is plugged in correctly.
3. Check the fuse. Contact the service centre if the problem persists after replacing the fuse.

The monitor turns on but does not produce any sound:

1. Check that the audio signal inputs are connected correctly, preferably using cables with Neutrik® connectors.
2. Check that the cables used are not damaged.
3. Check that the mixer or audio source is on and clearly shows an output signal.

The sound from the monitor is distorted:

1. With the system powered on, first adjust the volume of the audio source. If the source LIMITER LED is on, the signal may already be distorted before it reaches the speaker.
2. Check that the connection cables are not damaged. If they are, replace them (a damaged cable may cause signal loss or alteration).

5. TECHNICALSPECIFICATIONS

GENERAL
OPERA REEVO 212 OPERA REEVO 210

Type: quasi 3-way active speaker quasi

3-way active speaker

ACOUSTIC DATA

Frequency response [-6 dB]: 52 - 19200 Hz 60 - 19200 Hz
Max SPL (@ 1m): 133 dB 132,5 dB
HF (coax): 1” exit	1” exit
HF Voice Coil:	1.75”	1.75”
Crossover frequency:	1260 Hz 24 dB/oct	1260 Hz 24 dB/oct
Coverage (HxV):	100° x 80°	100° x 90°
LF:	2 x 12” neo	2 x 10” neo
LF Voice Coil:	2.5”	2.5”

AMPLIFIER

Amplification class:	Class D	Class D
Peak power:	2100 W	2100 W
RMS power:	1050 W	1050 W
Power supply:	115/230 V	115/230 V
Cooling method:	Passive convection	Passive convection

PROCESSOR

Internal processing:	DSP 28/56 bit	DSP 28/56 bit
A/D D/A converter:	24 bit / 48 kHz	24 bit / 48 kHz
Limiter:	Peak, RMS, Thermal	Peak, RMS, Thermal

USER INTERFACE

Presets:	Flat, Playback, Wedge	Flat, Playback, Wedge
Controls:	Button (Preset), 2 Preset LED, 2 System LED	Button (Preset), 2 Preset LED, 2 System LED

INPUTS AND OUTPUTS

Audio inputs:	XLR/jack combo	XLR/jack combo
Audio outputs:	XLR Link OUT	XLR Link OUT

OPERA REEVO Cod. 420120426 REV. 1.2

POWER SUPPLY SPECIFICATIONS (POWER CONSUMPTION / INSTALLATION)

Power consumption at 1/8 power in medium use conditions (*):	2.6 A @115V A1.6 A @230V AC	2.6 A @115V AC1.6 A @230V AC
Power consumption at 1/3 power in medium use conditions (**):	5.2 A @115V AC3.1 A @230V AC	5.2 A @115V AC3.1 A @230V AC
Power consumption with speaker on but no signal (idle)::	0.27 A @115 V AC0.13 A @ 230 V AC	0.27 A @115 V AC0.13 A @ 230 V AC
Inrush current: 51.6 A 51.6 A

* NOTE FOR THE INSTALLER: Values refer to 1/8 power under normal operating conditions (music program with rare or no clipping). For any configuration type, we recommend considering them to be the minimum values for dimensioning.
** NOTE FOR THE INSTALLER: Values refer to 1/3 power under heavy operating conditions (music program with frequent clipping and limiting). We recommend dimensioning in accordance with these values for professional installations and tours.

DIMENSIONS

Material: Polypropylene Polypropylene
Grille: Painted / CNC machined Painted /CNC machined
Flown mounting: with M10 eyebolts with M10 eyebolts
Handles: Integrated Integrated
Pole mouting: D36 mm D36 mm
Width:	345 mm (27.3 inch.)	300 mm (11.8 inch.)
Height:	690 mm (13.6 inch.)	604 mm ( 23.8 inch.)
Depth:	376 mm (14.8 inch.)	324 mm (12.8 inch.)
Weight:	20.4 kg (45 lbs.)	17.2 kg (39.9 lbs.)

Product features, specifications and appearance are subject to change without prior notice. dBTechnologies reserves the right to make changes or improvements in design or manufacturing without any obligation to change or improve previously manufactured products.

OPERA REEVO

Cod. 420120426 REV. 1.2

INHALTSVERZEICHNIS

INSTALLATION AUF SUBWOOFER....42

WEDGE-INSTALLATION....42

INSTALLATION MIT RINGSCHRAUBEN 43

WANDINSTALLATION MIT BEFESTIGUNGSBÜGELN 43

Technical line drawing of a mechanical component with dimension label T (no text or symbols present)

###

	BHT
OPERA REEVO 210	300mm 604mm	324mm
OPERA REEVO 212	345mm 690mm	376mm

OPERA REEVO Cod. 420120426 REV. 1.2

ABSTRAHLWINKEL

Technical line drawing of a mechanical device with fan blades and internal components (no text or symbols)

V

Technical line drawing of a computer tower with fan blades and ventilation slots (no text or symbols)

MECHANIK

Technical line drawing of a mechanical housing component with mounting holes and a central circular feature (no text or symbols)

Cod. 420120426 REV. 1.2

SLS-10000 allTechnology

dBTechnologies OPERA FEVO P W Balance Input Presets Flat Playback W Wedge Link Limitter Signal Level Max

10% device complies with part 15 of the HCC lateral. Operation is subject to the following two conditions in 10% device may not case hiemal waterproof, and if this will be able to inference reared, including interference that may cause undated operators. Serial No. POWER ON OFF FUSE MAINS INPUT CAUTION AIR OR ELECTRICAL SHOCK INTERTAINMENT INPUT OF ON/OFF ELECTRIC IN R/W POWER 220-240V™ 50-60Hz 1.3A (T3:15 L 250V*) 110-120V™ 50-60Hz 2.6A (T6:3A L 250V*) Internal voltage setup (10mA/27.5W) WITH FAUT VOLTAGE (10mA/28.5W) WITH AIR CAN (VOC) & WIRE (TFT) AEB INDUSTRIALE S.R.L. Vib Biodiesel, & Lacottini Coopulation Energy VALGAMCOGN (50) ITALP 8 9 7

ACHTUNG!

This device compares WSS, part of the FC Line. Operation is subject to the following two connections: STG 3.1A, STG 3.2A, STG 3.3A, STG 3.4A, STG 3.5A, STG 3.6A, STG 3.7A, STG 3.8A, STG 3.9A, STG 4.0A, STG 4.1A, STG 4.2A, STG 4.3A, STG 4.4A, STG 4.5A, STG 4.6A, STG 4.7A, STG 4.8A, STG 4.9A, STG 5.0A, STG 5.1A, STG 5.2A, STG 5.3A, STG 5.4A, STG 5.5A, STG 5.6A, STG 5.7A, STG 5.8A, STG 5.9A, STG 6.0A, STG 6.1A, STG 6.2A, STG 6.3A, STG 6.4A, STG 6.5A, STG 6.6A, STG 6.7A, STG 6.8A, STG 6.9A, STG 7.0A, STG 7.1A, STG 7.2A, STG 7.3A, STG 7.4A, STG 7.5A, STG 7.6A, STG 7.7A, STG 7.8A, STG 7.9A, STG 8.0A, STG 8.1A, STG 8.2A, STG 8.3A, STG 8.4A, STG 8.5A, STG 8.6A, STG 8.7A, STG 8.8A, STG 8.9A, STG 9.0A, STG 9.1A, STG 9.2A, STG 9.3A, STG 9.4A, STG 9.5A, STG 9.6A, STG 9.7A, STG 9.8A, STG 9.9A, STG 10.0A FC EAC UK CA CE Field B CAUTION AIR OR ELECTRICAL (MOUT) ATTENTION MAINTS INJUNCTION ST G V F O R POWER ON OFF MAINS INPUT 320-120V~50-60V 1.3 A (T3-15 L 120V~) 110-120V~50-60V 2.6 A (T6-3 A L 20V~) Internal voltage setup Differential AC power in MΩE (10W) Differential AC power in MΩE (10W) AIR INDUSTRIALE S.R.L. Wt Drouta#lti Lamour Induction SUNI ZARAN-VISA (P.O.) (P.O.) (P.O.)

POWER SUPPLY

ACHTUNG!

Line drawing of a portable electronic device mounted on a tripod stand (no text or symbols)

ACHTUNG!

INSTALLATION AUF SUBWOOFER

Technical line drawings of two mechanical or electronic components labeled A. B., showing structural assembly with no visible text or symbols.

WEDGE-INSTALLATION

Technical line drawing of a mechanical component with internal channels and mounting holes (no text or symbols)

OPERA REEVO

Cod. 420120426 REV. 1.2

INSTALLATION MIT RINGSCHRAUBEN

Technical line drawing of a mechanical component or housing (no text or symbols)

Technical line drawing of a mechanical device mounted on a vertical frame structure (no text or symbols)

OPERA REEVO Cod. 420120426 REV. 1.2

4. FEHLERBEHEBUNG

DIMENSIONS ET POIDS....49

COUVERTURE SONORE 50

MÉCANIQUE....50

CARACTÉRISTIQUES DE LA SECTION D'AMPLIFICATION ET DE COMMANDE ....51

SECTION ENTRÉE ET SORTIE....52

SECTION D'ALIMENTATION....53

2. PREMIER ALLUMAGE....53

CONTENU DE L'EMBALLAGE....53

UTILISATION....54

BRANCHEMENT ET RELANCE DU SIGNAL AUDIO 54

CONNEXION DE L'ALIMENTATION ÉLECTRIQUE 54

3. EXEMPLES D'INSTALLATION ....55

INSTALLATION SUR TRÉPIED STATIQUE....55

INSTALLATION SUR SUBWOOFER 56

INSTALLATION WEDGE....56

INSTALLATION SUSPENDUE PAR ANNEAUX DE SUSPENSION M10....57

INSTALLATION MURALE AVEC ÉTRIERS....57

4. DÉPANNAGE....58

5. SPÉCIFICATIONS TECHNIQUES....59

GÉNÉRALES 59

DONNÉES ACOUSTIQUES 59

AMPLIFICATEUR....59

PROCESSEUR 59

INTERFACE UTILISATEUR 59

ENTRÉES ET SORTIES....59

SPÉCIFICATIONS D'ALIMENTATION (CONSOMMATION/INSTALLATION) 60

DIMENSIONS 60

1. INFORMATIONSGÉNÉRALES

BIENVENUE !

Technical line drawing of a symmetrical octagonal structure with internal divisions and labeled dimension H (no text or symbols beyond basic geometry)

Technical line drawing of a mechanical component with dimension label D (no text or symbols present)

###W

	W H D
OPERA REEVO 210	300mm 604mm	324mm
OPERA REEVO 212	345mm 690mm	376mm

OPERA REEVO Cod. 420120426 REV. 1.2

COUVERTURE SONORE

Technical line drawing of a mechanical device with fan blades and internal components (no text or symbols)

V

Technical line drawing of a computer tower with fan blades and ventilation slots (no text or symbols)

MÉCANIQUE

Technical diagram of an electronic device showing internal structure with labeled components and directional arrows indicating flow or movement.

dBTechnologies OPERA FEVO P W Balance Input Presets Flat Playback W Wedge Link Limitter Signal Level Max

SECTION D'ALIMENTATION

Power ON OFF FC EAC UK CE MAINS INPUT MAX 100V MAX 100V MAX 100V MAX 100V MAX 100V MAX 100V MAX 100V MAX 100V MAX 100V MAX 100V MAX 100V MAX 100V MAX 100V MAX 100V MAX 100V FUSE

SECTION ENTRÉE ET SORTIE

1. PRÉRÉGLAGES

VDC device complies with, part is at the RCT lateral. Operation is subject to the following two conditions in VDC device may not cause nominal widered, and if the drive that accept any Inference mounted, including Interference that may cause undated operations. Serial No. POWER ON OFF FUSE MAINS INPUT CAUTION AIR OR ELECTRICAL SHOCK INTERTAINMENT INPUT OF ON/OFF ELECTRIC IN R/W POWER 220-240V™ 50-60Hz 1.3A (T3:15 L 250V°) 110-120V™ 50-60Hz 2.6A (T6:3A L 250V°) Internal voltage setup (10mA/27.5V) WITH OUTRATING (10mA/28.5V) WITH OUTRATING (T7/8) AEB INDUSTRIALE S.R.L. Vib Biodiesel, & Lacchini Compaftone Energy VALGAMCOGA (50) ITALP 8 9 7

ATTENTION!

This device is completely closed, part of the FCC Line. Operation is subject to the following two requirements: UTRD (120V) and ITRD (120V) are not required to be installed. Electrical components including inductors that may require additional specifications. Serial No. POWER ON OFF CAUTION AIR OR ELECTRIC SWITCH ATTENTION SIGHT OF ELECTRIC SWITCH MANS INPUT 120-340V~ 50-60V 2.1A (73.15 L 1.20V*) 110-340V~ 50-60V 2.6A (76.3A L 2.9V*) Internal voltage setup FUSE AER INDUSTRIALE S.R.L. File Description: Analog circuitry AND VOLTAGE/VOLTAGE (R/C) CNC1

POWER SUPPLY

ATTENTION!

Line drawing of a portable electronic device mounted on a tripod stand (no text or symbols)

ATTENTION!

Technical line drawing of a mechanical device with labeled components A and B, showing internal structure and mounting points (no text or symbols beyond labels)

Technical line drawing of a multi-tiered industrial or mechanical device with no visible text or symbols

INSTALLATION WEDGE

Technical line drawing of a mechanical component with internal channels and mounting brackets (no text or symbols)

OPERA REEVO

Cod. 420120426 REV. 1.2

INSTALLATION SUSPENDUE PAR ANNEAUX DE SUSPENSION M10

Technical line drawing of a mechanical device with no visible text or symbols

Technical line drawing of a mechanical device with internal components and mounting points (no text or symbols)

45° m0x

ATTENTION!

Technical line drawings of three mechanical components with no visible text or symbols

OPERA REEVO Cod. 420120426 REV. 1.2

4. DÉPANNAGE

Entrées audio:	combo XLR/jack	combo XLR/jack
Sorties audio:	XLR Link OUT	XLR Link OUT

OPERA REEVO Cod. 420120426 REV. 1.2

SPÉCIFICATIONS D'ALIMENTATION (CONSOMMATION/INSTALLATION)

MEDIDAS Y PESO....63

COBERTURA DE SONIDO 64

MECÁNICA 64

Technical line drawing of a mechanical component with dimension label D (no text or symbols present)

###W

	W H D
OPERA REEVO 210	300mm 604mm	324mm
OPERA REEVO 212	345mm 690mm	376mm

OPERA REEVO Cod. 420120426 REV. 1.2

COBERTURA DE SONIDO

Technical line drawing of a mechanical device with fan blades and internal components (no text or symbols)

V

Technical line drawing of a computer tower with fan blades and ventilation slots (no text or symbols)

MECÁNICA

Technical line drawing of a mechanical housing component with mounting holes and a central circular feature (no text or symbols)

OPERA REEVO

Cod. 420120426 REV. 1.2

dBTechnologies OPERA FEVO P W Balance Input Presets Flat Playback W Wedge Link Limitter Signal Level Max

Vdc device complies with, part is at the hot lakes. Operation is subject to the following two conditions in Vdc device may not cause mechanical widered, and if the drive must accept any Inference mounted, including interference that may cause undated operations. Serial No. FC EC UK CA CE AEB INDUSTRIALE S.R.L. Vdc industrial, & laucette compliance energy VALGAM0024 (50) ITALP CAUTION AIR OF ELECTRICAL SHOCK ATTENTION INPUT OF ON/OFF ELECTRIC IN POWER MAINS INPUT POWER ON OFF FUSE 220-240V™ 50-60Hz 1.3A (T3:15 L 250V*) 110-120V™ 50-60Hz 2.6A (T6:3A L 250V*) Internal voltage setup (10kΩ 75T) WITH FAUT RATING (10kΩ 100KΩ) WITH FLAME (75°C) (100% OFF) 7 8 9

¡ATENCIÓN!

This device is completely closed, part of the FCC Line. Operation is subject to the following two requirements: UTRD (120V) and ITRD (120V) are not used in any other user. Use of electrical equipment including electronic devices that may use disassembled opacitors. FC EAC UK CA CE AER INDUSTRIALE S.R.L. File Edit-in-Off: ON OFF POWER CAUTION AIR OR ELECTRIC SWITCH ATTENTION SIGHT OF ELECTRIC SWITCH MASS NAME 120-340V™ 50-60V 2.1A (73.15 L 1.20V*) 110-340V™ 50-60V 2.6A (76.3A L 2.9V*) Internal voltage setup OFF FUSE

POWER SUPPLY

¡ATENCIÓN!

Line drawing of a portable electronic device mounted on a tripod stand (no text or symbols)

¡ATENCIÓN!

Technical line drawing of a mechanical device with labeled section A.B. (no text or symbols on the diagram itself)

Technical line drawing of a mechanical device with two stacked units and a central tower component (no text or symbols)

MONTAJE WEDGE

Technical line drawing of a mechanical component with internal channels and mounting holes (no text or symbols)

OPERA REEVO

Cod. 420120426 REV. 1.2

MONTAJE CON CÁNCAMOS

Technical line drawing of a mechanical device with internal components and mounting features (no text or symbols)

Technical line drawing of a mechanical device with internal components and mounting holes (no text or symbols)

45° max

¡ATENCIÓN!

Technical line drawing of a mechanical device with no visible text or symbols

Technical line drawing of a mechanical device mounted on a vertical frame (no text or symbols)

OPERA REEVO Cod. 420120426 REV. 1.2
