USER MANUAL KAC840 KRESS

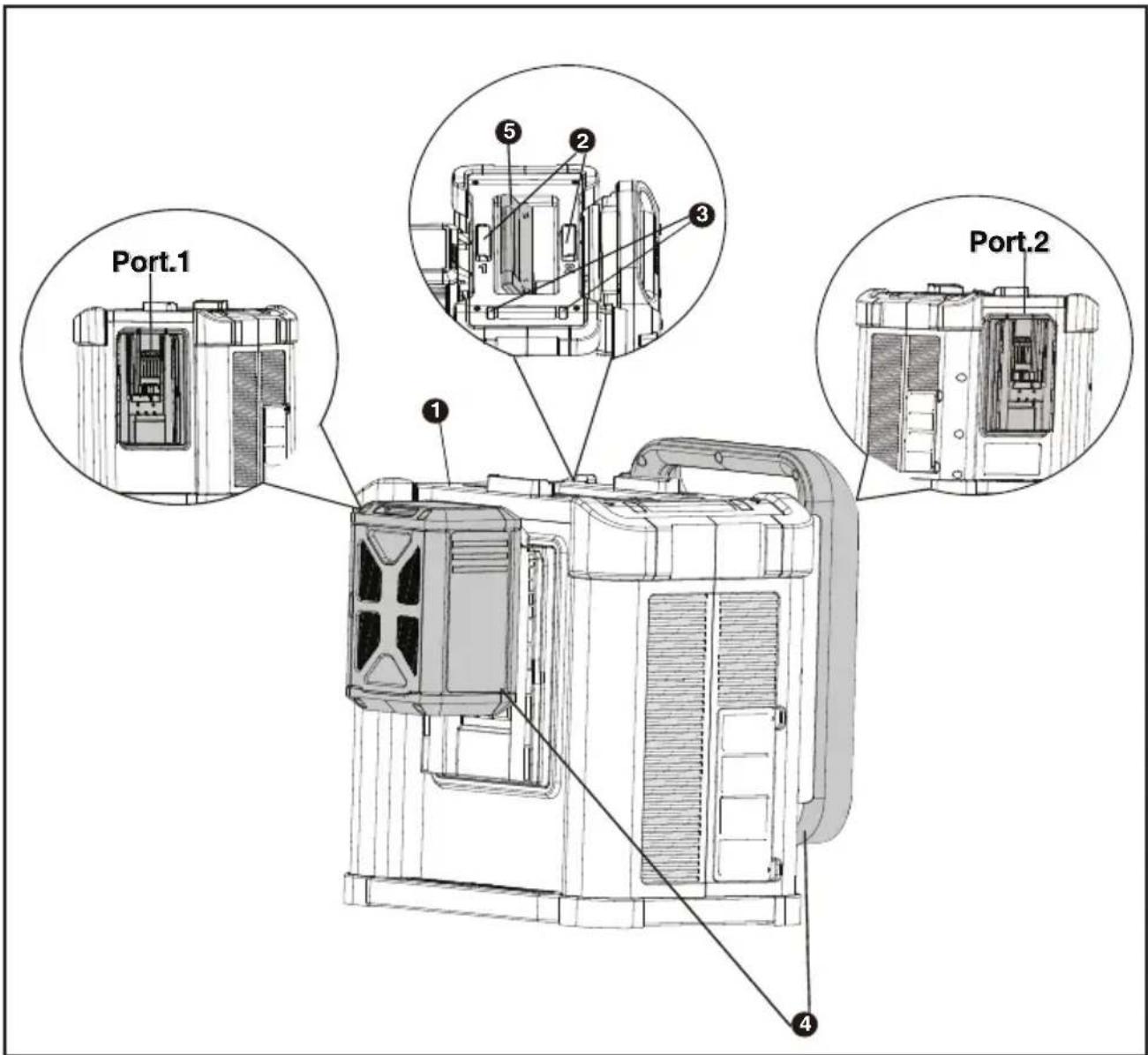

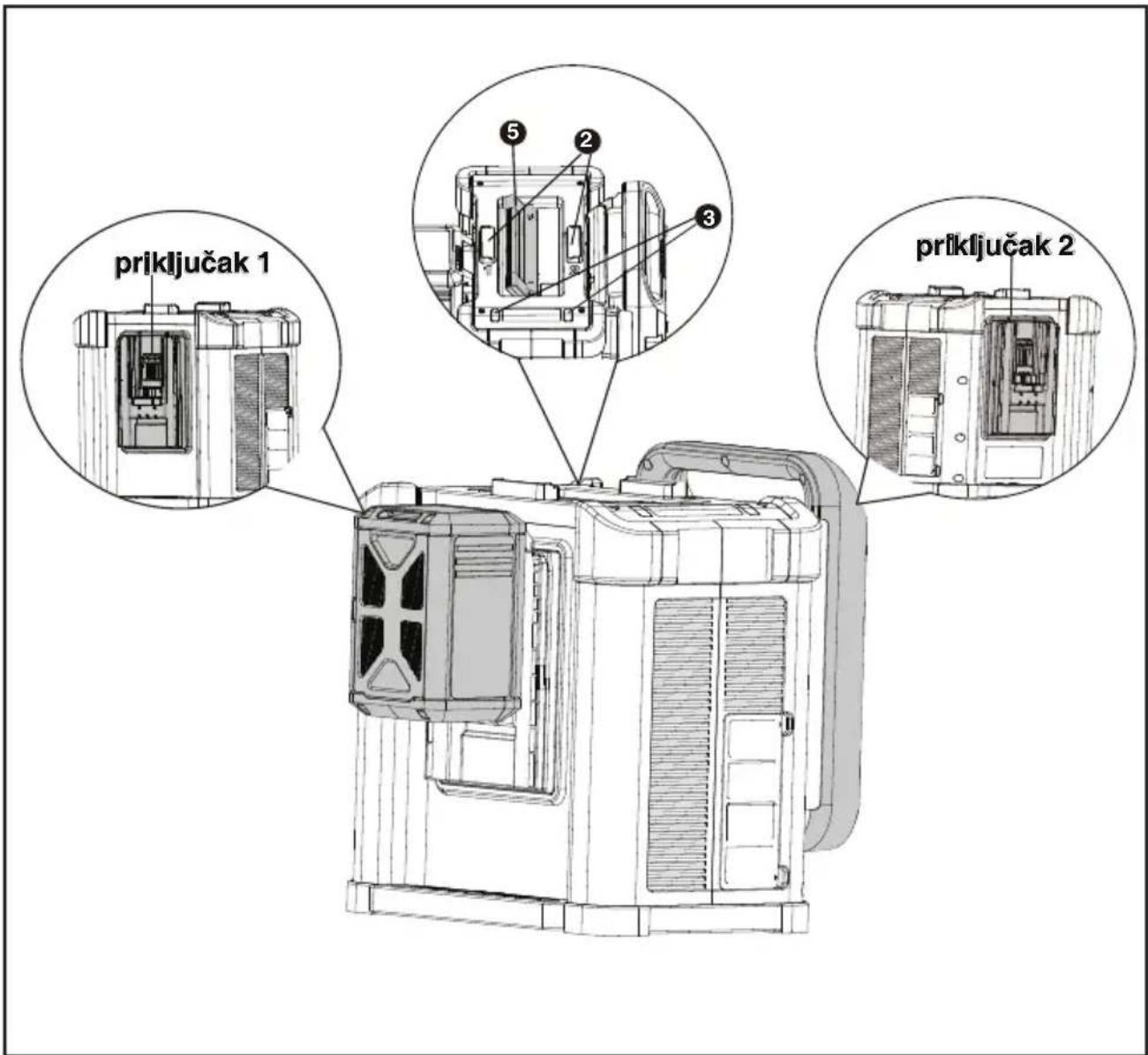

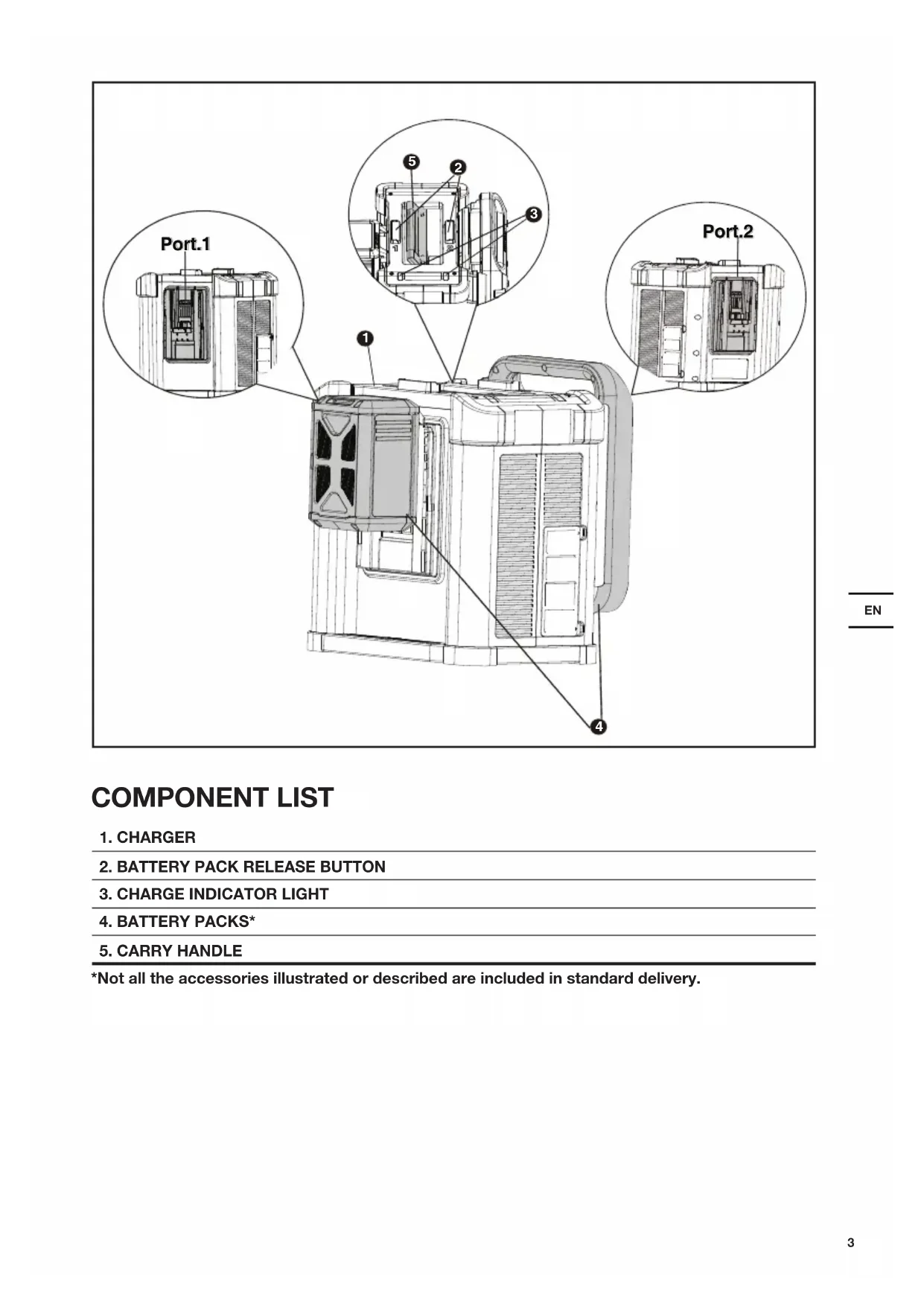

*Not all the accessories illustrated or described are included in standard delivery.4

PRODUCT SAFETY GENERAL SAFETY WARNINGS

safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, re and/or serious injury. Save all warnings and instructions for future reference. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard. ADDITIONAL SAFETY

1. Before charging, read the

2. Do not charge a leaking

3. Do not use chargers for

works other than those for which they are designed.

4. Before charging, ensure

your charger is matching the local AC supply.

5. Do not short out the

contacts of battery or charger.

6. Respect the polarity “+/-“

when charging. 7.Do not open the unit and keep out of the reach of children. 8.Do not charge the batteries of other manufactures or ill- suited models. 9.Ensure that the connection between the battery charger and battery is correctly positioned. 10.Keep battery charger’s slots are free of foreign objects and protect against dirt and humidity. Store in a dry and frost-free place. 11.When charging batteries, ensure that the battery charger is in a well- ventilated area and away from inflammable materials. Batteries can get hot during charging. Do not overcharge any batteries. Ensure that batteries and chargers are not left unsupervised during charging. 12.Do not recharge non-EN

rechargeable batteries, as they can overheat and break. 13.Longer life and better performance can be obtained if the battery pack is charged when the air temperature is between

C. Do not charge the battery pack in air temperatures below

C. This is important as it can prevent serious damage to the battery pack. 14.Charge only battery pack of the same model provided by Kress and of models recommended by Kress. SYMBOLS Read the operator’s manual. Warning Double insulation

Fuse Positive terminal Negative terminal Waste electrical products must not be disposed of with household waste. Please recycle where facilities exist. Check with your local authorities or retailer for recycling advice. CHARGING PROCEDURE NOTE: Before using the charger, read the instruction book carefully. WARNING -Considering the current capacity, please use the dedicated line to avoid overload of power supply. CHARGING INSTRUCTIONS

1. Charging your battery pack

This charger is designed for battery pack charging.

WARNING: The charger and battery pack are

specifically designed to work together so do not attempt to use any other devices. Never insert or allow metallic objects into your charger or battery pack connections because an electrical failure and hazard will occur.

2. Before using your cordless tool

Your battery pack is partly charged and needs to be fully charged before first use.

3. How to charge your battery procedure

1) Plug the charger into an appropriate outlet.

2) When inserting the one battery pack into the

charging port, the indicator light flashes green. This indicates the battery is charging. When charging two batteries this KAC840 charges the batteries in sequence. NOTE: Port 1 is available for Robotic charging. CHARGING INDICATOR This charger is a “smart charger” that is designed to provide you information on the status of your battery charge. Indicator lights in the table below will show the charging status. If you receive a defective charge indicator light (red on), insert a new battery to determine if the charger is OK. If the new battery charges correctly, then the original pack is defective and should be returned to an authorize Kress Dealer. If the new battery pack displays the same problem as the original Battery Pack, have the charger tested at an authorized service center. Light ON/ flash Status6

Yellow on Ready for charging Green flash - - - - - - Charging Green on Fully charged Red on Defective Battery Red flash

Battery Temperature Protection

BATTERY TEMPERATURE PROTECTION

This charger has a battery temperature protection feature. When the charger detects a battery pack that is too hot (the light will flash red), its internal fan will rapidly cool the battery to the correct temperature. When the charger detects a battery pack that is too cold (the light will flash red), it automatically activates the protection circuit, and suspends charging until the battery pack has reached the correct temperature . The charging process will then automatically begin (the light will flash green). This feature ensures maximum battery life.

LEAVING THE BATTERY PACK IN THE

CHARGER If a fully charged battery pack is left in the charger, the battery pack will enter a sleep low power mode. IMPORTANT CHARGING NOTES:

1. For long-term storage, please keep the battery

60% state of charge. It is suggested to check the battery power level regularly. During long term storage, battery should be charged and discharged every 3 months.

Never freeze your charger or immerse charger in water or any other liquid.

When the battery pack fails to produce sufficient power on jobs that were previously done easily, please recharge your battery, do not continue to use under this condition. You may charge a partially used pack whenever you desire with no adverse affect on the battery pack.

4. When charging, it is normal that the charger and

battery pack may become warm to touch.

5. If the battery pack does not charge properly:

a. Check current at power outlet by plugging in another appliance. b. Plug and unplug to check whether the charger is

c. Check if the battery or the charger are damaged d. Move the charger and battery pack to a location where the surrounding air temperature is approximately 18

F). e. If the charging problem persists, take the tool, battery pack and charger to an authorized service center. f. Under certain conditions, when the charger is plugged into the power supply, the exposed charging contacts inside the charger can be shorted by foreign material. Foreign materials of a conductive nature such as metallic particles should be kept away from charger cavities. Always unplug the charger from the power supply when there is no battery pack in the charger or before attempting to clean. CAUTION: Do not operate or store the charger in rain or wet condition to avoid electrodes corrosion and shortening the life. Charge battery packs after the electrodes are completely dry in case they are wet. Replace the electrodes if obvious verdigris appears. PROBLEM SOLUTION 1.I CANNOT FIT THE BATTERY INTO THE BATTERY CHARGER. WHY? a) Check if the charger and the battery pack are specifically designed for working together. b) The battery can be inserted into the charger only in one direction. Turn the battery around until it can be inserted into the slot, the indicator light should be green and flash when the battery is charging.

2. REASONS FOR DIFFERENT CHARGING

TIMES The charging time can be affected by many reasons which are not defects in your product. a) If the battery pack is only partly discharged it may be re-charged in less than rated charging time. b) If the battery pack and ambient temperature are very cold/ hot, it may take longer to re-charge. Please find an appropriate environment with proper air temperature to start charging. c) Batteries of higher Amp Hour rating require more charging time. MAINTENANCE

1. Remove the plug from the socket before carrying

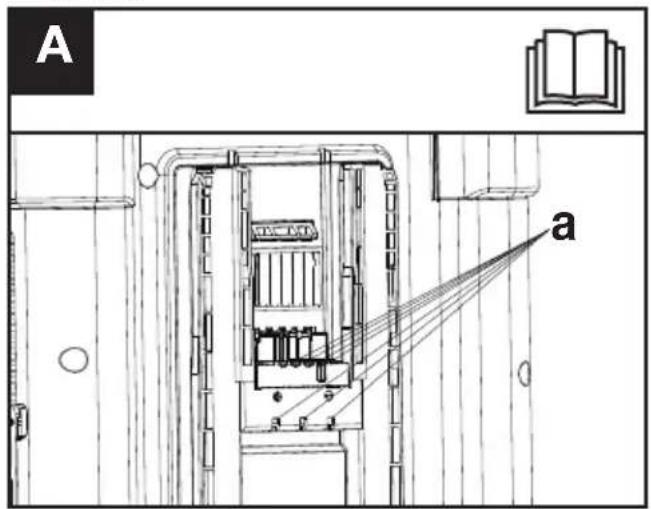

out any adjustment, servicing or maintenance. Your battery or charger requires no additional maintenance. If there is dust in the drain(a), rinse it with clean water. Wipe clean with a dry cloth. Always locate your battery, charger and power tool in a dryEN

place. (See Fig. A) If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

2. If there is dust on the windshield, please use a

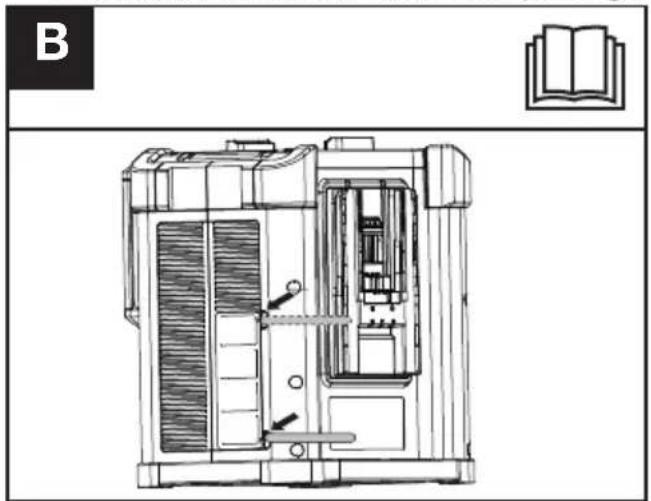

tool to lift one side of the windshield, remove the windshield, and rinse with clean water. (See Fig. B)

TROUBLE SHOOTING Problems Causes Solutions The charger doesn’t work All LED lights go out Defective charger. Please take back to an authorized Kress Dealer Please replace it with the new one. The charger doesn’t work and LED light flashes red. Battery pack is too cold or too hot. Allow the battery pack to reach normal temperature and charging. Kress 60V Battery:

The charger doesn’t work and red LED light is on. Battery pack is broken or connection error. Please return to an authorized Kress Dealer. Please replace it with the new one. TECHNICAL DATA Rated Input voltage 220-240 V/50~60 Hz Output voltage 60 V d.c Charging current 30 A Rated Input power 1800 W Charge battery Li-Ion Degree of protection IPX5 Charging time (approx.) (Cyberpack)

Protection class /II Machine weight 11.8 kg Charging time varies with different temperature. For the technical data of the types, the number of cells and the rated capacity of the batteries that can be charged, please refer the nameplate of the battery pack supplied by Kress. PLUG REPLACEMENT

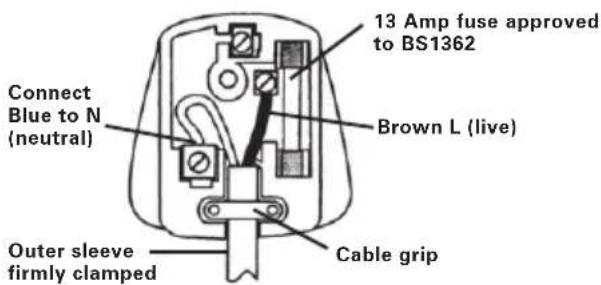

PLUG OF UK & IRELAND) If you need to replace the fitted plug then followthe instructions below. IMPORTANT The wires in the mains lead are colored in accordance with the following code: Blue – Neutral8

Brown – Live As the colors of the wires in the mains lead of thisappliance may not correspond with the coloured markings identifying the terminals in your plug,proceed as follows. The wire which is coloured blue must be connected to the terminal which is marked with N. The wire which is coloured brown must be connected to the terminal which is marked with L.

Warning: Never connect live or neutral wires

to the earth terminal of the plug. Only fit an approved 13ABS1363/A plug and the correct rated fuse. NOTE: If a moulded plug is fitted and has to be removed take great care in disposing of the plug and severed cable, it must be destroyed to prevent engaging into a socket. Connect Blue to N (neutral) Outer sleeve firmly clamped Cable grip Brown L (live) 13 Amp fuse approved to BS1362 ENVIRONMENTAL PROTECTION Waste electrical products must not be disposed of with household waste. Please recycle where facilities exist. Check with your local authorities or retailer for recycling advice. DECLARATION OF CONFORMITY We, POSITEC Germany GmbH Postfach 32 02 16, 50796 Cologne, Germany On behalf of Positec declare that the product Description Battery Charger Type KAC840 Complies with the following Directives, 2014/35/EU 2014/30/EU 2011/65/EU&(EU)2015/863 Standards conform to EN 60335-1 EN 60335-2-29 EN 62233 EN 55014-1 EN 55014-2

EN 61000-3-3 2022/11/10 Allen Ding Deputy Chief Engineer, Testing & Certification Positec Technology (China) Co., Ltd 18, Dongwang Road, Suzhou Industrial Park, Jiangsu 215123, P. R. ChinaEN

DECLARATION OF CONFORMITY We, Positec (UK & Ireland) Ltd, PO Box 6242, Newbury, RG14 9LT, UK On behalf of Positec declare that the product Description Battery Charger Type KAC840 Complies with the following regulations, Electrical Equipment (Safety) Regulations 2016 Electromagnetic Compatibility Regulations 2016 The Restriction of the Use of Certain Hazardous Substances in Electrical and Electronic Equipment Regulations Standards conform to BS EN 60335-1,BS EN 60335-2-29, BS EN 62233, BS EN 55014-1, BS EN 55014-2, BS EN IEC 61000-3-2, BS EN 61000-3-3, 2022/11/10 Allen Ding Deputy Chief Engineer, Testing & Certification Positec Technology (China) Co., Ltd 18, Dongwang Road, Suzhou Industrial Park, Jiangsu 215123, P. R. China10
