USER MANUAL DE60x SAMSON

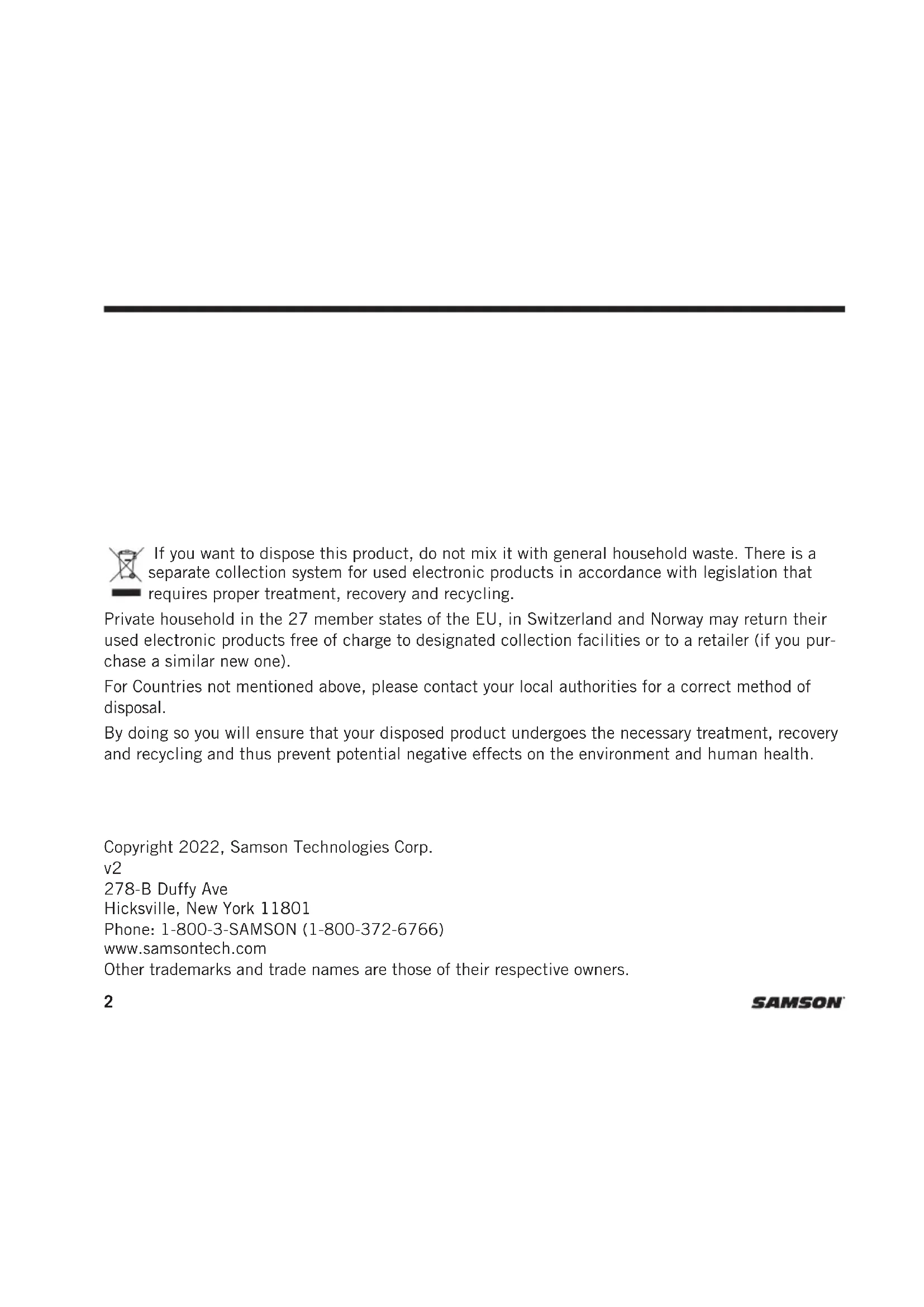

278-B Duffy Ave Hicksville, New York 11801 Phone: 1-800-3-SAMSON (1-800-372-6766) www.samsontech.com Other trademarks and trade names are those of their respective owners. If you want to dispose this product, do not mix it with general household waste. There is a separate collection system for used electronic products in accordance with legislation that requires proper treatment, recovery and recycling. Private household in the 27 member states of the EU, in Switzerland and Norway may return their used electronic products free of charge to designated collection facilities or to a retailer (if you pur- chase a similar new one). For Countries not mentioned above, please contact your local authorities for a correct method of disposal. By doing so you will ensure that your disposed product undergoes the necessary treatment, recovery and recycling and thus prevent potential negative effects on the environment and human health.3DE10x/DE50x/DE60x Headset Microphones ENFRDEESIT Congratulations on your purchase of the Samson DEx Headset Microphone. The DE10x and DE50x both feature an omnidirectional pickup pattern that delivers linear off-axis frequency response, resulting in a clear and articulate sound perfect for broadcast, worship, presentation, theater and fitness applications. The DE60x has a unidirectional pickup pattern, which provides superb isolation, resulting in more gain before feedback with clear and articulate sound in live sound applications. The DEx headset microphones includes four detachable adapter cables: 1/8” [3.5mm], Hirose® 4-Pin, Switchcraft® TA3F, Switchcraft® TA4F for compatibility with Samson wireless as well as most popular wireless transmitters. The pack includes four windscreens, a collar clip and protective carry case. The DEx microphones have gold-plated connectors, moisture-resistant coating and stainless steel mesh grille. They are dust and water/sweat-resistant rated at IP65. In addition, there is a moisture guard drip-ring to further protect the capsule and ensure reliable performance. If you have any questions or comments regarding the DEx Headset Microphone or any other products from Samson, do no hesitate to contact us at [e-mail]. Introduction4 The headset can be re-sized by sliding the ear hooks to fit snug around your head. If the headset is loose and will not stay in place, slide the ear hook wires back for a tighter fit. Adjust the microphone position by holding the left ear hook wire and slide the boom forward or back. For optimum performance the microphone should be close to the skin and towards the corner of the mouth, approximately a half inch away. Position the moisture guard ring as close to the capsule as possible. For outdoor use and to help reduce p-popping, install one of the included windscreens. Fitting the DE10x/50x/60x Microphone5DE10x/DE50x/DE60x Headset Microphones ENFRDEESIT Connector Cables The DE10x/DE50x/DE60x include four cables with adapters for some of the most popular wireless microphone body pack transmitters. 3.5mm Connector Works with Sennheiser

wireless systems Hirose

4-Pin Connector Works with most Audio-Technica

wireless systems Switchcraft

TA3F Connector Works with Samson AirLine ATX Series, Concert Series and most AKG

wireless systems Switchcraft

TA4F Connector Works with most Shure

wireless systems6 To connect the cable to the headset:

1. Choose the right cable and connector that

works with your wireless system.

2. Line the cable up to the threaded terminal

on the back of the DE10x/DE50x/DE60x and screw the cable into the headset. Do not over tighten the cable.

3. Attach the included collar clip on the back

of your shirt collar and run the mic wire from the DEx headset to the wireless body pack. Leave enough cable to allow you to turn your head from side to side. Connector Cables7DE10x/DE50x/DE60x Headset Microphones ENFRDEESIT Mic Positioning Position the DE60x microphone element about 0.25” –1” behind the corner of your mouth. Since the DE60x is a unidirectional capsule, the low frequency characteristics will change depending on the position of the microphone from the sound source. The DE10x and DE50x are omnidirectional capsules and can be placed further away from your mouth. However, if the microphone is too far away from your mouth you will need to increase the gain and reduce isolation. Do not place the microphone directly in front of your mouth in order to avoid breath noise and p-pops. To minimize additional noise, do not locate the microphone tight against your cheek.8 Specifications DE10x Element Back electret condenser Polar pattern Omnidirectional Frequency Response 20Hz–20KHz Sensitivity -45dBV/Pa @1kHz ±3dB Output impedance 2kΩ ±30% Maximum SPL 130dB Self-Noise 30dB(A) Dynamic Range 100dB Operating voltage 1.5–12V DC Cable ø1.4mm*1.2m Weight: 13g Capsule Dimension ø3mm Included Adapter Cables 1/8” (3.5mm), Hirose

TA4F Accessories (4) Windscreens, Clothing Collar Clip, Carry Case DE50x Element Back electret condenser Polar pattern Omnidirectional Frequency Response 20Hz–20KHz Sensitivity -35 ±3dB 1V/Pa/at1kHz Output impedance 2kΩ ±30% Maximum SPL 140dB Self-Noise 30dB(A) Dynamic Range 110dB Operating voltage 1.5–12V DC Cable ø1.4mm*1.2m Weight 13g Capsule Dimension ø2.5mm Included Adapter Cables 1/8” (3.5mm), Hirose

TA4F Accessories (4) Windscreens, Clothing Collar Clip, Carry Case9DE10x/DE50x/DE60x Headset Microphones ENFRDEESIT DE60x Element Back electret condenser Capsule Dimension 7.35mm Polar pattern Cardioid (Unidirectional) Frequency Response 50Hz–18KHz Sensitivity -45dB 1V/Pa ±3dB at1kHz Output impedance 2kΩ ±30% SPL max 135 dB Operating voltage 0.8–5V DC Cable 4x ø1.4mm*1.2m Weight 13g Capsule Dimensions (LxDxH) 5.3” x 4” x 2.7” / 135mm x 101.2mm x 68.2mm Included Adapter Cables 1/8” (3.5mm), Hirose

Polar Pattern Frequency Response
