Product Type	Wireless audio/video extender with HDMI transmitter and receiver
Brand	Vision
Model	TCHDMIWM (TechConnect)
Transmitter dimensions	135 x 80 x 23 mm (5.3 x 3.1 x 0.9 in)
Receiver dimensions	135 x 80 x 23 mm (5.3 x 3.1 x 0.9 in)
Transmitter weight	290 g (0.64 lb)
Receiver weight	290 g (0.64 lb)
Power supply	100-240 V AC, 50/60 Hz, 5V/2A (10 W) adapter with interchangeable plugs (EU/UK/US/AU)
Maximum video resolution	1920 x 1080 / 1080p at 60 Hz
Video standards	HDMI 1.3 with HDCP 1.2
Maximum video bitrate	10.2 Gbps
Transmission delay	< 200 ms
Maximum distance	30 m (98 ft) in open field
Frequency band	5 GHz (non-DFS Wi-Fi channels)
Encryption	AES 128-bit
Number of channels	10 channels, up to 10 simultaneous transmitters
Main functions	Wireless HDMI transmission, IR return, OSD display, RS-232 control, matrix/distribution/switching modes, PRESENT button
Transmitter connectors	1 HDMI input, 1 Euroblock DC, 1 3.5 mm minijack for IR emitter
Receiver connectors	1 HDMI output, 1 Euroblock DC, 1 3.5 mm minijack for IR receiver, 1 RS-232 D-sub 9-pin
Maintenance and cleaning	Clean with a soft, dry cloth. Do not use liquids or aerosols. Avoid humidity and dust.
Safety	Do not open the case (risk of electric shock). Do not expose to rain or moisture. Unplug if abnormal odor or smoke.
Spare parts and repairability	No user-serviceable parts. Lifetime return-to-base warranty. Contact dealer or Vision for repairs.
General information	Made in China. Compliant with RoHS, WEEE, CE, FCC. Lifetime return-to-base warranty (2 years on-site in the UK).
Included accessories	1 IR emitter cable (1 m), 1 IR receiver cable (1 m), 1 remote control, power adapters (EU/UK/US/AU)

Frequently Asked Questions - TCHDMIWM VISION

How to set up the TCHDMIWM kit for the first time?

Connect the transmitter to your HDMI source and the receiver to your display. Power both devices using the supplied AC adapters. Select the same channel on the transmitter and receiver using the channel selection buttons. The wireless connection establishes automatically; the connection indicator then lights up.

What is the maximum range of the system?

The maximum range is 30 meters (98 feet) in open field, without obstacles. For optimal performance, place the transmitter and receiver at a distance of 2 to 7 meters with a clear line of sight.

How many transmitters can operate simultaneously?

Up to 10 transmitters can be used at the same time in the same environment, each on a different channel (channels 0 to 9). Each transmitter can connect to a maximum of 2 receivers.

How to use the IR return?

Connect the IR emitter cable to the mini-jack of the transmitter and place the diode near the infrared sensor of the source. Connect the IR receiver cable to the receiver and place the diode in view of the remote control. Infrared signals are then relayed from the display to the source.

What to do if the image does not display?

Check that the HDMI cables are properly connected and that the source is turned on. Try reducing the refresh rate of the source or changing the HDMI cable. Restart all devices. Press the 'i' button on the remote to display the Wi-Fi spectrum and change channel if congested.

What is the maximum supported video resolution?

The maximum resolution is 1920x1080 (1080p) at 60 Hz. The system supports HDMI 1.3 with HDCP 1.2.

Can I use this product with a 5 GHz Wi-Fi router?

Yes, but the product uses the same frequencies. In case of interference, configure your router to use only the 2.4 GHz band or change the channel on the transmitter/receiver.

How to reset the system?

Unplug the power from the transmitter and receiver, wait a few seconds, then plug them back in. If the problem persists, perform a full reset by turning off and on all devices in the chain (source, transmitter, receiver, display).

What does the fast blinking data indicator mean?

A fast blink of the data indicator on the receiver indicates active HDMI data transfer. A slow blink means the connection is establishing. If the indicator is solid, the connection is established.

How to use the PRESENT function?

If you have only one display, press the PRESENT button on the transmitter or on the remote control. The receiver then switches to the channel of that transmitter. Make sure the DIP switch on the back of all devices is set to '1RX'. This function is not available with multiple receivers.

USER MANUAL TCHDMIWM VISION

DECLARATION OF CONFORMITY

Where applicable Vision products are certified and comply with all known local regulations to a 'CB Certification' standard. Vision commits to ensure all products are fully compliant with all applicable certification standards for sale in the EU and other participating countries.

The product described in this owner manual is in compliance with RoHS (EU directive 2002/95/EC), and WEEE (EU directive 2002/96/EC) standards. This product should be returned to the place of purchase at the end of its useful life for recycling.

WARNING

CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK DO NOT REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated "dangerous voltage" within the product's enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.

The exclamation point within an equilateral triangle, is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.

WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE.

All products are designed and imported into the EU by 'Vision' who is wholly owned by 'Azlan Logistics Ltd.' Registered in England Nr. 04625566 at Lion House, 4 Pioneer Business Park, Clifton Moor, York, YO30 4GH. WEEE Registration: GD0046SY

DECLARATION OF ORIGIN

All Vision products are made in the People's Republic of China (PRC).

USE ONLY DOMESTIC AC OUTLETS

Connecting the unit to an outlet supplying a higher voltage may create a fire hazard.

HANDLE THE POWER CORD WITH CARE

Do not disconnect the plug from the AC outlet by pulling the cord; always pull the plug itself. Pulling the cord may damage it. If you do not intend to use your unit for any considerable length of time, unplug the unit. Do not place furniture or other heavy objects on the cord, and try to avoid dropping heavy objects on it. Do not tie a knot in the power cord. Not only could the cord be damaged, but a short circuit could also be caused with a consequent fire hazard.

PLACE OF INSTALLATION

Avoid installing this product under the following conditions:

• Moist or humid places
• Places exposed to direct sunlight or close to heating equipment
• Extremely cold locations
• Places subject to excessive vibration or dust
  Poorly ventilated places

Do not expose this product to dripping or splashing. DO NOT PLACE OBJECTS FILLED WITH LIQUIDS ON OR NEAR THIS PRODUCT!

MOVING THE UNIT

Before moving the unit, be sure to pull out the power cord from the AC outlet and disconnect the interconnection cords with other units.

WARNING SIGNS

If you detect an abnormal smell or smoke, turn this product off immediately and unplug the power cord. Contact your reseller or Vision.

PACKAGING

Save all packing material. It is essential for shipping in the event the unit ever needs repair.

IF ORIGINAL PACKAGING IS NOT USED TO RETURN THE UNIT TO THE SERVICE CENTRE, DAMAGE IN TRANSIT WILL NOT BE COVERED BY WARRANTY.

SPECIALWARNINGS

Never use this product near an aircraft or medical facility. It can cause interference. Use of product in the following locations may result in abnormal video and audio output:

Product installed in the walls made of concrete
Product situated near refrigerator. Microwave oven, or other metal items
- A cluttered room where the wireless signals may be blocked

This product has been tested and manufactured to comply with each country's safety rules, however there is no guarantee that interference will not occur in some scenarios. If interference happens, adjust distance between transmitter and receiver. Optimal range between transmitter and receiver is between 2 and 7 meters line of sight.

This product may interfere 5GHz wireless devices. If interference occurs configure your 5GHz router to 2.4 GHz band only.

FEDERAL COMMUNICATIONS COMMISSION INTERFERENCE STATEMENT

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. This equipment generates, uses and can radiate radio frequency energy and may in extreme cases cause harmful interference to radio communications. If this happens the user should try:

Relocating the receiving antenna
- Increasing the separation between the equipment and receiver
- Connect the equipment to a different power circuit.

RADIATION EXPOSURE STATEMENT:

This equipment complies with IC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator and your body.

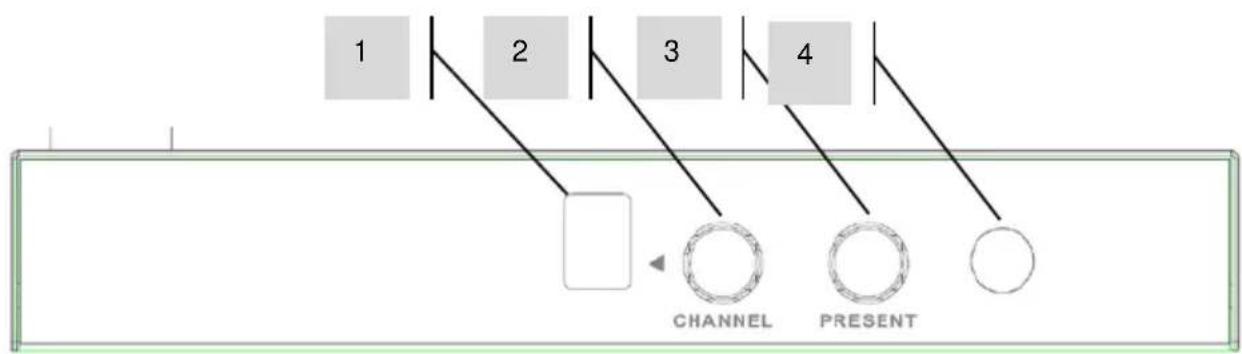

TRANSMITTER (Tx)

1. Channel LCD Display
2. Channel Select Button
3. Present Button (only works with 1 × Rx in system)
4. IR receiver

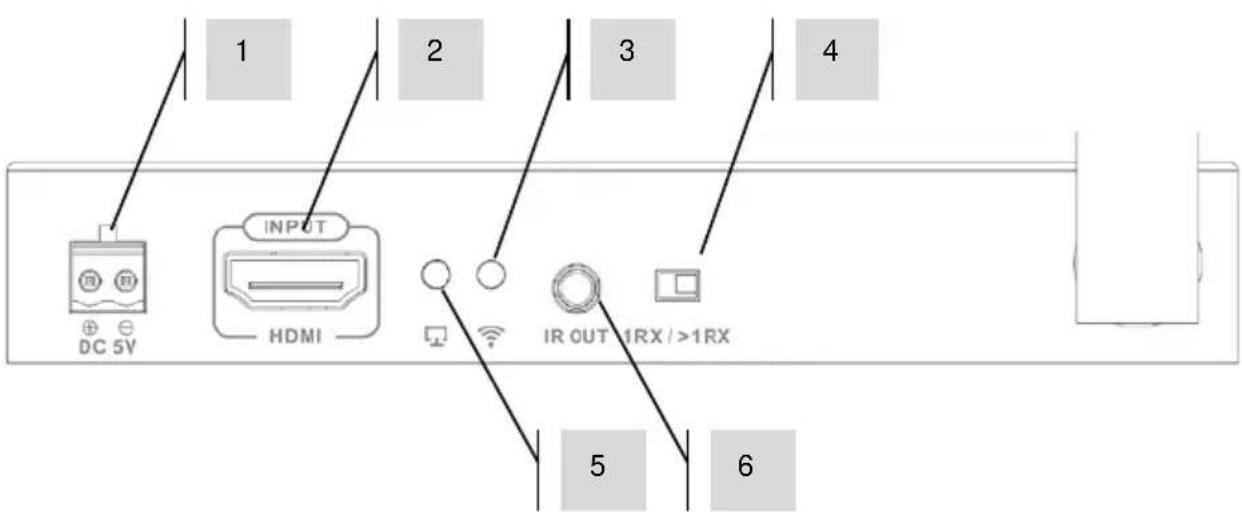

1. Power Input (Phoenix Connector)
2. HDMI Input
3. Wireless Indicator - lights when Tx is correctly connected to Rx
4. PRESENT button dip switch
5. Input indicator - lights when source is connected with supported resolution
6. IR Blaster 3.5mm minijack socket

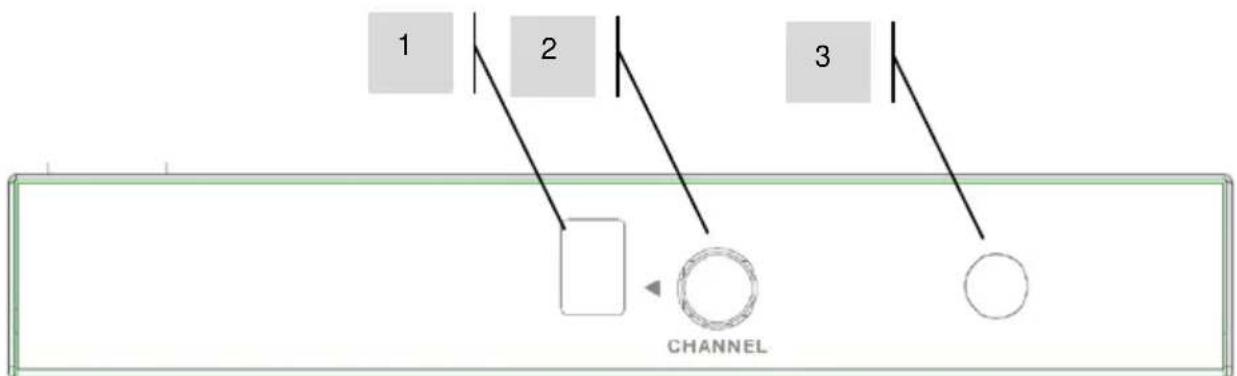

RECEIVER (Rx)

1. Channel LCD Display
2. Channel Select Button
3. IR receiver

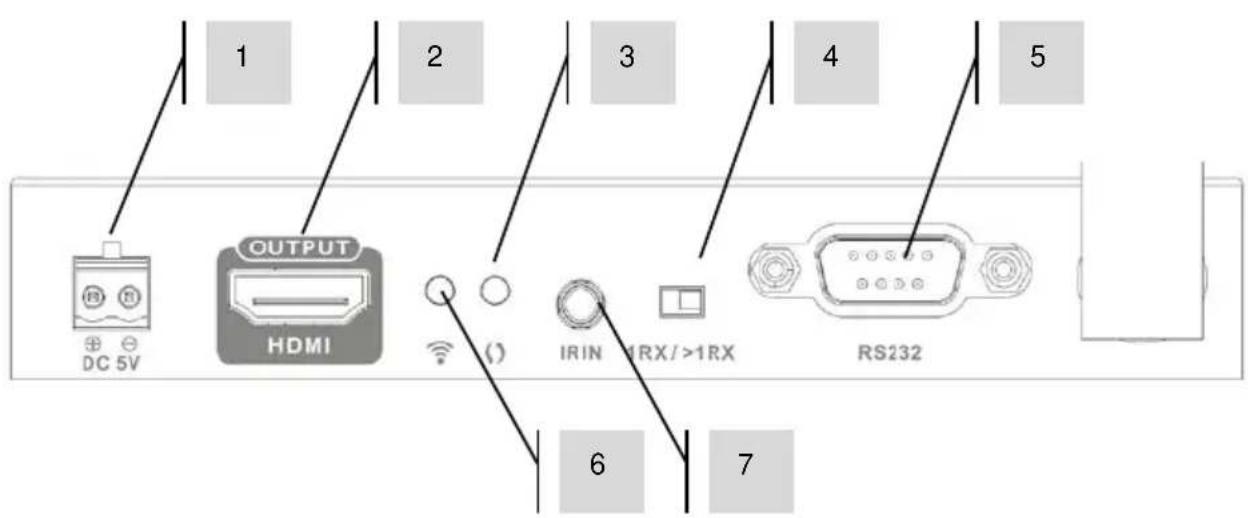

1. Power Input (Phoenix Connector)
2. HDMI Output
3. Data Indicator - flashes slowly when establishing connection / fast when data transferring.
4. PRESENT button dip switch
5. Male 9-Pin RS-232 Serial connector for external control
6. Wireless Indicator - lights when Tx is correctly connected to Rx
7. IR Receiver 3.5mm minijack socket

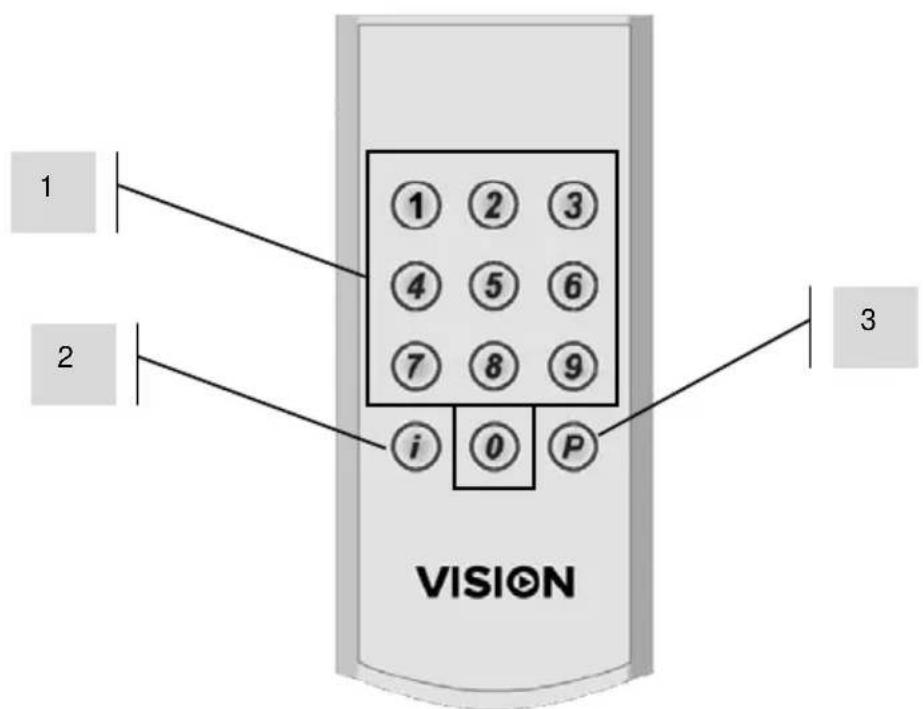

REMOTE CONTROL

1. Channel Selection
2. Info Onscreen Display
3. Present (for Tx)

SYSTEM RULES

These two rules will help you understand what is possible with this product:

Rule 1: This product uses 10 channels. Each transmitter needs to use a different channel, therefore you can have up to 10 transmitters in the same WiFi environment.

Rule 2: Only 2 receivers at most can be linked to a transmitter.

DISPLAY SLEEP

The Rx will stop outputting HDMI if no source is present for 10 minutes. This allows the display to go to sleep when the source is off.

SWITCH TIME

Can be up to 7 seconds because an EDID has to happen each time.

FREQUENCY SPECTRUM

This product uses 5GHz WIFI channels so it can be affected by outside interference in the same way as any wifi device. This product uses non-DFS channels.

IRPASSBACK

If using a source device which has a remote control, this product allows the remote to be pointed at the display in the remote location. The IR signal is relayed from the Rx to the Tx to the source device.

To make this happen the IR blaster and receiver cables mush be used.

The diode on the blaster must be as close as possible to the source IR receiver.
The diode on the receiver must be in line-of-sight of the remote control.

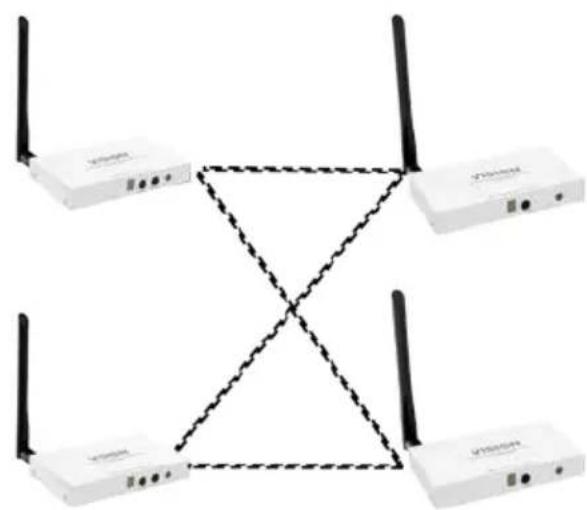

MATRIX

1. Connect sources to Tx, and displays to Rx
2. Set each Tx to different channels. You cannot have two Tx sharing same channel.
3. Adjust channel on each Rx to switch which source is shown.

The maximum number of devices in a matrix system is 2 × 2 .

Because you can use 10 × Tx simultaneously you could have 5 discrete matrix systems, or a blend of Matrix, Distribution, and Switching systems running at the same time.

DISTRIBUTION

Shows content from one source on two displays.

1. Connect source to Tx, and displays to RxS
2. Set them all to the same channel.

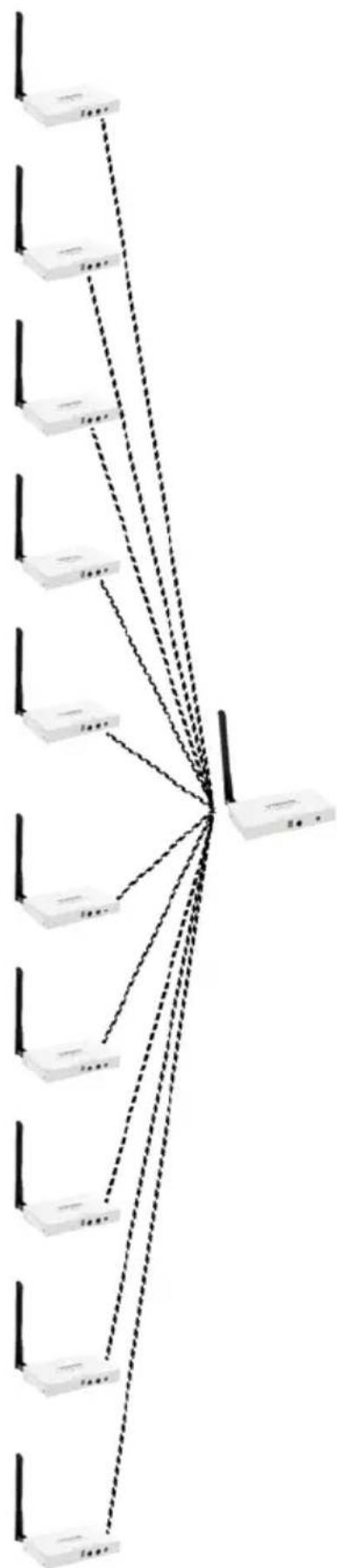

Because you can use 10 × Tx simultaneously you could have 10 discrete Distribution systems, or a blend of Matrix, Distribution, and Switching systems running at the same time.

SWITCHING

Up to 10 sources, and one receiver.

1. Connect sources to Txs, and display to Rx
2. Set each Tx to different channels.
3. Change channel on Rx to determine which source it displays.

It is possible to have multiple switching systems in the same environment; the limitation is the number of Tx in total: 10.

Because you can use 10 × Tx simultaneously you could have a blend of Matrix, Distribution, and Switching systems running at the same time.

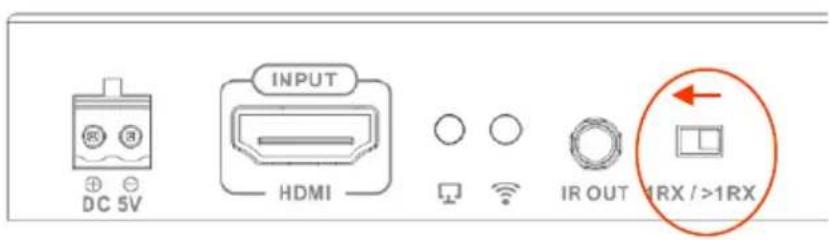

PRESENT BUTTON

If you have just one display, you can use PRESENT button on the front panel of Txs (or remote control).

This button sends a command to Rx saying "switch to my channel". To activate set dip switch on rear of all devices to "1RX".

If system has more than one receiver this function cannot be used.

INFO ONSCREEN DISPLAY

Press i button on remote control to display channel information, showing other SSID device in the area. It shows signal strength and Wifi congestion to help trouble-shoot.

Note: To show all SSID in range the Rx must not be "connected" to any Tx when you do this. Change the Rx channel to an unused channel first.

Note: if you are having problems and need to Contact Us via www.visionaudiovisual.com please send a photo of the information on this screen.

RS-232

Baud rate: 115200

Command	ASCII	HEX
Channel 0	rxch:00	72 78 63 68 3a 30 30
Channel 1	rxch:01	72 78 63 68 3a 30 31
Channel 2	rxch:02	72 78 63 68 3a 30 32
Channel 3	rxch:03	72 78 63 68 3a 30 33
Channel 4	rxch:04	72 78 63 68 3a 30 34
Channel 5	rxch:05	72 78 63 68 3a 30 35
Channel 6	rxch:06	72 78 63 68 3a 30 36
Channel 7	rxch:07	73 78 63 68 3a 30 37
Channel 8	rxch:08	74 78 63 68 3a 30 38
Channel 9	rxch:09	75 78 63 68 3a 30 39

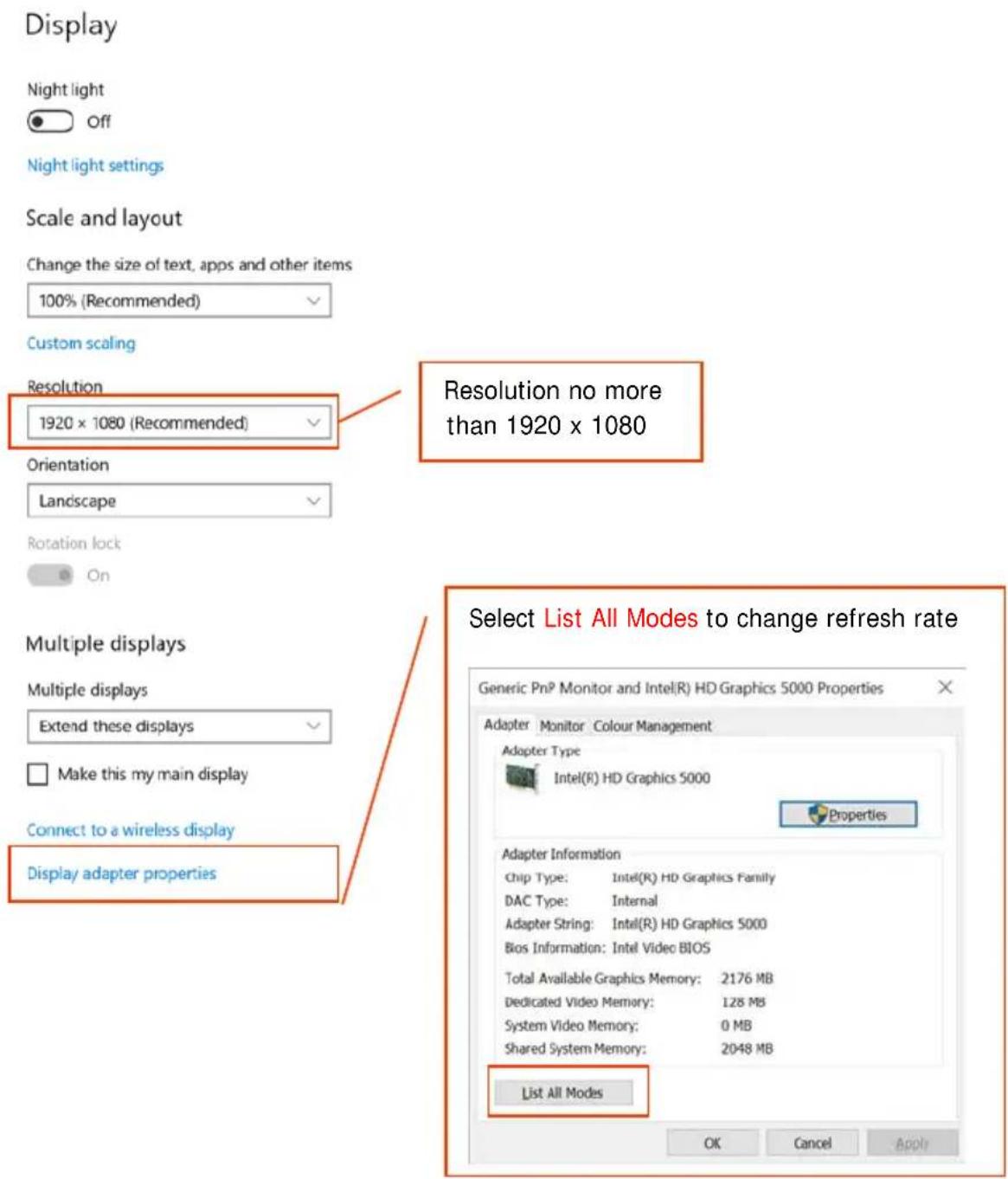

NOT WORKING?

1. Set computer to duplicate or extend desktop (right-click on desktop > select Display settings)
2. Reduce refresh rate:

1. Try other cables between the source and Tx
2. EDID handshakes and HDCP key authentication can create HDMI issues. Try rebooting all equipment to reset.
3. Press i (info) button on remote to show wifi spectrum. If crowded try changing channel.

SPECIFICATIONS

TRANSMITTER DIMENSIONS: 135 × 80 × 23 ~mm / 5.3'' × 3.1'' × 0.9'' (length x width x height)

RECEIVER DIMENSIONS: 135 × 80 × 23 mm / 5.3'' × 3.1'' × 0.9'' (length x width x height)

PACKAGED DIMENSIONS: 200 × 150 × 80 mm / 7.9 " × 5.9 " × 3.1 (length x width x height)
PRODUCT WEIGHT:

PACKAGED WEIGHT: 630 g / 1.39 lbs (Tx and Rx is separately packaged.)

CONSTRUCTION MATERIAL: Metal

COLOUR: White

TECHNICAL DETAILS:

Maximum Video Format Supported: 1920 × 1080 / 1080P @ 60Hz

Video: HDMI 1.3 with HDCP 1.2

Max transfer rate: 10.2 Gbps

TMDS Signal: 0.5 1.5Vp

DDC Signal: 5Vpp

Audio: Stereo

IR Passback: 20-60KHz

Max Input and Output cable length: up to 5m (16.4 feet)

Electrostatic Protection: Contact and air discharge level 3 IEC 61000-4-2

Operating Temperature Range: 0 - 40^

Operating Humidity Range: < 90% RH (no condensation)

MTBF (Mean Time Between Failures): > 30,000 hours

Transmitter Power Consumption: Max 5 watts

Receiver Power Consumption: Max 4.5 watts

Latency: < 200 ms

Switch time: up to 7s (allowing for EDID handshake each time)

Maximum distance: 30 m (98 feet)

Encryption: 128 bit AES

CHANNELS:

LED Channel wifi channel freq bandwidth

0->36->5.180->ht20

1->44->5.220->ht20

2->48->5.240->ht20

3->48->5.240->ht40

4->149->5.745->ht20

5->153->5.765->ht20

6->157->5.785->ht20

7->161->5.805->ht20

8->165->5.825->ht20

9->161->5.805->ht40

TRANSMITTER CONNECTIVITY:

1 x HDMI socket - gold-plated input

1 x DC power - phoenix connector

1 x 3.5mm Minijack socket - for IR blaster

RECEIVER CONNECTIVITY:

1 x HDMI (type A) output

1 x DC Power - phoenix connector

1 x 3.5mm Minijack socket - for IR receiver

1 x 9-Pin D-Sub Male for RS-232

POWER SUPPLY: 100-240v AC 50/60Hz 5 volt / 2 amp 10 watt. DC tail length: 1.8 m / 5.9 ft Transformer integrated into plug. Includes interchangeable plugs: UK/EU/US/AU. Transformer dimensions: 66 × 43 × 32 mm / 2.6'' × 1.7'' × 1.3''

ACCESSIONS INCLUDED:

1 x IR Blaster cable, black, length: 1 m / 3.3 ft

1 x IR Receiver cable, black, length: 1 m / 3.3 ft

1 x Remote control: black

WARRANTY: Lifetime return-to-base

2 years onsite (UK only)

COMPLIANCES: RoHS, WEEE, CE/Tx, CE/Rx, CAC/Tx, CAC/Rx, FCC/Tx, FCC/Rx, RCM-POC, RCM-SDOC

ORDER PART CODE:

Transmitter: TC-HDMIWTX [SAP: 4432256]

Receiver: TC-HDMIWMRX [SAP: 4432257]

LIFETIME RETURN-TO-BASE WARRANTY

This product comes with a lifetime return to base warranty. If you have a problem you are required to provide a DETAILED DESCRIPTION of the fault.

Some Vision products are very technical and require troubleshooting all elements of the installation as it may not be the Vision product at fault. Because of this the manufacturer may refuse to replace the item if an adequate description is not provided.

This warranty applies only to the original purchaser and is not transferable.
This warranty protects you against the following:

Failure of any components, including the power supply.
Damage when the product is first removed from its packaging if reported within 24 hours of purchase.

If the product is DOA (dead on arrival), you have 21 days from purchase date to notify the national distributor via your AV reseller.
The original purchaser is responsible for shipment of the product to the Vision's appointed service centre.
- The liability of Vision is limited to the cost of replacement of the faulty unit under warranty except for death or injury (EU85/374/EEC).
If the product is end of line (EOL) the Vision will provide a credit instead of replacement.
- This warranty does not protect this product against faults caused by abuse, misuse, incorrect installation, unstable or faulty power input, or modification.

Vision aims to send a replacement item within 5 working days however this may not always be possible, in which case it will be sent as soon as practicably possible. UK End users and resellers can request support at http://www.visionaudiovisual.com/support

LEGAL DISCLAIMER: Because we are committed to improving our products, the details above may change without prior warning. This User Manual is published without warranty and any improvements or changes to the User Manual necessitated by typographical errors, inaccuracies of current information, or improvements to programs and/or equipment, may be made at any time and without notice. Such changes will be incorporated into new editions of the User Manual.

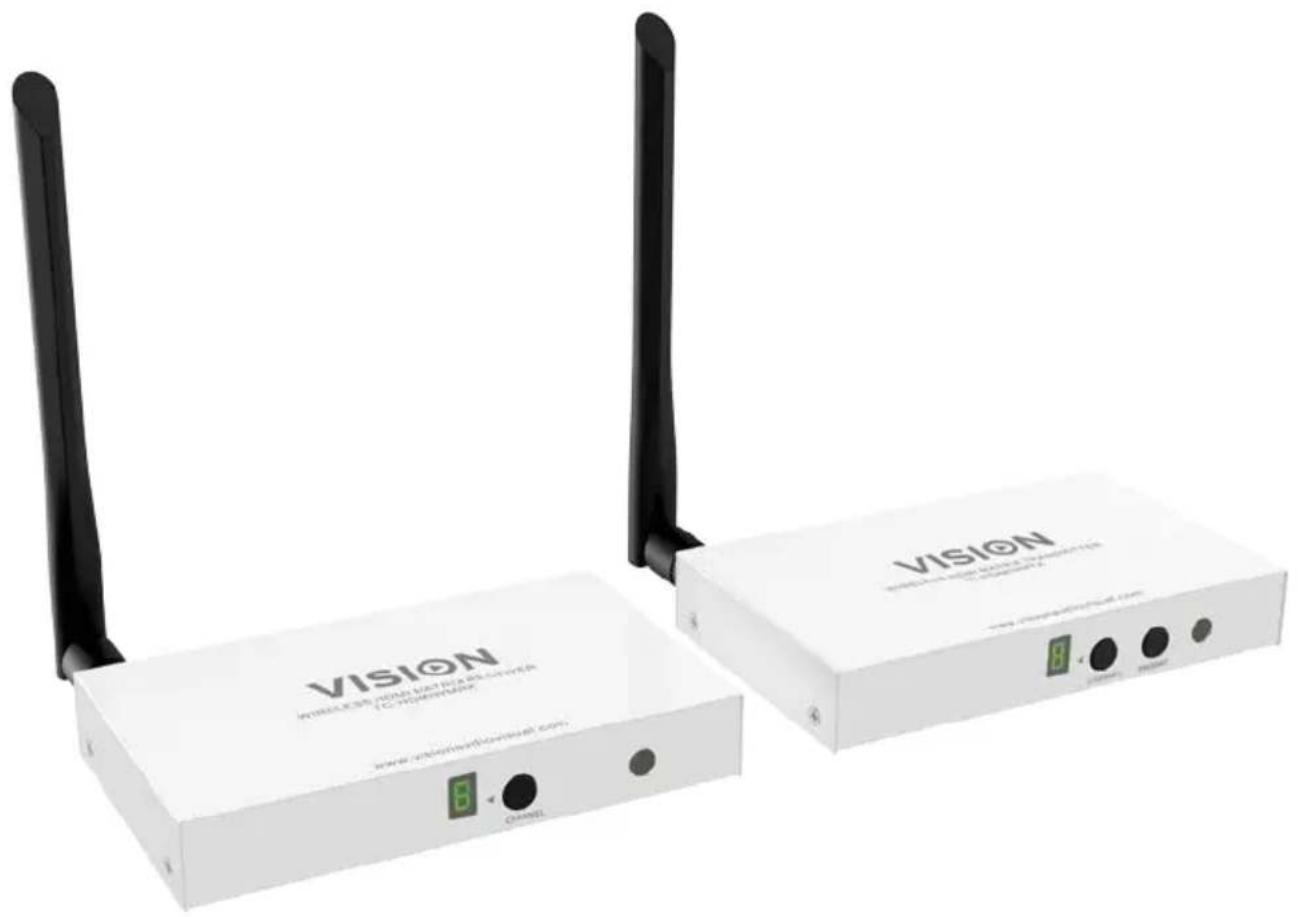

TECHCONNECT TC-HDMIWM

BEDIENUNGSANLEITUNG

Sender: TC-HDMIWTX [SAP: 4432256]

Sender: TC-HDMIWTX [SAP: 4432256]

Modtager: TC-HDMIWMRX [SAP: 4432257]

LI VSLANG GARANTI MED RETURRET TIL FORHANDLER

Transmisor: TC-HDMIWTX [SAP: 4432256]

Receptor: TC-HDMIWMRX [SAP: 4432257]

GARANTÍ A DE REPARACION EN PUNTO DE SERVICIO DURANTE TODA LA VIDA U TIL DEL PRODUCTO

WAARSCHUWING: RISICOOPELEKTRISCHE SCHOKNIET OPENEN

WAARSCHUWING: OM HET RISICO OP EEN ELEKTRISCHE SCHOK TE VERMINDEREN, MAG DE BEHUIZING (OF ACHTERPLAAT) NIET VERWIJDERD WORDEN ER ZIJN GEEN ONDERDELEN DIE DE GEBRUiker ZELF KAN ONDERHOUDEN. LAAT ONDERHOUD AAN GEKWALIFICEERD PERSONEEL OVER.

PLAATS VAN INSTALLATIE

WAARSCHUWINGSSI GNALEN

MEEGELEVERDE ACCESSORIES:

Zender: TC-HDMIWTX [SAP: 4432256]

Ontvanger: TC-HDMIWMRX [SAP: 4432257]

LEVENSLANGE RETOURGARANTIE

Transmitter: TC-HDMI WMTX [SAP: 4432256]

Receptor: TC-HDMIWMRX [SAP: 4432257]
