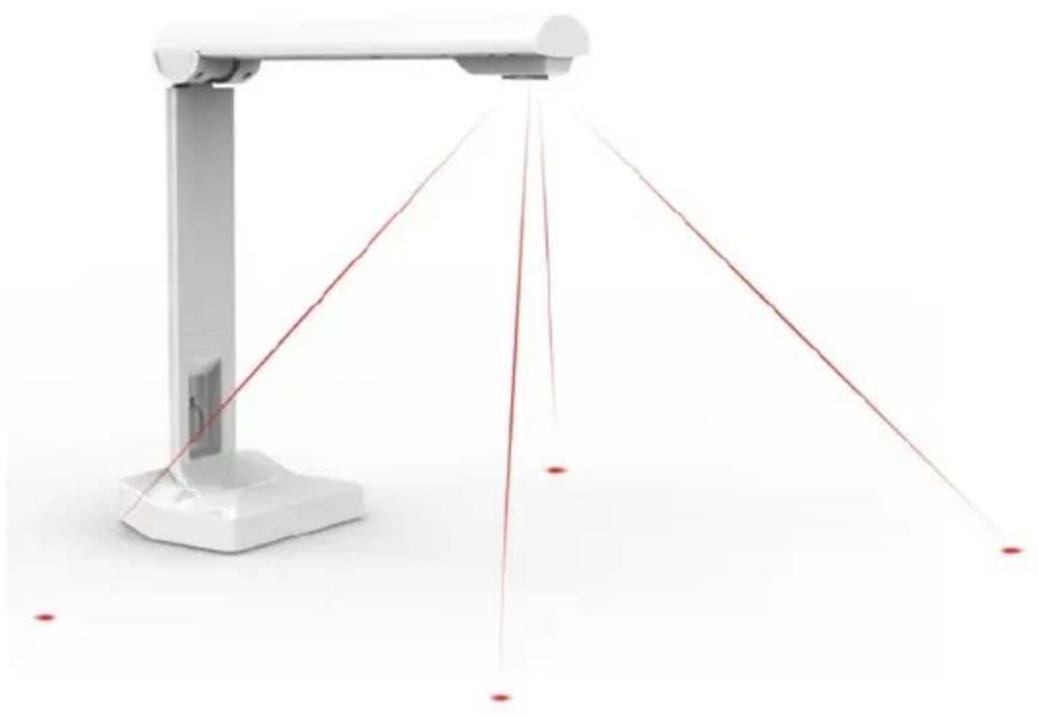

3D rendering of a handheld device with red laser lines extending from its base, no text or symbols visible

www.visionaudiovisual.com/techcam/dc-1000

DECLARATION OF CONFORMITY

Where applicable Vision products are certified and comply with all known local regulations to a 'CB Certification' standard. Vision commits to ensure all products are fully compliant with all applicable certification standards for sale in the EU and other participating countries.

The product described in this owner manual is in compliance with RoHS (EU directive 2002/95/EC), and WEEE (EU directive 2002/96/EC) standards. This product should be returned to the place of purchase at the end of its useful life for recycling.

WARNINGS

Black triangular warning symbol with a lightning bolt inside, indicating electrical hazard (no text or numbers present)

CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN

Black triangular warning symbol with exclamation mark (no text or numbers)

CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK DO NOT REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated “dangerous voltage” within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.

The exclamation point within an equilateral triangle, is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.

WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE.

All products are designed and imported into the EU by 'Vision' who is wholly owned by 'Azlan Logistics Ltd.', Registered in England Nr. 04625566 at Lion House, 4 Pioneer Business Park, Clifton Moor, York, YO30 4GH. WEEE Registration: GD0046SY

RoHS 2002/95/EC TUV SUD CE

DECLARATION OF ORIGIN

All Vision products are made in the People's Republic of China (PRC).

LASER RADIATION

Potentially harmful laser radiation. Do not look into beam. Class II laser product.

PLACE OF INSTALLATION

Avoid installing this product under the following conditions:

• Moist or humid places
• Places exposed to direct sunlight or close to heating equipment
  • Extremely cold locations
• Places subject to excessive vibration or dust
• Poorly ventilated places

Do not expose this product to dripping or splashing. DO NOT PLACE OBJECTS FILLED WITH LIQUIDS ON OR NEAR THIS PRODUCT!

WARNING SIGNS

If you detect an abnormal smell or smoke, turn this product off immediately and unplug the cord. Contact your reseller or Vision.

PACKAGING

Save all packing material. It is essential for shipping in the event the unit ever needs repair.

IF ORIGINAL PACKAGING IS NOT USED TO RETURN THE UNIT TO THE SERVICE CENTRE, DAMAGE IN TRANSIT WILL NOT BE COVERED BY WARRANTY.

INSTALLATION INSTRUCTIONS

1. INSTALL SOFTWARE Load the software onto your PC and install. A copy can be downloaded from www.visionaudiovisual.com/techcam/DC-1000

2. PLUG CAMERA IN Connect to PC with a USB cable. Any cable up to 5m cable can be used. If a longer cable is required use a Vision TC2-USBTP to extend USB over CAT5 cable.

NOTE: Low quality USB cables may cause problems.

1. LAUNCH SOFTWARE The software will not run unless camera is connected. The laser pointer and LED light can be turned on and off on base of visualiser.

SOFTWARE OVERVIEW

VIDEO TAB (default): For normal use as visualiser

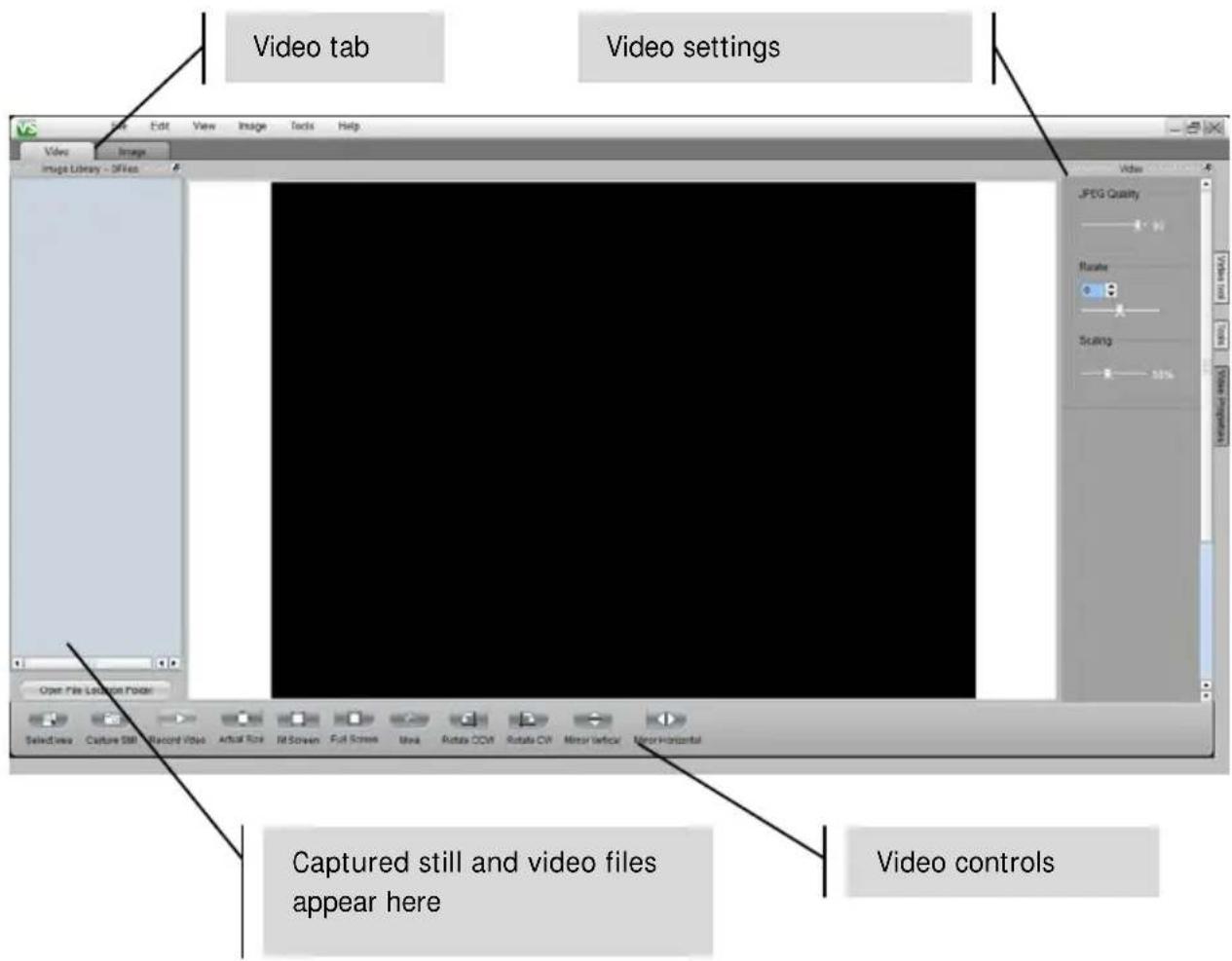

Video tab Video settings Video Image Edit View Image Tools Help Video Image Library - 3 Files Video JPEG Quality Rate Scaling Selected Area Capture SIM Record Video Actual Rise Hit Screen Full Screen Uva Rotate CWf Rotate CW Mirror Vertical MicroHorizontal Captured still and video files appear here Video controls

IMAGE TAB: Used to view and edit captured stills

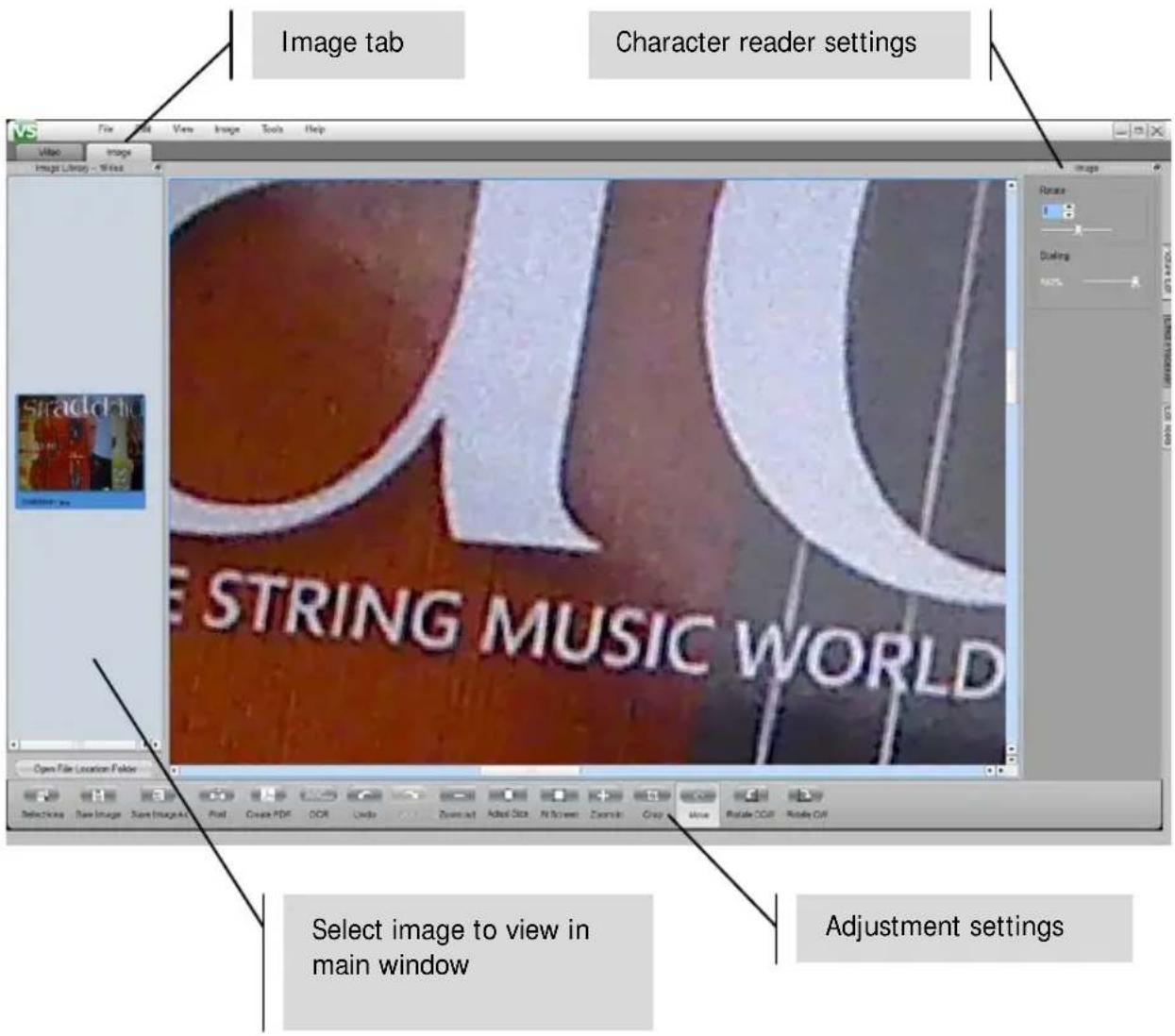

Image tab Character reader settings STRING MUSIC WORLD Select image to view in main window Adjustment settings

TROUBLESHOOTING

If your system is not operating properly, please refer to the following information. If the problem persists, disconnect from power and contact your AV reseller immediately.

Problem	Correction
PC not recognising camera	Try a different USB port on your computerReboot your computerNote: Software does not work for Macs.
USB overload messages on PC	Try an alternative USB port on your PCInsert a powered USB hub between the PC and DC-1000.These can re-prioritise USB devices.

SPECIFICATIONS

PRODUCT DIMENSIONS: 255 x 109 x 77 mm (height x width x depth with boom folded down)

PACKAGED DIMENSIONS: 315 x 170 x 130 mm

PRODUCT WEIGHT: 0,55 kg

PACKAGED WEIGHT: 0,67 kg

TECHNICAL DETAILS:

Capture size: 310 x 215mm

Maximum Resolution: 1600 x 1200 pixels

DPI: 100-300

Colour: 24 bit

Frame Rate: 640 x 480@30fps / 1280 x 1024@10fps / 1600 x 1200@6fps

Optical Zoom: N/A

Digital Zoom: maximum 500%

CAMERA:

Sensor Type: CMOS

Size: 1/4 inch

Capture Angle: 60 degrees

Signal to Noise Ratio: 42.3Db

Dynamic Range 71dB

F-number: 2.8

Effective Focal Length: F=3.38mm

SOFTWARE FUNCTIONS:

Optical Character Reader (outputs to Microsoft Word)

Image Capture Formats: BMP, JPEG, PNG, TIF, J2K, JP2, JPC, RAS, TGA

Video Capture Formats: AVI, WMA

Image Adjustment:

Brightness / Contrast / Sharpness

Saturation / Gamma / Noise control

Cropping / Rotating / Mirroring

Exposure adjustment

Black line / Grey-scale / Inverse

COLOUR: White

CONSTRUCTION MATERIAL: Aluminium and Plastic

ACCESSORIES INCLUDED:

USB cable

Capture Software (Windows only)

CONNECTIVITY: USB

POWER SUPPLY: via USB

POWER CONSUMPTION: Maximum 150mW, 3.3V (< 15mA at 30fps / < 5mA standby)

COMPLIANCES: RoHS, WEEE, and CE compliant

WARRANTY

This product comes with a 2-year return to base warranty, effective from the date of purchase. This warranty applies only to the original purchaser and is not transferable. For the avoidance of doubt, this will be taken from the information held by the appointed national distributor at the point of sale. If the product is DOA (dead on arrival), you have 21 days from purchase date to notify the national distributor via your AV reseller. The liability of the manufacturer and its appointed service company is limited to the cost of repair and/or replacement of the faulty unit under warranty, except for death or injury (EU85/374/EEC). This warranty protects you against the following:

• Failure of any components, including the power supply.
• Damage when the product is first removed from its packaging if reported within 24 hours of purchase.

If you find you do have a problem with this product, you should contact the AV reseller you purchased this product from. The original purchaser is responsible for shipment of the product to the manufacturer's appointed service centre for repair.

We will endeavour to return repaired units within 5 working days, however this may not always be possible, in which case it will be returned as soon as practicably possible. In line with our WEEE commitments, the manufacturer endeavours to replace the faulty parts of the product rather than replacing the whole unit. This warranty does not protect this product against faults caused by abuse, misuse, incorrect installation, unstable or faulty power input, which might be caused by ignoring the guidelines set out in this manual.

LEGAL DISCLAIMER: Because we are committed to improving our products, the details above may change without prior warning. This User Manual is published without warranty and any improvements or changes to the User Manual necessitated by typographical errors, inaccuracies of current information, or improvements to programs and/or equipment, may be made at any time and without notice. Such changes will be incorporated into new editions of the User Manual.
