USER MANUAL LSLB 10 A1 Livarno Lux

1. Intended use 14
2. Supplied items 14
3. Technical data 15
4. Safety instructions 16
5. Copyright 17
6. Prior to use 18
   6.1.Installation 18

7. First use 19
   7.1. Aligning the motion sensor 19
   7.2.Setting light time (TIME) 19
   7.3. Adjusting sensor sensitivity (SENS) 19
   7.4. Adjusting light sensitivity (LUX) 20

8. Maintenance / cleaning 20

8.1.Maintenance. 20
8.2.Cleaning. 20

1. Troubleshooting 20

2. Environmental and disposal information 21

3. Conformity information 21
4. Warranty and servicing advice 21

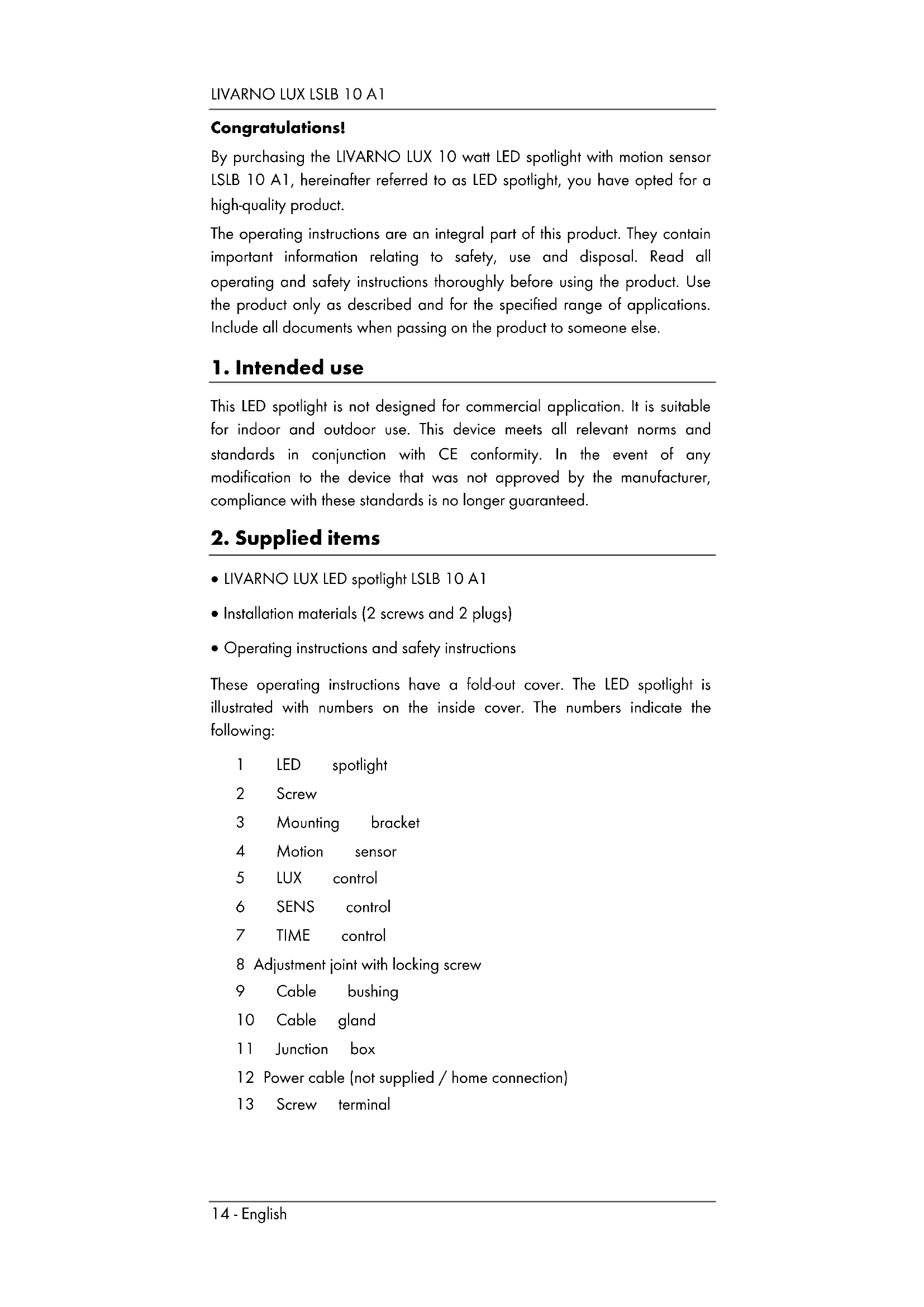

Congratulations!

By purchasing the LIVARNO LUX 10 watt LED spotlight with motion sensor LSLB 10 A1, hereinafter referred to as LED spotlight, you have opted for a high-quality product.

The operating instructions are an integral part of this product. They contain important information relating to safety, use and disposal. Read all operating and safety instructions thoroughly before using the product. Use the product only as described and for the specified range of applications. Include all documents when passing on the product to someone else.

1. Intended use

This LED spotlight is not designed for commercial application. It is suitable for indoor and outdoor use. This device meets all relevant norms and standards in conjunction with CE conformity. In the event of any modification to the device that was not approved by the manufacturer, compliance with these standards is no longer guaranteed.

2. Supplied items

LIVARNO LUX LED spotlight LSLB 10 A1
- Installation materials (2 screws and 2 plugs)
- Operating instructions and safety instructions

These operating instructions have a fold-out cover. The LED spotlight is illustrated with numbers on the inside cover. The numbers indicate the following:

1 LED spotlight
2 Screw
3 Mounting bracket
4 Motion sensor
5 LUX control
6 SENS control
7 TIME control
8 Adjustment joint with locking screw
9 Cable bushing
10 Cable gland
11 Junction box
12 Power cable (not supplied / home connection)
13 Screw terminal

3. Technical data

Spotlight:

Brand:	LIVARNO LUX
Model designation: LSLB 10	A1
Operating voltage: 220 - 240V ~, 50/60Hz
Power consumption of complete LED spotlight:	approx. 10W (+/- 8%)
Power consumption of LED:	approx. 8W (+/- 8%)
Protection class: I (with earth	conductor)
Protection rating: IP44 (protection against water jets)
Light bulb: Citizen LED
Total luminous flux: approx. 900lm +/-5% (with cover)
Colour temperature: approx. 5000K (neutral white)
LED beam angle: approx. 120°
Ra (colour rendering index):	>80
LED service life: approx. 2000 hours
Operating position: vertical -	spotlight at top, motion sensor at bottom
Maximum projected light coverage:	approx. 30m² when installed at a height of approx. 2m
Dimensions (W x H x D):	approx. 11.5 x 16.1 x 16.5cm (with bracket)
Weight: approx. 600g
Safety tested by:	DEKRA Gs geprüfte Sicherheit

Motion sensor:

Sensor detection angle: 180° max.
Detection range: max. 12m	(detection sensitivity can be set via control dial)
Light sensitivity:	can be set via control dial
Mechanical swivelling:	approx. 150° horizontal / approx. 80° vertical
Light time:	approx. 10 seconds +/- 5 seconds to 4 minutes +/- 1.5 minutes

The technical data and design may be changed without notification.

4. Safety instructions

Before using this LED spotlight for the first time, please read the following instructions carefully and take note of the safety warnings, even if you are familiar with the use of electronic devices. Store these operating instructions in a safe place for future reference. If you sell the device or pass it on, always include these operating instructions.

Any cracked protective cover must be replaced.

The LED spotlight has an earth conductor. The earth conductor (yellow/green) must be connected to the indicated terminal.

WARNING! This symbol

indicates important information for safe operation of the LED spotlight and the safety of the user.

DANGER! This symbol warns against dangerous electrical voltage!

Electrical devices do not belong in the hands of children. Never allow children to use electrical devices unsupervised. Children may not recognise potential risks. Always keep plastic packaging away from children. It poses a suffocation risk.

If smoke is produced, or there are any unusual sounds or smells, turn the LED spotlight off immediately. In such cases, the

device should not be used until it has been inspected by authorised service personnel. Never inhale smoke from a potential device fire. If you have inhaled smoke, however, consult a doctor. The inhalation of smoke can be harmful.

The housing of the LED spotlight must not be damaged. There is a risk of an electric shock if the housing is damaged.
Never open the housing of the LED spotlight because it does not contain any parts that require maintenance. There is a risk of an electric shock if the housing is open.
You must not hang any objects on the LED spotlight. The housing is not designed to carry loads. Otherwise, the LED spotlight could be damaged.
Never use such optical instruments as a magnifying glass to look directly into the light beam. This can lead to eye injuries. In the event of a suspected eye injury, consult a doctor.
Warning: The light and the light source can carry dangerous electrical voltages and therefore cause serious personal injury.

5. Copyright

All information contained in these instructions is subject to copyright and is provided for information purposes only. It is only permitted to copy or duplicate data and information with the express and written consent of the author. This also includes commercial use of the content and data. The text and illustrations are based on the state of the art at the time of printing. This material is subject to change.

6. Prior to use

Remove the LED spotlight and the installation materials from the packaging. Check the LED spotlight for signs of damage. If damaged, the LED spotlight must not be used.

6.1. Installation

The installation must be performed only by an authorised electrician!
The circuit must be switched off during the installation!
Use suitable tools for the installation.
When drilling the holes, make sure that no cables or pipes in the wall are damaged.
Use a H05RN-F power cable (12), for example.

• Remove the mounting bracket (3) from the LED spotlight. To do so, remove the screws (2) and the corresponding spring washers and flat washers on the left and right of the mounting bracket (3).
• Use the mounting bracket (3) as a template to mark the two outer holes.
• Then drill two holes and attach the mounting bracket (3) using the supplied installation materials (2 plugs and 2 screws).
• Open the junction box (11) by loosening the four screws at the corners of the box and removing the cover.
• Loosen the cable gland (10) and remove the rubber seal.
• Put the nut of the cable gland (10) and then the rubber seal with the flat side first on the power cable (12).
• Run the power cable (12) through the cable bushing (9).
• Connect the power cable (12) using the screw terminal (13). Make sure that the individual wires of the power cable (12) are connected correctly.

Wire	Symbol	Designation
Black or brown L Phase
Blue	N	Neutral
Yellow/green	⊕	Earth conductor

• Now screw the power cable (12) with the rubber seal into the cable bushing (9) by tightening the nut of the cable gland (10) again.

• Close the junction box (11) by screwing the cover again tightly with the four screws that you previously removed. When closing the junction box (11), ensure that the sealing ring lies correctly in the groove. Otherwise, IP protection is not guaranteed.

• Then attach the LED spotlight to the mounting bracket (3). To do so, use the previously removed screws (2) and washers. Make sure that the flat washers are located between the LED spotlight (1) and the mounting bracket (3). The spring washers must be between the screw head and the mounting bracket (3).
• Switch on the circuit.

7. First use

7.1. Aligning the motion sensor

Make sure that no movements that should not be detected (for example, on the pavements or streets) occur in the detection range of the motion sensor (4).

It is best if you set the light sensitivity of the motion sensor (4) during the lighting conditions when the LED spotlight is supposed to be active.

• Align the motion sensor (4) so that it can capture the desired range as well as possible. The view must not be obstructed by objects or anything else.
• You can align the motion sensor (4) horizontally by turning it.
• To align the motion sensor (4) vertically, you must first loosen the locking screw on the adjustment joint (8). If the motion sensor (4) is located in the desired position, you must tighten the locking screw on the adjustment joint (8) again.

7.2. Setting light time (TIME)

You use the TIME control (7) at the bottom of the motion sensor (4) to set the light time (approx. 10 seconds to 4 minutes). Turn the TIME control (7) clockwise (+ direction) to increase the light time or anti-clockwise (- direction) to reduce the light time.

7.3. Adjusting sensor sensitivity (SENS)

You use the SENS control (6) at the bottom of the motion sensor (4) to adjust the sensor sensitivity. Turn the SENS control (6) clockwise (+ direction) to increase the sensitivity or anti-clockwise (- direction) to reduce the sensitivity. The higher the sensitivity, the greater the detection range (12 metres at the most).

7.4. Adjusting light sensitivity (LUX)

You use the LUX control (5) at the bottom of the motion sensor (4) to adjust the light sensitivity. Here, you set the lighting conditions to which the twilight sensor is to respond and thus switch on or off the LED spotlight.

Turn the LUX control (5) clockwise (direction) so that the motion sensor (4) responds to brighter lighting conditions.

Turn the LUX control (5) anti-clockwise (direction) so that the motion sensor (4) responds to darker lighting conditions.

8. Maintenance / cleaning

8.1. Maintenance

The light bulb of the LED spotlight is a long-lasting LED. It cannot be replaced and does not require maintenance.

The light source of this light cannot be replaced; when the light source has reached the end of its service life, the entire light must be replaced.

8.2. Cleaning

Ensure that no liquid can penetrate the housing. There is a risk of an electric shock.

To clean the LED spotlight, use a soft, dry cloth and never use any solvent or cleaner that would corrode the plastic materials. Use a slightly damp cloth for more stubborn dirt.

9. Troubleshooting

The light does not switch itself on

• The motion sensor (4) is not aligned correctly. Correct the alignment.
• The electrical connection is faulty. Get an authorised electrician to check the electrical connection.

The light switches on and off quickly

• The sensor is disturbed by extraneous light or bright reflective surfaces. Remove the extraneous light source or the disturbing surfaces.

The light does not switch off

• Persons or objects are within the detection range of the motion sensor (4). Remove them.
• The LED spotlight moves in the wind, which continually triggers the motion sensor (4). Attach the LED spotlight only to a stable installation location.

10. Environmental and disposal information

When the crossed out wheelie bin symbol appears on a product, this indicates that the product is subject to the European Directive 2012/19/EU. All old electrical and electronic devices must be separated from normal household waste and disposed of at designated state facilities. The light bulb must also be disposed of properly.

The device must not be disposed of with household or bulky waste. You can obtain information regarding collection points or collection times via your local administration or local disposal services.

Dispose of the packaging in an environmentally compatible manner. Cardboard can be put out for municipal paper collections or brought to public collection points for recycling. Films and plastic used for packaging the device are collected by your local disposal services and disposed of in an environmentally compatible manner.

11. Conformity information

This device meets the basic requirements and other relevant regulations of the EMC Directive 2014/30/EU, the Low Voltage Directive 2014/35/EU, the ErP Directive 2009/125/EC and the RoHS Directive 2011/65/EU.

To obtain a complete EU Declaration of Conformity, send an e-mail to the following e-mail address:

[e-mail]

12. Warranty and servicing advice

Warranty of TARGA GmbH

This device is sold with three years warranty from the date of purchase. Please keep the original receipt in a safe place as proof of purchase. Before using your product for the first time, please read the enclosed documentation. Should any problems arise which cannot be solved in this way, please call our hotline. Please have the article number and, if available, the serial number to hand for all enquiries. If it is not possible to solve the problem on the phone, our hotline support staff will initiate further servicing procedures depending on the fault. Within the warranty period the product will be repaired or replaced free of charge as we deem appropriate. No new warranty period commences if the product is repaired or replaced. Consumables such as batteries, rechargeable batteries and lamps are not covered by the warranty.

Your statutory rights towards the seller are not affected or restricted by this warranty.

Service

Phone: [phone]

E-Mail:

[e-mail]

Phone: [phone]

E-Mail:

[e-mail]

Phone: [phone]

E-Mail:

[e-mail]

Phone: [phone]

E-Mail:

[e-mail]

Manufacturer

TARGA

GmbH

Coesterweg 45

DE-59494 Soest

GERMANY
