USER MANUAL 5C90S8990 BLAUPUNKT

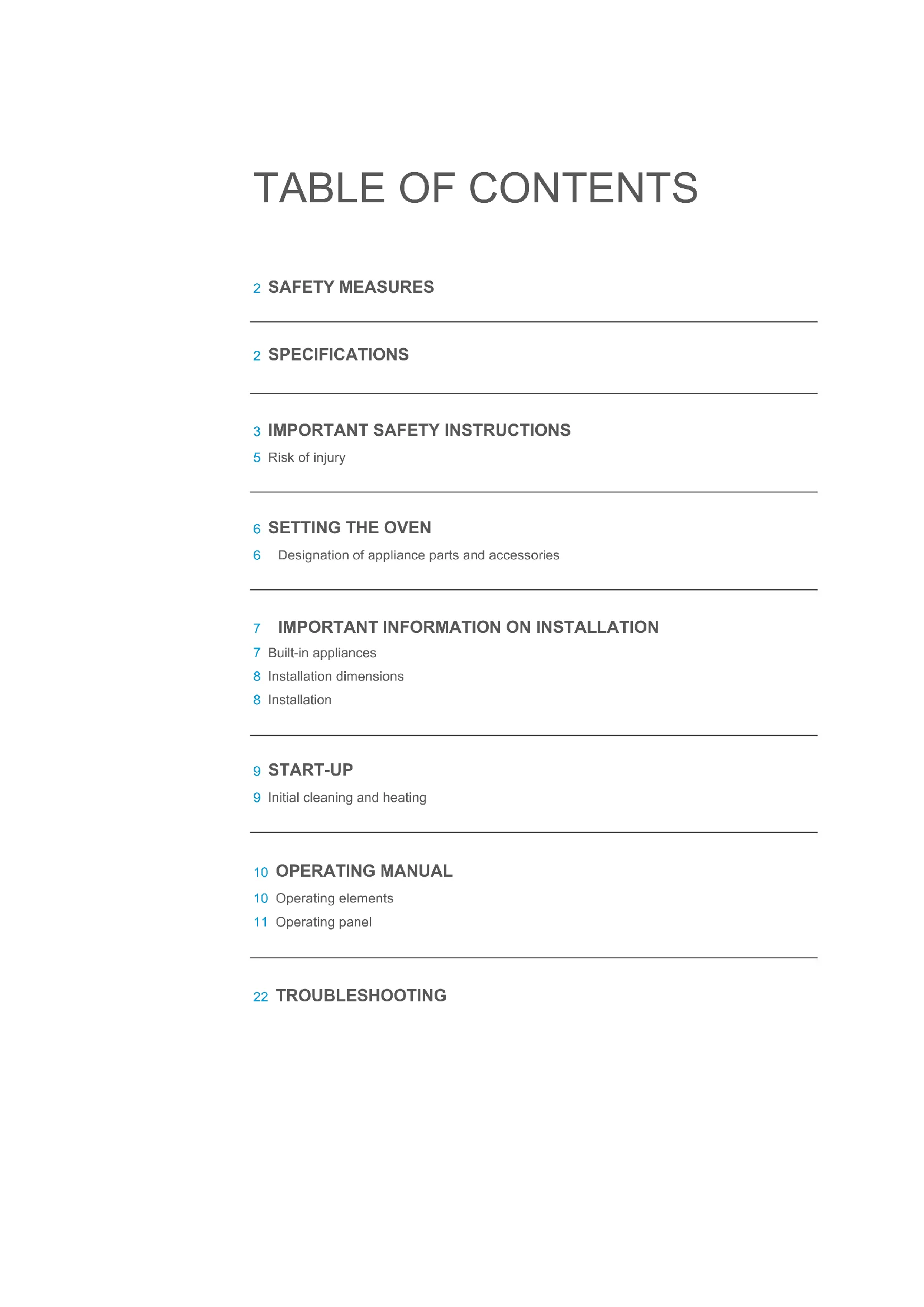

6 Designation of appliance parts and accessories

7 Built-in appliances 8 Installation dimensions 8 Installation

9 START-UP 9 Initial cleaning and heating

22 TROUBLESHOOTING2 SAFETY MEASURES (a) Never use this appliance with the door open. The safety interlock must not be tampered with or rendered inoperative. (b) Do not place any objects between the front of the appliance and the door and make sure that there is no dirt or cleaning residue on the sealing surfaces. Additional information If the appliance is not kept properly clean, its surface may be damaged. This can shorten the life of the appliance and create dangerous situations.

WARNING Always follow these basic precautions to reduce the risk of fire, electric shock, and personal injury when using your appliance:

1. Read and follow these instructions: SAFETY MEASURES

2. This appliance may be used by children over 8 years of age and by persons with reduced

physical, sensory or mental abilities or lack of experience and knowledge provided that they have been instructed in the use of the appliance by a person responsible for them and that they understand and appreciate the risks and dangers involved. Children must not play with the appliance. The appliance may only be cleaned and maintained by children over 8 years of age under the supervision of a responsible adult. Children under 8 years of age must be monitored constantly or kept away from the appliance.

3. Ensure that the appliance and its power cable are out of reach of children under 8 years of age.

4. If the power cable is damaged, it must be replaced by the manufacturer, the manufacturer's

service partner, or a similarly qualified technician to avoid hazards (for appliances with Y- mounting).

5. Do not leave the appliance unattended when heating food in plastic or cardboard containers,

as there is a risk of fire.

6. WARNING: Maintenance or repair work should only be carried out by qualified personnel.

7. Only use the temperature sensor recommended for this appliance (for appliances equipped

with the option to use a temperature sensor).

8. This appliance is intended for use in households and similar environments such as

– staff kitchen areas in shops, offices and other work environments; – farms; – by guests of hotels, motels and other lodging establishments.

9. Do not use a steam cleaner to clean the appliance.

10. This appliance is a built-in appliance.

11. WARNING: Accessible parts of the appliance become hot during use. Small children should be

kept away from the appliance.

12. The surface of the built-in cabinet in which the appliance is located can become very hot.

13. WARNING: The appliance and its accessible parts become hot during use. Do not touch the

heating elements. Children under 8 years of age must be monitored constantly or kept away from the appliance.

14. The appliance becomes hot during use. Do not touch the heating elements inside the oven.

15. To prevent overheating, the appliance must not be installed behind a decorative door.

However, this does not apply to appliances with decorative doors).

16. WARNING: Do not carry the appliance by the handle. (The oven is very heavy and the handle

17. The water in the collection container, oven and water tank should be removed after each use.4

18. Do not use paper cups and plastic containers with a temperature resistance below 120 °C. Use

containers made of glass, ceramic or stainless steel.

19. This appliance is mainly heated with steam.5

Read the following information carefully and keep it for future reference. Danger Risk of electrical shock! Touching some internal components may result in serious injury or death. Never disassemble this appliance. Warning Risk of electrical shock! Improper use of the earthing may result in electric shock. Do not insert the plug into a power outlet until the equipment is properly installed and earthed. This appliance must be earthed. In the event of an electrical short circuit, earthing reduces the risk of electric shock by providing a means of draining the electrical current. This appliance is equipped with an earthing plug. The plug must be plugged into a properly installed and earthed outlet. Consult a qualified electrician or service technician if you do not fully understand the earthing instructions, or if you are in doubt as to whether the equipment is properly earthed. A short power cord is supplied to reduce the risk of tangling or tripping over a longer cord. Clean Before cleaning, disconnect the appliance from the power supply.

1. After use, clean the cooking chamber with a damp cloth.

2. Clean the accessories with soapy water.

3. When soiled, the door frame and seal as well as adjacent parts must be carefully cleaned with

4. Do not use sharp abrasive cleaning agents or sharp metal scrapers to clean the glass of the

oven door, as these can scratch the surface, which can cause the glass to shatter.6

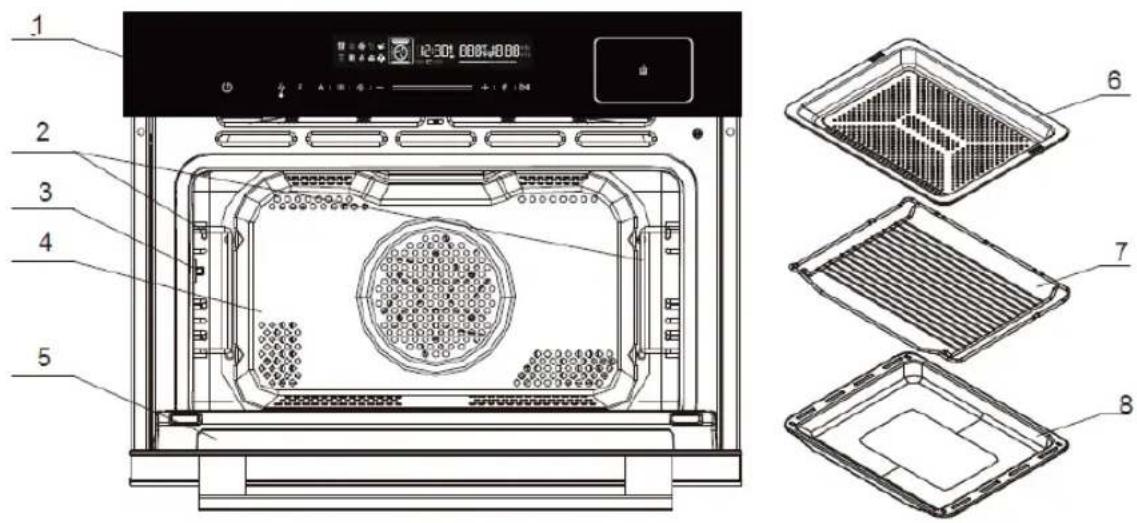

DESIGNATION OF APPLIANCE PARTS AND

ACCESSORIES Take the appliance out of the box and remove all materials from the cooking chamber Your appliance is equipped with the following accessories: Operating manual

2. Left and right suspension

3. Holder for temperature sensor

Your appliance is supplied with several accessories. Here you will find an overview of the accessories supplied and information on their correct use. Use only original accessories. It is specially designed for your appliance. You can find the right accessories in our online shop at www.blaupunkt-einbaugeraete.com or from your specialist dealer. Note The accessories can become deformed when hot. This does not affect their function. Once they have cooled down, they will return to their original shape.7 Inserting accessories The cooking chamber has five guide rails. The guide rails are counted from bottom to top. The accessories can be pulled out about halfway without tilting.

• This appliance is NOT intended for use in a commercial environment.

• Please refer to the supplied installation instructions and note that this equipment should only be installed by a qualified technician.

• This appliance is equipped with a plug and may only be connected to a properly installed earthed socket.

• If a new socket is required, only a qualified electrician may install the appliance and connect the cables.

• If the plug is no longer accessible after installation, a pole separator with a contact gap of at least 3 mm must be provided at the installation site.

• Adapters, socket strips and extension cables must not be used. Overloading can lead to fire.

• If the appliance has no supply line and no plug, the connection device must have an all-pole contact separation for complete disconnection. In addition, the appliance must be installed in the fixed wiring according to the wiring rules.

Accessible parts become hot during operation.

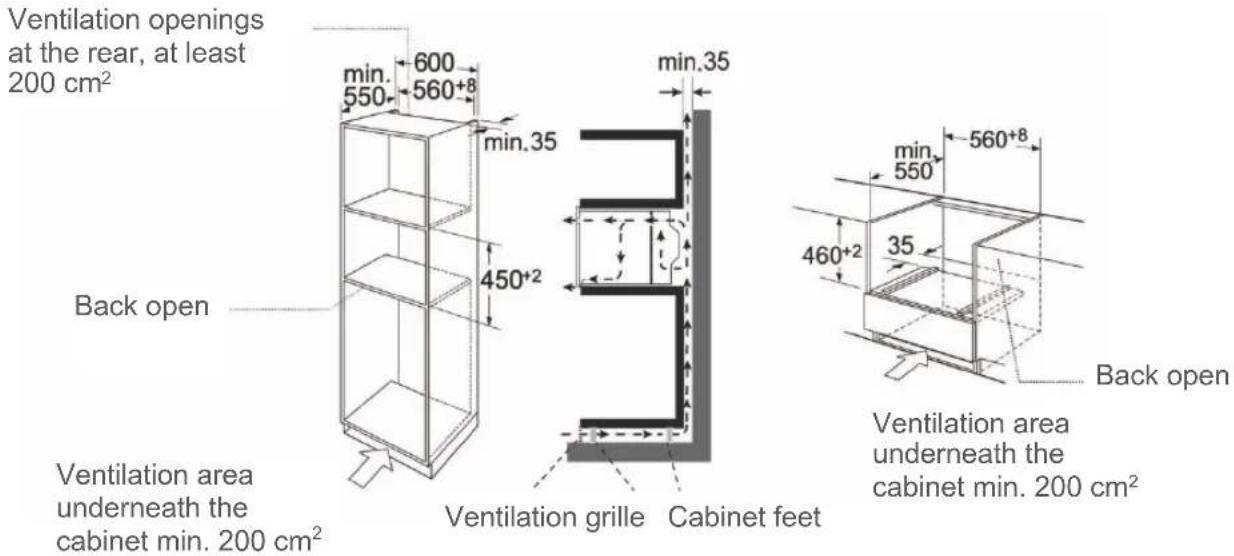

• The appliance is only intended for installation in a kitchen.

• The appliance is not intended for use as a table appliance or inside a cabinet.

• The built-in cabinet may not have a rear panel behind the unit.

• A distance of at least 35 mm must be maintained between the wall and the rear wall or the floor of the appliance located above it.

• The built-in cabinet must have a ventilation opening of 200 cm

at the front. For this purpose, the base plate must be cut back or a ventilation grille must be fitted.

• The ventilation slots and air intake openings must not be covered.

• Safe operation of this appliance can only be guaranteed if it has been installed in accordance with these installation instructions.

• The installer is liable for all damage caused by improper installation.

• The cabinets in which the appliance is installed must be heat-resistant.8 INSTALLATION DIMENSIONS

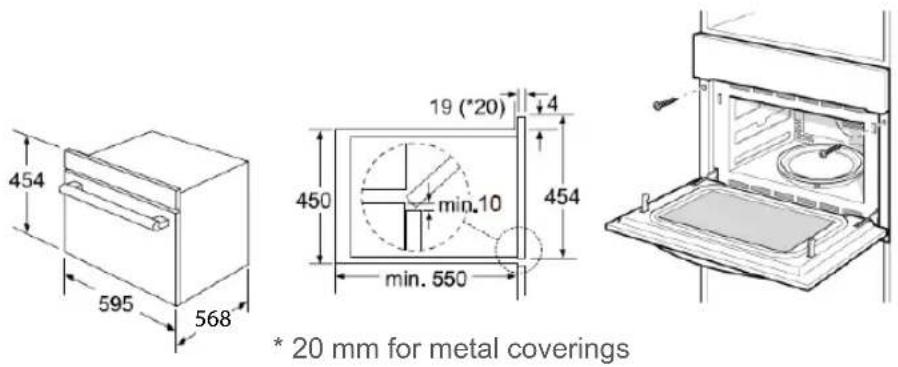

INSTALLATION Do not carry or hold the device by the door handle. The door handle cannot support the weight of the appliance and could break off.

1. Carefully push the appliance into the opening and make sure that it is centred.

2. Open the door and fasten the appliance with the screws provided.

(a) Push the unit fully in and place it in the middle of the opening. (b) Do not kink the connecting cable. (c) Fasten the appliance with the screws. (d) The gap between the worktop and the appliance must not be closed by additional strips.

Ventilation openings at the rear, at least 200 cm

• 20 mm for metal coverings9 Important information The appliance is designed for permanent installation with a three-pole mains cable and may only be connected by an authorised specialist in accordance with the wiring diagram. Only a qualified electrician who observes the relevant regulations may replace the connection cable. Do not use multiple plugs, socket strips or extensions. There is a risk of fire in the event of overload. If the plug is no longer accessible after installation, an all-pole disconnector with a contact gap of at least 3 mm must be provided. START-UP

INITIAL CLEANING AND HEATING

Remove the protective foil from the front of the steam cooker. Before using the appliance for the first time: Remove all accessories and clean the appliance from the inside. Heat up the oven while empty. New appliances have a typical smell the first time they are used. The appliance should be heated up once before first use. This will eliminate the smell and the food will cook faster.

• Wipe the steam cooker with a damp cloth before heating up. This will remove materials that have accumulated in the appliance or in the packaging material during the packaging process.

• Tap . The appliance will switch on and the main menu will appear on the display.

• Tap to select Hot Air . The recommended temperature will be displayed.

• Increase the temperature to the maximum temperature. This is done using the setting buttons.

• Tap next to the sensor buttons. Heat the empty oven for at least one hour. Make sure that the room is well-ventilated. Close the door to other rooms so that the smell does not spread throughout the house.

• Let the appliance cool down to room temperature. Mix a neutral cleaning agent with hot water, wipe down the appliance with it and wipe it dry with a clean, soft cloth. Leave the door open until the appliance is completely dry.10 OPERATING MANUAL OPERATING ELEMENTS

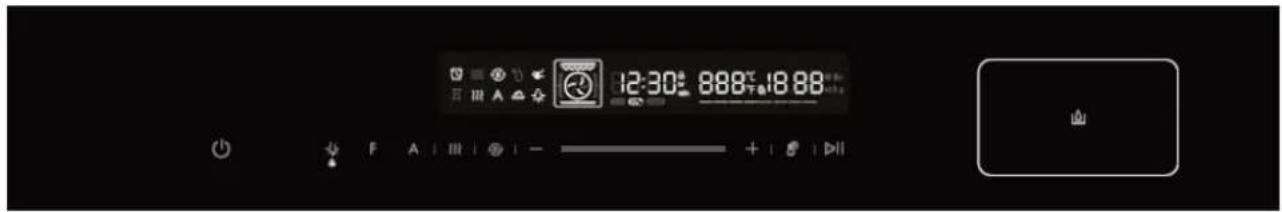

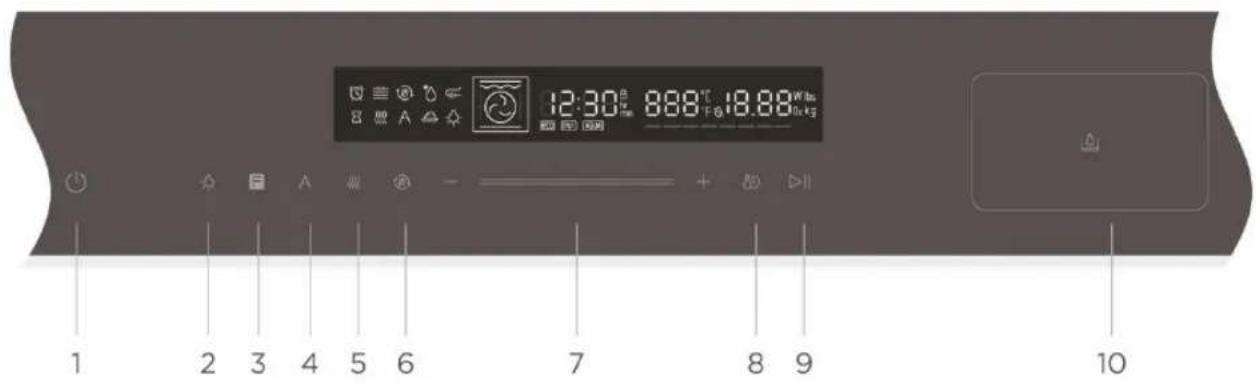

Switches the oven on/off.

Switches the lamp on/off.

Press this symbol to change the operating mode. Press and hold for 5 seconds to change it quickly.

Use this option to select automatic programmes or descaling and cleaning.

Cooking with hot steam preserves the quality of food and promises the best tasting and healthiest cuisine.

For fast preheating.

8. Setting the cooking time, clock time and temperature

Set the clock time in standby mode/Switch between time setting and temperature setting.

Starts and interrupts the cooking process.

Water tank for the steam function. The water tank opens after the button is pressed.11 OPERATING PANEL

This steam cooker has a modern electronic control system. This enables you to set the cooking parameters to best suit your needs.

When the appliance is plugged in, “00:00” will flash and the alarm will sound once.

1) Press and hold for 3 seconds. The hour numbers will flash.

2) Tap or or move the Smart Slider to set the number of hours. The

number entered should be between 0 and 23.

3) Tap to confirm your entry. The minute numbers will now flash.

4) Tap or or move the Smart Slider to set the minutes. The number

entered should be between 0 and 59.

5) Tap to confirm the clock setting. The clock now flashes The time is set. The appliance will

enter standby mode. NOTE:

1) If you wish to change the time, repeat steps 1 to 5.

2) If the clock is not set, the appliance will not work correctly.

You can select the operating mode by pressing . The available modes are as follows: Top/bottom heat, hot air, hot air (ECO), top/bottom heat + circulation, dual grill + circulation, grilling with radiant heat, dual grill with bottom heat, bottom heat + hot air, defrost, dough process

2. Cooking with top/bottom heat

1) Tap once to activate the top/bottom heat. The default temperature of 180°C will be

displayed and the symbol for top/bottom heat will appear.

2) Tap to set the time.

Tap or or move the Smart Slider to set the cooking time.12

3) Tap to confirm the cooking time and to set the temperature.

Tap or or move the Smart Slider to adjust the temperature. The temperature can be set from 50 to 230°C.

4) Tap to start the cooking process.

1) If you open the oven door during a cooking process, the cooking process will be interrupted.

After closing the door, tap the button. The cooking process will continue.

2) The cooking time can be changed during the cooking process. Tap . Then tap or or

move the Smart Slider to set the cooking time.

3) The cooking temperature can be changed during cooking. Tap repeatedly until the

temperature flashes. Then tap or or move the Smart Slider to set the temperature.

3. Cooking with hot air

1) Tap 2x to activate the hot air. The default temperature of 160 °C will be displayed and the

symbol for hot air will appear.

2) Tap to set the time.

Tap or or move the Smart Slider to set the cooking time.

3) Tap to confirm the cooking time and to set the temperature.

Tap or or move the Smart Slider to adjust the temperature. The temperature can be set from 50 to 250 °C.

4) Tap to start the cooking process.

4. Cooking with Hot Air ECO

1) Tap 3x to activate the Hot Air ECO. The default temperature of 160 °C will be displayed and

the symbol for Hot Air ECO will appear.

2) Tap to set the time.

Tap or or move the Smart Slider to set the cooking time.

3) Tap to confirm the cooking time and to set the temperature.

Tap or or move the Smart Slider to adjust the temperature. The temperature can be set from 150 to 200 °C.

4) Tap to start the cooking process.13

5. Cooking with top/bottom heat+ circulation

1) Tap 4x to activate top/bottom heat + circulation. The default temperature of 160 °C will be

displayed and the symbol for top/bottom heat + circulation will appear.

2) Tap to set the time.

Tap or or move the Smart Slider to set the cooking time.

3) Tap to confirm the cooking time and to set the temperature.

Tap or or move the Smart Slider to adjust the temperature. The temperature can be set from 50 to 230°C.

4) Tap to start the cooking process.

6. Cooking with grill and radiant heat

1) Tap 5x to activate grilling with radiant heat. The default temperature of 150 °C will be

displayed and the symbol for grilling with radiant heat will appear.

2) Tap to set the time.

Tap or or move the Smart Slider to set the cooking time.

3) Tap to confirm the cooking time and to set the temperature.

Tap or or move the Smart Slider to adjust the temperature. The temperature can be set from 100 to 235 °C.

4) Tap to start the cooking process.

7. Cooking with dual grill + circulation

1) Tap 6x to activate dual grill + circulation. The default temperature of 180 °C will be displayed

and the symbol for dual grill + circulation will appear.

2) Tap to set the time.

Tap or or move the Smart Slider to set the cooking time.

3) Tap to confirm the cooking time and to set the temperature.

Tap or or move the Smart Slider to adjust the temperature. The temperature can be set from 100 to 250 °C.

4) Tap to start the cooking process.14

8. Cooking with dual grill

1) Tap 7x to activate dual grill. The default temperature of 180 °C will be displayed and the

symbol for dual grill will appear.

2) Tap to set the time.

Tap or or move the Smart Slider to set the cooking time.

3) Tap to confirm the cooking time and to set the temperature.

Tap or or move the Smart Slider to adjust the temperature. The temperature can be set from 100 to 235 °C.

4) Tap to start the cooking process.

and the symbol for bottom heat + hot air will appear.

2) Tap to set the time.

Tap or or move the Smart Slider to set the cooking time.

3) Tap to confirm the cooking time and to set the temperature.

Tap or or move the Smart Slider to adjust the temperature. The temperature can be set from 50 to 250 °C.

4) Tap to start the cooking process.

10. Cooking with bottom heat

1) Tap 9x to activate the bottom heat. The default temperature of 150 °C will be displayed and

the symbol for bottom heat will appear.

2) Tap to set the time.

Tap or or move the Smart Slider to set the cooking time.

3) Tap to confirm the cooking time and to set the temperature.

Tap or or move the Smart Slider to adjust the temperature. The temperature can be set from 50 to 230°C.

4) Tap to start the cooking process.

1) Tap 10x to activate the defrost function. The defrost symbol will appear.

2) Tap to set the time.

Tap or or move the Smart Slider to set the defrost function.

3) Tap to start the defrost process.15

1) Tap 11x to activate the dough process. The default temperature of 40 °C will be displayed

and the symbol for the dough process will appear.

2) Tap to set the time.

Tap or or move the Smart Slider to set the cooking time.

3) Tap to confirm the cooking time and to set the temperature.

Tap or or move the Smart Slider to adjust the temperature. The temperature can be set from 30 to 45 °C.

4) Tap to start the cooking process.

Instructions for the button:

Sequence Function Temperature setting Time setting

1) In standby mode, tap once to call up the steam function. 100 °C will be shown on the

2) Tap to set the time.

Tap or or move the Smart Slider to set the cooking time.

3) Tap to set the temperature.

Tap or or move the Smart Slider to adjust the temperature. The temperature can be set from 35 to 100 °C.

4) Tap to start the cooking process.

5) The alarm will sound five times to indicate that the cooking process is complete. The appliance

The 3 operating modes hot air + steam, top/bottom heat + steam and dual grill + circulation are available in this mode.

Sequence Function Temperature setting Time setting Steam

one of the various automatic programmes (A01 to A16).

2) Tap to set the time.

Tap or or move the Smart Slider to set the cooking time.

3) Tap to start the cooking process.

1) If the steam cooking function was used in an automatic program, the water pump draws the

water into the water tank. A sound will be heard in the process.

2) If the steam cooking function has been used in an automatic program, you must remove the

water in the cooking chamber and at the door.

3) If the appliance must be preheated for the programme, the food must not be in the appliance

during preheating. Only when the temperature has been reached can you put the food into the appliance to start the cooking process.

Note on steam cooking

1. Before steam cooking:

If the water level is low before steam cooking, an alarm will sound and the low water level symbol will appear on the display. In this case, pour water into the water tank. NOTE: Clean the water tank before starting the steam cooking process.

2. During steam cooking:

If the water level is low during the steam cooking process, an alarm will sound and the low water level symbol will appear on the display. In this case, pour water into the water tank. Steam cooking is then continued normally.

3. After steam cooking:

1- When the steam cooking process is finished, the water in the boiler is returned to the water

tank. This process takes about 1 minute.

2- If the water tank becomes too full, the system will beep 10 times. In this case, empty the

water tank. When the water tank is empty, the system will continue the process. NOTE: Empty the water tank after steam cooking. ERROR CODES During steam cooking, the following error codes may be displayed: E-06: 1- The water tank is not properly closed. E-05: The water system is not working properly. Contact customer service. Possible causes:

1- The water sensor is not working.

2- The water pipe is not working.

3- The water pump is not working.

4- The water tank is not working.

For best cleaning results, we recommend the use of sodium citrate. Follow the manufacturer's instructions on the packaging. If the steam function has been running for 20 hours, the descaling function should be switched on afterwards.

1) Switch on the system. Remove the water tank and add 1000 ml of fresh water and a pack of

2) Push the water tank back in.

3) In standby mode, tap the button several times until the display shows “CLE”. This means

that the appliance has switched on the automatic descaling function. The 40:00 min display will light up. The symbol for the water tank will show the current water level and other symbols will disappear.

4) Press to start the program.

5) If 10 min remain, the program will stop and water must be refilled. Remove the water tank and

pour the water in. Clean the water tank thoroughly.

6) Add fresh water and repeat steps 3 to 4.

NOTE: Do not interrupt the descaling process. If the descaling process is interrupted before the end, the entire program must be restarted starting from step 3.

18. Temperature sensor

1) You can use the temperature sensor in any operating mode. When you use it, a signal will

sound. The display will show “Prob”.

2) In “Temperature sensor” mode, tap to select the heating mode. The default temperature of

the temperature sensor will appear on the display.19

3) Tap or or move the Smart Slider to set the target temperature of the

4) Press to start the program. When the core temperature of the food reaches the target

temperature of the temperature sensor, a signal will sound five times and the cooking process will be stopped.

19. Temperature sensor functions

(1) Insert the temperature sensor into the food. When the temperature sensor has reached the target temperature, the temperature setting is finished. (2) In this mode, the operating modes hot air, dual grill, top/bottom heat, dual grill + circulation and infrared grill are available.

1) Insert the temperature sensor into the food in standby mode. “Prob” will appear on the display.

2) Press . When the temperature sensor has reached the target temperature, “Prob” will

appear on the display. The process will stop and a signal will sound five times. Pull out the temperature sensor. The appliance will return to standby mode or to the clock.

3) The setting range of the temperature sensor is 50-100°C. The temperature in the centre of the

4) The cooking time cannot be set with this function.

5) The tone will sound once when you insert or remove the temperature sensor.

6) When the appliance is in the setting and operation mode, this mode is ended by inserting or

removing the temperature sensor.

7) f the temperature has not been set, the signal will sound five times after 9 hours. The process

8) Dual grill + circulation function, 50-100 °C: If the target temperature is not reached, the dual

grill will operate for 20 seconds and stop for 10 seconds.

9) The function can be changed or cancelled.

(1) Tap to return to standby mode. (2) Child lock: With the child lock activated, press and hold the button to deactivate the child lock.

21. Reminder at the end of the cooking process

When the cooking time is finished, “End” will appear on the display and the signal will sound five times. Tap “ -C” or open the door to stop the signal and return to standby mode. If you do not perform any operation within 5 minutes, the signal will sound once again. The appliance will enter standby mode.

Activating child lock: In standby mode, press and hold for 3 seconds. You will hear a long beep indicating that the child lock has been activated. The symbol will also appear. Deactivating child lock: When the child lock is engaged, press and hold for 3 seconds. You will hear a long beep indicating that the child lock has been deactivated. The symbol will also disappear.

1) If you do not perform any further operations when making settings, the selected setting will be

confirmed automatically after 10 seconds. Except for the initial setting of the clock.

2) If a selected programme has been set for 3 seconds, it will be confirmed automatically. Except

for automatic programmes, which are automatically confirmed after 10 seconds.

3) If the appliance is in setting or standby mode or in the automatic or defrost programme and no

operation is made within 5 minutes, it will switch off.

4) The oven lamp always lights up when the door is open.

5) The oven lamp always lights up when an operation is interrupted.

6) If the oven door is opened during cooking, the button must be pressed to continue cooking.

7) The button can be pressed in any operating mode to open the water tanks.

22:00 Top/bottom heat + circulation 200 °C Millefoglie from yellow and purple potatoes A12

30:00 Top/bottom heat 180 °C Roast chicken with early potatoes A13

05:00 –22 TROUBLESHOOTING

NORMAL Steam collects on the door, hot air escapes from the ventilation slots Steam can escape from the food while cooking. It mostly escapes from the ventilation slots. Sometimes it also collects in a cool place like the oven door. This is normal.

PROBLEM Possible causes Remedy The oven cannot be started.

1) Power cord not plugged in

properly. Pull out the plug. Plug it in again after 10 seconds. (2) The fuse is blown or the circuit breaker tripped. Replace the fuse or reset the circuit breaker. Contact a qualified electrician if in doubt. (3) Problem with the power outlet. Test the outlet with other electrical devices. The oven is not heating. (4) Door not closed properly. Close the door firmly.

According to the Directive on Waste Electrical and Electronic Equipment (WEEE), waste electrical and electronic equipment should be collected and treated separately. If you need to dispose of this product in the future, please DO NOT dispose of it with your household waste. Please send this product to WEEE collection points.

05:00 –22 PROBLEEMOPLOSSING
