USER MANUAL 5M26F1530 BLAUPUNKT

Warning symbol with steam inside a triangle, indicating heat or smoke hazard

3 Additional information
3 Specifications

4 IMPORTANT SAFETY INSTRUCTIONS

6 Risk of electric shock
7 Cleaning

8 UTENSILS

8 Risk of injury
8 Utensil test
9 Materials that you can use in the microwave
10 Materials to avoid in the microwave

11 SETTING UP YOUR OVEN

11 Names of Oven Parts and Accessories
11 Turntable Installation
12 Countertop Installation

13 FUNCTIONS

13 Clock Setting
13 Microwave Cooking
13 Microwave Power Chart
14 Speedy Cooking
14 Defrost by weight
14 Defrost by time
14 Multi-Stage Cooking
15 Preset Function
16 Auto-Menu
17 Lock-out Function for Children
17 Inquiring Function
17 Specification

18 TROUBLESHOOTING

Read these instructions carefully before using your microwave and store them in a safe place.

By following the instructions you can look forward to many years of reliable operation of your appliance.

STORE THESE INSTRUCTIONS IN A SAFE PLACE.

PRECAUTIONS TO PREVENT EXPOSURE TO EXCESSIVE MICROWAVE RADIATION ENERGY

a) Never use this appliance with the door open, as you will be exposed to harmful microwave radiation. The safety interlock must not be tampered with or rendered inoperative.
b) Do not place any objects between the front of the appliance and the door and make sure that there is no dirt or cleaning residue on the sealing surfaces.
c) WARNING: If the door seals or the door are damaged, the appliance may not be used again until it has been repaired by a qualified person.

ADDITIONAL INFORMATION

If the appliance is not kept properly clean, its surface may be damaged. This can shorten the life of the appliance and create dangerous situations.

SPECIFICATIONS

Model	5M26F1530
Rated voltage	230 V ~ 50 Hz
Microwave input power	1050 W
Microwave output power	700 W

IMPORTANT SAFETY INFORMATION

WARNING!

Always follow these basic precautions to reduce the risk of fire, electric shock, personal injury or exposure to excessive microwave radiation energy when using your appliance:

1. Read and follow these instructions: PRECAUTIONS TO AVOID EXPOSURE TO EXCESSIVE MICROWAVE RADIATION ENERGY
2. This appliance can be used by children 8 years of age or older and persons with restricted physical, sensory or intellectual capabilities or a lack of experience and knowledge, if they are supervised by a responsible person or if they have received instructions on how to use the appliance safely, and understand the associated hazards. Children may not play with the appliance. Children may only clean and maintain this appliance under supervision.
3. Ensure that the appliance and its power cable are out of reach of children under 8 years of age.
4. If the power cable is damaged, it must be replaced by the manufacturer, the manufacturer's customer service department or a similarly qualified technician to avoid hazards.
5. WARNING: Ensure that the appliance is switched off before replacing the bulb to avoid the risk of electric shock.
6. WARNING: Maintenance or repair work, for which the cover for protection against microwave energy must be removed, may only be carried out by qualified persons.
7. WARNING: Liquids and food products must never be heated in closed containers as there is a risk that the containers may explode.
8. Do not leave the appliance unattended when heating food in plastic or cardboard containers, as there is a risk of fire.
9. Only use accessories microwave-safe.
10. Switch off the appliance in case smoke is generated or pull out the power plug from the socket. Keep the door of the appliance closed to extinguish any flames that may occur.
11. Heating drinks in the microwave can cause delayed boiling. Be careful when removing the container.
12. If you are warming up baby bottles or baby jars, stir or shake them after heating and check the temperature to avoid burning your baby.
13. Eggs in shells and hard boiled eggs should never be heated in the appliance, as they may explode even after the heating process in the appliance is complete.
14. Information on cleaning door seals, cooking chambers and adjacent parts.
15. The appliance should be cleaned regularly and food residue should be removed.

16. Failure to maintain the appliance in a clean condition may result in wear of the appliance surfaces, which may reduce the service life of the appliance and lead to dangerous situations.

17. This appliance is designed for household use and similar applications, such as:

18. staff kitchens in shops, offices and other work environments;

19. by customers in hotels, motels and other similar residential environments;
20. farmhouses;

21. bed and breakfasts.

22. This microwave is designed to heat food and drinks. Drying food or clothing and heating heat pads, slippers, sponges, damp cloths or similar items can cause injury and fire.

23. Metal containers for food and beverages must not be heated in the appliance.

24. Do not use a steam cleaner to clean the appliance.

25. The appliance must be operated with the cabinet door open.

26. Make sure that the turntable is not pushed out of the appliance when removing containers. (For fixed and built-in appliances used more than 900 mm above the floor that have a removable turntable. However this does not apply to appliances with a horizontal, bottom-hinged door).

27. The surface of the built-in cabinet in which the microwave is located can become very hot.

28. Do not use sharp, abrasive cleaning agents or sharp metal scrapers to clean the glass in the oven door, as these can scratch the surface, which can cause the glass to shatter.

29. WARNING: The appliance and its accessible parts become hot during use. Do not touch the heating elements. Children under 8 years of age must be monitored constantly or kept away from the appliance.

30. The appliance becomes hot during use and remains hot after use. Do not touch the heating elements inside the oven.

31. WARNING: Accessible parts of the appliance become hot during use and remain hot after use. Small children should be kept away from the appliance.

32. WARNING: When the combination mode is used, children should only use the appliance under the supervision of an adult due to the high temperatures involved.

READ THE FOLLOWING INFORMATION CAREFULLY AND STORE IT FOR FUTURE REFERENCE

TO AVOID A RISK OF INJURY, THE APPLIANCE MUST BE EARTHED.

RISK OF ELECTRIC SHOCK

DANGER

Touching some internal components may result in serious injury or death. Never dismantle this appliance.

WARNING

• Improper use of the earthing may result in electric shock.
• Do not insert the plug into a power outlet until the equipment is properly installed and earthed.
• This appliance must be earthed. In the event of an electrical short circuit, earthing reduces the risk of electric shock by providing a means of draining the electrical current.
• This appliance is equipped with an earthing plug. The plug must be plugged into a properly installed and earthed outlet.
• Consult a qualified electrician or service technician if you do not fully understand the earthing instructions, or if you are in doubt as to whether the equipment is properly earthed.

Before cleaning, disconnect the appliance from the power supply.

1. After use, clean the cooking chamber with a damp cloth.
2. Clean the accessories with soapy water.
3. When soiled, the door frame and seal as well as adjacent parts must be carefully cleaned with a damp cloth.
4. Do not use sharp, abrasive cleaning agents or sharp metal scrapers to clean the glass in the oven door, as these can scratch the surface, which can cause the glass to shatter.
5. Cleaning tip – To make it easier to clean the walls of the cooking chamber that may come into contact with food: Place half a lemon in a bowl, add 300 ml of water and heat it for 10 minutes at full power. Wipe the oven clean with a soft, dry cloth.

UTENSILS

CAUTION

RISK OF INJURY

Maintenance or repair work, for which the cover for protection against microwave energy must be removed, may only be carried out by qualified persons.

See the instructions under “Materials that you can use in the microwave or which you should avoid in the microwave”. Certain non-metallic utensils are not suitable for use in the microwave. In case of doubt, you can test the relevant utensil as follows.

UTENSIL TEST

1. Fill a microwave-safe container with 1 cup of cold water (250 ml) and the relevant utensil.
2. Heat at maximum power for 1 minute.
3. Carefully touch the utensil. If the empty utensil is warm, do not use it for cooking in the microwave.
4. Do not exceed a cooking time of 1 minute.

MATERIALS THAT YOU CAN USE IN THE MICROWAVE

Utensils	Comments
Cooking container	The base of the cooking container must be at least 5 mm (3/16 inches) above the turntable. Incorrect use can damage the turntable.
Crockery	Only if it is microwave-safe. Follow the manufacturer's instructions. Do not use crockery with cracks or chips.
Glass containers	Always remove the lid. Only use to heat food until they just start to warm. Most glass containers are not heat-resistant and may break.
Glasses	Only use heat-resistant glasses for the oven. Make sure that no metal fittings are present. Do not use crockery with cracks or chips.
Cooking bag for the oven	Follow the manufacturer's instructions. Do not seal with metal ribbons. Create slits to allow the steam to escape.
Paper plates and cups	Only use for brief cooking/warming. The appliance must not be left unattended during the cooking process.
Paper towels	To cover meals while heating and to absorb grease. Only use under supervision for brief cooking.
Baking paper	Use as a cover to prevent spatter or for steaming.
Plastic	Only if it is microwave-safe. Follow the manufacturer's instructions. Should be labelled “microwave-safe”. Some plastic containers become soft when the food in them gets hot. “Cooking bags” and tightly closed plastic bags should be slit open, perforated or ventilated as per the instructions on the packaging.
Cling film	Only if it is microwave-safe. To cover food during cooking in order to retain moisture. Make sure that the cling film does not come into contact with the food.
Thermometer	Only if microwave-safe (meat and sugar thermometer).
Wax paper	Use as a cover to prevent spatter and store moisture.

MATERIALS TO AVOID IN THE MICROWAVE

Utensils	Comments
Aluminium bowls	Can lead to arcing.Place food in a microwave-safe bowl.
Food carton with metal handle	Can lead to arcing.Place food in a microwave-safe bowl.
Utensils made of metal or with metal fittings	Metal shields the food from the microwave radiation energy.Metal fittings can lead to arcing.
Metal fasteners	Can lead to arcing and fire in the oven.
Paper bags	Can lead to fire in the oven.
Foam material	Foam material can melt or contaminate the liquid on the inside when exposed to high temperatures.
Wood	Wood dries out when used in a microwave and can crack or tear.

SETTING UP YOUR OVEN

Names of Oven Parts and Accessories

Remove the oven and all materials from the carton and oven cavity. Your oven comes with the following accessories:

Glass tray 1

Turntable ring assembly 1

Instruction Manual 1

A

F

E D C B

G

A) Control panel
B) Turntable shaft
C) Turntable ring assembly
D) Glass tray
E) Observation window
F) Door assembly
G) Safety interlock system

Turntable Installation

Hub (underside)

Glass tray

a. Never place the glass tray upside down.
The glass tray should never be restricted.
b. Both glass tray and turntable ring assembly must always be used during cooking.
c. All food and containers of food are always placed on the glass tray for cooking.
d. If glass tray or turntable ring assembly cracks or breaks, contact your nearest authorized service center.

Turntable shaft

Turntable ring assembly

Countertop Installation

Remove all packing material and accessories. Examine the oven for any damage such as dents or broken door. Do not install if oven is damaged.

Cabinet: Remove any protective film found on the microwave oven cabinet surface. Do not remove the light brown Mica cover that is attached to the oven cavity to protect the magnetron.

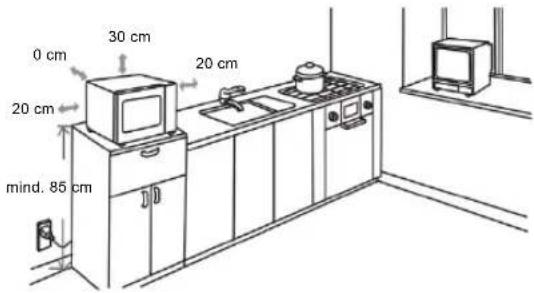

Installation

1. Select a level surface that provide enough open space for the intake and/or outlet vents.

0 cm 30 cm 20 cm 20 cm mind. 85 cm 20 cm 20 cm

(1) The minimum installation height is 85cm.
(2) The rear surface of appliance shall be placed against a wall. Leave a minimum clearance of 30cm above the oven, a minimum clearance of 20cm is required between the oven and any adjacent walls.
(3) Do not remove the legs from the bottom of the oven.
(4) Blocking the intake and/or outlet openings can damage the oven.

(5) Place the oven as far away from radios and TV as possible. Operation of microwave oven may cause interference to your radio or TV reception.

1. Plug your oven into a standard household outlet. Be sure the voltage and the frequency is the same as the voltage and the frequency on the rating label.

WARNING: Do not install oven over a range cooktop or other heat-producing appliance. If installed near or over a heat source, the oven could be damaged and the warranty would be void.

The accessible surface may be hot during operation.

Warning symbol with steam inside a triangle, indicating heat or smoke hazard

This microwave oven uses modern electronic control to adjust cooking parameters to meet your needs better for cooking.

1. Clock Setting

When the microwave oven is electrified, the oven will display "0:00", buzzer will ring once.

(1) Press "CLOCK/PRE-SET", the hour figure flash;
(2) Turn " 🔍 " to adjust the hour figures, the input time should be within 0--23.
(3) Press "CLOCK/PRE-SET", the minute figures will flash.
(4) Turn " 🔍" to adjust the minute figures, the input time should be within 0--59.
(5) Press "CLOCK/PRE-SET" to finish clock setting. ":" will flash.

Note: (1) If the clock is not set, it would not function when powered.

(2) During the process of clock setting, if no oppression in 1 minute, the oven will go back to the previous status automatically.

2. Microwave Cooking

(1) Press the "Microwave" key once, and "P100" display.
(2) Press " Microwave " for times or turn " 🔍 " to select the microwave power "P100", "P80", "P50", "P30", "P10" will display in order.
(3) Press " START/+30S EC./CONFIRM " to confirm.
(4) Turn " 🔍" to adjust the cooking time. (The time setting should be 0:05-95:00)
(5) Press " START/+30SEC./CONFIRM " to start cooking.

Note: the step quantities for the adjustment time of the coding switch are as follow:

0-1 min.: 5 seconds

1-5 min.: 10 seconds

5-10 min.: 30 seconds

10-30 min.: 1 seconds

30-95 min.: 5 seconds

Microwave Power Chart

Microwave Power	100 %	80 %	50 %	30 %	10 %
Display	P100	P80	P50	P30	P10

3. Speedy Cooking

(1) In waiting state, press "START/+30SEC./CONFIRM" key to cook with 100% power level for 30 seconds. Each press on the same key can increase 30 seconds. The maximum cooking time is 95 minutes.
(2) During the microwave and time defrost process, press "START/+30SEC./CONFIRM" to increase the cooking time.
(3) In waiting states, turn " 🔍" left to choose the cooking time directly. After choosing the time, press " START/+30SEC./CONFIRM " to start cooking. The microwave power is 100%.
(4) Under the states of auto menu and weight defrost, cooking time cannot be increased by pressing "START/+30SEC./CONFIRM".

4. Defrost By Weight

(1) Press "WEIGHT/TIME DEFROST" once, the screen will display „dEF1“.
(2) Turn " 🔍" to select the food weight. The range of weight is 100-2000g.
(3) Press " START/+30SEC./CONFIRM " key to start defrosting.

5. Defrost By Time

(1) Press "WEIGHT/TIME DEFROST" twice, the screen will display „dEF2“.
(2) Turn " " to select the cooking time. The maximum cooking time is 95 minutes.
(3) Press " START/+30SEC./CONFIRM " key to start defrosting. The power is P30 and it cannot be changed.

6. Multi-Stage Cooking

Two stages can be maximally set. If one stages is defrosting, it should be put in the first stage. The buzzer will ring once after each stage and the next stage will begin.

Example:

If you want to defrost the food for 5 minutes, then to cook with 80% microwave power for 7 minutes. The steps are as following:

(1) Press "Weight/TIME DEFROST" twice, the screen will display „dEF2“.

(2) Turn " 🔍" to adjust the defrost time of 5 minutes;

(3) Press "Microwave" once; "P100" will display;

(4) Press "Microwave" again or turn " 🔍" to choose 80% microwave power till "P80" display;

(5) Press " START/+30SEC./CONFIRM " to confirm;

(6) Turn " 🔍" to adjust the cooking time of 7 minutes;

(7) Press " START/+30SEC./CONFIRM " to start cooking.

7. Preset Function

(1) Set the clock first. (Consult the instruction of clock setting).

(2) Input the cooking program. Two stages can be set at most. Defrosting should not be set in preset function.

Example:

If you want to cook with 80% microwave power for 7 minutes.

a. Press "Microwave" once, "P100" will display;
b. Press " Microwave " again or turn " 🔍 " to choose 80% microwave power till "P80" display;
c. Press " START/+30SEC./CONFIRM " to confirm;
d. Turn " 🔍" to adjust the cooking time of 7 minutes;

After the above steps, please do not press " START/+30SEC./CONFIRM ". Then do as following:

(3) Press "CLOCK/PRE-SET". The hour figures flash;
(4) Turn " "to adjust the hour figures, the input time should be within 0--23.
(5) Press "CLOCK/PRE-SET", the minute figures will flash.
(6) Turn " 🔍" to adjust the minute figures, the input time should be within 0--59.
(7) Press " START/+30SEC./CONFIRM " to finish setting. ":" will light, buzzer will ring twice when the time arrives, then cooking will start automatically.

Note: clock must be set first. Otherwise, pre-set function will not work.

8. Auto-Menu

(1) In waiting states, turn " 🔍" right to choose the menu from "A-1" to "A-8";
(2) Press " START/+30SEC./CONFIRM " to confirm the menu you choose;
(3) Turn " 🔥" to choose th food weight.
(4) Press " START/+30SEC./CONFIRM " to start cooking;
(5) After cooking finish, the buzzer sounds five times.

Auto-Menu

Menu	Weight	Display	Power
A-1 REHEAT	200g	200	100%
	400g	400
	600g	600
A-2 VEGETABLE	200g	200	100%
	300g	300
	400g	400
A-3 FISH	250g	250	80%
	350g	350
	450g	450
A-4 MEAT	250g	250	100%
	350g	350
	450g	450
A-5 PASTA	50g (with water 450 ml)	50	80%
	100g (with water 800 ml)	100
A-6 POTATO	200g	200	100%
	400g	400
	600g	600
A-7 PIZZA	200g	200	100%
	400g	400
A-8 SOUP	200ml	200	80%
	400ml	400

9. Lock-out Function for Children

Lock: In waiting state, press " STOP/CLEAR " for 3 seconds, there will be a long "beep" denoting entering the children-lock state and screen will display " [ ]".

Lock quitting: In locked state, press " STOP/CLEAR " for 3 seconds, there will be a long "beep" denoting that the lock is released.

10. Inquiring Function

(1) In cooking states of microwave, press "Microwave", the current power will be displayed for 3 seconds.
(2) In pre-set state, press "CLOCK/PRE-SET" to inquire the time for delay start cooking. The pre-set time will flash for 3 seconds, then the oven will turn back to the clock display.
(3) During cooking state, press "CLOCK/PRE-SET" to check the current time. It will be displayed for 3 seconds.

11. Specification

(1) The buzzer will sound once when turning the knob at the beginning;
(2) " START/+30SEC./CONFIRM " must be pressed to continue cooking if the door is opened during cooking.
(3) Once the cooking programme has been set, " START/+30SEC./CONFIRM " is not pressed in 1 minute. The current time will be displayed. The setting will be cancelled.
(4) The buzzer sounds once by efficient press, inefficient press will be no response.
(5) The buzzer will sound five times to remind you when cooking is finished.

TROUBLESHOOTING

NORMAL
The microwave interferes with the TV reception.	Interference with the radio and TV reception is possible when operating a microwave. This is similar to the interference caused by small electrical appliances such as mixers, vacuum cleaners and electric fans. This is normal.
Weak oven light	When cooking in the microwave at low power, the oven light can become weaker. This is normal.
Steam collects at the door, hot air escapes from the ventilation slots	Steam can rise from food during cooking. It usually escapes from the ventilation slots. It occasionally also collects at a cool place, like the oven door. This is normal.
The oven was accidentally started without food.	Operating the appliance without food is prohibited. This is very dangerous.

PROBLEM	POSSIBLE CAUSE	REMEDY
Oven cannot be started.	(1) The power cable is not inserted correctly.	Pull out the plug. Plug it in again after 10 seconds.
	(2) The fuse is blown or the circuit breaker tripped.	Replace the fuse or reset the circuit breaker (have it repaired by the specialists at our company).
	(3) Problem with the power socket.	Test the outlet with other electrical devices.
The oven is not heating.	(4) The door is not closed correctly.	Close the door firmly.

The symbol of the crossed-out wheeled bin on the product or its packaging means that the appliance is not suitable for disposal in household waste and that it requires separate disposal. You can deposit the old appliance at a suitable municipal collection point for waste electrical and electronic equipment free of charge, e.g. a recycling centre. The addresses can be provided by your city or local council.

Alternatively, you can return small waste electrical appliances with an edge length of up to 25 cm to retailers with a sales area for electrical and electronic appliances of at least 400 m2 or food retailers with a total sales area of at least 800 m2, which offer electrical and electronic appliances at least multiple times a year, free of charge. Larger old appliances can be returned to the retailer from which you purchase a new appliance of the same type, which predominantly performs the same function as the new appliance, free of charge. For the requirements for returning an old appliance in the event of the delivery of a new appliance, please contact your retailer.

Where possible, please remove all (rechargeable) batteries as well as all lamps that can be removed non-destructively, before disposing of the product.

Please note that you are independently responsible for deleting personal data on the appliance to be discarded.

TABLE DES MATIÈRES

3 MESURES DE PRÉCAUTION

Warning symbol of a triangle with steam and horizontal line (no text or numbers)

18 PROBLEEMOPLOSSING

Warning symbol with steam inside a triangle, indicating heat or smoke hazard

Warning symbol of a triangle with steam lines inside, no text or numbers present

Diagram of a mechanical or electrical component with a central circular component and downward force arrow (no text or symbols)

Warning symbol with steam inside a triangle, indicating heat or smoke hazard

Diagram of a mechanical or fluid system with a central circular component and downward flow arrows (no text or symbols)

Warning symbol with steam inside a triangle, indicating heat or smoke hazard

Close-up of medical or dental tools on a blue fabric background, including a white BLAUPUNKT device and a red cap (no visible text or symbols)
