Product type	Cordless precision drill/grinder 12 V
Brand	Parkside
Model	PFBS 12 C5 / PFBS 12 B6
Power supply	Integrated 12 V lithium-ion battery (1300 mAh)
Charger	USB Type-C cable (5 V, ≤4 A), charging time approx. 60 min
Variable speed	Rotary speed control (1 to MAX)
Max. clamping range	Chuck up to 2 mm diameter
Max. disc diameter	25 mm
Main functions	Drilling, milling, engraving, polishing, cleaning, grinding, cutting
Included accessories	50 pieces: HSS drill bits, spindles, polishing wheels, abrasive wheels, wire brush, cut-off discs, collets, plastic brushes, milling bits, engraving bits, grinding bits, combination wrench
Sound pressure level	L pA = 61.8 dB(A), uncertainty K pA = 3 dB
Sound power level	L WA = 72.8 dB(A), uncertainty K WA = 3 dB
Vibrations (total value)	a h,SG = 1.216 m/s², uncertainty K = 1.5 m/s²
Intended use	Wood, metals, plastics, ceramic, stone (dry rooms)
Professional use	Not designed for professional use
Warranty	3 years (from date of purchase)
Maintenance and cleaning	Clean with a dry cloth; no special maintenance required
Spare parts and repairability	After-sales service (0800 919270); spare parts via call center
Battery charge indicator	LED: RED/ORANGE/GREEN (max charge), RED (low charge)
Weight	Approx. 0.5 kg (estimated)

Frequently Asked Questions - PFBS 12 C5 PARKSIDE

How do I charge the battery of the Parkside PFBS 12 C5 drill?

Use the included USB-C cable. Connect it to the drill's charging port, then to a USB power supply (5 V, ≤4 A). The LED indicates charging: red/orange/green. Full charge in about 60 minutes. Do not charge via a computer USB port.

What materials can I machine with this drill/grinder?

You can drill, mill, engrave, polish, clean, grind and cut wood, metals, plastics, ceramic and stone. The device is intended for use in dry rooms.

How do I adjust the rotation speed?

Use the rotary speed control (dial) located on the device. Turn it from position 1 (slow) to MAX (fast) depending on the material. For example, for plastic use 1-3, for steel use MAX.

What accessories are included in the kit?

The kit contains 50 pieces: 6 HSS drill bits, 2 clamping spindles, 3 polishing wheels, 4 abrasive wheels, 1 wire brush, 16 cut-off discs, 5 collets, 2 plastic brushes, 3 milling bits, 2 engraving bits, 5 grinding bits and 1 combination wrench.

How do I install or change a tool (drill bit, grinding wheel)?

Press the spindle lock (button). Loosen the clamping nut with the combination wrench. Insert the collet that matches the tool shank, then the tool. Screw on the clamping nut and tighten it using the wrench.

What to do if the drill does not start?

Check that the battery is charged (the LED should light up when the switch is set to I). If the battery is low, charge it. If the problem persists, contact Parkside after-sales service.

How do I maintain the Parkside PFBS 12 C5 drill?

Clean the device with a dry cloth. No special maintenance required. If you do not use it for a long time, fully charge the battery at the beginning and end of the storage period.

What important safety precautions should I follow?

Always wear safety glasses and hearing protection. Never use the tool in an explosive atmosphere. Hold the tool firmly with both hands. Avoid contact with rotating parts. Read all safety instructions in the manual.

How long is the warranty and how do I activate it?

The warranty is 3 years from the date of purchase. Keep the receipt. In case of defect, contact customer service (0800 919270 for France). You can return the product with the receipt and a description of the problem.

Can I use the device for professional use?

No, the device is designed only for domestic and DIY use. Professional use would damage the tool and void the warranty.

USER MANUAL PFBS 12 C5 PARKSIDE

PDF ONLINE www.lidi-service.com

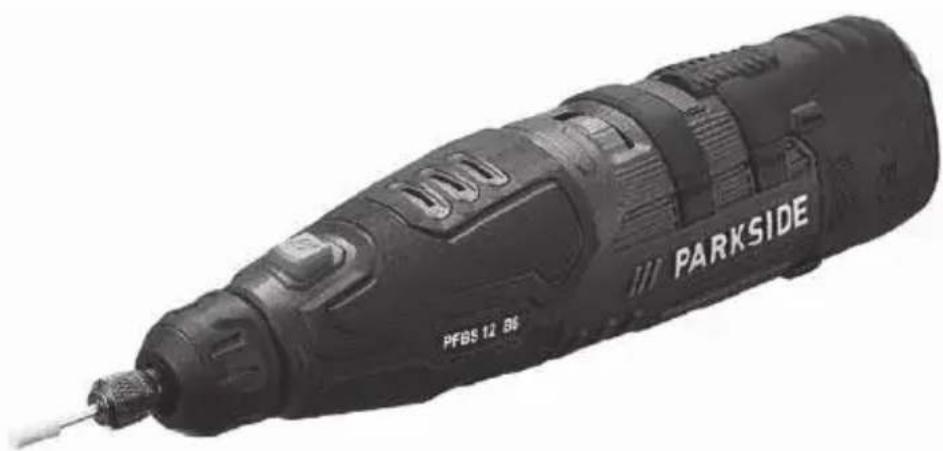

Black Parkside electric drill bit with visible model number PFBS 12 86 and brand label (no additional text or symbols)

CORDLESS ROTARY TOOL 12V / AKKU-FEINBOHR- SCHLEIFER 12 V / PERCEUSE-MEULEUSE DE PRÉCISION SANS FIL 12 V PFBS 12 B6

GB IE

CORDLESS ROTARY TOOL 12V

Translation of the original instructions

FR BE

PERCEUSE-MEULEUSE DE PRÉCISION SANS FIL 12 V

GB / IE Translation of the original instructions Page 1

DE/AT/CH Originalbetriebsanleitung Seite 21
FR/BE	Traduction des instructions d'origine	Page	43
NL/BE	Vertaling van de originele gebruiksaanwijzing Pagina 67
CZ	Překlad originálního provozního návodu Strana 89
PL	Tłumaczenie oryginalnej instrukcji obstugi	Strona	109
SK	Preklad originálneho návodu na obsluhu	Strana	131
ES	Traducción del manual de instrucciones original	Página	151
DK	Oversættelse af den originale driftsvejledning Side	173
IT	Traduzione delle istruzioni d'uso originali	Pagina	193
HU	Az originál használati utasítás fordítása	Oldal	215
SI	Prevod originalnega navodila za uporabo	Stran	235

12V MAX LITIUM III PARKSIDE ① ② ③ ④ ⑤ ⑥ ⑦

A 8

B 20 9 10 19 18 17 16 15 11 12 13 14

Contents

Introduction 2

Intended use 2

Features 2

Package contents 3

Technical details 3

General power tool safety warnings....4

1. Work area safety 4
2. Electrical safety ....
3. Personal safety 5
4. Power tool use and care 5
5. Use and handling of the cordless electrical power tool 6
6. Service 6

Safety instructions for all applications 7

Additional safety instructions for all applications 9

Supplementary safety instructions for grinding and abrasive cutting ..... 1 0

Supplementary safety instructions for working with wire brushes. 11

Use 11

Charging the integrated battery 11
Checking the battery charge level 12
Changing/inserting the tool/collet chuck. 12
Switching on and off/setting speed range 12
Notes on working with materials/tools/speed range 13
Tips and tricks 14

Maintenance and cleaning 15

Disposal....15

Kompernass Handels GmbH warranty 17

Service....19

Importer 19

Translation of the original Conformity Declaration ..... 20

CORDLESS ROTARY TOOL 12V PFBS 12 B6

Introduction

Congratulations on the purchase of your new appliance. You have chosen a high-quality product. The operating instructions are part of this product. They contain important information about safety, usage and disposal. Before using the product, please familiarise yourself with all operating and safety instructions. Use the product only as described and for the range of applications specified. Please also pass these operating instructions on to any future owner.

Intended use

This cordless precision drill/sander is intended for drilling, milling, engraving, polishing, cleaning, grinding, cutting of materials such as wood, metal, plastics, ceramics and stone in dry rooms using the corresponding attachments (as supplied). Any other usage of or modification to the appliance is deemed to be improper and carries a significant risk of accidents. The manufacturer accepts no responsibility for damage(s) attributable to misuse. This appliance is not intended for commercial use.

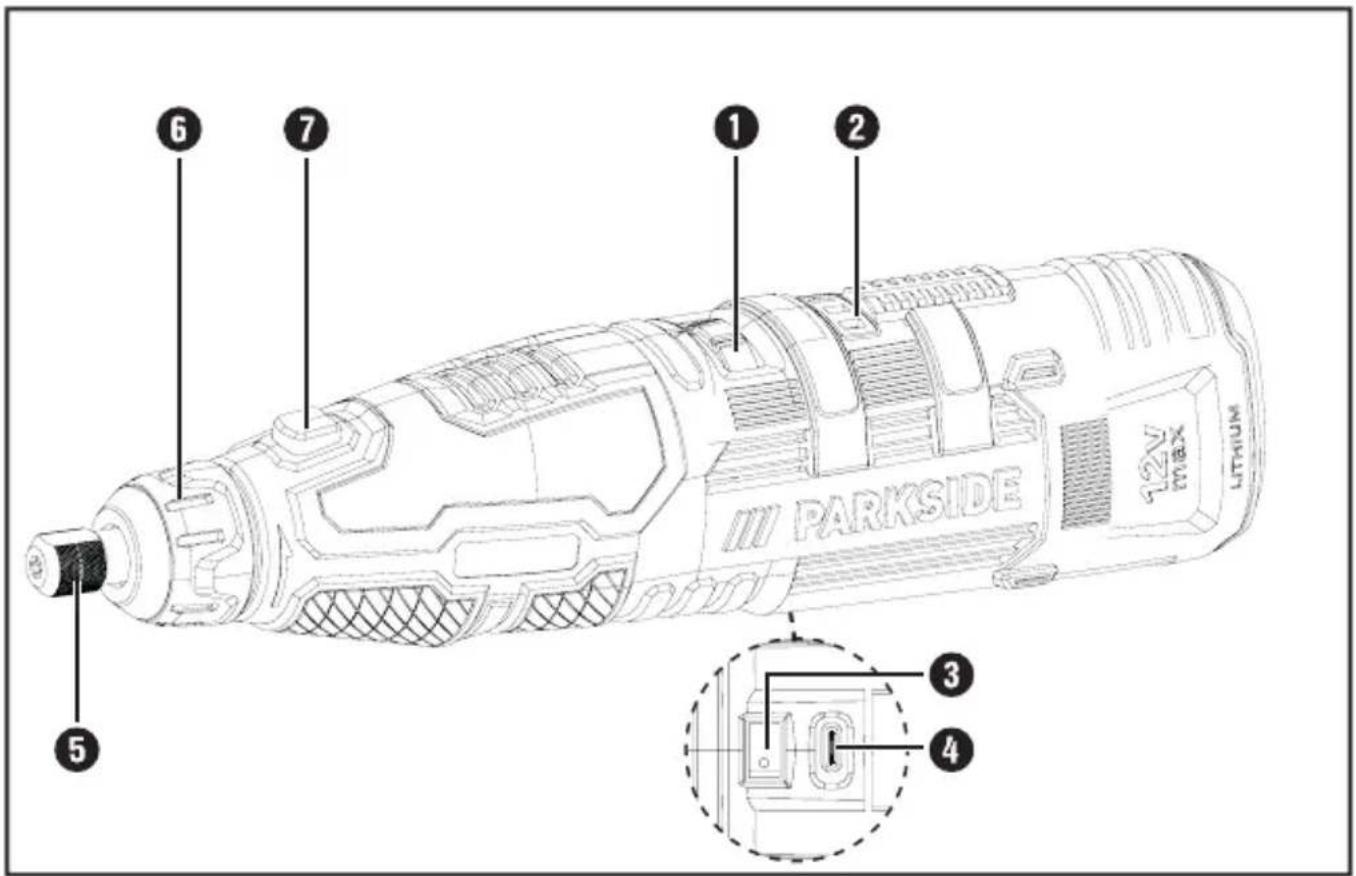

Features

Cordless rotary tool

① Speed control
② Battery LED
3 On/Off switch
4 Charging socket
5 Tensioning nut
6 Union nut
⑦ Spindle lock

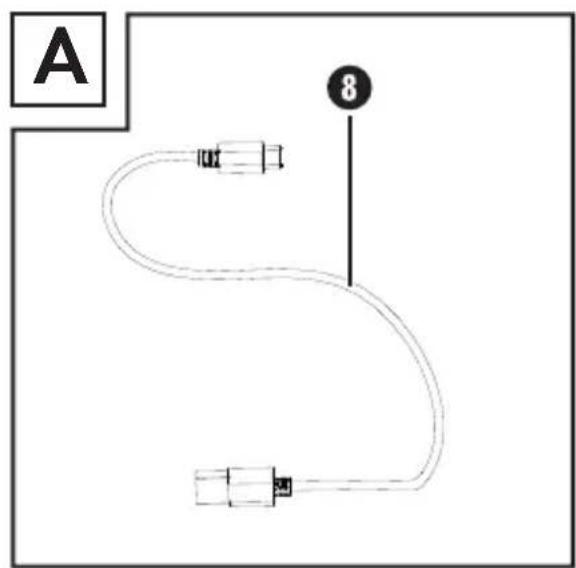

Battery charger (see Fig. A)

8 USB charging cable

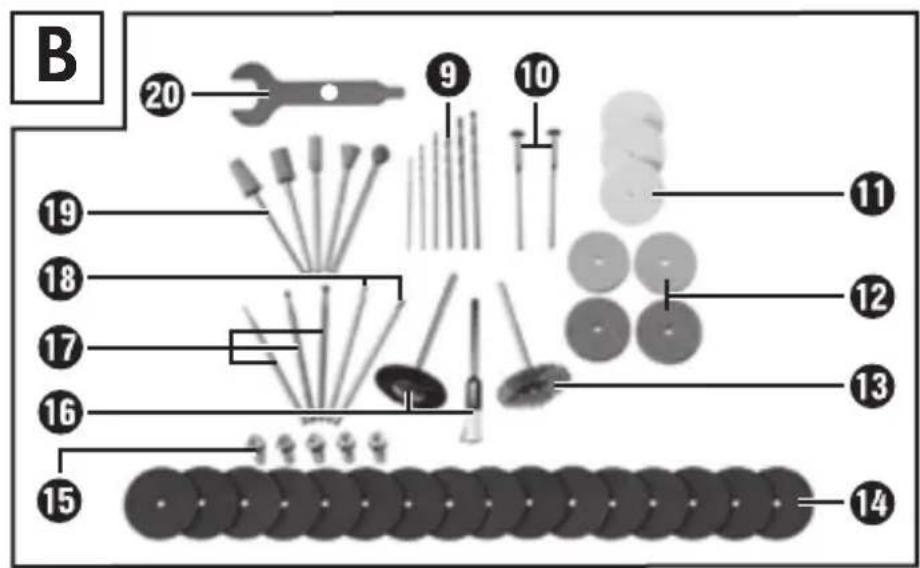

Accessories (See Fig. B)

9 6 HSS drill bits
10 2 mandrels as tool holders
⑪ 3 polishing discs
12 4 grinding discs
13 1 metal brush
14 16 cutting discs
15 5 collet chucks
16 2 synthetic brushes

17 3 milling bits
18 2 engraving bits
19 5 grinding bits
20 1 combination spanner

Package contents

1 cordless rotary tool 12V

1 USB charging cable (USB Type-C to USB Type-A)

1 accessories set (50 pieces)

1 set of operating instructions

Technical details

Model PFBS 12 B6

Rated voltage 12 V (DC)

Rated idle speed n 5000-25000 rpm

Max. disc ∅ 25 mm

Chuck clamping range

max. ∅ 3.2 mm

mAh

Capacity

1300

Battery (integrated)

LITHIUM-ION

Cells

3

Noise emission value

Noise measurement value determined in accordance with EN 60745.

The A-rated noise level of the power tool is typically as follows:

Sound pressure level L

$$ _ {p A} = 6 1. 8 \mathrm{dB(A)} $$

Uncertainty

$$ K _ {p A} = 3 \mathrm{dB} $$

Sound power level L

$$ _ {\mathrm{WA}} = 7 2. 8 \mathrm{dB(A)} $$

Uncertainty K K

$$ _ {\mathrm{WA}} = 3 \mathrm{dB} $$

Wear hearing protection!

Total vibration value

$$ a _ {h, S G} = 1, 2 1 6 \mathrm{m} / \mathrm{s} ^ {2} $$

Uncertainty

$$ K = 1. 5 \mathrm{m} / \mathrm{s} ^ {2} $$

NOTE

The vibration emission values and the noise emission values given in these instructions have been measured in accordance with a standardised test procedure and can be used for comparison of the power tool with another tool.
The specified total vibration values and the noise emission values can also be used to make a provisional load estimate.

WARNING!

▶ Depending on the manner in which the power tool is being used, and in particular the kind of workpiece that is being worked, the vibration and noise emission values can deviate from the values given in these instructions during actual use of the power tool.

▶ Try to keep the load as low as possible. Measures to reduce the vibration load are, e.g. wearing gloves and limiting the working time. Wherein all states of operation must be included (e.g. times when the power tool is switched off and times where the power tool is switched on but running without load).

General power tool safety warnings

WARNING!

▶ Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury.

Save all warnings and instructions for future reference.

The term "power tool" in the warnings refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool.

1. Work area safety

a) Keep work area clean and well lit. Cluttered or dark areas invite accidents.
b) Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes.
c) Keep children and bystanders away while operating a power tool. Distractions can cause you to lose control.

2. Electrical safety

a) Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any adapter plugs with earthed (grounded) power tools. Unmodified plugs and matching outlets will reduce risk of electric shock.

b) Avoid body contact with earthed or grounded surfaces, such as pipes, radiators, ranges and refrigerators. There is an increased risk of electric shock if your body is earthed or grounded.

c) Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electric shock.

d) Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool. Keep cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords increase the risk of electric shock.

e) When operating a power tool outdoors, use an extension cord suitable for outdoor use. Use of a cord suitable for outdoor use reduces the risk of electric shock.

f) If operating a power tool in a damp location is unavoidable, use a residual current device (RCD) protected supply. Use of an RCD reduces the risk of electric shock.

3. Personal safety

a) Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol or medication. A moment of inattention while operating power tools may result in serious personal injury.

b) Use personal protective equipment. Always wear eye protection. Protective equipment such as dust mask, non-skid safety shoes, hard hat, or hearing protection used for appropriate conditions will reduce personal injuries.

c) Prevent unintentional starting. Ensure the switch is in the off-position before connecting to power source and/or battery pack, picking up or carrying the tool. Carrying power tools with your finger on the switch or energising power tools that have the switch on invites accidents.

d) Remove any adjusting key or wrench before turning the power tool on. A wrench on a key left attached to a rotating part of the power tool may result in personal injury.

e) Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations.

f) Dress properly. Do not wear loose clothing or jewellery. Keep your hair, clothing and gloves away from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts.

g) If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used. Use of dust collection can reduce dust-related hazards.

4. Power tool use and care

a) Do not force the power tool. Use the correct power tool for your application. The correct power tool will do the job better and safer at the rate for which it was designed.

b) Do not use the power tool if the switch does not turn it on and off. Any power tool that cannot be controlled with the switch is dangerous and must be repaired.

c) Disconnect the plug from the power source and/or the battery pack from the power tool before making any adjustments, changing accessories, or storing power tools. Such preventive safety measures reduce the risk of starting the power tool accidentally.

d) Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool. Power tools are dangerous in the hands of untrained users.

e) Maintain power tools. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may affect the power tool's operation. If damaged, have the power tool repaired before use. Many accidents are caused by poorly maintained power tools.

f) Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier to control.

g) Use the power tool, accessories and tool bits etc. in accordance with these instructions, taking into account the working conditions and the work to be performed. Use of the power tool for operations different from those intended could result in a hazardous situation.

5. Use and handling of the cordless electrical power tool

a) Charge a rechargeable battery unit using only the charger recommended by the manufacturer. Chargers are often designed for a particular type of rechargeable battery unit. There is the danger of fire if other types of rechargeable battery units are used.

b) Only the rechargeable battery units supplied are to be used with an electrical power tool. The use of other rechargeable battery units may lead to the danger of injury or fire.

c) When they are not being used, store rechargeable battery units away from paper-clips, coins, keys, nails, screws or other small metal objects that could cause the contacts to be bridged. Short-circuiting the contacts of a rechargeable battery unit may result in heat damage or fire.

d) Fluids may leak out of rechargeable battery units if they are misused. If this happens, avoid contact with the fluid. If contact occurs, flush the affected area with water. Seek additional medical help if any of the fluid gets into your eyes. Escaping battery fluid may cause skin irritation or burns.

CAUTION! RISK OF EXPLOSION!

Never charge non-rechargeable batteries.

Protect the rechargeable battery from heat; for example, from continuous exposure to sunlight, fire, water and moisture. There is a risk of explosion.

6. Service

a) Have your power tool serviced by a qualified repair person using only identical replacement parts. This will ensure that the safety of the power tool is maintained.

Safety instructions for all applications

General safety instructions for grinding, sand paper sanding, working with wire brushes, polishing, milling and abrasive cutting

a) This power tool is intended for use as a grinder, sandpaper sander, wire brush, polisher, milling machine and abrasive cutting machine. Please follow all safety instructions, instructions, diagrams and data that you receive with the appliance. If you do not observe the following instructions, this can lead to electrical shock, fire and/or serious injuries.

b) Do not use any accessories that have not been provided or recommended by the manu facturer for this power tool. Just because you can attach the accessories to your power tool, does not ensure they are safe to use.

c) The permissible speed of the accessory tool used must be at least as high as the maximum speed specified for the power tool. Accessories that rotate faster than the permissible rate can break and throw pieces into the air.

d) The external diameter and thickness of the accessory tool used must comply with the dimensions of your power tool. Incorrectly dimensioned accessory tools cannot be sufficiently shielded or controlled.

e) Grinding discs, sanding drums or other accessories must match the grinding spindle or collet chuck of your power tool exactly. Accessory tools which do not fit precisely into the take-up of the power tool will rotate unevenly, vibrate severely and can lead to a loss of control.

f) Discs, grinding cylinders, cutting tools or other accessories mounted on a mandrel must be completely inserted in the collet or chuck. Any "protrusion" or exposed parts of the mandrel between the grinding tool and the collet or chuck must be kept to a minimum. If the mandrel is not sufficiently tightened or the grinding tool protrudes too far, the tool could come loose and be thrown out at high speed.

g) Never use damaged accessory tools. Before each use, check accessory tools such as grinding discs for chips or cracks, sanding drums for cracks or excessive wear and tear and wire brushes for loose or broken wires. If the power tool or the accessory tool in use is dropped, check to see if it is damaged or use an undamaged accessory tool. When you have checked and inserted the accessory tool, ensure that you and any other people in the vicinity remain outside of the range of the rotating accessory tool and allow the tool to rotate at maximum speed for one minute. Damaged accessory tools usually break during this test period.

h) Wear personal protective equipment. Depending on the application, ensure that you use full face protection, eye protection or goggles. If required, use a dust mask, ear protectors, protective gloves or a special apron to protect you from grindings and material particles. Protect your eyes from flying debris that may be created during certain applications. Dust or filter masks must be used to filter any dust created by the application. If you are exposed to loud noise for any length of time, you may suffer hearing loss.

i) Ensure that other people remain at a safe distance from your workspace. Anyone who enters the workspace must wear personal protective equipment. Fragments of the work piece or broken accessory tools can fly off and cause injury – even outside the immediate working area.

j) Hold the power tool only by the insulated gripping surfaces when performing an operation where the accessory tool may contact hidden wiring or its own cord. Contact with a live cable can also make metal parts of the appliance live and could result in an electric shock.

k) Always hold the power tool firmly. When running up to full speed, the torque of the motor can cause the power tool to twist.

If possible, use clamps to hold the workpiece in position. Never hold a small workpiece in one hand and the power tool in the other while you are using it. By clamping small workpieces, you keep both hands free for better control of the power tool. When cutting round workpieces such as dowels, rods or pipes, be aware that these can roll away and this can cause the tool to jam and be thrown towards you.

m) Hold the power cord away from any rotating accessories. If you lose control of the appliance, the cord may get cut or caught and your hand or arm could get caught in the rotating accessory tool.

n) Never put the power tool down until the accessory tool has come to a complete standstill. The rotating accessory tool can come into contact with the surface and cause you to lose control of the power tool.

o) When changing accessory tools or changing settings, tighten the collet nut, the chuck or other fixing elements tightly. Loose fastening elements can shift unexpectedly and lead to loss of control; unsecured, rotating components will fly off violently.

p) Do not leave the power tool running whilst carrying it. Accidental contact between your clothing and the rotating accessory tool could lead to physical injury.

q) Clean the ventilation slits of your power tool regularly. The engine fan draws dust into the housing and a strong accumulation of metal dust can cause electrical hazards.

r) Do not use the power tool in the vicinity of flammable materials. Sparks can ignite such materials.

s) Do not use any accessory tools which require liquid coolant. The use of water or other liquid coolants may lead to electric shock.

Additional safety instructions for all applications

Kickback and corresponding safety instructions

Kickback is a sudden reaction caused when a rotating accessory tool, e.g. grinding disc, grinding band, wire brush, etc., catches or jams and leads to an abrupt stop of the rotating accessory tool. If this happens, an uncontrolled power tool will turn rapidly against the direction of rotation of the accessory tool.

If, for example, a grinding disc catches or jams, the edge of the grinding disc that is projecting into the workpiece can get caught and break off the grinding disc or cause a kickback. The grinding disc can then fly in the direction of the operator or away from him, depending on the direction of rotation of the disc at the blockage. This can also break grinding discs.

A kickback is caused by improper or incorrect use of the power tool. This can be avoided by taking proper precautions as described below.

a) Hold the power tool firmly in both hands and position your body and arms so they can absorb the force of a kickback. By taking adequate precautions, the operator can stay in control of the kickback forces.

b) Take special care when working on corners, sharp edges, etc. Avoid allowing the accessory tool to bounce back from the workpiece or jam in the workpiece. The rotating accessory tool is more likely to jam in corners or sharp edges or if it rebounds off them. This can cause a loss of control or kickback.

e) Do not use toothed saw blades. Such accessories often cause a kickback or loss of control over the power tool.

d) Always move the accessory tool in the same direction in the material in which the cutting edge leaves the material (in other words, the same direction in which the dust is thrown out). Guiding the power tool in the wrong direction will cause the cutting edge of the accessory tool to jump out of the workpiece which can lead to the accessory tool being pulled in this direction.

e) Always clamp the workpiece when using rotary files, cutting discs, high-speed milling tools or hard-metal tools. Even a minimal tilting in the groove can cause these tools to jam and lead to a kickback. When a cutting disc jams, it usually breaks. When a rotary file, high-speed milling tool or hard-metal milling tool jams, the accessory tool can jump out of the groove and lead to loss of control of the power tool.

Supplementary safety instructions for grinding and abrasive cutting

Special safety instructions for grinding and abrasive cutting

a) Use only the grinding accessories approved for your power tool and only for the recommended applications. Example: Never grind with the side surface of a cutting disc. Cutting discs are designed to remove material with the edge of the disc. Any lateral application of force on these grinding tools can lead to breakage.

b) For conical and straight pencil grinders, use only undamaged mandrels of the correct size and length and without an undercut on the shoulder. Using an appropriate mandrel reduces the risk of breakages.

c) Avoid cutting disc jams or excessive contact pressure. Do not make any excessively deep cuts. Overloading the cutting disc increases the stress and likelihood of tilting or jamming and thus the possibility of kickback or breakage of the grinding tool.

d) Avoid putting your hand in the area in front of or behind the rotating cutting disc. When you move the cutting disc away from your hand, it is possible, in the event of a kickback, that the power tool (along with the rotating disc) could be thrown out directly towards you.

e) If the cutting disc jams or you stop working, switch the tool off and hold it steady until the disc has completely stopped turning. Never attempt to pull a rotating cutting disc out of a cut. This could lead to kickback. Identify and remove the cause of the jam.

f) Do not switch the power tool back on while it is still in the workpiece. Allow the cutting disc to reach its full speed before you carefully resume the cut. Otherwise, the disc may jam, jump out of the workpiece or cause kickback.

g) Support panels or large workpieces to reduce the risk of the cutting disc jamming and causing a kickback. Large workpieces can bend under their own weight. The workpiece must be supported on both sides, namely in the vicinity of the cut, and also at the edge.

h) Be particularly careful when making "pocket cuts" into existing walls or other obscured areas. The inserted cutting disc may cut into gas or water pipes, electrical wiring or other objects that can cause kickback.

Supplementary safety instructions for working with wire brushes

Special safety instructions for working with wire brushes

a) Be aware that the brush can lose wire bristles even during normal operation. Do not overstress the wires by applying excessive pressure to the brush. The wire bristles can easily penetrate light clothing and/or skin.

b) Allow the brush to run at working speed for at least one minute before applying it to the workpiece. Ensure that no one is standing in front of or in line with the brush during this time. Loose pieces of wire can fly off during the run-in period.

c) Aim the rotating steel brush away from yourself. When working with these brushes, small particles and minute pieces of wire can fly off at great speed and pierce skin.

Use

■ Never use the appliance for other purposes and use it only with original parts/accessories. Using attachments or accessory tools other than those recommended in the operating instructions can lead to a risk of injury.

Charging the integrated battery

WARNING!

▶ If the charging cable or connections are damaged, have them replaced by an authorised specialist or the customer service department.
▶ Protect the charging cable from hot surfaces and sharp edges.
▶ Ensure that the charging cable is not stretched tightly or kinked.
▶ Use only the supplied charging cable to charge the device.
▶ Do not charge the appliance from the USB port of a PC or notebook.
- Charge the appliance's internal battery only in dry indoor spaces.

NOTE

A new battery or a battery which has not been used for a long time will need to be charged before first use/reuse. It will reach its full capacity after 3–5 charge cycles. The charging process lasts around 60 minutes.

Start charging

Connect the USB Type-C connector on the USB charging cable ⑧ to the charging socket ④ in the appliance.

Connect the USB Type-A plug of the USB charging cable 8 to a USB mains adapter (5 V, ≤ 4 A).

◆ Connect the USB mains adapter to a power socket.

The battery is fully charged when the battery LED ② shows RED/ORANGE/GREEN.

Stop charging

◆ Disconnect the USB mains adapter from the mains power supply.
◆ Disconnect the USB charging cable 8 from the charging socket 4 in the appliance.

CAUTION!

▶ Never recharge a battery again immediately after charging. There is a risk that the battery will become overcharged.

Checking the battery charge level

If the appliance is switched on, the remaining charge will be shown on the battery LED ② as follows:

RED/ORANGE/GREEN = maximum charge

RED/ORANGE = medium charge

RED = low charge - charge the battery

Changing/inserting the tool/collet chuck

◆ Press the spindle lock⑦ and hold it down.
◆ Turn the tensioning nu5 until the lock clicks into place.
- Undo the tensioning nu5 from the thread using the combination spanner 2.0
◆ Remove any attached tool.
- First push the intended tool through the tensioning nu⑤ before inserting it into the appropriate collet chuck 15 for the tool shaft.
◆ Press the spindle lock⑦ and hold it down.
◆ Push the collet chuck15 into the thread insert and screw the tensioning nut right with the combination spanner 20

NOTE

▶ Use the screwdriver side of the combination spanne ^20 to undo and tighten the screw on the mandrel ^10

Switching on and off/setting speed range

Switching on/setting the speed range

◆ Set the On/Off switch③ to the position "I".
- Set the speed control to a position between "1" and "MAX".

Switching off

◆ Set the On/Off switch 3 to the position "O".

Notes on working with materials/tools/speed range

■ Use the milling bits 17 for working on steel and iron at maximum speed.
■ Determine the rotational speed range for working on zinc, zinc alloys, aluminium and copper by trying it out on test pieces.
■ Use a low rotational speed for work on plastics and materials with a low melting point.
■ Use a high rotational speed for working on wood.
- Carry out cleaning, polishing and buffing work in the medium speed range.

The following are recommendations only and not binding. When carrying out practical work, carry out your own tests to see which tool and which settings are ideal for the material you are working on.

Set a suitable rotational speed

Number on the speed control 1	Material being worked
1-3 Plastics and materials with a low melting point
4-5 Stone, ceramics
5 Soft wood, metal
6 Hardwood
Max Steel

Application examples/selecting a suitable tool

Function Accessories Use			Protrusion mm (min-max)
Drilling	HSS drills 9	Working wood	18-25, using the smallest drill, the protrusion is 10 mm
Milling	Milling bit 17	Various jobs; e.g. creating recesses, hollows, forms, grooves or slits	18-25
Engraving	Engraving bits 18	Labelling, handicrafts 18-25
Polishing, rust removal CAUTION! Exert only a light pressure when applying the tool to the workpiece.	Metal brush 13	Rust removal 9-15
	Polishing discs 11	Various metals and plastics, especially precious metals such as gold and silver	12-18
Cleaning	Synthetic brushes 16	e.g. cleaning hard-to-access plastic housings or the area around a door lock	9-15
Grinding	Grinding discs 12	Grinding work on stone, wood, fine work on hard materials such as ceramics or alloyed steel	12-18
	Grinding bits 19		10
Cutting	Cutting discs 14	Working metal, plastic and wood	12-18

The maximum diameter of the assembled grinding bodies, grinding cones, pencil grinders with a thread insert may not exceed 55 mm. The maximum diameter of sand-paper grinding accessories may not exceed 80 mm.

NOTE

The max. permissible length of a mandrel is 33 mm.

■ Store the accessories in the original box or store the accessory components somewhere else to protect them from damage.
■ Store the accessories somewhere dry and not in the vicinity of aggressive media.

Tips and tricks

If you exert too much pressure, the fitted tool can break and/or the workpiece could be damaged. You will achieve optimum working results by moving the tool over the workpiece at a steady speed and while exerting light pressure.
■ When carrying out cutting work, hold the appliance firmly with both hands.
- Observe the data and the information in the table to prevent the end of the spindle from touching the perforated base of the grinding tool.

Maintenance and cleaning

The appliance is maintenance-free.

■ Remove all dirt from the appliance. Use a dry cloth to do this.

■ At the beginning and end of an extended period of non-use, charge the battery fully.

If a lithium-ion battery is to be stored for an extended period, the charge level should be checked regularly. The optimum charge level is between 50% and 80%. The optimum storage environment is cool and dry.

WARNING!

■ Have the power tool repaired by the service centre or a qualified electrician and only using genuine replacement parts. This will ensure that the safety of the appliance is maintained.

NOTE

▶ Replacement parts not listed (such as the charger) can be ordered via our service hotline.

Disposal

The product and its packaging are recyclable. They are subject to an extended manufacturer responsibility and will be collected separately.

Do not dispose of power tools in your normal domestic waste!

The adjacent symbol of a crossed-out dustbin means that this appliance is subject to Directive 2012/19/EU. This directive states that this appliance may not be disposed of in the normal household waste at the end of its useful life, but must be taken to specially set-up collection locations, recycling depots or disposal companies. The disposal is free of charge for the user. Protect the environment and dispose of this appliance properly.

Your local community or municipal authorities can provide information on how to dispose of the worn-out product.

Do not dispose of batteries in your normal household waste!

Defective or worn-out rechargeable batteries must be recycled according to Directive 2006/66/EC. Batteries/rechargeable batteries must be treated as hazardous waste and must therefore be disposed of in an environmentally sound manner by appropriate bodies (dealers, specialist dealers, public municipal bodies, commercial disposal companies). Batteries/recharge able batteries may contain toxic heavy metals.

For this reason, do not dispose of batteries/rechargeable batteries in domestic waste. Take them to a specialist collection point. Only return batteries that are fully discharged.

If it is possible to do so without destroying the old appliance, remove the old batteries or rechargeable batteries before returning the appliance for disposal and take them to a separate collection point. In the case of permanently installed rechargeable batteries, you must indicate during disposal that the appliance contains a battery.

NOTE

▶ The integrated rechargeable battery in this appliance cannot be removed for disposal.
The integrated lithium-ion battery may only be removed by trained personnel. To remove the battery from the housing, the battery must be empty and the screws unscrewed from the housing. The connections on the battery must individually disconnected and isolated.

The packaging is made from environmentally friendly material and can be disposed of at your local recycling plant.

Dispose of the packaging in an environmentally friendly manner. Note the labelling on the packaging and separate the packaging material components for disposal if necessary. The packaging material is labelled with abbreviations (a) and numbers (b) with the following meanings: 1-7: plastics, 20-22: paper and cardboard, 80-98: composites.

This appliance has a 3-year warranty valid from the date of purchase. If this product has any faults, you, the buyer, have certain statutory rights. Your statutory rights are not restricted in any way by the warranty described below.

Warranty conditions

The warranty period starts on the date of purchase. Please keep your receipt in a safe place. This will be required as proof of purchase.

If any material or manufacturing fault occurs within three years of the date of purchase of the product, we will either repair or replace the product for you or refund the purchase price (at our discretion). This warranty service requires that you present the defective appliance and the proof of purchase (receipt) within the three-year warranty period, along with a brief written description of the fault and of when it occurred.

If the defect is covered by the warranty, your product will either be repaired or replaced by us. The repair or replacement of a product does not signify the beginning of a new warranty period.

Warranty period and statutory claims for defects

The warranty period is not prolonged by repairs effected under the warranty. This also applies to replaced and repaired components. Any damage and defects present at the time of purchase must be reported immediately after unpacking. Repairs carried out after expiry of the warranty period shall be subject to a fee.

Scope of the warranty

This appliance has been manufactured in accordance with strict quality guidelines and inspected meticulously prior to delivery.

The warranty covers material faults or production faults. The warranty does not extend to product parts subject to normal wear and tear or to fragile parts which could be considered as consumable parts such as switches or parts made of glass.

The warranty does not apply if the product has been damaged, improperly used or improperly maintained. The directions in the operating instructions for the product regarding proper use of the product are to be strictly followed. Uses and actions that are discouraged in the operating instructions or which are warned against must be avoided.

This product is intended solely for private use and not for commercial purposes. The warranty shall be deemed void in cases of misuse or improper handling, use of force and modifications / repairs which have not been carried out by one of our authorised Service centres.

The warranty period does not apply to

■ Normal reduction of the battery capacity over time
■ Commercial use of the product
■ Damage to or alteration of the product by the customer
■ Non-compliance with safety and maintenance instructions, operating errors
■ Damage caused by natural hazards

Warranty claim procedure

To ensure quick processing of your case, please observe the following instructions:

■ Please have the till receipt and the item number (IAN) 390411_2201 available as proof of purchase.
■ You will find the item number on the type plate on the product, an engraving on the product, on the front page of the operating instructions (below left) or on the sticker on the rear or bottom of the product.
If functional or other defects occur, please contact the service department listed either by telephone or by e-mail.
- You can return a defective product to us free of charge to the service address that will be provided to you. Ensure that you enclose the proof of purchase (till receipt) and information about what the defect is and when it occurred.

PDF ONLINE www.idl-service.com

You can download these instructions along with many other manuals, product videos and installation software at www.lidl-service.com.

This QR code will take you directly to the Lidl service page (www.lidl-service.com) where you can open your operating instructions

by entering the item number (IAN) 390411_2201.

Service

Service Great Britain

Tel.: [phone]

E-Mail: [e-mail]

Servicelreland

Tel.: [phone]

E-Mail: [e-mail]

IAN 390411_2201

Importer

Please note that the following address is not the service address.

Please use the service address provided in the operating instructions.

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

44867 BOCHUM

GERMANY

www.kompernass.com

Translation of the original Conformity Declaration

We, KOMPERNASS HANDELS GMBH, documents officer: Mr Semi Uguzlu, BURGSTR. 21, 44867 BOCHUM, Germany, hereby declare that this product complies with the following standards, normative documents and EC directives:

Machinery Directive (2006/42/EC)

EMC (Electromagnetic Compatibility) (2014/30/EU)

RoHS Directive (2011/65/EU)*

* The manufacturer bears the full responsibility for compliance with this conformity declaration. The object of the declaration described above complies with the requirements of the Directive 2011/65/EU of the European Parliament and Council of 8 June 2011 on the limitations of use of certain dangerous substances in electrical and electronic appliances.

Applied harmonised standards

EN 60745-1:2009/A11:2010

EN 60745-2-23:2013

EN 55014-1:2017/A11:2020

EN IEC 55014-1:2021

EN 55014-2:2015

EN IEC 55014-2:2021

EN IEC 61000-3-2:2019/A1:2021

EN 61000-3-3:2013/A1:2019

EN IEC 63000:2018

Type designation of machine: cordless rotary tool 12V PFBS 12 B6

Year of manufacture: 06-2022

Serial number: IAN 390411_2201

Bochum, 18/01/2022

Seddyck CE

Semi Uguzlu

- Quality Manager -

We reserve the right to make technical changes in the context of further product development.

Inhaltsverzeichnis

Einleitung 22

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

44867 BOCHUM

DEUTSCHLAND

www.kompernass.com

Sofa Fjord CE

Semi Uguzlu

Tension nominale 12 V (tension continue) ---

Plage nominale de vitesses n 5000-25000 min

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

44867 BOCHUM

ALLEMAGNE

www.kompernass.com

Directive relative aux machines (2006/42/CE)

Directive RoHS (2011/65/EU)*

Sofia Fjord CE

Semi Uguzlu

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

44867 BOCHUM

DUITSLAND

www.kompernass.com

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

44867 BOCHUM

NĚMECKO

www.kompernass.com

Sofia Fjord CE

Semi Uguzlu

- manažer kvality -

--- (Napięcie state)

a_h,SG = 1,216 m/s^2

Niepewność pomiarów

K = 1,5 m/s ^4

WSKAZÓWKA

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

44867 BOCHUM

NIEMCY

www.kompernass.com

a_h,SG = 1,216 m/s^2

K = 1,5 ~m / s^2

UPOZORNENIE

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

44867 BOCHUM

NEMECKO

www.kompernass.com

fot Dr. of CE

Semi Uguzlu

- Manažér kvality -

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

44867 BOCHUM

ALEMANIA

www.kompernass.com

Sofia Fynd CE

Semi Uguzlu

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

44867 BOCHUM

TYSKLAND

www.kompernass.com

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

44867 BOCHUM

GERMANIA

www.kompernass.com

Sofia Fjord CE

Semi Uguzlu

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

44867 BOCHUM

NÉMETORSZÁG

www.kompernass.com

Sofia Fjords CE

Semi Uguzlu

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

44867 BOCHUM

NEMČIJA

www.kompernass.com

Pooblaščeni serviser

ServisSlovenija

Tel.: [phone]

E-Mail: [e-mail]

IAN 390411_2201

Garancijski list

J. J. J. J. J. J. J. J. J. J. J. J. J. J. J.

Semi Uguzlu

- vodja kakovosti -

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

44867 BOCHUM

GERMANY

www.kompernass.com

Last Information Update · Stand der Informationen · Version des informations · Stand van de informatie · Stav informaci Stan informacji · Stav informácií · Estado de las informaciones · Tilstand af information · Versione delle informazioni Információk állása · Stanje informacij: 02 / 2022 · Ident.-No.: PFBS12B6-022022-1
