USER MANUAL SVEB 160 A1 SILVERCREST

PDF ONLINE www.lidl-service.com

Exterior view of a refrigerated machine with lemon slices being poured into it (no visible text or symbols)

VACUUM SEALER / VAKUUMIERER APPAREIL DE MISE SOUS VIDE SVEB 160 B2

GB IE

VACUUM SEALER

Operating instructions

FR BE

APPAREIL DE MISE SOUS VIDE

Mode d'emploi

CZ

VAKUOVAČKA

Návod k obsluze

SK

VÁKUOVAČ

Návod na obsluhu

DK

VAKUUMPAKKER

Before reading, unfold the page containing the illustrations and familiarise yourself with all functions of the device.

DE AT CH

GB/IE Operating instructions Page 1

A ① ⑫ ⑬ ⑪ ⑩ ⑨ ② ⑤ ④ ③ ⑥ ⑦ ⑧

B 14 15 16 17 18 19 20 21

C 2x 22 23 24 25

Contents

Introduction....2

Proper use 2

Package contents and transport inspection .... 2

Appliance description 3

Technical specifications .... 4

Safety information....4

Setting up and connecting 6

Requirements for the set-up location 6

Switching the appliance on/off 6

Functions....7

Tips 8

Sealing a tubular film 9

Vacuum sealing....12

Vacuuming the tube film 12

Vacuuming containers and resealable bags 15

Marinate function 17

Cleaning 18

Storage 19

Disposal 20

Kompernass Handels GmbH warranty 21

Service 22

Importer 22

Ordering replacement parts 23

Introduction

Congratulations on the purchase of your new appliance!

You have chosen a modern, high-quality product. These operating instructions are part of the product. They contain important information about safety, usage and disposal. Before using the product, please familiarise yourself with all operating and safety instructions. This product may only be used as described and for the purposes indicated. Please also pass these operating instructions on to any future owner.

Proper use

This appliance is intended exclusively for the sealing and vacuum-packing of foodstuffs in household quantities and only in private households. This appliance is not intended for commercial or industrial applications or for continuous use.

It is not intended for any other purpose nor for use beyond the scope described. No claims of any kind will be accepted for damage arising as a result of incorrect use. The risk shall be borne solely by the user.

Package contents and transport inspection

The appliance is supplied with the following components as standard:

• Vacuum sealer
• 1 x film roll
• 2 x tubes
• 3 x adapters
• 1 x replacement sealing ring
  • This operating instructions

NOTE

▶ Check the package for completeness and signs of visible damage. If the delivery is incomplete or damage has occurred as a result of defective packaging or during transport, contact the Service hotline (see section Service).

◆ Remove all parts of the appliance, the tube film and the operating instructions from the carton.

◆ Remove all packaging materials and any protective film from the appliance.

DANGER

▶ Do not allow children to play with packaging materials. There is a risk of suffocation.

Appliance description

Figure A:

① Appliance lid
② Suction fitting
③ Lower sealing ring
4 Sealing wires
⑤ Cable storage compartment
6 Rear limiters
⑦ Front limiters
8 Lid release
⑨ Drip tray
⑩ Suction tube
⑪ Storage compartment lid
⑫ Upper sealing ring
13 Press seal

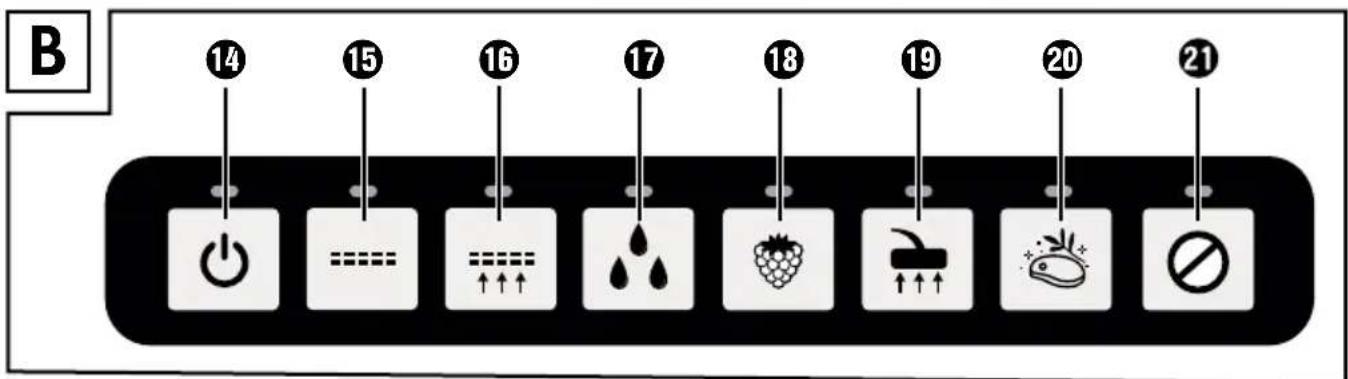

Figure B:

14 button (switch appliance on/off) with control lamp (green)
15 button (start "Sealing" function) with control lamp (red)
16 button (start "Vacuum sealing" function) with control lamp (red)
⑰ button (activate/deactivate additional function "Wet") with control lamp (green)

18 button (activate/deactivate additional function "Soft") with control lamp (green)

19 button (start/cancel "External vacuuming" function) with control lamp (green)

20 button (start "Marinate" function) with control lamp (green)

21 button (cancel function/process) with control lamp (green)

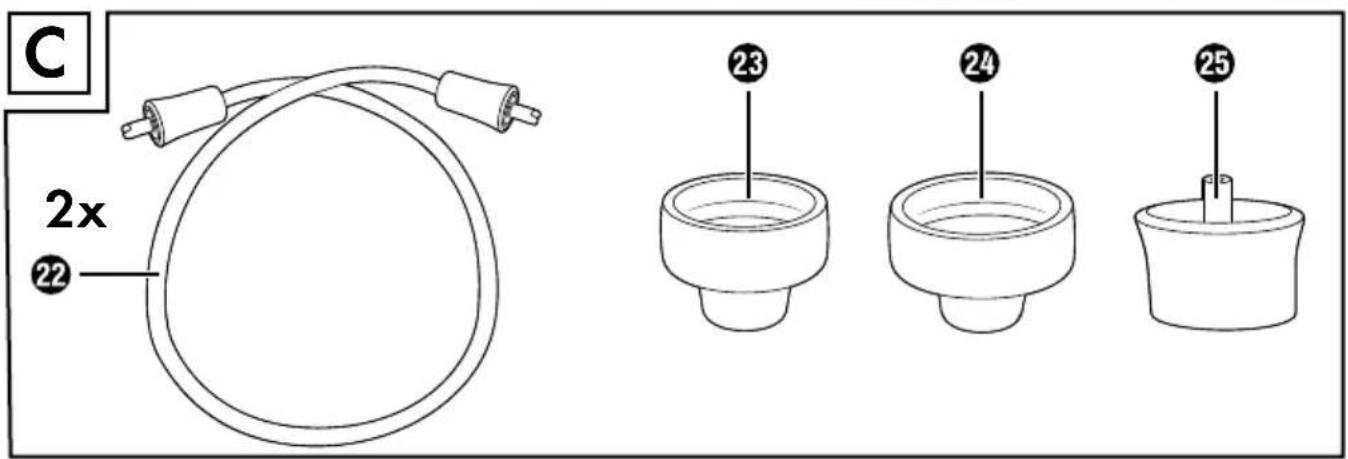

Figure C:

22 Vacuum hose
23 Adapter A
24 Adapter B
25 Adapter C

Technical specifications

Operating voltage 220-240 V ~ (AC), 50/60 Hz
Power consumption 160 W
Protection class	II/☐ (double insulation)
	All parts of this appliance that come into contact with food are food-safe.

Safety information

RISK OF ELECTRIC SHOCK!

■ Before use, check the appliance for visible external damage. Never operate an appliance that is damaged.
■ To avoid potential risks, damaged mains cables should be replaced by the manufacturer, their customer service department or a similarly qualified person.
■ Never use an appliance with a faulty power cable.
■ Do not use extension cables or power socket strips that do not meet the required safety standards.
■ Never open the appliance housing!
■ Pull the plug from the socket before starting to clean the appliance.
■ Ensure that no moisture can penetrate the appliance during cleaning.

RISK OF INJURY!

■ All repairs must be carried out by authorised specialist companies or by the Customer Service department. Improper repairs may result in a risk of injury to the user or damage to the appliance. It will also invalidate any warranty claims.

■ The mains power socket must be easily accessible, so that the power cable can be easily disconnected in the event of an emergency.

■ Cleaning and user maintenance tasks may not be carried out by children unless they are supervised.

This appliance may be used by children aged 8 years and above and by persons with limited physical, sensory or mental capabilities or lack of experience and knowledge, provided that they are under supervision or have been told how to use the appliance safely and are aware of the potential risks.

■ Do not allow children to play with the appliance!

■ Children must be supervised to make sure that they do not play with the appliance.

■ Do not leave the appliance unsupervised when it is ready for use. To prevent it being switched on accidentally, always unplug the appliance after use or during breaks.

CAUTION - PROPERTY DAMAGE!

■ Do not use an external timer switch or a separate remote control system to operate the appliance.

NOTE

■ No user action is required to switch the product between 50 and 60 Hz. The product switches automatically to either 50 or 60 Hz.

Setting up and connecting

Requirements for the set-up location

For safe and trouble-free operation of the appliance, the set-up location must fulfil the following requirements:

■ When setting up the appliance, place it on a firm, flat and horizontal surface.

- Do not operate the appliance in a hot, wet or extremely damp environment or in the vicinity of flammable materials.

■ The mains power socket must be easily accessible, so that the power cable can be easily disconnected in the event of an emergency.

Switching the appliance on/off

CAUTION - PROPERTY DAMAGE

▶ Before you plug in the appliance, compare the connection data (voltage and frequency) on the rating plate with that of your mains power network. This data must match to prevent damage to the appliance.

▶ Ensure that the power cable is undamaged and is not routed over hot surfaces and/or sharp edges.

▶ Do not leave the mains cable hanging over any edges (tripping hazard).

◆ Insert the plug into the mains power socket.

◆ Press the button 14 to switch on the appliance. The control lamp 14 lights up.

◆ Press the button 14 again to switch off the appliance. The control lamp 14 switches off.

◆ Pull the plug from the socket if you do not plan to use the appliance for an extended period and before cleaning it.

Functions

Button Function
	14 Switch the appliance on/off
	15 Start the "Sealing" function (without vacuum sealing)
	16 Starting the "Vacuum sealing" function
	17 Activate/deactivate additional "Wet" function (for particularly moist foods)
	18 Activate/deactivate additional "Soft" function (for pressure-sensitive foods, such as fruit or cakes)
	19 Start "External vacuuming" function (for vacuuming with hose and adapter)
	20 Start the "Marinate" function (for marinating in a container)
	21 Cancel function/process

Tips

The following table offers some useful information on the optimal preparation and processing of various foods.

Food Notes		Recommended container	Recommended (additional) function
Fish/meat	-Use only when fresh-Do not interrupt the cold chain	-Bag
Marinated food	-To accelerate the marinating process	-Containers
Vegetables	-Peel or wash and dry-Blanch for a few minutes in boiling water, rinse with ice water and dry to avoid loss of flavour and colour or gas formation* during storage	-Bag
Leafy vegetables/lettuce	-Wash and dry-Not suitable for freezing	-Containers
Fruit -Peel or wash and dry		-Refrigerator:container
		-Freezer: bag
Herbs	-Wash and dry-Whole sprig	-Bag
Baked products		-Containers
		-Bag
Powdery food	-Place a piece of kitchen paper in the top of the bag/container or vacuum seal in the original packaging	-Bag-Containers

Food Notes	Recommended container	Recommended (additional) function
Cold liquids		-Containers
	-Freeze briefly	-Bag
Cooled, cooked foods		-Containers
		-Bag

* For example, this applies to all types of cabbage (broccoli, Brussels sprouts, kale, etc.), asparagus, sugar snap peas, beans, romanesco and pak choy.

Sealing a tubular film

NOTES ON THE FILM

The film width may not exceed 30 cm. Otherwise it cannot be sealed correctly.
▶ Use only nylon PA/PE films with a structure (dots or grooves) on one side and a thickness of approx. 0.17–0.29 mm (170–290 μ) in this appliance. Otherwise the seal will not be tight and the appliance may be damaged. You can recognise films of this type from the information on the packaging. The quality of the seal will vary depending on the type and thickness of the film.
The supplied film is suitable for temperatures between -20°C and 110°C.
The supplied foil is BPA-free and microwaveable (up to max. 900W and 3 mins with bag open). However, never heat completely sealed bags in the microwave. The bag could burst! One side of the bag must be open. Heat the bags for no more than 3 minutes at a maximum temperature of 70°C.

1) Using scissors, cut the required length for your bag from the tubular film. Cut as straight as possible or proceed as follows to use the film cutter integrated in the lid of the storage compartment ⑪:

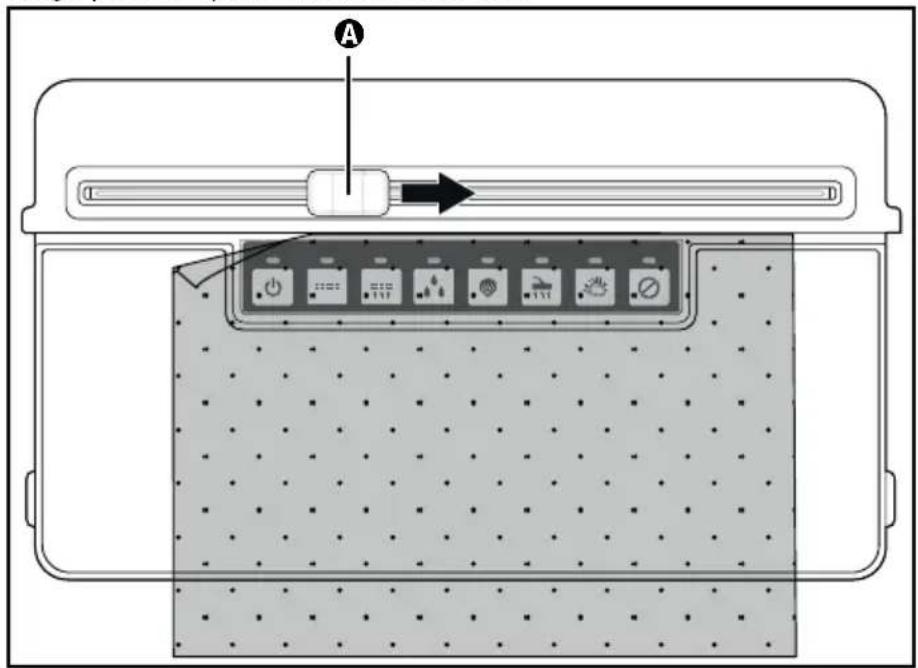

• Push the film Ⓐ to the right or left of the edge.
• Open the lid of the storage compartment ⑪ and pull out as much tubular film as you need. Please note that when the bag is filled, at least 6 cm must remain free from the sealing edge.

Diagram of a device rear panel with labeled ports and directional arrows indicating movement or status

- Close the lid ⑪ again so that the tubular film is clamped in place.

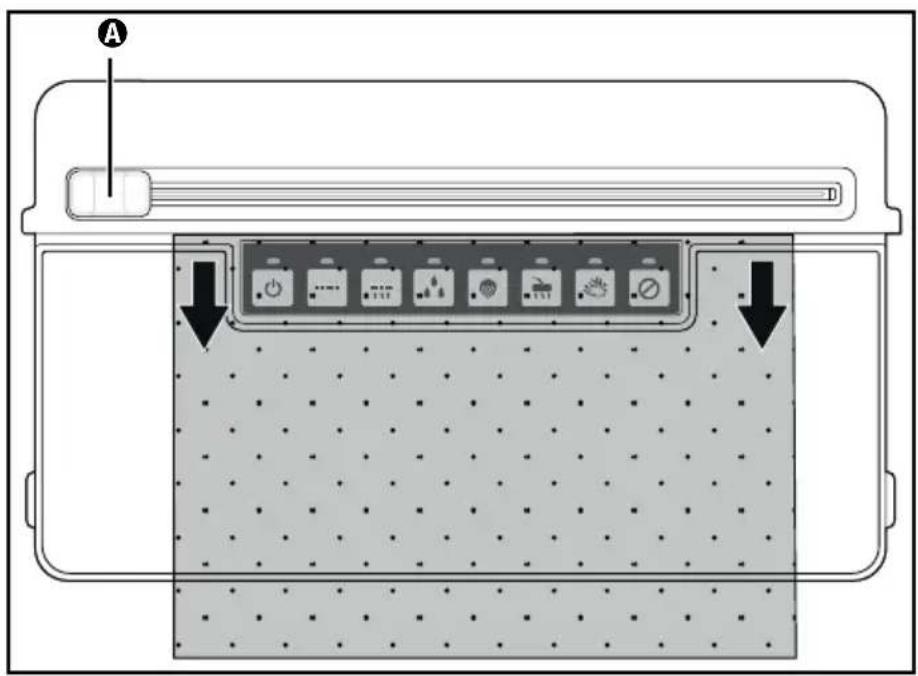

- Press the film cutter ⚠ down lightly and pull it from one side to the other over the tubular film to cut it off.

Diagram of a device panel with labeled ports and directional arrow, showing internal components like buttons and indicators.

2) Open the appliance lid ① by pressing the lid release ⑧ and flipping the lid ⑪ upwards.

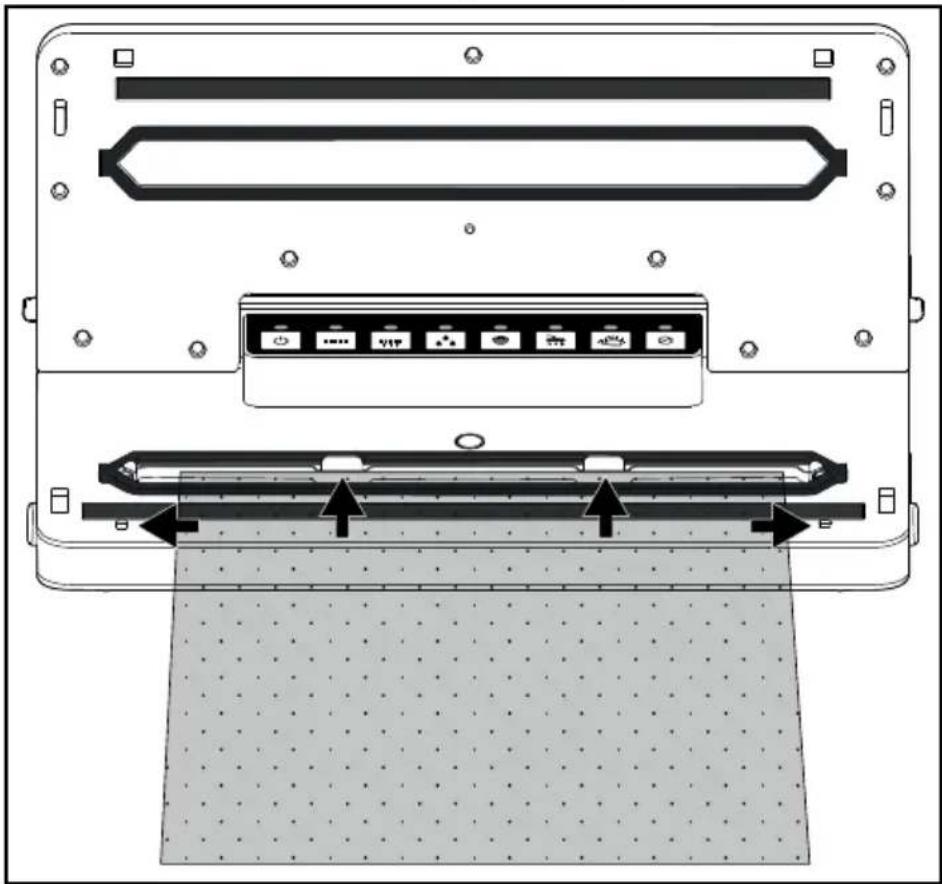

3) Lay the open end of the bag as far into the appliance so that the opening of the bag is located centrally under the lower seal ring ③. The bag should be inserted no further than the rear limiters ⑥ and must lie between the front limiters ⑦. If the bag is lying over one or both limits ⑥/⑦, it cannot be sealed correctly:

Technical diagram of a computer monitor rear panel showing front, top, and side views with no visible text or symbols

NOTE

The bag opening must lie flat on the sealing wires ④. Otherwise the sealing does not work properly.

4) Close the appliance lid ①. The press seal ⑬ presses the bag onto the sealing wires ⑭, to create a smooth seam. Ensure that both corners of the appliance lid ① click into place. If necessary, press them down once again on the markings 🎨 and 🏱 so that the appliance lid ① clicks into place and locks shut.

5) Press the □ button 15. The control lamps 15/21 light up. As soon as the sealing process is completed, the control lamps 15/21 switch off.

NOTE

▶ You can stop the vacuum sealing process at any time by pressing the ☐ button 21. The control lamps 15/21 will then switch off. Press the == button 15 again to resume the sealing process.

CAUTION - PROPERTY DAMAGE

If the control lamps ⑮/㉑ do not switch off after a maximum of 10 seconds during the sealing process, the appliance is defective!

▶ Remove the plug from the mains power socket immediately. Do not attempt to repair the appliance yourself. Contact the Customer Service department.

6) Open the appliance lid ① by pressing the lid release ⑧ and flipping the lid ① upwards. Remove the bag. It is now sealed at one end.

NOTE

▶ Ensure that the seam is properly closed. A correct seam should be a smooth, straight stripe without any creases.

7) Fill the bag. You must leave at least 6 cm of the bag free up to the edge to be sealed.

CAUTION - PROPERTY DAMAGE

▶ Fill the bag so that no food scraps or liquids can leak out during sealing and get into the appliance.

8) If you do not want to vacuum the air out of the bag, seal the other, open side now.

NOTE

▶ Wait a few seconds to allow the appliance to cool down before sealing the next bag. During this cool-down phase, you cannot start the "Sealing" function.

Vacuum sealing

Vacuuming the tube film

You can also suck the air out of the bag (vacuuming) during sealing:

NOTE

If you want to vacuum seal bags with liquid contents only, freeze the liquid briefly so that it does not get sucked into the appliance during vacuuming. If small quantities of liquid or food nonetheless get sucked up, they will be deposited in the drip tray ⑨ that is located within the lower sealing ring ③.

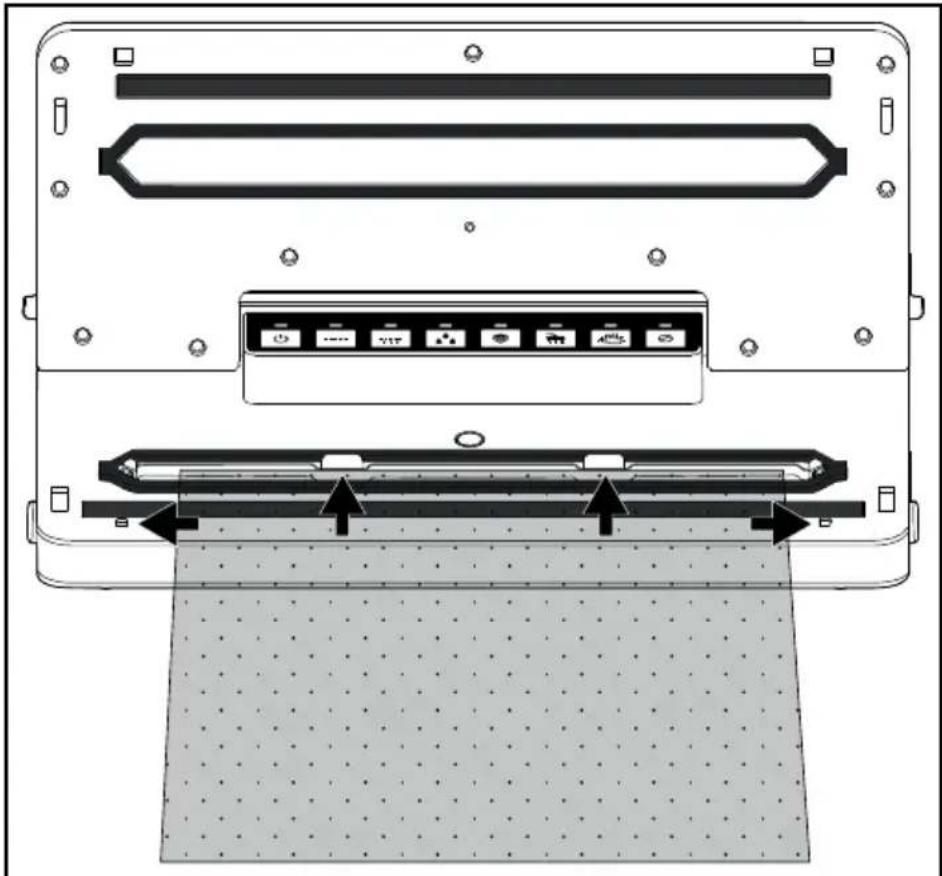

1) Lay the open end of the bag as far into the appliance so that the opening of the bag is located centrally under the lower seal ring ③. The bag should be inserted no further than the rear limiters ⑥ and must lie between the front limiters ⑦. Otherwise the vacuuming and sealing will not function correctly:

Technical diagram of a computer monitor rear panel showing internal components and mounting points (no text or labels)

2) Close the appliance lid ①. Ensure that both corners of the appliance lid ① click into place. If necessary, press them down once again on the markings and so that the appliance lid ① clicks into place and locks shut.

NOTE

▶ Make sure that neither the upper 12 nor the lower sealing ring 3 is damaged. Otherwise the appliance cannot suck the air out of the bag.
If either one of the sealing rings 3/12 is damaged, then simply pull it out of the groove and press the replacement sealing ring into the groove.

3) If necessary, select the appropriate additional function for your food. Otherwise, you can skip this step and move on to point 4):

• Press the 📁 button ⑰ if you want to vacuum particularly moist or juicy food, such as freshly marinated meat or cut fruit.
  Moisture between the film and the seam can lead to defective seals.
  When this function is activated, the sealing time is increased so that the seal is more stable.
  If the additional function ☐ "Wet" is activated, the corresponding control lamp ⑰ lights up.
  -Press the button 18 if you want to vacuum seal pressure-sensitive foods such as cakes or berries. When the additional function "Soft" is activated, the suction pressure is slightly reduced and the food is not squeezed as much.
  If the additional function "Soft" is activated, the corresponding control lamp 18 lights up.

NOTE

If you want to vacuum seal moist and pressure-sensitive food, you can also activate both additional functions simultaneously.

4) Press the button 16. The control lamps 16/21 light up and the appliance sucks the air out of the bag. As soon as all the air is sucked out, the control lamp 15 also lights up. The appliance now seals the bag. As soon as the sealing process is completed, the control lamps 15/16/21 switch off.

NOTE

▶ You can stop the vacuuming process at any time by pressing the button 21. The control lamps 16/21 will then switch off. Press the button 16 again to resume vacuuming.

If the appliance has already switched to the sealing process and the control lamp 15 is lit, the process can also be stopped with the ☑ button 21. The control lamps 15/16/21 will then switch off. Press the ⚡ button 15 again to resume the sealing process.

5) Open the appliance lid ① by pressing the lid release ⑧ and flipping the lid ① upwards. Remove the vacuum-sealed bag.

NOTE

▶ Once you have sealed 5 bags in a row, allow the appliance to cool down for about 1 minute. During this cool-down phase, it is possible that the appliance cannot be started.

After the cool-down phase, you can use the appliance as normal (even if a whole minute has not yet elapsed).

This does not apply, if the additional function ☐ "Wet" is activated. Due to the longer sealing process, a cooling phase of approx. 45 seconds is necessary after each pass.

As the supplied film is suitable for temperatures between -20°C and 110°C, it can be used for sous-vide cooking (vacuum cooking).

"Sous-vide" is French and means "under vacuum".

In vacuum cooking, the food (usually fish or meat, but vegetables can also be used) is vacuum-sealed in a bag and then cooked in water or steam cooked at a relatively low temperature (50°C to 90°C). The advantage of this is that volatile flavours and aromas are not lost during cooking. The food does not dry out and the vitamins and flavours are preserved. Herbs or spices that are vacuum-sealed in the bag with the food give off a more intense flavour.

Vacuuming containers and resealable bags

▶ If you want to vacuum seal containers or bags with liquid contents only, freeze the liquid briefly so that it does not get sucked into the appliance during vacuuming. If small quantities of liquid or food nonetheless get sucked up, they will be deposited in the small drip tray ⑨ that is located within the lower sealing ring ③.
▶ You can stop the vacuuming process at any time by pressing the button 21. The control lamp 19/21 will switch off. Press the button 19 again to resume vacuuming.

You can vacuum seal containers and resealable bags using the vacuum hoses ② and appropriate adapters ③/④/⑤ supplied with the appliance. With some bags or containers by various manufacturers, it is possible that no adapter ③/④/⑤ is required and you can push the black coupling piece on the vacuum hose ② directly into the bag/container. Experiment to find out which adapter ③/④/⑤ creates the best seal or whether you even need an adapter ③/④/⑤ at all.

NOTE

▶ You can order suitable bags and containers separately. Please refer to section "Ordering replacement parts".

The vacuum hoses 22 and adapters 23/24/25 are also compatible with bags and containers made by other manufacturers.

Adapters e.g. suitable for
Adapter A 23	FoodSaver* lunch boxes, Ernesto, various bags with a valve
Adapter B 24	FoodSaver food storage boxes, Ernesto, various bags with a valve
Adapter C 25 CASO**, FoodSaver storage containers

*FoodSaver is a registered trademark of Sunbeam Products, Inc.

**CASO is a registered trademark of Caso Holding GmbH.

Vacuuming sealing bags

1) Connect the vacuum hose ② onto the suction fitting ① of the appliance.
2) Select the appropriate adapter A/B 23/24 for the bag you want to vacuum seal and attach it to the vacuum hose 22.
3) Close the appliance lid ①. Ensure that both corners of the appliance lid ① click into place. If necessary, press them down once again on the markings and so that the appliance lid ① clicks into place and locks shut.
4) Close the bag you want to vacuum seal carefully. Vacuum sealing only works properly if the bag is completely closed off. Position the bag so that the extraction opening of the bag is lying on a smooth surface.
5) Press the adapters A/B 23/24 firmly onto the extraction opening on the bag.
6) Press them button 19. The control lamps 19/21 light up and the appliance sucks the air out of the bag. As soon as all the air is sucked out, the control lamps 19/21 switch off.
7) You can now remove the adapter A/B 23/24 from the bag.

Vacuum sealing containers

1) Connect the vacuum hose 22 onto the suction fitting 3 of the appliance.
2) Select the appropriate adapter 23/24/25 for the container you want to vacuum seal and attach it to the vacuum hose 22.
3) Close the appliance lid ①. Ensure that both corners of the appliance lid ① click into place. If necessary, press them down once again on the markings and so that the appliance lid ① clicks into place and locks shut.
4) Connect the adapter 23/24/25 to the appropriate fitting on the container. Please refer to the instruction manual of the container for further information.

5) Press the 📄 button 19. The control lamps 19/21 light up and the appliance sucks the air out of the container. As soon as all the air is sucked out, the control lamps 19/21 switch off.

6) You can now remove the adapter 23/24/25 from the container and the appliance.

Marinate function

You can use the marinate function if you want to marinate food such as meat. The alternating vacuuming and pausing/aerating allows the marinade to penetrate the pores much more quickly and the marinating process is accelerated. The process takes around 15 minutes. You will need a suitable vacuum container (e.g. from FoodSaver*) specially designed for marinating. They are characterised by a special valve that makes ventilation possible between the vacuuming phases.

1) Connect the vacuum hose ② onto the suction fitting ① of the appliance.

2) If necessary for the container being used, connect the adapter ⑲ to the vacuum hose ⑳.

3) Close the appliance lid ①. Ensure that both corners of the appliance lid ① click into place. If necessary, press them down once again on the markings and so that the appliance lid ① clicks into place and locks shut.

4) Connect the adapter 25 or, if no adapter is required, the black coupling piece on the vacuum hose 22 to the appropriate fitting on the container. Please refer to the instruction manual of the container for further information.

5) Press the button 20. The control lamps 19/21 light up and the appliance starts the marinating programme with vacuuming. The appliance now alternates between vacuuming (control lamp 20 lights up) and ventilating (control lamp 20 flashes) for approx. 15 minutes. Once the programme is finished, the control lamps 20/21 switch off.

6) You can now remove the adapter 25/the vacuum hose 22 from the container and the appliance.

*FoodSaver is a registered trademark of Sunbeam Products, Inc.

Cleaning

DANGER

Risk of fatal injury from electrocution!

▶ Pull the plug from the socket before starting to clean the appliance.
▶ Ensure that no moisture can penetrate the appliance during cleaning.

CAUTION - PROPERTY DAMAGE

Possible damage to the appliance

▶ Do not use aggressive or abrasive cleaning agents, as they may corrode the surface of the housing.
▶ Do not use any hard or sharp objects to remove any adhesive from the sealing wires ④. Otherwise the sealing wires ④ or the insulation could be damaged.

◆ Wipe down the outer surfaces with a damp cloth. If necessary, apply a mild detergent to the cloth. Afterwards, wipe the appliance with a cloth moistened only with water to remove any detergent residues.

◆ Wipe off the upper ⑫ and the lower sealing rings ③ as well as the press seal ⑬ with a damp cloth.
Wipe the vacuum hoses 22 as well as the adapter 23/24/25 with a damp cloth. If there is heavy soiling, you can also clean these parts in hot water with a little detergent.
◆ Rinse and clean the drip tray ⑨ in warm water with a little detergent.

NOTE

You can clean the drip tray ⑨ in the dishwasher, if necessary. Make sure that the part does not get jammed in the dishwasher. Use the upper basket of the dishwasher if possible.

◆ Ensure that the appliance and all parts are completely dry before reusing or storing them.

Storage

CAUTION

Possible damage to the appliance

Do not click the lid ① into place when you are storing the appliance! When the appliance lid ① is clicked into place, it exerts continuous pressure on the upper ⑫ and lower sealing rings ③ as well as the press seal ⑬. This can negatively affect their function.

1) You can store the accessories in the storage compartment directly on the appliance. To do this, open the lid of the storage compartment ⑪:

Technical diagram of a portable kitchen machine with numbered components and control panel

- Clamp the two vacuum hoses ② into the clamps in the lid of the storage compartment ⑪.

- Put the adapters A 23, B 24 and C 25 into the slots.

- You can slide the replacement seal into the film roll. This way it is also ready at hand.

2) Push the mains cable into the cable storage compartment ⑤ on the underside of the appliance.

3) Store the appliance in a clean, dry place away from direct sunlight.

Disposal

Never dispose of the appliance in your normal domestic waste. This product is subject to the provisions of the European Directive 2012/19/EU (Waste Electrical and Electronic Equipment).

Dispose of the appliance via an approved disposal company or your municipal waste facility. Please comply with all applicable regulations. In case of doubt, please contact your waste disposal centre.

Your local community or municipal authorities can provide information on how to dispose of the worn-out product.

The product is recyclable, subject to extended producer responsibility and is collected separately.

Returning the packaging to the material cycle conserves raw materials and reduces the amount of waste that is generated. Dispose of packaging materials that are no longer needed in accordance with applicable local regulations.

Dispose of the packaging in an environmentally friendly manner.

Note the labelling on the packaging and separate the packaging material components for disposal if necessary. The packaging material is labelled with abbreviations (a) and numbers (b) with the following meanings:

1-7: plastics, 20-22: paper and cardboard, 80-98: composites.

This appliance has a 3-year warranty valid from the date of purchase. If this product has any faults, you, the buyer, have certain statutory rights. Your statutory rights are not restricted in any way by the warranty described below.

Warranty conditions

The warranty period starts on the date of purchase. Please keep your receipt in a safe place. This will be required as proof of purchase.

If any material or manufacturing fault occurs within three years of the date of purchase of the product, we will either repair or replace the product for you or refund the purchase price (at our discretion). This warranty service requires that you present the defective appliance and the proof of purchase (receipt) within the three-year warranty period, along with a brief written description of the fault and of when it occurred.

If the defect is covered by the warranty, your product will either be repaired or replaced by us. The repair or replacement of a product does not signify the beginning of a new warranty period.

Warranty period and statutory claims for defects

The warranty period is not prolonged by repairs effected under the warranty. This also applies to replaced and repaired components. Any damage and defects present at the time of purchase must be reported immediately after unpacking. Repairs carried out after expiry of the warranty period shall be subject to a fee.

Scope of the warranty

This appliance has been manufactured in accordance with strict quality guidelines and inspected meticulously prior to delivery.

The warranty covers material faults or production faults. The warranty does not extend to product parts subject to normal wear and tear or to fragile parts which could be considered as consumable parts such as switches, batteries or parts made of glass.

The warranty does not apply if the product has been damaged, improperly used or improperly maintained. The directions in the operating instructions for the product regarding proper use of the product are to be strictly followed. Uses and actions that are discouraged in the operating instructions or which are warned against must be avoided.

This product is intended solely for private use and not for commercial purposes. The warranty shall be deemed void in cases of misuse or improper handling, use of force and modifications / repairs which have not been carried out by one of our authorised Service centres.

Warranty claim procedure

To ensure quick processing of your case, please observe the following instructions:

■ Please have the till receipt and the item number (IAN) 390022_2201 available as proof of purchase.

■ You will find the item number on the type plate on the product, an engraving on the product, on the front page of the operating instructions (below left) or on the sticker on the rear or bottom of the product.

If functional or other defects occur, please contact the service department listed either by telephone or by e-mail.

■ You can return a defective product to us free of charge to the service address that will be provided to you. Ensure that you enclose the proof of purchase (till receipt) and information about what the defect is and when it occurred.

You can download these instructions along with many other manuals, product videos and installation software at www.lidl-service.com.

This QR code will take you directly to the Lidl service page (www.lidl-service.com) where you can open your operating instructions by entering the item number (IAN) 390022_2201.

Service

GB Service Great Britain

Tel.: [phone]

E-Mail: [e-mail]

IE ServiceIreland

Tel.: [phone]

E-Mail: [e-mail]

IAN 390022_2201

Importer

Please note that the following address is not the service address. Please use the service address provided in the operating instructions.

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

44867 BOCHUM

GERMANY

www.kompernass.com

Ordering replacement parts

You can order replacement parts for this product on the Internet at www.kompernass.com.

SVEB 160 B2

Scan the QR code with your smartphone/tablet. You can use this QR code to go directly to our website to view and order the available spare parts.

NOTE

If you have problems with your online order, contact our service centre by phone or e-mail.
▶ Please always quote the article number (e.g. IAN 123456_7890) when ordering. You can find it on the title page of these operating instructions.
▶ Please note that online ordering of replacement parts is not possible for all countries.

Inhaltsverzeichnis

Einleitung 26

Diagram of a device rear panel with labeled ports and indicator lights, showing internal layout and control buttons.

Diagram of a device panel with labeled components and directional arrow, showing internal layout and control buttons.

Technical diagram of a computer monitor rear panel showing front, top, and side views with no visible text or symbols

HINWEIS

Diagram of a computer monitor rear panel showing front, top, and side views with no text or symbols

Technical diagram of a portable air conditioner unit with labeled components and control panel

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

44867 BOCHUM

DEUTSCHLAND

www.kompernass.com

Installation et raccordement

REMARQUES RELATIVES AU FILM

Diagram of a printer front panel with labeled buttons and indicator lights, showing internal layout and mounting points.

Diagram of a device rear panel with labeled ports and indicator lights, showing internal layout and control buttons.

Technical diagram of a computer monitor rear panel showing front, top, and side views with no visible text or symbols

REMARQUES

Technical diagram of a computer monitor rear panel showing internal components and mounting points (no text or labels)

Technical diagram of a portable air conditioner unit with labeled parts and control panel

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

44867 BOCHUM

ALLEMAGNE

www.kompernass.com

Diagram of a device rear panel with labeled ports and directional arrows indicating movement or status

Diagram of a device panel with labeled components and directional arrow, showing control buttons and display areas.

Technical diagram of a computer monitor rear panel showing front, top, and side views with no visible text or symbols

OPMERKING

Diagram of a computer monitor rear panel showing front, top, and side views with no text or symbols

Zakken vacuumtrekken

Voorraaddozen vacuumtrekken

Technical diagram of a portable air conditioner unit with labeled components and control panel

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

44867 BOCHUM

DUITSLAND

www.kompernass.com

⚠️ POZOR – HMOTNÉ ŠKODY!

POZOR - HMOTNÉ ŠKODY

Diagram of a device rear panel with labeled ports and directional arrows indicating movement or status

Diagram of a device panel with labeled components and directional arrow, showing internal layout and control buttons.

Technical diagram of a computer monitor rear panel showing internal components and mounting points (no text or labels)

UPOZORNĚNÍ

POZOR - HMOTNÉ ŠKODY

POZOR - HMOTNÉ ŠKODY

Technical diagram of a computer monitor rear panel showing internal components and mounting points (no text or labels)

POZOR - HMOTNÉ ŠKODY

Technical diagram of a portable air conditioner unit with labeled components and control panel

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

44867 BOCHUM

NĚMECKO

www.kompernass.com

Diagram of a device rear panel with labeled ports and directional arrows indicating movement or status

Diagram of a device panel with labeled ports and directional arrow, showing internal components like buttons and indicators.

Technical diagram of a computer monitor rear panel showing front, top, and side views with no visible text or symbols

WSKAZÓWKI

Diagram of a computer monitor rear panel showing front, top, and side views with no text or symbols

Technical diagram of a portable air conditioner unit with labeled components and control panel

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

44867 BOCHUM

NIEMCY

www.kompernass.com

⚠️ POZOR – VECNÉ ŠKODY!

Diagram of a device rear panel with labeled ports and directional arrows indicating movement or status

- Kryt ⑪ znova zatvorte tak, aby rukávová fólia sa mohla v ňom zovrief.

Diagram of a device panel with labeled ports and an arrow indicating direction, showing internal components like buttons and indicators.

Diagram of a computer monitor rear panel showing front, top, and side views with control buttons and indicator lights (no text or symbols)

UPOZORNENIE

Technical diagram of a computer monitor rear panel showing internal components and mounting points (no text or labels)

Technical diagram of a portable air conditioner unit with labeled components and control panel

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

44867 BOCHUM

NEMECKO

www.kompernass.com

Diagram of a device panel with labeled buttons and directional arrows indicating movement or status

Diagram of a device panel with labeled components and directional arrow, showing internal layout and control buttons.

Technical diagram of a device rear panel with labeled ports and an inset showing internal structure (no text or symbols)

INDICACIONES

Diagram of a computer monitor rear panel showing front, top, and side views with no text or symbols

Technical diagram of a portable air conditioner unit with labeled components and control panel

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

44867 BOCHUM

ALEMANIA

www.kompernass.com

Pedido de recambios

Diagram of a device rear panel with labeled ports and directional arrows indicating movement or status

- Luk låget ⑪ igen, så slangefolien klemmes fast i det.

Diagram of a device rear panel with labeled ports and indicator lights, showing internal layout and control buttons.

Technical diagram of a device rear panel showing internal components and mounting points (no text or symbols)

BEMARK

Technical diagram of a computer monitor rear panel showing internal components and mounting points (no text or labels)

Technical diagram of a portable air conditioner unit with labeled components and control panel

- Sæt de to vakuumslanger 22 fast i klemmerne i låget til opbevaringsrummet 11.

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

44867 BOCHUM

TYSKLAND

www.kompernass.com

Bestilling af reservedele

Du kan altid bestille reservedele til dette produkt på internettet på www.kompernass.com.

SVEB 160 B2

Diagram of a printer front panel with labeled buttons and directional arrows indicating print or print process steps

Diagram of a device panel with labeled components and directional arrow, showing internal layout and control buttons.

Diagram of a computer monitor rear panel showing front, top, and side views with no text or symbols

NOTE

Diagram of a computer monitor rear panel showing front, top, and side views with no text or symbols

Technical diagram of a portable air conditioner unit with labeled parts and control panel

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

44867 BOCHUM

GERMANIA

www.kompernass.com

Diagram of a device rear panel with labeled ports and directional arrows indicating movement or status

Diagram of a device panel with labeled components and directional arrow, showing internal layout and control buttons.

Diagram of a computer monitor rear panel showing front, top, and side views with control buttons and indicator lights (no text or symbols)

TUDNIVALÓ

Diagram of a computer monitor rear panel showing front, top, and side views with no text or symbols

Technical diagram of a portable air conditioner unit with labeled components and control panel

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

44867 BOCHUM

NÉMETORSZÁG

www.kompernass.com

Diagram of a device rear panel with labeled ports and directional arrows indicating movement or status

- Pokrov ⑪ znova zaprite, tako da se folijska cev zatakne v njem.

- Rezalnik folije Ⓐ rahlo pritisnite navzdol in ga povlecite z ene strani na drugo preko folijske cevi, da to odrežete.

Diagram of a device panel with labeled components and directional arrow, showing internal layout and control buttons.

Technical diagram of a computer monitor rear panel showing internal components and mounting points (no text or labels)

OPOMBA

Technical diagram of a computer monitor rear panel showing internal components and mounting points (no text or labels)

2) Zaprite pokrov naprave ①. Pri tem pazite, da se oba kota pokrova naprave ① zaskočita. Po potrebi ju še na oznakah in potisnite navzdol, tako da se pokrov naprave ① zaskoči in je zaprt.

OPOMBA

Technical diagram of a portable air conditioner unit with labeled components and control panel

- Cevki za vakuumiranje ② zataknite v sponki v pokrovu predala za shranjevanje ⑪.

- Nataknite adapterje A 23, B 24 in C 25 na natična mesta.

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

44867 BOCHUM

NEMČIJA

www.kompernass.com

Pooblaščeni serviser

SI

ServisSlovenija

Tel.: [phone]

E-Mail: [e-mail]

IAN 390022_2201

Garancijski list

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

44867 BOCHUM

GERMANY

www.kompernass.com

Last Information Update · Stand der Informationen · Version des informations

Stand van de informatie · Stav informací · Stan informacji · Stav informácií

Estado de las informaciones · Tilstand af information · Versione delle informazioni
