USER MANUAL SOV 125 C7 SILVERCREST

PDF ONLINE www.lidl-service.com

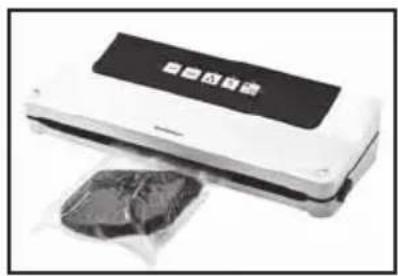

White and black electronic device with a bag of food wrapped around it (no visible text or symbols)

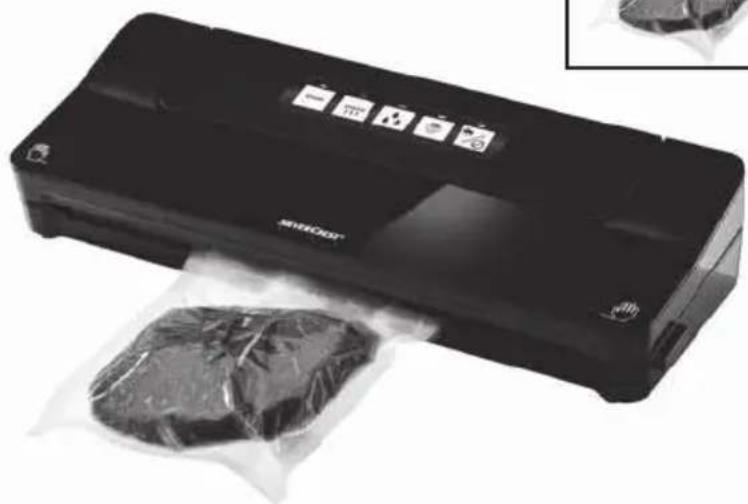

Black industrial machine with plastic wrap, emitting a piece of meat (no visible text or symbols)

VACUUM SEALER / VAKUUMIERER / APPAREIL DE MISE SOUS VIDE SV 125 C7

GB IE

VACUUM SEALER

Operating instructions

FR BE

APPAREIL DE MISE SOUS VIDE

Mode d'emploi

CZ

VAKUOVÁ SVÁŘEČKA FÓLIÍ

Návod k obsluze

SK

VÁKUOVAČKA

Návod na obsluhu

DK

VAKUUMPAKKER

GB/IE Operating instructions Page 1

Package contents and transport inspection .... 2

Unpacking 3

Description of the appliance .... 3

Technical data 4

Safety guidelines 4

Setting up and connecting ....6

Set-up location requirements 6

Electrical connection 6

Functions....7

Tips....7

Welding a tube film 9

Vacuum sealing....12

Vacuuming the tube film 12

Vacuuming containers and resealable bags 14

Cleaning 16

Cleaning the appliance 16

Storage 17

Disposal....18

Disposal of the appliance 18

Disposal of the packaging 18

Kompernass Handels GmbH warranty 19

Service 20

Importer 20

Ordering replacement parts 21

Introduction

Congratulations on the purchase of your new appliance!

You have decided in favour of a modern, high-quality product. These operating instructions are part of this product. They contain important information on safety, usage and disposal. Before using the product, familiarise yourself with all handling and safety guidelines. This appliance may only be used as described and for the purposes indicated. Please also pass these operating instructions on to any future owner(s).

Intended use

This appliance is intended exclusively for the sealing and vacuum-packing of foodstuffs in household quantities and only in private households. This device is not intended for commercial or industrial applications or for continuous use.

It is not intended for any other use or use beyond that specified. Claims of any kind for damage arising as a result of incorrect use will not be accepted. The risk shall be borne solely by the user.

Package contents and transport inspection

The appliance is supplied with the following components as standard:

• Vacuum sealer
- 1 x film roll
- 2 x tubes
- 3 x adapters
- 1 x replacement sealing ring
• These operating instructions

NOTE

▶ Check the package for completeness and for signs of visible damage.
▶ If the consignment is incomplete or damaged due to defective packaging or carriage, contact the Service hotline (see the chapter Service).

Unpacking

◆ Remove all parts of the appliance, the tube film and the operating instructions from the carton.
◆ Remove all packaging material.
◆ Remove the protective film from the control panel.

DANGER

▶ Packaging materials should not be used as a plaything. Risk of suffocation.

Description of the appliance

Figure A

① Appliance lid
② Suction opening
③ Cable retainer
4 Welding wire
⑤ Lower sealing ring
6 Rear limiters
7 Front limiters
8 Lid release
9 Suction fitting
⑩ Upper sealing ring
⑪ Press seal

Figure B

12 button - Start "sealing" function with control lamp (red)
13 button - Start "vacuuming and sealing" function with control lamp (red)
14 button - Activate additional function "wet" with control lamp (green)
15 button - Activate additional function "soft" with control lamp (green)
16 button - Start "external vacuuming" function/button - STOP for all functions with control lamp (green)

Figure C

⑰ Vacuum hose
18 Adapter A
19 Adapter B
20 Adapter C

Technical data

Operating voltage 220 - 240 V ~ (alternating current), 50/60 Hz
Power consumption 125 W
Protection class	II/□ (double insulation)
	All of the parts of this appliance that come into contact with food are food-safe.

Safety guidelines

RISK OF ELECTRIC SHOCK

■ Prior to use, check the device for visible external damage. Never operate an appliance that is damaged.
■ To avoid potential risks, if the appliance power cable is damaged, it must be replaced by the manufacturer, its customer service or by a qualified technician.
■ NEVER use the appliance with a defective power cable.
■ Do not use extension cables or power socket strips that do not meet the required safety standards.
■ Never open the appliance housing!
■ Remove the plug from the mains power socket before beginning to clean the device.
■ Ensure that no moisture can penetrate the device during cleaning.

RISK OF INJURY!

■ All repairs must be carried out by authorised specialist companies or by the Customer Service department. Improper repairs may result in a risk of injury to the user or damage to the appliance. They will also invalidate any warranty claim.

■ The mains power socket must be easily accessible, so that the power cable can be easily disconnected in the event of an emergency.

■ Cleaning and user maintenance tasks may not be carried out by children unless they are supervised.

■ This appliance may be used by children aged 8 years and above and by persons with limited physical, sensory or mental capabilities or lack of experience and knowledge, provided that they are under supervision or have been told how to use the appliance safely and are aware of the potential risks.

■ Children must not play with the appliance!

■ Children should be supervised to ensure that they do not play with the appliance.

■ Do not leave the appliance unsupervised when it is ready for use. To prevent it being switched on accidentally, always unplug the appliance after use or during breaks.

CAUTION - PROPERTY DAMAGE!

■ Do not use an external timer switch or a separate remote control system to operate the appliance.

NOTE

▶ No user action is required to switch the product between 50 and 60 Hz. The product adapts automatically to either 50 or 60 Hz.

Setting up and connecting

Set-up location requirements

For safe and trouble-free operation of the device, the set-up location must fulfil the following requirements:

■ When setting it up, place the appliance on a firm, flat and horizontal surface.

■ Do not place the device in a hot, wet or extremely damp environment or in the vicinity of flammable materials.

■ The mains power socket must be easily accessible, so that the power cable can be easily disconnected in the event of an emergency.

Electrical connection

CAUTION

▶ Before you connect the appliance, compare the connection data (voltage and frequency) on the data plate with that of your mains power network. These data must agree so that no damage is sustained by the device.

▶ Ensure that the power cable is undamaged and is not routed over hot surfaces and/or sharp edges.

▶ Ensure that the power cable is not taut or kinked.

▶ Do not let the power cable hang over edges (trip wire effect).

◆ Insert the plug into the mains power socket.

Functions

Button Function
	12 Start "sealing" function (without vacuuming)
	13 Start "vacuuming and sealing" function
	14	Activate additional function "wet" (for particularly moist food products)
	15	Activate additional function "soft" (for pressure-sensitive foods, e.g. fruit or cakes)
	16	Start "external vacuuming" function (for vacuuming using the hose and adapter)/STOP for all functions

Tips

The following table offers some useful information on optimal preparation and processing of various food items.

* Applies, for example, to all types of cabbage (broccoli, Brussels sprouts, kale, etc.), asparagus, sugar snap peas, beans, romanesco and pak choy.

Food Notes		Recommended container	Recommended additional function
Fish/meat	-use only when fresh, -do not interrupt the cold chain	-Bag
Vegetables	-peel or wash and dry -blanch for a few minutes in boiling water, rinse with ice water and dry to avoid loss of flavour and colour or gas formation* during storage	-Bag
Leafy vegetables/lettuce	-wash and dry-not suitable for freezing	-Container
Fruit -peel or wash and dry		-Refrigerator:container
		-Freezer: bag
Herbs	-wash and dry-whole sprig	-Bag
Baked products		-Container
		-Bag
Powdery food	-place a piece of kitchen paper in the top of the bag/container or vacuum seal in the original packaging	-Bag-Container
Cold liquids -Container
Cooled, cooked foods		-Container
		-Bag
Hard, pointed foods (e.g. uncooked spiral noodles)		-Container
		-Bag

Welding a tube film

NOTES ON THE FILM

The film width may not exceed 30 cm. Otherwise it cannot be welded correctly.
▶ Use only nylon PA/PE films with a structure (dots or grooves) on one side and a thickness of approx. 0.17–0.29 mm (170–290 μ) in this device. Otherwise, the weld seam will not be tight and the appliance may be damaged. You can recognise films of this type from the information on the packaging. The quality of the weld seam will vary depending on the type and thickness of the film.
The supplied film is suitable for temperatures between -20°C and +110°C.

The supplied foil is BPA-free and microwaveable. However, never heat completely sealed bags in the microwave. The bag could burst! One side of the bag must be open. Heat the bags for no more than 3 minutes at a maximum temperature of 900 W.

1) Cut the desired length for your bag from the tube film using a pair of scissors. Cut as straight as possible.
2) Open the appliance lid ① by pressing the lid release ⑧ and opening the lid ① upwards.

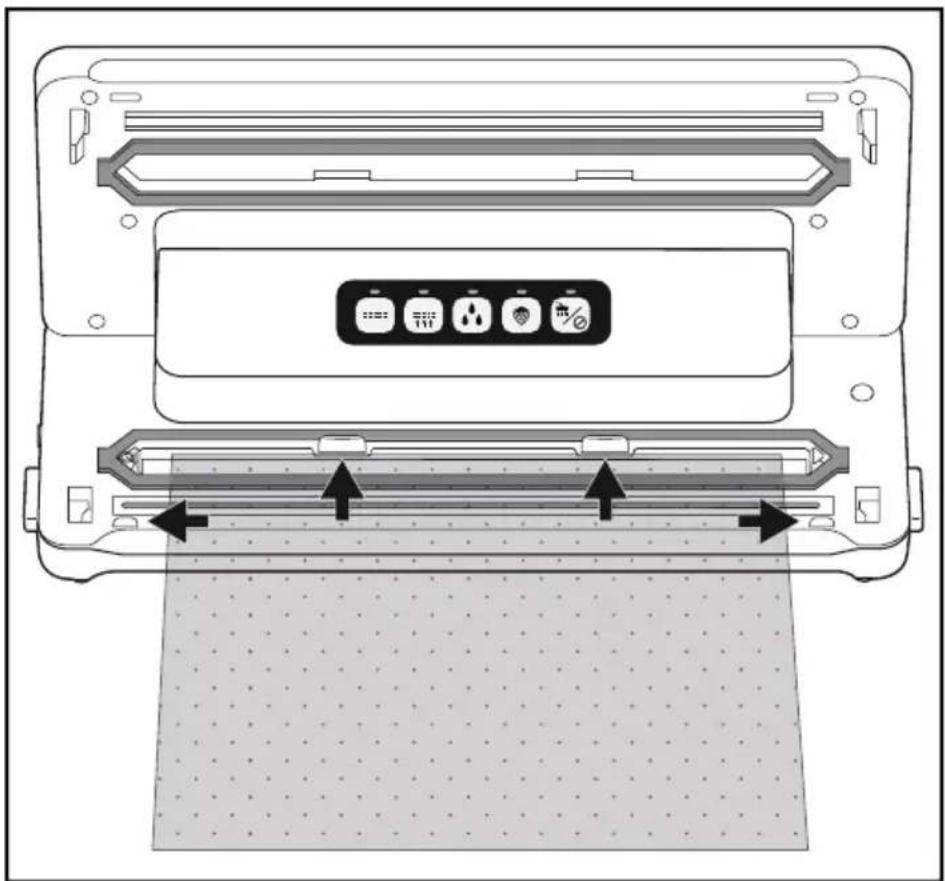

3) Lay the open end of the bag as far into the appliance so that the opening of the bag is located centrally under the lower sealing ring ⑤. The bag should be inserted no further than the rear limiters ⑥ and must lie between the front limiters ⑦. If the bag lies over one or both of the two limiters ⑥/⑦, then the bag cannot be correctly welded.

Diagram of a printer's front panel showing internal structure and base panel (no text or symbols)

NOTE

The bag opening must lie flat on the sealing wire ④. Otherwise the welding does not work properly.

4) Close the appliance lid ①. The press seal ⑪ presses the bag onto the sealing wire ④ to create a smooth seam. Ensure that both corners of the appliance lid ① click closed. If necessary, press them down once again on the markings 🎨 and 🔍 so that the appliance lid ① clicks into place and locks shut.

5) Press the button 12. The control lamp 12 lights up. As soon as the sealing process is completed, the control lamp 12 flashes briefly and then goes out.

NOTE

▶ You can halt the sealing process at any time by pressing the ⚠ button ⑯. The control lamp ⑫ fl ashes and then goes out.

CAUTION - PROPERTY DAMAGE!

If the control lamp ⑫ does not turn off after a maximum of 10 seconds during the sealing process, the appliance is defective!

▶ Remove the plug from the mains power socket immediately. Do not attempt to repair the appliance yourself. Contact the Customer Service department.

6) Open the appliance lid ① by pressing the lid release ⑧ and flipping the lid ⑪ upwards. Remove the bag. This is now sealed at one end.

NOTE

▶ Ensure that the weld seam is properly closed. A correct weld seam should be a smooth, straight stripe without any creases.

7) Fill the bag. You must leave at least 6 cm of the bag free up to the edge to be welded.

CAUTION - PROPERTY DAMAGE!

▶ Fill the bag so that no food scraps or liquids can leak out during welding and get into the appliance.

8) If you do not want to vacuum the bag, you can now weld the other, open side.

NOTE

▶ Wait a few seconds to allow the appliance to cool down before sealing the next bag.

During this cool-down phase, you cannot start the "seal" function.

Vacuum sealing

Vacuuming the tube fi lm

You can also suck the air out of the bag (vacuum) during welding:

NOTE

▶ Do not try to vacuum seal bags that contain only liquids.

If you want to vacuum seal bags containing moist/juicy foods, make sure that no water or moisture can get into the appliance. If small quantities of liquid or food are accidentally sucked in, they will be deposited in the small drip tray that is located within the lower sealing ring ⑤.

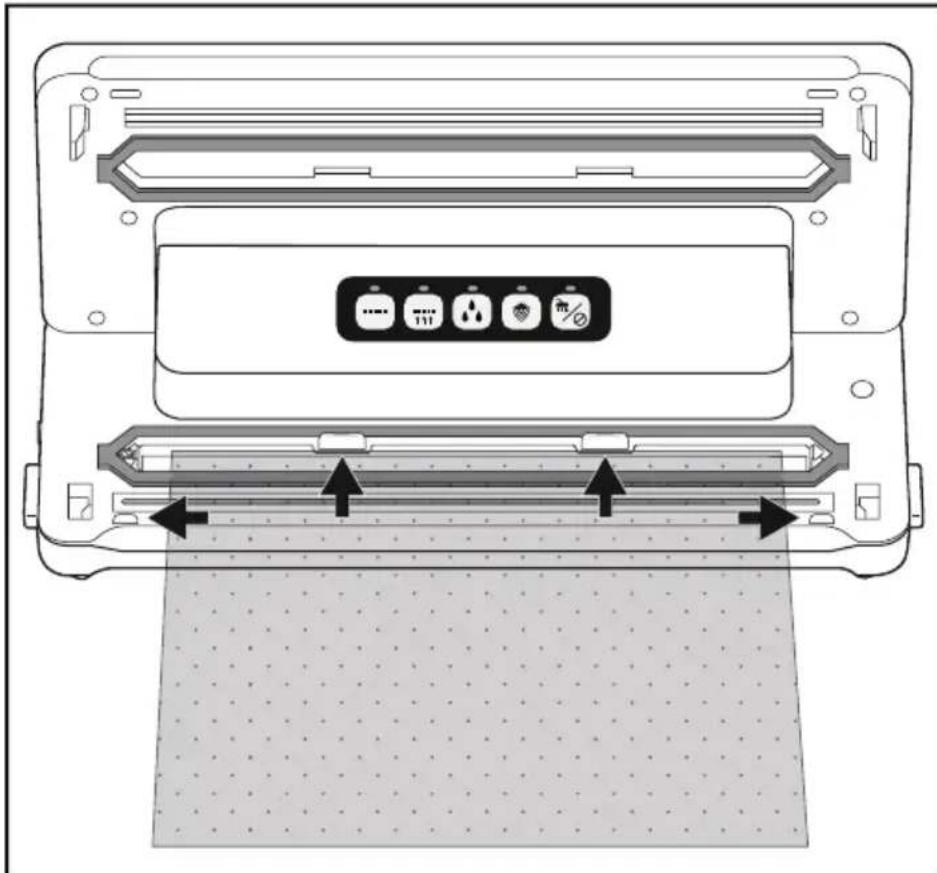

1) Lay the open end of the bag as far into the appliance so that the opening of the bag is located centrally under the lower sealing ring ⑤. The bag should be inserted no further than the rear limiters ⑥ and must lie between the front limiters ⑦. Otherwise the vacuuming and welding will not function correctly:

Diagram of a printer's front panel showing internal components and directional arrows indicating assembly or movement.

2) Close the appliance lid ①. Ensure that both corners of the appliance lid ① click closed. If necessary, press them down once again on the markings and so that the appliance lid ① clicks into place and locks shut.

NOTE

▶ Ensure that the upper ⑩ and the lower sealing rings ⑤ are not damaged! Otherwise the device cannot suck the air out of the bag.
If either one of the sealing rings 10/5 is damaged, simply pull it out of the groove and press the replacement sealing ring into the groove.

3) If necessary, select the appropriate additional function for your food.

Otherwise, you can skip this step and continue with point 4):

-Press the button 14 if you want to vacuum a particularly moist or juicy food, such as freshly marinated meat or cut fruit. If there is moisture between the film and the seam, this can lead to defective seals. When this function is activated, the sealing time is increased so that the seal is more stable.

If the additional function “wet” is activated, the corresponding control lamp 14 lights up.

-Press the button 15 if you want to vacuum seal pressure-sensitive foods such as cakes or berries. When the additional function "soft" is activated, the suction pressure is slightly reduced and the food is not squeezed as much.

If the additional function “soft” is activated, the corresponding control lamp 15 lights up.

NOTE

If you want to vacuum a moist and pressure-sensitive food, you can also activate both additional functions simultaneously.

4) Press the button ⑬. The control lamp lights up and the appliance sucks the air out of the bag. As soon as all the air is sucked out, the control lamp lights up. The appliance now seals the bag. As soon as the sealing process is completed, both control lamps ⑬/⑫ flash and then go out.

5) Once both control lamps 13/12 have gone out, you can open the lid by pressing the lid releases 8 and flipping the lid 1 upwards. Remove the vacuum-sealed bag.

NOTE

▶ You can stop the vacuuming process at any time by pressing the button 16. The control lamp 13 goes out. Press the button 13 again to resume the vacuuming process.

If the appliance has already switched to the sealing process and the control lamp 12 is also lit, the process can be stopped with the ⚠ button 16.

The control lamps 13/12 flash and then go out. The appliance then stops the sealing process.

▶ Once you have sealed 5 bags in a row, allow the appliance to cool down for about 1 minute. During this cool-down phase, it is possible that you cannot start the appliance.

After the cool-down phase, you can use the appliance as normal (even if a whole minute has not yet elapsed).

As the supplied film is suitable for temperatures between -20°C and +110°C, it can be used for sous-vide cooking (vacuum cooking). "Sous-vide" is French and means "under vacuum". In vacuum cooking, the food (usually fish or meat, but vegetables can also be used) is vacuum-sealed in a bag and then cooked in water or steam cooked at a relatively low temperature (50° to 90°C). The advantage of this is that volatile flavours and aromas are not lost during cooking. The food does not dry out and the vitamins and flavours are preserved. Herbs or spices that are vacuum-sealed in the bag with the food give off a more intense flavour.

Vacuuming containers and resealable bags

NOTES

▶ Do not try to vacuum seal bags that contain only liquids.
▶ If you only want to vacuum seal liquids (like soups for example), use a container suitable for vacuuming. Make sure that the suction valve of the container does not protrude into the filled liquid. If necessary, leave sufficient distance to the rim of the container.
If you want to vacuum seal bags containing moist/juicy foods, make sure that no water or moisture can get into the appliance. If small quantities of liquid or food are accidentally sucked in, they will be deposited in the small drip tray that is located within the lower sealing ring ⑤.

You can vacuum seal containers and resealable bags using the vacuum hoses 17 and appropriate adapters 18/19/20 supplied with the appliance. Some bags/containers made by various manufacturers do not require an adapter 18/19/20 and you can push the black coupling piece on the vacuum hose 17 directly into the bag/container. Experiment to find out which adapter 18/19/20 creates the best seal or whether you even need an adapter 18/19/20 at all.

NOTE

▶ You can order suitable bags and containers separately. Please refer to section "Ordering replacement parts".

The vacuum hoses 17 and adapters 18/19/20 are also compatible with bags and containers made by other manufacturers.

Adapters e.g. suitable for
Adapter A 18	CASO* (VacuBoxx series), Ernesto, various bags with a valve
Adapter B 19	FoodSaver** (FFC02XX, FFC002X, 003X, 005X, 008X, 010X storage containers, lunchbox set T020-00024), various bags with a valve
Adapter C 20	CASO* (vacuum container set, wine stoppers), FoodSaver** (container set FSC003)
Without adapter	FoodSaver** (wine stopper, marinating box)

* CASO is a registered trademark of Caso Holding GmbH.
**FoodSaver is a registered trademark of Sunbeam Products, Inc.

Vacuuming sealing bags

1) Connect the vacuum hose ⑰ onto the suction fitting ⑲ of the appliance.

2) Select the appropriate adapter A/B 18/19 for the bag you want to vacuum and attach it to the vacuum hose 17.

3) Close the appliance lid ①. Ensure that both corners of the appliance lid ① click closed. If necessary, press them down once again on the markings and so that the appliance lid ① clicks into place and locks shut.

4) Close the bag to be vacuum sealed carefully. Vacuum sealing only works properly if the bag is completely closed off. Position the bag so that the extraction opening of the bag is lying on a smooth surface.

5) Press the adapters A/B 18/19 firmly onto the round extraction opening on the bag.

6) Press the button 16. The control lamp lights up and the appliance sucks the air out of the bag. As soon as all the air is sucked out, the control lamp goes out.

7) You can now remove the adapter A/B 18/19 from the bag.

Vacuum sealing containers

1) Connect the vacuum hose ⑰ onto the suction fitting ⑲ of the appliance.

2) Select the appropriate adapter 18/19/20 for the container you want to vacuum and attach it to the vacuum hose 17.

3) Close the appliance lid ①. Ensure that both corners of the appliance lid ① click closed. If necessary, press them down once again on the markings and so that the appliance lid ① clicks into place and locks shut.

4) Connect the adapter 18/19/20 to the appropriate fitting on the container. Please refer to the instruction manual of the container for further information.

5) Press the button 16. The control lamp lights up and the appliance sucks the air out of the container. As soon as all the air is sucked out, the control lamp goes out.

6) You can now remove the adapters 18/19/20 from the container and the appliance.

Cleaning

DANGER

Risk of fatal injury from electrocution!

▶ Remove the plug from the mains power socket before beginning to clean the device.

▶ Ensure that no moisture can penetrate the device during cleaning.

CAUTION

Possible damage to the appliance.

▶ Do not use aggressive or abrasive cleaning agents, as these may corrode the surface of the casing.

▶ Do not use any hard or sharp objects to remove any adhesive residue from the sealing wire ④. Otherwise, the sealing wire ④ and/or the insulation could be damaged.

Cleaning the appliance

- Clean the surface of the housing of the appliance with a lightly moistened cloth and a mild detergent.

◆ Wipe off the upper ⑩ and the lower sealing rings ⑤, as well as the press seal ⑪ with a damp cloth. Ensure that the appliance is dry before using it again.

Wipe the vacuum hoses 17, and the adapters 18/19/20 with a damp cloth. If there is heavy soiling, you can also clean these parts in hot water with a little detergent. Ensure that all components are completely dry before the next use.

- Clean the drip tray that is located between the lower sealing ring ⑤ in warm water with a little detergent.

You can also clean the drip tray in the dishwasher, if required. Make sure that the drip tray does not get jammed in the dishwasher. Use the upper basket in the dishwasher if possible.

Storage

The appliance has a built-in cable retainer ③ on the underside of the housing, on which you can wrap the power cable when it is not in use. Wind the power cable around the cable retainer ③ in the direction indicated by the arrows.

Pure diagram of a rectangular container with internal curved flow lines and two circular ports, no text or symbols present.

This prevents the power cable from getting caught or soiled, or becoming a source of danger by hanging loosely down.

CAUTION

Possible damage to the appliance.

Do not click the appliance lid ① closed for storage! When the appliance lid ① is clicked closed it exerts permanent pressure on the upper ⑩ and lower sealing rings ⑤, as well as the press seal ⑪. This can negatively affect their function.

◆ Store the appliance in a clean, dry place away from direct sunlight.

Disposal

Applies only to France:

The product, its packaging and the operating instructions are recyclable. They are subject to an extended manufacturer responsibility and will be collected separately.

Disposal of the appliance

The adjacent symbol of a crossed-out dustbin means that this appliance is subject to Directive 2012/19/EU. This directive states that this appliance may not be disposed of in the normal household waste at the end of its useful life, but must be taken to specially set-up collection locations, recycling depots or disposal companies.

The disposal is free of charge for the user. Protect the environment and dispose of this appliance properly.

If your old appliance has stored any personal data, you are responsible for deleting it yourself before returning it.

Your local community or municipal authorities can provide information on how to dispose of the worn-out product.

Disposal of the packaging

The packaging materials have been selected for their environmental friendliness and ease of disposal and are therefore recyclable. Dispose of packaging materials that are no longer needed in accordance with applicable local regulations.

Dispose of the packaging in an environmentally friendly manner. Note the labelling on the packaging and separate the packaging material components for disposal, if necessary. The packaging material is labelled with abbreviations (a) and numbers (b) with the following meanings: 1-7: plastics, 20-22: paper and cardboard, 80-98: composites.

This appliance has a 3-year warranty valid from the date of purchase. If this product has any faults, you, the buyer, have certain statutory rights. Your statutory rights are not restricted in any way by the warranty described below.

Warranty conditions

The warranty period starts on the date of purchase. Please keep your receipt in a safe place. This will be required as proof of purchase.

If any material or manufacturing fault occurs within three years of the date of purchase of the product, we will either repair or replace the product for you or refund the purchase price (at our discretion). This warranty service requires that you present the defective appliance and the proof of purchase (receipt) within the three-year warranty period, along with a brief written description of the fault and of when it occurred.

If the defect is covered by the warranty, your product will either be repaired or replaced by us. The repair or replacement of a product does not signify the beginning of a new warranty period.

Warranty period and statutory claims for defects

The warranty period is not prolonged by repairs effected under the warranty. This also applies to replaced and repaired components. Any damage and defects present at the time of purchase must be reported immediately after unpacking. Repairs carried out after expiry of the warranty period shall be subject to a fee.

Scope of the warranty

This appliance has been manufactured in accordance with strict quality guidelines and inspected meticulously prior to delivery.

The warranty covers material faults or production faults. The warranty does not extend to product parts subject to normal wear and tear or to fragile parts which could be considered as consumable parts such as switches, batteries or parts made of glass.

The warranty does not apply if the product has been damaged, improperly used or improperly maintained. The directions in the operating instructions for the product regarding proper use of the product are to be strictly followed. Uses and actions that are discouraged in the operating instructions or which are warned against must be avoided.

This product is intended solely for private use and not for commercial purposes. The warranty shall be deemed void in cases of misuse or improper handling, use of force and modifications / repairs which have not been carried out by one of our authorised Service centres.

Warranty claim procedure

To ensure quick processing of your case, please observe the following instructions:

■ Please have the till receipt and the item number (IAN) 465208_2401 available as proof of purchase.

■ You will find the item number on the type plate on the product, an engraving on the product, on the front page of the operating instructions (below left) or on the sticker on the rear or bottom of the product.

If functional or other defects occur, please contact the service department listed either by telephone or by e-mail.

■ You can return a defective product to us free of charge to the service address that will be provided to you. Ensure that you enclose the proof of purchase (till receipt) and information about what the defect is and when it occurred.

You can download these instructions along with many other manuals, product videos and installation software at www.lidl-service.com.

This QR code will take you directly to the Lidl service page (www.lidl-service.com) where you can open your operating instructions by entering the item number (IAN) 465208_2401.

Service

GB Service Great Britain

Tel.: [phone]

E-Mail: [e-mail]

IE ServiceIreland

Tel.: [phone]

E-Mail: [e-mail]

IAN 465208_2401

Importer

Please note that the following address is not the service address. Please use the service address provided in the operating instructions.

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

44867 BOCHUM

GERMANY

www.kompernass.com

Ordering replacement parts

You can order replacement parts for this product on the Internet at www.kompernass.com.

QR code image containing encoded data, no visible human-readable text

Scan the QR code with your smartphone/tablet. You can use this QR code to go directly to our website to view and order the available spare parts.

NOTE

▶ If you have problems with your online order, you can contact our service centre by phone or e-mail.
▶ Please always quote the article number (IAN 465208_2401) when ordering. You can find it on the title page of these operating instructions.
▶ Please note that online ordering of replacement parts is not possible for all countries.

Inhaltsverzeichnis

Einleitung 24

Diagram of a printer's front panel showing internal structure and base panel, with no visible text or symbols.

HINWEIS

Diagram of a printer's front panel showing internal structure with arrows indicating assembly or movement (no text or symbols present)

Pure diagram of a rectangular channel with internal flow arrows, no text or symbols present

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

44867 BOCHUM

DEUTSCHLAND

www.kompernass.com

QR code image containing encoded data, no visible human-readable text

Installation et raccordement

REMARQUES RELATIVES AU FILM

Diagram of a printer's front panel showing internal structure and base panel, with no visible text or symbols.

REMARQUE

Diagram of a printer's front panel showing internal structure with arrows indicating assembly or movement (no text or symbols present)

Pure diagram of a rectangular channel with internal flow arrows, no text or symbols present

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

44867 BOCHUM

ALLEMAGNE

www.kompernass.com

QR code image containing encoded data, no visible human-readable text

Diagram of a printer's front panel showing internal structure and base panel (no text or symbols)

OPMERKING

Diagram of a printer front panel with labeled buttons and arrows indicating insertion or release steps

Pure diagram of a rectangular device with internal channels and arrows, no text or symbols present

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

44867 BOCHUM

DUITSLAND

www.kompernass.com

QR code image containing encoded data, no visible human-readable text

⚠️ POZOR – VĚCNÉ ŠKODY!

Diagram of a printer's front panel showing internal structure and base plate (no text or symbols)

UPOZORNĚNÍ

Diagram of a printer's front panel showing internal components and a dotted sheet (no text or symbols)

Pure diagram of a rectangular container with internal curved flow lines and two oval ends, no text or symbols present.

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

44867 BOCHUM

NĚMECKO

www.kompernass.com

QR code image containing encoded data, no visible human-readable text

Diagram of a printer's front panel showing internal structure and base panel (no text or symbols)

WSKAZÓWKA

Diagram of a printer's front panel showing internal structure and base plate (no text or symbols)

Pure diagram of a rectangular channel with internal flow arrows, no text or symbols present

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

44867 BOCHUM

NIEMCY

www.kompernass.com

QR code image containing encoded data, no visible human-readable text

Diagram of a printer's front panel showing internal structure and base plate (no text or symbols)

UPOZORNENIE

Diagram of a printer's front panel showing internal structure and base panel (no text or symbols)

Pure diagram of a rectangular channel with internal channels and directional arrows, no text or symbols present.

Tým zabránite zalomeniu, znečisteniu kábla a tomu, aby bol zdrojom nebezpečenstva, ked' vol'ne visí:

POZOR

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

44867 BOCHUM

NEMECKO

www.kompernass.com

QR code image containing encoded data, no visible human-readable text

Diagram of a printer's front panel showing internal structure and base plate (no text or symbols)

INDICACIÓN

Diagram of a printer's front panel showing internal components and alignment arrows, likely illustrating a printer or printer mechanism.

Pure diagram of a rectangular device with internal curved and rectangular components, no text or symbols present.

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21 • 44867 BOCHUM

ALEMANIA

www.kompernass.com

Pedido de recambios

QR code image containing encoded data, no visible human-readable text

Diagram of a printer's front panel showing internal structure and base panel, with no visible text or symbols.

BEMARK

Diagram of a device's front panel showing internal components and directional arrows, no text or symbols present.

2) Luk låget ①. Sørg for, at begge lågets hjørner ① går i indgreb. Tryk eventuelt ned på markeringerne 🎨 og 📁gen, så låget ① går i indgreb og låses.

BEMARK

Pure diagram of a rectangular container with internal channels and arrows indicating flow or movement (no text or symbols)

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

44867 BOCHUM

TYSKLAND

www.kompernass.com

Bestilling af reservedele

Du kan altid bestille reservedele til dette produkt på internettet på www.kompernass.com.

QR code image containing encoded data, no visible human-readable text

Diagram of a printer's front panel showing internal structure and base panel, with no readable text or symbols.

AVVISO

Diagram of a printer's front panel showing internal structure and base panel (no text or symbols)

Pure diagram of a rectangular channel with internal flow arrows, no text or symbols present

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

44867 BOCHUM

GERMANIA

www.kompernass.com

QR code image containing encoded data, no visible human-readable text

Diagram of a printer's front panel showing internal structure and base panel (no text or symbols)

TUDNIVALÓ

Diagram of a printer's front panel showing internal structure and base panel (no text or symbols)

Pure diagram of a rectangular container with internal curved flow lines and a pipe, no text or symbols present.

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

44867 BOCHUM

NÉMETORSZÁG

www.kompernass.com

QR code image containing encoded data, no visible human-readable text

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

44867 BOCHUM

GERMANY

www.kompernass.com

Last Information Update · Stand der Informationen · Version des informations · Stand van de informatie · Stav informaci

Stan informacji · Stav informácií · Estado de las informaciones · Tilstand af information · Versione delle informazioni
