Product type	Cordless drill/driver
Brand	Festool
Model	C 18 HPC 4 0 ISet
Rated voltage	18 V
No-load speed (1st gear)	0 - 450 rpm
No-load speed (2nd gear)	0 - 1500 rpm
Max. torque (wood screwing)	27 Nm
Max. torque (metal screwing)	45 Nm
Adjustable torque (1st gear)	0.8 - 8 Nm
Adjustable torque (2nd gear)	0.5 - 6 Nm
Chuck capacity	1.5 - 13 mm
Max. drilling diameter (wood)	40 mm
Max. drilling diameter (metal)	13 mm
Tool holder in spindle	1/4" (6.35 mm) hex socket
Weight (without battery)	1.3 kg
Battery type	Li-ion, BP 18 series (e.g. BP 18 Li 5.2 AS, BP 18 Li 6.2 AS, BP 18 Li 3.1 C)
Number of speeds	2
Direction of rotation	Reversible (right/left)
Functions	Drilling, screwing, with adjustable torque
Lighting	Integrated LED lamp
Included accessories	Belt clip, magnetic bit holder, CENTROTEC chuck, drill chuck
Sound pressure level (drilling)	68 dB(A)
Sound power level (drilling)	76 dB(A)
Vibration emission value (metal drilling)	3.6 m/s²
Maintenance	Clean ventilation slots, keep contacts clean, do not use compressed air
Repairability	Authorized Festool workshops, original parts

Frequently Asked Questions - C 18 HPC 4 0 ISet FESTOOL

Which batteries are compatible with the Festool C 18 HPC 4 0 ISet?

The drill is compatible with Festool batteries from the BP 18 series of the same voltage, such as the BP 18 Li 5.2 AS, BP 18 Li 6.2 AS, and BP 18 Li 3.1 C. Use only Festool batteries.

How to adjust the screwing torque?

Turn the torque adjustment ring (1-1) to select the desired torque. The adjustable torque range is 0.8 to 8 Nm in 1st gear and 0.5 to 6 Nm in 2nd gear. An audible signal sounds and the tool stops when the set torque is reached.

How to change the direction of rotation?

Use the right/left rotation selector (1-8). Push the switch to the left for clockwise rotation (tightening) and to the right for counterclockwise rotation (loosening). Only adjust when the tool is at a standstill.

What to do if the drill beeps and stops?

A long beep indicates a discharged battery or overload: replace the battery or reduce the load. Two beeps signal overheating: let the machine cool down. Three beeps indicate an overheated or defective Li-ion battery: check its condition with the charger after cooling.

How to use the CENTROTEC chuck?

The CENTROTEC chuck allows quick changing of tools with a CENTROTEC shank. Only mount CENTROTEC tools in this chuck. It is not compatible with standard drill bits.

What is the maximum drilling capacity in wood and metal?

The maximum drilling diameter is 40 mm in wood and 13 mm in metal.

How to maintain the drill?

Before any intervention, remove the battery. Regularly clean the ventilation slots to ensure air circulation. Keep the contacts of the tool, charger, and battery clean. Do not use compressed air for cleaning. Repairs must be carried out by an authorized Festool workshop.

Can I use the drill in the rain or in a humid environment?

No, do not use the tool in the rain or in a humid environment. Moisture can cause a short circuit and fire.

How to attach the belt clip?

The belt clip can be mounted on the right or left side of the device using the provided screw (1A). It allows you to quickly hang the tool on your work clothing.

Which accessories are available for this drill?

Accessories such as the angle attachment (for drilling and screwing at an angle), the eccentric chuck (for screwing near edges), and various chucks (CENTROTEC, drill chuck) are available. Consult the Festool range for compatible accessories.

USER MANUAL C 18 HPC 4 0 ISet FESTOOL

Head of Product Development

Ralf Brandt

Head of Product Conformity

valid in combination with battery pack/

valid in combination with Bluetooth battery pack/

Declaration of Conformity

We as the manufacturer Festool GmbH, Wertstraße 20, 73240 Wendlingen, Germany declare under our sole responsibility that the product(s):

Designation:

Designation of Type[s]:

Serial number(s) 11

Cordless drill/screwdriver

C 18 Li

205215

fulfills all the relevant provisions of the following UK Regulations:

S.I. 2008/1597

Supply of Machinery (Safety) Regulations 2008

S.I. 2016/1091

Electromagnetic Compatibility Regulations 2016

S.I. 2017/12063)

Radio Equipment Regulations 2017

S.I. 2012/3032

Restriction of the Use of Certain Hazardous Substances in Electrical and Electronic Equipment Regulations 2012

and are manufactured in accordance with the following designated standards:

BS EN 62841-1:2015
BSEN62841-2-1:2018
BSEN62841-2-2:2014
BS EN 55014-1:2017
BS EN 55014-2:2015
EN300328:2016V2.1.1 3)
EN301489-1:2017V2.1.1 3)
EN301489-17:2017V3.1.1
BS EN IEC 63000:2018

in the specified serial number range (S-Nr.) from 40000000 - 49999999
21 valid in combination with battery pack BP 18 Li 5,2 AS, BP 18 Li 6,2 AS, BP 18 Li 3,1 C, BP 18 Li 4,0 HPC-AS
31 valid in combination with Bluetooth® battery pack BP 18 Li 5,2 ASI, BP 18 Li 6,2 ASI, BP 18 Li 3,1 Cl, BP 18 Li 4,0 HPC-ASI

Place and date of declaration: Wendlingen, 31.03.2021

Signed on behalf of and in name of Festool GmbH

Markus Stark

Head of Product development

PP1 · PC1 = PC1 · CP2

i.v. Q.Branched

Ralf Brandt

Head of Productconformity

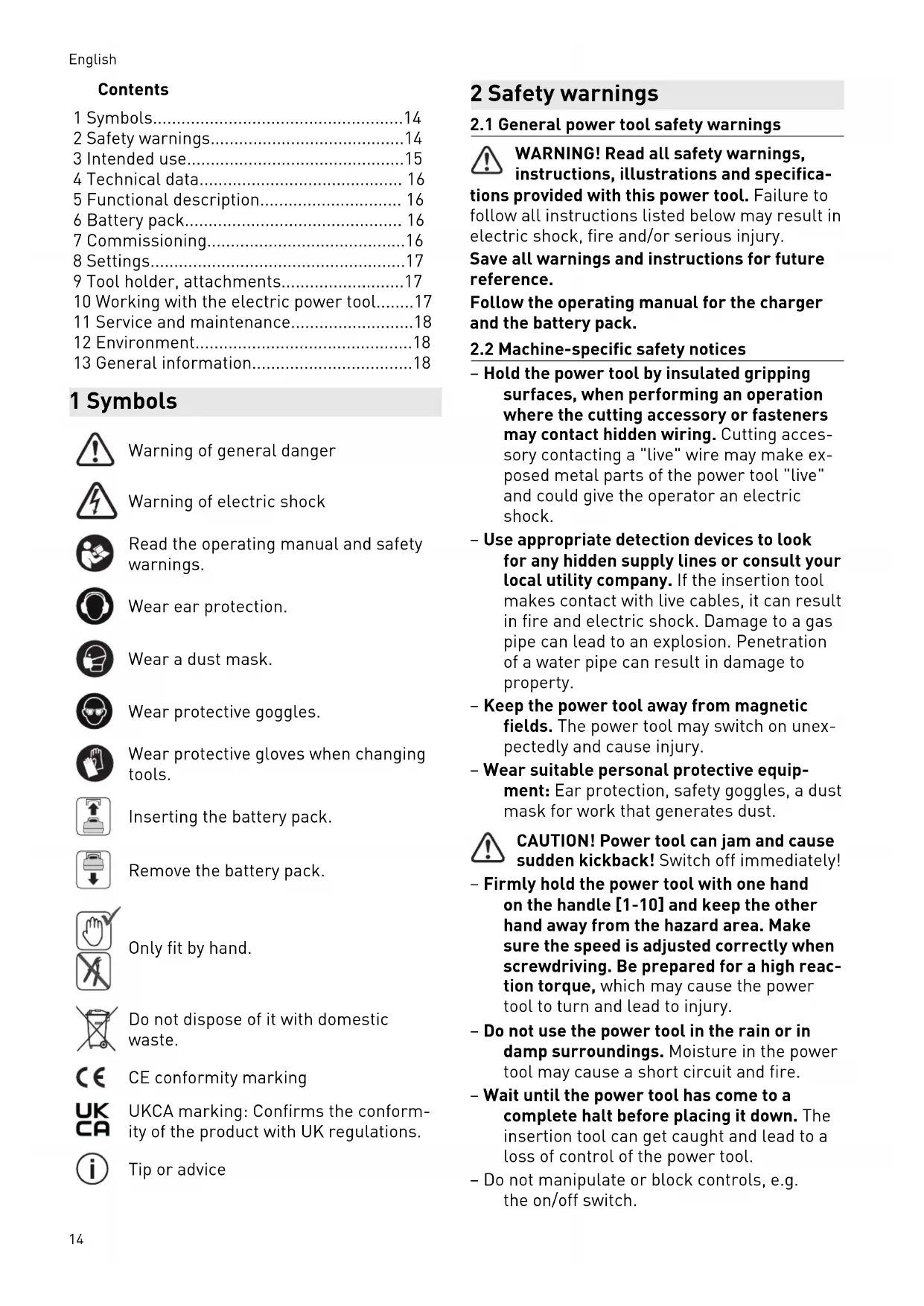

Inhaltsverzeichnis

1 Symbols. 14
2 Safety warnings. 14
3 Intended use. 15
4 Technical data. 16
5 Functional description. 16
6 Battery pack. 16
7 Commissioning. 16
8 Settings. 17
9 Tool holder, attachments. 17
10 Working with the electric power tool. 17
11 Service and maintenance. 18
12 Environment. 18
13 General information. 18

1 Symbols

Warning of general danger

Warning of electric shock

Read the operating manual and safety warnings.

Wear ear protection.

Wear a dust mask.

Wear protective goggles.

Wear protective gloves when changing tools.

Inserting the battery pack.

Remove the battery pack.

Only fit by hand.

Do not dispose of it with domestic waste.

CE conformity marking

UKCA marking: Confirms the conformity of the product with UK regulations.

Tip or advice

2 Safety warnings

2.1 General power tool safety warnings

WARNING! Read all safety warnings, instructions, illustrations and specifica

tions provided with this power tool. Failure to follow all instructions listed below may result in electric shock, fire and/or serious injury.

Save all warnings and instructions for future reference.

Follow the operating manual for the charger and the battery pack.

2.2 Machine-specific safety notices

• Hold the power tool by insulated gripping surfaces, when performing an operation where the cutting accessory or fasteners may contact hidden wiring. Cutting accessory contacting a "live" wire may make exposed metal parts of the power tool "live" and could give the operator an electric shock.
• Use appropriate detection devices to look for any hidden supply lines or consult your local utility company. If the insertion tool makes contact with live cables, it can result in fire and electric shock. Damage to a gas pipe can lead to an explosion. Penetration of a water pipe can result in damage to property.
• Keep the power tool away from magnetic fields. The power tool may switch on unexpectedly and cause injury.
• Wear suitable personal protective equipment: Ear protection, safety goggles, a dust mask for work that generates dust.

CAUTION! Power tool can jam and cause sudden kickback! Switch off immediately!

• Firmly hold the power tool with one hand on the handle [1-10] and keep the other hand away from the hazard area. Make sure the speed is adjusted correctly when screwdriving. Be prepared for a high reaction torque, which may cause the power tool to turn and lead to injury.
• Do not use the power tool in the rain or in damp surroundings. Moisture in the power tool may cause a short circuit and fire.
• Wait until the power tool has come to a complete halt before placing it down. The insertion tool can get caught and lead to a loss of control of the power tool.

• Do not manipulate or block controls, e.g. the on/off switch.

• Do not use power supply units to operate cordless power tools. Only use the intended battery packs. Do not use third-party chargers to charge the battery packs. The use of accessories not expressly authorised by the manufacturer can result in electric shocks and/or serious accidents.

• Do not use any insertion tools or accessories that the manufacturer has not specially designed or recommended for this power tool. Just because you can attach accessories or insertion tools to your power tool does not guarantee that they can be used safely. This may increase the risk of injury, accelerate the wear on the power tool and decrease the quality of the working results.
  Depending on the type and use of the accessory, particles, the insertion tool or parts of the insertion tool could come loose. This can lead to increased exposure to dust and to unexpected movements.

Wear suitable personal protective equipment. Be prepared for a high reaction torque, which may cause the power tool to turn and lead to injury.

2.3 Safety instructions when using long drill bits

• Never operate at higher speed than the maximum speed rating of the drill bit. At higher speeds, the bit is likely to bend if allowed to rotate freely without contacting the workpiece, resulting in personal injury.
• Always start drilling at low speed and with the bit tip in contact with the workpiece. At higher speeds, the bit is likely to bend if allowed to rotate freely without contacting the workpiece, resulting in personal injury.
• Apply pressure only in direct line with the bit and do not apply excessive pressure. Bits can bend causing breakage or loss of control, resulting in personal injury.

2.4 Emission levels

The levels determined in accordance with EN 62841 are typically:

Drilling

Sound pressure level L PA=68 dB(A)

Sound power level L WA=76dB(A)

Uncertainty K = 5 dB

Fastening

Sound pressure level L PA=67 dB(A)

Sound power level L WA=75dB(A)

Uncertainty K = 3 dB

CAUTION

Noise emissions created while working with the power tool may damage your hearing.

Always use ear protection.

Vibration emission level a_h (vector sum for three directions) and uncertainty K measured in accordance with EN 62841:

Drilling in metal a_h = 3.6 m/s^2

$$ K = 1. 5 \mathrm {m} / \mathrm {s} ^ {2} $$

Fastening a_h < 2.5m / s^2

$$ K = 1. 5 \mathrm {m} / \mathrm {s} ^ {2} $$

The specified emission levels (vibration, noise)

• are used to compare machines.
• They are also used for making preliminary estimates regarding vibration and noise load during operation.
• They represent the primary applications of the power tool.

CAUTION

The emission values may deviate from the specified values. This is dependent on how the tool is used and the type of workpiece being machined.

Assess the actual load during the entire operating cycle.
- Depending on the actual load, suitable protective measures must be defined in order to protect the operator.

3 Intended use

Cordless drill suitable

• for drilling in metal, wood, plastics and similar materials,
• for screwing in and tightening screws.
• intended for use with BP Festool battery packs of the same voltage class.

The user is liable for damage and accidents caused by improper and non-intended use; this also includes damage and wear caused by continuous industrial operation.

4 Technical data

Cordless drill C 18 Li
Motor voltage 18 V	=
No-load speed* 1st gear 0 - 450 rpm
	1st gear 0 - 1500 rpm
Max. torque Soft material (wood) 27 Nm
	Hard material (metal) 45 Nm
Adjustable torque** 1st gear 0.8 - 8 Nm
	2nd gear 0.5 - 6 Nm
Chuck clamping range 1.5 - 13 mm
Max. drill diameter Wood 40 mm
	Metal 13 mm
Tool holder in drill spindle 1/4"
Weight excl. battery pack 1.3 kg

• Speed specifications with fully charged battery pack.
  ** The maximum speed is reduced in the lower torque stages (values in clockwise rotation).

5 Functional description

[1-1] Torque thumbwheel
[1-2] Bit store
[1-3] LED light
[1-4] Gear switch
[1-5] Drilling symbol
[1-6] Screwdriving symbol
[1-7] Screwdriving/drilling selector switch
[1-8] Rotational direction switch
[1-9] On/off switch
[1-10] Handle
[1-11] Belt clip
[1-12] Buttons for releasing the battery pack
[1-13] Insulated gripping surfaces (grey shaded area)

Accessories shown or described are not always included in the scope of delivery.

The specified illustrations appear at the beginning of the Operating Instructions.

6 Battery pack

Before using the battery pack, check that the battery interface is clean. Any contamination of the battery interface may impair correct contact and lead to the contacts being damaged.

A faulty contact may result in the machine overheating or being damaged.

[2A] Remove the battery pack.

[2B] click Insert the battery pack - until it clicks into place.

Further information about the charger and battery pack with capacity indicator can be found in the corresponding operating manual.

7 Commissioning

CAUTION

Risk of injury

• Only assemble when the power tool is switched off!

7.1 Belt clip

The belt clip allows a shot-term securing of the device in the work clothes. Insert the belt clip on the designated side, right or left, and fix it with the screw [1A].

7.2 Switching on/off[1-9]

Press = ON, release = OFF

The speed can be infinitely adjusted, relative to the pressure applied to the on/off switch.

The LED light [1-3] lights up when the on/off switch [1-9] is pressed.

8 Settings

CAUTION

Risk of injury

• Only adjust the settings when the power tool is switched off.

8.1 Changing direction of rotation [1-8]

• Switch to the left = clockwise rotation
• Switch to the right = counterclockwise rotation

8.2 Changing gear [1-4]

Only actuate the gear switch with the tool switched off. Otherwise there is a risk of damaging the gear unit.

Gear switch forwards (digit 1 visible) = 1st gear
Gear switch to rear (digit 2 visible) = 2nd gear

8.3 Fastening

Adjust the switch so that its marking [1-7] faces the screw symbol [1-6].

Adjust the torque accordingly at the torque wheel [1-1].

Position 1 = low torque

Position 25 = high torque

An acoustic signal sounds when the preset torque is reached and the machine then switches off. You must release and press the ON/OFF switch [1-9] again to start the machine.

8.4 Drilling

Adjust the switch [1-7] so that its marking faces the drilling symbol [1-5]. Maximum torque is set in this position.

9 Tool holder, attachments

WARNING

Risk of injury

• Remove the battery pack from the power tool before performing any work on the power tool.

CAUTION

Risk of injury from hot and sharp tool.

• Do not use any blunt or faulty tools.
  Wear protective gloves when handling a tool.

9.1 CENTROTEC tool chuck [3]

Quick change of tools with CENTROTEC shaft

Only clamp CENTROTEC tools in CENTROTEC tool chucks.

9.2 Chuck [4]

For clamping drill bits and bits with max. shaft diameter of 13mm

WARNING! Clamp the tool centrally in the chuck.

9.3 Angle attachment [5]

Drilling and screwdriving at right angles to the power tool (available as an accessory depending on the model).

9.4 Eccentric adapter [6]

Screwdriving close to edges with bits according to ISO 1173 (available as an accessory depending on the model).

9.5 Tool holder in the drill spindle [7]

Bits can be inserted directly into the hexagon socket holder of the drill spindle.

10 Working with the electric power tool

WARNING

Risk of injury

• Only position the power tool on the screw when it is switched off.
  Always secure the workpiece in such a manner that it cannot move during machining.
• Keep hands away from the rotating tools.

CAUTION

Risk of burns

The tool holder and tool may become very hot during operation.

• Allow the tool holder and the tool to cool down before attaching the power tool to the belt clip.

10.1 Bit store [1-2]

CAUTION

Risk of injury from metal cuttings in the bit store.

Clean the bit store regularly and clear out metal cuttings.

Magnetic, for storing bits and bit holders.

10.2 Acoustic warning signals

Acoustic warning signals sound and the machine switches off in the following operating states:

Battery flat or machine overloaded.

peep — —

• Change the battery.
• Place the machine under reduced stress.

peeppeep

Machine is overheating.

• You must allow the machine to cool before using again.

peep peep peep

Lilon battery pack is faulty or has overheated.

• Once the battery pack has cooled, perform a functional check using the charger.

11 Service and maintenance

WARNING

Risk of injury, electric shock

Always remove the battery pack from the power tool before performing any maintenance or service work.
All maintenance and repair work which requires the motor housing to be opened should always be carried out by an authorised service workshop.

Customer service and repairs must only be carried out by the manufacturer or service workshops. You must only use original Festool spare parts.

Further information: www.festool.co.uk/service

Observe the following instructions:

To ensure constant air circulation, always keep the cooling air openings in the housing clean and free of blockages.
- Do not clean the power tool with compressed air.

• Keep the contacts on the power tool, charger and battery pack clean.

12 Environment

Do not dispose of electrical devices, used batteries and battery packs in the household waste. Recycle devices, accessories and packaging. Observe applicable regulations.

Before disposing of used batteries, battery packs and lamps, separate them from the electrical device without destroying them. This means they can be recycled efficiently. In accordance with the European Directive on waste electrical and electronic equipment and implementation in national law, used electrical devices must be collected separately and handed in for environmentally friendly recycling. Information on the collection points can be viewed at www.festool.com/environment.

Information on critical materials:

www.festool.co.uk/reach

13 General information

Imported into the UK by

Festool UK Ltd

1 Anglo Saxon Way

Bury St Edmunds

IP30 9XH

Great Britain

13.1 Bluetooth®

The Bluetooth® word mark and the logos are registered trademarks of Bluetooth SIG, Inc.; they are used by TTS Tooltechnic Systems AG & Co. KG, and therefore by Festool, under licence.

Sommaire

Appuyer = MARCHE, relacher = ARRET

Position 1 = petit couple

Position 25 = grand couple

9.1 Mandril CENTROTEC [3]

Varning for allman risk

Varning for elstötar

Montera endast for hand.
