Product type	Mixing bowl (blender)
Brand	Krups
Model	Perfect Mix KB430
Blender bowl capacity (thick preparations)	1.5 L
Blender bowl capacity (liquid preparations)	1.25 L
Preset functions	Smoothie, Ice crush, Auto clean
Variable speed	Yes, gradual between min and max
Pulse function	Yes
Bowl material	Glass
Included accessories (depending on model)	Spatula, herb chopper, spice grinder, mini chopper
Dishwasher safe	Bowl, blade block, locking ring (upper basket, ECO program)
Automatic cleaning	Auto clean program with hot water (max 80°C)
Safety	Automatic shut-off in case of overload, cooling time up to 30 min
Power supply	220-240 V (approximate)
Repairability	Product repairable by Krups during and after warranty
Warranty	2 years against manufacturing defects

Frequently Asked Questions - Perfect Mix KB430 KRUPS

Why won't my appliance start?

Check that the blender bowl is properly locked onto the motor block and that the lid is in place. The appliance will only start if the bowl is correctly positioned. Also ensure that the appliance is plugged in.

What should I do if the appliance turns off while in use?

This is likely due to an overload. The appliance shuts off automatically for safety reasons. Let it cool for up to 30 minutes, reduce the amount of ingredients, then restart.

How do I easily clean the blender?

Use the Auto clean function: pour 1 liter of hot water (max 80°C) with a few drops of dish soap, then start the program. You can also clean the bowl, blade block, and ring in the dishwasher (upper basket). The seal is not dishwasher safe.

Can I crush ice with the accessories (chopper, grinder)?

No. The Smoothie, Ice crush and Auto clean functions can only be used with the glass bowl. Never crush ice with the chopper or spice grinder.

How to avoid leaks at the bottom of the bowl?

Check that the seal (F3) is correctly positioned on the blade block and that the locking ring is properly locked (both arrows aligned). If the seal is twisted or damaged, replace it.

What is the maximum capacity for hot liquids?

Never pour boiling liquids (over 80°C) into the bowl. Respect the capacities: 1.5 L for thick mixtures and 1.25 L for liquids.

How to use the Pulse function?

Turn the control knob to Pulse. The appliance runs at maximum speed as long as you hold the position. Release to stop. Ideal for precise blending control.

Can I blend hot ingredients?

Yes, but not boiling liquids. The temperature must not exceed 80°C. For soups, let cool before blending.

Which accessories are compatible with this model?

Depending on the model, you may have a spatula, an herb chopper (K), a spice grinder (L) and a mini chopper (N). These accessories are used with the bowl (M) and cannot be used with the automatic programs (Smoothie, Ice crush, Auto clean).

How to add ingredients while blending?

Remove the measuring cap (F6) from the lid and pour ingredients through the filling opening. This allows you to add liquids or small pieces without stopping the appliance.

USER MANUAL Perfect Mix KB430 KRUPS

White KRUPS blender with clear glass body and control panel (no visible text or symbols on the device itself)

K* K1 K2 L1 L2 L*

K* K1 K2 L1 L2 L*

K* K1 K2 L1 L2 L*

K* K1 K2 L1 L2 L*

K* K1 K2 L1 L2 L*

K* K1 K2 L1 L2 L*

K* K1 K2 L1 L2 L*

K* K1 K2 L1 L2 L*

K1 K2 L1 L2 K* L*

K* K1 K2 L1 L2 L*

K* K1 K2 L1 L2 L*

K* K1 K2 L1 L2 L*

K* K1 K2 L1 L2 L*

K* K1 K2 L1 L2 L*

K* K1 K2 L1 L2 L*

K* K1 K2 L1 L2 L*

K* K1 K2 L1 L2 L*

K* K1 K2 L1 L2 L*

Illustration of a hand using a tool to press down a component, with a downward arrow indicating compression (no text or symbols present)

Illustration of a hand holding a ball bearing down on a cylindrical object, with a downward arrow indicating motion (no text or symbols)

Diagram of a mechanical component with rotating arms and a handle, no text or symbols present

SICHERHEITSHINWEISE

Illustration of a hand holding a tool near a conical device with warning symbol (no text or labels)

Hand holding a warning sign with an explosion symbol above a mechanical component (no text or labels)

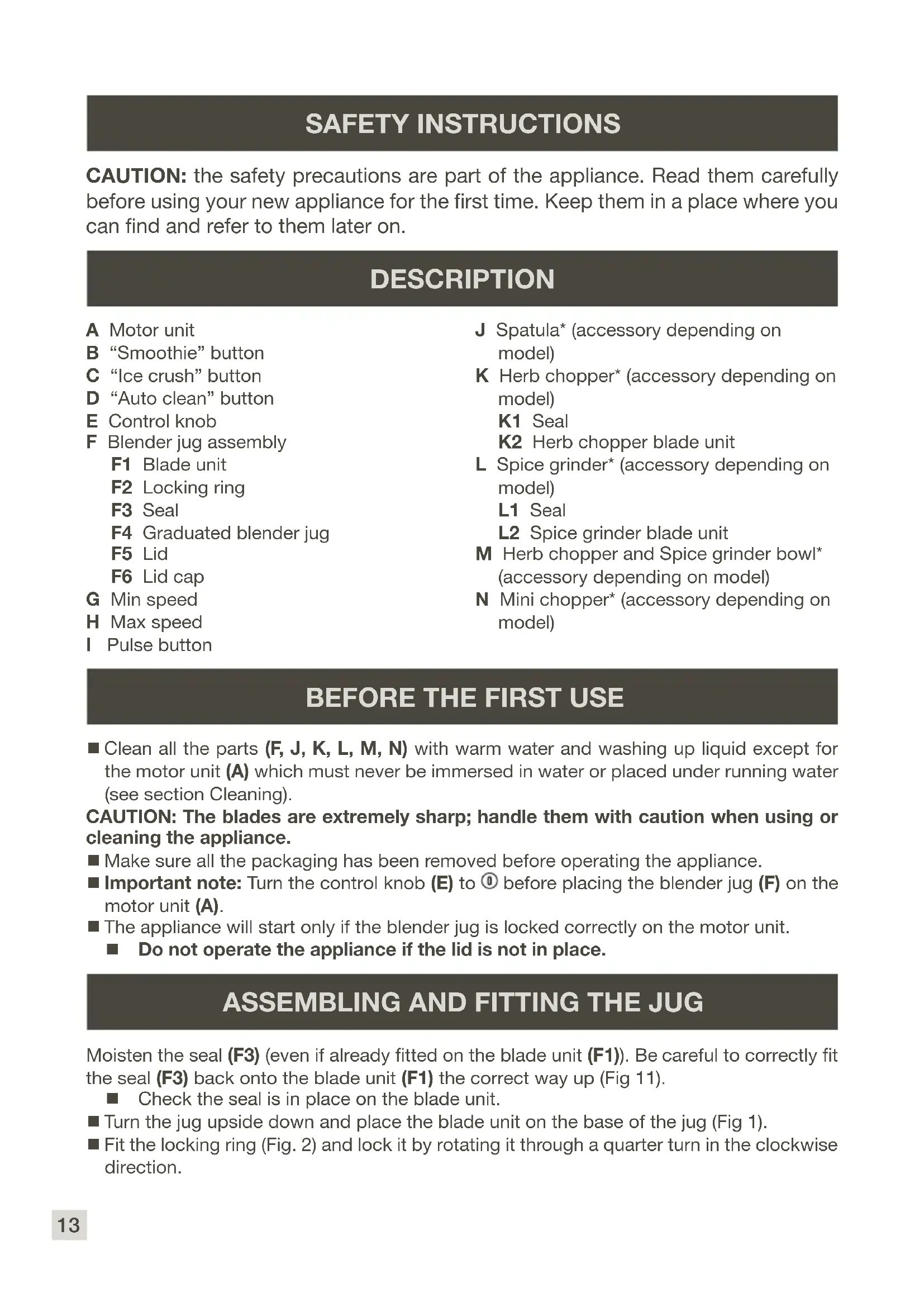

CAUTION: the safety precautions are part of the appliance. Read them carefully before using your new appliance for the first time. Keep them in a place where you can find and refer to them later on.

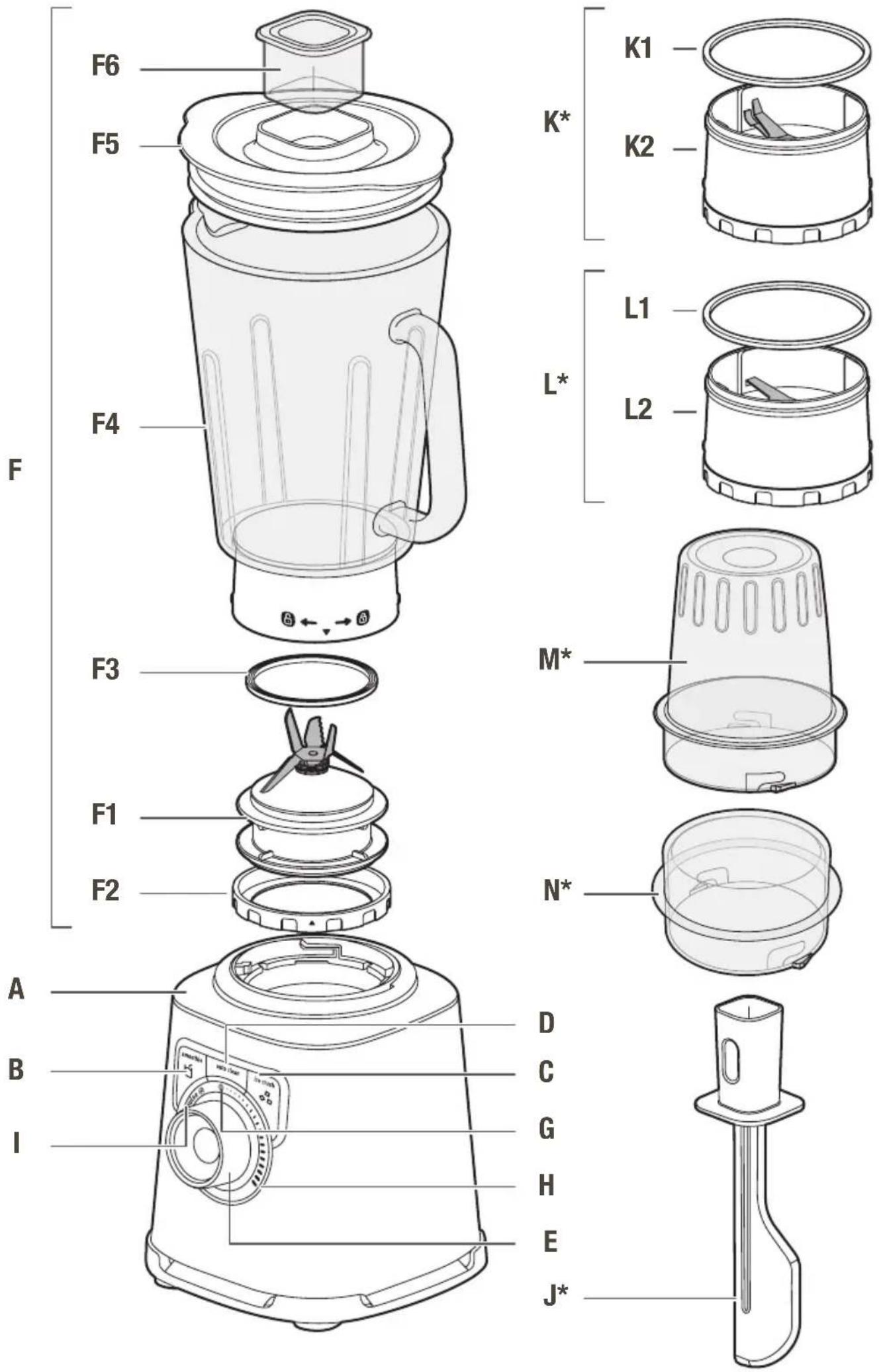

DESCRIPTION

A Motor unit
B "Smoothie" button
C "Ice crush" button
D "Auto clean" button
E Control knob
F Blender jug assembly
F1 Blade unit
F2 Locking ring
F3 Seal
F4 Graduated blender jug
F5 Lid
F6 Lid cap
G Min speed
H Max speed
I Pulse button

J Spatula* (accessory depending on model)
K Herb chopper* (accessory depending on model)
K1 Seal
K2 Herb chopper blade unit
L Spice grinder* (accessory depending on model)
L1 Seal
L2 Spice grinder blade unit
M Herb chopper and Spice grinder bowl* (accessory depending on model)
N Mini chopper* (accessory depending on model)

BEFORE THE FIRST USE

■ Clean all the parts (F, J, K, L, M, N) with warm water and washing up liquid except for the motor unit (A) which must never be immersed in water or placed under running water (see section Cleaning).
CAUTION: The blades are extremely sharp; handle them with caution when using or cleaning the appliance.
■ Make sure all the packaging has been removed before operating the appliance.
■ Important note: Turn the control knob (E) to ① before placing the blender jug (F) on the motor unit (A).
■ The appliance will start only if the blender jug is locked correctly on the motor unit.
■ Do not operate the appliance if the lid is not in place.

ASSEMBLING AND FITTING THE JUG

Moisten the seal (F3) (even if already fitted on the blade unit (F1)). Be careful to correctly fit the seal (F3) back onto the blade unit (F1) the correct way up (Fig 11).

- Check the seal is in place on the blade unit.

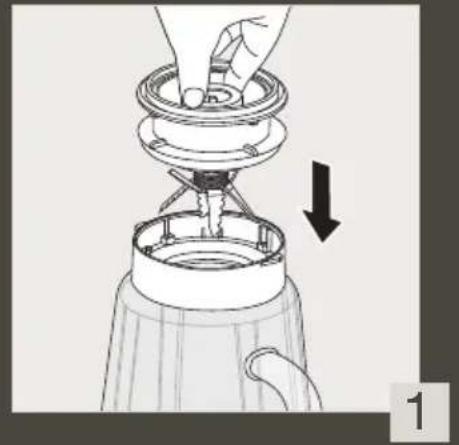

■ Turn the jug upside down and place the blade unit on the base of the jug (Fig 1).

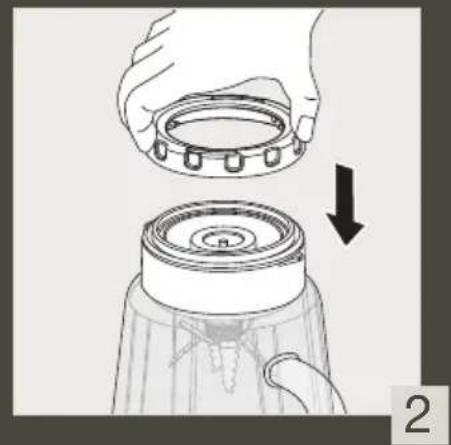

■ Fit the locking ring (Fig. 2) and lock it by rotating it through a quarter turn in the clockwise direction.

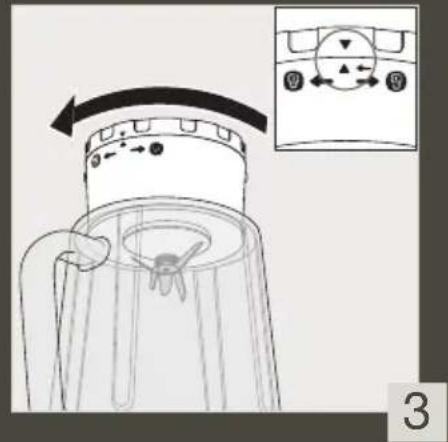

■ Make sure the locking ring is locked correctly : the two arrows must be aligned (Fig 3).
■ Add the ingredients to the assembled jug without exceeding the maximum level indicated:

* 1.5 L for thick mixtures

* 1.25 L for liquid preparations

Warning : Do not pour boiling liquids (over 80°C/176°F) into the jug.

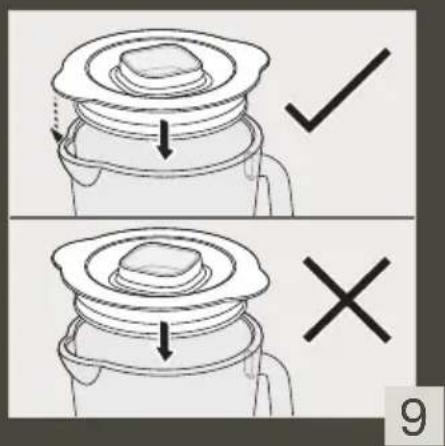

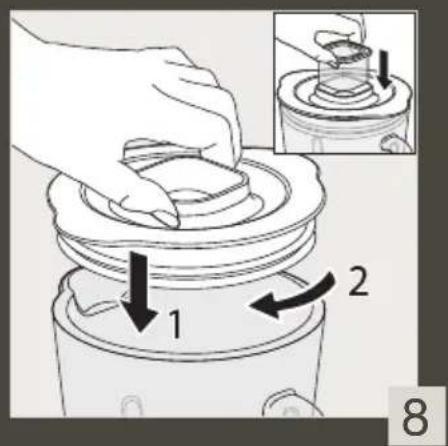

■ Fit the lid (F5) on the jug (Fig. 8). To avoid any splashes during blending make sure that the curved tabs on the lid are aligned with the spout and handle (Fig. 9). Fit the measuring cap (F6) in the hole on the lid (Fig. 8)

USING YOUR BLENDER

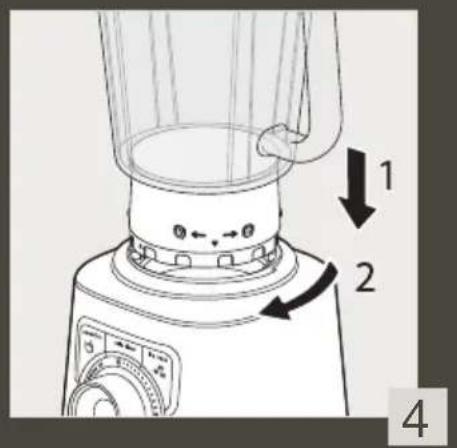

■ Once the blender jug is locked correctly on the motor unit, plug in the appliance. The lights on the appliance flash twice and you hear a beep. Turn it on using the desired function.
■ Speed selection: Turn the control knob (E) to choose the desired speed; the speed increases gradually between min and max. The intensity of the lights on the appliance increase gradually as the speed increases. You can change the speed as required during preparation.
■ “Pulse” function: Turn the control knob (E) to the “Pulse” position. Using a succession of pulses gives finer control for precise preparations. In this position, the appliance starts directly on maximum speed. It stops as soon as you release the knob. The light remains on when the pulse function is in use.

■ Function " Smoothie"

This function is used to prepare smoothies, milkshakes and fruit cocktails. The speed is pre-programmed for best results. To use this function, press the “Smoothie” button (B). The light remains on during this cycle and switches off when the cycle is finished. The program stops automatically and beeps 4 times. You can stop it before the end by pressing the “Smoothie” button (B) again.

■ Function "Ice crush"

You can use this function to crush ice finely with pre-programmed operating cycles and speed. To use this function, press the “Ice crush” button (C). The light remains on during this cycle and switches off when the cycle is finished. You hear 4 beeps. The program stops automatically but you can stop it before the end by pressing the “Ice crush” button (C) again.

■ Function "Auto clean":

This function is used to automatically clean your appliance. Press the “Auto clean” button (D). Do not exceed 1 litre of hot water (maximum temperature of 80^ C / 176^ F). At the end of the program, the appliance stops automatically and you hear 4 beeps.

■ WARNING : If the load becomes too high, your appliance will stop automatically for safety reasons (if the motor runs for more than 3 minutes or if you have used too much ingredients). To restart your appliance, turn the control knob to Ⓞ The overall cooling time may vary and can be up to 30 minutes. Before restarting your appliance, adapt the quantity of ingredients or blending time to avoid any overload. You can then select the desired speed or function to complete your preparation.
■ WARNING : Do not use the program functions smoothie, ice crush and auto clean with the herb chopper (K) and spice grinder (L).

These programs can only be used with the blender jug (F). Do not perform ice crush with the herb chopper (K) and spice grinder (L).

USING THE HERB CHOPPER (K) AND SPICE GRINDER (L)(DEPENDING ON MODEL)

• With the herb chopper (K) you can chop ingredients like onions, garlic or raw meat (pre-cut into small pieces) in a few seconds. Do not use the herb chopper for liquid preparations (fruit juices, etc.).
• With the spice grinder (L) you can grind spices in a few seconds: coriander seeds, peppercorns, etc.

• These accessories are equipped with a bowl (M) that prevents access to the blades during use.

• Turn the bowl (M) upside down and add the ingredients.

• Position the seal (K1 or L1) in its recess on the blade unit (K2 or L2) (Fig. 5). Position the blade unit on the bowl. Lock the accessory by rotating the blade unit until fully assembled (Fig. 6). Caution: leaks can occur if the accessory is not locked correctly.

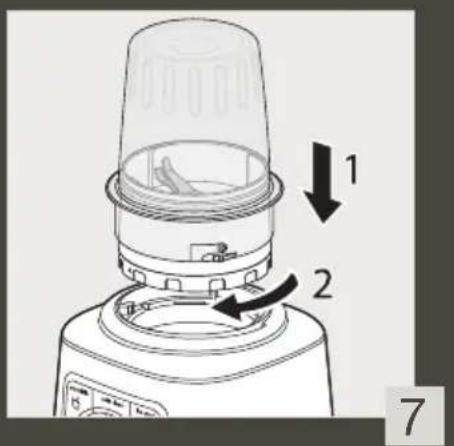

• Rotate the assembled accessory (K or L) and position it on the motor unit (Fig. 7).
• Then turn the assembled accessory (K or L) through a quarter turn clockwise (Fig. 7).
• Plug in the appliance and turn the Control knob (E) to the desired position or apply a few pulses. To stop the appliance, turn the control knob (E) to position zero.
• Unlock the accessory by turning it through a quarter turn in the anticlockwise direction. Remove the assembled accessory (K+M or L+M) from the motor unit. Turn it over before opening to avoid any spillage of your preparation. Then you can unlock the blade unit (K1 or L1). The blades are very sharp: handle them with caution to avoid injury. You can then remove the preparation in the bowl.

Warning : you can use the accessories with solid ingredients only. You can pour liquid ingredients in the blender jug (F) only.

ADVICE

■ Depending on the nature of the ingredients, you can use the blender jug to prepare up to

* 1.5 L for thick mixtures.

* 1.25 L for liquid preparations.

Warning : Do not pour boiling liquids (over 80°C/176°F) in the jug.

■ You can prepare finely blended soups, cream soups, stewed fruit, light batter (pancakes, fritters, Yorkshire pudding batter, etc.), milkshakes, smoothies, cocktails, etc.

If ingredients stick to the sides of the jug when blending, stop the appliance. Remove the blender jug from the motor unit, and push the food down onto the blades using a spatula and put your blender jug back to continue your preparation.

■ Always pour the liquid ingredients into the blender jug first, before adding the solid ingredients, without exceeding the maximum level.

■ To add ingredients while blending, remove the lid cap (F6) from the lid (F5) and add the ingredients through the feeder hole.

■ For finely crushed ice, use a maximum of 6 small ice cubes using "Ice crush" function. There is no need to add water.

RECIPE

Cold carrot soup:

600g carrots + 900g water : Put the carrot pieces in the blender jug and add the water. Mix on max speed for 3 minutes.

Mixed figs (with mini chopper accessory (N), depending on model)

70g figs : Put figs in mini chopper (N). Mix on max speed for 3 seconds.

CLEANING

Do not immerse the appliance in water. Never put the motor unit (A) under running water.

■ Clean the jug immediately after use.

• Fill up the jug with 1 litre of hot water along with 2 or 3 drops of washing up liquid. Only use the recommended amount of water and washing up liquid. An excess of washing up liquid creates more foam and consequently can lead to overflowing.
  ■ Use the automatic auto clean program to carry out a prewash of the jug.

■ Once the program has stopped, unplug the appliance.
■ Remove the blender jug (F4)
■ Place the jug on a flat surface.
■ Unlock the lid and remove it with care. Pour out the water.

■ Remove the blade unit (F1+F3) and clean them under running water. The blades are very sharp, handle them with caution to avoid injury (Fig. 10).

Illustration of a hand holding a small object with warning symbol above, next to a conical device (no text or symbols on the object itself)

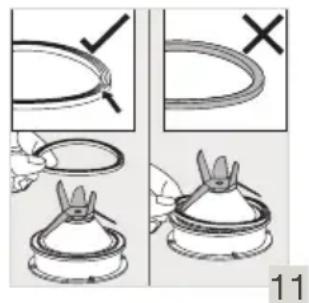

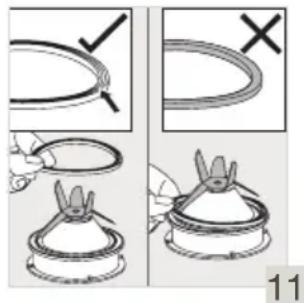

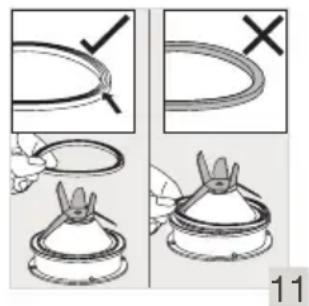

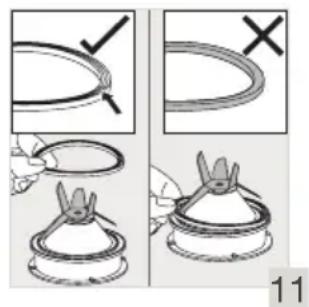

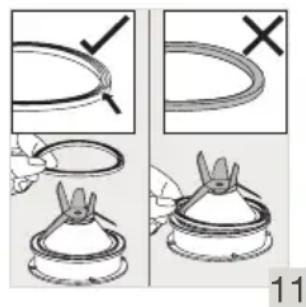

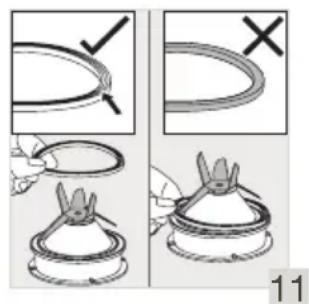

■ After cleaning, remember to correctly fit the seal (F3) back onto the blade unit (F1) (Fig. 11). Please be careful to avoid any damage to the seal by touching the blades. Note: Incorrectly fitting the seal can result in ingredients leaking from the base of the blender jug.

■ Finish cleaning the jug with a damp cloth or sponge.
■ Rinse the inside of the jug and the lid under running water.

■ Take care when cleaning the blades in the blender jug and when you empty the jug as they are sharp.
■ Use a damp cloth to clean the motor unit (A). Dry it carefully.
■ The detachable parts (lid, blade unit, locking ring,) can be cleaned with a sponge and hot soapy water.
■ The jug (F4), blade unit (F1) (but not the seal (F3)), locking ring (F2) can be cleaned in the dishwasher on the upper rack - use the 'ECO' or 'LOW SALT' program.
■ Caution: The jug (F4), blade unit (F1) and locking ring (F2) must be disassembled and placed separately in the dishwasher. Please do not put the seal (F3) in the dishwasher.

WHAT TO DO IF YOUR APPLIANCE DOES NOT WORK

PROBLEMS CAUSES SOLUTIONS
Appliance does not work	The plug is not connected	Connect the appliance to a socket with the same voltage as that on the rating plate of the appliance.
	The blender jug is not positioned correctly on the motor unit	Check that the blender jug is positioned properly on the motor unit as explained in the instructions.
The appliance stopped while in use	Overload	Follow the instructions in section USING YOUR BLENDER.The cooling time is variable and can last up to 30 minutes
Excessive vibrations	The product is not placed on a flat, stable surface	Place the appliance on a flat surface.
	Volume of ingredients is too high	Reduce the quantity of ingredients processed.
Leak from the lid	Volume of ingredients is too high	Reduce the quantity of ingredients processed.
	The lid is not correctly positioned	Place the lid correctly on the blender jug.
Leak at the bottom of the blender jug	The blender seal (F3) is not positioned correctly or is absent	Reposition the seal with the correct side uppermost (Fig. 11) and lock the assembled blade unit (F1+F2+F3) onto the blender jug correctly (Fig. 1, Fig. 2 & Fig. 3)
The blade does not turn easily	Pieces of food are too large or too hard. Liquid has been blended that was too hot and has distorted the seal	Replace the seal with a new one. Reduce the size or quantity of ingredients processed. Add liquid.

YOUR APPLIANCE STILL DOES NOT WORK?

Contact an approved service centre (see list in service booklet).

KRUPS INTERNATIONAL LIMITED GUARANTEE

: www.krups.com

This product is repairable by KRUPS during and after the guarantee period.

Accessories, consumables and end-user replaceable parts can be purchased, if locally available, as described on the

KRUPS internet site www.krups.com

The Guarantee:

This product is guaranteed by KRUPS (company address and details included in the country list of the KRUPS International Guarantee) against any manufacturing defect in materials or workmanship for a period of 2 years starting from the initial date of purchase or delivery date.

The international manufacturer's guarantee by KRUPS is an extra benefit which does not affect consumer's Statutory Rights. The international manufacturer's guarantee covers all costs related to restoring the proven defective product so that it conforms to its original specifications, through the repair or replacement of any defective part and the necessary labour. At KRUPS's choice, a replacement product may be provided instead of repairing a defective product. KRUPS's sole obligation and your exclusive resolution under this guarantee are limited to such repair or replacement.

Conditions & Exclusions:

The international KRUPS guarantee only applies within the guarantee period and for those countries listed in the country list attached and is valid only on presentation of a proof of purchase. The product can be taken directly in person to an authorised service centre or must be adequately packaged and returned, by recorded delivery (or equivalent method of postage), to a KRUPS authorised service centre. Full address details for each country's authorised service centres are listed on KRUPS website (www.krups.com) or by calling the appropriate telephone number as set out in the country list to request the appropriate postal address.

KRUPS shall not be obliged to repair or replace any product which is not accompanied by a valid proof of purchase.

This guarantee will not cover any damage which occurs as a result of misuse, negligence, failure to follow KRUPS instructions, use on current or voltage other than as stamped on the product, or a modification or unauthorised repair of the product. It also does not cover normal wear and tear, maintenance or replacement of consumable parts, or the following:

• using the wrong type of water or consumable - ingress of water, dust or insects into the product
• damage as a result of lightning or power surges - mechanical damages, overloading
• scaling (any de-scaling must be carried out according to the instructions for use) - accidents including fire, flood, thunderbolt, etc
• damages or poor results due to wrong voltage or frequency - damage to any glass or porcelain ware in the product
  – professional or commercial use

This guarantee does not apply to any product that has been tampered with, or to damages incurred through improper use and care, faulty packaging by the owner or mishandling by any carrier.

In order to offer the best possible after-sales service and constantly improve customer satisfaction, KRUPS may send a satisfaction survey to all customers who have had their product repaired or exchanged in a KRUPS authorised service centre.

The international KRUPS guarantee applies only for products purchased in one of the countries listed, and used for domestic purposes only in one of the countries listed on the Country List. Where a product purchased in one listed country and then used in another listed country:

a. The international KRUPS guarantee does not apply in case of non conformity of the purchased product with the local standards, such as voltage, frequency, power plugs, or other local technical specifications
b. The repair process for products purchased outside the country of use may require a longer time if the product is not locally sold by KRUPS
c. In cases where the product is not repairable in the new country, the international KRUPS guarantee is limited to a replacement by a similar product or an alternative product at similar cost, where possible.

Consumer Statutory Rights :

This international KRUPS guarantee does not affect the statutory rights a consumer may have or those rights that cannot be excluded or limited, nor rights against the retailer from which the consumer purchased the product. This guarantee gives a consumer specific legal rights, and the consumer may also have other legal rights which vary from State to State or Country to Country. The consumer may assert any such rights at his sole discretion.

For Australia only: Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and compensation for any other reasonably foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount to a major failure.

*** Please keep this document for your reference should you wish to make a claim under the guarantee
