USER MANUAL DigiMicroscope Vario Reflecta

Uninstalling the xploview software Starting the xploview software

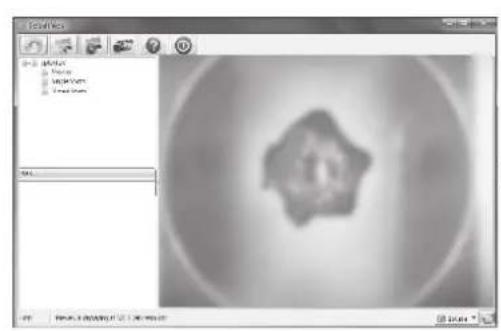

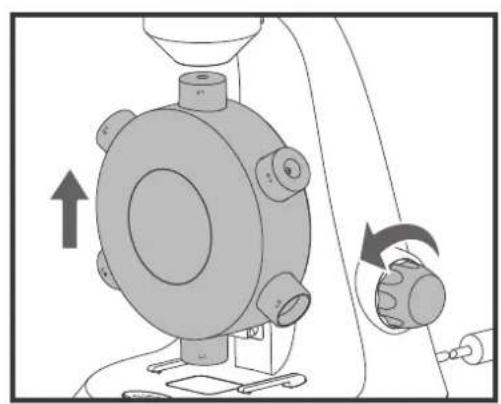

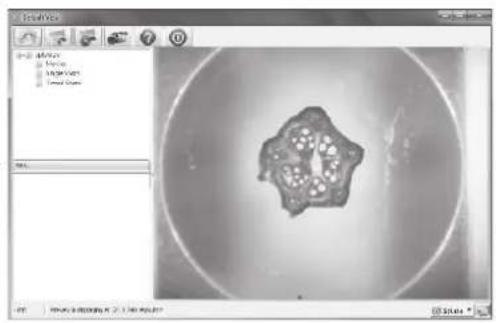

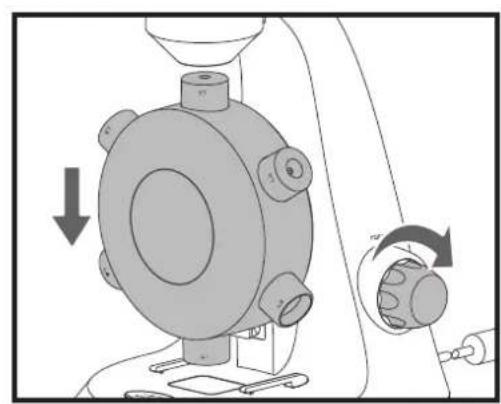

BASICS Selecting a light source Focusing Taking a snapshot

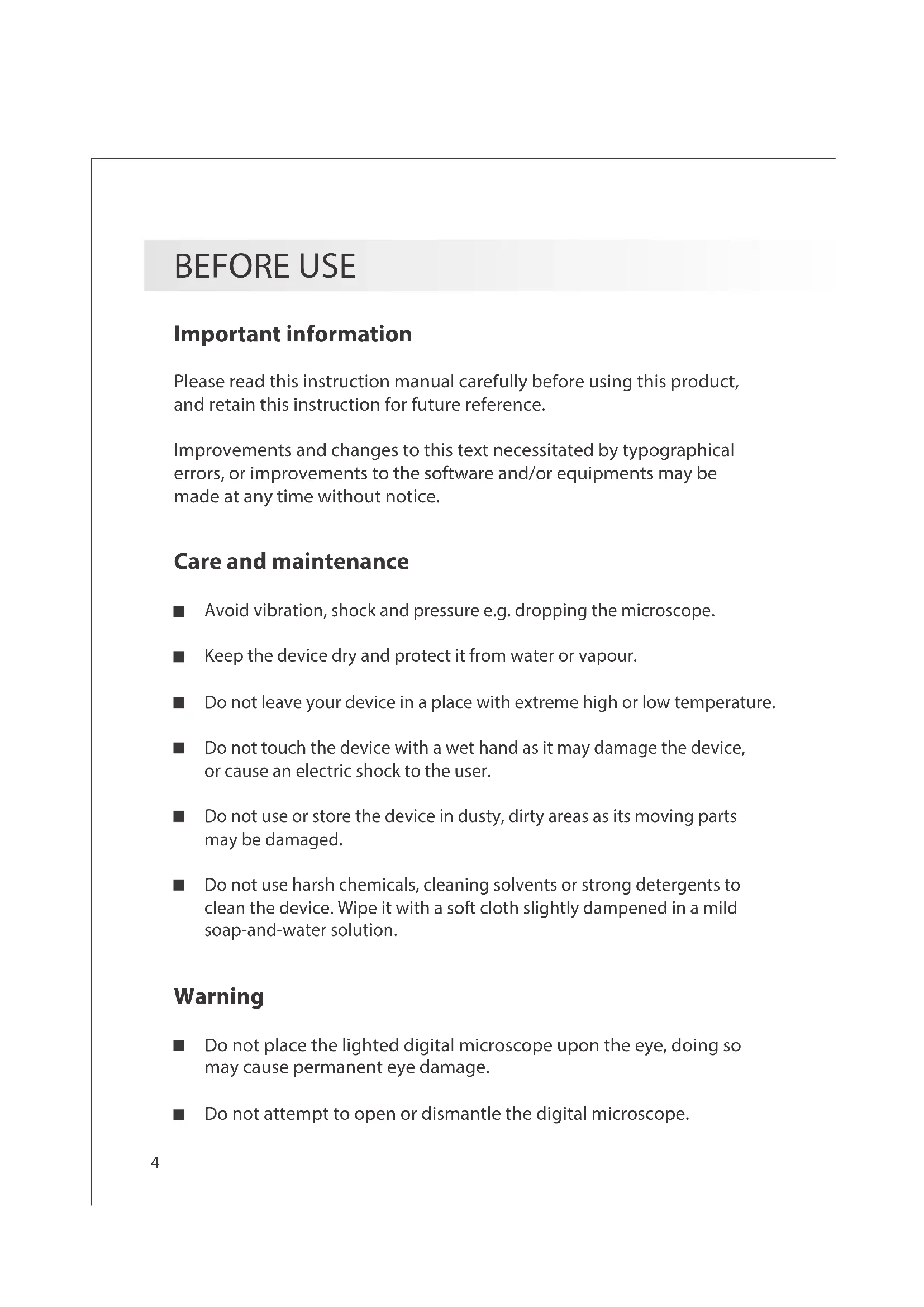

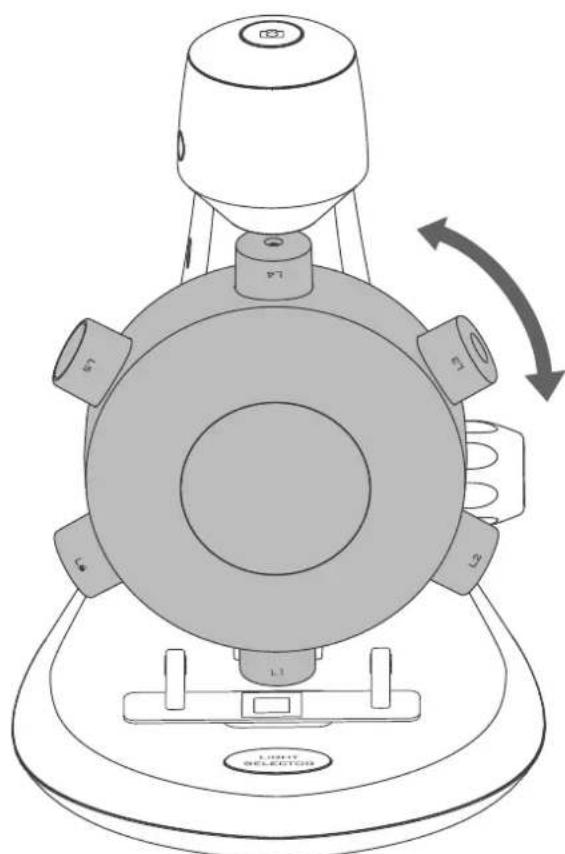

Selecting a magnication powerBEFORE USE Important information Care and maintenance Warning Do not place the lighted digital microscope upon the eye, doing so may cause permanent eye damage. Do not attempt to open or dismantle the digital microscope. Avoid vibration, shock and pressure e.g. dropping the microscope. Keep the device dry and protect it from water or vapour. Do not leave your device in a place with extreme high or low temperature. Do not touch the device with a wet hand as it may damage the device, or cause an electric shock to the user. Do not use or store the device in dusty, dirty areas as its moving parts may be damaged. Do not use harsh chemicals, cleaning solvents or strong detergents to clean the device. Wipe it with a soft cloth slightly dampened in a mild soap-and-water solution. Please read this instruction manual carefully before using this product, and retain this instruction for future reference. Improvements and changes to this text necessitated by typographical errors, or improvements to the software and/or equipments may be made at any time without notice. 4Product description

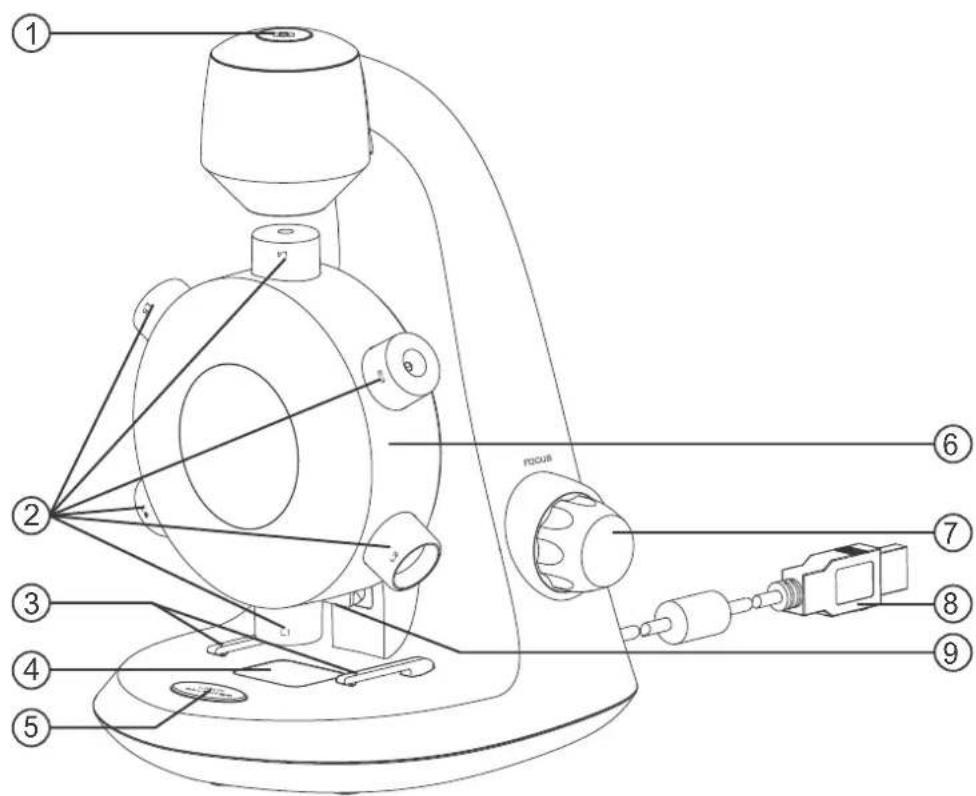

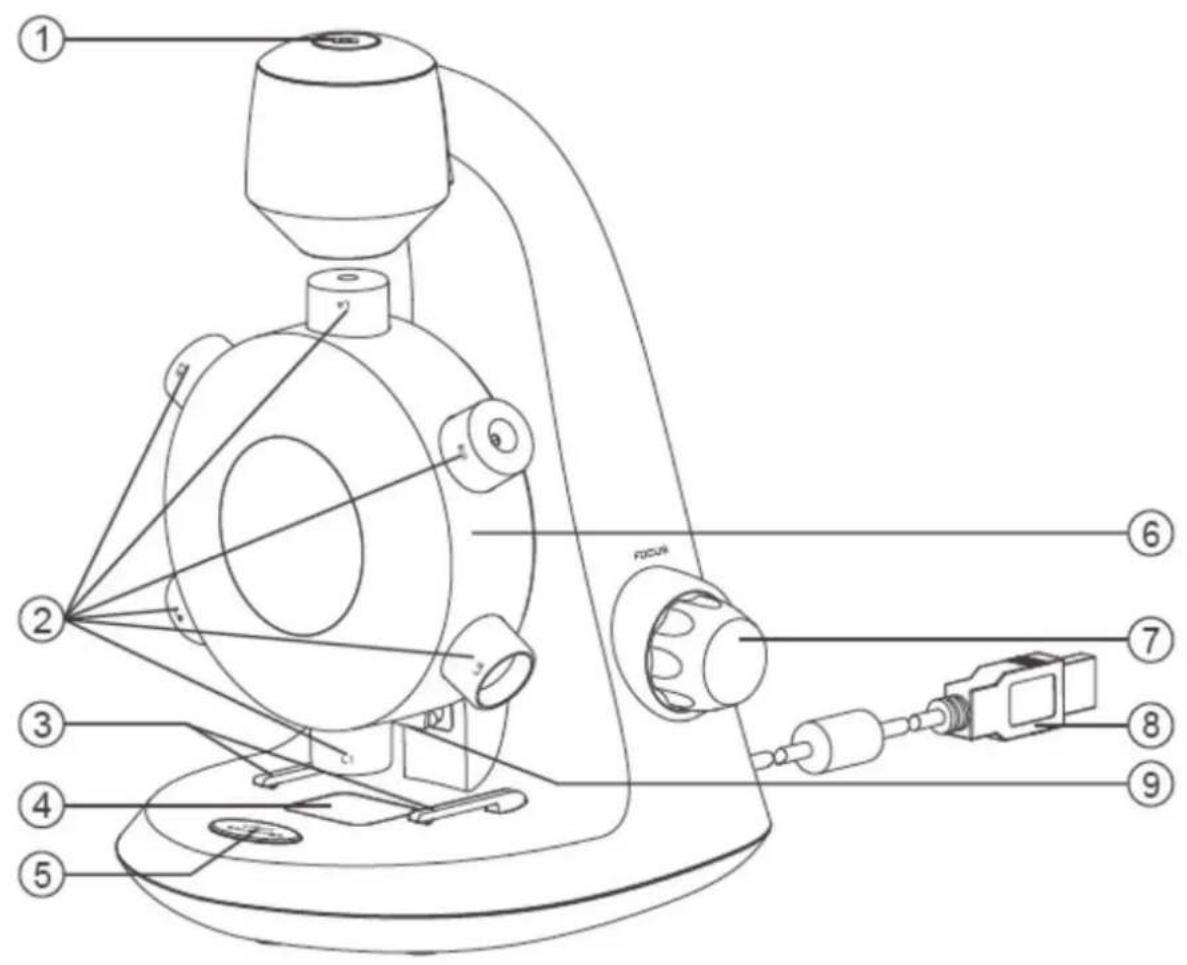

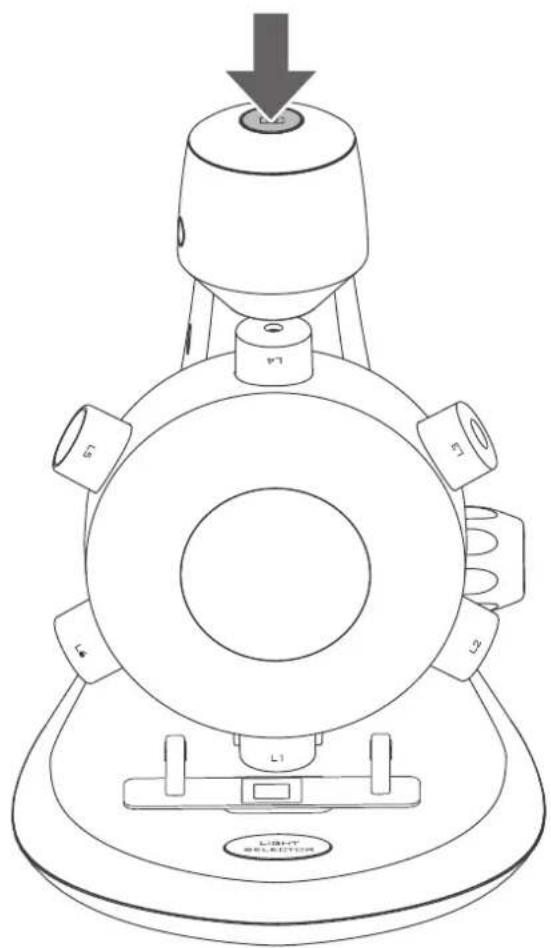

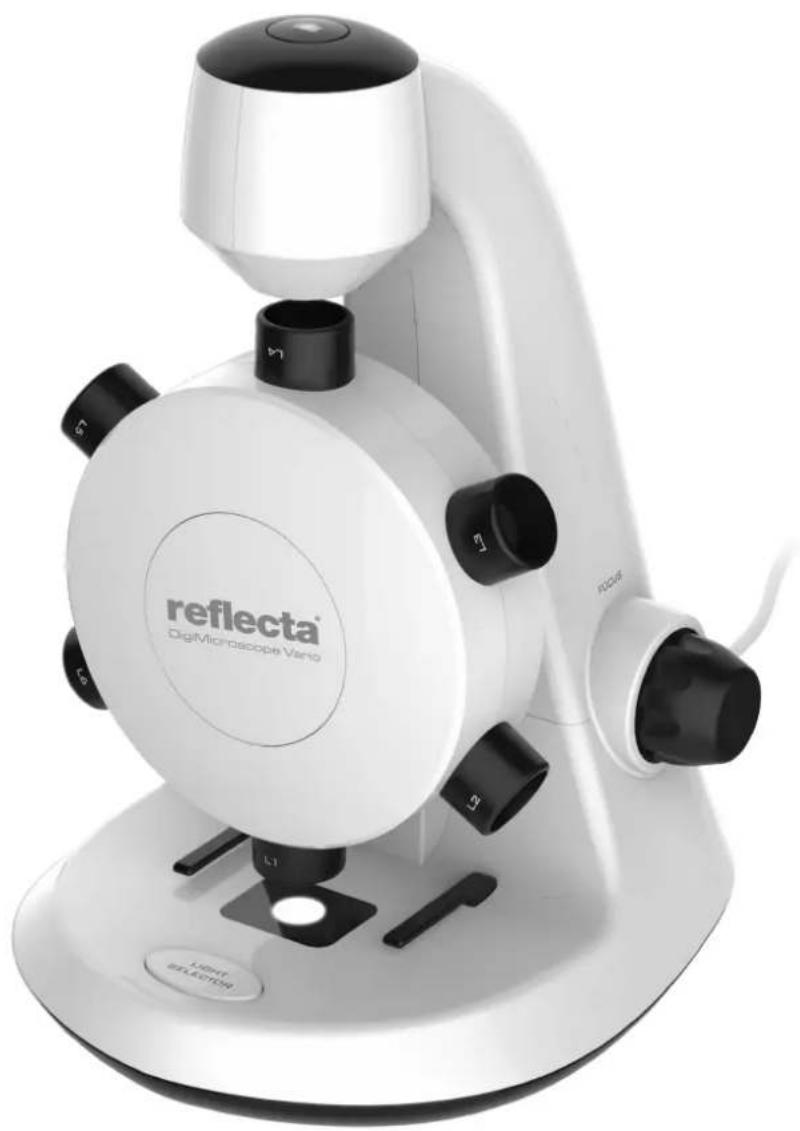

Computer requirements Windows 10 (32 bit or 64 bit) Windows 8 (32 bit or 64 bit) Windows 7 (32 bit or 64 bit) Windows Vista (32 bit or 64 bit) Windows XP SP2, SP3 Compatible operating systems Windows based PC This product diers from a traditional optical microscope such that, instead of looking through an eyepiece, magnied image or live video is displayed on the computer monitor via a USB connection. This product has an integrated object turret carrying six dierent object lenses. When viewing the image on a 17” monitor, this product can magnify specimens at 100x, 200x, 300x, 400x, 500x and 600x. The magnication is dependent on the size of the computer monitor – the larger the monitor, the higher the magnication. Snapshot of the specimens can be captured using the snapshot button located on the top of the device. Live videos and snapshots can also be captured and stored on the computer using the software provided. USB USB 2.0Compatible operating systems Mac OS based PC Mac OS X 10.5.6 - Mac OS X 10.11.x

Package contents Digital microscope with USB cable Installation CD User manual Tweezers Blank specimen slides x3 Prepared slide with cotton swatch Dropper Blank specimen slides cover x6 USB USB 2.01

Connection type USB 2.0 Illumination LED Eective observation area Magnication power (viewing on a 17 monitor) Power supply L1 = 100x L2 = 200x L3 = 300x L4 = 400x L5 = 500x L6 = 600x L1 = 3.6 x 2.7mm L2 = 1.8 x 1.4mm L3 = 1.2 x 0.9mm L4 = 0.9 x 0.7mm L5 = 0.7 x 0.5mm L6 = 0.6 x 0.45mm Sensor Maximum snapshot resolution CMOS 1600 x 1200 pixels (UXGA) Weight 369 grams Size Maximum video capturing resolution 640 x 480 pixels (VGA) 130mm x 154mm x 208mmGETTING STARTED

Insert the supplied application CD to the CD-ROM of the computer. Double click the "xploview v3.2.xx.exe" icon < > located on the Follow the xploview setup wizard to install the application software for the digital microscope. driver CD. Windows based PC Software installation Insert the supplied application CD to the CD-ROM of the computer. Double click the "xploview v3.2.xx.dmg" icon < > located on the driver CD. Mac OS based PC Drag the xploview icon < > into the Applications folder.icon < > from the Applications menu.

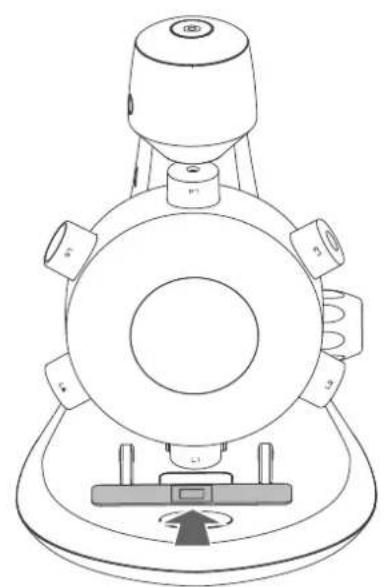

Connecting the device Connect the device to the computer using the USB cable provided. The xploview software can be launched by double clicking the xploview icon < > from the desktop, or from the start menu. Starting the xploview software Windows based PC The xploview software can be launched by double clicking the xploview Mac OS based PC When the device is connected to the computer for the rst time, a driver will automatically be installed by Windows or Mac OS. This process could take up to a few minutes. Each time when the xploview software is started, the device should start up automatically. Otherwise, the device can be selected from the device setup section of the system settings menu.Installing a specimen slide Place a prepared specimen slide on the specimen stage and slide it into the specimen slide clips such that the clips hold the specimen slide securely. 11Selecting a light source This digital microscope contains two light sources, one located above the stage and one underneath providing incident and transmitted illumination respectively. When the device is connected to a computer, on executing the provided software, one of the lights will be switched on. Press the light selector switch once to switch over to the desired illumination system. When quitting the software, the light will switch o automatically. Press once to switch over illumination system Transmitted illumination Incident illumination BASICS 12Selecting a magnication power The objective turret can be rotated both ways – clockwise or anticlockwise. Taking the lease powerful objective, L1, as an example; rotate the objective turret such that L1 is directly on top of the specimen. When the objective is correctly aligned, you will feel a ‘click’. Rotate the object turret to select the desired magnication. 13Focusing Rotate the focusing knob clockwise or anticlockwise until the image is sharp. Note: Please make sure that the objective is clear from obstacles and does not hit the specimen slide while lowering the objectives turret during focusing. 14Taking a snapshot Press the snapshot button to take a snapshot.

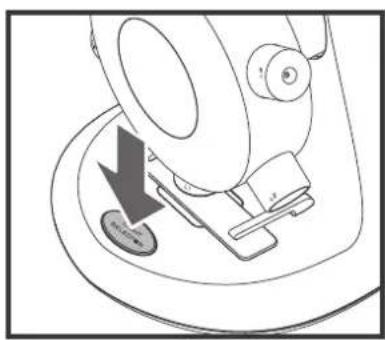

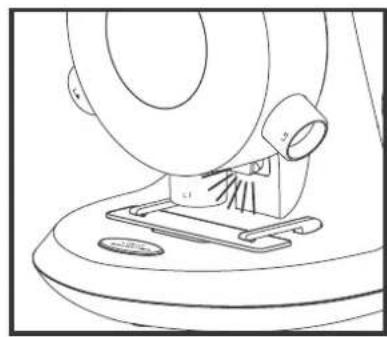

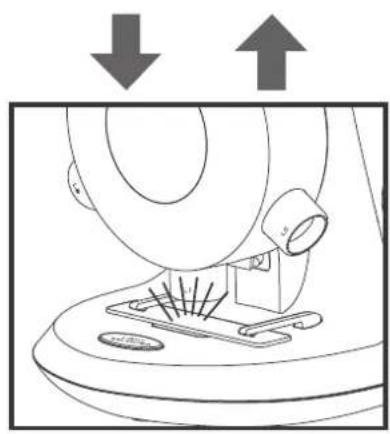

15USING THE XPLOVIEW SOFTWARE

information maybe helpful when updating software. captured at a regular interval (see system settings menu on page 20 to adjust frequency and duration). menu on page19). The icons on the button menu : Button menu

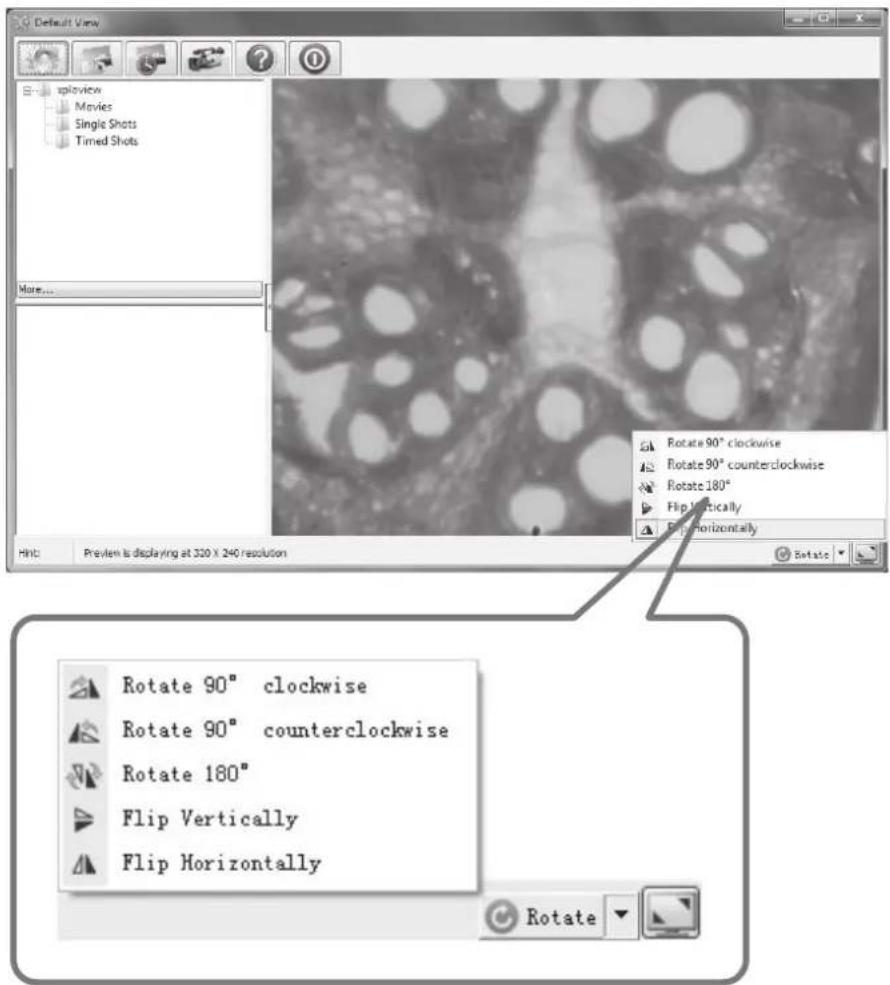

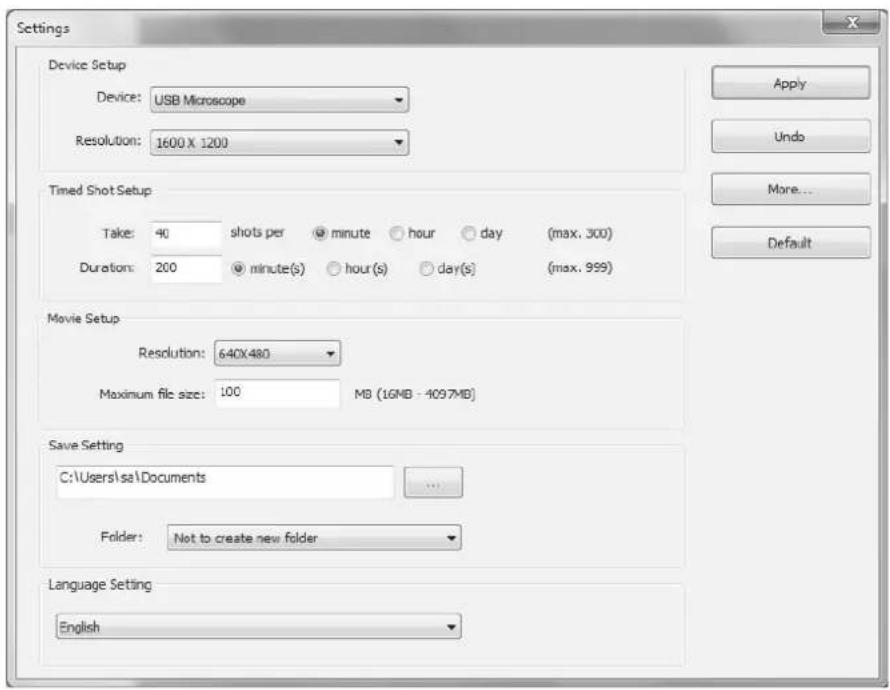

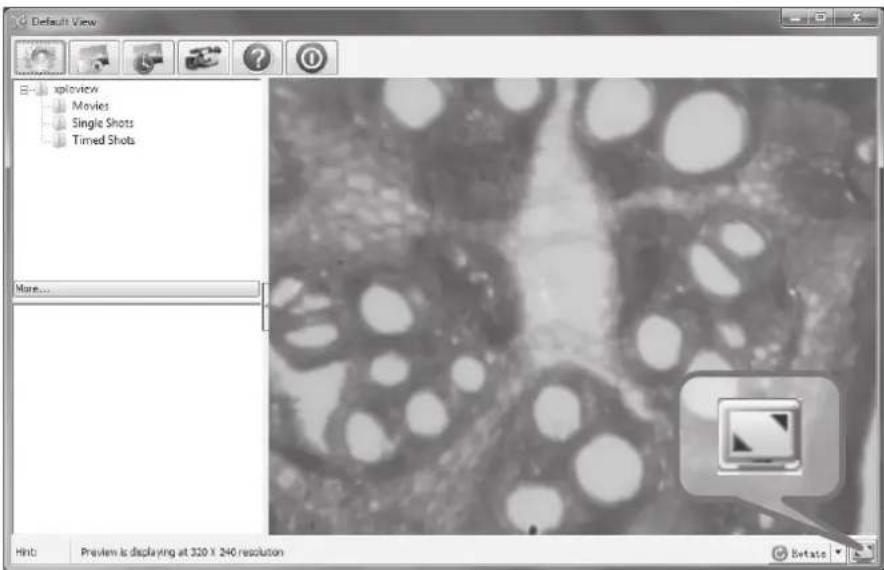

Open System Settings Menu (see system settings Capture on screen image. To start and to stop Timed Shot. Images will be Information of the application software. This Shut down the application software. To start and to stop Video Recording.Full screen viewing To activate the full screen mode, click the full screen button < > located on the bottom right corner of the xploview application software window. To exit full screen mode, either double click on the screen, or press the "Esc" button on the keyboard. 17Image rotation / ip Click < > button to rotate or ip the image. 18System settings menu The rst time the xploview software is started, the default settings will be loaded, you may change these settings manually in the system settings menu. 19Device setup If the image captured by the digital microscope was not displayed by default, you can change this by selecting it from the "Device" drop-down menu. The resolution of images you capture can be changed from the "Resolution" drop-down menu. Timed shot setup The frequency and duration of automatic images capture can be adjusted under this option. Movie setup

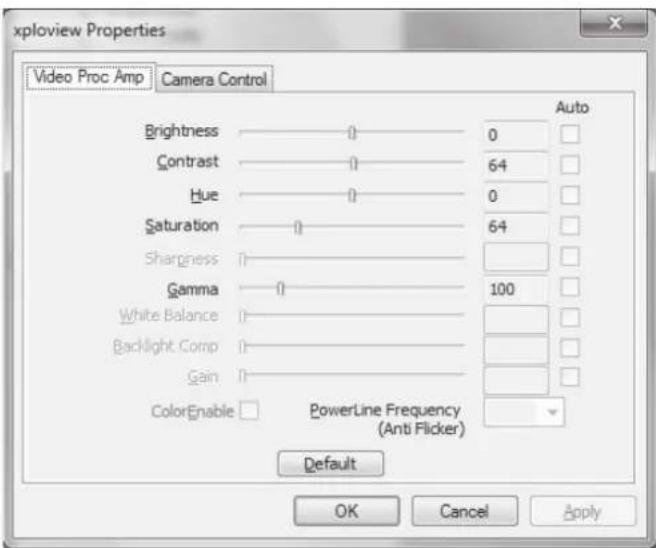

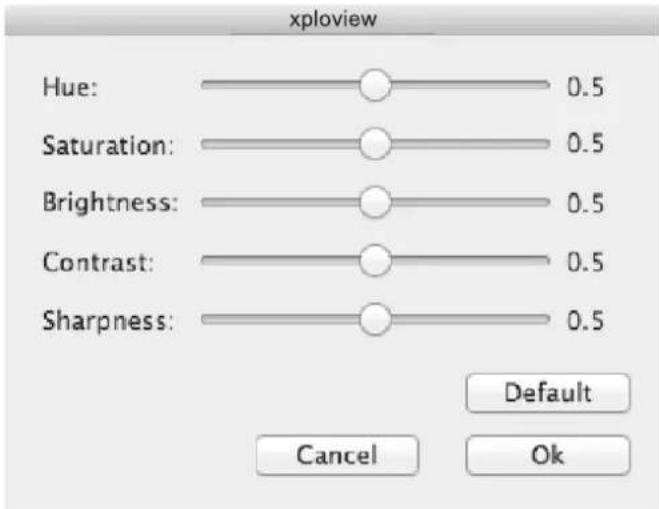

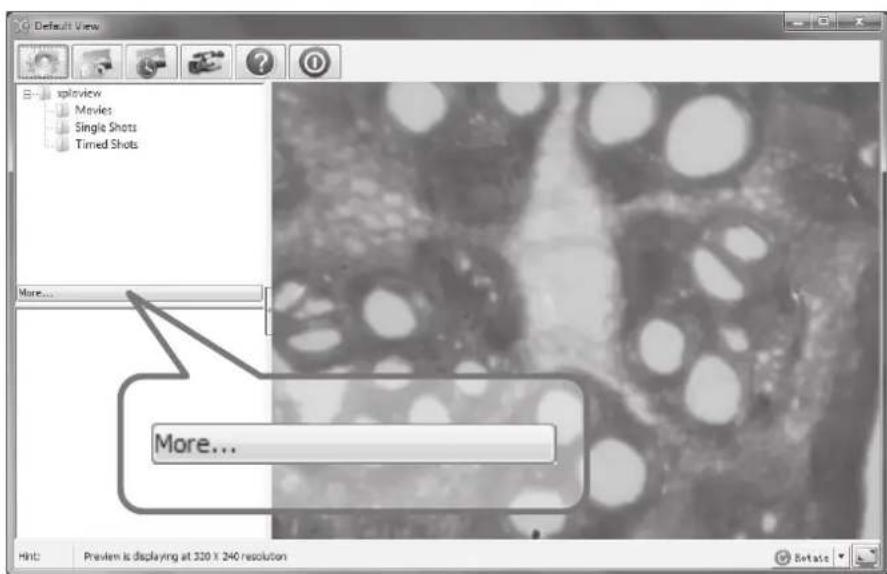

The resolution of videos you record can be changed from the "Resolution" menu. You can also set a maximum le size for each video.Save setting The default location for captured images or videos can be changed under this option. Language setting The language of the xploview software can be changed under this option. 21Advanced settings By clicking the "More..." button on the right of the system settings menu, you will be able to manually adjust all of the image settings. Note that the settings available may be dierent, depending on your operating system. Windows based PC Mac OS based PC 22Saved les With the xploview application software opened, you can locate the saved les folder by clicking the "More..." button located on the left of the main software window. Uninstalling the xploview software Windows based PC Select "Uninstall" from the start menu (Start > All Programs > xploview > Uninstall). Mac OS based PC Drag the xploview application icon from the "Applications" folder to "Trash". 23Legal information This document is published without any warranty. While the information provided is believed to be accurate, it may include errors or inaccuracies. In no event shall the manufacturer or its distributors be liable for incidental or consequential damages of any nature, including but not limited to loss of prots or commercial loss, arising out of the use of the information in this document. All rights reserved. Mac, Mac OS and OS X are trademarks of Apple Inc., registered in the U.S. and other countries. Windows is a registered trademark of Microsoft Corporation in the United States and other countries. All other trademarks and brands are property of their respective owners. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Changes or modications not expressly approved by the party responsible for compliance could void the user’s authority to operate this device. This device has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This device generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this device does cause harmful interference to radio or television reception, which can be determined by turning the equipment o and on, the user is encouraged to try to correct the interference by one or more of the following measures: — Reorient or relocate the receiving antenna. — Increase the separation between the equipment and receiver. — Connect the device into an outlet on a circuit dierent from that to which the receiver is connected. — Consult the dealer or an experienced radio/TV technician for help. FCC compliance statement (United States only) BP06201 Legal information This document is published without any warranty. While the information provided is believed to be accurate, it may include errors or inaccuracies. In no event shall the manufacturer or its distributors be liable for incidental or consequential damages of any nature, including but not limited to loss of prots or commercial loss, arising out of the use of the information in this document. All rights reserved. Mac, Mac OS and OS X are trademarks of Apple Inc., registered in the U.S. and other countries. Windows is a registered trademark of Microsoft Corporation in the United States and other countries. All other trademarks and brands are property of their respective owners. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Changes or modications not expressly approved by the party responsible for compliance could void the user’s authority to operate this device. This device has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This device generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this device does cause harmful interference to radio or television reception, which can be determined by turning the equipment o and on, the user is encouraged to try to correct the interference by one or more of the following measures: — Reorient or relocate the receiving antenna. — Increase the separation between the equipment and receiver. — Connect the device into an outlet on a circuit dierent from that to which the receiver is connected. — Consult the dealer or an experienced radio/TV technician for help. FCC compliance statement (United States only) BP062013 SOMMAIRE
