USER MANUAL DK1497 MAKITA

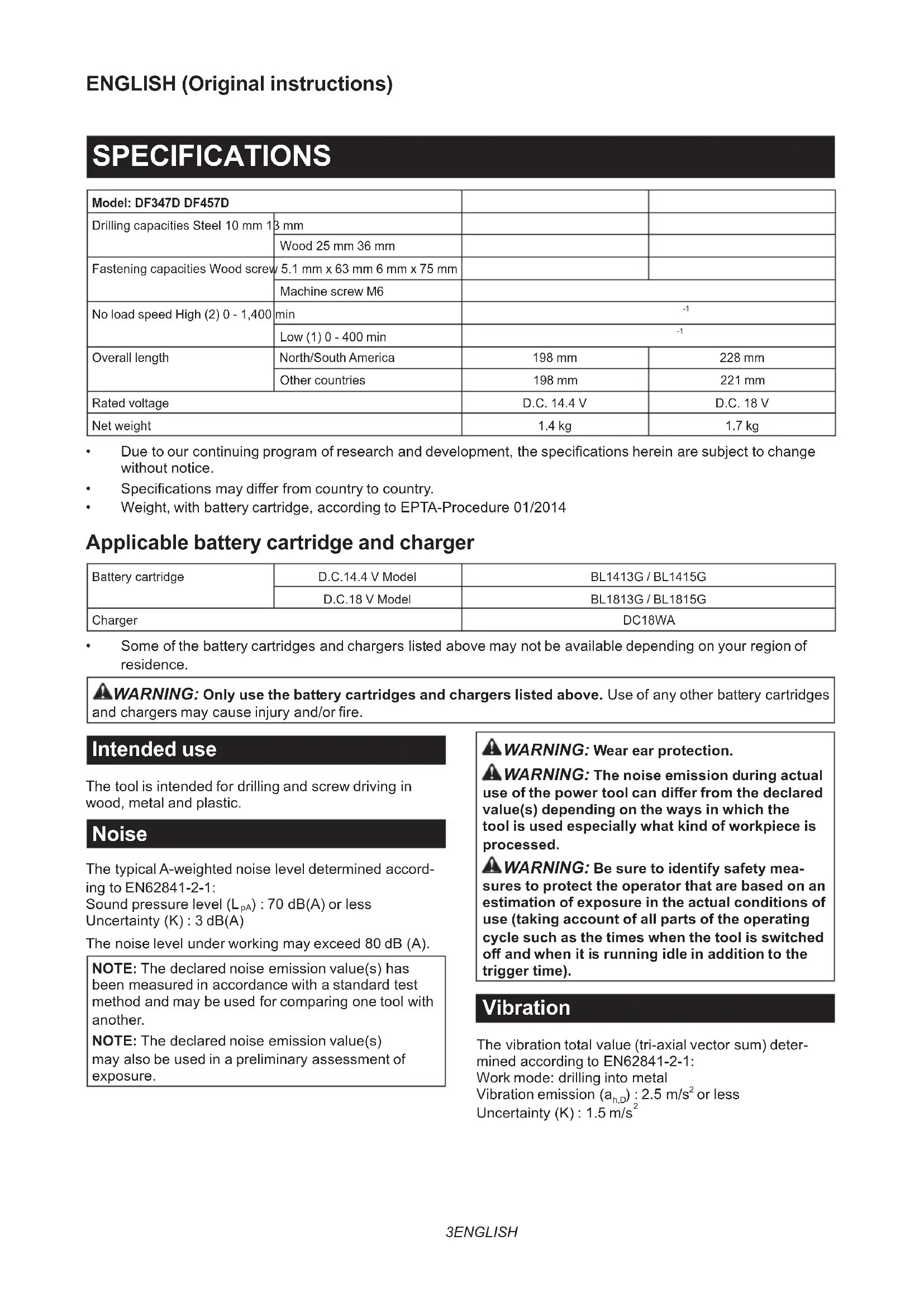

Cordless Driver Drill INSTRUCTION MANUAL 3

• Specicationsmaydi󰀨erfromcountrytocountry.

• Weight,withbatterycartridge,accordingtoEPTA-Procedure01/2014 Applicable battery cartridge and charger Batterycartridge D.C.14.4 V Model BL1413G / BL1415G D.C.18 V Model BL1813G / BL1815G Charger DC18WA

• Someofthebatterycartridgesandchargerslistedabovemaynotbeavailabledependingonyourregionof residence.

WARNING: Only use the battery cartridges and chargers listed above.Useofanyotherbatterycartridges

WARNING: Wear ear protection.

WARNING: The noise emission during actual

use of the power tool can di󰀨er from the declared value(s) depending on the ways in which the tool is used especially what kind of workpiece is processed.

WARNING: Be sure to identify safety mea-

sures to protect the operator that are based on an estimation of exposure in the actual conditions of use (taking account of all parts of the operating cycle such as the times when the tool is switched o󰀨 and when it is running idle in addition to the trigger time). Vibration Thevibrationtotalvalue(tri-axialvectorsum)deter- minedaccordingtoEN62841-2-1: Workmode:drillingintometal Vibrationemission(a h,D ):2.5m/s

or less Uncertainty(K):1.5m/s 24 ENGLISH NOTE:Thedeclaredvibrationtotalvalue(s)hasbeen measured in accordance with a standard test method andmaybeusedforcomparingonetoolwithanother. NOTE:Thedeclaredvibrationtotalvalue(s)mayalso beusedinapreliminaryassessmentofexposure.

WARNING: The vibration emission during

actual use of the power tool can di󰀨er from the declared value(s) depending on the ways in which the tool is used especially what kind of workpiece is processed.

WARNING: Be sure to identify safety mea-

sures to protect the operator that are based on an estimation of exposure in the actual conditions of use (taking account of all parts of the operating cycle such as the times when the tool is switched o󰀨 and when it is running idle in addition to the trigger time). EC Declaration of Conformity For European countries only TheECdeclarationofconformityisincludedasAnnexA to this instruction manual. SAFETY WARNINGS General power tool safety warnings

WARNING: Read all safety warnings, instruc-

tions, illustrations and specications provided with this power tool. Failure to follow all instructions listedbelowmayresultinelectricshock,reand/or seriousinjury. Save all warnings and instruc- tions for future reference. Theterm"powertool"inthewarningsreferstoyour mains-operated(corded)powertoolorbattery-operated (cordless) power tool. Cordless driver drill safety warnings Safety instructions for all operations

1. Hold the power tool by insulated gripping

surfaces, when performing an operation where the cutting accessory or fasteners may contact hidden wiring. Cuttingaccessoryorfasteners contactinga"live"wiremaymakeexposedmetal partsofthepowertool"live"andcouldgivethe operator an electric shock.

2. Always be sure you have a rm footing. Be

sure no one is below when using the tool in high locations.

3. Hold the tool rmly.

4. Keep hands away from rotating parts.

5. Do not leave the tool running. Operate the tool

only when hand-held.

6. Do not touch the drill bit or the workpiece

immediately after operation; they may be extremely hot and could burn your skin.

7. Some material contains chemicals which may

be toxic. Take caution to prevent dust inhala- tion and skin contact. Follow material supplier safety data.

8. If the drill bit cannot be loosened even you

open the jaws, use pliers to pull it out. In such a case,pullingoutthedrillbitbyhandmayresultin injurybyitssharpedge. Safety instructions when using long drill bits

1. Never operate at higher speed than the max-

imum speed rating of the drill bit. At higher speeds,thebitislikelytobendifallowedtorotate freelywithoutcontactingtheworkpiece,resulting inpersonalinjury.

2. Always start drilling at low speed and with the

bit tip in contact with the workpiece. At higher speeds,thebitislikelytobendifallowedtorotate freelywithoutcontactingtheworkpiece,resulting inpersonalinjury.

3. Apply pressure only in direct line with the bit

and do not apply excessive pressure. Bits can bendcausingbreakageorlossofcontrol,resulting inpersonalinjury. SAVE THESE INSTRUCTIONS.

WARNING: DO NOT let comfort or familiarity

with product (gained from repeated use) replace strict adherence to safety rules for the subject product. MISUSE or failure to follow the safety rules stated in this instruction manual may cause serious personal injury. Important safety instructions for battery cartridge

1. Before using battery cartridge, read all instruc-

tions and cautionary markings on (1) battery charger, (2) battery, and (3) product using battery.

2. Do not disassemble battery cartridge.

3. If operating time has become excessively

shorter, stop operating immediately. It may result in a risk of overheating, possible burns and even an explosion.

4. If electrolyte gets into your eyes, rinse them

out with clear water and seek medical atten- tion right away. It may result in loss of your eyesight.

5. Do not short the battery cartridge:

(1) Do not touch the terminals with any con- ductive material. (2) Avoid storing battery cartridge in a con- tainer with other metal objects such as nails, coins, etc. (3) Do not expose battery cartridge to water or rain. A battery short can cause a large current ow, overheating, possible burns and even a breakdown.5 ENGLISH

6. Do not store and use the tool and battery car-

tridge in locations where the temperature may reach or exceed 50 °C (122 °F).

7. Do not incinerate the battery cartridge even if

it is severely damaged or is completely worn out. The battery cartridge can explode in a re.

8. Be careful not to drop or strike battery.

9. Do not use a damaged battery.

10. The contained lithium-ion batteries are subject

to the Dangerous Goods Legislation require- ments. Forcommercialtransportse.g.bythirdparties, forwarding agents, special requirement on pack- agingandlabelingmustbeobserved. Forpreparationoftheitembeingshipped,consult- ing an expert for hazardous material is required. Pleasealsoobservepossiblymoredetailed national regulations. Tapeormasko󰀨opencontactsandpackupthe batteryinsuchamannerthatitcannotmove around in the packaging.

11. When disposing the battery cartridge, remove

it from the tool and dispose of it in a safe place. Follow your local regulations relating to disposal of battery.

12. Use the batteries only with the products

specied by Makita.Installingthebatteriesto non-compliantproductsmayresultinare,exces- siveheat,explosion,orleakofelectrolyte.

13. If the tool is not used for a long period of time,

the battery must be removed from the tool. SAVE THESE INSTRUCTIONS. CAUTION: Only use genuine Makita batteries. Useofnon-genuineMakitabatteries,orbatteriesthat havebeenaltered,mayresultinthebatterybursting causingres,personalinjuryanddamage.Itwill alsovoidtheMakitawarrantyfortheMakitatooland charger. Tips for maintaining maximum battery life

1. Charge the battery cartridge before completely

discharged. Always stop tool operation and charge the battery cartridge when you notice less tool power.

2. Never recharge a fully charged battery car-

tridge. Overcharging shortens the battery service life.

3. Charge the battery cartridge with room tem-

perature at 10 °C - 40 °C (50 °F - 104 °F). Let a hot battery cartridge cool down before charging it. FUNCTIONAL DESCRIPTION CAUTION: Always be sure that the tool is switched o󰀨 and the battery cartridge is removed before adjusting or checking function on the tool. Installing or removing battery cartridge CAUTION: Always switch o󰀨 the tool before installing or removing of the battery cartridge. CAUTION: Hold the tool and the battery car- tridge rmly when installing or removing battery cartridge.Failuretoholdthetoolandthebattery cartridgermlymaycausethemtoslipo󰀨yourhands andresultindamagetothetoolandbatterycartridge andapersonalinjury. ►Fig.1: 1. Red indicator 2. Button 3.Batterycartridge Toremovethebatterycartridge,slideitfromthetool whileslidingthebuttononthefrontofthecartridge. Toinstallthebatterycartridge,alignthetongueonthe batterycartridgewiththegrooveinthehousingandslip itintoplace.Insertitallthewayuntilitlocksinplace withalittleclick.Ifyoucanseetheredindicatoronthe uppersideofthebutton,itisnotlockedcompletely. CAUTION: Always install the battery cartridge fully until the red indicator cannot be seen. If not, itmayaccidentallyfalloutofthetool,causinginjuryto youorsomeonearoundyou. CAUTION: Do not install the battery cartridge forcibly.Ifthecartridgedoesnotslideineasily,itis notbeinginsertedcorrectly. Battery protection system Thebatterycartridgeisequippedwiththeprotection system,whichautomaticallycutso󰀨theoutputpower for its long service life. Thetoolstopsduringoperationwhenthetooland/or batteryareplacedunderthefollowingsituation.Thisis causedbytheactivationofprotectionsystemanddoes notshowthetooltrouble.

• Whenthetoolisoverloaded: At this time, release the switch trigger, remove the batterycartridgeandremovecausesofoverload and then pull the switch trigger again to restart.

• Whenbatterycellsgethot: Ifanyoperationoftheswitchtrigger,themotorwill remain stopped. At this time, stop use of the tool andcoolthebatterycartridge.

• Whentheremainingbatterycapacitygetslow: Ifyoupulltheswitchtrigger,themotorrunsagain butstopssoon.Inthiscase,topreventoverdis- charge,removethebatterycartridgefromthetool and charge it.6 ENGLISH Switch action ►Fig.2: 1. Switch trigger CAUTION: Before installing the battery car- tridge into the tool, always check to see that the switch trigger actuates properly and returns to the "OFF" position when released. Tostartthetool,simplypulltheswitchtrigger.Tool speedisincreasedbyincreasingpressureontheswitch trigger. Release the switch trigger to stop. Reversing switch action ►Fig.3: 1. Reversing switch lever CAUTION: Always check the direction of rotation before operation. CAUTION: Use the reversing switch only after the tool comes to a complete stop. Changing the directionofrotationbeforethetoolstopsmaydam- age the tool. CAUTION: When not operating the tool, always set the reversing switch lever to the neu- tral position. Thistoolhasareversingswitchtochangethedirection of rotation. Depress the reversing switch lever from the A side for clockwise rotation or from the B side for coun- terclockwise rotation. When the reversing switch lever is in the neutral posi- tion,theswitchtriggercannotbepulled. Speed change ►Fig.4: 1. Speed change lever CAUTION: Always set the speed change lever fully to the correct position.Ifyouoperatethe toolwiththespeedchangeleverpositionedhalfway betweenthe"1"sideand"2"side,thetoolmaybe damaged. CAUTION: Do not use the speed change lever while the tool is running.Thetoolmaybedamaged. Position of speed change lever Speed Torque Applicable operation 1 Low High Heavyload- ing operation 2 High Low Light loading operation Tochangethespeed,switcho󰀨thetoolrst.Select the"2"sideforhighspeedor"1"forlowspeedbuthigh torque. Be sure that the speed change lever is set to the correctpositionbeforeoperation. Ifthetoolspeediscomingdownextremelyduringthe operationwith"2",slidethelevertothe"1"andrestart the operation. Adjusting the fastening torque ►Fig.5: 1.Adjustingring2. Graduation 3. Arrow Thefasteningtorquecanbeadjustedin17levelsby turningtheadjustingring.Alignthegraduationswiththe arrowonthetoolbody.Youcangettheminimumfas- tening torque at 1 and maximum torque at marking. Theclutchwillslipatvarioustorquelevelswhensetatthe number1to16.Theclutchdoesnotworkatthe marking. Beforeactualoperation,driveatrialscrewintoyour material or a piece of duplicate material to determine which torque level is required for a particular application. ASSEMBLY CAUTION: Always be sure that the tool is switched o󰀨 and the battery cartridge is removed before carrying out any work on the tool. Installing or removing driver bit/drill bit ►Fig.6: 1. Sleeve Turnthesleevecounterclockwisetoopenthechuckjaws. Placethedriverbit/drillbitinthechuckasfarasitwillgo. Turnthesleeveclockwisetotightenthechuck.Toremove thedriverbit/drillbit,turnthesleevecounterclockwise. OPERATION CAUTION: Always insert the battery cartridge all the way until it locks in place.Ifyoucanseethe redindicatorontheuppersideofthebutton,itisnot lockedcompletely.Insertitfullyuntiltheredindicator cannotbeseen.Ifnot,itmayaccidentallyfalloutof thetool,causinginjurytoyouorsomeonearoundyou. CAUTION: When the speed comes down extremely, reduce the load or stop the tool to avoid the tool damage. Holdthetoolrmlywithonehandonthegripandthe otherhandonthebottomofthebatterycartridgeto control the twisting action. ►Fig.7 Screwdriving operation CAUTION: Adjust the adjusting ring to the proper torque level for your work. CAUTION: Make sure that the driver bit is inserted straight in the screw head, or the screw and/or driver bit may be damaged. Placethepointofthedriverbitinthescrewheadandapplypres- suretothetool.Startthetoolslowlyandthenincreasethespeed gradually.Releasetheswitchtriggerassoonastheclutchcutsin. NOTE: When driving wood screw, pre-drill a pilot hole 2/3 the diameter of the screw. It makes driving easier and prevents splitting of the workpiece.7 ENGLISH Drilling operation First,turntheadjustingringsothatthearrowpointsto the marking.Thenproceedasfollows. Drilling in wood Whendrillinginwood,thebestresultsareobtained withwooddrillsequippedwithaguidescrew.Theguide screwmakesdrillingeasierbypullingthedrillbitinto the workpiece. Drilling in metal Topreventthedrillbitfromslippingwhenstartinga hole, make an indentation with a center-punch and hammeratthepointtobedrilled.Placethepointofthe drillbitintheindentationandstartdrilling. Useacuttinglubricantwhendrillingmetals.Theexcep- tionsareironandbrasswhichshouldbedrilleddry. CAUTION: Pressing excessively on the tool will not speed up the drilling. In fact, this excessive pressurewillonlyservetodamagethetipofyourdrill bit,decreasethetoolperformanceandshortenthe service life of the tool. CAUTION: Hold the tool rmly and exert care when the drill bit begins to break through the workpiece.Thereisatremendousforceexertedon thetool/drillbitatthetimeofholebreakthrough. CAUTION: A stuck drill bit can be removed simply by setting the reversing switch to reverse rotation in order to back out. However, the tool may back out abruptly if you do not hold it rmly. CAUTION: Always secure workpieces in a vise or similar hold-down device. CAUTION: If the tool is operated continuously until the battery cartridge has discharged, allow the tool to rest for 15 minutes before proceeding with a fresh battery. MAINTENANCE CAUTION: Always be sure that the tool is switched o󰀨 and the battery cartridge is removed before attempting to perform inspection or maintenance. NOTICE: Never use gasoline, benzine, thinner, alcohol or the like. Discoloration, deformation or cracks may result. TomaintainproductSAFETYandRELIABILITY, repairs,anyothermaintenanceoradjustmentshould beperformedbyMakitaAuthorizedorFactoryService Centers,alwaysusingMakitareplacementparts. OPTIONAL ACCESSORIES CAUTION: These accessories or attachments are recommended for use with your Makita tool specied in this manual.Theuseofanyother accessories or attachments might present a risk of injurytopersons.Onlyuseaccessoryorattachment for its stated purpose. Ifyouneedanyassistanceformoredetailsregard- ingtheseaccessories,askyourlocalMakitaService Center.

• Makitagenuinebatteryandcharger
