Product type	Multimedia player with turntable, FM/DAB radio, Bluetooth
Brand	Auna
Model	TT186 DAB
FM radio	Yes, with RDS and automatic/manual search
DAB radio	Yes, band III (11b-12d), full scan
Turntable	Yes, speeds 33 and 45 rpm, automatic stop
Bluetooth connection	Yes, for audio streaming
Auxiliary input	3.5 mm jack (AUX-IN)
Line output	RCA (L/R) jack for connection to an amplifier
Headphone jack	3.5 mm jack
Radio presets	20 stations (10 FM + 10 DAB)
Sleep function	Adjustable timer (15, 30, 45, 60, 90 minutes)
Power supply	Mains (cable supplied)
FM antenna	External wire antenna supplied
Display	LCD screen
Menu languages	French, English, German, Italian
Dust cover	Yes, for turntable
Dimensions (approx.)	Approximately 430 x 350 x 150 mm (estimate)
Weight (approx.)	Approximately 4 kg (estimate)

Frequently Asked Questions - TT186 DAB Auna

How to turn the device on and off?

Use the On/Off button (mark 15) on the front panel. Turn it to turn the device on and off.

How to switch to FM or DAB radio mode?

Press the function button (mark 2) repeatedly until the desired mode (FM or DAB) appears on the screen.

How to set the time on the device?

The time is set automatically when receiving an RDS signal in FM or DAB. You can also set it manually via the menu: hold down the Menu/Info button (mark 3), select 'Time' (if available), and adjust with the ◀/▶ buttons.

How to connect a smartphone via Bluetooth?

Put the device into BT mode by pressing the function button (mark 2) until 'Disconnected' flashes. Enable Bluetooth on your phone and select 'TT-186 DAB'. Once connected, 'Connected' will be displayed.

How to play a vinyl record?

Place the record on the turntable, select the speed (33 or 45 rpm) with the selector (mark 17). Lift the tonearm from its rest (mark 19) and position it over the record. Playback starts automatically. At the end, the platter stops.

How to store a radio station?

In FM or DAB mode, tune to the desired station. Hold down the Pre/Memory button (mark 5) for 2 seconds. Use ◀/▶ to choose a preset location (1-10) and press the selection button (mark 9) to confirm.

What to do if the sound is low or distorted?

Check the volume setting. If using the line output, the volume is not adjustable. Make sure the FM antenna is properly extended. For Bluetooth, move away from interference sources.

How to clean the device?

Unplug the device before cleaning. Use a soft, dry cloth. Do not use chemical or abrasive cleaners. For the turntable cover, wipe gently.

How to reset the device?

In DAB or FM mode, hold down the Menu/Info button (mark 3). Select 'Factory Reset' from the menu, then confirm with 'Yes'. All presets will be cleared.

Can I use headphones with this device?

Yes, plug your headphones into the headphone jack (mark 8) on the front. Lower the volume before plugging to avoid hearing damage.

USER MANUAL TT186 DAB Auna

INHALT

The lighting flash and arrow head within the triangle is warning sign alerting you of dangerous voltage inside the product

CAUTION

RISK OF ELECTRIC SHOCK DO NOT OPEN

CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK DO NOT REMOVE COVER (OR BACK). NO USER SERVICIABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

The exclamation point within the triangle is a warning sign alerting you of important instructions accompanying the product

Member of Berlin Brands Group

Handwerkerstr. 11

15366 Dahlwitz-Hoppegarten

Deutschland

Symbol of a trash bin crossed out by a diagonal line, with no text or labels present.

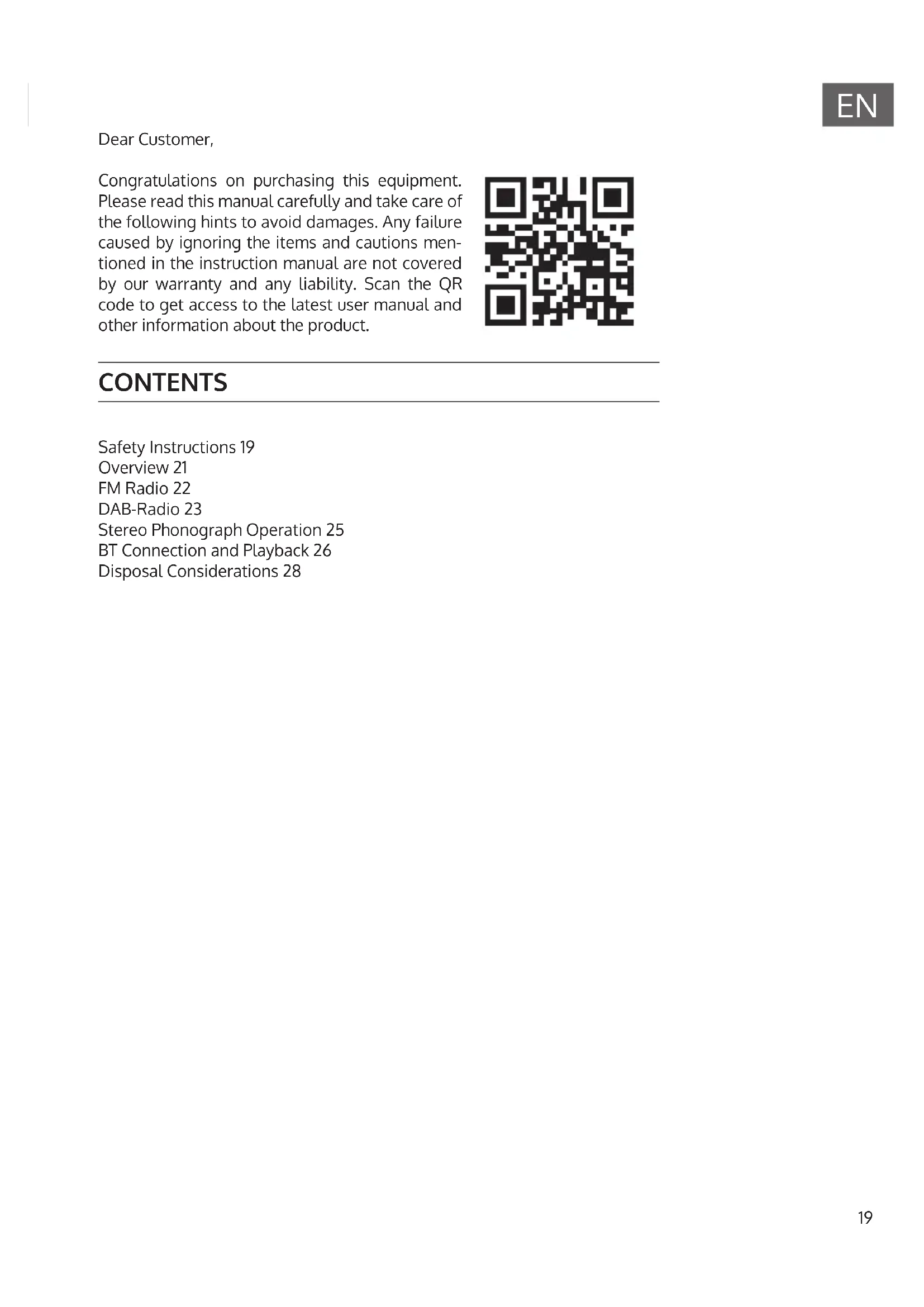

Congratulations on purchasing this equipment. Please read this manual carefully and take care of the following hints to avoid damages. Any failure caused by ignoring the items and cautions mentioned in the instruction manual are not covered by our warranty and any liability. Scan the QR code to get access to the latest user manual and other information about the product.

CONTENTS

Safety Instructions 19

Overview 21

FM Radio 22

DAB-Radio 23

Stereo Phonograph Operation 25

BT Connection and Playback 26

Disposal Considerations 28

WARNING

	CAUTION
	RISK OF ELECTRIC SHOCKDO NOT OPEN
CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK AND SERIOUS PERSONAL INJURY, DO NOT REMOVE ANY COVER. NO USER-SERVICABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL ONLY.WARNING. TO REDUCE THE RISK OF FIRE OR ELECTRICAL SHOCK, DO NOT EXPOSE THIS PRODUCT TO WATER, RAIN OR MOISTURE.

	Triangle with lightning plus explanation as follows:DANGEROUS VOLTAGE: The lightning flash with arrowhead symbol within the equilateral triangle is intended to alert the user to the presence of uninsulated dangerous voltage within the product's enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.
	Triangle with exclamation point plus explanation as follows:ATTENTION: The exclamation point within the equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying this product.

To reduce the risk of electric shock do not use this plug with an extension cord or receptacle.

SAFETY INSTRUCTIONS

Read these instructions. All uses guidelines must be read before using the device. Keep the instructions for future use.

• Attention, use and security guidelines must be respected.
• The device must not be used near water or be put in contact with moisture.
• Make sure has no liquid is spilled on device and device openings.
• Move device carefully, avoid shocks.
• Do not block the breakdown of the device outputs.
• Do not place the device near from a heat source (e.g. radiator). Do not expose it to the Sun.
• Plug the device as indicate on this information form.
• This device has a connection with overload protection. Replacement should only be done by an experienced technician or the device manufacturer.
• For cleaning the device, please follow the recommendations of the notice.
• The power cord should be unplugged when not using for a long period of time.
  • Device shall be repaired by a qualified person when:

a. the power cord is damaged,
b. objects have fallen into the apparatus or a liquid has been spilled into device,
c. device was exposes to the rain,
d. device does not work correctly without notable exterior change,
e. device is broken.

- The user shall not try to maintain device beyond that which is described in this information form.

- The apparatus shall not be exposed to dripping or splashing and that no objects filled with liquids, such as vases, shall be placed on apparatus.

- To be completely disconnect the power input, the mains plug of apparatus shall be disconnected from the mains." as the disconnect devices is the mains plug of apparatus.

- The mains plug of apparatus should not be obstructed OR should be easily accessed during intended use.

- Battery shall not be exposed to excessive heat such as sunshine, fire or the like.

- Excessive sound pressure form earphones and headphones can cause hearing loss.

• Minimum distance (8 cm) around the apparatus for sufficient ventilations;
• The ventilation should not be impeded by covering the ventilation opening with items such as newspaper, table-cloths, curtain etc;
• No naked flame sources such as lighted candles should be placed on the apparatus;
• Attention should be drawn to the environmental aspects of battery disposal;
• The use of apparatus in moderate climates.
• Danger of explosion if battery is incorrectly replaced.
• Replace only with the same or equivalent type.
• The main plug shall remain readily operable.

OVERVIEW

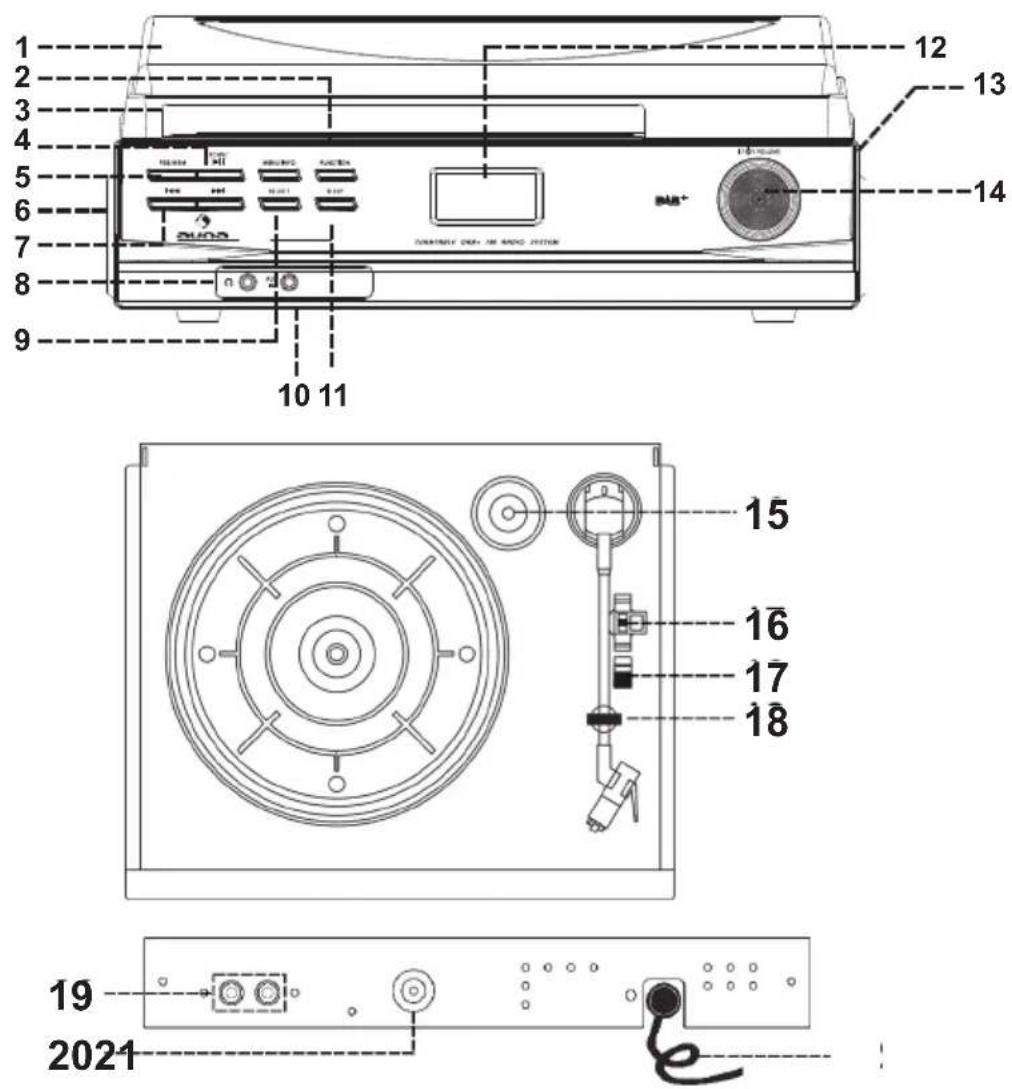

1 Dust Cover
2 Function button
3 Menu/Info button
4 Scan / Play/Pause button
5 Pre / Memory button
6 Left Speaker
7 Skip up / down button
8 3.5mm Headphone Jack
9 Select button
10 3.5mm Aux-in Jack
11 Sleepbutton
12 LCDdisplay
13 RightSpeaker

14 Power ON-OFF/ Volume Control Knob

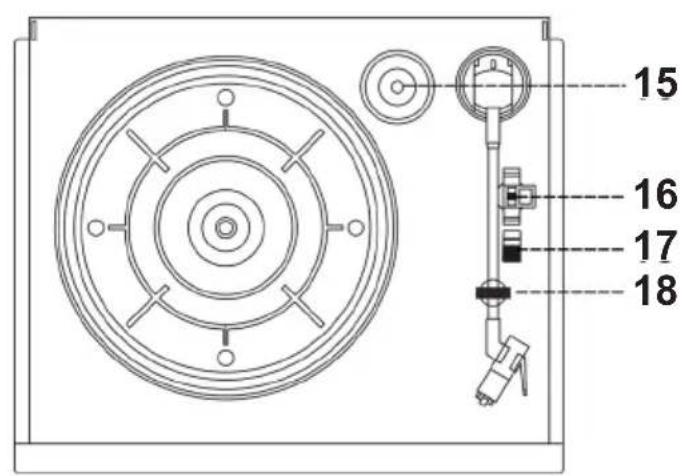

15 45 RPM Record Adaptor
16 Turntable Speed Selector
17 Auto Stop Switch
18 Tone Arm Rest/Holder

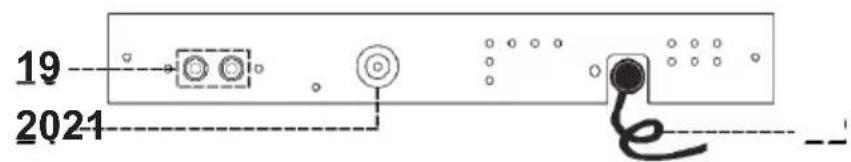

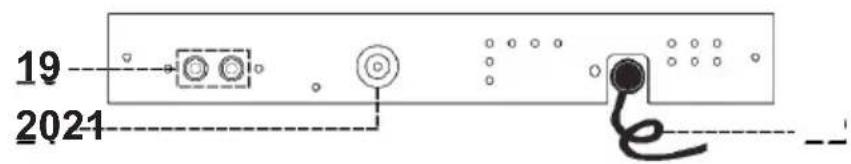

19 Line Out Socket (L/R)
20 FM Antenna Socket
21 AC Power Cord

Connections

1. Connect the power cord to an AC outlet.
2. Connect the provided FM Antenna to the FM Antenna Socket (21).
3. Turn on the power by pressing the Power On/Off-Volume control knob (15) and the LCD display (12) will light up, your system is now ready to play your music. Please refer to the Operations section of this Manual for details.

FM RADIO

Getting started: Connect the provided FM Antenna to the FM Antenna Socket (21).

Manual tuning

1. Turn on the unit by pressing the Power On/Off (15) and press the Function button (2) to enter to FM mode.
2. Tune to requested radio station by pressing the Skip up /down button (7)
3. Adjust the Power ON-OFF/ Volume Control Knob (15) to desired volume level.

Auto tuning

1. Set the unit to FM mode.
2. Press the Scan button (4) once, unit will start to scan at tuning up direct until radio station received. Press and hold the Scan button (4) for a second, the unit will scan to tuning down direction. Alternatively, press and hold the Skip up / down button (7) to auto search for the next or previous radio station.
3. If the radio data system (RDS) broadcasting signal received, the unit will set the actual time automatically.
4. Adjust the Power ON-OFF/ Volume Control Knob (15) to desired volume level.

FM scan setting

After auto tuning if many unwanted weakness radio station received, you can select strong station only to filter the weakness signal station.

1. In FM mode, Press and hold the Menu/Info button (3) to enter the "Menu", then press Skip up / down button (7) button to select "Scan setting".

2. Press Select button (9) to enter the "Scan setting", then press Skip up / down button (7) button to select "Strong station only". Then press Select button (9) to confirm the setting.

3. Press Menu/Info button (3) again to return to the radio station. Perform the auto tuning operation again as above.

FM-Stereo reception

During FM mode, press the Select button (9) repeatedly, the FM programs are receiving in mono and auto mode (Stereo/Mono) repeatedly. In particular when stereo signals are weak, it is preferable to receive the program in Mono.

Radio data system (RDS)

This is the feature to display the information which released from the radio broadcast and will show on LCD display step by step as below by pressing the Menu/Info button (3) button continuously.

Radio text > program type > signal strength > date > time > frequency > mono/stereo

DAB-RADIO

1. After turning on the unit, set the unit to DAB mode by pressing the Function button (2).
2. Press the Scan (4) button once, unit will start to full scan from range 11b-12d one time within around 2 second. Then press Skip up / down button (7) button to select your desired DAB channel.
3. Press the Menu/Info button (3) continuously to check the below info released by DAB. scrolling text > program type > Group name > signal strength > date > time > frequency > transfer rate.
4. Adjust the Power ON-OFF/ Volume Control Knob (15) to desired volume level.

Preset stations

You can store up to total of 20 radio stations in the memory (10-FM/10-DAB).

1. Set to FM/DAB mode
2. Turn to the desired radio station by "manual" or "auto" tuning method.
3. Press and hold the Pre / Memory button (5) around two second to enable memory state, the preset station will flash on LCD display.
4. Preset the Skip up / down button (7) button to select the desired station memory for storage.
5. Press Select button (9) to confirm the preset memory.
6. Repeat step 2 to 5 to store other stations.

Recall preset stations

1. Press the Pre / Memory button (5) once to enable recall state
2. Press Skip up / down button (7) button to select the desired memory station.

3. Press Select button (9) to confirm the recall the memory station.

4. The pre-set memories will be cancelled completely if disconnecting the main power supply and back up battery did not installed. You are recommended to switch the system into standby mode for convenience usage.

5. There are 3 seconds for program state, after 10 sec. This state would resume to normal tuner mode automatically.
6. You can overwrite a present station by storing another frequency in its place.

HINTS FOR BEST RECEPTION: FM : THE RECEIVER HAS AN EXTERNAL FM WIRE ANTENNA TO CONNECT TO THE ANTENNA SOCKET AT THE BACK OF THE UNIT. THIS ANTENNA SHOULD BE TOTALLY UNRAVELLED AND EXTENDED FOR BEST RECEPTION. MOVE THE ANTENNA TO OBTAIN THE BEST RECEPTION.

Language setting

This apparatus provide 4 language for FM/DAB operation display.

1. In DAB/FM mode, Press and hold the Menu/Info button (3) to enter the "Menu", then press Skip up / down button (7) button to select "Language".
2. Press Select button (9) to enter language mode setting, then press Skip up / down button (7) button to select your desired language between English/ German/ French/ Italian. Then press Select button (9) to confirm the setting.
3. In any state press Menu/Info button (3) to quit the setting mode.

DAB/FM reset :

If case would like to erase all the FM/DAB programmed memory station, operation as below.

1. Set in DAB or FM mode, Press and hold the Menu/Info button (3) to enter the "Menu", then press Skip up / down button (7) button to select """.

2. Press Select button (9) to enter the will show "Factory Reset ?" (No) or Yes, then press Skip up / down button (7) button to select (Yes). Then press Select button (9) to confirm the will show "system reset ok".

3. Apparatus will erase all the programmed memory station, perform the

preset station again as above.

STEREO PHONOGRAPH OPERATION

Please Note - Before Use

-- Remove the stylus protector.

- Make sure that the tone arm is unlocked and free to move from the tone arm rest prior to operating. Lock the tone arm again when not in use.

1. Turn on the unit by pressing the Power On/Off (15) and press the Function button (2) to enter to PHONO mode.
2. Raise the turntable dust cover.
3. Place the record on the platter (use the 45 RPM record adaptor (16) if you are playing 45 RPM records).
4. Set the speed selector (17) to the proper position for the record you are playing.
5. Lift the tone arm from the rest (19) and slowly move it over the record. The platter will begin spinning.
6. Place the tone arm down onto the record in the location that you want to play.
7. Adjust the volume (15) to the desired level.
8. At the end of record, the platter will automatically stop spinning. Lift the tone arm from the record and return it to the rest.
9. To stop playing manually, lift the tone arm from the record and return it to the rest.

NOTE: Some types of records may have an auto-stop area outside the preset limit, so the turntable may stop before the last track finishes. In this case, set the AUTO-STOP switch to the "OFF" position. This allows the record to play to the end, but please note that it will not stop automatically. You must manually raise the tone arm and place it back in the rest and then turn off the power to stop the turntable from spinning.

BT CONNECTION AND PLAYBACK

1. Turn on the unit by pressing the Power On/Off (15) and press the Function button (2) to enter to BT mode.
2. The word "Disconnected" will be flashing on the LCD display, it means the BT in non connection / searching mode.
3. Switch on the BT feature of your BT device (such as mobile phone) and select "TT-186 DAB" BT equipment to connecting.
4. Once the connection was finished and connected successfully, the word "Connected" will be shown on the LCD display.
5. Adjust the volume (15) to the desired level.
6. Start to playback your BT device and enjoy the music by the main unit.
7. You can press the Play/pause button (4), Skip up/down button (7) to control the music playback.
8. If you want to connect to another BT enabled device after you've already successfully paired, press and hold the Play/pause button (4) for a few seconds until the word "Disconnected" starts flashing on the LCD display again, OR turn off the BT on the device that was previously paired. The word "Disconnected" starts flashing again, repeat step 3-5 above.

AUX-IN connection

Connect the unit to any auxiliary device (i.e. MP3 player, or iPod ® (not included) by connecting the Aux-in jack (10) at the rear cabinet with one end of 3.5mm stereo cable (not provided) and the other end connect to the auxiliary device to perform the music.

1. Press the Function button (2) to enter to "AUX" mode.
2. Adjust Volume Knob (15) to the desire volume level. Start to playback your device. If the distortion was too high, reduce the volume level of your auxiliary device.

LINE-OUT connection

You can connect this unit to your external Hi-Fi / AMPLIFIER system by connecting the LINE OUT socket (20) to the auxiliary input socket of your Hi-Fi / AMPLIFIER system with a RCA cable (not included).

Note: The Volume control will not function when using the LINE OUT.

Note: The Volume control will not function when using the LINE OUT.

Sleep function

1. Press the Sleep button (11) once.
2. Press the Skip up button (7) to adjust the sleep timer in the order of Off >15 >30 >45 >60 >90 minutes >Off respectively.
3. System will stop and go to standby mode automatically after running the selected time.
4. To cancel the sleep mode, press Skip up / down button (7) until it reaches "Off".

Using headphones (not included)

Inserting the plug of your headphones into the Headphone jack (8) will enable you to listen in private.

READ THIS IMPORTANT INFORMATION BEFORE USING YOUR HEADPHONES.

1. Avoid extended play at very high volume as it may impair your hearing.
2. If you experience ringing in your ears, reduce the volume or shut off your unit.
3. Keep the volume at a reasonable level even if your headset is an open-air type designed to allow you to hear outside sounds. Please note that excessively high volume may still block outside sounds.

DISPOSAL CONSIDERATIONS

Symbol of a trash bin crossed with a diagonal line, representing no waste or discharge (no text or labels)

If there is a legal regulation for the disposal of electrical and electronic devices in your country, this symbol on the product or on the packaging indicates that this product must not be disposed of with household waste. Instead, it must be taken to a collection point for the recycling of electrical and electronic equipment. By disposing of it in accordance with the rules, you are protecting the environment and the health of your fellow human beings from negative consequences. For information about the recycling and disposal of this product, please contact your local authority or your household waste disposal service.

DECLARATION OF CONFORMITY

Manufacturer:

Chal-Tec GmbH, Wallstrasse 16, 10179 Berlin, Germany.

Importer for Great Britain:

Berlin Brands Group UK Ltd PO Box 1145 Oxford, OX1 9UW United Kingdom

Hereby, Chal-Tec GmbH declares that the radio equipment type TT-186 is in compliance with Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following internet address: use.berlin/10033426

For Great Britain: Hereby, Chal-Tec GmbH declares that the radio equipment type TT-186 is in compliance with the relevant statutory requirements. The full text of the declaration of conformity is available at the following internet address: use.berlin/10033426

Estimado cliente:

CONTENIDO

The lighting flash and arrow head within the triangle is warning sign alerting you of dangerous voltage inside the product

CAUTION

RISK OF ELECTRIC SHOCK DO NOT OPEN

CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK DO NOT REMOVE COVER (OR BACK). NO USER SERVICIABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

The exclamation point within the triangle is a warning sign alerting you of important instructions accompanying the product

Symbol of a trash bin crossed with a diagonal line, no text or labels present

Berlin Brands Group UK Ltd

PO Box 1145

Oxford, OX1 9UW

Reino Unido

Cher client, chère cliente,

SOMMAIRE

The lighting flash and arrow head within the triangle is warning sign alerting you of dangerous voltage inside the product

CAUTION

RISK OF ELECTRIC SHOCK DO NOT OPEN

CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK DO NOT REMOVE COVER (OR BACK). NO USER SERVICIABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

The exclamation point within the triangle is a warning sign alerting you of important instructions accompanying the product

ATTENTION : N'OUVREZ PAS LE BOÎTIER POUR ÉVITER UN CHOC ÉLECTRIQUE ET DES BLESSURES GRAVES. L'APPAREIL NE CONTIENT AUCUNE PIÈCE RÉPARABLE PAR L'UTILISATEUR. ADRESSEZ-VOUS EXCLUSIVEMENT À UN PERSONNEL QUALIFIÉ. MISE EN GARDE. POUR RÉDUIRE LES RISQUES D'INCENDIE OU DE CHOC ÉLECTRIQUE, N'EXPOSEZ PAS CET APPAREIL À L'EAU, À LA PLUIE OU À L'HUMIDITÉ.

Symbol of a trash bin crossed out by a diagonal line, with no text or labels present.

DÉCLARATION DE CONFORMITÉ

Fabricant :

Chal-Tec GmbH, Wallstraße 16, 10179 Berlin, Allemagne.

INDICE

The lighting flash and arrow head within the triangle is warning sign alerting you of dangerous voltage inside the product

CAUTION

RISK OF ELECTRIC SHOCK DO NOT OPEN

CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK DO NOT REMOVE COVER (OR BACK). NO USER SERVICIABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

The exclamation point within the triangle is a warning sign alerting you of important instructions accompanying the product

ATTENZIONE: NON APRIRE L'ALLOGGIAMENTO, IN MODO DA EVITARE SCOSSE ELETTRICHE E SERIE LESIONI. ALL'INTERNO NON CI SONO COMPONENTI CHE NECESSITANO DI MANUTENZIONE DA PARTE DELL'UTENTE. RIVOLGERSI ESCLUSIVAMENTE A TECNICI QUALIFICATI.

AVVERTIMENTO! PER RIDURRE IL RISCHIO DI INCENDI E SCOSSE ELETTRICHE, NON ESPORRE IL DISPOSITIVO A PIOGGIA, ACQUA O UMIDITÀ.

Symbol of a trash bin crossed with a diagonal line, representing no waste or discharge (no text or labels)

Berlin Brands Group UK Ltd

PO Box 1145

Oxford, OX1 9UW

United Kingdom

Abstract white logo design on dark background, resembling stylized letter 'S' or wave form (no text or symbols)
