Product Type	MIDI keyboard with built-in synthesizer
Brand	Schubert
Model	Etude 450 USB
Dimensions (approx.)	94 x 30 x 10 cm
Weight (approx.)	4.5 kg
Power supply	12 V DC power adapter (included)
Number of keys	61 keys (with 19-key chord zone)
Polyphony	Not specified, estimated 32 or 64 notes
Timbres	460 (numbered 000 to 459)
Rhythms	260 (numbered 000 to 259)
Demo pieces	65 (numbered 000 to 064)
Status memories	4 (M1 to M4)
Rhythm programming	Up to 32 custom rhythms
Effects functions	Transposition, Tuning, Sustain, Pitch Bend, Vibrato, Dual Tone, Split, Touch
Recording function	Yes, real-time recording and playback
Intelligent training	3 steps: One Key, Follow, Ensemble
Key lighting	Yes, can be turned on/off

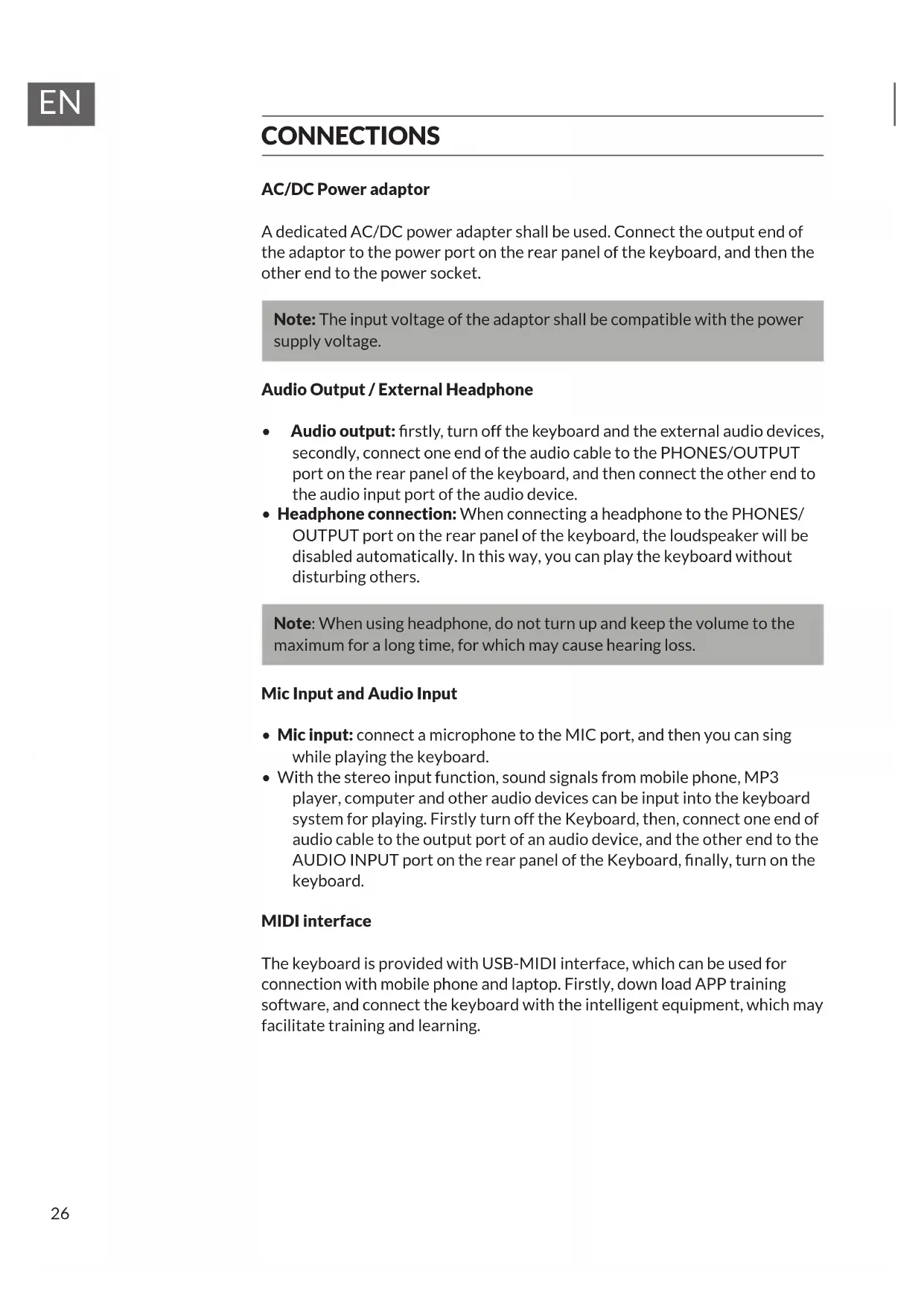

Connectivity	USB-MIDI, Headphone/audio out jack, Audio input (AUDIO IN), Microphone input (MIC)
Built-in speakers	Yes, 2 speakers
Display	LCD screen with indicators
Maintenance and cleaning	Unplug before cleaning; use a dry, soft sponge; avoid liquid products or solvents
Safety	Use only the supplied adapter; do not disassemble yourself; avoid heat sources and liquids; disconnect before cleaning
Spare parts and repairability	Contact a qualified technician or a specialized company
General information	Manual available in multiple languages; recycle according to local regulations

Frequently Asked Questions - Etude 450 USB Schubert

How to connect the keyboard to a computer?

Use a USB cable to connect the keyboard's USB-MIDI port to your computer. Turn on the keyboard, then install sound editing software (e.g., a DAW). In the software, select the MIDI device Schubert Etude 450 USB.

How to adjust the master volume?

Use the Master Vol ▲ and Master Vol ▼ buttons on the panel. Press both simultaneously to return to the default volume.

Can I use headphones with this keyboard?

Yes, plug headphones into the PHONES/OUTPUT jack on the back of the synthesizer. The built-in speakers will then be automatically muted.

How to select a different timbre?

Make sure Tone is displayed on the screen (otherwise press TIMBRE). Use the numbered keys or the + and - buttons to choose a timbre from 460 (from 000 to 459).

How to use the recording function?

Press Record to start recording. All sounds played are recorded. Press PLAY to stop and listen, or press REC to cancel. The recording is erased if you turn off the device or record again.

What is the 3-step training function?

It allows progressive learning: Step 1 (One Key): exercises on single notes with light guides; Step 2 (Follow): play melodies guided by the keys; Step 3 (Ensemble): play the complete piece.

How to program my own rhythms?

Press PROG to activate programming. Play on the percussion keys to create your rhythm. Up to 32 rhythms can be memorized. Use PLAY to listen, PROG to cancel.

How to memorize current settings (sound, tempo, etc.)?

Set the desired parameters, then press Memory followed by a key M1 to M4 to save. To recall, press the corresponding M1-M4 key directly. Note that the memories are lost after a power cut.

How to clean the keyboard?

Unplug the device before cleaning. Use a dry, soft sponge. Never use liquid products or solvents, as they could damage the coating.

What to do if the keyboard does not work properly?

Do not try to disassemble it yourself. Contact a qualified technician or a specialized company. Ensure that the power adapter is properly connected and that the voltage matches.

USER MANUAL Etude 450 USB Schubert

Black and white electronic guitar keyboard with red accent highlights, no visible text or symbols on the instrument itself.

Etude 450 USB

Keyboard

Clavier

Teclado

Tastiera

QR code image containing encoded data, no visible human-readable text

INHALTSVERZEICHNIS

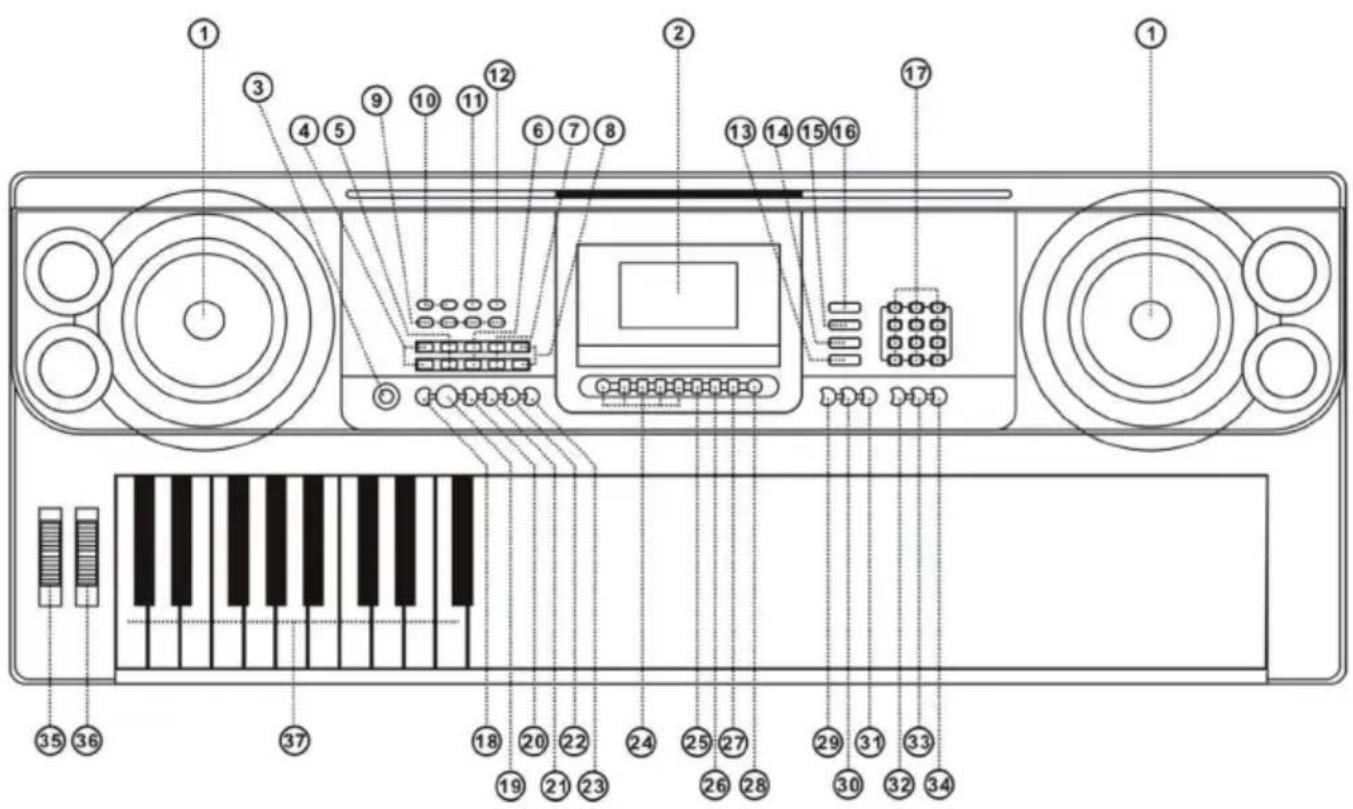

Diagram of a portable electronic device with numbered labels pointing to various components such as keys, audio, and control panels.

Piano Bass Clarinet FX Effect

000 Acoustic Grand Piano 032 Acoustic Bass 064 Soprano Sax 096 FX 1 (rain)
001 Bright Acoustic Piano 033 Electric Bass(finger) 065 Alto Sax 097 FX 2 (soundtrack)
002 Electric Grand Piano 034 Electric Bass (pick) 066 Tenor Sax 098 FX 3 (crystal)
003 Honky-tonk Piano 035 Fretless Bass 067 Baritone Sax 099 FX 4 (atmosphere)
004 Rhodes Piano	036 Slap Bass 1	068 Oboe	100 FX 5 (brightness)
005 Chorused Piano	037 Slap Bass 2	069 English Horn	101 FX 6 (goblins)
006 Harpsichord	038 Synth Bass 1	070 Bassoon	102 FX 7 (echoes)
007 Clavichord	039 Synth Bass 2	071 Clarinet	103 FX 8 (sci-fi)

Color percussion String	Flute	Folk music
008 Celesta	040 Violin	072 Piccolo	104 Sitar
009 Glockenspiel	041 Viola	073 Flute	105 Banjo
010 Music box 042 Cello	074 Recorder	106 Shamisen
011 Vibraphone	043 Contrabass	075 Pan Flute	107 Koto
012 Marimba	044 Tremolo Strings	076 Bottle Blow	108 Kalimba
013 Xylophone	045 Pizzicato Strings	077 Shakuhachi	109 Bagpipe
014 Tubular Bells	046 Orchestral Harp	078 Whistle	110 Fiddle
015 Dulcimer	047 Timpani	079 Ocarina	111 Shanai

Organ	Ensemble / Chorus	Lead	Percussion
016 Hammond Organ	048 String Ensemble 1	080 Lead 1 (square)	112 Tinkle Bell
017 Percussive Organ	049 String Ensemble 2	081 Lead 2 (sawtooth)	113 Agogo
018 Rock Organ	050 Synth Strings 1	082 Lead 3 (caliope lead)	114 Steel Drums
019 Church Organ	051 Synth Strings 2	083 Lead 4 (chiff lead)	115 Woodblock
020 Reed Organ	052 Choir Aahs	084 Lead 5 (charang)	116 Taiko Drum
021 Accordian	053 Voice Oohs	085 Lead 6 (voice)	117 Melodic Tom
022 Harmonica	054 Synth Voice	086 Lead 7 (fifths)	118 Synth Drum
023 Tango Accordian	055 Orchestra Hit	087 Lead 8 (bass lead)	119 Reverse Cymbal

Guitar	Brass	Pad	Sound Effects
024 Acoustic Guitar (nylon)	056 Trumpet	088 Pad 1 (new age)	120 Guitar Fret Noise
025 Acoustic Guitar (steel)	057 Trombone	089 Pad 2 (warm)	121 Breath Noise
026 Electric Guitar (jazz)	058 Tuba	090 Pad 3 (polysynth)	122 Seashore
027 Electric Guitar (clean)	059 Muted Trumpet	091 Pad 4 (choir)	123 Bird Tweet
028 Electric Guitar (muted)	060 French Horn	092 Pad 5 (bowed)	124 Telephone Ring
029 Overdriven Guitar	061 Brass Section	093 Pad 6 (metallic)	125 Helicopter
030 Distortion Guitar	062 Synth Brass 1	094 Pad 7 (halo)	126 Applause
031 Guitar Harmonics	063 Synth Brass 2	095 Pad 8 (sweep)	127 Gunshot

Percussion instrument 163 Synth Banjo 199 Violin Lead 237 Bass Oboe

128 Percussion 164 Japan Synth 200 Cello Lead 238 Bright Oboe

165 Church Piano 201 Pizzicato rhythm 239 distortio oboe

Nation tone 166 Church electric Piano 202 high Harp 240 English Horn ensemble

129 bangdi 167 Synth Piano 203 Harp ensemble 241 Pizzicato English Horn

130 pipa 168 Baritone Piano 204 Synth Harp 242 Diplophonia English Horn

131 erhu 169 Piano PAD
243 Bright English Horn

132 gaohu	170 String Piano	Electronic music	244 Synth English Horn
133 suona	171 Metal Piano 205 Baritone Trumpet
134 dasuo	172 Light rhythm Piano	206 Trumpet Ensemble	Synthetic electronic
135 guzheng	173 electric Piano Pad	207 rhythm Trumpet	245 Psychedelic Synth Lead
136 sanxian	174 Classical piano	208 high Trumpet	246 Vibraphone Synth Lead
137 guqin		209 Synth Trumpet	247 Marimba Synth Lead
138 xiao	Effect class guitar	210 Bass Trombone	248 Metal FX
139 China Percussion 1	175 Organ Guitar	211 Trombone Ensemble	249 Electronic FX
140 China Percussion 2	176 Electric Guitar	212 rhythm Trombone	250 Electronic String Ensemble
	177 Synthesis Nylon Guitar	213 high Trombone
Rhythm	178 Synth Electronic Guitar	214 baritone Trombone	World national synthesis
141 Rock Grand Piano	179 Bright Clean Guitar	215 Synth Trombone	251 Wind FX
142 Electronic organ	180 Orchestra Guitar	216 Violin French Horn	252 Clarinet FX
143 Psychedelic electronic	181 Psychedelic Guitar	217 French Horn ensemble	253 Organ FX
144 Water jean	182 Bright organ	218 Electronic French Horn	254 Crystal FX
145 Bright Guitar	183 Pick organ	219 Synth French Horn	255 Synth Shamisen
146 Orchestra piccolo		220 PsychedelicSynth Brass	256 Electronic Shamisen
147 Heavy metal guitar	Electronic Symphony	221 Distortion Synth Brass	257 Bright Sitar
148 Crystal guitar	184 Synth accordion	222 Vibraphone Synth Brass	258 Whistle Accord
149 Queer electric Piano	185 Bright Violin	223 Rock Synth Brass	259 rhythm Nation
150 Bright bass	186 Stringed violin	224 Synth Muted Trumpet	260 Bright Koto
151 Rock Electric Bass	187 Trill violin	225 Soprano Sax ensemble	261 Koto Lead
152 Psychedelic Bass	188 Electronic violin	226 Hit Soprano Sax	262 Diplophonia Koto
153 Rhythm Electric Bass	189 Large violin	227 Synth Soprano Sax	263 Baritone Koto
154 Heavy metal bass	190 rhythm Orchestra	228 National Sax	264 Synth Koto
155 Magic electronic	191 Pizzicato Violin	229 Metal Sax
156 Bright violin	192 Pizzicato Ensemble 1	230 Baritone Sax ensemble	Bed pad
157 Atonic violin	193 Pizzicato Ensemble 2	231 Crystal Sax	265 Environmental Lead
158 Heavy bass orchestra	194 Percussion band	232 Soft Baritone Sax	266 Metal Lead
159 Synth clarinet	195 BaritoneSynthContrabass	233 Synth Baritone Sax	267 Orchestra Lead
160 Interactive Lead	196 Bass Flute	234 Heavy metal Sax	268 Glockenspiel Lead
161 orchestral keyboard	197 Distortion Contrabass	235 Church Oboe	269 Bass Lead
162 Bagpipes	198 Contrabass Lead	236 Oboe ensemble	270 Fifths Lead

271 Wind Lead 306 Baritone Xylophone 343 Jazz Electric Piano Bass synthesizer

272 Atmosphere Lead 307 Clean Piano 344 Rock Timpani 380 The bass

273 Sharp Lead 308 Bright Dulcimer 345 Fantasy Atmosphere 381 Bright bass

274 Bright Lead 309 Rhythm Grand Piano 346 Heavy metals Pad 382 Heavy bass

275 East Nation Pad 310 Rhythm Accordian 347 Bright clavichord 383 Magic bass

276 Atmosphere Pad 311 Marimba Harp 348 Noise Lead 384 The bass band

277 Electric bass Pad 312 Synth Xylophone 349 Classical Electronic 385 National bass

278 Electric Piano Pad 313 Psychedelic Jazz Guitar 386 The bass strings

279 Clean Guitar Pad 314 Rhythm Electric Guitar Digital Synthesizer 387 British pipe bass

280 Western Pad 350 Rock piano 388 East bass

281 Sci-fi Pad Classic Synthesizer 351 Dynamic piano 389 Traditional bass

282 Metal Sci-fi Pad 315 Baritone Piccolo 352 Rock Clavichord

283 Clarinet Pad 316 Pan Flute Pad 353 Baritone Celesta Science fiction electronic string

284 Electronic dance Pad 317 Soft Pad 354 Magic Metallophone 390 Fantasy violin

318 Fierce Organ 355 Heavy metal Glockenspiels 391 Solo Violin

Asian synthetic 319 Fantasy Clarinet 356 Digital Organ 392 Distortion violin

285 Double Kalimba 320 Bright Rhythm 357 Clear Organ 393 Heavy rock Viola

286 Bright Kalimba 321 Synth Brass Ensemble 358 Baritone Organ 394 Magic Cello

287 Crystal Kalimba 322 Electronic Xylophone 359 Reed Synthesizer 395 Jumping Cello

288 Synth Kalimba 323 Atmosphere Pizzicato 360 Reed Lead 396 Electronic hook string

289 Electronic Bagpipe 324 Rhythm Clarinet 361 Metal Twelve String Guitar 397 Mechanical hook

290 Wind Bagpipe 325 Bright Dulcimer 362 Magic Guitar 398 Pizzicato synthesizer

291 high Bagpipe 326 Double British pipe 363 Diplophonia Guitar 399 Heavy pizzicato rhythm

292 Bright Bagpipe 327 Bright Bassoon 364 Regge Guitar 400 Fast Harp

293 Orchestra Bagpipe 328 Electronic Synth Bassoon 365 Hawaii Guitar 401 Heavy rock Harp

294 Baritone Bagpipe 329 Rock Wind 366 Campus Jazz Guitar 402 Large electronic drum

295 Environmental Shanai 330 Synthetic effect wind1 367 Hall electric guitar 403 Magic timpani

296 Baritone Shanai 331 Synthetic effect wind2 368 Slap guitar 404 Oriental timpani

297 Tenor Shanai 332 Synthetic effect wind3 369 Digital synthetic guitar 405 Fantasy strings

298 high Shanai 333 Synthetic effect wind4 370 Dead nuclear guitar 406 Solo synthesizer

299 Synth Shanai 334 Synthetic Fiddle 371 Heavy bass electric guitar 407 Distorted ensemble

300 Bright Steel Drums 335 Special Echo FX 372 Bright jazz guitar 408 Heavy rock ensemble

301 Steel Drums Lead 336 Electronic Organ Lead 373 Modern electric guitar 409 Magic ensemble

302 Lyric Steel Drums 337 Church Organ Lead 374 Solo electric guitar 410 Jump syn String Ensemble

303 Orchestra Steel Drums 338 Science Fiction Classic 375 Bar electric guitar 411 Electronic chorus "ah"

304 Synth Steel Drums 339 Electronic Bagpipe 376 Sax electric guitar 412 Electronic chorus "oh"

340 String Ensemble Pad 377 Guitar noise 413 Chorus synthesizer

Modern Electric 341 Electronic wind Pad 378 Electric guitar reverb 414 Heavy rhythm syn voice

305 Rhythm electric Piano 342 Organ Electric Guitar 379 Dynamic guitar 415 Digital voice

416 Music vocal ensemble 426 Clear syn Tuba 438 Baritone Sax 450 Heavy metal flute

417 Magic Ensemble 427 Bass France 439 Solo baritone Sax 451 Digital flute

418 Vocal percussion ensemble 428 Fantasy France 440 Distortion oboe 452 Synthesis voiceless clari

419 Oriental synthetic voice 429 Solo copper pipe 441 Heavy rock Oboe 453 Baritone Panpipe

430 Distortion syn tube 442 Magic British tube 454 Dynamic ruler eight

Western electronic	431 Heavy rock Sax	443 Jump British tube	455 Heavy rock lead
420 Dynamic trumpet	432 Sax magic	444 Electronic bar	456 Magic lead
421 Heavy rock trumpet	433 Jump Sax	445 Mechanical bar	457 Magic voice synthesizer
422 Traditional Trombone	434 Electronic tenor Sax	446 Dynamic clarinet	458 Synthesis heavy metals
423 Magic Trombone	435 Mechanical Sax	447 Heavy rock clarinet	459 Digital Synth lead
424 Heavy metal Tuba	436 Baritone Sax synthesizer	448 Traditional Piccolo
425 Digital Tuba	437 Heavy rhythm Alto Sax	449 Magic Piccolo

RHYTHMUSTABELLE

March	Funky soul	Pop Dance	Unique Classes
000 March1	017 Funky soul 1	034 Pop Dance 1	051 Euro Beat
001 March2	018 Funky soul 2	035 Pop Dance 2	052 House1
002 March3	019 Funky soul 3	036 Pop Dance 3	053 House2
003 March4	020 Funky soul 4	037 Shuffle1	054 Swing Beat
	021 Funky soul 5	038 Shuffle2	055 8 Ballad
Nation rhythm	022 Funky soul 6	039 8 Shuffle	056 Step
004 Nation 1	023 Funky soul 7
005 Nation2	024 Funky soul 8	Rock	Band
006 Nation3	025 West Coast	040 Hard Rock	057 Big Band1
007 Nation4	026 Euro Soul	041 Slow Rock1	058 Big Band2
008 Nation5		042 Slow Rock2	059 Cobmo1
009 Nation6	Beat		060 Cobmo2
010 Nation7	027 16 AOR 1	Classics Beat
011 Nation8	028 16 AOR 2	043 Pop Classic	Swing
012 Nation9	029 16 Beat 1	044 Blues	061 Swing1
013 Nation10	030 16 Beat 2	045 Twist	062 Swing2
	031 16 Beat 3	046 Hard 3 Beat	063 Swing3
Slow Soul	032 16 Ballad 1		064 Swing4
014 Slow Soul 1	033 16 Ballad 2	Love Ballad	065 Swing5
015 Slow Soul 2		047 Love Ballad 1	066 Swing6
016 Slow Soul 3		048 Love Ballad 2
		049 Love Ballad 3
		050 Love Ballad 4

Latin Polka Psychedelic Ballad

067 Baiao 105 Polka1 131 Psychedelic 1 161 Classical ballad1

068 Bolero 106 Polka2 132 Psychedelic 2 162 Classical ballad2

069 Bossanova1 107 Polka3 133 Goth Psychedelic 163 Light Ballad

070 Bossanova2 134 Soul Psychedelic 1 164 Rhythm Ballad

071 Bossanova3 C&W 135 Soul Psychedelic 2

072 Bossanova4 108 C & W 1 136 Soul Psychedelic 3 House

073 Bossanova5 109 C & W 2 137 Soul Psychedelic 4 165 Pop House1

074 Calypso 110 Bluegrass 138 Psychedelic Swing 166 Pop House2

075 Habanera	111 Country1	139 Soft Rock	167 Pop House3
076 Reggae1	112 Country2	140 Post Rock	168 Deep House
077 Reggae2	113 Country3		169 Acid House
078 Jorpo		Classical beat 170 Progressive House
079 Tango1	Middle East	141 Classical beat1	171 Epic House
080 Tango2	114 Middle East	142 Classical beat2
081 Tango3	115 China 1	143 Classical beat3	New Age Latin
082 Mambo 1	116 China 2	144 Classical beat4	172 New Age Latin1
083 Mambo 2	117 China 3	145 Classical beat5	173 New Age Latin2
084 Rhumba 1	118 Thailand	146 Classical beat6	174 Bluse mambo
085 Rhumba 2		147 Classical beat7
086 Rhumba 3	Waltz		Jazz swing
087 Rhumba 4	119 Waltz1	Modern pop music	175 Jazz swing1
088 Rhumba 5	120 Waltz2	148 New century1	176 Jazz swing2
089 Bequine	121 Waltz3	149 New century2	177 Jazz swing3
090 Salsa	122 Waltz4	150 New century3	178 Jazz swing4
091 Merengue1	123 Jazz Waltz1	151 Modern dance1	179 Jazz swing5
092 Merengue2	124 Jazz Waltz2	152 Modern dance2
093 Vallenato	125 Jazz Waltz3	153 Modern dance3	Electronic
094 Plena 126 Country Waltz1		180 Electro1
095 Lambada	127 Country Waltz2	Britpop	181 Electro2
096 Bachata 1		154 Britpop1	182 Electro3
097 Bachata 2	New-Soul1	155 Britpop2	183 Electro4
098 Bachata 3	128 New-Soul1	156 Britpop3	184 Electro5
099 Samba1 129 New-Soul2		185 Big Beat1
100 Samba2	130 New-Soul3	Blues	186 Big Beat2
101 Pop Samba 1		157 Folk Blues	187 Downtempo1
102 Pop Samba 2		158 Country Blues	188 Downtempo2
103 Pop Samba 3		159 Electric Blues 189 Americana Country
104 jazz Samba		160 Soul Blues

190 Pop reggae1 209 Pop Bachata 1 World Music 244 China Pop13

191 Pop reggae2 210 Pop Bachata 2 225 World 1 245 Thailand Pop

192 Rock Tango1 211 Pop Bachata 3 226 World2 246 West Band

193 Rock Tango2 212 Enthusiasm Samba1 227 Blue

194 Rock Tango3 213 Enthusiasm Samba2 228 Country Rock 1 Class Waltz

195 Western Swing1 214 Enthusiasm Samba3 229 Country Rock 2 247 Class Waltz1

196 Western Swing2 215 Enthusiasm Samba4 230 Country Rock 3 248 Class Waltz2

216 Enthusiasm Samba5 231 East 249 Class Waltz3

Pop Latin 217 Enthusiasm Samba6 232 China Pop 1 250 Class Waltz4

197 Pop Rhumba1 233 China Pop 2 251 Jazz Class Waltz1

198 Pop Rhumba2 East March 234 China Pop 3 252 Jazz Class Waltz2

199 Pop Rhumba3 218 East March1 235 China Pop4 253 Jazz Class Waltz3

200 Pop Rhumba4 219 East March2 236 China Pop5 254 Country Class Waltz1

201 Pop Rhumba5 220 East March3 237 China Pop6 255 Country Class Waltz2

202 Pop Bequine 221 East March4 238 China Pop7

203 Pop Salsa 239 China Pop8

204 Pop Merengue1 Light Polka 240 China Pop9

205 Pop Merengue2 222 Light Polka1 241 China Pop10 257 Pop Rock2

206 Pop Vallenato 223 Light Polka2 242 China Pop11 258 Pop Rock3

207 Pop Plena 224 Light Polka3 243 China Pop12 259 Pop Rock4

208 Pop Lambada

Pop Rock

256 Pop Rock1

Member of Berlin Brands Group

Handwerkerstr. 11

15366 Dahlwitz-Hoppegarten

Deutschland

Symbol of a trash bin crossed with a diagonal line, no text or numbers present

Berlin Brands Group UK Ltd

PO Box 1145

Oxford, OX1 9UW

United Kingdom

Dear Customer,

Congratulations on purchasing this device. Please read the following instructions carefully and follow them to prevent possible damages. We assume no liability for damage caused by disregard of the instructions and improper use. Scan the QR code to get access to the latest user manual and more product information.

QR code image containing encoded data, no visible human-readable text

CONTENTS

Safety Instructions 24

Product Description 25

Connections 26

Operation and Functions 27

Auto Rhythm 28

Auto Bass Chord 29

Effect Control 30

Recording 31

Rhythm Programming 32

Status Memory 32

Intelligent Three-Step Training 33

Timbre Table 34

Rhythm Table 37

Disposal Considerations 40

Declaration of Conformity 40

SAFETY INSTRUCTIONS

• Dedicated power adapter shall be used, and in case of adaptor damage, replace it immediately
• The keyboard can only be disassembled by professionals, and no change can be made to the internal structure. In case of any functional abnormality during performance, stop performing immediately and send the keyboard to professionals for maintenance.
• When connecting the keyboard to other device, ensure both the keyboard and the device to be connected are powered off before connection.
• Do not turn and keep the volume to the maximum or to an uncomfortable degree for a long time when performing.
• Keep the keyboard away from heat source to protect its parts from damage.
• Prevent liquid, dust, small particle and other foreign matters from entering the case of the keyboard, for which may result in element short circuit.
• Pull out the plug before cleaning the keyboard, and do not pull out the plug with wet hand.
• Please use dry and soft cloth to clean the keyboard. Paint, alcohol or other chemical solvents shall not be used for cleaning, for which may damage the keyboard surface.
• Please pull out the plug after performing or when the keyboard is left unused for a long time.

PRODUCT DESCRIPTION

Diagram of a portable electronic device with numbered parts and labeled keys for music playback controls

1 Loudspeaker 15 Rhythm 29 Sustain
2 LCD display 16 Timbre 30 Dual
3 Power 17 Numbers 31 SPLIT
4 Master Volume 18 Sync 32 One Key
5 Chord Volume 19 Start/Stop 33 Follow
6 Rhythm Volume 20 Fill-in 34 Ensemble
7 Transpose 21 Single 35 Pitch bend
8 Tuning 22 Fingered 36 Vibrato
9 Chord mat 23 Chord OFF	37 Chord Zone
10 Tempo	24 Memory	38 MIDI: USB-MIDI
11 Key light 25 Program	39 AUDIO INPUT
12 Touch 26 Play	40 MIC
13 Keyboard Percussion	27 Recording	41 PHONES/OUTPUT
14 Demo Song	28 Metronome	42 DC 12V

CONNECTIONS

AC/DC Power adaptor

A dedicated AC/DC power adapter shall be used. Connect the output end of the adaptor to the power port on the rear panel of the keyboard, and then the other end to the power socket.

Note: The input voltage of the adaptor shall be compatible with the power supply voltage.

Audio Output / External Headphone

- Audio output: firstly, turn off the keyboard and the external audio devices, secondly, connect one end of the audio cable to the PHONES/OUTPUT port on the rear panel of the keyboard, and then connect the other end to the audio input port of the audio device.

- Headphone connection: When connecting a headphone to the PHONES/OUTPUT port on the rear panel of the keyboard, the loudspeaker will be disabled automatically. In this way, you can play the keyboard without disturbing others.

Note: When using headphone, do not turn up and keep the volume to the maximum for a long time, for which may cause hearing loss.

Mic Input and Audio Input

- Mic input: connect a microphone to the MIC port, and then you can sing while playing the keyboard.

- With the stereo input function, sound signals from mobile phone, MP3 player, computer and other audio devices can be input into the keyboard system for playing. Firstly turn off the Keyboard, then, connect one end of audio cable to the output port of an audio device, and the other end to the AUDIO INPUT port on the rear panel of the Keyboard, finally, turn on the keyboard.

MIDI interface

The keyboard is provided with USB-MIDI interface, which can be used for connection with mobile phone and laptop. Firstly, down load APP training software, and connect the keyboard with the intelligent equipment, which may facilitate training and learning.

The USB-MIDI interface on the keyboard can also be used for connection with music equipment and computer with MIDI. Melody played with this keyboard can be output to the computer, and further recording, composing and editing can be realized through computer and software. In addition, MIDI music stored in the computer can be input to the keyboard for playing.

Connection method: Connect the keyboard and computer with common USB cable, and press the power ON/OFF button. Install the music editing software (such as CAKEWALK) in the computer, and launch the software, and then select MIDI input and output interface in the software.

OPERATION AND FUNCTIONS

Press [Power ON/OFF], LCD screen will turn on and show the current tone, tempo, volume and other status. The luminous function is enabled by default.

Key light

With the luminous keyboard, when under the modes of playing, luminous keyboard three-step training, demo song playing and USB-MIDI music input, the keyboard will light on for instruction. The luminous function is defaulted to be enabled, press [KEY LIGHT] to enable or disenable the luminous function.

Master volume adjustment

Press [Master Vol ▲ or [Master Vol ] ▼ to turn up or turn down the master volume. Press [Master Vol ▲ and [Master Vol ] ▼ simultaneously to reset your keyboard to the default values.

The master volume can also control the rhythm volume and the chord volume.

Timbre selection

The Keyboard provides 460 timbres, from "000" to "459", for your selection. When starting the keyboard, the timbre selection function will be activated automatically, and 'Tone" will show on the screen. In the absence of "Tone", Press [TIMBRE] to enable to tone selection function. The Timbre is defaulted to be "000", and it can be adjusted by pressing the corresponding number buttons or pressing the "+" / "-" buttons.

Keyboard Percussion

Press [Keyboard Percussion] to activate the percussion function. Under this mode, users can play the keyboard to produce corresponding percussions. Press this button again to disenable the keyboard percussion function.

Playing demos

65 demos are stored in the keyboard, from "000" to "064", for your selection. Press [Demo Song], and the demo song will play in order, and you can press the "+" / "-" buttons to select other demo.

When playing the songs, you can press the number buttons to select the corresponding demos, and the selected demos will play in a loop.

AUTO RHYTHM

Rhythm selection

This Keyboard provides 260 rhythms, from "000" to "259", for your selection, and the default rhythm is "000". Press [Rhythm] to enable the rhythm selection function, and "RHYM" will show on the screen. Then press the number buttons or the "+" / "-" buttons to select other rhythms:

Rhythm control

Rhythm enabling

Press [start/stop] to start accompaniment. When the rhythm function is inactivated, press [Sync], metronome will flash on the screen. Then play any key in the chord key zone (the 1st-19th key, from left), the accompaniment rhythm will be activated.

Interlude

After the rhythm is activated, press [Fill-in] and an interlude will be automatically inserted into the rhythm.

Stop rhythm

During the accompaniment rhythm, press [Start/Stop] the stop the accompaniment rhythm.

Metronome

The metronome contains four tempos, 1/4, 2/4, 3/4 and 4/4, respectively. Press [Metronome] continuously to select four tempos one by one. Press [Metronome] again to stop the tempo.

Tempo adjustment

Press [Tempo +] or [Tempo -] to increase or decrease the rhythm speed, and press the two buttons at the same time to reset to the default.

Rhythm volume adjustment

Press [Rhythm Vol] or [Rhythm Vol] to turn up or turn down the rhythm volume. Press [Rhythm Vol] and [Rhythm Vol] at the same time to reset to the default.

AUTO BASS CHORD

Fingered chord

Press [Fingered] to enable the chord function, and "Finger" will show on the screen. Under the rhythm activated mode, you can play in the chord key zone (the 1st-19th key, from left) with fingered chord fingering to obtain automatic chord accompaniment; while under the rhythm disenable mode, you can play chord accompaniment manually. Press [Fingered] or [Chord OFF] to disenable the chord function, and "Finger" will disappear from the screen.

Single chord

Press [Single] to enable the chord function, and “Single” will show on the screen. Under the rhythm activated mode, you can play in the chord key zone (the 1st-19th key, from left) with single chord fingering to obtain automatic chord accompaniment; while under the rhythm disenable mode, you can play chord accompaniment manually. Press [Single] or [Chord OFF] to disenable the chord function, and “Single” will disappear from the screen.

Chord volume adjustment

Press [Chord Vol ▲ or [Chord Vol ]▼ to turn up or turn down the chord volume. Press [Rhythm Vol ▲ and [Rhythm Vol ]▼ at the same time to reset to the default.

Chord Mat

During playing, you can press any of the Chord Mat buttons (1, 2, 3, 4) to add a section of broken background chord to enhance the melody.

EFFECT CONTROL

Transposing

With the transposing function, you can play music of other tunes with C-tune fingering method. Press [Transpose ▼ to decrease the tone by half (minor second), and the tune in C-tune keyboard zone will change to B-tune. Press [Transpose ▲ to increase the tone by half (minor second), and the tune in C-tune keyboard zone will change to #C tune or bD tune. By pressing [Transpose ▼ twice, C-tune will shift to bB-tune; by pressing [Transpose ]▲ five times, C-tune will shift to F-tune. Press [Transpose ▲ and [Transpose ]▼ at the same time to reset to C-tune “0”. Press [Transpose ▲ and [Transpose ]to adjust the level from “-6” to“6”.

Tuning

You can press [TUNING] / [TUNING] to conduct fine pitch correction by adjusting the fine adjustment level from “-99” to „99“. Press the two buttons at the same time to reset to the default “00”, and the it will back to the normal standard keyboard. This function is quite useful for tune correction during band ensemble.

Sustain

Press [Sustain], “SUS” will show on the screen, and the sustain effect will be activated. Press [Sustain] again to disenable the sustain function, and “SUS” will disappear from the screen.

Pitch bend

The pitch bend can realize tonal variation. You can increase the pitch by turning up the pitch bend and decrease the pitch by turning down the same. When released, the pitch bend will go back to the center position, and the pitch will return to the standard state.

Vibrato

When [Vibrato] is in the low position, the Vibrato function is disenabled. You can enable this function by turning up the bar, and 'VIB' will show on the screen. The Vibrato function can add vibrato effect for the instruments. You can increase or reduce the vibrator effect by tuning up or turning down [Vibrato].

Double-tone

When the double-tone function is enabled, "Double" will show on the screen. Under this mode, you can obtain an overlaid tone effect. Press [Tone] to shift between Tone 1 and Tone 2 as needed, and the corresponding "TONE 1" and "TONE 2" will show on the screen.

Keyboard splitting

When enabling the Split function, "Split" will show on the screen. 24 keys on the left will split from the keyboard, while the left keyboard zone will increase by one octave and maintain the original tone.

Touch

Press [Touch] to enable or disenable the touch function. This function is defaulted to be enabled, and “Touch” shows on the screen. With this function, you may enhance the expression of the melody. It may accurately reflect the force you need to apply on each note. The larger the force is, the louder the sound will be. When this function is enabled, the sound will be equal regardless of what the force you apply.

RECORDING

Recording

Press [Record] to enable the recording function, and "Record" will show on the screen. Under this mode all notes played will be recorded. The recorded notes will be cleaned upon recording or shutdown of the keyboard.

Stop recording

• When the storage is full, "Full" will show on the screen, and recording will stop automatically.
• During the recording process, you can press [PLAY] to stop recording and play the recorded notes.
• Press [REC] to disenable the recording function, and all recorded notes will be cleaned.

Records playback

• When the recording function is enabled, press the [PLAY] to playback the record.
• During playback process, you can press [PLAY] again to stop playback.

RHYTHM PROGRAMMING

Rhythm programming

Press [PROG] to enable the rhythm programming function. “Program” will show on the screen, and the keyboard percussion will be activated. Under this mode, you can create custom rhythms by playing the corresponding percussion keys. The programmed rhythm will be cleaned upon reprogramming or shutdown of the keyboard.

Stop programming

• When the maximum of 32 pieces of percussion music are recorded, "Full" will show on the screen, and programming will stop automatically.
• During the programming process, you can press [PLAY] to stop programming and playback the programmed rhythm.
• Press [PROG] to disenabled the rhythm programming function and clean all programmed data.

Programmed rhythm playback

• When the programming function is enabled, press [PLAY] to playback programmed rhythm.
• During playback process, you can press [PLAY] again to stop playback.

STATUS MEMORY

With the status memory function, you can save the tone, tempo, speed and other parameters set during playing. This keyboard is equipped with 4 status memories, which can be flexibly called at any time during playing.

Storage of status memory

Set the tone, rhythm and tempo as required, and then press [Memory] and one of [M1] to [M4] to save the current status.

Calling of status memory

Press any one of [M1] to [M4] to call the parameters saved under this memory to replace the current status.

NOTE: No power failure protection is provided for the saved contents, so the saved contents will loss after the electronic keyboard is restarted after power cut.

INTELLIGENT THREE-STEP TRAINING

The intelligent training function consists of three steps, which can guide the learner to play the keyboard step by step. Firstly, the learner can practice by following the guidance of step one “One Key” to get familiar with the melody and beat, and then move to the step two “Follow”. After being able to play the melody with the keyboard, the leaner may forward the step three “Ensemble”, and through practice, the leaner may finally be able to ensemble with others.

Training 1: One key

Press [One Key] to enable the one key training function, and “Step 1” will show on the screen. You can press the “+”/“-” buttons to select the song to be learned. Single Key training aims at duration learning, and there is no requirement for pitch or correctness. This mode allows mistakes when playing the keys, but the keyboards still plays correct notes, and the luminous keys will light on according to the correct notes of the melody, indicating the correct note to be played, and you can play by following the guidance of the luminous key. In a meanwhile, the key zone in the screen will also show the correct notes. Press [One Key] to disenable the training function.

Training 2: Follow

Press [Follow] to enable the Follow training function, and "Step 2" will show on the screen. You can press the number buttons or the "+"/-" button to select the song to be learned. The luminous keys will light on according to the correct notes of the melody, indicating the correct note to be played, and you can play by following the guidance of the luminous key. You can also learn how to play by following the indicators in the key zone of the screen. In case of misplay, the melody will stop until you play the correct notes. Press [Follow] again to disenable the follow training function.

Training 3: Ensemble

Press [Ensemble] to enable the Ensemble training function, and "Step 3" will show on the screen. You can press the number buttons or the "+" / "-" buttons to select the song to be learned. The Ensemble training aims at the correct and comprehensive learning of the song duration and notes. The keynote will be shielded for ensemble, and you need to play the correct note according to the correct duration of the song. If you fail to play within 3 seconds, the keyboard will automatically play the correct note. The luminous keyboard will light on according to the main melody notes, indicating the note to be played, and you can play by following the guidance of the luminous key. The keyboard zone in the screen will show the correct note and tempo. Press [Ensemble] again to disenable the Ensemble training function.

Piano Bass Clarinet FX Effect

000 Acoustic Grand Piano 032 Acoustic Bass 064 Soprano Sax 096 FX 1 (rain)
001 Bright Acoustic Piano 033 Electric Bass(finger) 065 Alto Sax 097 FX 2 (soundtrack)
002 Electric Grand Piano 034 Electric Bass (pick) 066 Tenor Sax 098 FX 3 (crystal)
003 Honky-tonk Piano 035 Fretless Bass 067 Baritone Sax 099 FX 4 (atmosphere)
004 Rhodes Piano	036 Slap Bass 1	068 Oboe	100 FX 5 (brightness)
005 Chorused Piano	037 Slap Bass 2	069 English Horn	101 FX 6 (goblins)
006 Harpsichord	038 Synth Bass 1	070 Bassoon	102 FX 7 (echoes)
007 Clavichord	039 Synth Bass 2	071 Clarinet	103 FX 8 (sci-fi)

Color percussion String	Flute	Folk music
008 Celesta	040 Violin	072 Piccolo	104 Sitar
009 Glockenspiel	041 Viola	073 Flute	105 Banjo
010 Music box 042 Cello	074 Recorder	106 Shamisen
011 Vibraphone	043 Contrabass	075 Pan Flute	107 Koto
012 Marimba	044 Tremolo Strings	076 Bottle Blow	108 Kalimba
013 Xylophone	045 Pizzicato Strings	077 Shakuhachi	109 Bagpipe
014 Tubular Bells	046 Orchestral Harp	078 Whistle	110 Fiddle
015 Dulcimer	047 Timpani	079 Ocarina	111 Shanai

Organ	Ensemble / Chorus	Lead	Percussion
016 Hammond Organ	048 String Ensemble 1	080 Lead 1 (square)	112 Tinkle Bell
017 Percussive Organ	049 String Ensemble 2	081 Lead 2 (sawtooth)	113 Agogo
018 Rock Organ	050 Synth Strings 1	082 Lead 3 (caliope lead)	114 Steel Drums
019 Church Organ	051 Synth Strings 2	083 Lead 4 (chiff lead)	115 Woodblock
020 Reed Organ	052 Choir Aahs	084 Lead 5 (charang)	116 Taiko Drum
021 Accordian	053 Voice Oohs	085 Lead 6 (voice)	117 Melodic Tom
022 Harmonica	054 Synth Voice	086 Lead 7 (fifths)	118 Synth Drum
023 Tango Accordian	055 Orchestra Hit	087 Lead 8 (bass lead)	119 Reverse Cymbal

Guitar	Brass	Pad	Sound Effects
024 Acoustic Guitar (nylon)	056 Trumpet	088 Pad 1 (new age)	120 Guitar Fret Noise
025 Acoustic Guitar (steel)	057 Trombone	089 Pad 2 (warm)	121 Breath Noise
026 Electric Guitar (jazz)	058 Tuba	090 Pad 3 (polysynth)	122 Seashore
027 Electric Guitar (clean)	059 Muted Trumpet	091 Pad 4 (choir)	123 Bird Tweet
028 Electric Guitar (muted)	060 French Horn	092 Pad 5 (bowed)	124 Telephone Ring
029 Overdriven Guitar	061 Brass Section	093 Pad 6 (metallic)	125 Helicopter
030 Distortion Guitar	062 Synth Brass 1	094 Pad 7 (halo)	126 Applause
031 Guitar Harmonics	063 Synth Brass 2	095 Pad 8 (sweep)	127 Gunshot

Percussion instrument 163 Synth Banjo 199 Violin Lead 237 Bass Oboe

128 Percussion 164 Japan Synth 200 Cello Lead 238 Bright Oboe

165 Church Piano 201 Pizzicato rhythm 239 distortio oboe

Nation tone 166 Church electric Piano 202 high Harp 240 English Horn ensemble

129 bangdi 167 Synth Piano 203 Harp ensemble 241 Pizzicato English Horn

130 pipa 168 Baritone Piano 204 Synth Harp 242 Diplophonia English Horn

131 erhu 169 Piano PAD
243 Bright English Horn

132 gaohu	170 String Piano	Electronic music	244 Synth English Horn
133 suona	171 Metal Piano 205 Baritone Trumpet
134 dasuo	172 Light rhythm Piano	206 Trumpet Ensemble	Synthetic electronic
135 guzheng	173 electric Piano Pad	207 rhythm Trumpet	245 Psychedelic Synth Lead
136 sanxian	174 Classical piano	208 high Trumpet	246 Vibraphone Synth Lead
137 guqin		209 Synth Trumpet	247 Marimba Synth Lead
138 xiao	Effect class guitar	210 Bass Trombone	248 Metal FX
139 China Percussion 1	175 Organ Guitar	211 Trombone Ensemble	249 Electronic FX
140 China Percussion 2	176 Electric Guitar	212 rhythm Trombone	250 Electronic String Ensemble
	177 Synthesis Nylon Guitar	213 high Trombone
Rhythm	178 Synth Electronic Guitar	214 baritone Trombone	World national synthesis
141 Rock Grand Piano	179 Bright Clean Guitar	215 Synth Trombone	251 Wind FX
142 Electronic organ	180 Orchestra Guitar	216 Violin French Horn	252 Clarinet FX
143 Psychedelic electronic	181 Psychedelic Guitar	217 French Horn ensemble	253 Organ FX
144 Water jean	182 Bright organ	218 Electronic French Horn	254 Crystal FX
145 Bright Guitar	183 Pick organ	219 Synth French Horn	255 Synth Shamisen
146 Orchestra piccolo		220 PsychedelicSynth Brass	256 Electronic Shamisen
147 Heavy metal guitar	Electronic Symphony	221 Distortion Synth Brass	257 Bright Sitar
148 Crystal guitar	184 Synth accordion	222 Vibraphone Synth Brass	258 Whistle Accord
149 Queer electric Piano	185 Bright Violin	223 Rock Synth Brass	259 rhythm Nation
150 Bright bass	186 Stringed violin	224 Synth Muted Trumpet	260 Bright Koto
151 Rock Electric Bass	187 Trill violin	225 Soprano Sax ensemble	261 Koto Lead
152 Psychedelic Bass	188 Electronic violin	226 Hit Soprano Sax	262 Diplophonia Koto
153 Rhythm Electric Bass	189 Large violin	227 Synth Soprano Sax	263 Baritone Koto
154 Heavy metal bass	190 rhythm Orchestra	228 National Sax	264 Synth Koto
155 Magic electronic	191 Pizzicato Violin	229 Metal Sax
156 Bright violin	192 Pizzicato Ensemble 1	230 Baritone Sax ensemble	Bed pad
157 Atonic violin	193 Pizzicato Ensemble 2	231 Crystal Sax	265 Environmental Lead
158 Heavy bass orchestra	194 Percussion band	232 Soft Baritone Sax	266 Metal Lead
159 Synth clarinet	195 BaritoneSynthContrabass	233 Synth Baritone Sax	267 Orchestra Lead
160 Interactive Lead	196 Bass Flute	234 Heavy metal Sax	268 Glockenspiel Lead
161 orchestral keyboard	197 Distortion Contrabass	235 Church Oboe	269 Bass Lead
162 Bagpipes	198 Contrabass Lead	236 Oboe ensemble	270 Fifths Lead

271 Wind Lead 306 Baritone Xylophone 343 Jazz Electric Piano Bass synthesizer

272 Atmosphere Lead 307 Clean Piano 344 Rock Timpani 380 The bass

273 Sharp Lead 308 Bright Dulcimer 345 Fantasy Atmosphere 381 Bright bass

274 Bright Lead 309 Rhythm Grand Piano 346 Heavy metals Pad 382 Heavy bass

275 East Nation Pad 310 Rhythm Accordian 347 Bright clavichord 383 Magic bass

276 Atmosphere Pad 311 Marimba Harp 348 Noise Lead 384 The bass band

277 Electric bass Pad 312 Synth Xylophone 349 Classical Electronic 385 National bass

278 Electric Piano Pad 313 Psychedelic Jazz Guitar 386 The bass strings

279 Clean Guitar Pad 314 Rhythm Electric Guitar Digital Synthesizer 387 British pipe bass

280 Western Pad 350 Rock piano 388 East bass

281 Sci-fi Pad Classic Synthesizer 351 Dynamic piano 389 Traditional bass

282 Metal Sci-fi Pad 315 Baritone Piccolo 352 Rock Clavichord

283 Clarinet Pad 316 Pan Flute Pad 353 Baritone Celesta Science fiction electronic string

284 Electronic dance Pad 317 Soft Pad 354 Magic Metallophone 390 Fantasy violin

318 Fierce Organ 355 Heavy metal Glockenspiels 391 Solo Violin

Asian synthetic 319 Fantasy Clarinet 356 Digital Organ 392 Distortion violin

285 Double Kalimba 320 Bright Rhythm 357 Clear Organ 393 Heavy rock Viola

286 Bright Kalimba 321 Synth Brass Ensemble 358 Baritone Organ 394 Magic Cello

287 Crystal Kalimba 322 Electronic Xylophone 359 Reed Synthesizer 395 Jumping Cello

288 Synth Kalimba 323 Atmosphere Pizzicato 360 Reed Lead 396 Electronic hook string

289 Electronic Bagpipe 324 Rhythm Clarinet 361 Metal Twelve String Guitar 397 Mechanical hook

290 Wind Bagpipe 325 Bright Dulcimer 362 Magic Guitar 398 Pizzicato synthesizer

291 high Bagpipe 326 Double British pipe 363 Diplophonia Guitar 399 Heavy pizzicato rhythm

292 Bright Bagpipe 327 Bright Bassoon 364 Regge Guitar 400 Fast Harp

293 Orchestra Bagpipe 328 Electronic Synth Bassoon 365 Hawaii Guitar 401 Heavy rock Harp

294 Baritone Bagpipe 329 Rock Wind 366 Campus Jazz Guitar 402 Large electronic drum

295 Environmental Shanai 330 Synthetic effect wind1 367 Hall electric guitar 403 Magic timpani

296 Baritone Shanai 331 Synthetic effect wind2 368 Slap guitar 404 Oriental timpani

297 Tenor Shanai 332 Synthetic effect wind3 369 Digital synthetic guitar 405 Fantasy strings

298 high Shanai 333 Synthetic effect wind4 370 Dead nuclear guitar 406 Solo synthesizer

299 Synth Shanai 334 Synthetic Fiddle 371 Heavy bass electric guitar 407 Distorted ensemble

300 Bright Steel Drums 335 Special Echo FX 372 Bright jazz guitar 408 Heavy rock ensemble

301 Steel Drums Lead 336 Electronic Organ Lead 373 Modern electric guitar 409 Magic ensemble

302 Lyric Steel Drums 337 Church Organ Lead 374 Solo electric guitar 410 Jump syn String Ensemble

303 Orchestra Steel Drums 338 Science Fiction Classic 375 Bar electric guitar 411 Electronic chorus "ah"

304 Synth Steel Drums 339 Electronic Bagpipe 376 Sax electric guitar 412 Electronic chorus "oh"

340 String Ensemble Pad 377 Guitar noise 413 Chorus synthesizer

Modern Electric 341 Electronic wind Pad 378 Electric guitar reverb 414 Heavy rhythm syn voice

305 Rhythm electric Piano 342 Organ Electric Guitar 379 Dynamic guitar 415 Digital voice

416 Music vocal ensemble 426 Clear syn Tuba 438 Baritone Sax 450 Heavy metal flute

417 Magic Ensemble 427 Bass France 439 Solo baritone Sax 451 Digital flute

418 Vocal percussion ensemble 428 Fantasy France 440 Distortion oboe 452 Synthesis voiceless clari

419 Oriental synthetic voice 429 Solo copper pipe 441 Heavy rock Oboe 453 Baritone Panpipe

430 Distortion syn tube 442 Magic British tube 454 Dynamic ruler eight

Western electronic	431 Heavy rock Sax	443 Jump British tube	455 Heavy rock lead
420 Dynamic trumpet	432 Sax magic	444 Electronic bar	456 Magic lead
421 Heavy rock trumpet	433 Jump Sax	445 Mechanical bar	457 Magic voice synthesizer
422 Traditional Trombone	434 Electronic tenor Sax	446 Dynamic clarinet	458 Synthesis heavy metals
423 Magic Trombone	435 Mechanical Sax	447 Heavy rock clarinet	459 Digital Synth lead
424 Heavy metal Tuba	436 Baritone Sax synthesizer	448 Traditional Piccolo
425 Digital Tuba	437 Heavy rhythm Alto Sax	449 Magic Piccolo

RHYTHM TABLE

March	Funky soul	Pop Dance	Unique Classes
000 March1	017 Funky soul 1	034 Pop Dance 1	051 Euro Beat
001 March2	018 Funky soul 2	035 Pop Dance 2	052 House1
002 March3	019 Funky soul 3	036 Pop Dance 3	053 House2
003 March4	020 Funky soul 4	037 Shuffle1	054 Swing Beat
	021 Funky soul 5	038 Shuffle2	055 8 Ballad
Nation rhythm	022 Funky soul 6	039 8 Shuffle	056 Step
004 Nation 1	023 Funky soul 7
005 Nation2	024 Funky soul 8	Rock	Band
006 Nation3	025 West Coast	040 Hard Rock	057 Big Band1
007 Nation4	026 Euro Soul	041 Slow Rock1	058 Big Band2
008 Nation5		042 Slow Rock2	059 Cobmo1
009 Nation6	Beat		060 Cobmo2
010 Nation7	027 16 AOR 1	Classics Beat
011 Nation8	028 16 AOR 2	043 Pop Classic	Swing
012 Nation9	029 16 Beat 1	044 Blues	061 Swing1
013 Nation10	030 16 Beat 2	045 Twist	062 Swing2
	031 16 Beat 3	046 Hard 3 Beat	063 Swing3
Slow Soul	032 16 Ballad 1		064 Swing4
014 Slow Soul 1	033 16 Ballad 2	Love Ballad	065 Swing5
015 Slow Soul 2		047 Love Ballad 1	066 Swing6
016 Slow Soul 3		048 Love Ballad 2
		049 Love Ballad 3
		050 Love Ballad 4

Latin Polka Psychedelic Ballad

067 Baiao 105 Polka1 131 Psychedelic 1 161 Classical ballad1

068 Bolero 106 Polka2 132 Psychedelic 2 162 Classical ballad2

069 Bossanova1 107 Polka3 133 Goth Psychedelic 163 Light Ballad

070 Bossanova2 134 Soul Psychedelic 1 164 Rhythm Ballad

071 Bossanova3 C&W 135 Soul Psychedelic 2

072 Bossanova4 108 C & W 1 136 Soul Psychedelic 3 House

073 Bossanova5 109 C & W 2 137 Soul Psychedelic 4 165 Pop House1

074 Calypso 110 Bluegrass 138 Psychedelic Swing 166 Pop House2

075 Habanera	111 Country1	139 Soft Rock	167 Pop House3
076 Reggae1	112 Country2	140 Post Rock	168 Deep House
077 Reggae2	113 Country3		169 Acid House
078 Jorpo		Classical beat 170 Progressive House
079 Tango1	Middle East	141 Classical beat1	171 Epic House
080 Tango2	114 Middle East	142 Classical beat2
081 Tango3	115 China 1	143 Classical beat3	New Age Latin
082 Mambo 1	116 China 2	144 Classical beat4	172 New Age Latin1
083 Mambo 2	117 China 3	145 Classical beat5	173 New Age Latin2
084 Rhumba 1	118 Thailand	146 Classical beat6	174 Bluse mambo
085 Rhumba 2		147 Classical beat7
086 Rhumba 3	Waltz		Jazz swing
087 Rhumba 4	119 Waltz1	Modern pop music	175 Jazz swing1
088 Rhumba 5	120 Waltz2	148 New century1	176 Jazz swing2
089 Bequine	121 Waltz3	149 New century2	177 Jazz swing3
090 Salsa	122 Waltz4	150 New century3	178 Jazz swing4
091 Merengue1	123 Jazz Waltz1	151 Modern dance1	179 Jazz swing5
092 Merengue2	124 Jazz Waltz2	152 Modern dance2
093 Vallenato	125 Jazz Waltz3	153 Modern dance3	Electronic
094 Plena 126 Country Waltz1		180 Electro1
095 Lambada	127 Country Waltz2	Britpop	181 Electro2
096 Bachata 1		154 Britpop1	182 Electro3
097 Bachata 2	New-Soul1	155 Britpop2	183 Electro4
098 Bachata 3	128 New-Soul1	156 Britpop3	184 Electro5
099 Samba1 129 New-Soul2		185 Big Beat1
100 Samba2	130 New-Soul3	Blues	186 Big Beat2
101 Pop Samba 1		157 Folk Blues	187 Downtempo1
102 Pop Samba 2		158 Country Blues	188 Downtempo2
103 Pop Samba 3		159 Electric Blues 189 Americana Country
104 jazz Samba		160 Soul Blues

190 Pop reggae1 209 Pop Bachata 1 World Music 244 China Pop13

191 Pop reggae2 210 Pop Bachata 2 225 World 1 245 Thailand Pop

192 Rock Tango1 211 Pop Bachata 3 226 World2 246 West Band

193 Rock Tango2 212 Enthusiasm Samba1 227 Blue

194 Rock Tango3 213 Enthusiasm Samba2 228 Country Rock 1 Class Waltz

195 Western Swing1 214 Enthusiasm Samba3 229 Country Rock 2 247 Class Waltz1

196 Western Swing2 215 Enthusiasm Samba4 230 Country Rock 3 248 Class Waltz2

216 Enthusiasm Samba5 231 East 249 Class Waltz3

Pop Latin 217 Enthusiasm Samba6 232 China Pop 1 250 Class Waltz4

197 Pop Rhumba1 233 China Pop 2 251 Jazz Class Waltz1

198 Pop Rhumba2 East March 234 China Pop 3 252 Jazz Class Waltz2

199 Pop Rhumba3 218 East March1 235 China Pop4 253 Jazz Class Waltz3

200 Pop Rhumba4 219 East March2 236 China Pop5 254 Country Class Waltz1

201 Pop Rhumba5 220 East March3 237 China Pop6 255 Country Class Waltz2

202 Pop Bequine 221 East March4 238 China Pop7

203 Pop Salsa 239 China Pop8

204 Pop Merengue1 Light Polka 240 China Pop9

205 Pop Merengue2 222 Light Polka1 241 China Pop10 257 Pop Rock2

206 Pop Vallenato 223 Light Polka2 242 China Pop11 258 Pop Rock3

207 Pop Plena 224 Light Polka3 243 China Pop12 259 Pop Rock4

208 Pop Lambada

Pop Rock

256 Pop Rock1

DISPOSAL CONSIDERATIONS

Symbol of a trash bin crossed with a diagonal line, no text or numbers present

If there is a legal regulation for the disposal of electrical and electronic devices in your country, this symbol on the product or on the packaging indicates that this product must not be disposed of with household waste. Instead, it must be taken to a collection point for the recycling of electrical and electronic equipment. By disposing of it in accordance with the rules, you are protecting the environment and the health of your fellow human beings from negative consequences. For information about the recycling and disposal of this product, please contact your local authority or your household waste disposal service.

MANUFACTURER & IMPORTER (UK)

Manufacturer:

Chal-Tec GmbH, Wallstrasse 16, 10179 Berlin, Germany.

Importer for Great Britain:

Berlin Brands Group UK Ltd

PO Box 1145

Oxford, OX1 9UW

United Kingdom

Chère cliente, cher client,

QR code image containing encoded data, no visible human-readable text

SOMMAIRE

Diagram of a portable electronic device with numbered labels pointing to various components such as keys, audio, and control panels.

ACCOMPAGNEMENT D'ACCORDS

Accord arpégé

Piano Bass Clarinet FX Effect

000 Acoustic Grand Piano 032 Acoustic Bass 064 Soprano Sax 096 FX 1 (rain)

001 Bright Acoustic Piano 033 Electric Bass(finger) 065 Alto Sax 097 FX 2 (soundtrack)

002 Electric Grand Piano 034 Electric Bass (pick) 066 Tenor Sax 098 FX 3 (crystal)

003 Honky-tonk Piano	035 Fretless Bass	067 Baritone Sax	099 FX 4 (atmosphere)
004 Rhodes Piano	036 Slap Bass 1	068 Oboe	100 FX 5 (brightness)
005 Chorused Piano	037 Slap Bass 2	069 English Horn	101 FX 6 (goblins)
006 Harpsichord	038 Synth Bass 1	070 Bassoon	102 FX 7 (echoes)
007 Clavichord	039 Synth Bass 2	071 Clarinet	103 FX 8 (sci-fi)

Color percussion	String	Flute	Folk music
008 Celesta	040 Violin	072 Piccolo	104 Sitar
009 Glockenspiel	041 Viola	073 Flute	105 Banjo
010 Music box 042 Cello	074 Recorder	106 Shamisen
011 Vibraphone	043 Contrabass	075 Pan Flute	107 Koto
012 Marimba	044 Tremolo Strings	076 Bottle Blow	108 Kalimb
013 Xylophone	045 Pizzicato Strings	077 Shakuhachi	109 Bagpip
014 Tubular Bells	046 Orchestral Harp	078 Whistle	110 Fiddle
015 Dulcimer	047 Timpani	079 Ocarina	111 Shanai

Organ	Ensemble / Chorus	Lead	Percussion
016 Hammond Organ	048 String Ensemble 1	080 Lead 1 (square)	112 Tinkle Bell
017 Percussive Organ	049 String Ensemble 2	081 Lead 2 (sawtooth)	113 Agogo
018 Rock Organ	050 Synth Strings 1	082 Lead 3 (caliope lead)	114 Steel Drums
019 Church Organ	051 Synth Strings 2	083 Lead 4 (chiff lead)	115 Woodblock
020 Reed Organ	052 Choir Aahs	084 Lead 5 (charang)	116 Taiko Drum
021 Accordian 053 Voice Oohs	085 Lead 6 (voice)	117 Melodic Tom
022 Harmonica	054 Synth Voice	086 Lead 7 (fifths)	118 Synth Drum
023 Tango Accordian	055 Orchestra Hit	087 Lead 8 (bass lead)	119 Reverse Cym

Guitar	Brass	Pad	Sound Effects
024 Acoustic Guitar (nylon)	056 Trumpet	088 Pad 1 (new age)	120 Guitar Fret Noise
025 Acoustic Guitar (steel)	057 Trombone	089 Pad 2 (warm)	121 Breath Noise
026 Electric Guitar (jazz)	058 Tuba	090 Pad 3 (polysynth)	122 Seashore
027 Electric Guitar (clean)	059 Muted Trumpet	091 Pad 4 (choir)	123 Bird Tweet
028 Electric Guitar (muted)	060 French Horn	092 Pad 5 (bowed)	124 Telephone Ring
029 Overdriven Guitar	061 Brass Section	093 Pad 6 (metallic)	125 Helicopter
030 Distortion Guitar	062 Synth Brass 1	094 Pad 7 (halo)	126 Applause
031 Guitar Harmonics	063 Synth Brass 2	095 Pad 8 (sweep)	127 Gunshot

Percussion instrument 163 Synth Banjo 199 Violin Lead 237 Bass Oboe

128 Percussion 164 Japan Synth 200 Cello Lead 238 Bright Oboe

165 Church Piano 201 Pizzicato rhythm 239 distortio oboe

Nation tone 166 Church electric Piano 202 high Harp 240 English Horn ensemble

129 bangdi 167 Synth Piano 203 Harp ensemble 241 Pizzicato English Horn

130 pipa 168 Baritone Piano 204 Synth Harp 242 Diplophonia English Horn

131 erhu 169 Piano PAD
243 Bright English Horn

132 gaohu	170 String Piano	Electronic music	244 Synth English Horn
133 suona	171 Metal Piano 205 Baritone Trumpet
134 dasuo	172 Light rhythm Piano	206 Trumpet Ensemble	Synthetic electronic
135 guzheng	173 electric Piano Pad	207 rhythm Trumpet	245 Psychedelic Synth Lead
136 sanxian	174 Classical piano	208 high Trumpet	246 Vibraphone Synth Lead
137 guqin		209 Synth Trumpet	247 Marimba Synth Lead
138 xiao	Effect class guitar	210 Bass Trombone	248 Metal FX
139 China Percussion 1	175 Organ Guitar	211 Trombone Ensemble	249 Electronic FX
140 China Percussion 2	176 Electric Guitar	212 rhythm Trombone	250 Electronic String Ensemble
	177 Synthesis Nylon Guitar	213 high Trombone
Rhythm	178 Synth Electronic Guitar	214 baritone Trombone	World national synthesis
141 Rock Grand Piano	179 Bright Clean Guitar	215 Synth Trombone	251 Wind FX
142 Electronic organ	180 Orchestra Guitar	216 Violin French Horn	252 Clarinet FX
143 Psychedelic electronic	181 Psychedelic Guitar	217 French Horn ensemble	253 Organ FX
144 Water jean	182 Bright organ	218 Electronic French Horn	254 Crystal FX
145 Bright Guitar	183 Pick organ	219 Synth French Horn	255 Synth Shamisen
146 Orchestra piccolo		220 PsychedelicSynth Brass	256 Electronic Shamisen
147 Heavy metal guitar	Electronic Symphony	221 Distortion Synth Brass	257 Bright Sitar
148 Crystal guitar	184 Synth accordion	222 Vibraphone Synth Brass	258 Whistle Accord
149 Queer electric Piano	185 Bright Violin	223 Rock Synth Brass	259 rhythm Nation
150 Bright bass	186 Stringed violin	224 Synth Muted Trumpet	260 Bright Koto
151 Rock Electric Bass	187 Trill violin	225 Soprano Sax ensemble	261 Koto Lead
152 Psychedelic Bass	188 Electronic violin	226 Hit Soprano Sax	262 Diplophonia Koto
153 Rhythm Electric Bass	189 Large violin	227 Synth Soprano Sax	263 Baritone Koto
154 Heavy metal bass	190 rhythm Orchestra	228 National Sax	264 Synth Koto
155 Magic electronic	191 Pizzicato Violin	229 Metal Sax
156 Bright violin	192 Pizzicato Ensemble 1	230 Baritone Sax ensemble	Bed pad
157 Atonic violin	193 Pizzicato Ensemble 2	231 Crystal Sax	265 Environmental Lead
158 Heavy bass orchestra	194 Percussion band	232 Soft Baritone Sax	266 Metal Lead
159 Synth clarinet	195 BaritoneSynthContrabass	233 Synth Baritone Sax	267 Orchestra Lead
160 Interactive Lead	196 Bass Flute	234 Heavy metal Sax	268 Glockenspiel Lead
161 orchestral keyboard	197 Distortion Contrabass	235 Church Oboe	269 Bass Lead
162 Bagpipes	198 Contrabass Lead	236 Oboe ensemble	270 Fifths Lead

271 Wind Lead 306 Baritone Xylophone 343 Jazz Electric Piano Bass synthesizer

272 Atmosphere Lead 307 Clean Piano 344 Rock Timpani 380 The bass

273 Sharp Lead 308 Bright Dulcimer 345 Fantasy Atmosphere 381 Bright bass

274 Bright Lead 309 Rhythm Grand Piano 346 Heavy metals Pad 382 Heavy bass

275 East Nation Pad 310 Rhythm Accordian 347 Bright clavichord 383 Magic bass

276 Atmosphere Pad 311 Marimba Harp 348 Noise Lead 384 The bass band

277 Electric bass Pad 312 Synth Xylophone 349 Classical Electronic 385 National bass

278 Electric Piano Pad 313 Psychedelic Jazz Guitar 386 The bass strings

279 Clean Guitar Pad 314 Rhythm Electric Guitar Digital Synthesizer 387 British pipe bass

280 Western Pad 350 Rock piano 388 East bass

281 Sci-fi Pad Classic Synthesizer 351 Dynamic piano 389 Traditional bass

282 Metal Sci-fi Pad 315 Baritone Piccolo 352 Rock Clavichord

283 Clarinet Pad 316 Pan Flute Pad 353 Baritone Celesta Science fiction electronic string

284 Electronic dance Pad 317 Soft Pad 354 Magic Metallophone 390 Fantasy violin

318 Fierce Organ 355 Heavy metal Glockenspiels 391 Solo Violin

Asian synthetic 319 Fantasy Clarinet 356 Digital Organ 392 Distortion violin

285 Double Kalimba 320 Bright Rhythm 357 Clear Organ 393 Heavy rock Viola

286 Bright Kalimba 321 Synth Brass Ensemble 358 Baritone Organ 394 Magic Cello

287 Crystal Kalimba 322 Electronic Xylophone 359 Reed Synthesizer 395 Jumping Cello

288 Synth Kalimba 323 Atmosphere Pizzicato 360 Reed Lead 396 Electronic hook string

289 Electronic Bagpipe 324 Rhythm Clarinet 361 Metal Twelve String Guitar 397 Mechanical hook

290 Wind Bagpipe 325 Bright Dulcimer 362 Magic Guitar 398 Pizzicato synthesizer

291 high Bagpipe 326 Double British pipe 363 Diplophonia Guitar 399 Heavy pizzicato rhythm

292 Bright Bagpipe 327 Bright Bassoon 364 Regge Guitar 400 Fast Harp

293 Orchestra Bagpipe 328 Electronic Synth Bassoon 365 Hawaii Guitar 401 Heavy rock Harp

294 Baritone Bagpipe 329 Rock Wind 366 Campus Jazz Guitar 402 Large electronic drum

295 Environmental Shanai 330 Synthetic effect wind1 367 Hall electric guitar 403 Magic timpani

296 Baritone Shanai 331 Synthetic effect wind2 368 Slap guitar 404 Oriental timpani

297 Tenor Shanai 332 Synthetic effect wind3 369 Digital synthetic guitar 405 Fantasy strings

298 high Shanai 333 Synthetic effect wind4 370 Dead nuclear guitar 406 Solo synthesizer

299 Synth Shanai 334 Synthetic Fiddle 371 Heavy bass electric guitar 407 Distorted ensemble

300 Bright Steel Drums 335 Special Echo FX 372 Bright jazz guitar 408 Heavy rock ensemble

301 Steel Drums Lead 336 Electronic Organ Lead 373 Modern electric guitar 409 Magic ensemble

302 Lyric Steel Drums 337 Church Organ Lead 374 Solo electric guitar 410 Jump syn String Ensemble

303 Orchestra Steel Drums 338 Science Fiction Classic 375 Bar electric guitar 411 Electronic chorus "ah"

304 Synth Steel Drums 339 Electronic Bagpipe 376 Sax electric guitar 412 Electronic chorus "oh"

340 String Ensemble Pad 377 Guitar noise 413 Chorus synthesizer

Modern Electric 341 Electronic wind Pad 378 Electric guitar reverb 414 Heavy rhythm syn voice

305 Rhythm electric Piano 342 Organ Electric Guitar 379 Dynamic guitar 415 Digital voice

416 Music vocal ensemble 426 Clear syn Tuba 438 Baritone Sax 450 Heavy metal flute

417 Magic Ensemble 427 Bass France 439 Solo baritone Sax 451 Digital flute

418 Vocal percussion ensemble 428 Fantasy France 440 Distortion oboe 452 Synthesis voiceless clari

419 Oriental synthetic voice 429 Solo copper pipe 441 Heavy rock Oboe 453 Baritone Panpipe

430 Distortion syn tube 442 Magic British tube 454 Dynamic ruler eight

Western electronic	431 Heavy rock Sax	443 Jump British tube	455 Heavy rock lead
420 Dynamic trumpet	432 Sax magic	444 Electronic bar	456 Magic lead
421 Heavy rock trumpet	433 Jump Sax	445 Mechanical bar	457 Magic voice synthesizer
422 Traditional Trombone	434 Electronic tenor Sax	446 Dynamic clarinet	458 Synthesis heavy metals
423 Magic Trombone	435 Mechanical Sax	447 Heavy rock clarinet	459 Digital Synth lead
424 Heavy metal Tuba	436 Baritone Sax synthesizer	448 Traditional Piccolo
425 Digital Tuba	437 Heavy rhythm Alto Sax	449 Magic Piccolo

TABLEAU DES RYTHMES

March	Funky soul	Pop Dance	Unique Classes
000 March1	017 Funky soul 1	034 Pop Dance 1	051 Euro Beat
001 March2	018 Funky soul 2	035 Pop Dance 2	052 House1
002 March3	019 Funky soul 3	036 Pop Dance 3	053 House2
003 March4	020 Funky soul 4	037 Shuffle1	054 Swing Beat
	021 Funky soul 5	038 Shuffle2	055 8 Ballad
Nation rhythm	022 Funky soul 6	039 8 Shuffle	056 Step
004 Nation 1	023 Funky soul 7
005 Nation2	024 Funky soul 8	Rock	Band
006 Nation3	025 West Coast	040 Hard Rock	057 Big Band1
007 Nation4	026 Euro Soul	041 Slow Rock1	058 Big Band2
008 Nation5		042 Slow Rock2	059 Cobmo1
009 Nation6	Beat		060 Cobmo2
010 Nation7	027 16 AOR 1	Classics Beat
011 Nation8	028 16 AOR 2	043 Pop Classic	Swing
012 Nation9	029 16 Beat 1	044 Blues	061 Swing1
013 Nation10	030 16 Beat 2	045 Twist	062 Swing2
	031 16 Beat 3	046 Hard 3 Beat	063 Swing3
Slow Soul	032 16 Ballad 1		064 Swing4
014 Slow Soul 1	033 16 Ballad 2	Love Ballad	065 Swing5
015 Slow Soul 2		047 Love Ballad 1	066 Swing6
016 Slow Soul 3		048 Love Ballad 2
		049 Love Ballad 3
		050 Love Ballad 4

Latin Polka Psychedelic Ballad

067 Baiao 105 Polka1 131 Psychedelic 1 161 Classical ballad1

068 Bolero 106 Polka2 132 Psychedelic 2 162 Classical ballad2

069 Bossanova1 107 Polka3 133 Goth Psychedelic 163 Light Ballad

070 Bossanova2 134 Soul Psychedelic 1 164 Rhythm Ballad

071 Bossanova3 C&W 135 Soul Psychedelic 2

072 Bossanova4 108 C & W 1 136 Soul Psychedelic 3 House

073 Bossanova5 109 C & W 2 137 Soul Psychedelic 4 165 Pop House1

074 Calypso 110 Bluegrass 138 Psychedelic Swing 166 Pop House2

075 Habanera	111 Country1	139 Soft Rock	167 Pop House3
076 Reggae1	112 Country2	140 Post Rock	168 Deep House
077 Reggae2	113 Country3		169 Acid House
078 Jorpo		Classical beat 170 Progressive House
079 Tango1	Middle East	141 Classical beat1	171 Epic House
080 Tango2	114 Middle East	142 Classical beat2
081 Tango3	115 China 1	143 Classical beat3	New Age Latin
082 Mambo 1	116 China 2	144 Classical beat4	172 New Age Latin1
083 Mambo 2	117 China 3	145 Classical beat5	173 New Age Latin2
084 Rhumba 1	118 Thailand	146 Classical beat6	174 Bluse mambo
085 Rhumba 2		147 Classical beat7
086 Rhumba 3	Waltz		Jazz swing
087 Rhumba 4	119 Waltz1	Modern pop music	175 Jazz swing1
088 Rhumba 5	120 Waltz2	148 New century1	176 Jazz swing2
089 Bequine	121 Waltz3	149 New century2	177 Jazz swing3
090 Salsa	122 Waltz4	150 New century3	178 Jazz swing4
091 Merengue1	123 Jazz Waltz1	151 Modern dance1	179 Jazz swing5
092 Merengue2	124 Jazz Waltz2	152 Modern dance2
093 Vallenato	125 Jazz Waltz3	153 Modern dance3	Electronic
094 Plena 126 Country Waltz1		180 Electro1
095 Lambada	127 Country Waltz2	Britpop	181 Electro2
096 Bachata 1		154 Britpop1	182 Electro3
097 Bachata 2	New-Soul1	155 Britpop2	183 Electro4
098 Bachata 3	128 New-Soul1	156 Britpop3	184 Electro5
099 Samba1 129 New-Soul2		185 Big Beat1
100 Samba2	130 New-Soul3	Blues	186 Big Beat2
101 Pop Samba 1		157 Folk Blues	187 Downtempo1
102 Pop Samba 2		158 Country Blues	188 Downtempo2
103 Pop Samba 3		159 Electric Blues 189 Americana Country
104 jazz Samba		160 Soul Blues

190 Pop reggae1 209 Pop Bachata 1 World Music 244 China Pop13

191 Pop reggae2 210 Pop Bachata 2 225 World 1 245 Thailand Pop

192 Rock Tango1 211 Pop Bachata 3 226 World2 246 West Band

193 Rock Tango2 212 Enthusiasm Samba1 227 Blue

194 Rock Tango3 213 Enthusiasm Samba2 228 Country Rock 1 Class Waltz

195 Western Swing1 214 Enthusiasm Samba3 229 Country Rock 2 247 Class Waltz1

196 Western Swing2 215 Enthusiasm Samba4 230 Country Rock 3 248 Class Waltz2

216 Enthusiasm Samba5 231 East 249 Class Waltz3

Pop Latin 217 Enthusiasm Samba6 232 China Pop 1 250 Class Waltz4

197 Pop Rhumba1 233 China Pop 2 251 Jazz Class Waltz1

198 Pop Rhumba2 East March 234 China Pop 3 252 Jazz Class Waltz2

199 Pop Rhumba3 218 East March1 235 China Pop4 253 Jazz Class Waltz3

200 Pop Rhumba4 219 East March2 236 China Pop5 254 Country Class Waltz1

201 Pop Rhumba5 220 East March3 237 China Pop6 255 Country Class Waltz2

202 Pop Bequine 221 East March4 238 China Pop7

203 Pop Salsa 239 China Pop8

204 Pop Merengue1 Light Polka 240 China Pop9

205 Pop Merengue2 222 Light Polka1 241 China Pop10 257 Pop Rock2

206 Pop Vallenato 223 Light Polka2 242 China Pop11 258 Pop Rock3

207 Pop Plena 224 Light Polka3 243 China Pop12 259 Pop Rock4

208 Pop Lambada

Pop Rock

256 Pop Rock1

CONSEILS POUR LE RECYCLAGE

Symbol of a trash bin crossed with a diagonal line, no text or numbers present

Berlin Brands Group UK Ltd

PO Box 1145

Oxford, OX1 9UW

United Kingdom

Estimado cliente:

QR code image containing encoded data, no visible human-readable text

ÍNDICE

Diagram of a portable electronic device with numbered labels pointing to various components such as keys, audio, and control panels.

Piano Bass Clarinet FX Effect

000 Acoustic Grand Piano 032 Acoustic Bass 064 Soprano Sax 096 FX 1 (rain)
001 Bright Acoustic Piano 033 Electric Bass(finger) 065 Alto Sax 097 FX 2 (soundtrack)
002 Electric Grand Piano 034 Electric Bass (pick) 066 Tenor Sax 098 FX 3 (crystal)
003 Honky-tonk Piano	035 Fretless Bass	067 Baritone Sax	099 FX 4 (atmosphere)
004 Rhodes Piano	036 Slap Bass 1	068 Oboe	100 FX 5 (brightness)
005 Chorused Piano	037 Slap Bass 2	069 English Horn	101 FX 6 (goblins)
006 Harpsichord	038 Synth Bass 1	070 Bassoon	102 FX 7 (echoes)
007 Clavichord	039 Synth Bass 2	071 Clarinet	103 FX 8 (sci-fi)

Color percussion	String	Flute	Folk music
008 Celesta	040 Violin	072 Piccolo	104 Sitar
009 Glockenspiel	041 Viola	073 Flute	105 Banjo
010 Music box 042 Cello	074 Recorder	106 Shamisen
011 Vibraphone	043 Contrabass	075 Pan Flute	107 Koto
012 Marimba	044 Tremolo Strings	076 Bottle Blow	108 Kalimba
013 Xylophone	045 Pizzicato Strings	077 Shakuhachi	109 Bagpipe
014 Tubular Bells	046 Orchestral Harp	078 Whistle	110 Fiddle
015 Dulcimer	047 Timpani	079 Ocarina	111 Shanai

Organ	Ensemble / Chorus	Lead	Percussion
016 Hammond Organ	048 String Ensemble 1	080 Lead 1 (square)	112 Tinkle Bell
017 Percussive Organ	049 String Ensemble 2	081 Lead 2 (sawtooth)	113 Agogo
018 Rock Organ	050 Synth Strings 1	082 Lead 3 (caliope lead)	114 Steel Drums
019 Church Organ	051 Synth Strings 2	083 Lead 4 (chiff lead)	115 Woodblock
020 Reed Organ	052 Choir Aahs	084 Lead 5 (charang)	116 Taiko Drum
021 Accordian 053 Voice Oohs	085 Lead 6 (voice)	117 Melodic Tom
022 Harmonica	054 Synth Voice	086 Lead 7 (fifths)	118 Synth Drum
023 Tango Accordian	055 Orchestra Hit	087 Lead 8 (bass lead)	119 Reverse Cymbal

Guitar	Brass	Pad	Sound Effects
024 Acoustic Guitar (nylon)	056 Trumpet	088 Pad 1 (new age)	120 Guitar Fret Noise
025 Acoustic Guitar (steel)	057 Trombone	089 Pad 2 (warm)	121 Breath Noise
026 Electric Guitar (jazz)	058 Tuba	090 Pad 3 (polysynth)	122 Seashore
027 Electric Guitar (clean)	059 Muted Trumpet	091 Pad 4 (choir)	123 Bird Tweet
028 Electric Guitar (muted)	060 French Horn	092 Pad 5 (bowed)	124 Telephone Ring
029 Overdriven Guitar	061 Brass Section	093 Pad 6 (metallic)	125 Helicopter
030 Distortion Guitar	062 Synth Brass 1	094 Pad 7 (halo)	126 Applause
031 Guitar Harmonics	063 Synth Brass 2	095 Pad 8 (sweep)	127 Gunshot

Percussion instrument 163 Synth Banjo 199 Violin Lead 237 Bass Oboe

128 Percussion 164 Japan Synth 200 Cello Lead 238 Bright Oboe

165 Church Piano 201 Pizzicato rhythm 239 distortio oboe

Nation tone 166 Church electric Piano 202 high Harp 240 English Horn ensemble

129 bangdi 167 Synth Piano 203 Harp ensemble 241 Pizzicato English Horn

130 pipa 168 Baritone Piano 204 Synth Harp 242 Diplophonia English Horn

131 erhu 169 Piano PAD
243 Bright English Horn

132 gaohu	170 String Piano	Electronic music	244 Synth English Horn
133 suona	171 Metal Piano 205 Baritone Trumpet
134 dasuo	172 Light rhythm Piano	206 Trumpet Ensemble	Synthetic electronic
135 guzheng	173 electric Piano Pad	207 rhythm Trumpet	245 Psychedelic Synth Lead
136 sanxian	174 Classical piano	208 high Trumpet	246 Vibraphone Synth Lead
137 guqin		209 Synth Trumpet	247 Marimba Synth Lead
138 xiao	Effect class guitar	210 Bass Trombone	248 Metal FX
139 China Percussion 1	175 Organ Guitar	211 Trombone Ensemble	249 Electronic FX
140 China Percussion 2	176 Electric Guitar	212 rhythm Trombone	250 Electronic String Ensemble
	177 Synthesis Nylon Guitar	213 high Trombone
Rhythm	178 Synth Electronic Guitar	214 baritone Trombone	World national synthesis
141 Rock Grand Piano	179 Bright Clean Guitar	215 Synth Trombone	251 Wind FX
142 Electronic organ	180 Orchestra Guitar	216 Violin French Horn	252 Clarinet FX
143 Psychedelic electronic	181 Psychedelic Guitar	217 French Horn ensemble	253 Organ FX
144 Water jean	182 Bright organ	218 Electronic French Horn	254 Crystal FX
145 Bright Guitar	183 Pick organ	219 Synth French Horn	255 Synth Shamisen
146 Orchestra piccolo		220 PsychedelicSynth Brass	256 Electronic Shamisen
147 Heavy metal guitar	Electronic Symphony	221 Distortion Synth Brass	257 Bright Sitar
148 Crystal guitar	184 Synth accordion	222 Vibraphone Synth Brass	258 Whistle Accord
149 Queer electric Piano	185 Bright Violin	223 Rock Synth Brass	259 rhythm Nation
150 Bright bass	186 Stringed violin	224 Synth Muted Trumpet	260 Bright Koto
151 Rock Electric Bass	187 Trill violin	225 Soprano Sax ensemble	261 Koto Lead
152 Psychedelic Bass	188 Electronic violin	226 Hit Soprano Sax	262 Diplophonia Koto
153 Rhythm Electric Bass	189 Large violin	227 Synth Soprano Sax	263 Baritone Koto
154 Heavy metal bass	190 rhythm Orchestra	228 National Sax	264 Synth Koto
155 Magic electronic	191 Pizzicato Violin	229 Metal Sax
156 Bright violin	192 Pizzicato Ensemble 1	230 Baritone Sax ensemble	Bed pad
157 Atonic violin	193 Pizzicato Ensemble 2	231 Crystal Sax	265 Environmental Lead
158 Heavy bass orchestra	194 Percussion band	232 Soft Baritone Sax	266 Metal Lead
159 Synth clarinet	195 BaritoneSynthContrabass	233 Synth Baritone Sax	267 Orchestra Lead
160 Interactive Lead	196 Bass Flute	234 Heavy metal Sax	268 Glockenspiel Lead
161 orchestral keyboard	197 Distortion Contrabass	235 Church Oboe	269 Bass Lead
162 Bagpipes	198 Contrabass Lead	236 Oboe ensemble	270 Fifths Lead

271 Wind Lead 306 Baritone Xylophone 343 Jazz Electric Piano Bass synthesizer

272 Atmosphere Lead 307 Clean Piano 344 Rock Timpani 380 The bass

273 Sharp Lead 308 Bright Dulcimer 345 Fantasy Atmosphere 381 Bright bass

274 Bright Lead 309 Rhythm Grand Piano 346 Heavy metals Pad 382 Heavy bass

275 East Nation Pad 310 Rhythm Accordian 347 Bright clavichord 383 Magic bass

276 Atmosphere Pad 311 Marimba Harp 348 Noise Lead 384 The bass band

277 Electric bass Pad 312 Synth Xylophone 349 Classical Electronic 385 National bass

278 Electric Piano Pad 313 Psychedelic Jazz Guitar 386 The bass strings

279 Clean Guitar Pad 314 Rhythm Electric Guitar Digital Synthesizer 387 British pipe bass

280 Western Pad 350 Rock piano 388 East bass

281 Sci-fi Pad Classic Synthesizer 351 Dynamic piano 389 Traditional bass

282 Metal Sci-fi Pad 315 Baritone Piccolo 352 Rock Clavichord

283 Clarinet Pad 316 Pan Flute Pad 353 Baritone Celesta Science fiction electronic string

284 Electronic dance Pad 317 Soft Pad 354 Magic Metallophone 390 Fantasy violin

318 Fierce Organ 355 Heavy metal Glockenspiels 391 Solo Violin

Asian synthetic 319 Fantasy Clarinet 356 Digital Organ 392 Distortion violin

285 Double Kalimba 320 Bright Rhythm 357 Clear Organ 393 Heavy rock Viola

286 Bright Kalimba 321 Synth Brass Ensemble 358 Baritone Organ 394 Magic Cello

287 Crystal Kalimba 322 Electronic Xylophone 359 Reed Synthesizer 395 Jumping Cello

288 Synth Kalimba 323 Atmosphere Pizzicato 360 Reed Lead 396 Electronic hook string

289 Electronic Bagpipe 324 Rhythm Clarinet 361 Metal Twelve String Guitar 397 Mechanical hook

290 Wind Bagpipe 325 Bright Dulcimer 362 Magic Guitar 398 Pizzicato synthesizer

291 high Bagpipe 326 Double British pipe 363 Diplophonia Guitar 399 Heavy pizzicato rhythm

292 Bright Bagpipe 327 Bright Bassoon 364 Regge Guitar 400 Fast Harp

293 Orchestra Bagpipe 328 Electronic Synth Bassoon 365 Hawaii Guitar 401 Heavy rock Harp

294 Baritone Bagpipe 329 Rock Wind 366 Campus Jazz Guitar 402 Large electronic drum

295 Environmental Shanai 330 Synthetic effect wind1 367 Hall electric guitar 403 Magic timpani

296 Baritone Shanai 331 Synthetic effect wind2 368 Slap guitar 404 Oriental timpani

297 Tenor Shanai 332 Synthetic effect wind3 369 Digital synthetic guitar 405 Fantasy strings

298 high Shanai 333 Synthetic effect wind4 370 Dead nuclear guitar 406 Solo synthesizer

299 Synth Shanai 334 Synthetic Fiddle 371 Heavy bass electric guitar 407 Distorted ensemble

300 Bright Steel Drums 335 Special Echo FX 372 Bright jazz guitar 408 Heavy rock ensemble

301 Steel Drums Lead 336 Electronic Organ Lead 373 Modern electric guitar 409 Magic ensemble

302 Lyric Steel Drums 337 Church Organ Lead 374 Solo electric guitar 410 Jump syn String Ensemble

303 Orchestra Steel Drums 338 Science Fiction Classic 375 Bar electric guitar 411 Electronic chorus "ah"

304 Synth Steel Drums 339 Electronic Bagpipe 376 Sax electric guitar 412 Electronic chorus "oh"

340 String Ensemble Pad 377 Guitar noise 413 Chorus synthesizer

Modern Electric 341 Electronic wind Pad 378 Electric guitar reverb 414 Heavy rhythm syn voice

305 Rhythm electric Piano 342 Organ Electric Guitar 379 Dynamic guitar 415 Digital voice

416 Music vocal ensemble 426 Clear syn Tuba 438 Baritone Sax 450 Heavy metal flute

417 Magic Ensemble 427 Bass France 439 Solo baritone Sax 451 Digital flute

418 Vocal percussion ensemble 428 Fantasy France 440 Distortion oboe 452 Synthesis voiceless clari

419 Oriental synthetic voice 429 Solo copper pipe 441 Heavy rock Oboe 453 Baritone Panpipe

430 Distortion syn tube 442 Magic British tube 454 Dynamic ruler eight

Western electronic	431 Heavy rock Sax	443 Jump British tube	455 Heavy rock lead
420 Dynamic trumpet	432 Sax magic	444 Electronic bar	456 Magic lead
421 Heavy rock trumpet	433 Jump Sax	445 Mechanical bar	457 Magic voice synthesizer
422 Traditional Trombone	434 Electronic tenor Sax	446 Dynamic clarinet	458 Synthesis heavy metals
423 Magic Trombone	435 Mechanical Sax	447 Heavy rock clarinet	459 Digital Synth lead
424 Heavy metal Tuba	436 Baritone Sax synthesizer	448 Traditional Piccolo
425 Digital Tuba	437 Heavy rhythm Alto Sax	449 Magic Piccolo

TABLA DE MELODÍAS

March	Funky soul	Pop Dance	Unique Classes
000 March1	017 Funky soul 1	034 Pop Dance 1	051 Euro Beat
001 March2	018 Funky soul 2	035 Pop Dance 2	052 House1
002 March3	019 Funky soul 3	036 Pop Dance 3	053 House2
003 March4	020 Funky soul 4	037 Shuffle1	054 Swing Beat
	021 Funky soul 5	038 Shuffle2	055 8 Ballad
Nation rhythm	022 Funky soul 6	039 8 Shuffle	056 Step
004 Nation 1	023 Funky soul 7
005 Nation2	024 Funky soul 8	Rock	Band
006 Nation3	025 West Coast	040 Hard Rock	057 Big Band1
007 Nation4	026 Euro Soul	041 Slow Rock1	058 Big Band2
008 Nation5		042 Slow Rock2	059 Cobmo1
009 Nation6	Beat		060 Cobmo2
010 Nation7	027 16 AOR 1	Classics Beat
011 Nation8	028 16 AOR 2	043 Pop Classic	Swing
012 Nation9	029 16 Beat 1	044 Blues	061 Swing1
013 Nation10	030 16 Beat 2	045 Twist	062 Swing2
	031 16 Beat 3	046 Hard 3 Beat	063 Swing3
Slow Soul	032 16 Ballad 1		064 Swing4
014 Slow Soul 1	033 16 Ballad 2	Love Ballad	065 Swing5
015 Slow Soul 2		047 Love Ballad 1	066 Swing6
016 Slow Soul 3		048 Love Ballad 2
		049 Love Ballad 3
		050 Love Ballad 4

Latin Polka Psychedelic Ballad

067 Baiao 105 Polka1 131 Psychedelic 1 161 Classical ballad1

068 Bolero 106 Polka2 132 Psychedelic 2 162 Classical ballad2

069 Bossanova1 107 Polka3 133 Goth Psychedelic 163 Light Ballad

070 Bossanova2 134 Soul Psychedelic 1 164 Rhythm Ballad

071 Bossanova3 C&W 135 Soul Psychedelic 2

072 Bossanova4 108 C & W 1 136 Soul Psychedelic 3 House

073 Bossanova5 109 C & W 2 137 Soul Psychedelic 4 165 Pop House1

074 Calypso 110 Bluegrass 138 Psychedelic Swing 166 Pop House2

075 Habanera	111 Country1	139 Soft Rock	167 Pop House3
076 Reggae1	112 Country2	140 Post Rock	168 Deep House
077 Reggae2	113 Country3		169 Acid House
078 Jorpo		Classical beat 170 Progressive House
079 Tango1	Middle East	141 Classical beat1	171 Epic House
080 Tango2	114 Middle East	142 Classical beat2
081 Tango3	115 China 1	143 Classical beat3	New Age Latin
082 Mambo 1	116 China 2	144 Classical beat4	172 New Age Latin1
083 Mambo 2	117 China 3	145 Classical beat5	173 New Age Latin2
084 Rhumba 1	118 Thailand	146 Classical beat6	174 Bluse mambo
085 Rhumba 2		147 Classical beat7
086 Rhumba 3	Waltz		Jazz swing
087 Rhumba 4	119 Waltz1	Modern pop music	175 Jazz swing1
088 Rhumba 5	120 Waltz2	148 New century1	176 Jazz swing2
089 Bequine	121 Waltz3	149 New century2	177 Jazz swing3
090 Salsa	122 Waltz4	150 New century3	178 Jazz swing4
091 Merengue1	123 Jazz Waltz1	151 Modern dance1	179 Jazz swing5
092 Merengue2	124 Jazz Waltz2	152 Modern dance2
093 Vallenato	125 Jazz Waltz3	153 Modern dance3	Electronic
094 Plena 126 Country Waltz1		180 Electro1
095 Lambada	127 Country Waltz2	Britpop	181 Electro2
096 Bachata 1		154 Britpop1	182 Electro3
097 Bachata 2	New-Soul1	155 Britpop2	183 Electro4
098 Bachata 3	128 New-Soul1	156 Britpop3	184 Electro5
099 Samba1 129 New-Soul2		185 Big Beat1
100 Samba2	130 New-Soul3	Blues	186 Big Beat2
101 Pop Samba 1		157 Folk Blues	187 Downtempo1
102 Pop Samba 2		158 Country Blues	188 Downtempo2
103 Pop Samba 3		159 Electric Blues 189 Americana Country
104 jazz Samba		160 Soul Blues

190 Pop reggae1 209 Pop Bachata 1 World Music 244 China Pop13

191 Pop reggae2 210 Pop Bachata 2 225 World 1 245 Thailand Pop

192 Rock Tango1 211 Pop Bachata 3 226 World2 246 West Band

193 Rock Tango2 212 Enthusiasm Samba1 227 Blue

194 Rock Tango3 213 Enthusiasm Samba2 228 Country Rock 1 Class Waltz

195 Western Swing1 214 Enthusiasm Samba3 229 Country Rock 2 247 Class Waltz1

196 Western Swing2 215 Enthusiasm Samba4 230 Country Rock 3 248 Class Waltz2

216 Enthusiasm Samba5 231 East 249 Class Waltz3

Pop Latin 217 Enthusiasm Samba6 232 China Pop 1 250 Class Waltz4

197 Pop Rhumba1 233 China Pop 2 251 Jazz Class Waltz1

198 Pop Rhumba2 East March 234 China Pop 3 252 Jazz Class Waltz2

199 Pop Rhumba3 218 East March1 235 China Pop4 253 Jazz Class Waltz3

200 Pop Rhumba4 219 East March2 236 China Pop5 254 Country Class Waltz1

201 Pop Rhumba5 220 East March3 237 China Pop6 255 Country Class Waltz2

202 Pop Bequine 221 East March4 238 China Pop7

203 Pop Salsa 239 China Pop8

Pop Rock

204 Pop Merengue1 Light Polka 240 China Pop9

256 Pop Rock1

205 Pop Merengue2 222 Light Polka1 241 China Pop10 257 Pop Rock2

206 Pop Vallenato 223 Light Polka2 242 China Pop11 258 Pop Rock3

207 Pop Plena 224 Light Polka3 243 China Pop12 259 Pop Rock4

208 Pop Lambada

INDICACIONES SOBRE LA RETIRADA DEL APARATO

Symbol of a trash bin crossed with a diagonal line, no text or numbers present

Berlin Brands Group UK Ltd

PO Box 1145

Oxford, OX1 9UW

United Kingdom

Gentile cliente,

QR code image containing encoded data, no visible human-readable text

INDICE

Diagram of a portable electronic device with numbered parts and labeled keys for music playback controls

1 Altoparlanti 15 Ritmo 29 Sustain
2 Display LCD 16 Timbro 30 Dual
3 Power 17 Tasti numerici 31 SPLIT
4 Volume Master 18 Sync 32 One Key
5 Volume accordo 19 Start/Stop 33 Follow
6 Volume ritmo 20 Intermezzo 34 Ensemble
7 Transpose 21 Single	35 Pitch band
8 Tuning	22 Fingered 36 Vibrato
9 Chord mat	23 Chord OFF	37 Chord Zone
10 Tempo	24 Memoria	38 USB-MIDI
11 Illuminazione tasti	25 Programma	39 AUDIO IN
12 Touch	26 Play	40 Microfono
13 Percussioni	27 Registrazione	41 Cuffie
14 Demo Song 28 Metronomo	42 Attacco DC 12V

COLLEGAMENTI

Alimentatore

Piano Bass Clarinet FX Effect

000 Acoustic Grand Piano 032 Acoustic Bass 064 Soprano Sax 096 FX 1 (rain)
001 Bright Acoustic Piano 033 Electric Bass(finger) 065 Alto Sax 097 FX 2 (soundtrack)
002 Electric Grand Piano 034 Electric Bass (pick) 066 Tenor Sax 098 FX 3 (crystal)
003 Honky-tonk Piano 035 Fretless Bass 067 Baritone Sax 099 FX 4 (atmosphere)
004 Rhodes Piano	036 Slap Bass 1	068 Oboe	100 FX 5 (brightness)
005 Chorused Piano	037 Slap Bass 2	069 English Horn	101 FX 6 (goblins)
006 Harpsichord	038 Synth Bass 1	070 Bassoon	102 FX 7 (echoes)
007 Clavichord	039 Synth Bass 2	071 Clarinet	103 FX 8 (sci-fi)

Color percussion String	Flute	Folk music
008 Celesta	040 Violin	072 Piccolo	104 Sitar
009 Glockenspiel	041 Viola	073 Flute	105 Banjo
010 Music box 042 Cello	074 Recorder	106 Shamisen
011 Vibraphone	043 Contrabass	075 Pan Flute	107 Koto
012 Marimba	044 Tremolo Strings	076 Bottle Blow	108 Kalimba
013 Xylophone	045 Pizzicato Strings	077 Shakuhachi	109 Bagpipe
014 Tubular Bells	046 Orchestral Harp	078 Whistle	110 Fiddle
015 Dulcimer	047 Timpani	079 Ocarina	111 Shanai

Organ	Ensemble / Chorus	Lead	Percussion
016 Hammond Organ	048 String Ensemble 1	080 Lead 1 (square)	112 Tinkle Bell
017 Percussive Organ	049 String Ensemble 2	081 Lead 2 (sawtooth)	113 Agogo
018 Rock Organ	050 Synth Strings 1	082 Lead 3 (caliope lead)	114 Steel Drums
019 Church Organ	051 Synth Strings 2	083 Lead 4 (chiff lead)	115 Woodblock
020 Reed Organ	052 Choir Aahs	084 Lead 5 (charang)	116 Taiko Drum
021 Accordian	053 Voice Oohs	085 Lead 6 (voice)	117 Melodic Tom
022 Harmonica	054 Synth Voice	086 Lead 7 (fifths)	118 Synth Drum
023 Tango Accordian	055 Orchestra Hit	087 Lead 8 (bass lead)	119 Reverse Cymbal

Guitar	Brass	Pad	Sound Effects
024 Acoustic Guitar (nylon)	056 Trumpet	088 Pad 1 (new age)	120 Guitar Fret Noise
025 Acoustic Guitar (steel)	057 Trombone	089 Pad 2 (warm)	121 Breath Noise
026 Electric Guitar (jazz)	058 Tuba	090 Pad 3 (polysynth)	122 Seashore
027 Electric Guitar (clean)	059 Muted Trumpet	091 Pad 4 (choir)	123 Bird Tweet
028 Electric Guitar (muted)	060 French Horn	092 Pad 5 (bowed)	124 Telephone Ring
029 Overdriven Guitar	061 Brass Section	093 Pad 6 (metallic)	125 Helicopter
030 Distortion Guitar	062 Synth Brass 1	094 Pad 7 (halo)	126 Applause
031 Guitar Harmonics	063 Synth Brass 2	095 Pad 8 (sweep)	127 Gunshot

Percussion instrument 163 Synth Banjo 199 Violin Lead 237 Bass Oboe

128 Percussion 164 Japan Synth 200 Cello Lead 238 Bright Oboe

165 Church Piano 201 Pizzicato rhythm 239 distortio oboe

Nation tone 166 Church electric Piano 202 high Harp 240 English Horn ensemble

129 bangdi 167 Synth Piano 203 Harp ensemble 241 Pizzicato English Horn

130 pipa 168 Baritone Piano 204 Synth Harp 242 Diplophonia English Horn

131 erhu 169 Piano PAD
243 Bright English Horn

132 gaohu	170 String Piano	Electronic music	244 Synth English Horn
133 suona	171 Metal Piano 205 Baritone Trumpet
134 dasuo	172 Light rhythm Piano	206 Trumpet Ensemble	Synthetic electronic
135 guzheng	173 electric Piano Pad	207 rhythm Trumpet	245 Psychedelic Synth Lead
136 sanxian	174 Classical piano	208 high Trumpet	246 Vibraphone Synth Lead
137 guqin		209 Synth Trumpet	247 Marimba Synth Lead
138 xiao	Effect class guitar	210 Bass Trombone	248 Metal FX
139 China Percussion 1	175 Organ Guitar	211 Trombone Ensemble	249 Electronic FX
140 China Percussion 2	176 Electric Guitar	212 rhythm Trombone	250 Electronic String Ensemble
	177 Synthesis Nylon Guitar	213 high Trombone
Rhythm	178 Synth Electronic Guitar	214 baritone Trombone	World national synthesis
141 Rock Grand Piano	179 Bright Clean Guitar	215 Synth Trombone	251 Wind FX
142 Electronic organ	180 Orchestra Guitar	216 Violin French Horn	252 Clarinet FX
143 Psychedelic electronic	181 Psychedelic Guitar	217 French Horn ensemble	253 Organ FX
144 Water jean	182 Bright organ	218 Electronic French Horn	254 Crystal FX
145 Bright Guitar	183 Pick organ	219 Synth French Horn	255 Synth Shamisen
146 Orchestra piccolo		220 PsychedelicSynth Brass	256 Electronic Shamisen
147 Heavy metal guitar	Electronic Symphony	221 Distortion Synth Brass	257 Bright Sitar
148 Crystal guitar	184 Synth accordion	222 Vibraphone Synth Brass	258 Whistle Accord
149 Queer electric Piano	185 Bright Violin	223 Rock Synth Brass	259 rhythm Nation
150 Bright bass	186 Stringed violin	224 Synth Muted Trumpet	260 Bright Koto
151 Rock Electric Bass	187 Trill violin	225 Soprano Sax ensemble	261 Koto Lead
152 Psychedelic Bass	188 Electronic violin	226 Hit Soprano Sax	262 Diplophonia Koto
153 Rhythm Electric Bass	189 Large violin	227 Synth Soprano Sax	263 Baritone Koto
154 Heavy metal bass	190 rhythm Orchestra	228 National Sax	264 Synth Koto
155 Magic electronic	191 Pizzicato Violin	229 Metal Sax
156 Bright violin	192 Pizzicato Ensemble 1	230 Baritone Sax ensemble	Bed pad
157 Atonic violin	193 Pizzicato Ensemble 2	231 Crystal Sax	265 Environmental Lead
158 Heavy bass orchestra	194 Percussion band	232 Soft Baritone Sax	266 Metal Lead
159 Synth clarinet	195 BaritoneSynthContrabass	233 Synth Baritone Sax	267 Orchestra Lead
160 Interactive Lead	196 Bass Flute	234 Heavy metal Sax	268 Glockenspiel Lead
161 orchestral keyboard	197 Distortion Contrabass	235 Church Oboe	269 Bass Lead
162 Bagpipes	198 Contrabass Lead	236 Oboe ensemble	270 Fifths Lead

271 Wind Lead 306 Baritone Xylophone 343 Jazz Electric Piano Bass synthesizer

272 Atmosphere Lead 307 Clean Piano 344 Rock Timpani 380 The bass

273 Sharp Lead 308 Bright Dulcimer 345 Fantasy Atmosphere 381 Bright bass

274 Bright Lead 309 Rhythm Grand Piano 346 Heavy metals Pad 382 Heavy bass

275 East Nation Pad 310 Rhythm Accordian 347 Bright clavichord 383 Magic bass

276 Atmosphere Pad 311 Marimba Harp 348 Noise Lead 384 The bass band

277 Electric bass Pad 312 Synth Xylophone 349 Classical Electronic 385 National bass

278 Electric Piano Pad 313 Psychedelic Jazz Guitar 386 The bass strings

279 Clean Guitar Pad 314 Rhythm Electric Guitar Digital Synthesizer 387 British pipe bass

280 Western Pad 350 Rock piano 388 East bass

281 Sci-fi Pad Classic Synthesizer 351 Dynamic piano 389 Traditional bass

282 Metal Sci-fi Pad 315 Baritone Piccolo 352 Rock Clavichord

283 Clarinet Pad 316 Pan Flute Pad 353 Baritone Celesta Science fiction electronic string

284 Electronic dance Pad 317 Soft Pad 354 Magic Metallophone 390 Fantasy violin

318 Fierce Organ 355 Heavy metal Glockenspiels 391 Solo Violin

Asian synthetic 319 Fantasy Clarinet 356 Digital Organ 392 Distortion violin

285 Double Kalimba 320 Bright Rhythm 357 Clear Organ 393 Heavy rock Viola

286 Bright Kalimba 321 Synth Brass Ensemble 358 Baritone Organ 394 Magic Cello

287 Crystal Kalimba 322 Electronic Xylophone 359 Reed Synthesizer 395 Jumping Cello

288 Synth Kalimba 323 Atmosphere Pizzicato 360 Reed Lead 396 Electronic hook string

289 Electronic Bagpipe 324 Rhythm Clarinet 361 Metal Twelve String Guitar 397 Mechanical hook

290 Wind Bagpipe 325 Bright Dulcimer 362 Magic Guitar 398 Pizzicato synthesizer

291 high Bagpipe 326 Double British pipe 363 Diplophonia Guitar 399 Heavy pizzicato rhythm

292 Bright Bagpipe 327 Bright Bassoon 364 Regge Guitar 400 Fast Harp

293 Orchestra Bagpipe 328 Electronic Synth Bassoon 365 Hawaii Guitar 401 Heavy rock Harp

294 Baritone Bagpipe 329 Rock Wind 366 Campus Jazz Guitar 402 Large electronic drum

295 Environmental Shanai 330 Synthetic effect wind1 367 Hall electric guitar 403 Magic timpani

296 Baritone Shanai 331 Synthetic effect wind2 368 Slap guitar 404 Oriental timpani

297 Tenor Shanai 332 Synthetic effect wind3 369 Digital synthetic guitar 405 Fantasy strings

298 high Shanai 333 Synthetic effect wind4 370 Dead nuclear guitar 406 Solo synthesizer

299 Synth Shanai 334 Synthetic Fiddle 371 Heavy bass electric guitar 407 Distorted ensemble

300 Bright Steel Drums 335 Special Echo FX 372 Bright jazz guitar 408 Heavy rock ensemble

301 Steel Drums Lead 336 Electronic Organ Lead 373 Modern electric guitar 409 Magic ensemble

302 Lyric Steel Drums 337 Church Organ Lead 374 Solo electric guitar 410 Jump syn String Ensemble

303 Orchestra Steel Drums 338 Science Fiction Classic 375 Bar electric guitar 411 Electronic chorus "ah"

304 Synth Steel Drums 339 Electronic Bagpipe 376 Sax electric guitar 412 Electronic chorus "oh"

340 String Ensemble Pad 377 Guitar noise 413 Chorus synthesizer

Modern Electric 341 Electronic wind Pad 378 Electric guitar reverb 414 Heavy rhythm syn voice

305 Rhythm electric Piano 342 Organ Electric Guitar 379 Dynamic guitar 415 Digital voice

416 Music vocal ensemble 426 Clear syn Tuba 438 Baritone Sax 450 Heavy metal flute

417 Magic Ensemble 427 Bass France 439 Solo baritone Sax 451 Digital flute

418 Vocal percussion ensemble 428 Fantasy France 440 Distortion oboe 452 Synthesis voiceless clari

419 Oriental synthetic voice 429 Solo copper pipe 441 Heavy rock Oboe 453 Baritone Panpipe

430 Distortion syn tube 442 Magic British tube 454 Dynamic ruler eight

Western electronic	431 Heavy rock Sax	443 Jump British tube	455 Heavy rock lead
420 Dynamic trumpet	432 Sax magic	444 Electronic bar	456 Magic lead
421 Heavy rock trumpet	433 Jump Sax	445 Mechanical bar	457 Magic voice synthesizer
422 Traditional Trombone	434 Electronic tenor Sax	446 Dynamic clarinet	458 Synthesis heavy metals
423 Magic Trombone	435 Mechanical Sax	447 Heavy rock clarinet	459 Digital Synth lead
424 Heavy metal Tuba	436 Baritone Sax synthesizer	448 Traditional Piccolo
425 Digital Tuba	437 Heavy rhythm Alto Sax	449 Magic Piccolo

TABELLA RITMI

March	Funky soul	Pop Dance	Unique Classes
000 March1	017 Funky soul 1	034 Pop Dance 1	051 Euro Beat
001 March2	018 Funky soul 2	035 Pop Dance 2	052 House1
002 March3	019 Funky soul 3	036 Pop Dance 3	053 House2
003 March4	020 Funky soul 4	037 Shuffle1	054 Swing Beat
	021 Funky soul 5	038 Shuffle2	055 8 Ballad
Nation rhythm	022 Funky soul 6	039 8 Shuffle	056 Step
004 Nation 1	023 Funky soul 7
005 Nation2	024 Funky soul 8	Rock	Band
006 Nation3	025 West Coast	040 Hard Rock	057 Big Band1
007 Nation4	026 Euro Soul	041 Slow Rock1	058 Big Band2
008 Nation5		042 Slow Rock2	059 Cobmo1
009 Nation6	Beat		060 Cobmo2
010 Nation7	027 16 AOR 1	Classics Beat
011 Nation8	028 16 AOR 2	043 Pop Classic	Swing
012 Nation9	029 16 Beat 1	044 Blues	061 Swing1
013 Nation10	030 16 Beat 2	045 Twist	062 Swing2
	031 16 Beat 3	046 Hard 3 Beat	063 Swing3
Slow Soul	032 16 Ballad 1		064 Swing4
014 Slow Soul 1	033 16 Ballad 2	Love Ballad	065 Swing5
015 Slow Soul 2		047 Love Ballad 1	066 Swing6
016 Slow Soul 3		048 Love Ballad 2
		049 Love Ballad 3
		050 Love Ballad 4

Latin Polka Psychedelic Ballad

067 Baiao 105 Polka1 131 Psychedelic 1 161 Classical ballad1

068 Bolero 106 Polka2 132 Psychedelic 2 162 Classical ballad2

069 Bossanova1 107 Polka3 133 Goth Psychedelic 163 Light Ballad

070 Bossanova2 134 Soul Psychedelic 1 164 Rhythm Ballad

071 Bossanova3 C&W 135 Soul Psychedelic 2

072 Bossanova4 108 C & W 1 136 Soul Psychedelic 3 House

073 Bossanova5 109 C & W 2 137 Soul Psychedelic 4 165 Pop House1

074 Calypso 110 Bluegrass 138 Psychedelic Swing 166 Pop House2

075 Habanera	111 Country1	139 Soft Rock	167 Pop House3
076 Reggae1	112 Country2	140 Post Rock	168 Deep House
077 Reggae2	113 Country3		169 Acid House
078 Jorpo		Classical beat 170 Progressive House
079 Tango1	Middle East	141 Classical beat1	171 Epic House
080 Tango2	114 Middle East	142 Classical beat2
081 Tango3	115 China 1	143 Classical beat3	New Age Latin
082 Mambo 1	116 China 2	144 Classical beat4	172 New Age Latin1
083 Mambo 2	117 China 3	145 Classical beat5	173 New Age Latin2
084 Rhumba 1	118 Thailand	146 Classical beat6	174 Bluse mambo
085 Rhumba 2		147 Classical beat7
086 Rhumba 3	Waltz		Jazz swing
087 Rhumba 4	119 Waltz1	Modern pop music	175 Jazz swing1
088 Rhumba 5	120 Waltz2	148 New century1	176 Jazz swing2
089 Bequine	121 Waltz3	149 New century2	177 Jazz swing3
090 Salsa	122 Waltz4	150 New century3	178 Jazz swing4
091 Merengue1	123 Jazz Waltz1	151 Modern dance1	179 Jazz swing5
092 Merengue2	124 Jazz Waltz2	152 Modern dance2
093 Vallenato	125 Jazz Waltz3	153 Modern dance3	Electronic
094 Plena 126 Country Waltz1		180 Electro1
095 Lambada	127 Country Waltz2	Britpop	181 Electro2
096 Bachata 1		154 Britpop1	182 Electro3
097 Bachata 2	New-Soul1	155 Britpop2	183 Electro4
098 Bachata 3	128 New-Soul1	156 Britpop3	184 Electro5
099 Samba1 129 New-Soul2		185 Big Beat1
100 Samba2	130 New-Soul3	Blues	186 Big Beat2
101 Pop Samba 1		157 Folk Blues	187 Downtempo1
102 Pop Samba 2		158 Country Blues	188 Downtempo2
103 Pop Samba 3		159 Electric Blues 189 Americana Country
104 jazz Samba		160 Soul Blues

190 Pop reggae1 209 Pop Bachata 1 World Music 244 China Pop13

191 Pop reggae2 210 Pop Bachata 2 225 World 1 245 Thailand Pop

192 Rock Tango1 211 Pop Bachata 3 226 World2 246 West Band

193 Rock Tango2 212 Enthusiasm Samba1 227 Blue

194 Rock Tango3 213 Enthusiasm Samba2 228 Country Rock 1 Class Waltz

195 Western Swing1 214 Enthusiasm Samba3 229 Country Rock 2 247 Class Waltz1

196 Western Swing2 215 Enthusiasm Samba4 230 Country Rock 3 248 Class Waltz2

216 Enthusiasm Samba5 231 East 249 Class Waltz3

Pop Latin 217 Enthusiasm Samba6 232 China Pop 1 250 Class Waltz4

197 Pop Rhumba1 233 China Pop 2 251 Jazz Class Waltz1

198 Pop Rhumba2 East March 234 China Pop 3 252 Jazz Class Waltz2

199 Pop Rhumba3 218 East March1 235 China Pop4 253 Jazz Class Waltz3

200 Pop Rhumba4 219 East March2 236 China Pop5 254 Country Class Waltz1

201 Pop Rhumba5 220 East March3 237 China Pop6 255 Country Class Waltz2

202 Pop Bequine 221 East March4 238 China Pop7

203 Pop Salsa 239 China Pop8

204 Pop Merengue1 Light Polka 240 China Pop9

205 Pop Merengue2 222 Light Polka1 241 China Pop10 257 Pop Rock2

206 Pop Vallenato 223 Light Polka2 242 China Pop11 258 Pop Rock3

207 Pop Plena 224 Light Polka3 243 China Pop12 259 Pop Rock4

208 Pop Lambada

Pop Rock

256 Pop Rock1

AVVISO DI SMALTIMENTO

Symbol of a trash bin crossed with a diagonal line, no text or numbers present

PRODUTTORE E IMPORTATORE (UK)

Produttore:

Chal-Tec GmbH, Wallstraße 16, 10179 Berlino, Germania.

Berlin Brands Group UK Ltd

PO Box 1145

Oxford, OX1 9UW

United Kingdom
