Note: This product is only suitable for well insulated spaces or occasional use.

Member of Berlin Brands Group

Handwerkerstr. 11

15366 Dahlwitz-Hoppegarten

Deutschland

Berlin Brands Group UK Limited

PO Box 42

272 Kensington High Street

London, W8 6ND

United Kingdom

Dear Customer,

Congratulations on purchasing this device. Please read the following instructions carefully and follow them to prevent possible damages. We assume no liability for damage caused by disregard of the instructions and improper use. Scan the QR code to get access to the latest user manual and more product information.

CONTENTS

Safety Instructions 18

Product Data Sheet 19

Product Description 21

Display 21

Control Panel 22

Installation 22

Use and Operation 24

Cleaning and Care 27

Disposal Considerations 28

Manufacturer & Importer (UK) 28

TECHNICAL DATA

Item number 10032787, 10032788 10032789, 1003279
Power supply 220-240 V~ 50/60 Hz
Power consumption 1000 W 2000 W

SAFETYINSTRUCTIONS

• Check that the voltage indicates on the data plate corresponds with that of the local network before connecting the appliance to the mains power supply.

• If the supply cord is damaged, it must be replaced by a qualified engineer in order to avoid a hazard.

• The heater must not be positioned directly under the power socket.

• Keep furniture, curtains and other flammable material at least 1 meter away from the appliance.

• Keep out of reach of children and do not allow them to operate this appliance.

• This appliance is intended for household use only and should not be used for industrial purposes.

• Do not operate this appliance after a malfunction or after being damaged in any way.

• Repairs to electrical appliances should only be performed by a qualified electrician.

• Improper repairs may place user at serious risk.

• Do not run the mains cable under carpets, rugs, etc.

• Do not allow the mains cable to hang over sharp edges or come in contact with hot surfaces.

• In order to avoid overheating, do not cover the heater.

• Do not use this heater with a programmer, timer, separate remote control system or any other device that switches the heater on automatically, since a fire risk exists if the heater is covered or positioned incorrectly.

• Never immerse the product in water or any other liquid for any reasons.

• Do not use this heater in the immediate surroundings of a bath, a shower or a swimming pool.

• Do not use the appliance outdoors.

• Do not use if you have wet hands.

• Never use the appliance on or near hot surfaces.

• Do not operate with a damaged cord.

• Before cleaning the appliance, make sure it is unplugged from the power and that it is completely cooled.

• Do not clean the appliance with abrasive chemicals.

• Never use accessories that are not recommended or supplied by the manufacturer. It could cause danger to the user or damage to the appliance.

• This device may be only used by children 8 years old or older and persons with limited physical, sensory and mental capabilities and / or lack of experience and knowledge, provided that they have been instructed in use of the device by a responsible person who understands the associated risks.

• Children should be supervised to ensure that they do not play with the appliance.

CAUTION

Risk of burns! Some parts of this product can become very hot and cause burns. Particular attention has to be given where children and vulnerable people are present.

PRODUCT DATA SHEET

Model identifier(s): 10032787,	10032788
Item Symbol Value Unit Item Unit
Heat output Type of heat input, for electric storage local space				heaters only
Nominal heat output P	nom	1.0 kW manual heat		charge control, with integrated thermostat		N/A
Minimum heat output (indicative)	Pmin	1.0 kW manual heat		charge control with room and/or outdoor temperature feedback		N/A
Maximum continuous heat output	Pmax,c	1.0 kW electronic heat		charge control with room and/or outdoor temperature feedback		N/A
Auxiliary electricity consumption fan assisted heat output N/A
At nominal heat output (fan motor)	elmax	N/A kW Type of heat		output/room temperature control (select one)
At minimum heat output (fan motor)	elmin	N/A kW single stage		heat output and no room temperature control		no
In standby mode el	SB	0.00124	W		Two or more manual stages, no room temperature control	no
					with mechanic thermostat room temperature control	no
					with electronic room temperature control	no
					electronic room temperature control plus day timer	no
					electronic room temperature control plus week timer	yes
					Other control options (multiple selections possible)
					room temperature control, with presence detection	no
					room temperature control, with open window detection	no
					with distance control option	no
					with adaptive start control	no
					with working time limitation	no
					with black bulb sensor	no
Contact details	Chal-Tec GmbH, Wallstraße 16, 10179, Berlin, Germany
Model identifier(s): 10032789,	10032790
Item Symbol Value Unit Item Unit
Heat output Type of heat input, for electric storage local space				heaters only
Nominal heat output P	nom	2.0 kW	manual heat	charge control, with integrated thermostat		N/A
Minimum heat output (indicative)	Pmin	2.0 kW	manual heat	charge control with room and/or outdoor temperature feedback		N/A
Maximum continuous heat output	Pmax,t	2.0 kW	electronic heat	charge control with room and/or outdoor temperature feedback		N/A
Auxiliary electricity consumption fan assisted heat output N/A
At nominal heat output (fan motor)	elmax	N/A kW	Type of heat	output/room temperature control (select one)
At minimum heat output (fan motor)	elmin	N/A kW	single stage	heat output and no room temperature control		no
In standby mode el	SB	0.00124 W	Two or more	manual stages, no room temperature control		no
				with mechanic thermostat room temperature control		no
				with electronic room temperature control no
				electronic room temperature control plus day timer		no
				electronic room temperature control plus week timer		yes
				Other control options (multiple selections possible)
				room temperature control, with presence detection		no
				room temperature control, with open window detection		no
				with distance control option no
				with adaptive start control		no
				with working time limitation		no
				with black bulb sensor		no
Contact details	Chal-Tec GmbH, Wallstraße 16, 10179, Berlin, Germany

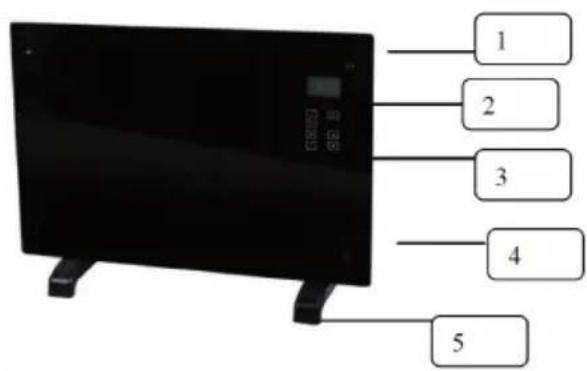

PRODUCT DESCRIPTION

1 Decoration glass
2 LCD screen
3 Operation board
4 Standing feet

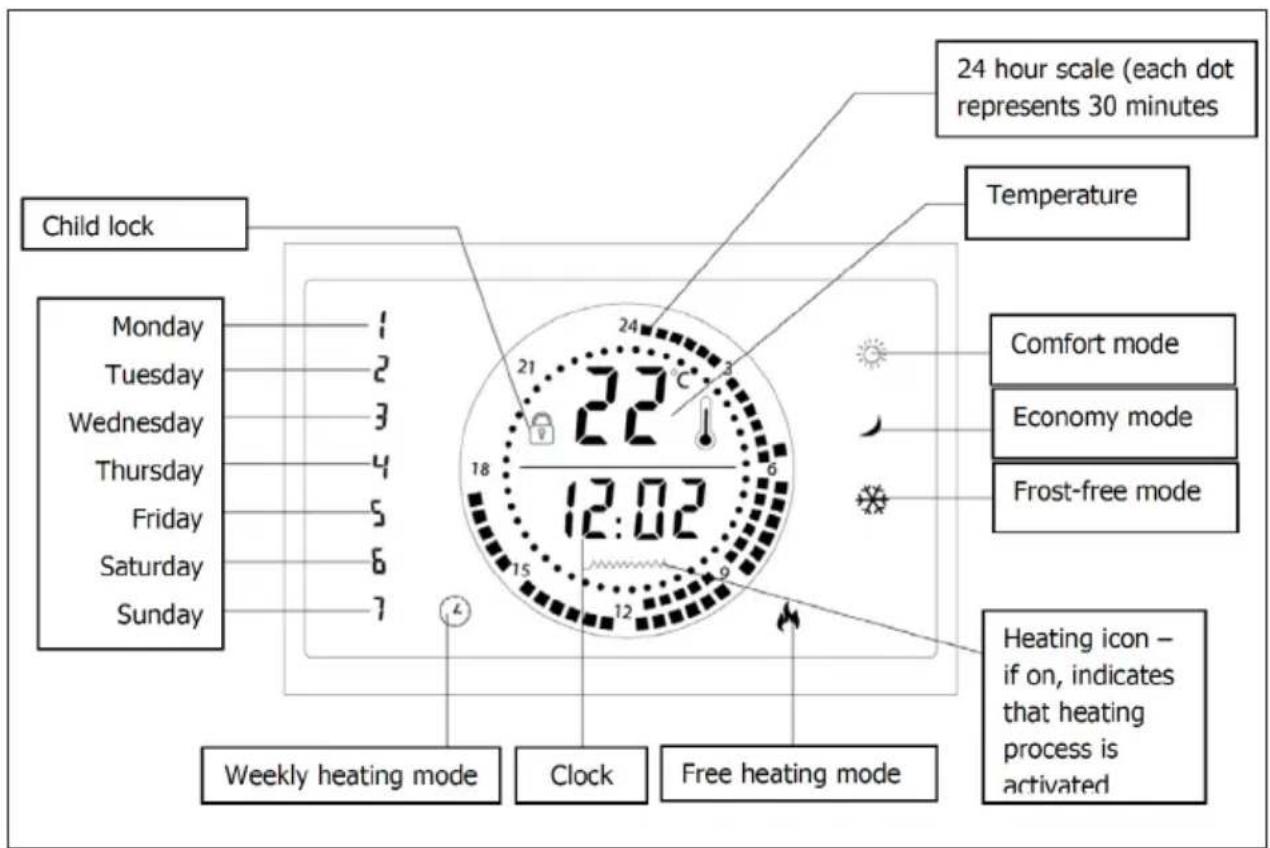

DISPLAY

CONTROL PANEL

	Standby key: Switching the appliance on/off	TEMP	Setting temperature level	▲	Adjusting value up
TIME	Setting the time	OK	Confirming an input / entering menu		Adjusting value down
PROG	Setting the program mode

INSTALLATION

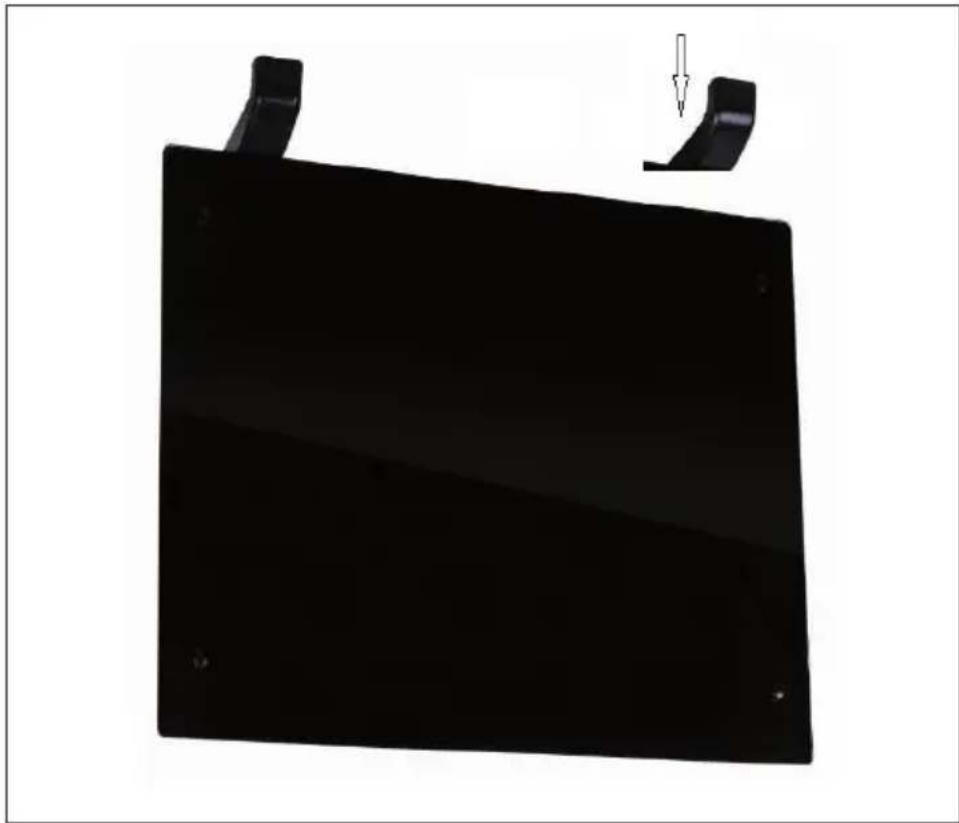

Free-standing installation

1. Put the product upside down on a soft cotton cloth or carpet.
2. Mount the stand in the corresponding location of the lower part of the product as shown above, and then fix the randomly supplied screw at the bottom of the product with a screwdriver and tighten the screw.

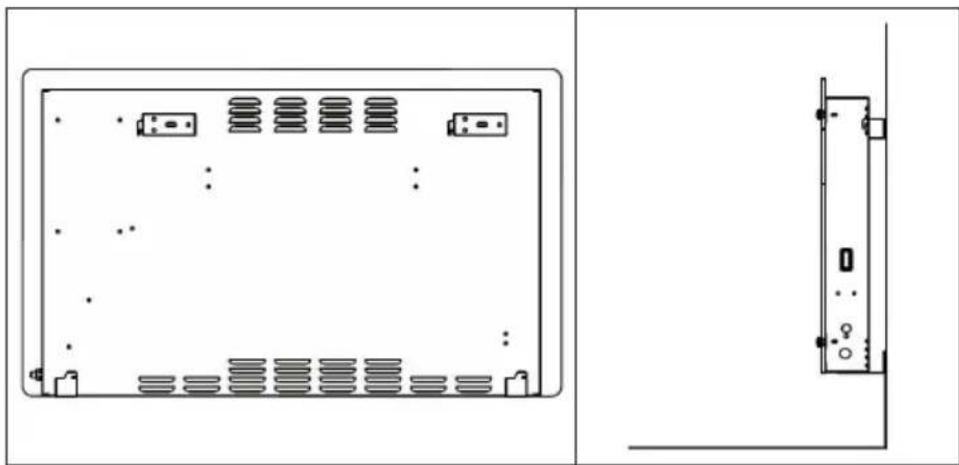

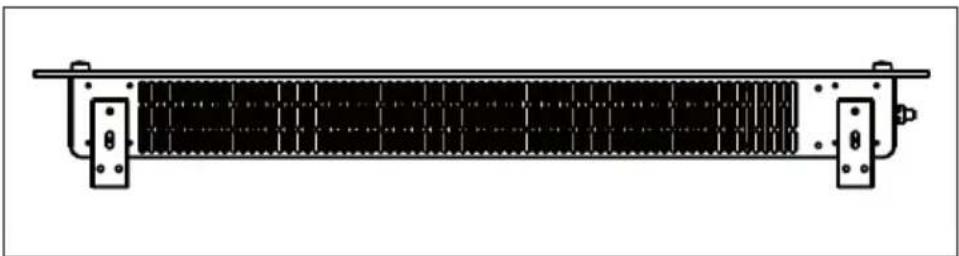

Wall mount

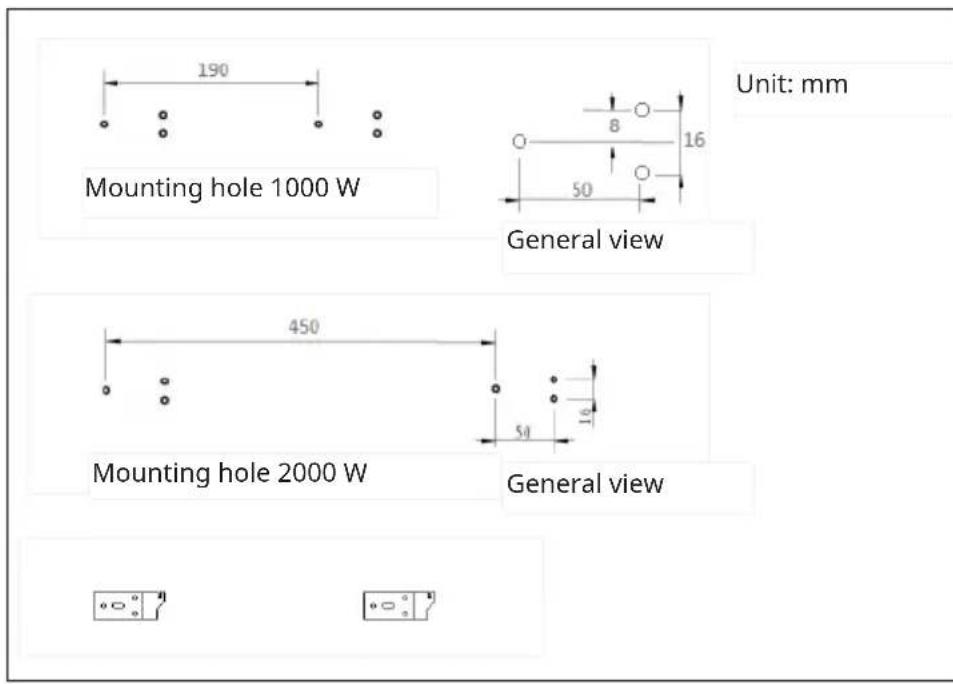

1. Take out 4 brackets, 6 expansion screws and 6 screws out from the box, and fix 2 brackets onto the wall according to the distances between holes of the bracket, as depicted in the picture below.

1. Fix 2 brackets onto the bottom of product, as depicted in the picture below.

1. Hold the side of the product, look at the position of the wall hole of the rear cover, and slide the wall to the top of the slot, that is, the installation of the wall is completed, as depicted in the picture below.

USE AND OPERATION

Switching the appliance on/off

Press the Standby key to exit the standby mode, the LCD display (2) shows current ambient temperature and set time (default 00:00). Press the standby key again to activate the standby mode.

Note: When pull out the plug, deletes the timer setting only and other function settings remain unchanged.

Choosing operation mode

This heater provides two different operation modes:

• Free heating mode

• Programmed weekly heating mode

Press the "PROG" key and use up and down key to select the desired mode. Icon of the selected mode starts to flash on the LCD display (2). Confirm the selection with "OK" key.

Free heating mode

Free heating mode provides three additional heating functions:

Comfort		Comfortable function is intended to heat the room to the set temperature. To activate or deactivate Comfortable function, press the up or down key, if activated icon appears on the LCD display. Default heating temperature is set to 35 °C, to adjust use the key TEMP to set temperature.
Economy		Economy function is intended to maintain the set temperature. When the ambient temperature is equal to the set temperature, heater automatically switches from Comfortable to Economy mode. When the ambient temperature is 5 °C lower than the set temperature, heater automatically switches from Economy to Comfortable mode.
Frost-free		Frost-free function is intended to keep the minimum temperature of 5 °C inside the room (this temperature cannot be adjusted). This function is set as a default function for free heating mode. It activated automatically after entering the free heating mode.

Note: When the ambient temperature is equal to the set temperature use the up and down keys to toggle between Economy and Frost-free function.

Programmed weekly heating mode

1. To enter the weekly heating mode press PROG and move the cursor over the clock icon at the bottom left hand side of the LCD screen and press OK.
2. Now the cursor is flashing over the days of the week (left side of menu).
3. Use the UP and DOWN arrows to choose your day to program 1 to 7.
4. Press the PROG key to confirm the day.
5. Use the OK arrows to select the heating function between Comfort, Economy and Frost-free. You will see the cursor on the right side of the menu scroll between the modes.
6. That is the first 30 minute period selected and it moves on to the next 30 minute period.
7. Press the UP and DOWN arrow to choose the time.
8. Program each day of the week separately following the steps above.

24-hour scale

24-hour scale: Each square represents 30 minutes			Squares on the outside and inside of the scale indicate Comfortable function.
			Squares on the inside of the scale indicate Frost-free function.
			Squares on the outside of the scale indicate Economy function.

The drawing illustrates the following setting:

0 - 6 am: Frost-free function 6 - 12 pm: Comfortable function 12 - 18 pm: Economy function. Note: 1. The functions can't be set simultaneously. 2. When pull out the plug, deletes the time setting only and other function settings remain unchanged.

Setting temperature

1. To adjust the temperature press the TEMP key. The temperature starts to flash on the LCD display.
2. Use up and down keys to select the desired temperature.
3. Press the [TEMP] key again to confirm.

Child lock function

1. To set the heater to a standby mode and apply the child lock function, simply hold the OK key and wait for 5 seconds. You will see the padlock image lock on the LCD screen.
2. To unlock, press the OK key for 5 seconds.

Setting time

To set the time press the TIME key, when the hour digits "12" starts to blink, use up and down keys to set the hour and confirm by pressing TIME key. Now minute digits "00" to blink, use up and down keys to set the minute and confirm the minute by pressing TIME key again.

Open window function

1. The heater is fitted with state of the art energy saving technology such as the open window function.
2. To activate this function, press and hold the TEMP button for 5 seconds. The window icon appears on the LCD screen.
3. When the open window icon appears, the heater will stop heating and window icon flashes, as long as the room temperature drops by 4^ in 20 minutes. If want to heating and the open window function does not flash, please press and hold the TEMP button for 5 seconds.
4. To deactivate the function, press and hold the TEMP key for 5 seconds again, then the window icon will disappear.

CLEANING AND CARE

Note: Turn off the unit and unplug it from the power outlet. Wait until the unit has completely cooled down before cleaning it.

• Use a vacuum cleaner to clean the ventilation slots and grilles.
• Remove dust on the outside surfaces with a damp (not wet) cloth.
• Do not use strong cleaning agents or abrasives.
• Do not spray the device with liquids or immerse it in water or other liquids.
• Never open the heater housing.

DISPOSAL CONSIDERATIONS

If there is a legal regulation for the disposal of electrical and electronic devices in your country, this symbol on the product or on the packaging indicates that this product must not be disposed of with household waste. Instead, it must be taken to a collection point for the recycling of electrical and electronic equipment. By disposing of it in accordance with the rules, you are protecting the environment and the health of your fellow human beings from negative consequences. For information about the recycling and disposal of this product, please contact your local authority or your household waste disposal service.

MANUFACTURER & IMPORTER (UK)

Manufacturer:

Chal-Tec GmbH, Wallstrasse 16, 10179 Berlin, Germany.

Importer for Great Britain:

Berlin Brands Group UK Limited

PO Box 42

272 Kensington High Street

London, W8 6ND

United Kingdom
