USER MANUAL MOJAVE S 750 Klarstein

ONNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNN

KLARSTEIN

www.klarstein.com

Note: This product is only suitable for well insulated spaces or occasional use.

Congratulations on purchasing this device. Please read the following instructions carefully and follow them to prevent possible damages. We assume no liability for damage caused by disregard of the instructions and improper use. Scan the QR code to get access to the latest user manual and more product information.

CONTENTS

Technical Data 19

Safety Instructions 20

Mounting Installation 21

Operation 23

Device Control by Smartphone 25

Maintenance 27

Disposal Considerations 31

Declaration of Conformity 31

TECHNICAL DATA

Item number	10039810, 10039811, 10039812, 10039813, 10039814, 10039815
Power supply 220-240	V~ 50-60 Hz
Power 500 W
Dimensions 60x60 cm

Item number	10039816, 10039817, 10039818, 10039819, 10039820, 10039821
Power supply 220-240	V~ 50-60 Hz
Power levels 750 W
Dimensions 60x85 cm

Item number	10039822, 10039823, 10039824, 10039825, 10039826, 10039908
Power supply 220-240	V~ 50-60 Hz
Power levels 1000 W
Dimensions 60x120 cm

SAFETY INSTRUCTIONS

Product related safety warnings

• The infrared heaters operate at a surface temperature of around 95^ when wall mounted.
• Do NOT touch the heater when switched on.
• Prolonged contact may cause injuries or burns.
• Do NOT cover the heater with anything. Covering may cause overheating and can result in fire.
• This hybrid heater is having infrared and convection in one heater, please pay special attention to make sure the air inlet and outlet are not covered by any objects in any cases.
• The heater should NOT be used to dry textiles and no objects shall be placed or leaned against the heater.
• Keep a distance of at least 40cm in the front and 20cm on the sides to any object, wall, floor. Failure to do so will cause heat to build up behind the heater and will void your warranty.
• This heater is designed to be wall mounting, please don't mount them on the ceiling.
• This heater can be easily operated using your smartphone, via the same WLAN, via a different WLAN, or via a 3G/4G or 5G mobile network. This makes it possible to operate your heater remotely, without your direct supervision. However, please make sure that all safety precautions stated in this manual must be taken even with remote operation.

Dangers for children and persons with limited abilities

• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance.
• Cleaning and user maintenance shall not be made by children without supervision.
• Children of less than 3 years should be kept away unless continuously supervised.
• Children aged from 3 years and less than 8 years shall only switch on/off the appliance provided that it has been placed or installed in its intended normal operating position and they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children aged from 3 years and less than 8 years shall not plug in, regulate and clean the appliance or perform user maintenance
• CAUTION — Some parts of this product can become very hot and cause burns. Particular attention has to be given where children and vulnerable people are present.
• If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
• Do NOT operate the heater in small rooms when occupied by people not

capable of leaving the room by themselves. The surface of the heater can reach a surface temperature of up to 95^ , keep out of reach of children and disabled persons.

• Keep away babies and children from all packaging material such as plastic bags to avoid danger of suffocation.

Electric safety directions

• When installing, repairing or servicing the heater it must be turned off and disconnected from power. Before installation please check if the heater is free of damages.
• If the heater or the power cord is damaged in any form do NOT use the heater. Repairs, maintenance or any changes must be carried out by an authorized dealer.
• DO NOT attempt to repair the heater by yourself, this will void your warranty.
• If the heater has been dropped do NOT operate it and contact your dealer to make sure it is free of any damages.
• This heater is designed to operate at 220V-240V, 50Hz AC. If your supply mains do not comply with this, do NOT use the heater.
• The heater must not be located immediately below a socket-outlet
• WARNING: The glass heater must not be used if the glass surface is damaged.
• WARNING: Do not use this heater in small rooms when they are occupied by persons not capable of leaving the room on their own, unless constant supervision is provided.

MOUNTING INSTALLATION

The kit supplied in the package is designed for mounting vertically on a solid wall. If mounted onto other types of walls, you will need appropriate fixings (not supplied). Please make sure the wall is safe to mount. We highly recommend to have the panel installed by a qualified electrician or authorized installer. The heater must be at least 20cm removed from all objects, walls, etc.; the distance to the floor must be at least 20cm .

Please be noted that this hybrid heater can only be mounted horizontally, do not mount it vertically.

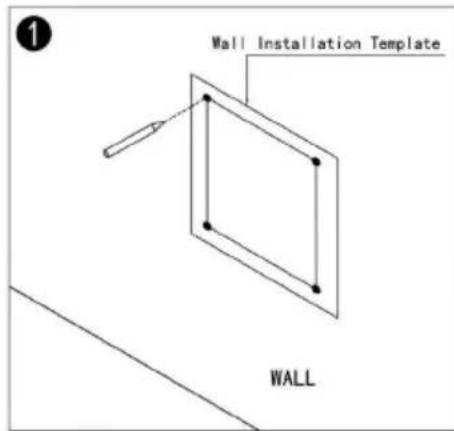

Step 1. Use the supplied template to mark the position of the holes on the wall.

Step 2. Drill holes using a 8mm drill.

Step 3. Insert the dowels into the holes.

Step 4. Screw in the supplied screws to the wall.

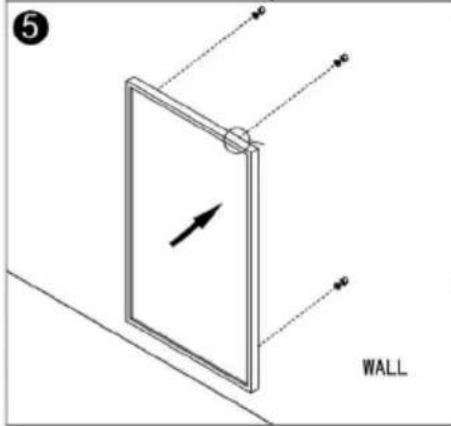

Step 5. Mount the panel on the screws.

Step 6. Move the panel to the left and then down until it is secured.

OPERATION

General introduction of the control system

The Mojave S has an integrated WIFI control box, meaning there is no other additional thermostat needed to control the heater. Once the heater has been connected to the APP, the smartphone will take control and communicate with the control box. If your home internet is not working, it is still possible to operate the heater via the remote controller or button on the control box. Once the heater is re-connected to the WIFI, the smart phone will take control again.

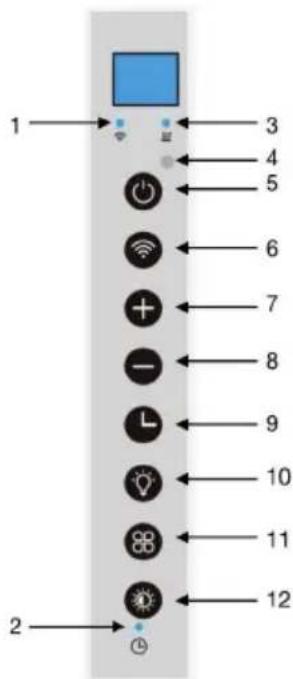

Controls

1 Wifi single indicator
2 Timer indicator
3 Heat-on status indicator
4 Remote control signal receiving point
5 Heating On/off button
6 Wifi button

7“+”button
8"-" button
9 Timer button
10 Lighting On/off button
11. Color selection button
12. Brightness adjustment button

WIFI reset

Turn on the heater and long press "WIFI" button for 5 seconds until the WIFI indicator starts to flash to reset the Wifi connection.

WIFI function ON/OFF

Turn on the heater and long press "Timer" button on the control box for 10 seconds to deactivate the WIFI function of this heater and the WIFI sign on the screen will disappear, long press "Timer" button for 10 seconds to activate it on again.

Temperature calibration

Turn on the heater and long press "+" button on the control box for 5 seconds to enter the temperature calibration, adjust the number by pressing "-" or "+" button, the calibration ranges from -5 to +5 degrees.

Manual control:

You can always use the remote controller or button on the control box to manually control your heater and lighting system.

To turn on/off the heater, please press the "Heating On/off button". To set the desired room temperature, please press "+" or "-" button. To set the count-down timer for the heating, please press the "Timer button" and adjust the number by pressing "+" or "-" button.

To turn on/off the lighting, please press the "Lighting On/off" button.

To change the color of the lighting, please press the "Color selection button".

To adjust the brightness of the lighting, please press the "Brightness adjustment button", each press you are able to change 20% of the brightness.

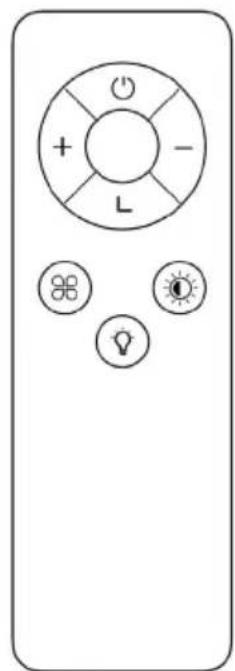

Please be noted when use the remote controller, make sure the remote controller is pointing to the Remote control signal receiving point on the control box.

DEVICE CONTROL BY SMARTPHONE

If you integrate the device into your home WiFi, you can conveniently operate it via the associated Klarstein app. The app not only allows you to remotely control the device via your smartphone, but also gives you access to recipes and additional information.

Follow these steps to connect your smartphone to your Klarstein device:

1 Download the Klarstein app first by scanning the QR code with your smartphone (see below), or download it directly from App Store or Google Play.
2 Make sure your smartphone is connected to the same WiFi network that your Klarstein device is to be connected to.
3 Open the Klarstein app.
4 Sign in to your account. If you do not have an account, sign up in the Klarstein app.
5 Follow the instructions from the app.

App Download

Use the scan function of your smartphone to scan the QR code and save the app on your smartphone.

Note: The app provides further information on how to use the app and help on how to connect to your device as soon as you open it for the first time.

iOS Android

Troubleshooting connection problems

If your Klarstein device cannot be found in the WLAN, check the following:

1 The device is not plugged in. Make sure that your device is plugged into an electric socket.
2 The device is not in pairing mode. Make sure that the WiFi indicator (LED) on the smart device control panel is blinking as described in the 'Reset WiFi settings' instruction of your smart device (instructions are usually available on device connection process).
3 The WiFi access point does not operate on 2.4 GHz. Make sure that your access point operates on 2.4 GHz band and you have a separateSSID on 2.4 GHz band. If you are not sure about the operating band of your access point, please contact your internet provider company.

Important: please note that if your WiFi router is dual band - operating on both 2.4 GHz and 5 GHz band - you need to separate the SSDs for each band and use the 2.4 GHz SSD for connection.

4 Firewall settings of your WiFi network; the firewall setting of yourWiFi network may not allow the Klarstein app to configure theWiFi settings on yoursmart device. Please make sure that you are not using a publicWiFi network, e.g. airports, dormitories, companies, etc.
5 Different credentials used in smartphone and the app. Make sure that the WiFi credentials entered in the Klarstein app are the same as the ones that your smartphone is connected to.

Following the above mentioned points, if your smart device still fails to connect to the app, please contact us via email for support:
[e-mail]

MAINTENANCE

Cleaning

Always unplug your heater and let it cool down completely before cleaning. Never dip into water and never splash water on it. Clean the heater with a soft damp cloth. For glass models use a soft cloth and glass cleaner. Never use a wet cloth and make sure to dry the heater when clean with a dry cloth. Do not use any abrasive materials, solvents or harsh cleaning sponges as this could cause scratches or other irreparable damage. Before operating the heater again it must be completely dry.

Using/Working

Please note that the heater may discolour with use. This is due to airborne pollution and is not a fault. If you notice any noise, smells, visible changes or exceptionally high temperatures please discontinue use and contact an authorised dealer.

Repair

Repairs must be carried out by authorised dealer. If you attempt to alter the product or to proceed with any repairs yourself it will void your warranty.

PRODUCT DATA SHEET

Model identifier(s):	10039810, 10039811, 10039812, 10039813, 10039814, 10039815
Item Symbol Value Unit Item Unit
Heat output Type of heat input, for electric storage local space					heaters only
Nominal heat output P	nom	0.5 kW	manual heat		charge control, with integrated thermostat	no
Minimum heat output P	min	0.0 kW	manual heat		charge control with room and/or outdoor temperature feedback	no
Maximum continuous heat output	Pmax	- kW electronic			charge control with room and/or outdoor temperature feedback	no
Auxiliary electricity consumption					fan assisted heat output no
At nominal heat output el	max	0.5 kW			Type of heat output/room temperature control (select one)
At minimum heat output	elmin	0.0 kW	single stage		heat output and no room temperature control	no
In standby mode	elsb	0.001	kW Two or		more manual stages, no room temperature control	no
					with mechanic thermostat room temperature control	no
					with electronic room temperature control	no
					electronic room temperature control plus day timer	no
					electronic room temperature control plus week timer	yes
					Other control options (multiple selections possible)
					room temperature control, with presence detection	no
					room temperature control, with open window detection	no
					with distance control option	yes
					with adaptive start control	no
					with working time limitation	no
					with black bulb sensor	no
Contact details	Chal-Tec GmbH, Wallstraße 16, 10179, Berlin, Germany

PRODUCT DATA SHEET

Model identifier(s):	10039816, 10039817, 10039818, 10039819, 10039820, 10039821
Item Symbol Value Unit Item Unit
Heat output Type of heat input, for electric storage local space				heaters only
Nominal heat output P	nom	0.75 kW	manual heat	charge control, with integrated thermostat	no
Minimum heat output P	min	0.0 kW	manual heat	charge control with room and/or outdoor temperature feedback	no
Maximum continuous heat output	Pmax	- kW electronic heat		charge control with room and/or outdoor temperature feedback	no
Auxiliary electricity consumption				fan assisted heat output no
At nominal heat output	elmax	0.75 kW		Type of heat output/room temperature control (select one)
At minimum heat output	elmin	0.0 kW single stage		heat output and no room temperature control	no
In standby mode	elsb	0.001	kW Two or more manual stages, no room temperature control		no
				with mechanic thermostat room temperature control	no
				with electronic room temperature control	no
				electronic room temperature control plus day timer	no
				electronic room temperature control plus week timer	yes
				Other control options (multiple selections possible)
				room temperature control, with presence detection	no
				room temperature control, with open window detection	no
				with distance control option	yes
				with adaptive start control	no
				with working time limitation	no
				with black bulb sensor	no
Contact details	Chal-Tec GmbH, Wallstraße 16, 10179, Berlin, Germany

PRODUCT DATA SHEET

Model identifier(s):	10039822, 10039823, 10039824, 10039825, 10039826, 10039908
Item Symbol Value Unit Item Unit
Heat output Type of heat input, for electric storage local space				heaters only
Nominal heat output P	nom	1 kW manual heat ch		charge control, with integrated thermostat	no
Minimum heat output P	min	0.0 kW manual heat		charge control with room and/or outdoor temperature feedback	no
Maximum continuous heat output	Pmax	- kW electronic heat		charge control with room and/or outdoor temperature feedback	no
Auxiliary electricity consumption				fan assisted heat output no
At nominal heat output	elmax	1	kW	Type of heat output/room temperature control (select one)
At minimum heat output	elmin	0.0 kW single stage		heat output and no room temperature control	no
In standby mode	elsb	0.001	kW Two or	more manual stages, no room temperature control	no
				with mechanic thermostat room temperature control	no
				with electronic room temperature control	no
				electronic room temperature control plus day timer	no
				electronic room temperature control plus week timer	yes
				Other control options (multiple selections possible)
				room temperature control, with presence detection	no
				room temperature control, with open window detection	no
				with distance control option	yes
				with adaptive start control	no
				with working time limitation	no
				with black bulb sensor	no
Contact details	Chal-Tec GmbH, Wallstraße 16, 10179, Berlin, Germany

DISPOSAL CONSIDERATIONS

If there is a legal regulation for the disposal of electrical and electronic devices in your country, this symbol on the product or on the packaging indicates that this product must not be disposed of with household waste. Instead, it must be taken to a collection point for the recycling of electrical and electronic equipment. By disposing of it in accordance with the rules, you are protecting the environment and the health of your fellow human beings from negative consequences. For information about the recycling and disposal of this product, please contact your local authority or your household waste disposal service.

This product contains batteries. If there is a legal regulation for the disposal of batteries in your country, the batteries must not be disposed of with household waste. Find out about local regulations for disposing of batteries. By disposing of them in accordance with the rules, you are protecting the environment and the health of your fellow human beings from negative consequences.

DECLARATION OF CONFORMITY

CE UK CA

Manufacturer:

Chal-Tec GmbH, Wallstrasse 16, 10179 Berlin, Germany.

Importer for Great Britain:

Berlin Brands Group UK Ltd

PO Box 1145

Oxford,OX1 9UW

United Kingdom

Hereby, Chal-Tec GmbH declares that the radio equipment type Mojave S is in compliance with Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following internet address: use.berlin/10039810

For Great Britain: Hereby, Chal-Tec GmbH declares that the radio equipment type Mojave S is in compliance with the relevant statutory requirements. The full text of the declaration of conformity is available at the following internet address: use.berlin/10039810
