Congratulations on purchasing this device. Please read the following instructions carefully and follow them to prevent possible damages. We assume no liability for damage caused by disregard of the instructions and improper use. Scan the QR code to get access to the latest user manual and more product information.

QR code image containing encoded data, no visible human-readable text

CONTENTS

Safety Instructions 18

Wall Mounting 20

Operation 22

Device Control via Smartphone 24

Cleaning and Care 26

Disposal Considerations 27

Declaration of Conformity 27

Product Data Sheet 28

TECHNICAL DATA

Article number 10041869, 10041870
Power supply 220-240 V ~ 50 Hz
Power 750 W
WiFi standard	802.11 b/g/n
WiFi frequency	2.4 GHz
WiFi transmission power (max.)	20 dBm

SAFETYINSTRUCTIONS

Device-specific safety instructions

• The infrared heater reaches a surface temperature of approx. 95 °C during operation when mounted on the wall. DO NOT touch the heater when it is switched on. Prolonged skin contact may cause injury or burns.
• DO NOT cover the heater, this can cause overheating and fires.
• The heater must NOT be used for drying textiles and no objects may be placed on or leaned against the appliance.
• Keep a minimum distance of 40 cm to the front and 20 cm to the sides from all objects and walls. Otherwise, heat may build up behind the heater and invalidate the warranty.
• The heater is designed for wall mounting, do not mount the heater on the ceiling.
• You can easily operate the heating with your smartphone, via the same WLAN, another WLAN or via a 3G or 4G mobile network. This allows the appliance to be controlled without direct monitoring. Nevertheless, make sure that all safety measures specified in the operating instructions are observed even when operating the unit remotely.
• Make sure that the air inlets and outlets cannot be covered under any circumstances, otherwise this will cause the heater to overheat.

Hazards for children and persons with reduced abilities

• This device may only be used by children from the age of 8 and up or by persons with reduced physical, sensory and mental capabilities or a lack of experience and / or knowledge if they are supervised or have been instructed in the safe use of the device and have understood the resulting dangers.
• Children must not play with the device. Cleaning and maintenance work must not be carried out by children without supervision.
• Children under 3 years of age should be kept away from the heater unless they are supervised at all times.
• Children aged 3 to under 8 years should not turn the appliance on or off unless it is placed or installed in the normal position for use and they are supervised or have been instructed in the safe use of the appliance and understand the hazards involved. Children aged 3 to under 8 years must not connect the appliance to the mains, make any adjustments or carry out any cleaning or maintenance work on it.

CAUTION

Burn risk! Some parts of the appliance can become very hot and cause burns. Special care should be taken when children and infirm persons are present.

• If the power cord is damaged, it must be replaced by the manufacturer, its service agent or a similarly qualified person to avoid a hazard.
• DO NOT operate the heater in small rooms if there are people in the room who are not able to leave the room on their own. The surface of the heater can reach a surface temperature of up to 95 °C. Make sure that the appliance is out of reach of children and people with disabilities.
• Keep babies and children away from all packaging materials such as plastic bags to avoid choking hazards.

Electrical safety regulations

• Switch off and unplug the heater before installation, repair or maintenance. Before installation, make sure that there is no damage to the unit.
• If the heater or the mains cable is damaged in any way, DO NOT use the heater. Contact the manufacturer or customer service for repair or replacement of the unit. Repairs, maintenance or modifications may only be carried out by the manufacturer, customer service or qualified specialists.
• DO NOT attempt to repair the heater yourself as this will invalidate the warranty.
• If the heater has been dropped, DO NOT operate it and contact the manufacturer or after-sales service to ensure that there is no damage.
• This heater is designed for operation with 220-240 V, 50 Hz AC. If your mains supply does not meet this requirement, DO NOT use the appliance.
• The heater must not be located directly below a socket.

WARNING

Risk of injury! The heater must not be used if the glass surface is damaged.

WARNING

Risk of injury! Do not use the heater in small rooms if there are people in them who are not able to leave the room independently, unless permanent supervision is ensured.

WALL MOUNTING

• Step 1: Use the template provided to mark the position of the holes on the wall.
• Step 2: Drill the holes in the wall with an 8 ~mm drill bit.
• Step 3: Insert the dowels into the holes.
• Step 4: Screw the supplied screws to the wall.
• Step 5: Attach the wall bracket to the heater from the back of the panel and then fix the panel to the screws in the wall.
• Step 6. slide the panel to the right and then down until it is attached.

Note: The mounting kit included in the scope of delivery is intended for horizontal mounting on a stable wall. For mounting on other types of walls, you need corresponding fixings (not included in the scope of delivery). Please make sure that the wall is suitable for the installation. It is strongly recommended that the panel be installed by a qualified electrician or an installer authorised by the manufacturer. The heater must be at least 20 cm away from all objects, walls, etc.

- This heater is designed for horizontal wall mounting only. Vertical wall mounting is not permitted.

Blank white rectangular paper with a subtle shadow, no text or symbols visible.

- For free-standing use of the heater, install the feet on the bottom of the heater.

OPERATION

General instruction in the operating elements

The Taal Smart range has an integrated WLAN control unit, which means that no additional thermostat is required to control the heater. As soon as the heater is connected to the app, the smartphone will take over control and communicate with the control unit. If the Internet is not working at home, the heating can still be operated via the remote control or the buttons on the control unit. As soon as the heating is connected to the WLAN again, the smartphone takes over the control again.

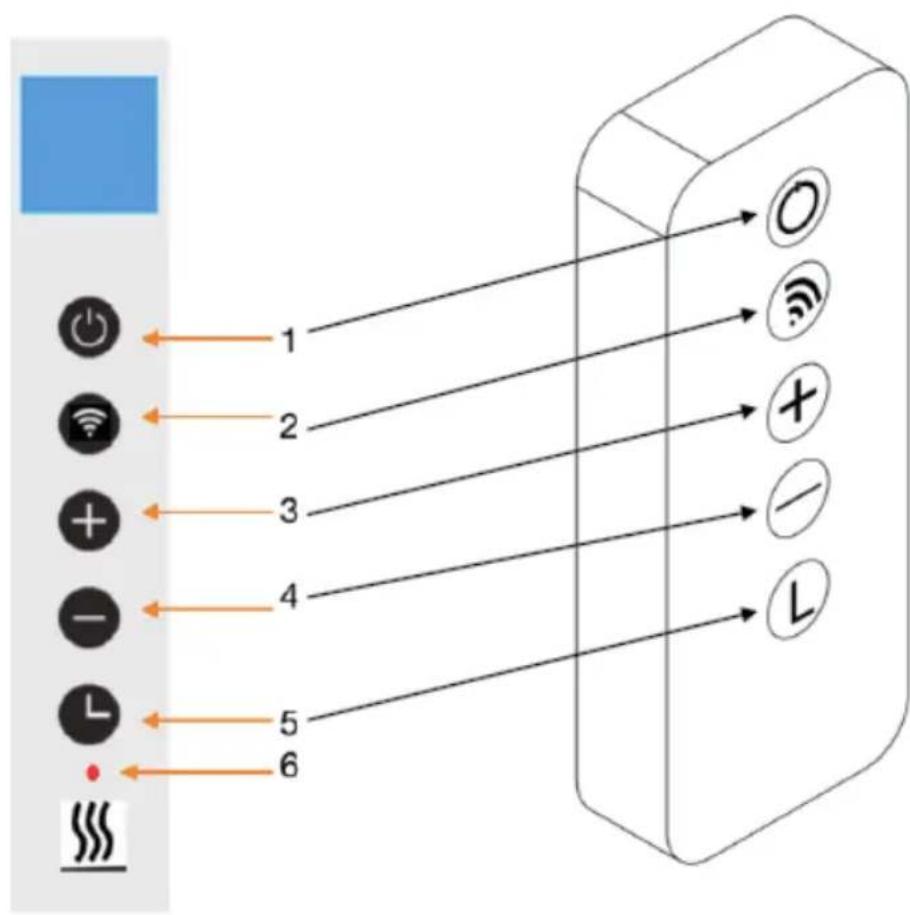

Control panel and remote control

1 On / off button 4 - Key (lower)
2 WLAN button 5 Timer button
3 + key (increase) 6 Heating status display

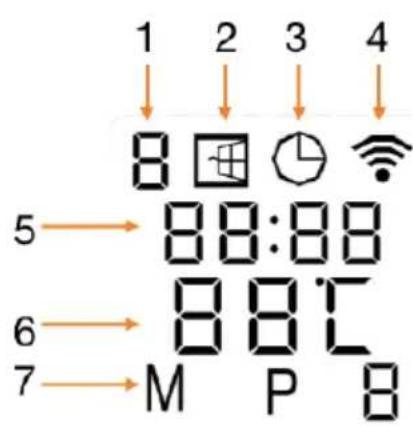

Display indications
	1 Weekday
	2 Open window display
	3 Timer display
	4 WLAN display
	5 Time
	6 Temperature
	7 Modes: M = Manual mode P = Programme duration (P1-P4) H = Holiday mode

Open window detection

This heater includes an open window detection function. If the control system detects that the room temperature drops drastically in a short period of time while the heating is in operation, it automatically detects that a window is open. The open window indicator starts flashing in the display, the heating switches off for 30 minutes and automatically returns to the previous setting after 30 minutes.

You can switch this function on and off by pressing and holding the "-" key for 5 seconds, whereupon the open-window indicator in the display appears or disappears accordingly.

Temperature calibration

Press and hold the + button for 5 seconds to enter temperature calibration. Adjust the temperature calibration by pressing the + or - buttons. The calibration range is between -5 and +5 degrees.

Resetting the Wi-Fi

Turn on the appliance and press the WLAN button for 5 seconds until the WLAN indicator starts flashing and the WLAN connection is reset.

Switching the WLAN function on/off

Press the timer button for 10 seconds to switch off the WLAN function of the heater. The WLAN indicator in the display disappears. Press the timer button for 10 seconds to switch the WLAN function back on.

Manual operation

To access manual mode, turn on the power switch and press the on/off button to turn on the heater. The "M" symbol appears in the display. Set the desired temperature by pressing the + or - buttons. After 2 seconds, the display shows the current room temperature again.

If you want to set the timer, press the timer button and "00H" appears in the display. Set the desired time until the heating switches off automatically with the + or - buttons.

Child safety lock

Press the On/Off button on the control panel for 5 seconds to activate the child lock. CL" is shown on the display. Press the On/Off button for 5 seconds to deactivate the child lock.

DEVICE CONTROL VIA SMARTPHONE

If you integrate your Klarstein appliance into your home WLAN, you can operate it conveniently via the associated Klarstein app. The app not only allows you to control the appliance remotely via your smartphone, but also gives you access to recipes and further information.

Follow these steps to connect your smartphone to your Klarstein appliance:

1. First download the Klarstein app by scanning the QR code with your smartphone (see below) or download it directly from the App Store or Google Play.
2. Make sure that your smartphone is connected to the same WiFi network that your Klarstein device is to be connected to.
3. Open the Klarstein app.
4. Log in with your account. If you don't have an account yet, register in the Klarstein app.
5. Follow the instructions in the app.

App download

Use the scan function of your mobile phone to scan the QR code and save the app on your smartphone.

Note: Further instructions on how to use the app and help on how to connect to your device are provided by the app when you open it for the first time.

iOS Android

Troubleshooting connection problems

If your Klarstein device cannot be found in the WLAN, check the following:

• Is the unit plugged in?
• Is the WLAN function of the smartphone activated?
- Is the WLAN function of the Klarstein device activated? (Follow the instructions in the app)
- Has the WiFi password been entered correctly?
- Are the router, Klarstein device and smartphone in close proximity during the pairing attempt? (Ideally no more than 5 m apart)
- If you have deactivated the 2.4 GHz band in the settings of your WLAN router, activate it in your router settings.

Note: For further assistance, follow the app's instructions when establishing the connection.

CLEANING AND CARE

Note: Switch off the appliance and remove the plug from the socket. Wait until the appliance has cooled down completely before cleaning it.

• Do not spray or immerse the device in water or any other liquid.
• Clean the heater with a soft, damp cloth. For models made of glass, use a soft cloth and glass cleaner.
• Do not use abrasive cleaners, solvents or hard cleaning sponges as this may cause scratches or other irreparable damage.
• Never use a wet cloth, and dry the heater with a dry cloth after cleaning. Before you put the heater back into operation, it must be completely dry.

Notes on use

• Note that the heater may become discoloured with regular use. This is due to air pollution and does not indicate a malfunction.
• Do not cover your heater with a picture film and do not paint or print on it. This could damage the heating element and will void the warranty.
• If you notice any noises, smells, visible damage or unusually high temperatures, stop operating the heater and contact the manufacturer or customer service.

Repairs

Repairs may only be carried out by qualified personnel. Contact the manufacturer or customer service for this purpose. Do not attempt to repair the heater yourself or modify the appliance.

DISPOSAL CONSIDERATIONS

Symbol of a trash bin crossed with a diagonal line, no text or numbers present

If there is a legal regulation for the disposal of electrical and electronic devices in your country, this symbol on the product or on the packaging indicates that this product must not be disposed of with household waste. Instead, it must be taken to a collection point for the recycling of electrical and electronic equipment. By disposing of it in accordance with the rules, you are protecting the environment and the health of your fellow human beings from negative consequences. For information about the recycling and disposal of this product, please contact your local authority or your household waste disposal service.

This product contains batteries. If there is a legal regulation for the disposal of batteries in your country, the batteries must not be disposed of with household waste. Find out about local regulations for disposing of batteries. By disposing of them in accordance with the rules, you are protecting the environment and the health of your fellow human beings from negative consequences.

DECLARATION OF CONFORMITY

CE UK CA

Manufacturer:

Chal-Tec GmbH, Wallstrasse 16, 10179 Berlin, Germany.

Importer for Great Britain:

Berlin Brands Group UK Ltd

PO Box 1145

Oxford, OX1 9UW

United Kingdom

Hereby, Chal-Tec GmbH declares that the radio equipment type Taal Smart is in compliance with Directive 2014/53/EU.

The full text of the EU declaration of conformity is available at the following internet address: use.berlin/10041869

For Great Britain: Hereby, Chal-Tec GmbH declares that the radio equipment type Taal Smart is in compliance with the relevant statutory requirements. The full text of the declaration of conformity is available at the following internet address: use.berlin/10041869

PRODUCT DATA SHEET

Model identifier(s) 10041869	10041870
Specification Symbol Value Unit	it Specification	ion Unit
Heat output Only for electric storage room heaters: Type of heat					supply control
Nominal heat output P	nom	0.75 kW	Manual control	of the heat supply with integrated thermostat		no
Minimum heat output (guide value)	Pmin	0.0 kW	Manual control	of the heat supply with feedback of the room and/or outside temperature		no
Maximum continuous heat output	Pmax, c	0.75 kW	Electronic control	of the heat supply with feedback of the room and/or outside temperature		no
Auxiliary power consumption Heat output with fan support no
Nominal heat output el	max	0.75 kW	Type of heat	output/room temperature control
With minimum heat output el	min	0.0 kW	Single stage heat output, no room temperature control			no
Standby mode	elSB	0.001 W	Two or more manually adjustable levels, no room temperature control			no
					Room temperature control with mechanical thermostat	no
					With electronic room temperature control	no
					With electronic room temperature control and time of day control	no
					With electronic room temperature control and day of week control	yes
					Other regulatory options
					Room temperature control with presence detection	no
					Room temperature control with open window detection	yes
					With remote control option	no
					With adaptive control of the heating start	no
					With operating time limit	no
					With black ball sensor	no
Contact details	Chal-Tec GmbH, Wallstraße 16, 10179 Berlin, Germany.
