Product Type	Cordless Renovation Polisher
Brand	Parkside
Model	PAAP 12 C3
Category	Cordless Sander
Rated Voltage	12 V (DC)
Rated Speed (1st Gear)	0 – 2800 min⁻¹
Rated Speed (2nd Gear)	0 – 8300 min⁻¹
Polishing Pad Diameter	75 mm
Thread	M6
Battery Type	Lithium-ion
Battery Capacity	2000 mAh / 24 Wh
Compatible Battery Model	PAPK 12 A1/A2/A3/B1/B3/C1/D1
Rapid Charger	PLGK 12 A1 (Input voltage 220-240 V~, 50-60 Hz)
Charging Time	Approx. 60 min
Charge Level Indicator	LED (red/orange/green) on device
Functions	Sanding, polishing (pre-polish, post-polish, mirror finish)
Supplied Equipment	1 polisher, 1 polishing pad ∅75 mm (Velcro), 1 orange bonnet, 1 black bonnet, 1 faux fur pad, 5 abrasive sheets ∅75 mm, 1 auxiliary handle, 1 operating manual
Sound Pressure Level	80 dB (A)
Sound Power Level	91 dB (A)
Hand-Arm Vibration	4.7 m/s²
Charger Protection Class	II (double insulation)
Warranty	3 years
Maintenance	Clean with dry cloth, do not use solvents
Weight	Not specified (approx. 1 kg)

Frequently Asked Questions - PAAP 12 C3 PARKSIDE

Which battery types are compatible with the polisher PAAP 12 C3?

Compatible batteries are Parkside models from the X12V Team series: PAPK 12 A1, A2, A3, B1, B3, C1 and D1. Use only these batteries to avoid risk of injury or fire.

How to select the rotation speed?

Use the speed selector (mark 1) only when the appliance is at a standstill. Position 1 = 0-2800 min⁻¹ (light sanding), position 2 = 0-8300 min⁻¹ (intensive polishing). Never force the selector while running.

Which accessories are included in the delivered equipment?

The kit includes: 1 polisher, 1 polishing pad ∅75 mm with Velcro attachment, 1 orange polishing bonnet (pre-polish), 1 black bonnet (post-polish), 1 faux fur pad (mirror finish), 5 abrasive sheets ∅75 mm, 1 auxiliary handle and the operating manual.

What is the battery charging time?

The charging time is approximately 60 minutes with the PLGK 12 A1 rapid charger. The lithium-ion battery can be recharged at any time without memory effect.

Can I use the polisher for grinding or metal brushing?

No, this appliance is designed only for sanding and polishing. It is not suitable for grinding, deburring or wire brushing. Non-compliant use can cause injuries.

How to attach the auxiliary handle?

The auxiliary handle (mark 10) screws onto the left or right on the head of the appliance. Choose the side according to your working comfort and tighten it firmly by hand.

What to do if the polishing pad gets blocked?

Immediately release the on/off switch. Remove the battery, then check that the pad is correctly mounted and that the accessory is not damaged. If the blockage persists, contact the after-sales service.

How to maintain the polisher?

Clean the housing with a dry cloth after each use. Use a brush to remove sanding dust. Never use sharp objects, petrol or solvents. Store the battery in a cool, dry place with a charge level between 50% and 80%.

What is the warranty period and how to claim it?

The warranty is 3 years from the date of purchase. Keep the receipt. In case of defect, contact the after-sales service (0800 919270 in France, 0800 12089 in Belgium) or return the device with proof of purchase. The warranty does not cover normal wear and tear or non-compliant use.

What does the LED indicator on the battery mean?

When the appliance is switched on, the LED displays: RED/ORANGE/GREEN = full charge, RED/ORANGE = medium charge, RED = low charge (recharge). The charger indicator changes from red (charging) to green (battery full).

USER MANUAL PAAP 12 C3 PARKSIDE

PDF ONLINE www.lidi-service.com

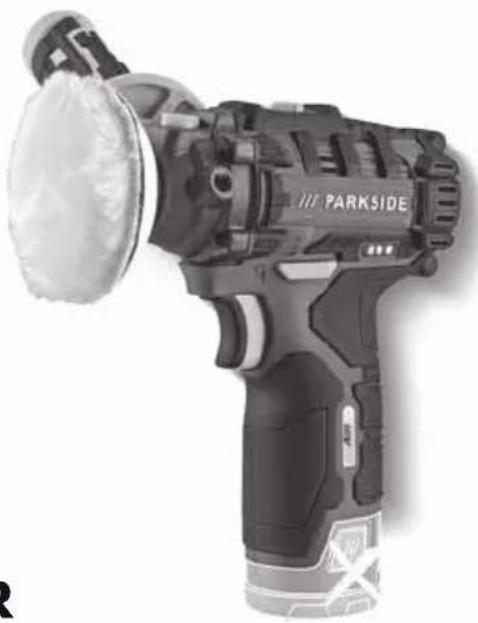

Black and white photo of a Parkside electric tool with a circular head and handle (no visible text or symbols)

CORDLESS POLISHER / SANDER AKKU-AUSBESSERUNGSPOLIERER POLISSEUSE DE RÉNOVATION SANS FIL PAAP 12 C3

GB IE

CORDLESS POLISHER / SANDER

Translation of the original instructions

FR BE

POLISSEUSE DE RÉNOVATION SANS FIL

ACCU-POLIJSTAPPARAAT VOOR REPARATIE

Before reading, unfold the page containing the illustrations and familiarise yourself with all functions of the device.

DE AT CH

GB / IE Translation of the original instructions Page 1

Simple gray circular shape with a black number 11 below it, no text or symbols present.

Solid black circular shape with a numbered label '12' pointing to its bottom center (no other text or symbols)

Close-up of a fluffy white object with a black arrow pointing to a numbered label '13' (no text or symbols on the object itself)

Gray circular shape with a black number 14 below it, no text or symbols on the shape itself.

B

PARTICIDE 15 16 17

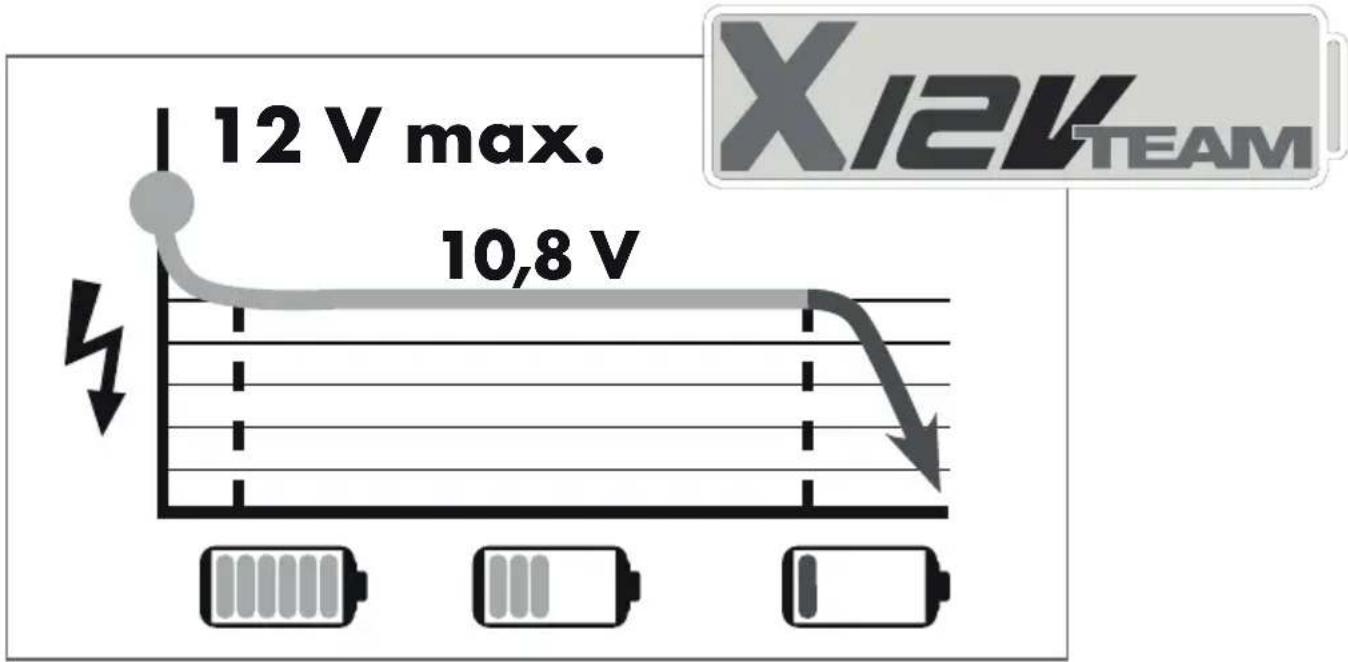

All Parkside tools and the chargers PLGK 12 A1/A2/A3/B2/PDSLG 12 A1 of the X12V Team series are compatible with the PAPK 12 A1/A2/A3/B1/B3/C1/D1 battery pack.

Technical specifications 2

General power tool safety warnings....3

1. Work area safety 3
2. Electrical safety
3. Personal safety 4
4. Power tool use and care 4
5. Battery tool use and care 5
6. Service 5

Appliance-specific safety instructions for hand grinders/polishers....5

Safety guidelines for battery chargers 8

Original accessories/auxiliary equipment....8

Before use 8

Removing/charging/inserting the battery pack 8

Checking the battery charge level 9

Assembly/disassembly of the polishing disc 9

Fitting the attachments 9

Fitting the additional handle 9

Use 9

2-speed gearbox 9

Grinding 9

Polishing 10

Working procedures 10

Maintenance and cleaning 10

Kompernass Handels GmbH warranty 11

Service 12

Importer 12

Disposal....13

Translation of the original Conformity Declaration ..... 14

Ordering a replacement battery 15

Telephone ordering 15

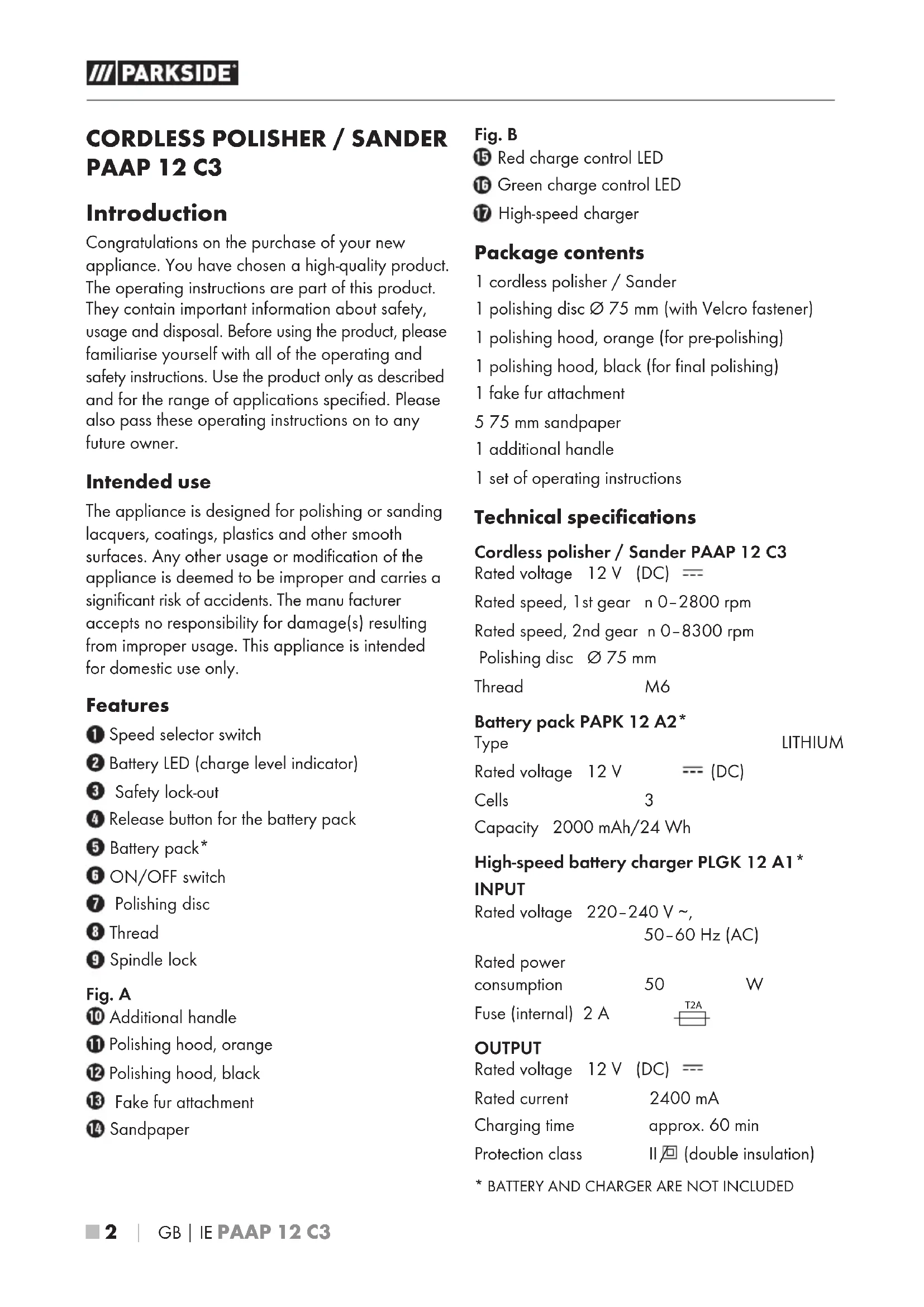

CORDLESS POLISHER / SANDER PAAP 12 C3

Introduction

Congratulations on the purchase of your new appliance. You have chosen a high-quality product. The operating instructions are part of this product. They contain important information about safety, usage and disposal. Before using the product, please familiarise yourself with all of the operating and safety instructions. Use the product only as described and for the range of applications specified. Please also pass these operating instructions on to any future owner.

Intended use

The appliance is designed for polishing or sanding lacquers, coatings, plastics and other smooth surfaces. Any other usage or modification of the appliance is deemed to be improper and carries a significant risk of accidents. The manu facturer accepts no responsibility for damage(s) resulting from improper usage. This appliance is intended for domestic use only.

Features

① Speed selector switch
② Battery LED (charge level indicator)
3 Safety lock-out
4 Release button for the battery pack
⑤ Battery pack*
6 ON/OFF switch
7 Polishing disc
8 Thread
9 Spindle lock

Fig. A

10 Additional handle
⑪ Polishing hood, orange
12 Polishing hood, black
13 Fake fur attachment
14 Sandpaper

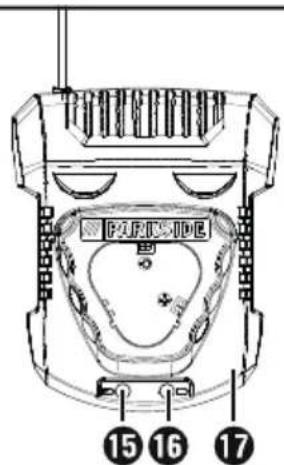

Fig. B

15 Red charge control LED
16 Green charge control LED
17 High-speed charger

Package contents

1 cordless polisher / Sander
1 polishing disc ∅ 75 mm (with Velcro fastener)
1 polishing hood, orange (for pre-polishing)
1 polishing hood, black (for final polishing)
1 fake fur attachment
5 75 mm sandpaper
1 additional handle
1 set of operating instructions

Technical specifications

Cordless polisher / Sander PAAP 12 C3

Rated voltage 12 V (DC) ---

Rated speed, 1st gear n 0–2800 rpm

Rated speed, 2nd gear n 0–8300 rpm

Polishing disc ∅ 75 mm

Thread M6

Battery pack PAPK 12 A2*

Type LITHIUM
Rated voltage 12 V --- (DC)
Cells 3
Capacity 2000 mAh/24 Wh

High-speed battery charger PLGK 12 A1\* INPUT

Rated voltage 220-240 V \~, 50-60 Hz (AC)

Rated power

consumption 50 W

Fuse (internal) 2 A

OUTPUT

Rated voltage 12 V (DC) ---

Rated current 2400 mA

Charging time approx. 60 min

Protection class II 回 (double insulation)

* BATTERY AND CHARGER ARE NOT INCLUDED

Noise and vibration data

Noise measurement value determined in accordance with EN 62841. The A-rated noise level of the power tool is typically as follows:

Sound pressure level 80 dB (A)

Sound power level 91 dB (A)

Uncertainty K 3 dB

Wear ear protectors!

Rated acceleration, typically

Hand/arm vibration a _h=4.7 m/s^2

Uncertainty K ^2

Always wear safety goggles.

NOTE

The vibration emission values and the noise emission values given in these instructions have been measured in accordance with a standardised test procedure and can be used for comparison of the power tool with another tool.
The specified total vibration values and the noise emission values can also be used to make a provisional load estimate.

WARNING!

▶ Depending on the manner in which the power tool is being used, and in particular the kind of workpiece that is being worked, the vibration and noise emission values can deviate from the values given in these instructions during actual use of the power tool.
It is necessary to establish safety measures to protect the operator based on an estimation of the vibration load during actual use (all states of operation must be included, e.g. times when the power tool is switched off and times where the power tool is switched on but running without load).

General power tool safety warnings

WARNING!

▶ Read all safety warnings, instructions, illustrations and specifications provided with this power tool. Failure to follow all instructions listed below may result in electric shock, fire and/or serious injury.

Save all warnings and instructions for future reference.

The term "power tool" in the warnings refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool.

1. Work area safety

a) Keep work area clean and well lit. Cluttered or dark areas invite accidents.
b) Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes.
c) Keep children and bystanders away while operating a power tool. Distractions can cause you to lose control.

2. Electrical safety

a) Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any adapter plugs with earthed (grounded) power tools. Unmodified plugs and matching outlets will reduce risk of electric shock.
b) Avoid body contact with earthed or grounded surfaces, such as pipes, radiators, ranges and refrigerators. There is an increased risk of electric shock if your body is earthed or grounded.
c) Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electric shock.

d) Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool. Keep cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords increase the risk of electric shock.
e) When operating a power tool outdoors, use an extension cord suitable for outdoor use. Use of a cord suitable for outdoor use reduces the risk of electric shock.
f) If operating a power tool in a damp location is unavoidable, use a residual current device (RCD) protected supply. Use of an RCD reduces the risk of electric shock.

3. Personal safety

a) Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol or medication. A moment of inattention while operating power tools may result in serious personal injury.
b) Use personal protective equipment. Always wear eye protection. Protective equipment such as a dust mask, non-skid safety shoes, hard hat or hearing protection used for appropriate conditions will reduce personal injuries.
c) Prevent unintentional starting. Ensure the switch is in the off-position before connecting to power source and/or battery pack, picking up or carrying the tool. Carrying power tools with your finger on the switch or energising power tools that have the switch on invites accidents.
d) Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left attached to a rotating part of the power tool may result in personal injury.
e) Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations.
f) Dress properly. Do not wear loose clothing or jewellery. Keep your hair and clothing away from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts.

g) If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used. Use of dust collection can reduce dust-related hazards.
h) Do not let familiarity gained from frequent use of tools allow you to become complacent and ignore tool safety principles. A careless action can cause severe injury within a fraction of a second.

4. Power tool use and care

a) Do not force the power tool. Use the correct power tool for your application. The correct power tool will do the job better and safer at the rate for which it was designed.
b) Do not use the power tool if the switch does not turn it on and off. Any power tool that cannot be controlled with the switch is dangerous and must be repaired.
c) Disconnect the plug from the power source and/or remove the battery pack, if detachable, from the power tool before making any adjustments, changing accessories, or storing power tools. Such preventive safety measures reduce the risk of starting the power tool accidentally.
d) Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool. Power tools are dangerous in the hands of untrained users.
e) Maintain power tools and accessories. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may affect the power tool's operation. If damaged, have the power tool repaired before use. Many accidents are caused by poorly maintained power tools.
f) Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier to control.

g) Use the power tool, accessories and tool bits etc. in accordance with these instructions, taking into account the working conditions and the work to be performed. Use of the power tool for operations different from those intended could result in a hazardous situation.

h) Keep handles and grasping surfaces dry, clean and free from oil and grease. Slippery handles and grasping surfaces do not allow for safe handling and control of the tool in unexpected situations.

5. Battery tool use and care

a) Recharge only with the charger specified by the manufacturer. A charger that is suitable for one type of battery pack may create a risk of fire when used with another battery pack.

b) Use power tools only with specifically designated battery packs. Use of any other battery packs may create a risk of injury and fire.

c) When battery pack is not in use, keep it away from other metal objects, like paper clips, coins, keys, nails, screws or other small metal objects, that can make a connection from one terminal to another. Shorting the battery terminals together may cause burns or a fire.

d) Under abusive conditions, liquid may be ejected from the battery; avoid contact. If contact accidentally occurs, flush with water. If liquid contacts eyes, additionally seek medical help. Liquid ejected from the battery may cause irritation or burns.

e) Do not use a battery pack or tool that is damaged or modified. Damaged or modified batteries may exhibit unpredictable behaviour resulting in fire, explosion or risk of injury.

f) Do not expose a battery pack or tool to fire or excessive temperature. Exposure to fire or temperature above 130 °C (265°F) may cause explosion.

g) Follow all charging instructions and do not charge the battery pack or tool outside the temperature range specified in the instructions. Charging improperly or at temperatures outside the specified range may damage the battery and increase the risk of fire.

CAUTION! RISK OF EXPLOSION! Never charge non-rechargeable batteries!

Protect the rechargeable battery from heat, for example from continuous exposure to sunlight, fire, water and moisture. There is a risk of explosion.

6. Service

a) Have your power tool serviced by a qualified repair person using only identical replacement parts. This will ensure that the safety of the power tool is maintained.

b) Never service damaged battery packs. Service of battery packs should only be performed by the manufacturer or authorized service providers.

Appliance-specific safety instructions for hand grinders/polishers

General safety instructions for polishing and sandpaper sanding

(a) This power tool is to be used as a polisher and sandpaper sander. Please follow all safety instructions, instructions, diagrams and data that you receive with the power tool. Failure to follow the instructions below may result in electric shock, fire and/or serious injury.

b) This power tool is not suitable for cutting, roughing and wire brushing. Using the power tool for applications for which it is not designed can lead to hazards and injuries.

c) Do not use any accessories that have not been specifically provided or recommended for this power tool by the manufacturer. Just because you can attach the accessories to your power tool, does not ensure they are safe to use.

d) The maximum speed of the accessory tool used must be at least as high as the maximum speed specified for the power tool.

Accessories that rotate faster than the maximum permissible rate can break and throw pieces into the air.

e) The external diameter and thickness of the accessory tool used must comply with the dimensions of the power tool. Incorrectly dimensioned accessory tools cannot be sufficiently shielded or controlled.

f) The thread of the accessories must match the thread of the grinding spindle. For accessories mounted by means of a flange, the bore of the accessory must match the diameter of the flange. Accessories that do not fit on the appliance will run unevenly, vibrate too much and this may result in loss of control of the unit.

g) Never use damaged accessory tools. Check accessory tools such as grinding discs before each use for chips or cracks, grinding plates for cracks, wearing or excessive wear and tear and wire brushes for loose or broken wires. If the power tool or the accessory tool in use is dropped, check to see if it is damaged or use an undamaged accessory tool. Once you have checked and inserted the accessory tool, ensure that you and any other people in the vicinity remain outside of the level of the rotating accessory tool and allow the power tool to rotate at maximum speed for one minute. Damaged accessory tools usually break during this test period.

h) Wear personal protective equipment. Depending on the application, ensure that you use full face protection, eye protection or goggles. If required, use a dust mask, ear protectors, protective gloves or a special apron to protect you from grindings and material particles. Eyes should be protected from flying debris that may be caused during certain applications. A dust or respiratory mask must filter the dust generated during use. If you are exposed to loud noise for any length of time, you can suffer a hearing loss.

i) Ensure that other people remain at a safe distance from your workspace. Anyone who enters the workspace must wear personal protective equipment. Fragments of the workpiece or broken accessory tools can fly off and cause injury - even outside the immediate working area.

j) Never remove the power tool before the accessory tool has come to a complete stop. The rotating accessory tool could come into contact with the surface and cause you to lose control of the power tool.

k) Do not leave the power tool running whilst carrying it. Accidental contact between your clothing and the rotating accessory tool could cause your clothing to get caught and the accessory tool to penetrate a part of your body.

I) Clean the ventilation slits in your power tool regularly. The motor fan draws dust into the housing and the accumulation of a large amount of metal dust can cause electrical hazards.

m) Do not use the power tool near flammable materials. Sparks can ignite such materials.

n) Do not use accessory tools that require liquid coolant. The use of water or other liquid coolants may lead to an electric shock.

Kickback and corresponding safety instructions

Kickback is a sudden reaction caused when a rotating accessory tool, e.g. grinding disc, grinding plate, wire brush, etc., catches or blocks. Catching or blocking leads to an abrupt stop of the rotating accessory tool. If this happens, an uncontrolled power tool turns rapidly against the direction of rotation of the accessory tool caught in the blockage.

If, for example, a grinding disc catches or jams, the edge of the grinding disc that is projecting into the workpiece can get caught and break off the grinding disc or cause a kickback. The grinding disc can then fly in the direction of the operator or away from them, depending on the direction of rotation of the disc at the blockage. This can also break grinding discs.

A kickback is caused by improper or incorrect use of the power tool. This can be avoided by taking proper precautions as described below.

a) Hold the power tool firmly in both hands and position your body and arms so they can absorb the force of a kickback. Always use the additional handle, if available, so that you have the maximum possible control over the kickback force or reaction forces at full speed. By taking adequate precautions, the operator can stay in control of the kickback and reaction forces.
b) Never hold your hand close to a rotating accessory tool. The accessory tool could jump out of your hand if there is a kickback.
c) Avoid having any part of your body in the region in which the power tool is likely to move in event of a kickback. The kickback will force the power tool in the opposite direction to the direction of rotation of the grinding disc at the blockage.
d) Take special care when working near corners, sharp edges, etc. Do not allow the accessory tool to bounce back from the workpiece or jam. The rotating accessory tool is more likely to jam in corners or sharp edges or if it bounces. This can cause a loss of control or kickback.
e) Do not use chains or toothed saw blades. Such accessories often cause a kickback or loss of control over the power tool.

Special safety instructions for polishing

a) Do not leave any loose parts hanging from the polishing hood, especially the fastening cords. Tuck away or shorten the fastening cords. Loose, spinning fastening cords can hit your fingers or get caught in the workpiece.

Special safety instructions for sanding with sandpaper

a) Do not use oversized sanding sheets: follow the manufacturer's instructions regarding sanding sheet size. Larger sanding sheets that extend beyond the grinding disc cause personal injury and may cause snagging or tearing of the disc, or kickback.

Further safety instructions

- Secure the workpiece. A workpiece securely held by a clamping device or vice is much safer than one held in your hand.

■ Do not rest your hands next to or in front of the appliance and the area being worked as there is a risk of injury if you slip.

■ RISK OF FIRE DUE TO FLYING SPARKS!

Sanding metal generates sparks. Ensure that nobody can be put at risk and that no combustible materials are located in the immediate vicinity of where you are working.

WARNING!

▶ Sanding materials such as paints, some types of wood and metal can lead to the production of harmful/toxic dusts. Contact with or inhalation of these dusts can represent a health hazard for the person operating the appliance and any other people in the vicinity.

■ Ensure sufficient ventilation when working on plastics, paints, lacquers, etc.
■ Do not soak the materials or the area to be processed with liquids containing solvents.
■ Never work on moistened materials or damp surfaces.
■ Avoid grinding materials that are harmful to health.
■ Materials containing asbestos may not be processed. Asbestos is a known carcinogen.
■ Do not use the appliance without a sanding sheet fitted.
■ Never use the appliance for other purposes and only use original parts/accessories. Using attachments or accessory tools other than those recommended in the operating instructions can lead to a risk of injury.
■ The appliance must always be kept clean, dry and free from oil or grease.

Safety guidelines for battery chargers

■ This appliance may be used by children aged 8 years and above and by persons with limited physical, sensory or mental capabilities or lack of experience and knowledge, provided that they are under supervision or have been told how to use the appliance safely and are aware of the potential risks. Do not allow children to use the appliance as a toy. Cleaning and user maintenance tasks may not be carried out by children unless they are supervised.

The charger is suitable for indoor use only.

WARNING!

■ To avoid potential risks, damaged mains cables should be replaced by the manufacturer, their customer service department or a similarly qualified person.

ATTENTION!

This charger can only charge the following batteries: PAPK 12 A1/PAPK 12 A2/PAPK 12 A3/PAPK 12 B1/PAPK 12 B3/PAPK 12 C1/PAPK 12 D1.

▶ A current list of battery compatibility can be found at www.lidl.de/akku.

Original accessories/auxiliary equipment

■ Use only the additional equipment and accessories detailed in the operating instructions. The use of tools and accessories other than those recommended in the operating instructions could lead to an increased risk of personal injury for you.

Before use

Removing/charging/inserting the battery pack

NOTE

- The battery is supplied partially charged. Before first use, charge the battery in the charger for at least 1 hour. This guarantees full battery performance. You can charge the lithium-ion battery at any time without shortening its service life. Interrupting the charging process does not damage the battery. - Never charge the battery pack if the ambient temperature is below 10^ or above 40^ . If a lithium-ion battery is to be stored for an extended period, the charge level should be checked regularly. The optimum charge level is between 50% and 80% . The storage climate should be cool and dry and the ambient temperature should be between 0^ and 50^ .

CAUTION!

▶ Always unplug the appliance before you remove the battery pack ⑤ from or connect it to the charger.

To remove the battery pack 5, press the release button 4 and pull the battery pack 5 out of the appliance.

◆ Insert the battery pack⑤ into the high-speed charger⑰

◆ Insert the power plug into the socket. The charge control LED 15 lights up red.

The green charge control LE ^16 indicates that charging is complete and the battery pack ^5 is ready for use.

◆ Unplug the high-speed charger from the wall socket.

◆ Push the battery pack⑤ into the appliance.

Checking the battery charge level

When the appliance is switched on, the remaining charge is shown on the battery LED ②s follows: RED/ORANGE/GREEN = maximum charge RED/ORANGE = medium charge RED = low charge - charge the battery

Assembly/disassembly of the polishingdisc

◆ Press the spindle lock and hold it down.
♦ Screw the polishing dis⑦ clockwise onto the screw thread⑧.
◆ Proceed in the reverse order to remove the polishing disc ⑦.

Fitting the attachments

ATTENTION!

▶ Be sure to remove the battery pack before fitting or removing the attachments 11, 12, 13, 14

The polishing disc ^7 and supplied attachments 11, 12, 13, 14 are fitted with corresponding Velcro fasteners.

To change them, lift the side of the attachment 11, 12, 13, 14 and pull it off the polishing disc 7.

- First choose a sandpaper ^14 for sanding and press it onto the polishing disc ^7 . Make sure it is properly centred.

Now select the polishing hood⑪ (orange) for pre-polishing and push it onto the polishing disc⑦. Make sure it is properly centred.

Now select the polishing hood⑫ (black) for final polishing and press it onto the polishing disc⑦. Make sure it is properly centred.

For the final finish, select the fake fur attachment 13 and press it onto the polishing disc 7 Make sure it is properly centred.

Fitting the additional handle

- The additional handle can be screwed onto the left or right side of the appliance head, depending on the mode of operation.

Use

NOTE

▶ Always switch the hand grinder on before applying it to the workpiece.

Switching the appliance on

- Press the safety lock-out on the side with the symbol to unlock the ON/OFF switch - Press the ON/OFF switch.

Switching the appliance off

◆ Release the ON/OFF switch 6. ◆ Press the safety lock-out 3 on the side with the 🔔 symbol to lock the ON/OFF switch 6

2-speed gearbox

CAUTION!

▶ Operate the speed selector switch only when the appliance is at a standstill. Otherwise the appliance can be damaged.

In first gear

(speed selector switch 1 in position 1) you can reach a speed of approx. 2800 rpm.

In second gear

(speed selector switch 1n position 2) you can reach a speed of approx. 8300 rpm.

Grinding

WARNING!

▶ Dust from materials such as paints, some types of wood and metal can be harmful to health.
▶ Contact with or inhalation of these dusts can represent a health hazard for the person operating the appliance and any other people in the vicinity.
▶ Wear safety goggles and a protective dust mask!

NOTE

▶ Make sure that a suitable sandpaper is correctly fitted on the polishing disc ^7 .

♦ Switch the appliance on.
◆ Guide the appliance across the workpiece parallel to its surface.
◆ Move the unit parallel and evenly over the surface to be sanded.
Do not press the appliance down. Pressing down hard does not improve the performance.
When you are satisfied with the result, turn off the appliance.

Polishing

Add a little polish to the fitted polishing attachment 11, 12 and the workpiece.
-Polishing hood⑪ (orange) for pre-polishing -Polishing hood⑫ (black) for final polishing
- Fake fur attachment 13 for high-gloss polishing
◆ Manually spread the polish over the surface you want to polish.

NOTE

▶ Do not apply the polish to the same surface too often as the particles it contains could damage the finish.
▶ Mask any plastic components beforehand as these could be faded by the polish.
♦ Switch the appliance on.
◆ Guide the appliance across the workpiece parallel to its surface.
◆ Move the appliance parallel and evenly over the surface being polished.
Do not press the appliance down. Pressing down hard does not improve the performance.
When you are satisfied with the result, turn off the appliance.

ATTENTION!

▶ Depending on the size and nature of the workpiece, suitable safety precautions must be taken. Use suitable clamps to prevent the workpiece from slipping.

Working procedures

■ Switch the appliance on before applying it to the workpiece.
■ Apply minimal pressure when working.
■ Work at a constant speed.
- Carry out the polishing process parallel to the surface and overlap the polishing strokes.
■ After completing the task, lift the appliance from the workpiece and then switch it off.

Maintenance and cleaning

WARNING!

▶ Always disconnect the battery pack ^5 before carrying out any work on the appliance.

The appliance is maintenance-free.

■ Always clean the appliance directly after completion of work.
■ Use a dry cloth to clean the housing.
■ Remove any sanding dust stuck to the appliance with a brush.
■ Never use sharp objects, petrol, solvents or cleaning agents which can damage plastic. Do not allow any liquids to get into the interior of the appliance.
If a lithium-ion battery is to be stored for an extended period, the charge level should be checked regularly. The optimum charge level is between 50% and 80%. The optimum storage environment is cool and dry.

KompernassHandelsGmbH warranty

Dear Customer,

This appliance has a 3-year warranty valid from the date of purchase. If this product has any faults, you, the buyer, have certain statutory rights. Your statutory rights are not restricted in any way by the warranty described below.

Warranty conditions

The warranty period starts on the date of purchase. Please keep your receipt in a safe place. This will be required as proof of purchase.

If any material or manufacturing fault occurs within three years of the date of purchase of the product, we will either repair or replace the product for you or refund the purchase price (at our discretion).

This warranty service requires that you present the defective appliance and the proof of purchase (receipt) within the three-year warranty period, along with a brief written description of the fault and of when it occurred.

If the defect is covered by the warranty, your product will either be repaired or replaced by us. The repair or replacement of a product does not signify the beginning of a new warranty period.

X 12 V and X 20 V Team Series battery packs come with a 3-year warranty valid from the date of purchase.

Warranty period and statutory claims for defects

The warranty period is not prolonged by repairs effected under the warranty. This also applies to replaced and repaired components. Any damage and defects present at the time of purchase must be reported immediately after unpacking. Repairs carried out after expiry of the warranty period shall be subject to a fee.

Scope of the warranty

This appliance has been manufactured in accordance with strict quality guidelines and inspected meticulously prior to delivery.

The warranty covers material faults or production faults. The warranty does not extend to product parts subject to normal wear and tear or to fragile parts which could be considered as consumable parts such as switches or parts made of glass.

The warranty does not apply if the product has been damaged, improperly used or improperly maintained. The directions in the operating instructions for the product regarding proper use of the product are to be strictly followed. Uses and actions that are discouraged in the operating instructions or which are warned against must be avoided.

This product is intended solely for private use and not for commercial purposes. The warranty shall be deemed void in cases of misuse or improper handling, use of force and modifications / repairs which have not been carried out by one of our authorised Service centres.

The warranty period does not apply to

■ Normal reduction of the battery capacity over time
■ Commercial use of the product
■ Damage to or alteration of the product by the customer
■ Non-compliance with safety and maintenance instructions, operating errors
■ Damage caused by natural hazards

Warranty claim procedure

To ensure quick processing of your case, please observe the following instructions:

■ Please have the till receipt and the item number (IAN) 391284_2201 available as proof of purchase.

■ You will find the item number on the type plate on the product, an engraving on the product, on the front page of the operating instructions (below left) or on the sticker on the rear or bottom of the product.

If functional or other defects occur, please contact the service department listed either by telephone or by e-mail.

■ You can return a defective product to us free of charge to the service address that will be provided to you. Ensure that you enclose the proof of purchase (till receipt) and information about what the defect is and when it occurred.

You can download these instructions along with many other manuals, product videos and installation software at www.lidl-service.com.

This QR code will take you directly to the Lidl service page (www.lidl-service.com) where you can open your operating instructions by entering the item number (IAN) 391284_2201.

WARNING!

■ Have your appliances repaired by the service centre or a trained electrician, using only original spare parts. This will ensure that the safety of the appliance is maintained.

■ Have the power plug or the mains cable replaced only by the manufacturer of the appliance or by an approved customer service provider. This will ensure that the safety of the appliance is maintained.

Service

GB Service Great Britain

Tel.: [phone]

E-Mail: [e-mail]

MT ServiceMalta

Tel.: [phone]

E-Mail: [e-mail]

IAN 391284_2201

Importer

Please note that the following address is not the service address. Please use the service address provided in the operating instructions.

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

44867 BOCHUM

GERMANY

www.kompernass.com

Disposal

FR File

The product and its packaging are recyclable. They are subject to an extended manufacturer responsibility and will be collected separately.

Do not dispose of power tools in your normal domestic waste!

The adjacent symbol of a crossed-out dustbin means that this appliance is subject to Directive 2012/19/EU. This directive states that this appliance may not be disposed of in the normal household waste at the end of its useful life, but must be taken to specially set-up collection locations, recycling depots or disposal companies.

The disposal is free of charge for the user. Protect the environment and dispose of this appliance properly.

If it is possible to do so without destroying the old appliance, remove the old batteries or rechargeable batteries before returning the appliance for disposal and take them to a separate collection point. In the case of permanently installed rechargeable batteries, you must indicate during disposal that the appliance contains a battery.

Your local community or municipal authorities can provide information on how to dispose of the worn-out product.

Do not dispose of batteries in your normal household waste!

Defective or worn-out rechargeable batteries must be recycled according to Directive 2006/66/EC. Batteries/rechargeable batteries must be treated as hazardous waste and must therefore be disposed of in an environmentally sound manner by appropriate bodies (dealers, specialist dealers, public municipal bodies, commercial disposal companies). Batteries/rechargeable batteries may contain toxic heavy metals.

For this reason, do not dispose of batteries/rechargeable batteries in domestic waste. Take them to a specialist collection point. Only return batteries that are fully discharged.

The packaging is made from environmentally friendly material and can be disposed of at your local recycling plant.

Dispose of the packaging in an environmentally friendly manner. Note the labelling on the packaging and separate the packaging material components for disposal if necessary. The packaging material is labelled with abbreviations (a) and numbers (b) with the following meanings:

1–7: plastics, 20–22: paper and cardboard, 80–98: composites.

Translation of the original Conformity Declaration

We, KOMPERNASS HANDELS GMBH, document officer: Mr Semi Uguzlu, BURGSTR. 21, 44867 BOCHUM, GERMANY, hereby declare that this product complies with the following standards, normative documents and EC directives:

Machinery Directive

(2006/42/EC)

EMC (Electromagnetic Compatibility)

(2014/30/EU)

RoHS Directive

(2011/65/EU)*

* The manufacturer bears the full responsibility for compliance with this conformity declaration. The object of the declaration described above complies with the requirements of the Directive 2011/65/EU of the European Parliament and Council of 8 June 2011 on the limitations of use of certain dangerous substances in electrical and electronic appliances.

Applied harmonised standards

EN 62841-1:2015

EN IEC 62841-2-3:2021/A11:2021

EN IEC 55014-1:2021

EN IEC 55014-2:2021

EN IEC 63000:2018

Type/appliance designation: Cordless polisher / Sander PAAP 12 C3

Year of manufacture: 06-2022

Serial number: IAN 391284_2201

Bochum, 28/02/2022

J. J. J. J. J.

CE

Semi Uguzlu

- Quality Manager -

We reserve the right to make technical changes in the context of further product development.

Ordering a replacement battery

Close-up of a black cylindrical electronic device with a small rectangular button and a label 'X' on the side (no readable text or symbols beyond basic markings)

If you want to order a replacement battery for your appliance, you can do so easily via the Internet at www.kompernass.com or by telephone. Due to limited stock, this item may sell out in a relatively short time.

NOTE

▶ Online ordering of replacement parts is not possible in all countries. In this case, please contact the Service hotline.

Telephone ordering

GB Service Great Britain Tel.: [phone]
IE ServiceIrelandTel.: 1800 101010

To ensure fast processing of your order, have the article number of your appliance to hand (IAN 391284_2201) in case of questions. The article number can be found on the type plate or the title page of these instructions.

Inhaltsverzeichnis

Einleitung 18

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

44867 BOCHUM

GERMANY

www.kompernass.com

Entsorgung

FR

EN IEC 62841-2-3:2021/A11:2021

EN IEC 55014-1:2021

EN IEC 55014-2:2021

EN IEC 63000:2018

Close-up of a black cylindrical electronic device with a small rectangular component and a label 'X' on the side (no readable text or symbols beyond the label)

(Tension alternative)

Puissance nominale

absorbée 50 W

Fusible (interne) 2 A

SORTIE/Output

Tension nominale 12 V (courant continu)

Courant nominal 2400 mA

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

44867 BOCHUM

ALLEMAGNE

www.kompernass.com

Mise au rebut

FR →

Directive relative aux machines

(2006/42/CE)

EN IEC 62841-2-3:2021/A11:2021

EN IEC 55014-1:2021

EN IEC 55014-2:2021

EN IEC 63000:2018

J. E. F. G. H. I.

CE

Semi Uguzlu

Close-up of a black cylindrical electronic device with a small rectangular component on top (no visible text or symbols)

ACCU-POLIJSTAPPARAAT VOOR REPARATIE PAAP 12 C3

Inleiding

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

44867 BOCHUM

DUITSLAND

www.kompernass.com

Afvoeren

FR File

EN IEC 62841-2-3:2021/A11:2021

EN IEC 55014-1:2021

EN IEC 55014-2:2021

EN IEC 63000:2018

Close-up of a black cylindrical electronic component with a small rectangular cutout and a small labeled tag (no visible text or symbols)

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

44867 BOCHUM

NĚMECKO

www.kompernass.com

Likvidace

FR

EN IEC 62841-2-3:2021/A11:2021

EN IEC 55014-1:2021

EN IEC 55014-2:2021

EN IEC 63000:2018

J. J. J. J. J.

CE

Semi Uguzlu

- manažer kvality -

Close-up of a black cylindrical mechanical component with a small circular base and a small rectangular cutout (no visible text or symbols)

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

44867 BOCHUM

NIEMCY

www.kompernass.com

Utylizacja

FR

EN IEC 62841-2-3:2021/A11:2021

EN IEC 55014-1:2021

EN IEC 55014-2:2021

EN IEC 63000:2018

Close-up of a black cylindrical electronic device with a small rectangular button and a label 'X' on the side (no readable text or symbols beyond the label)

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

44867 BOCHUM

NEMECKO

www.kompernass.com

Likvidácia

FR

EN IEC 62841-2-3:2021/A11:2021

EN IEC 55014-1:2021

EN IEC 55014-2:2021

EN IEC 63000:2018

J. J. J. J. J.

CE

Semi Uguzlu

- Manažér kvality -

Close-up of a black cylindrical electronic device with a small rectangular button and a label 'X' on the side (no readable text or symbols beyond the label)

PULIDORA RECARGABLE PAAP 12 C3

Introducción

Pulidora recargable PAAP 12 C3

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

44867 BOCHUM

ALEMANIA

www.kompernass.com

Desecho

FR

EN IEC 62841-2-3:2021/A11:2021

EN IEC 55014-1:2021

EN IEC 55014-2:2021

EN IEC 63000:2018

Close-up of a black cylindrical electronic device with a button and label (no readable text or symbols)

Vurderet acceleration, normalt

Händ-/armvibration a_h=4,7 m/s^2

Usikkerhed K = 1,5 m/s ^4

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

44867 BOCHUM

TYSKLAND

www.kompernass.com

Bortskaffelse

FR

EN IEC 62841-2-3:2021/A11:2021

EN IEC 55014-1:2021

EN IEC 55014-2:2021

EN IEC 63000:2018

Close-up of a black cylindrical electronic device with a small rectangular component and a label 'X' on the side (no readable text or symbols beyond the label)

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

44867 BOCHUM

GERMANIA

www.kompernass.com

Smaltimento

FR

EN IEC 62841-2-3:2021/A11:2021

EN IEC 55014-1:2021

EN IEC 55014-2:2021

EN IEC 63000:2018

J. J. J. J. J.

CE

Semi Uguzlu

Close-up of a black cylindrical electronic device with a small button and label (no visible text or symbols)

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

44867 BOCHUM

NÉMETORSZÁG

www.kompernass.com

Ártalmatlanítás

FR

EN IEC 62841-2-3:2021/A11:2021

EN IEC 55014-1:2021

EN IEC 55014-2:2021

EN IEC 63000:2018

Jed Fyond

CE

Semi Uguzlu

Close-up of a black cylindrical electronic device with a small rectangular component and a small square button (no visible text or symbols)

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

44867 BOCHUM

NEMČIJA

www.kompernass.com

OPOZORILO!

Svoje naprave dajte v popravilo samo servisni službi ali strokovnjaku za elektrotehniko, ki naj uporablja le originalne nadomestne dele. S tem zagotovite, da se ohrani varnost naprave.

Zamenjavo vtiča ali električnega kabla zmeraj prepustite proizvajalcu naprave ali njegovi servisni službi. S tem zagotovite, da se ohrani varnost naprave.

Pooblaščeni serviser

SI

ServisSlovenija

Tel.: [phone]

E-Mail: [e-mail]

IAN 391284_2201

Garancijski list

EN IEC 62841-2-3:2021/A11:2021

EN IEC 55014-1:2021

EN IEC 55014-2:2021

EN IEC 63000:2018

Tip/oznaka naprave: Akumulatorski polirnik za popravila PAAP 12 C3

Leto izdelave: 06-2022

J. J. J. J. J.

CE

Semi Uguzlu

- vodja kakovosti -

Close-up of a black cylindrical electronic device with a button and label (no visible text or symbols)

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

44867 BOCHUM

GERMANY

www.kompernass.com

Last Information Update · Stand der Informationen · Version des informations · Stand van de informatie · Stav informaci · Stan informacji Stav informacií · Estado de las informaciones · Tilstand af information · Versione delle informazioni · Információk állása · Stanje informacij: 03 / 2022 · Ident.-No.: PAAP12C3-022022-1
