Product type	Hama Supreme 10HD portable battery
Battery capacity	10000 mAh (min) / 10200 mAh (typ)
Battery voltage	3.7 V Li-Po high density
Usable capacity	6557 mAh @ 5 V / 2 A
USB-C input	5 V / 2 A
micro-USB input	5 V / 2 A
USB-A output 1	5 V / 3 A
USB-A output 2	5 V / 3 A
USB-C output	5 V / 3 A
Total output	5 V / 3 A max.
Main functions	Optimized charging, recharging smartphones, tablets, etc., LED capacity indicator (4 levels of 25%)
Power supply	Charging via USB charger (not included) or computer USB port (not recommended)
Maintenance and cleaning	Slightly damp lint-free cloth, without harsh detergents
Safety	Do not open, do not expose to heat, do not throw into fire, protection against overcharge/discharge/overheating
Recycling	Compliant with WEEE and battery directives, do not dispose of in household waste
Warranty	Legal warranty, liability excluded in case of misuse

Frequently Asked Questions - Supreme 10HD 00187291 HAMA

How to charge the Hama Supreme 10HD portable battery?

Use the supplied USB-A to USB-C cable to connect the USB-C input (5V/2A) of the Power Pack to a suitable USB charger (not included). You can also use the micro-USB input (5V/2A). The charging process stops automatically. It is not recommended to charge via a computer.

How do I know when the battery is fully charged?

The four status LEDs light up continuously when the capacity is at 100%. Each LED corresponds to 25% charge. If the fourth LED flashes, the charge is at least 75%.

Can I charge my smartphone with this battery?

Yes, the battery has two USB-A ports (5V/3A each) and one USB-C port (5V/3A). Connect your device with a suitable cable. The optimized charging recognizes your device and provides the optimal current up to 3A.

Can I charge the battery and a device at the same time?

No, this is not allowed. The Power Pack must never be charged and discharged simultaneously. Risk of damage.

What is the usable capacity of the battery?

The usable capacity is 6557 mAh at 5V and 2A, which corresponds to the energy actually available on the output ports after conversion.

How to turn the battery on and off?

Press the button once to turn on and see the capacity. Press twice to turn off (the LEDs turn off). If no device is connected, it turns off automatically.

What types of devices can I recharge?

Smartphones, tablets, headphones, and other USB-compatible devices. The maximum output power is 5V/3A (15W) per port. The total consumption of the connected device must not exceed 3000 mA.

What to do if the battery does not charge?

Check that the cable and charger are in good condition. Make sure you are using a suitable USB-C or micro-USB input. If the problem persists, contact customer service.

Is the battery safe for daily use?

Yes, it integrates high-density lithium-polymer cells with protections against overcharge, discharge, and overheating. Follow the safety instructions: do not open, do not expose to heat, and keep out of reach of children.

How to dispose of the battery at the end of its life?

Do not throw it in household waste. Dispose of it at a collection point for electrical and electronic equipment (WEEE) or return it to a retailer. The crossed-out trash symbol on the product indicates this.

USER MANUAL Supreme 10HD 00187291 HAMA

Line drawing of a rectangular electronic device with internal ports and a label 'Рукс' (no other text or symbols)

OperatingInstructions

Bedienungsanleitung

Moded'emploi

Instruccionesdeuso

Gebruiksaanwijzing

Istruzioniperl'uso

Instrukcjaobsługi

Használatiútmutató

Manualdeutilizare

Návodk p oužití

Návodnapoužitie

Manualdeinstruções

Bruksanvisning

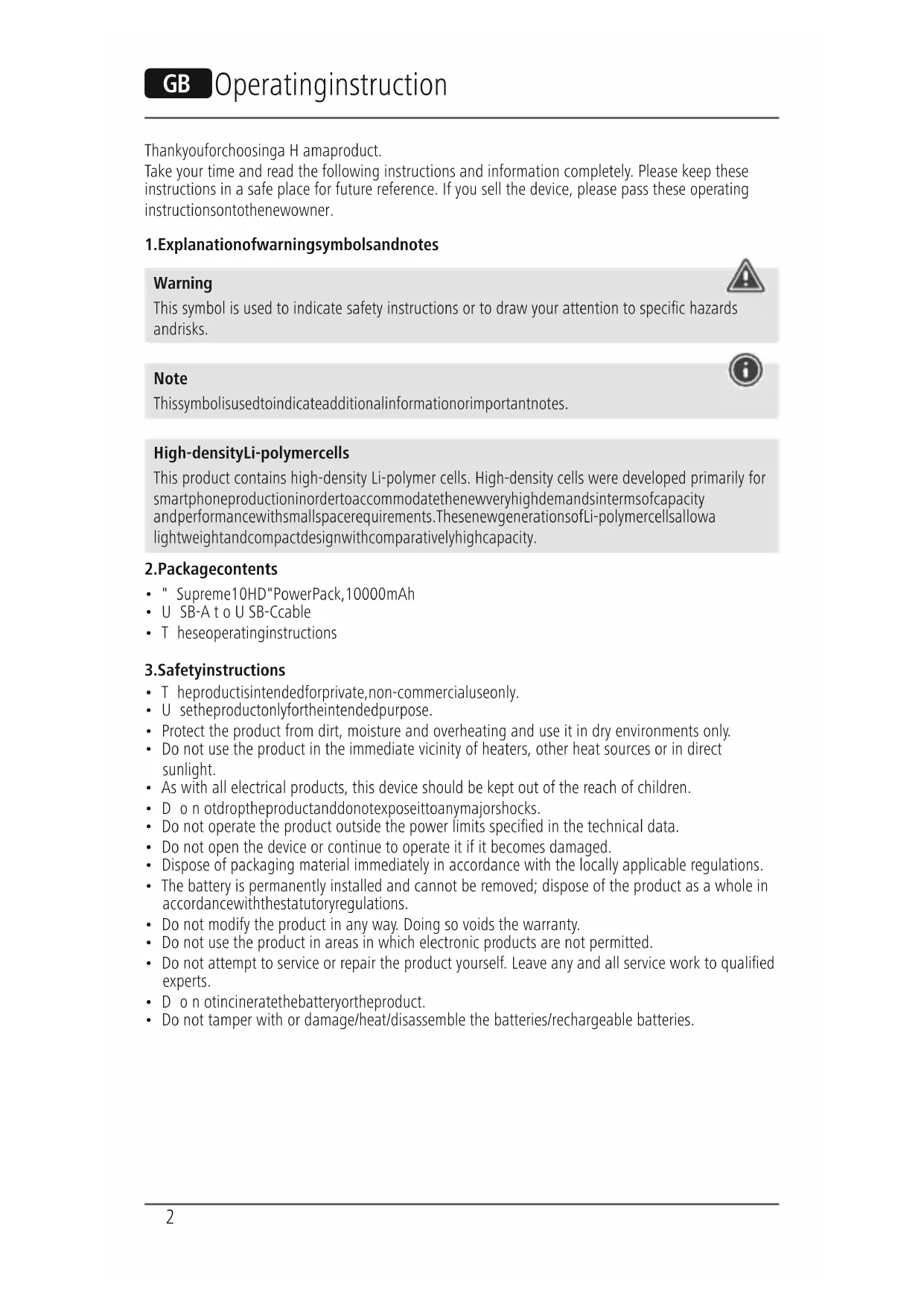

Thankyouforchoosinga H amaproduct.

Take your time and read the following instructions and information completely. Please keep these instructions in a safe place for future reference. If you sell the device, please pass these operating instructions onto thenewowner.

1. Explanationofwarningsymbolsandnotes

Warning

This symbol is used to indicate safety instructions or to draw your attention to specific hazards and risks.

Note

This symbol is used to indicate additional information or important notes.

High-densityLi-polymercells

This product contains high-density Li-polymer cells. High-density cells were developed primarily for smartphoneproductioninordertoaccommodatethenewveryhighdemandsintermsofcapacity andperformancewithsmallspacerequirements.ThesenewgenerationsofLi-polymercellsallowa lightweightandcompactdesignwithcomparativelyhighcapacity.

2. Packagecontents

• " Supreme10HD"PowerPack,10000mAh
• U SB-A to U SB-Cable
• Theseoperatinginstructions

3. Safetyinstructions

• T heproductisintendedforprivate,non-commercialuseonly.
• U setheproductonlyfortheintendedpurpose.
- Protect the product from dirt, moisture and overheating and use it in dry environments only.
- Do not use the product in the immediate vicinity of heaters, other heat sources or in direct sunlight.

- As with all electrical products, this device should be kept out of the reach of children.

• D o n otdroptheproductanddonotexposeittoanymajorshocks.

- Do not operate the product outside the power limits specified in the technical data.

- Do not open the device or continue to operate it if it becomes damaged.

- Dispose of packaging material immediately in accordance with the locally applicable regulations.

- The battery is permanently installed and cannot be removed; dispose of the product as a whole in accordancewiththestatutoryregulations.

- Do not modify the product in any way. Doing so voids the warranty.

- Do not use the product in areas in which electronic products are not permitted.

- Do not attempt to service or repair the product yourself. Leave any and all service work to qualified experts.

• D o n otincineratethebatteryortheproduct.

- Do not tamper with or damage/heat/disassemble the batteries/rechargeable batteries.

4.Operation

4.1.Chargingthepowerpack

Warning- r echargeablebattery

• Do not charge the power pack via your PC or notebook. The charging currents can damage the USBportonthePCornotebook.
• O nlyusesuitablechargingdevicesorUSBconnectionstochargetheproduct.
• Do not use defective chargers or USB ports and do not attempt to repair them.
• Do not overcharge the product or allow the battery to completely discharge.
• A voidstoring, charging and using inextremetemperatures and atextremely low atmospheric pressures (such as at high altitudes).
• C hargeregularly(atleastquarterly)duringperiodsofprolongedstorage.

- Start the power pack charging process by connecting the enclosed USB-A to USB-C cable to the USB-C input on the power pack (IN 5V/2A) and to a suitable USB charger. To do this, consult the operating instructions for the USB charger you are using. Alternatively, the power pack can also be chargedviathemicro-USBport(IN5V/2A).

• T hechargingprocessbeginsandendsautomatically.
• Fully charge the power pack once before using it for the first time.

Note-capacity

• D uringthepowerpackchargingprocess, thecapacityisdisplayedconstantly.
  • Each status LED corresponds to 25% of the capacity. The permanent illumination of an LED indicate that the capacity has already been reached. If three LEDs lightup and the fourth phone flashes, the powerpack is at least 75% charged.
• I fallfourstatusLEDslightup, thefullcapacityisavailable.
• Press the button on the power pack to switch this on and to determine the power pack's current capacity.
• Press the button twice until the status LEDs go out to switch the power pack off.

4.2.Chargingdevices

Warning- Connectionofdevices

• Before connecting a device, check whether it can be adequately supplied with the power pack's currentdelivery.
• Ensure that the total current consumption of the connected device does not exceed 3000 mA.
  • N otetheinstructionsinyourdevice'soperatingmanual.
• You must obey the instructions and safety notes contained therein regarding the supply of power to your devices.
  • T hepowerpackmustnotbechargedanddischargedatthesametime!
• Please do not charge simultaneously at the two USB and USB-C outputs since this significantly reduces the charging current. The charging period increases significantly as a result and the powerpackmay, i n c ertaincircumstances,becomeoverloaded.

Warning

• Never connect the power pack's charging cable to its input and output simultaneously. This can damagethebattery.
• Do not connect any devices during the power pack charging process. Doing so can damage the powerpackandconnecteddevices.
• Connect the enclosed USB-A to USB-C cable to the power pack's USB port (OUT 5V/3A) and the USB-Cportonyourdevice(mobilephone,smartphone,etc.).
• In certain circumstances, the enclosed charging / connecting cable may not match the USB port on your device. In this case, use the USB cable that camewith your device.
• When using the USB-C output (OUT 5V/3A) for the charging process, connect a suitable USB-C chargingcabletotheUSB-Coutputonthepowerpackandtheportonyourdevice.
• The charging process begins automatically. During the charging process, the status LEDs indicate the powerpack's remaining available capacity.
  • T hecurrentbatterychargestatusofyourdeviceisindicatedonthis.
• Terminatethechargingprocessandswitchthepowerpackoffbypassingthebuttononthe powerpacktwice.ThestatusLEDsgout.
• In the event that no device is connected, the power pack switches itself off automatically.

Note- o ptimisedcharging

Optimisedchargingmeansthatthepowerpackrecognisestheconnecteddevice,suppliesitwith the ideal current strength and therefore reduces the charging time to a minimum. Note that the powerpack'smaximumcurrentdeliveryis3000mA.

5. Careandmaintenance

Only clean this product with a slightly damp, lint-free cloth and do not use aggressive cleaning agents.

6.WarrantyDisclaimer

Hama GmbH & Co KG assumes no liability and provides no warranty for damage resulting from improper installation/mounting, improper use of the product or from failure to observe the operating instructionsand/orsafetynotes.

7.Technicaldata

USB-Cinput5 V 2 A	---
Micro-USBinput5 V 2 A	---
USB-A o utput1	5 ---
USB-A o utput2	5 ---
USB-Coutput5 V 3 A	---
Totaloutput5 V 3 A (max.)	---
Battery type	3.7 V/Li-Po (high-density)
Min.capacity10000mAh/ 3 7.00Wh
Typ.capacity10200mAh/ 3 7.74Wh
UsableCapacity*6557mAh@ 5 V	--- 2 A

* The usable capacity is the capacity that can be drawn from the output sockets, measured at 5V output voltage and a draw current of 2A.

8. Recycling information

Noteonenvironmental protection:

Following the implementation of European Directive 2012/19/EU and 2006/66/EU into national law, the following applies: Electrical and electronic devices as well as batteries must not be disposed of with household waste. Consumers are obliged by law to return electrical and electronic devices as well as batteries to the designated public collection points or to the

point of sale at the end of their service lives. Detailed information on this topic is defined in the national laws of the respective country. This presence of the above symbol on the product, operating instructions or package indicates that the product is subject to these regulations. By recycling, reusing the materials or other forms of utilising old devices/batteries, you are making an important contribution to protecting our environment.
