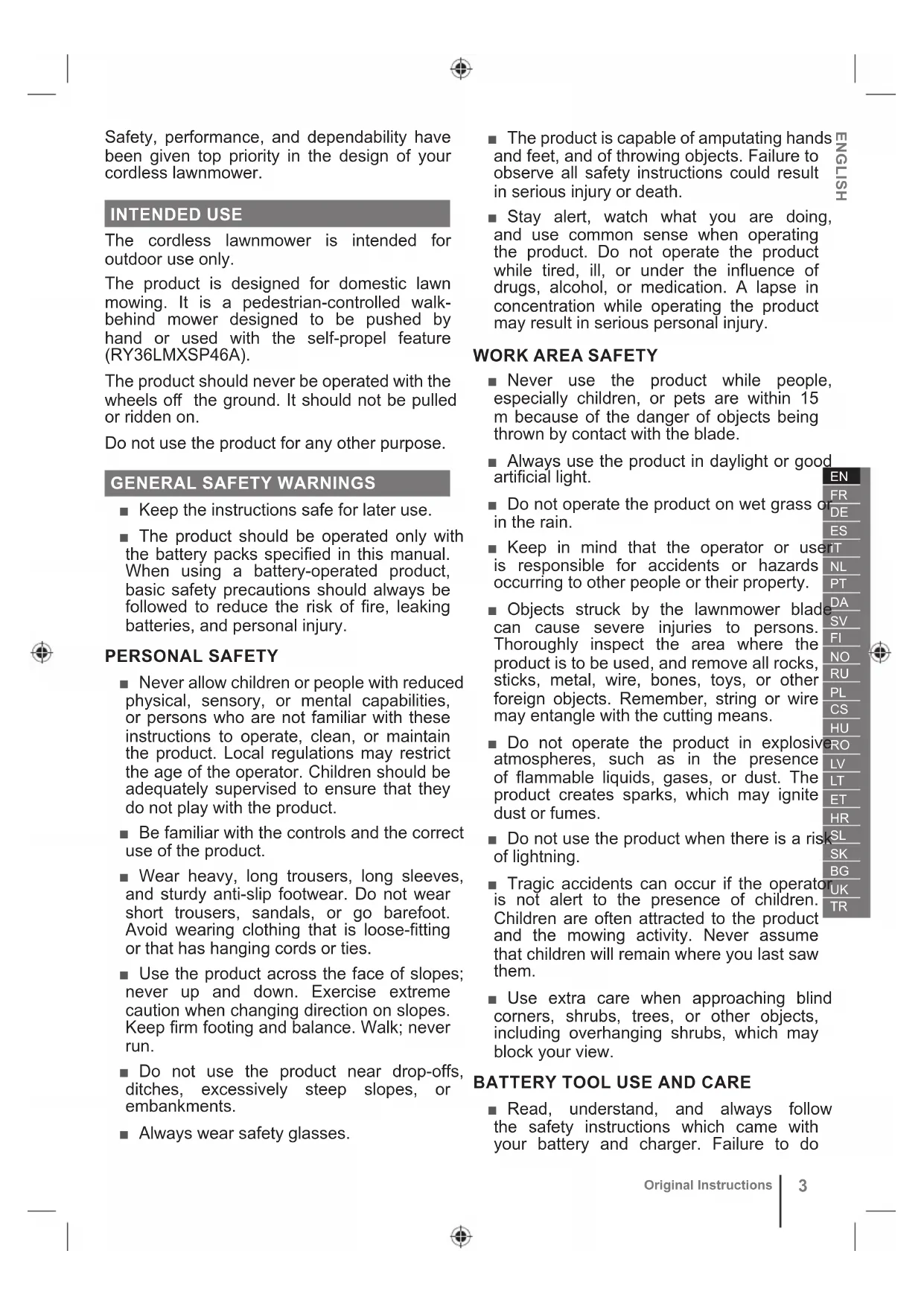

Safety, performance, and dependability have been given top priority in the design of your cordless lawnmower.

INTENDED USE

The cordless lawnmower is intended for outdoor use only.

The product is designed for domestic lawn mowing. It is a pedestrian-controlled walk-behind mower designed to be pushed by hand or used with the self-propel feature (RY36LMXSP46A).

The product should never be operated with the wheels off the ground. It should not be pulled or ridden on.

Do not use the product for any other purpose.

GENERAL SAFETY WARNINGS

• Keep the instructions safe for later use.
  ■ The product should be operated only with the battery packs specified in this manual. When using a battery-operated product, basic safety precautions should always be followed to reduce the risk of fire, leaking batteries, and personal injury.

PERSONAL SAFETY

■ Never allow children or people with reduced physical, sensory, or mental capabilities, or persons who are not familiar with these instructions to operate, clean, or maintain the product. Local regulations may restrict the age of the operator. Children should be adequately supervised to ensure that they do not play with the product.
■ Be familiar with the controls and the correct use of the product.
■ Wear heavy, long trousers, long sleeves, and sturdy anti-slip footwear. Do not wear short trousers, sandals, or go barefoot. Avoid wearing clothing that is loose-fitting or that has hanging cords or ties.

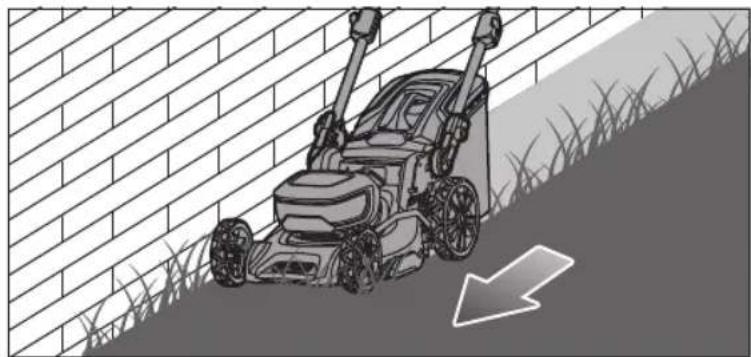

■ Use the product across the face of slopes; never up and down. Exercise extreme caution when changing direction on slopes. Keep firm footing and balance. Walk; never run.
- Do not use the product near drop-offs, ditches, excessively steep slopes, or embankments.
■ Always wear safety glasses.

■ The product is capable of amputating hands and feet, and of throwing objects. Failure to observe all safety instructions could result in serious injury or death.
■ Stay alert, watch what you are doing, and use common sense when operating the product. Do not operate the product while tired, ill, or under the influence of drugs, alcohol, or medication. A lapse in concentration while operating the product may result in serious personal injury.

WORK AREA SAFETY

■ Never use the product while people, especially children, or pets are within 15 m because of the danger of objects being thrown by contact with the blade.
■ Always use the product in daylight or good artificial light.
■ Do not operate the product on wet grass or in the rain.
- Keep in mind that the operator or user is responsible for accidents or hazards occurring to other people or their property.
■ Objects struck by the lawnmower blade can cause severe injuries to persons. Thoroughly inspect the area where the product is to be used, and remove all rocks, sticks, metal, wire, bones, toys, or other foreign objects. Remember, string or wire may entangle with the cutting means.
■ Do not operate the product in explosive atmospheres, such as in the presence of flammable liquids, gases, or dust. The product creates sparks, which may ignite dust or fumes.
■ Do not use the product when there is a risk of lightning.
■ Tragic accidents can occur if the operate is not alert to the presence of children. Children are often attracted to the product and the mowing activity. Never assume that children will remain where you last saw them.
■ Use extra care when approaching blind corners, shrubs, trees, or other objects, including overhanging shrubs, which may block your view.

BATTERY TOOL USE AND CARE

- Read, understand, and always follow the safety instructions which came with your battery and charger. Failure to do

so may result in electric shock, fire or other hazardous situations. Keep all the instructions together in a safe place for future reference.

■ Battery-operated products do not have to be plugged into an electrical outlet; therefore, they are always in operating condition. Remove the isolator key whenever you are not operating the product.

■ Remove the battery pack before making any adjustments, cleaning, or removing material from the product.

■ Ensure the isolator key is removed before inserting battery pack.

■ A battery pack must be recharged only with the charger specified by the manufacturer. Using a charger with an incompatible battery pack may create a risk of fire. Use battery pack only with charger listed.

■ Use only battery pack intended specifically for the product. Use of any other battery packs may result in a risk of fire, electric shock, or injury to persons.

■ When battery pack is not in use, keep it away from other metal objects like, paper clips, coins, keys, nails, screws, or other small metal objects, that can make a connection from one terminal to another. Shorting the battery pack terminals together may cause sparks, burns, fire or explosion.

■ Do not place battery products or their batteries near fire or heat. This increases the risk of explosion and possibly injury.

■ Do not open or mutilate the battery pack. Released electrolyte is corrosive and may cause damage to the eyes or skin. It may be toxic if swallowed.

■ Protect the battery pack against moisture and water. Do not charge the product in a damp or wet location. Following this rule will reduce the risk of electric shock.

In case of damage and improper use of the battery, vapour may be emitted. Provide for fresh air and seek medical help in case of complaints. The vapour can irritate the respiratory system.

■ Do not leave the battery pack inside a vehicle in hot or cold conditions.

■ Do not incinerate the battery.

■ Under abusive conditions, liquid may be ejected from the battery; avoid contact.

If contact accidentally occurs, flush with water. If liquid contacts eyes, additionally seek medical help. Liquid ejected from the battery may cause irritation or burns.

CORDLESS LAWNMOWER SAFETY WARNINGS

Before use, always visually inspect the product to ensure that blades, blade bolts, and cutter assembly are not worn or damaged. Replace worn or damaged blades and bolts in sets to preserve balance.

■ Bring the product to an authorised service centre to replace damaged or unreadable labels.

■ Do not pull the product backwards unless absolutely necessary. If you must back the product away from a wall or obstruction, first look down and behind to avoid tripping or pulling the product over your feet.

■ Turn off the product and allow the blade to stop if the product has to be tilted for transportation when crossing surfaces other than grass, and when transporting the product to and from the work area.

■ Never use the product with defective guards or shields, or without safety devices, such as deflectors and grass catchers, in place.

- Do not tilt the product when turning on the motor or while the motor is running. If absolutely necessary, you may raise the front of the lawnmower by no more than 5 cm to enable easier starting. Press down on the handlebar to achieve this. Always return the lawnmower to its normal position with all wheels on the ground before cutting. Tilting the lawnmower exposes the blade and increases the probability of objects being thrown and accidentally making contact with the blade.

■ Do not start the product when standing in front of the grass discharge opening.

■ The product must be started with the user behind the handlebars in the operator safety zone. Never start the product if:

- The grass discharge chute is exposed and is not protected by the grass catcher and grass discharge chute cover.

- Hands and feet of all persons are not clear of the cutting enclosure.

■ Turn on the product carefully according to instructions, and keep hands and feet away

from the blades. Do not put hands or feet near or under rotating parts. Keep clear of the discharge opening at all times.

■ Never pick up or carry the product while it is running.
■ Turn off the product, and remove the isolator key and the battery pack. Make sure that all moving parts have come to a complete stop:

• whenever leaving the product unattended (including disposal of grass clippings)
• before clearing blockages or unclogging the discharge chute
• before checking, cleaning, or working on the product
• before removing the grass catcher or opening the grass discharge chute cover
• after striking a foreign object; inspect the product for damage and make repairs as necessary before restarting and operating the product
• if the product starts to vibrate abnormally (check immediately)

– inspect for damage, particularly the blades
– replace or repair any damaged parts
– check for and tighten any loose parts

■ The cutting blade should rotate approximately parallel to the ground over which it is being wheeled.
■ The blade on the product is sharp. Use extreme caution, and wear heavy-duty gloves when fitting, replacing, cleaning, or checking bolt security.
■ Never operate the product if the on/off switch on the handlebar does not properly start and stop the product.
■ Never attempt to lock the on/off switches in the on position; this is extremely dangerous.
■ Do not force the product. It will do the job better and safer at the speed for which it was designed.
■ Stop the blade when crossing gravel surfaces.

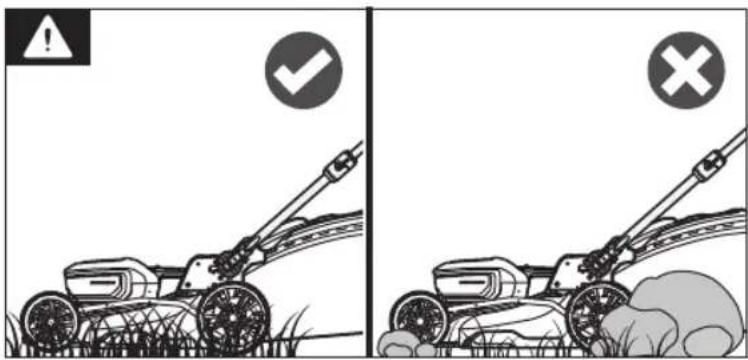

■ Avoid holes, ruts, bumps, rocks, property stakes, or other hidden objects. Uneven terrain could cause a slip-and-fall accident.
■ Always ensure that the motor control cable is never trapped, pinched, or otherwise damaged during assembly or when folding the handle.

■ Injuries may be caused, or aggravated, by prolonged use of the product. When using the product for prolonged periods, ensure to take regular breaks.

ADDITIONAL BATTERY SAFETY WARNINGS

To reduce the risk of fi re, personal injury, and product damage due to a short circuit, never immerse the tool, battery pack, or charger in fluid or allow fluid to flow inside them. Corrosive or conductive fluids, such as seawater, certain industrial chemicals, and bleach or bleach-containing products, etc., can cause a short circuit.

PRODUCT FEATURES

OVERLOAD AND OVERHEAT PROTECTION

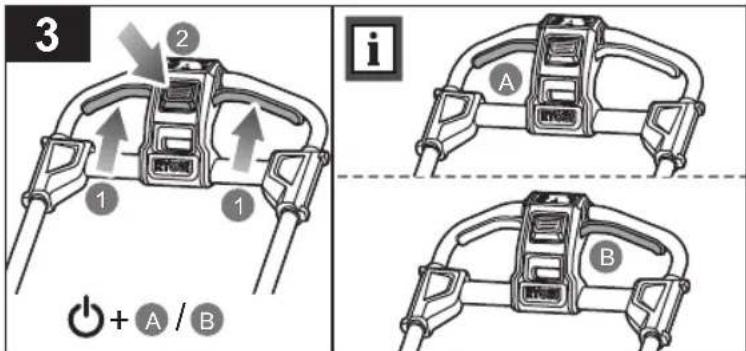

The product has an overload protection device. When overloading is detected, the product automatically turns off. If the overload protector is actuated, the on/off lever must be released. Press the start button, and squeeze the on/off lever to restart the product. If the product still does not start, reinstall the battery pack.

The battery pack has overheat protection. Excessive temperatures will cause the battery to stop powering the product. If the battery pack is too warm, allow it to cool down before resuming operation. If the product still does not work, recharge the battery.

NOTE: The battery pack LED indicator will not work if the battery protection feature has caused the battery pack to stop powering the product. Turn off the product or remove the battery pack from the product, and the battery pack LED indicator will resume normal function.

TELESCOPIC HANDLE

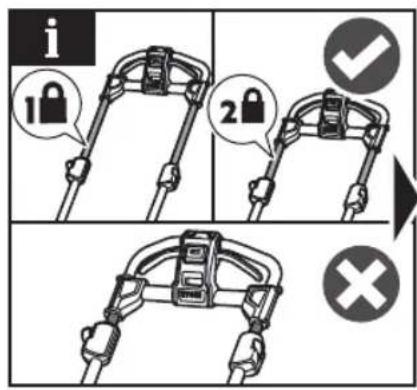

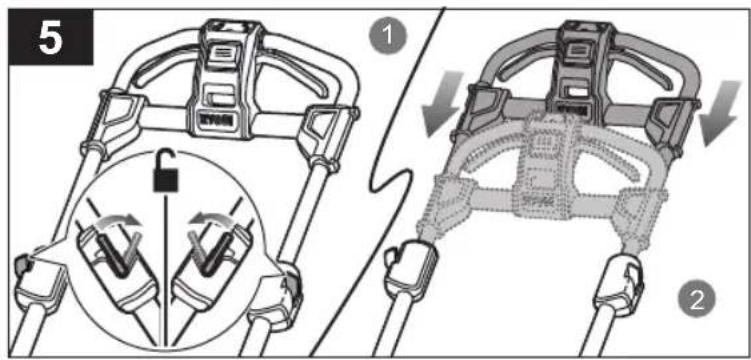

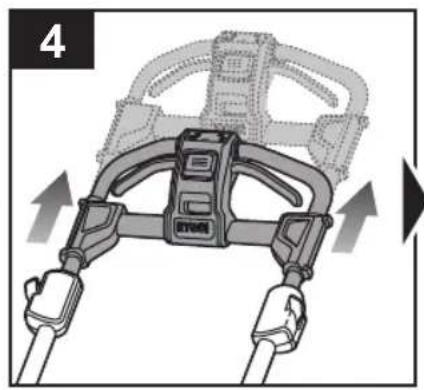

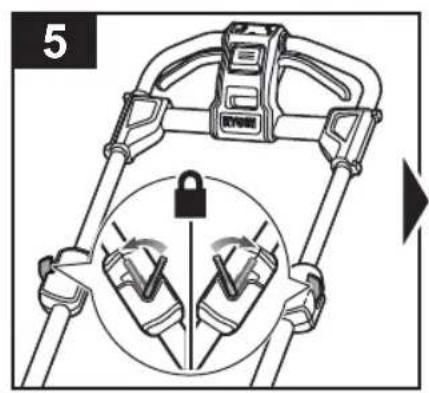

The product is equipped with a telescopic handle that can be adjusted for storage and operation. The telescopic handle must be extended to position 1 or 2 when setting up the product for use. Make sure the handle is secured by the handle lock lever and quick-release fastener. Make sure that the handle is locked during vertical storage.

MULCHING PLUG

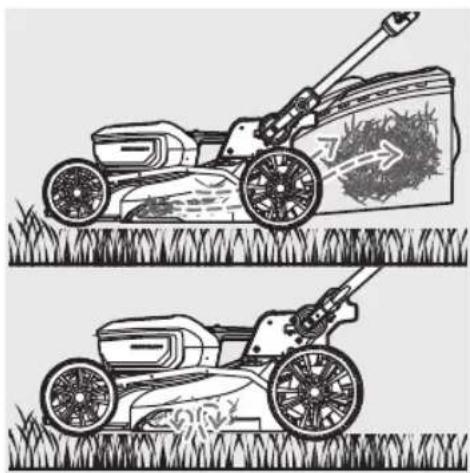

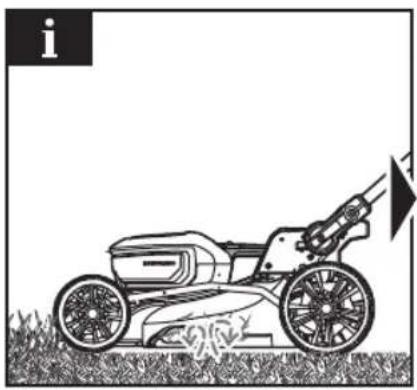

The mulching plug covers the rear discharge opening, which allows the blade to cut and recut for finer clippings.

NOTE: The product does not start without the grass catcher or mulching plug attached.

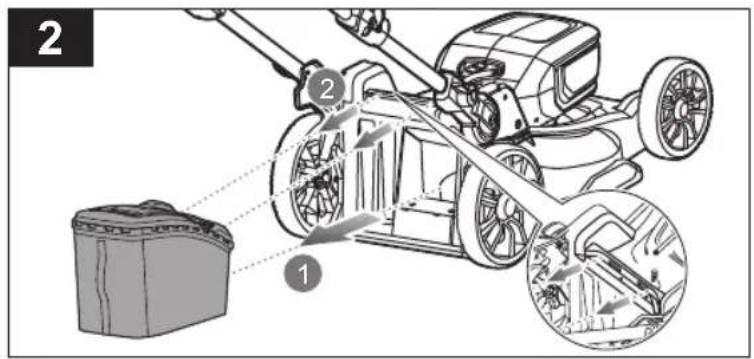

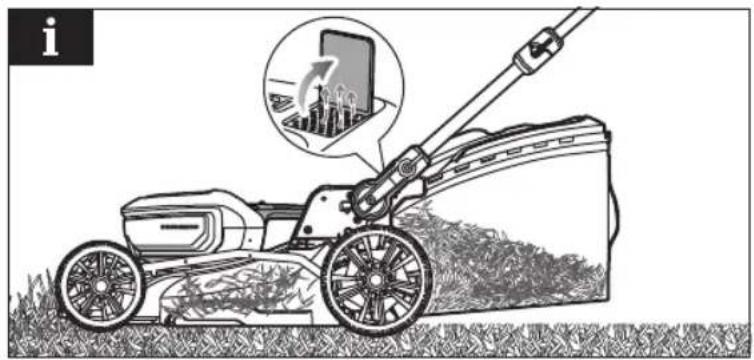

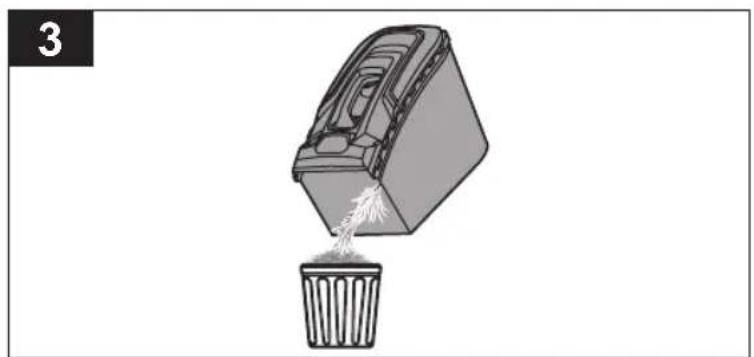

GRASS CATCHER

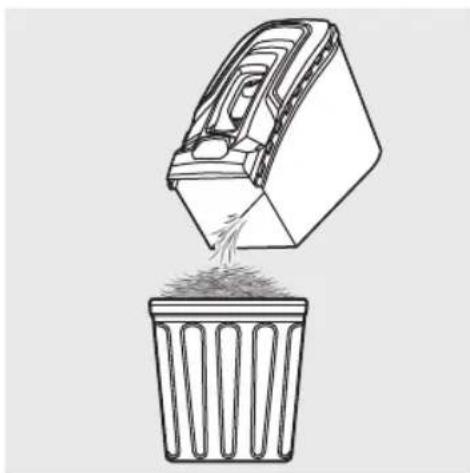

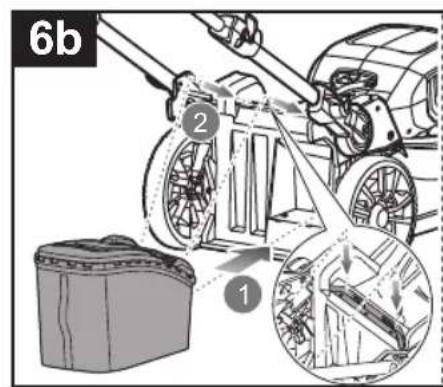

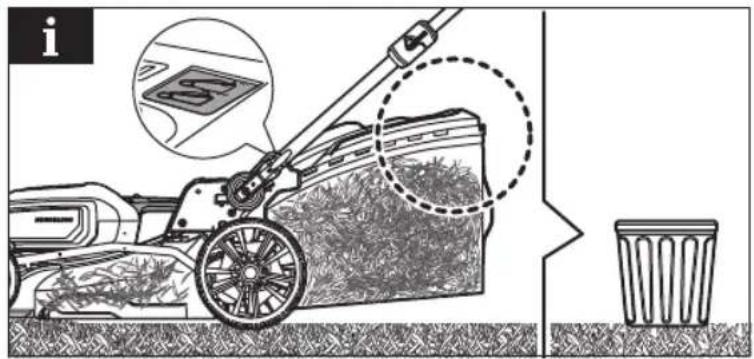

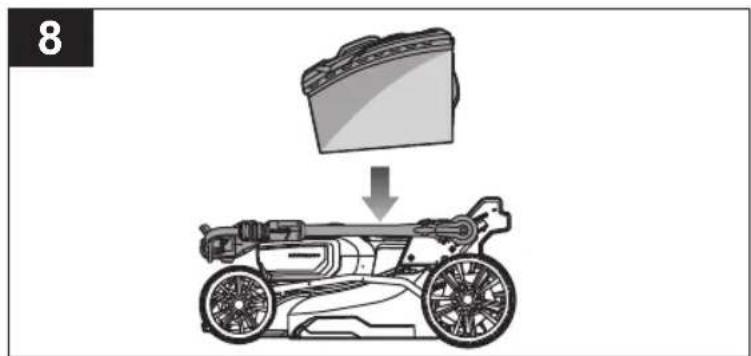

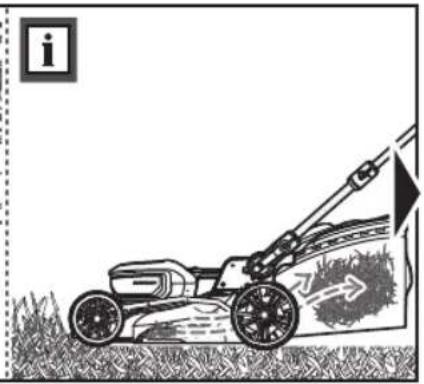

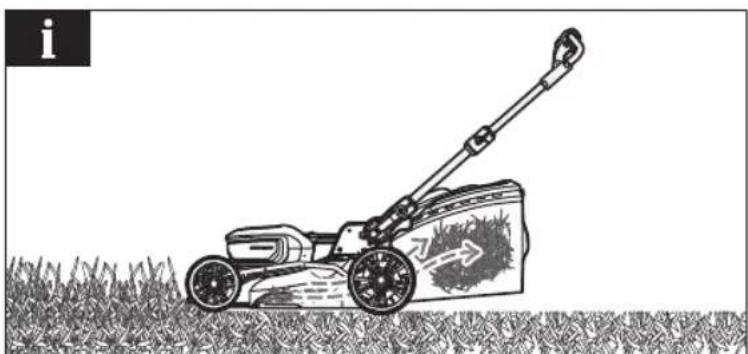

The grass catcher collects grass clippings and prevents them from being discharged across the lawn

NOTE: The product does not start without the grass catcher or mulch plug attached.

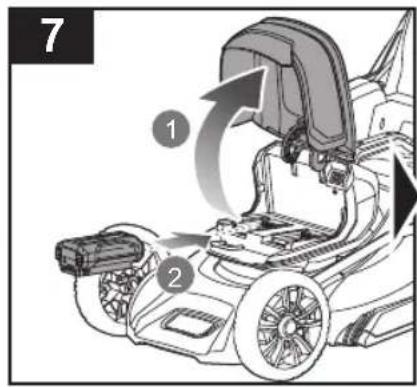

TWO BATTERY SLOTS

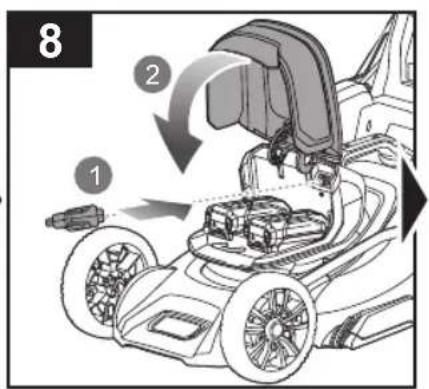

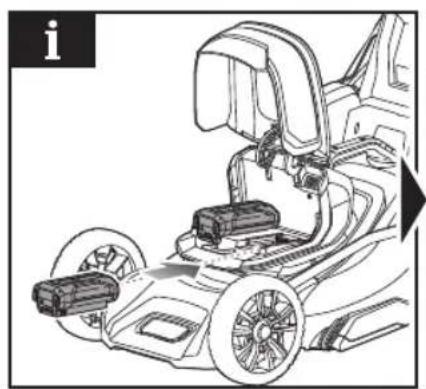

The product can function using one or two battery packs. Two battery packs discharge a higher current, provide higher power, and extend runtime.

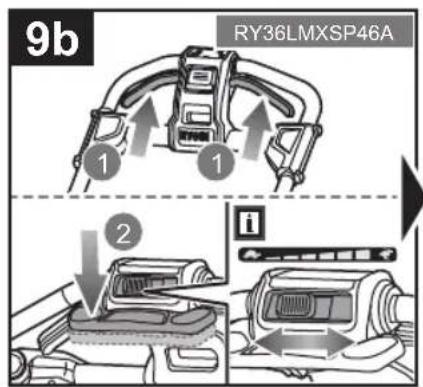

SELF-PROPEL FEATURE (RY36LMXSP46A)

The self-propel feature allows the product to automatically move forward. The self-propel feature starts with a slight delay of about 2 seconds after pushing the lever. When using the self-propel feature, ensure that the speed adjustment slider is set at a speed that the user is comfortable with when walking behind the product. The user may lose control of the product if the speed adjustment slider is set at a speed that is too fast for the user's walking pace. Release the self-propel lever and on/off lever if the speed is too fast, and adjust the speed adjustment slider as needed. Failure to follow these instructions can result in serious personal injury.

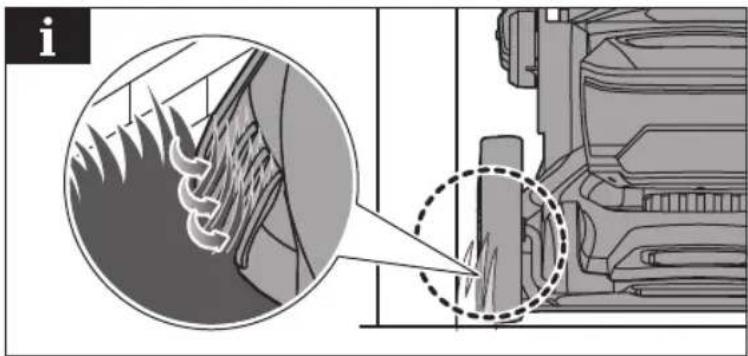

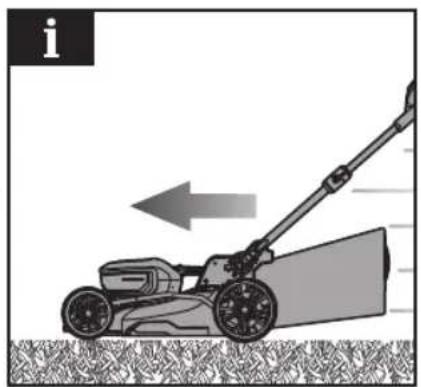

GENERAL MOWING TIPS

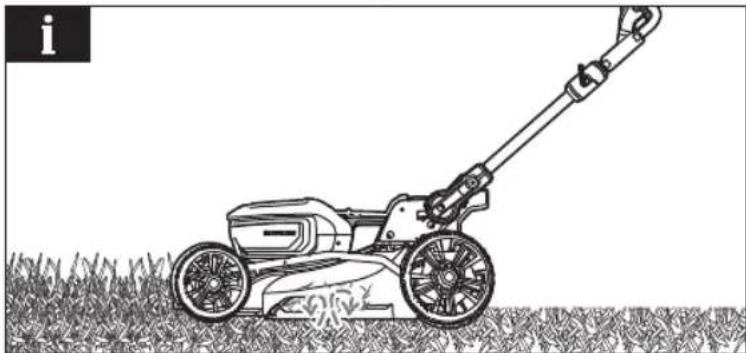

The run time of the battery depends on the condition, length, and density of the grass.

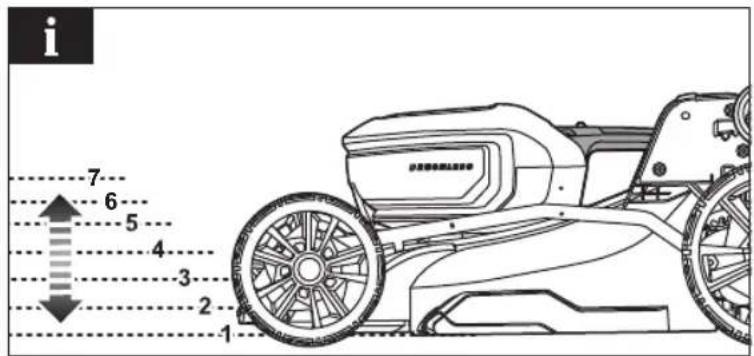

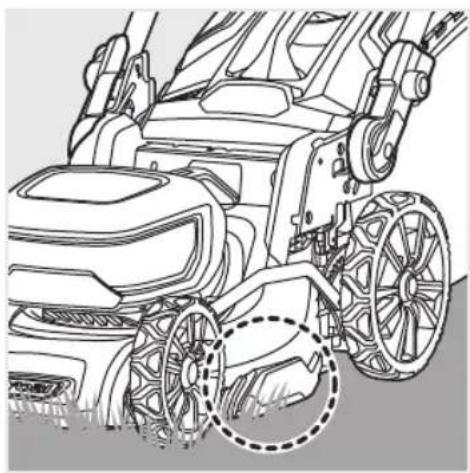

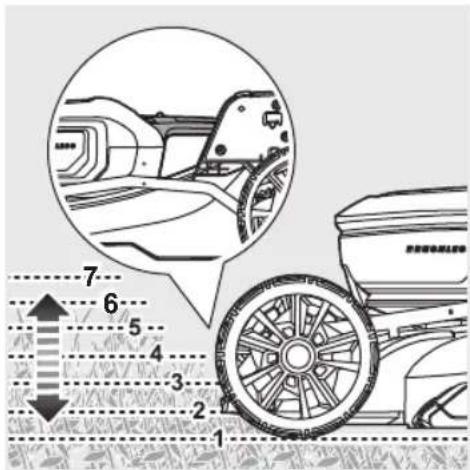

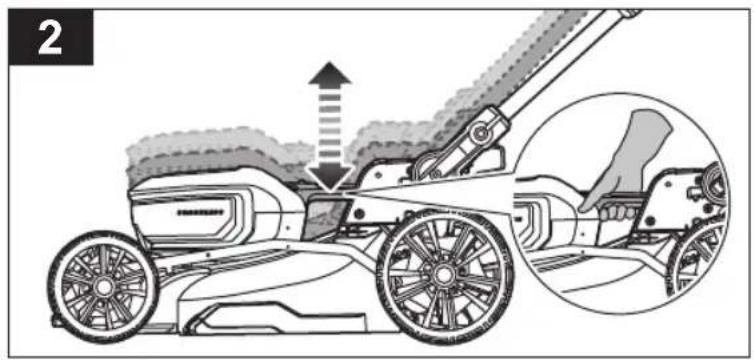

Adjust the cutting height of the lawnmower to suit the current condition of the lawn.

■ For best performance, always cut off one-third or less of the total height of the grass.
■ When cutting long grass, reduce walking speed to allow for more effective cutting and a proper discharge of the clippings.
■ A higher cutting height extends the run time of the battery pack.

TRANSPORTATION AND STORAGE

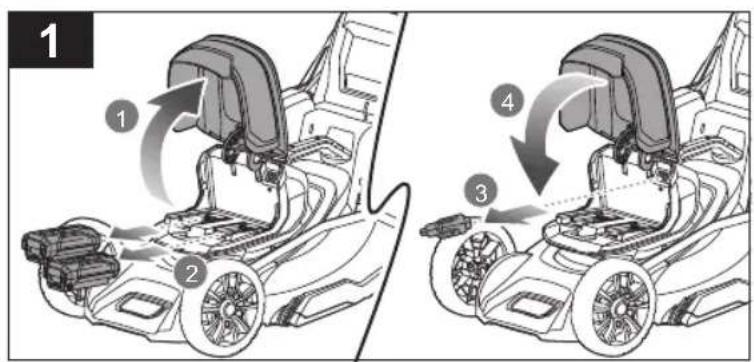

Turn off the product, and remove the isolator key and the battery pack. Make sure that all moving parts have come to a complete stop. Allow the product to cool down before storing or transporting.

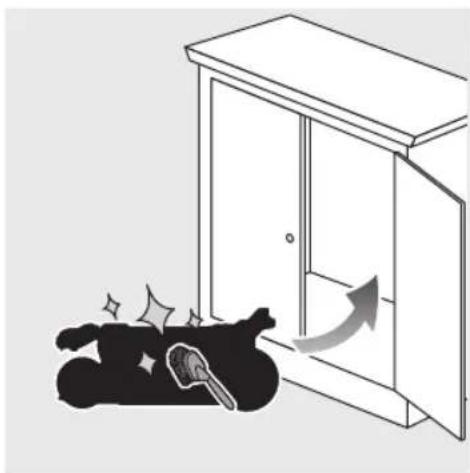

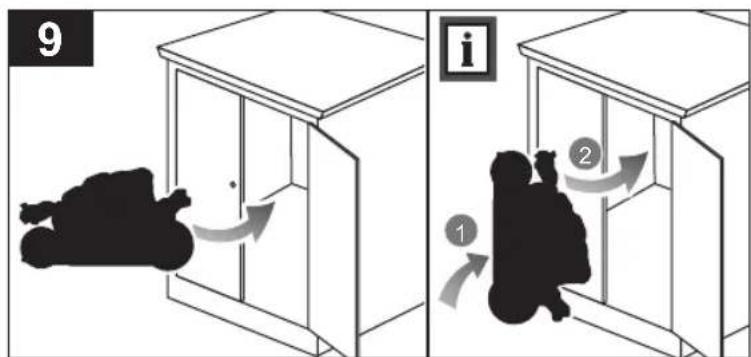

■ Remove all foreign materials from the product. Store the product in a cool, dry, and well-ventilated place that is inaccessible to children. Keep the product away from corrosive agents such as garden chemicals and de-icing salts. Do not store the product outdoors.

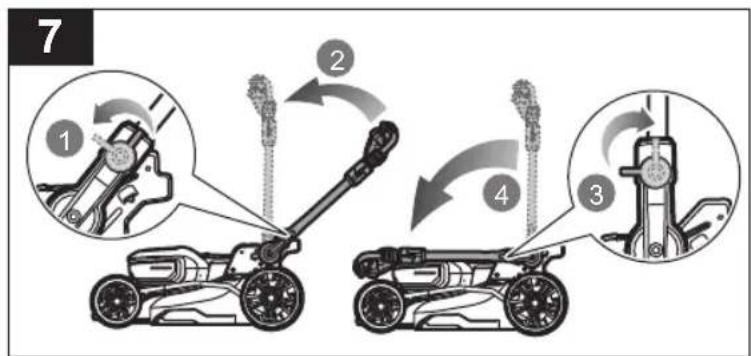

■ For transportation in vehicles, remove the isolator key, and secure the product against movement or falling to prevent injury to persons or damage to the product.
■ Use extreme caution when lifting or tilting the product for maintenance, cleaning, storage, or transportation. The blade is sharp. Keep all body parts away from the blade while it is exposed.

TRANSPORTING LITHIUM BATTERIES

Transport the battery in accordance with local and national provisions and regulations.

Follow all special requirements on packaging and labelling when transporting batteries by a third party. Ensure that no batteries can come in contact with other batteries or conductive materials while in transport by protecting exposed connectors with insulating, non-conductive caps or tape. Do not transport batteries that are cracked or leaking. Check with the forwarding company for further advice.

MAINTENANCE

• Use only original manufacturer's replacement parts, accessories, and attachments. Failure to do so can cause possible injury, can contribute to poor performance, and may void your warranty.
  ■ Servicing requires extreme care and knowledge and should be performed only by a qualified service technician. Have the product serviced by an authorised service centre only.
  ■ Turn off the product, and remove the isolator key and the battery pack. Make sure that all moving parts have come to a complete stop before any cleaning or maintenance task.
  ■ Replace worn or damaged parts for safety.
  ■ Frequently check the grass catcher for wear or deterioration.
  ■ Check all nuts, bolts, and screws at frequent intervals for proper tightness to ensure that the product is in safe working condition.

■ Be careful during adjustment of the product to prevent entrapment of the fingers between moving blades and fixed parts of the product.

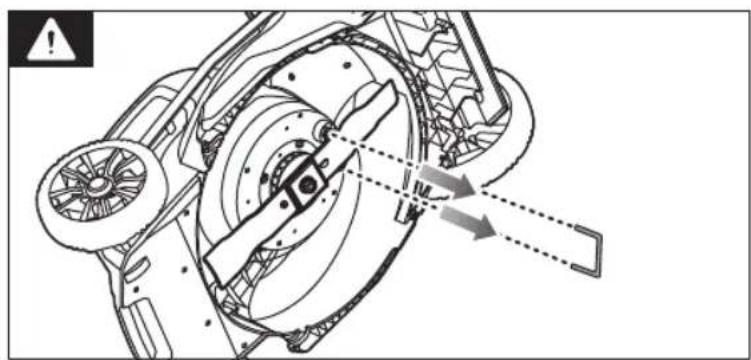

■ When servicing the blades, be aware that even though the power source is turned off, the blades can still be moved.
■ You may make adjustments and repairs described in this manual. For other repairs, have the product serviced by an authorised service centre only.

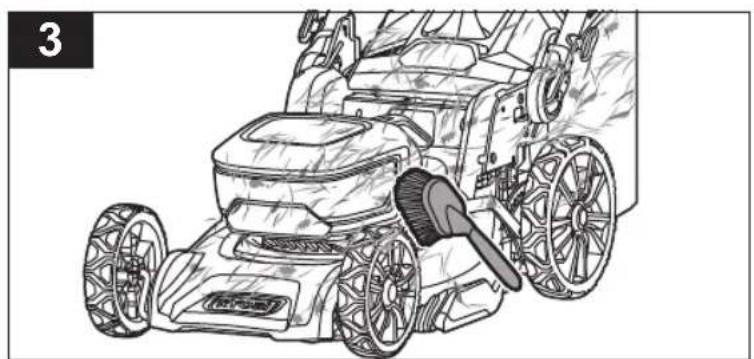

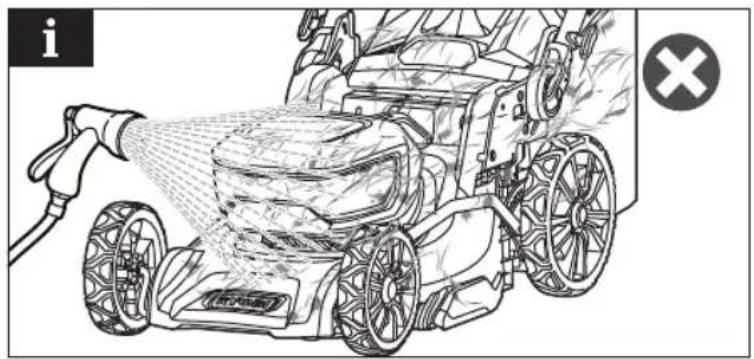

■ After each use, clean the plastic parts with a soft, dry cloth. Any part that is damaged should be properly repaired or replaced by an authorised service centre.

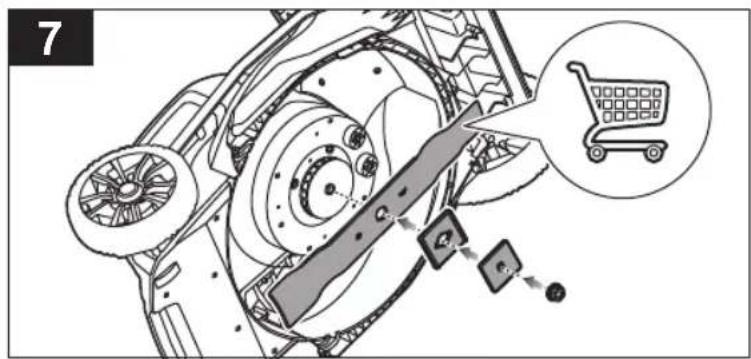

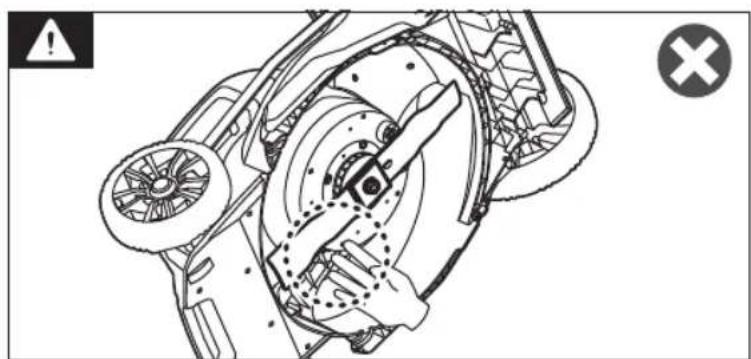

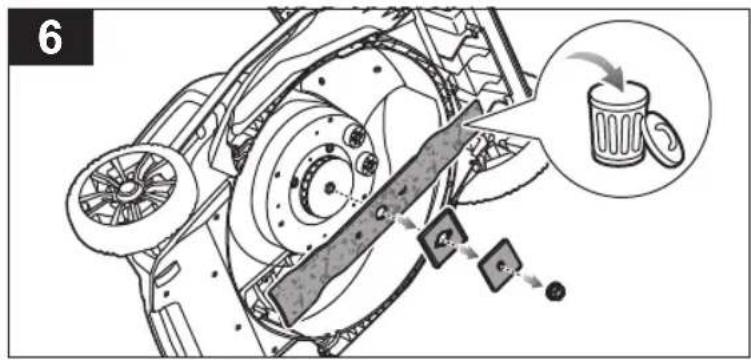

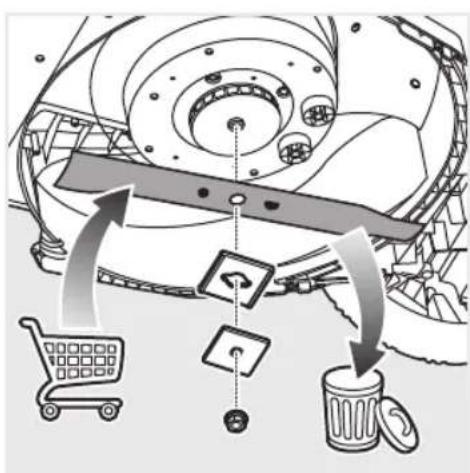

■ The blade on the product is sharp. Use extreme caution, and wear heavy-duty gloves when fitting, replacing, cleaning, or checking bolt security.

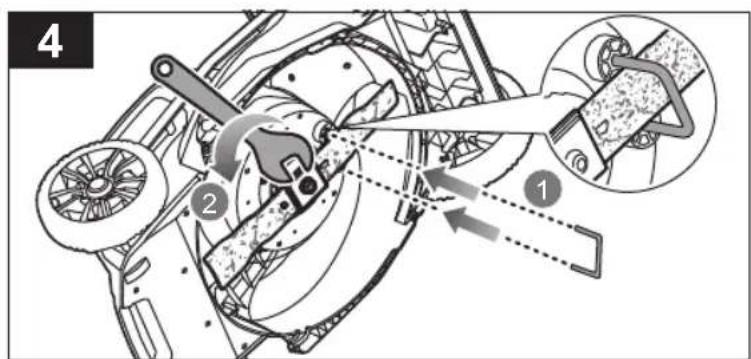

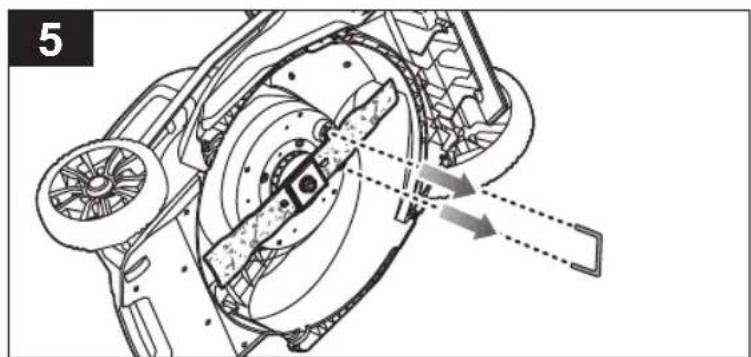

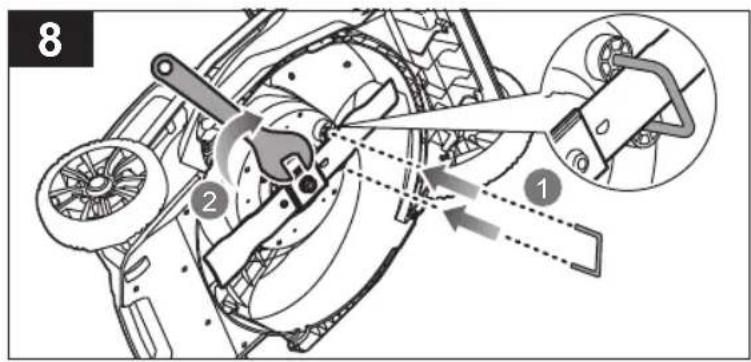

- The blade bolts must be adequately tightened. See the manufacturer's recommendations for blade bolt torque, which can be found in the product specification table in this manual.

CLEARING BLOCKAGES

■ Turn off the product, and remove the isolator key and the battery pack. Make sure that all moving parts have come to a complete stop.
■ Always wear heavy-duty gloves when checking or clearing a blockage. The blades are sharp, and the blockage itself could be a sharp object.
■ Remove the grass catcher. Check and carefully clear the grass catcher for obstructions.
■ Check the grass discharge chute, and carefully clear blockages.

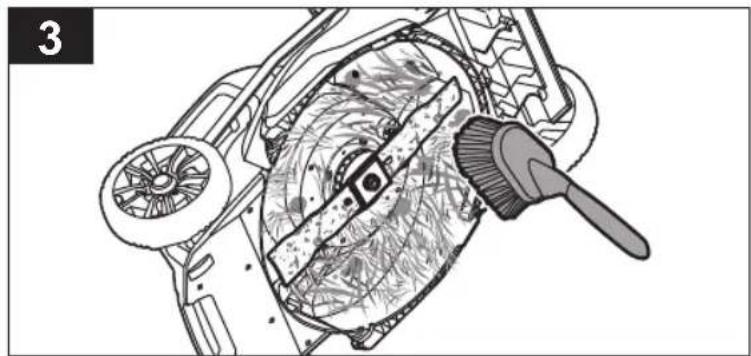

■ Turn the product on its side. Check its underside and the area around the blade. Carefully remove any blockages. Remember that the blade may move during cleaning.

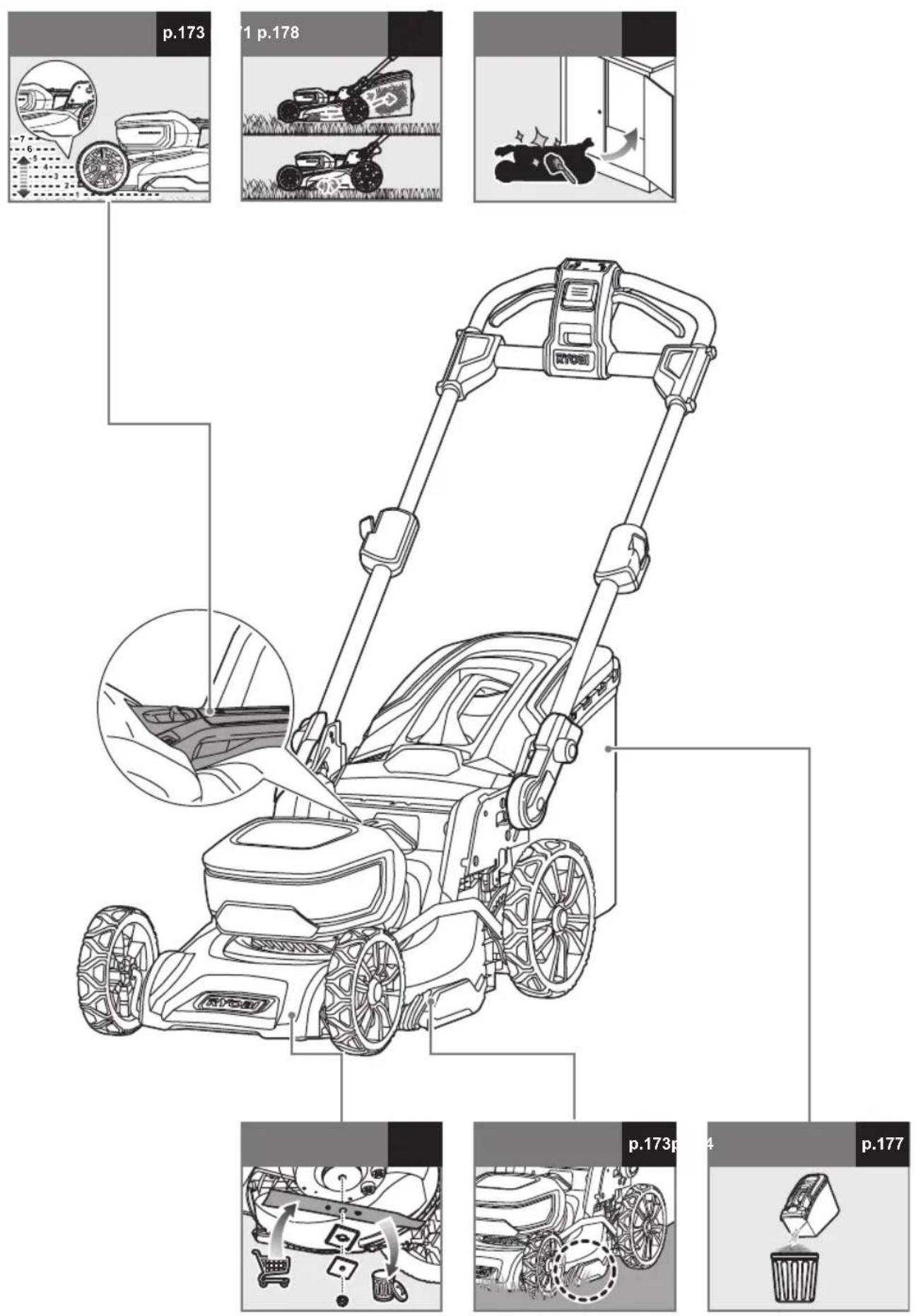

KNOW YOUR PRODUCT

See page 167.

1. Speed adjustment slider (RY36LMXSP46A only)
2. Self-propel lever (RY36LMXSP46A only)
3. Interface board
4. Start button

5. On/off lever

6. Telescopic handle

7. Operator's manual
8. Handle lock lever
9. Isolator key
10. Grass catcher full indicator
11. Height adjustment release key
12. Quick-release fastener
13. Grass catcher
14. Battery door
15. Blade lock
16. Rear wheel
17. Front wheel
18. Mulching plug
19. Battery pack
20. Charger

SYMBOLS ON THE PRODUCT

Read and understand all instructions before operating the product. Follow all warnings and safety instructions.

Wear ear protection.

Wear eye protection.

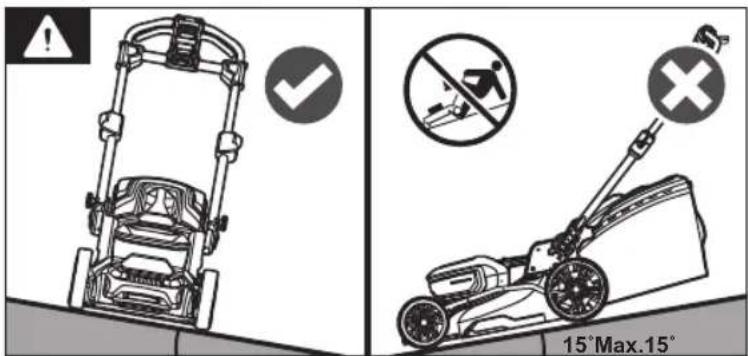

Do not operate the product on inclines greater than 15^ . Mow across the face of slopes, never up and down.

Do not expose the product to rain or damp condition.

Beware of sharp blades. Blades continue to rotate after the motor is switched off. Remove the isolator key before maintenance.

Beware of thrown or flying objects. Keep all bystanders, especially children and pets, at least 15m away from the operating area.

Go

Stop

Waste electrical products should not be disposed of with household waste. Please recycle where facilities exist. Check with your local authority or retailer for recycling advice.

European Conformity Mark

British Conformity Mark

EurAsian Conformity Mark

Ukraine Conformity Mark

Guaranteed sound power level

SYMBOLS IN THIS MANUAL

Parts or accessories sold separately

Note

Warning

INTERFACE BOARD OVERVIEW

The interface board displays the status and condition of the product.

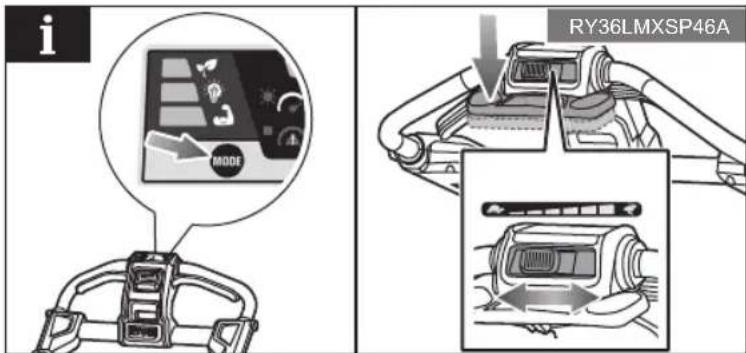

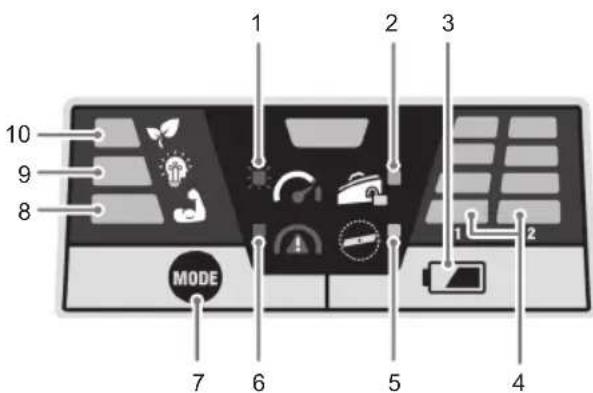

10 9 8 MODE 7 6 5 4 1 2 3 1

1. High load - indicates that the load is too high for the current setting and the product might stall. Switch to power mode, increase cutting height, or reduce walking speed.

2. Catch/mulch indicator - indicates that the grass catcher or mulching plug is not installed. The product does not start without the grass catcher or mulching plug attached.

3. Battery charge status button - powers up the battery level indicator when pressed.

4. Battery level indicator - indicates the amount of charge left in the battery packs.

5. If only one LED lights up, the battery pack capacity is lower than 25%.

6. If two LEDs light up, the battery pack capacity is between 25% and 50%.
7. If three LEDs light up, the battery pack capacity is between 50% and 75%.

8. If four LEDs light up, the battery pack is fully charged. The battery pack capacity is between 75% and 100%.

9. Blade check indicator - indicates that the blade must be checked. Replace the dull blade to keep the product in good working condition.

10. Overload indicator - indicates that the product is overloaded and that the blade may be jammed.

11. Mode button - changes the cutting mode of the product when pressed.

12. Power mode - indicates that the blade is at high speed for heavy grass cutting.

13. Smart mode - indicates that the mower is able to adjust the blade speed depending on the load on the product for general cutting.

14. Eco mode - indicates that the blade is at low speed for thin grass cutting.

CARACTÉRISTIQUES DU PRODUIT

SYMBOLES APPLIQUÉS SUR LE PRODUIT

MACHEN SIE SICH MIT IHREM PRODUKT VERTRAUT

Siehe Seite 167.

SYMBOLE AUF DEM PRODUKT

ALGEMENE VEILIGHEIDSWAARSCHUWINGEN

SYMBOLER PÅ PRODUKTET

TRANSPORT OCH FÖRVARING

SYMBOLER PÅ PRODUKTEN

SYMBOLER I MANUALLEN

KJENN PRODUKTET DITT

Se side 167.

SYMBOLER PÅ PRODUKTET

ELIBERAREA UNUI BLOCAJ

NOSPROSTOJUMA NOVĚRŠANA

LIIDESEPLAADI ÜLEVAADE

OBOZNÁMTE SA S VAŠÍM PRODUKTOM

Pozrite stranu 167.

Diagram illustrating a robotic arm with labeled parts and motion arrows, showing mechanical components and movement paths.

i ✓ ×

5

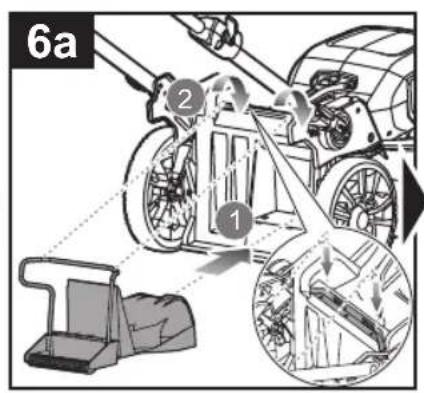

6a 1 2

Line drawing of a lawn mower with a mounted gun, shown in black and white (no text or symbols)

Technical line drawing of a car interior showing steering wheel, rear seats, and dashboard (no text or symbols)

8 1 2

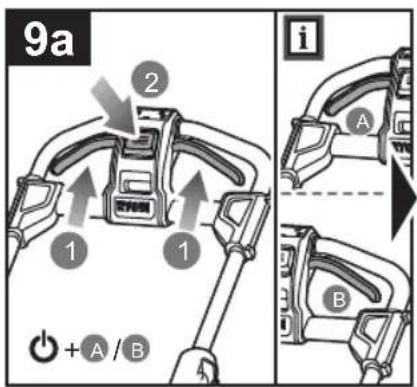

9a 1 2 1 1 i A B + A / B

3

Mechanical assembly diagram showing a belt drive mechanism with arrows indicating motion direction (no text or symbols)

i 1 2 ✓ ×

6b ② ①

Illustration of a lawn mower with a tool, no text or symbols present

7 1 2

9b RY36LMXSP46A

Illustration of a lawn mower with a directional arrow indicating left motion (no text or symbols)

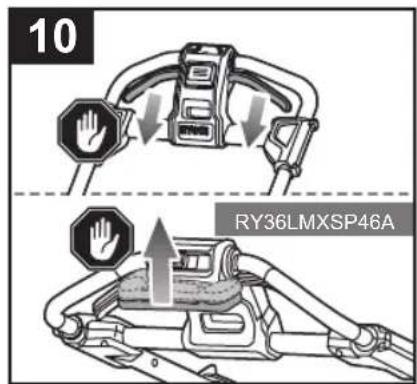

10 RY36LMXSP46A

p.173 1 p.178 p.173p 4 p.177

Two line drawings of a lawn mower on grass, showing front and side views (no text or symbols)

Illustration comparing two lawn lawners: one with warning sign and checkmark, the other with cross symbol.

15° Max.15°

1 2 3 4

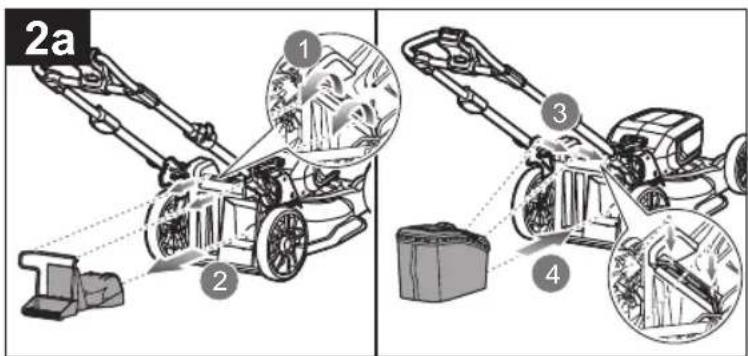

2a 1 2 3 4

Line drawing of a lawn mower on grass, no text or symbols present

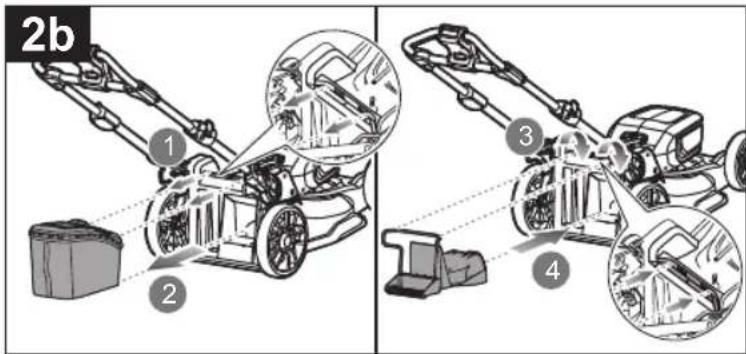

2b 1 2 3 4

Line drawing of a lawn mower on grass, no text or symbols present

3 2 1 1 i A B + A / B

i MODE RY36LMXSP46A

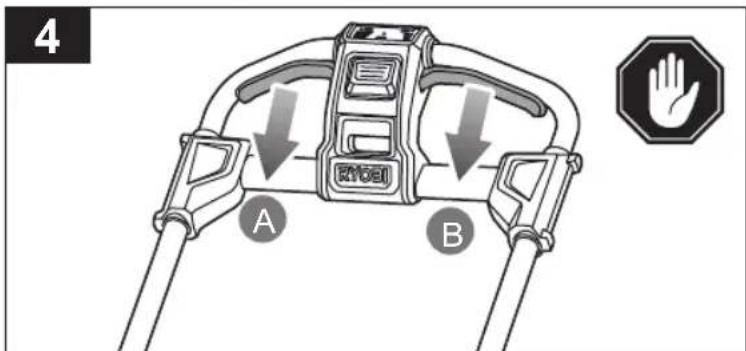

4 A B

Technical line drawing of a lawn mower assembly with visible wheel brackets and mounting hardware (no text or symbols)

Illustration of a lawn mower on a grassy slope next to a brick wall, with a downward arrow indicating motion (no text or symbols)

Technical illustration of a mechanical assembly with magnified detail (no text or symbols)

Technical diagram showing a car interior with numbered components and a magnified inset of the dashboard view.

Technical line drawing of a vintage motorcycle with visible wheels and a dashed circular annotation (no text or symbols)

Line drawing of a car with wheels and a circular inset showing a vehicle's side profile (no text or symbols)

Diagram of a lawn mower with mechanical components and a magnified inset showing hand positioning (no text or symbols)

i 7 6 5 4 3 2 1

1 2 3 4

Technical diagram showing vehicle seatbelt assembly and component disassembly with numbered annotations

Illustration of a lawn mower with a magnified view showing the blade and handle (no text or symbols)

Technical illustration of a mechanical component with a brush and fan assembly (no text or symbols)

Technical diagram of a car's front wheel assembly showing brake system and steering wheel (no text or labels)

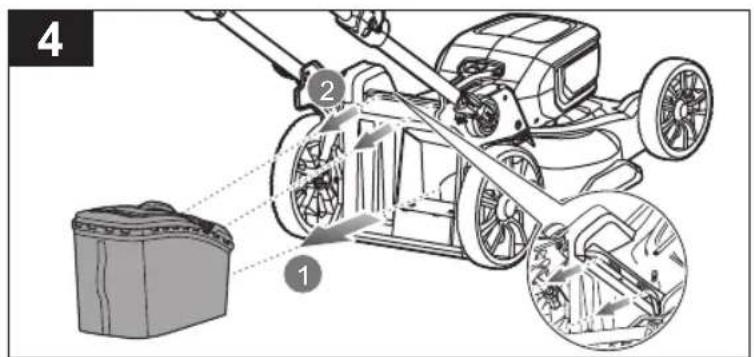

4 1 2

Technical diagram of a mechanical assembly with no visible text or symbols

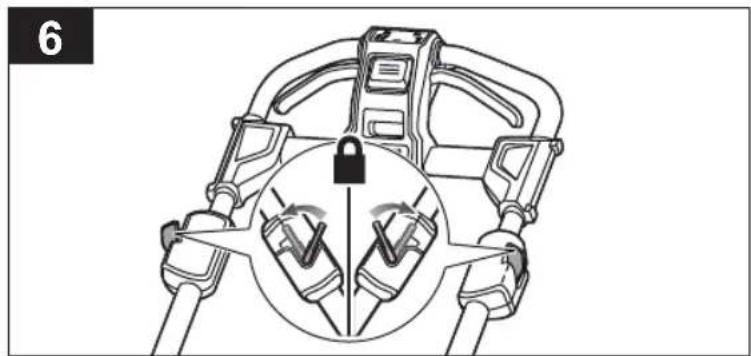

6

7

8 ② ①

Technical diagram of a mechanical assembly with labeled components and directional arrows (no readable text or symbols)

Line drawing of a trash bin with an open container pouring liquid into it (no text or symbols)

Illustration of a lawn mower with a magnified inset showing mechanical components (no text or symbols)

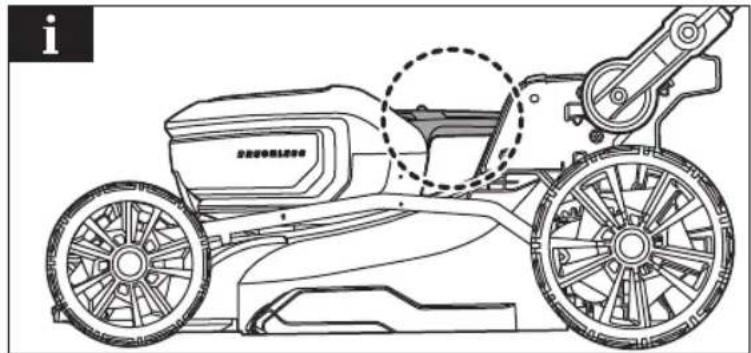

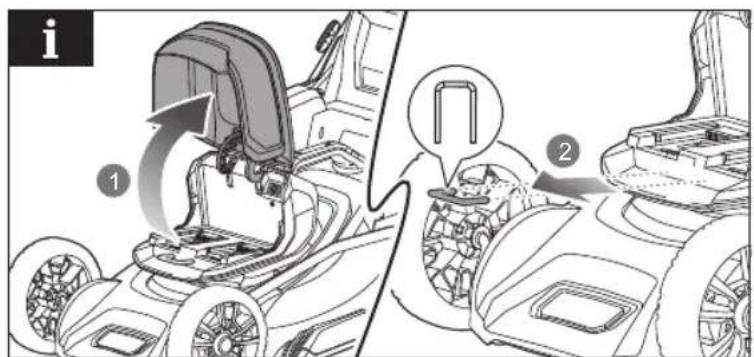

i

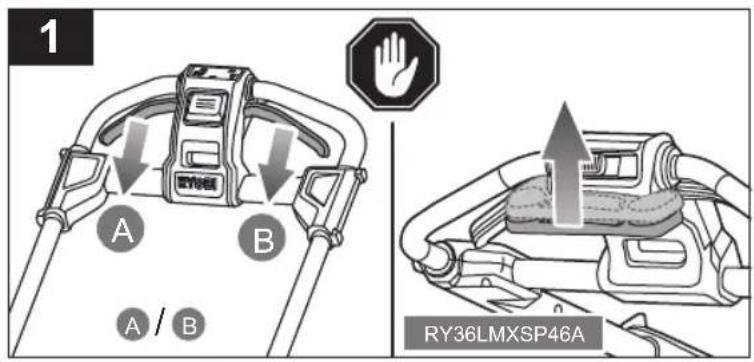

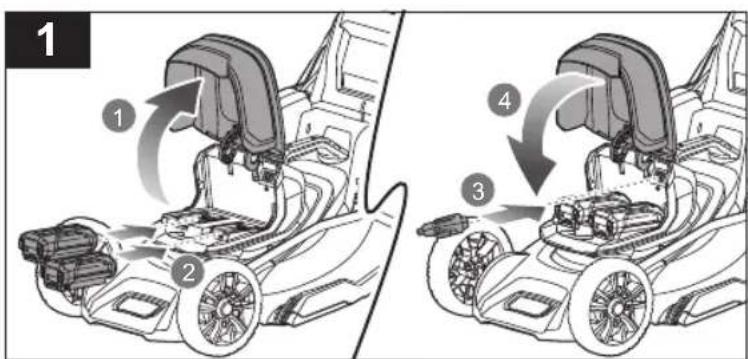

1 A B A / B RY36LMXSP46A

Diagram illustrating a mechanical device with labeled parts and a close-up of its base component, showing components like battery and motors.

Illustration of a trash bin pouring liquid into a portable recycling bin (no text or symbols)

Simple line drawing of a doorway with a dog emerging from the floor and a brush inside (no text or symbols)

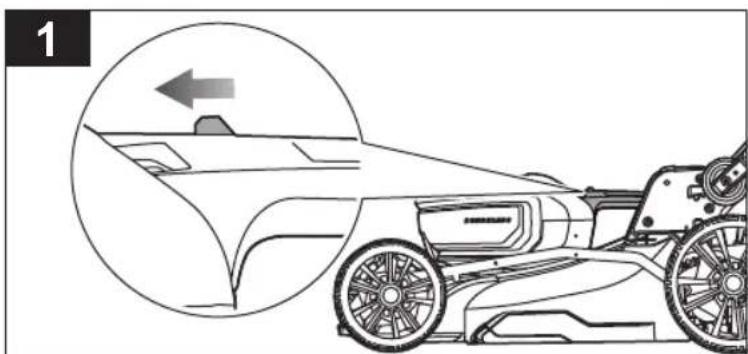

1 A B A / B RY36LMXSP46A

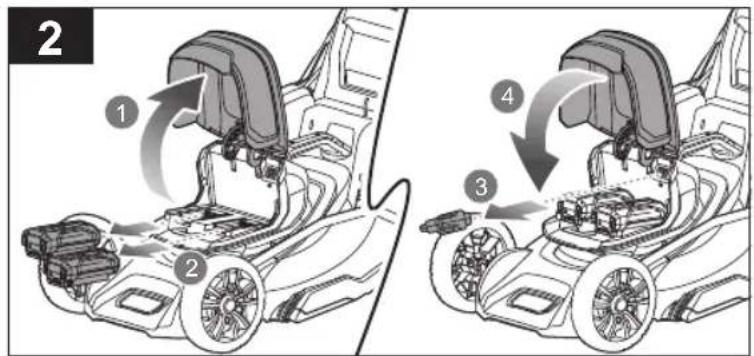

2 ① ② ③ ④

Line drawing of a lawn mower with a brush and headrest, no text or symbols present

Line drawing of a lawn mower with a hose spraying water, no text or symbols present

4 1 2

5 ① ②

Diagram of a mechanical device with internal components and a central lock, no text or symbols present

7 1 2 3 4

8

9 i 1 2

20210810v1d8

English Français Deutsch Español Italiano

Product specifications	Caractéristiques produit	Produkt-Spezifikationen	Caracteristicas del producto	Caratteristiche del prodotto
Cordless lawnmower	Tondeuse à gazon sans-fil	Akku-Rasenmäher	Cortacésped inalámbrico	Tosaerba a batteria
Model	Modèle	Modell	Modelo	Modello
Rated voltage	Tension nominale	Nennspannung	Tensión nominal	Voltaggio nominale
Width of cut	Largeur de coupe	Schnittbreite	Anchura de fresado	Larghezza di fresatura
Height of cut	Hauteur de coupe	Schnitthöhe	Altura del corte	Altezza del taglio
No-load speed	Vitesse de rotation à vide	Leerlaufgeschwindigkeit	Velocidad sin carga	Velocità senza carico
Weight (without battery pack)	Poids (sans la batterie)	Gewicht (ohne Akku)	Peso (sin la batería)	Peso (senza batterie)
RY36LMX46A RY36LMX46A	RY36LMX46A	RY36LMX46A RY36LMX46A
RY36LMXSP46A	RY36LMXSP46A	RY36LMXSP46A	RY36LMXSP46A	RY36LMXSP46A
Grass catcher capacity	Capacité du bac de ramasage	Fassungsvermögen des Grasauffangbehälters	Capacidad colectora de césped	Capacità del contenitore di raccolta
Blade bolt torque	Couple de serrage du boulon de lame	Drehmoment der Messerschraube	Par de torsión de los pemos de la cuchilla	Coppia di serraggio del bullone della lama
Vibration level for rated speed (in accordance with Annex FF of EN 60335-2-77)	Niveau de vibration pour une vitesse nominale de (conformément à l'annexe FF de la norme EN 60335-2-77)	Vibrationspegel für Nenndrehzahl (gemäß Annex FF von EN 60335-2-77)	Nivel de vibración para una velocidad nominal de (de acuerdo con lo establecido en el Anexo FF de la norma EN 60335-2-77)	Livello di vibrazione per velocità nominale (in base all'Allegato FF di EN 60335-2-77)
Uncertainty of measurement	Incertitude de la mesure	Unsicherheit der Messung	Incertidumbre de medición	Incertezza delle misurazioni
Noise emission level for rated speed (in accordance with Annex GG of EN 60335-2-77)	Niveau des émissions sonores pour une vitesse nominale de (conformément à l'annexe GG de la norme EN 60335-2-77)	Geräuschpegel für Nenndrehzahl (gemäß Annex GG von EN 60335-2-77)	Nivel de emisiones de ruido para una velocidad nominal de (de acuerdo con lo establecido en el Anexo GG de la norma EN 60335-2-77)	Livello di emissione rumorosa per velocità nominale (in base all'Allegato GG di EN 60335-2-77)
A-Weighted sound pressure level at operator's position	Niveau de pression sonore pondéré A au niveau de l'opérateur	A-bewerteter Schalldruckpegel an der Position des Benutzers	Nivel de presión sonora ponderado A en la posición del operario	Livello di pressione sonora ponderata A alla posizione dell'operatore
Uncertainty of measurement	Incertitude de la mesure	Unsicherheit der Messung	Incertidumbre de medición	Incertezza delle misurazioni
A-Weighted sound power level	Niveau de puissance sonore pondéré A	A-bewerteter Schalleistungspegel	Nivel de potencia acústica ponderada en A	Livello di potenza sonora pesato A
Uncertainty of measurement	Incertitude de la mesure	Unsicherheit der Messung	Incertidumbre de medición	Incertezza delle misurazioni
L_WA + K_WA	L_WA + K_WA	L_WA + K_WA	L_WA + K_WA	L_WA + K_WA

The declared vibration total values and the declared noise emission values given in this instruction manual have been measured in accordance with a standardised test and may be used to compare one tool with another. They may be used for a preliminary assessment of exposure.

The declared vibration and noise emission values represent the main applications of the tool. However, if the tool is used for different applications, used with different accessories, or poorly maintained, the vibration and noise emission may differ. These conditions may significantly increase the exposure levels over the total working period. An estimation of the level of exposure to vibration and noise should take into account the times when the tool is turned off or when it is running idle. These conditions may significantly reduce the exposure level over the total working period.

Identify additional safety measures to protect the operator from the effects of vibration and noise, such as maintaining the tool and the accessories, keeping the hands warm (in case of vibration), and organising work patterns.

FR

⚠ AVERTISSEMENT

EN RYOBI WARRANTY APPLICATION CONDITIONS

In addition to any statutory rights resulting from the purchase, this product is covered by a warranty as stated below.

1. The warranty period is 24 months for consumers and commences on the date when the product was purchased. This date has to be documented by an invoice or other proof of purchase. The product is designed and dedicated to consumer and private use only. So there is no warranty provided in case of professional or commercial use. This warranty applies only on new products.
2. There is a possibility to extend for a part of the range of power tools (AC/DC) the warranty period over the period described above using the registration on the www.ryobitools.eu website. The eligibility of products for extended warranty is clearly displayed in stores and / or on packaging and is contained within the product documentation. The end user is required to register his/her newly-acquired products online within 30 days from the date of purchase. The end user may register for the extended warranty in his/her country of residence if listed on the online registration form where this option is valid. Furthermore, end users must give their consent to the storage of their personal data that is required to be entered online. They must also accept the terms and conditions. The registration confirmation receipt, which is sent out by e-mail, and the original invoice showing the date of purchase will serve as proof of the extended warranty.
3. The warranty covers all defects of the product during the warranty period due to faults in workmanship or material at the purchase date. The warranty is limited to repair and/or replacement and does not include any other obligations including but not limited to incidental or consequential damages. The warranty is not valid if the product has been misused, used contrary to the instruction manual, or has been incorrectly connected to a power supply. This warranty does not apply to:

– any damage to the product that is the result of improper or lack of maintenance
– any product that has been altered or modified
– any product where original identification (trade mark, serial number) markings have been defaced, altered or removed
– any damage caused by non-observance of the instruction manual
– any product not displaying the CE approval mark on the rating plate
– any product that has been attempted to be repaired by a non-authorised warranty service centre or without prior authorisation by Techtronic Industries
– any product connected to improper power supply (amps, voltage, frequency)
– any product used with inappropriate fuel mixture (fuel, oil, ratio of oil/ fuel mixture)
– any damage caused by external influences (water, chemical, physical, shocks) or foreign substances
– normal wear and tear spare parts
– inappropriate use, overloading of the tool
– use of non-approved accessories or parts
- Accessories provided with the tool or purchased separately including but not limited to blades, saw chains, cutting lines, etc.
– Any periodic adjustments to or maintenance cleaning of carburettors
- Components (parts and accessories) subject to natural wear and tear, including but not limited to bump knobs, drive belts, clutch, blades of hedge trimmers or lawn mowers, harness, cable throttle, carbon brushes, power cord, tines, felt washers, hitch pins, blower fans, blower and vacuum tubes, vacuum bag and straps, guide bars, saw chains, hoses, connector fittings, spray nozzles, wheels, spray wands, inner reels, outer spools, cutting lines, spark plugs, air filters, gas filters, mulching blades, etc.

1. For servicing, the product must be sent or presented to a RYOBI authorised service station listed for each country in the following list of service station addresses. In some countries your local RYOBI dealer undertakes to send the product to the RYOBI service organisation. When sending a product to a RYOBI service station, the product should be safely packed without any dangerous contents such as petrol, marked with sender's address and accompanied by a short description of the fault.
2. A repair / replacement under this warranty is free of charge. It does not constitute an extension or a new start of the warranty period. Exchanged parts or products become our property. In some countries delivery charges or postage will have to be paid by the sender. Your statutory rights arising from the purchase of the product remain unaffected.
3. This warranty is valid in the European Community, Switzerland, Iceland, Norway, Liechtenstein, Turkey, Russia, and the United Kingdom. Outside these areas, please contact your authorised RYOBI dealer to determine if another warranty applies.

AUTHORISED SERVICE CENTRE

Any request or issue with the product can be addressed to your local authorised service centres (visit www.ryobitools.eu) or directly to: Techtronic Industries GmbH, Max Eyth Straße 10, 71364 Winnenden, Germany. Please state the serial number and product type printed on the label.

FR RYOBI CONDITIONS D'APPLICATION DE LA GARANTIE

EN EC DECLARATION OF CONFORMITY

Cordless lawnmower

Brand: RYOBI | Manufacturer ^1 | Model number ^2 | Serial number range ^3

We declare as the manufacturer under our sole responsibility that the product mentioned below fulfills all the relevant provisions of the following European Directives, European Regulations and harmonised standards ^4

Measured sound power level.... 95 dB(A)

Guaranteed sound power level.... 96 dB(A)

Conformity assessment method to Annex VI Directive 2000/14/EC amended by 2005/88/EC

Notified body ^5

Authorised to compile the technical file: ^6

FR DÉCLARATION CE DE CONFORMITÉ

Max-Eyth-Straße 10, 71364 Winnenden, Germany

^2 RY36LMX46A / RY36LMXSP46A

3 RY36LMX46A: 47580401000001 - 47580401999999

RY36LMXSP46A: 47580001000001 - 47580001999999

4 2006/42/EC, 2014/30/EU, 2000/14/EC, 2005/88/EC, 2011/65/EU

EN 60335-1:2012+A11:2014+A13:2017+A1:2019+A14:2019+A2:2019.

EN 60335-2-77-2010 EN 55014-1-2017+A11-2020 EN 55014-2-2015

EN IEC 63000:2018

5 No. 0197 – TÜV Rheinland LGA Products GmbH

Tillystraße 2 - 90431 Nürnberg – Germany

Todd Chipner

Vice President, Quality – Asia

Winnenden, Sept. 25, 2021

6 Alexander Krug. Managing Director

Techtronic Industries GmbH

Max-Eyth-Straße 10, 71364 Winnenden, Germany

GB-DECLARATION OF CONFORMITY

Manufacturer: Techtronic Industries GmbH

Max-Eyth-Straße 10, 71364 Winnenden, Germany

We declare as the manufacturer under our sole responsibility that the product mentioned below

Cordless lawnmower

Brand: RYOBI

Model number: RY36LMX46A / RY36LMXSP46A

Serial number range:

RY36LMX46A: 47580401000001 - 47580401999999

RY36LMXSP46A: 47580001000001 - 47580001999999

fulfills all the relevant provisions of the following Regulations: S.I. 2008/1597

(as amended), S.I. 2016/1091 (as amended), S.I. 2012/3032 (as amended), S.I.

2001/1701 (as amended) and that the following designated standards have been used:

BS EN 60335-1:2012+A2:2019, BS EN 60335-2-77:2010,

BS EN 55014-1:2017+A11:2020, BS EN 55014-2:2015,

BS EN IEC 63000:2018

Measured sound power level: 95 dB(A)

Guaranteed sound power level: 96 dB(A)

Conformity assessment method to S.I. 2001/1701 Schedule 9 (as amended)

Approved body:

No. 8500 – AnP Certification Limited

2 Parkfield Street, Rusholme, Manchester, M14 4PN, United Kingdom

Todd Chipner

Vice President, Quality – Asia

Winnenden, Sept. 25, 2021

Authorised to compile the technical file:

Techtronic Industries (UK) Ltd

Fieldhouse Lane

Marlow Bucks SL7 1HZ

UK

EN RYOBI is a trade mark of Ryobi Limited, and is used under license.
FR RYOBI est une marque déposée de Ryobi Limited, et est utilisée sous license.
DE RYOBI ist ein Markenzeichen von Ryobi Limited und wird in Lizenz verwendet.
ES RYOBI es una marca registrada de Ryobi Limited, y se utiliza bajo licencia.
IT L'utilizzo del marchio registrato RYOBI è legato alla licenza concessa da Ryobi Limited.
NL RYOBI is een handelsmerk van Ryobi Limited en wordt onder licentie gebruikt.
PT RYOBI é uma marca comercial de Ryobi Limited, e é utilizada sob licença.
DA RYOBI er et varemærke tilhørende Ryobi Limited og bruges under licens.
SV RYOBI är en del av varumärke Ryobi Limited och dess användning är licensierad.
FI RYOBI on Ryobi Limitedin omistama tavaramerkki, ja sitä käytetään lisenssin puitteissa.
NO RYOBI er et varemerke for Ryobi Limited, og brukes under lisens.
RU RYOBI является товарным знаком компании Ryobi Limited, используемым по лицензии.
PL RYOBI to znak towarowy firmy Ryobi Limited i jest używany zgodnie z udzieloną licencją.
CS RYOBI je ochranná známka společnosti Ryobi Limited a její použivani podléhá licenci.
HU A RYOBI a Ryobi Limited védjegye, használata licenc keretében történik.
RO RYOBI este o marcă comercială a firmei Ryobi Limited și este utilizată sub licență.
LV RYOBI ir Ryobi Limited preču zīme un tiek izmantota saskanā ar licenci
LT „RYOBI“ yra „Ryobi Limited“ prekės ženklas, naudojamas pagal licencija.
ET RYOBI on ettevõtte Ryobi Limited kaubamärk, mida kasutatakse litsentsi alusel.
HR RYOBI je žig tvrtke Ryobi Limited i koristi se po licenci
SL RYOBI je blagovna znamka družbe Ryobi Limited in se uporablja na podlagi dovoljenja.
SK RYOBI je ochranná známka spoločnosti Ryobi Limited a používa sa na základe licencie.
BG RYOBI e търговска марка на Ryobi Limited и се използва под лиценз.
UK RYOBI є товарним знаком Ryobi Limited, і використовується за ліцензією.
TR RYOBI, Ryobi Limited şirketine ait olup, lisans altında kullanılan bir ticari markadır.

Three vertical panels with diagonal striped patterns, no text or symbols present

Techtronic Industries GmbH

Max-Eyth-Straße 10,

71364 Winnenden, Germany

Techtronic Industries (UK) Ltd

Fieldhouse Lane

Marlow Bucks SL7 1HZ

UK

961478236-01
