Product Type	True Wireless Bluetooth Headphones
Model	Freedom Light
Brand	Hama
Bluetooth Technology	Bluetooth® v5.1
Supported Profiles	A2DP V1.3, AVRCP V1.5, HFP V1.5, SPP V1.0
Range	< 10 m
Earbuds Weight	4 g each
Total Weight with Case	approx. 40 g
Earbuds Battery Capacity	43 mAh (lithium-polymer 3.7 V)
Case Battery Capacity	290 mAh (lithium-polymer 3.7 V)
Earbuds Charging Time	Approx. 1.5 to 2 hours
Case Charging Time	Approx. 1.5 to 2 hours
Music Playback Time	Approx. 7 hours (28 hours with case)
Talk Time	Approx. 5 hours (20 hours with case)
Standby Time	Approx. 150 hours
Power Supply	5 V max 220 mA via USB-C port
Main Functions	Play/Pause, next/previous track, answer/end call, voice assistant, hands-free kit
Care and Cleaning	Clean with a slightly damp lint-free cloth, avoid harsh detergents
Safety	Do not use at excessive volume, keep out of reach of children, avoid water and heat
Spare Parts and Repairability	Built-in non-replaceable battery; no spare parts available
General Information	Compliant with directive 2014/53/EU, bands 2402-2480 MHz, max power 2.5 mW E.I.R.P.

Frequently Asked Questions - Freedom Light HAMA

How do I pair the Freedom Light earbuds with my phone?

Make sure the earbuds are on (remove them from the case or press and hold the touch sensor for 2-3 seconds). Enable Bluetooth on your phone, search for "Hama Freedom Light", and select it. If a password is requested, enter 0000. You will hear a confirmation beep.

How do I reset the earbuds to factory settings?

Turn on the earbuds and make sure no Bluetooth connection is active. Tap the touch sensor on the left or right earbud eight times. You will hear a beep indicating the reset.

How do I charge the earbuds and the case?

Place the earbuds in the case matching the L/R marks. Connect the provided USB-C cable to the case and to a suitable USB charger. The case LED blinks red during charging and stays solid red when fully charged. Full charging time is approximately 1.5 to 2 hours.

How do I answer a call with the earbuds?

Tap the touch sensor on the left or right earbud twice to answer an incoming call. To reject, press and hold for about 2 seconds. To end a call, tap twice during the conversation.

How do I adjust the earbuds volume?

Volume can be adjusted via the voice assistant (Siri/Google Assistant) by tapping the touch sensor five times, or directly from your connected device (phone, etc.).

How do I use Siri or Google Assistant voice assistant?

Quickly tap the touch sensor on the left or right earbud five times. You will hear a beep, then you can speak to Siri or Google Assistant. Make sure the assistant is set up on your device.

How do I skip to the next or previous track?

To go to the next track, tap the touch sensor on the right earbud three times. To go to the previous track, tap the left earbud three times.

What is the battery life of the Freedom Light earbuds?

The earbuds offer approximately 7 hours of music playback (or 5 hours of talk time) on a single charge. With the charging case, you get up to 28 hours of listening (20 hours of talk time). Standby time is approximately 150 hours.

What if one earbud stops working or won't turn on?

Check the battery: recharge the earbuds and the case. Ensure the charging contacts are clean. Reset the earbuds (see reset question). If the problem persists, contact Hama customer service at [phone].

How do I clean the earbuds and the case?

Use a slightly damp (not wet) lint-free cloth. Avoid harsh detergents or immersion in water. Clean the charging contacts regularly to ensure a good connection.

USER MANUAL Freedom Light HAMA

Line drawing of wireless earbuds and charging case (no text or symbols)

GB Operating Instructions D Bedienungsanleitung F Mode d'emploi E Instrucciones de uso

NL Gebruiksaanwijzing I Istruzioni per l'uso PL Instrukcja obsługi H Használati útmutató

RO Manual de utilizare CZ Návod k použití SK Návod na použitie P Manual de instruções

GB Operating Instructions

Thank you for choosing a Hama product.

Take your time and read the following instructions

and information completely. Please keep these

instructions in a safe place for future reference.

you sell the device, please pass these operating instructions on to the new owner.

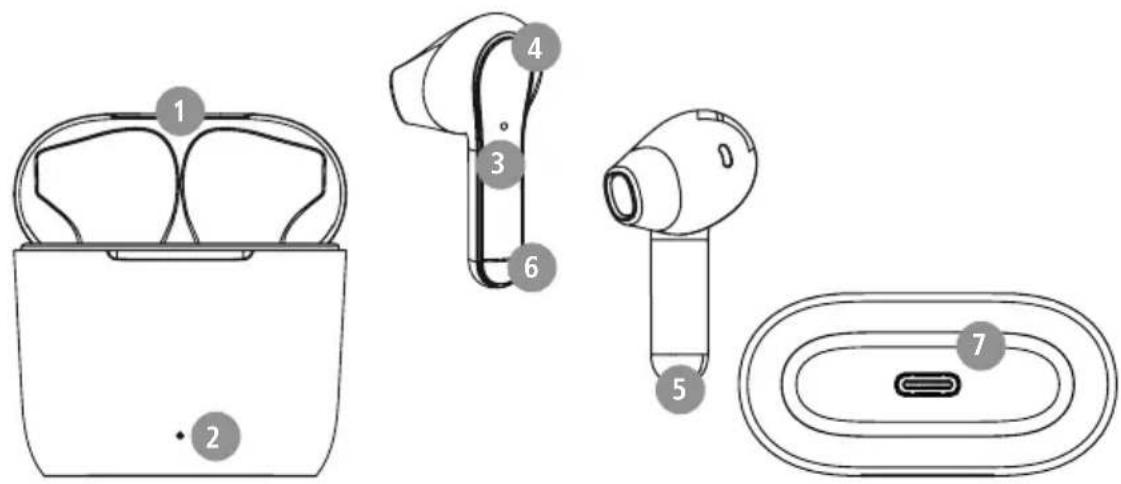

Controls and displays

s1. Charging box
2. Charging box status LED
13. Earphones status LED
4. Multi-function touch sensor
5. Charging contacts
6. Microphone
7. USB-C connection

1. Explanation of warning symbols and notes

Warning

This symbol is used to indicate safety instructions or to draw your attention to specific hazards and

Note

This symbol is used to indicate additional information or important notes.

2. Package contents

1x "Freedom Light" True Wireless Bluetooth earphones
1x charging box
1x USB-C charging cable
1x quick guide
1x warning and safety instructions

Simple line drawing of a cup with two handles and a lid (no text or symbols)

Line drawing of two types of earbuds (no text or symbols)

3. Safety instructions

• The product is intended for private, non-commercial use only

- Use the product only for the intended purpose.

• Children should be supervised to ensure that they do not play with the product

- Do not use the product in areas in which electronic products are not permitted

- Do not attempt to service or repair the product yourself. Leave any and all service work to qualified experts

- Do not open the device or continue to operate it becomes damaged

- Do not bend or crush the cable.

- Do not drop the product and do not expose any major shocks.

- Dispose of packaging material immediately in accordance with the locally applicable regulations.

- Do not modify the product in any way. Doing so voids the warranty

- Protect the product from dirt, moisture and overheating and use it in dry environments only

- Do not use the product in the immediate vicinity of heaters, other heat sources or in direct sunligh

- Only use the article under moderate climatic conditions.

- As with all electrical products, this device should be kept out of the reach of children

- Do not operate the product outside the power limits specified in the technical data

- Do not use the product in a damp environment and avoid splashing water

- While driving a car or using sports equipment, do not allow yourself to be distracted by your product and keep an eye on the traffic situation and your surroundings.

- The battery is permanently installed and cannot be removed; dispose of the product as a whole accordance with the statutory regulations

- Do not incinerate the battery or the product.

- Do not tamper with or damage/heat/disassemble the batteries/rechargeable batteries

- Do not use the product during the charging process!

Warning - rechargeable battery

• Only use suitable charging devices or USB connections to charge the product.
• Do not use defective chargers or USB ports and do not attempt to repair them.
• Do not overcharge the product or allow the battery to completely discharge.
• Avoid storing, charging and using in extreme temperatures and at extremely low atmospheric pressures (such as at high altitudes).
• Charge regularly (at least quarterly) during periods of prolonged storage.

Warning - magnets

• This product generates magnetic fields. Persons with a cardiac pacemaker should consult a doctor before using this product, ^0 as the pacemaker's proper function could be affected.
• Do not store bank or similar cards with magnetic strips near the charging box or earphones. The data on the cards could be damaged or completely deleted.

Warning - high volume

• High sound pressure!
• There is a risk of hearing damage.
• To prevent any loss of hearing, avoid listening at loud volumes for prolonged periods.
• Always keep the volume at a sensible level. do Loud volumes, even over short periods, can cause hearing loss.

• Using this product limits your perception

of ambient noise. You should therefore not drive or operate machinery while using them.

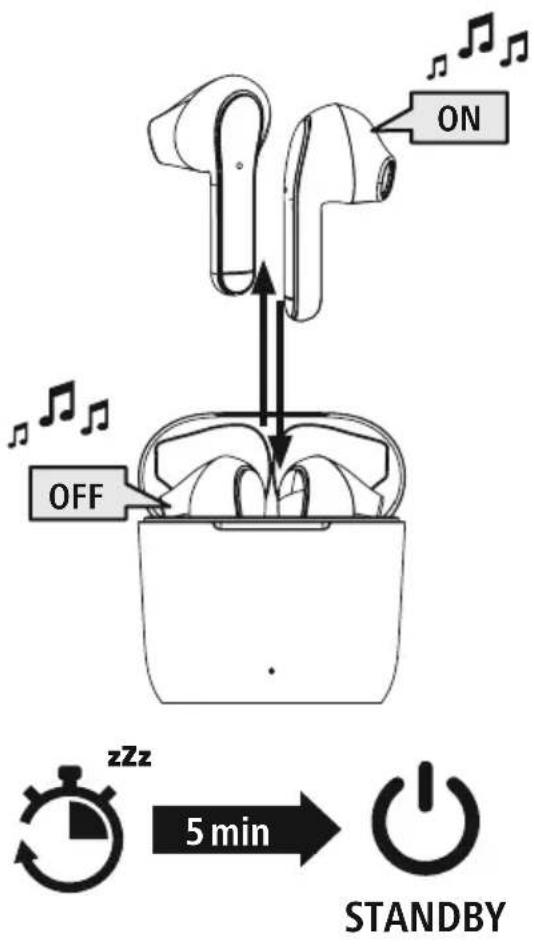

4. Switching on/off

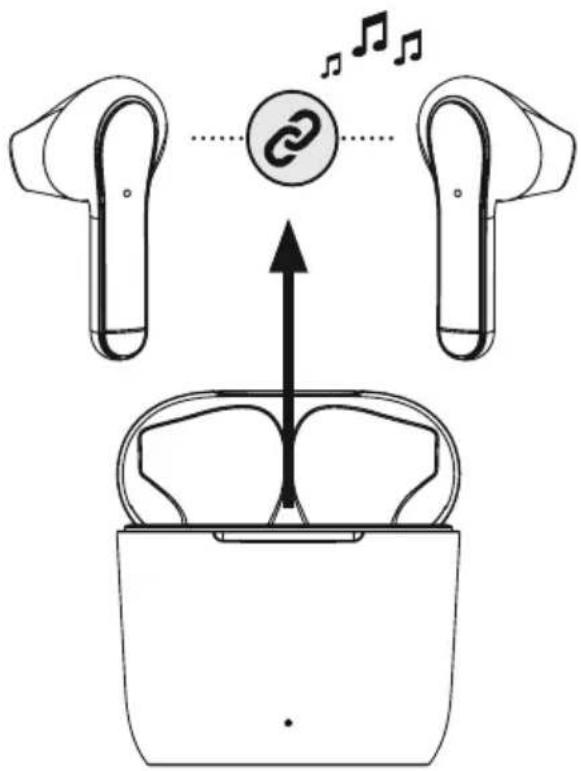

Remove the two headphones simultaneously from the charging box. Both earphones switch on automatically and start the pairing process.

Alternative:

Press the multi-function touch sensor (4) on the left and right earphones for approx. 2-3 seconds until you hear a signal tone.

To switch them off, simply place the earphones back in charging box. Ensure that the earphones are inserted into the correct sides, using the L/R markings as a guide.

Alternative:

With the earphones switched on, hold the multi-function touch sensor (4) on the left or right earphone down for approx. 5 seconds until you hear a signal tone.

Note - Automatic switch-off of the product

The product is equipped with an automatic switch-off mechanism. If there is no connection to your device within 5 minutes, it switches itself off automatically.

5. Charging

Fully charge the earphones and the charging box once before using them for the first time.

1 Insert the earphones and connect the charging box

Place the earphones in the charging box. Ensure that the earphones are inserted into the correct sides, using the L/R markings as a guide.

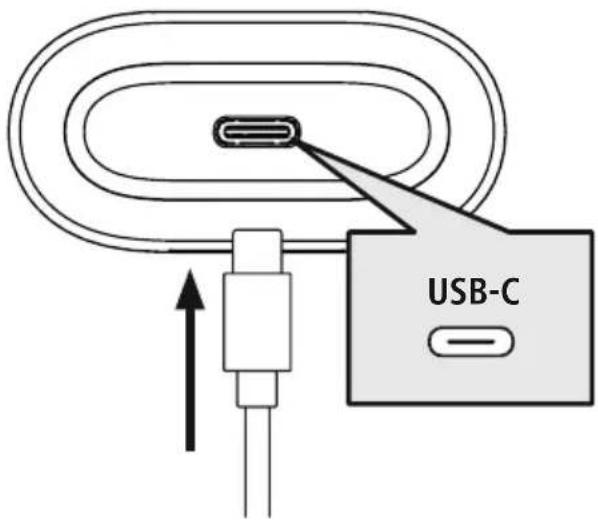

Connect the USB-C charging cable included to the charging socket (7) on the charging box.

Connect the free plug on the USB-C charging cable to a suitable USB charger. To do this, consult the operating instructions for the USB charger you are using.

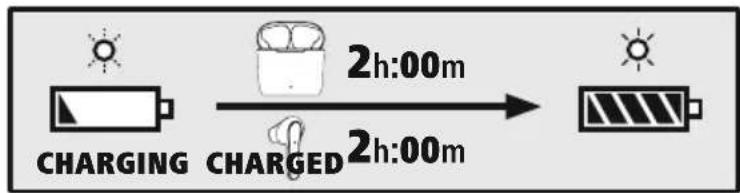

2 Charging procedure for the charging box and earphones

The status LED on the charging box (2) flashes red during the charging process. Once the charge box is fully charged, the charging box LED (2) lights up red.

It can take up to 2 hours (earphones and charging box) until the batteries are fully charged.

3 Battery capacity

Charging box

When the battery level is low (<20%), the status LED (2) flashes green four times and then goes out.

Earphones

When the battery is low (< 20%), the status LED (3) on the earphone flashes every 5 seconds in succession and you will hear a signal tone once every minute.

The actual battery life will vary depending on how you use the device, the settings and the am temperatures (rechargeable batteries have a limited life).

Note

If you have not used the product for a few months, it can take up to 15 - 30 minutes until status LED (2/3) lights up red during the charging process.

6. Bluetooth® pairing

Note - Pairing

• Make sure that your Bluetooth capable device is switched on and that Bluetooth activated.
- For more information, please refer to the operating instructions of your device.

The earphones and the device should not be more than 1 metre apart. The shorter the distance, the better.

Ensure that the earphones are switched on.

1 Check the status of the status LED (3)

If the status LED (3) on one of the earphones is flashing:

the earphones are searching for a Bluetooth connection.

If the status LED (3) of an earphone is flashing and then going the earphones are already paired with a Bluetooth device.

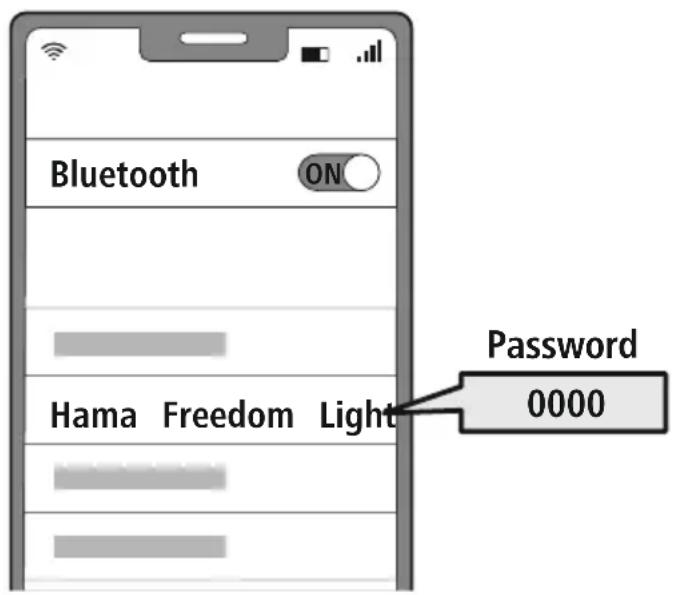

2 Search using your device for the earphones (only required on the first connection)

Open the Bluetoothsettings on your device and wait until the list

of found Bluetooth devices shows Hama Freedom Light.

Select Hama Freedom Light and wait until the earphones are shown as connected in your device's Bluetooth® settings. You will hear a brief signal tone.

Note - Bluetooth password

Some devices require a password in order to connect to another Bldevioth

- If your device requests a password to connect to the product, enter 0000.

6.1 Reset function

RESET

To reset the earphones to the factory settings, ensure that they are switched on and that there is no Bluetooth® connection with your device.

Tap the multi-function touch sensor (4) on the left or right earphone eight times. You will hear a brief signal tone.

7. Controls

Note

• Please be aware that your terminal device must support some functions if they are to be used.
• For more information, please refer to the operating instructions of your device.

7.1 Voice assistant function

Siri/Google

Tap the multi-function touch sensor (4) on the left or right earphone five times to initiate communication with Siri or the Google Assistant. You will hear a brief signal tone.

Note - Siri

Siri is only available on suitable devices running iOS 5 (iPhone 4s or later) or higher.

Note - Google Assistant

• The Google Assistant is only available on suitable devices running Android 5.0 or higher with Google Play Services, >1.5 GB of free memory and a minimum screen resolution of 720P.
• The Google Assistant App must be available on your device and be set as the default voice assistant.

7.2 Hands-free function

It is possible to use the earphones like a hands-free facility for your device.

1 Make a call

Dial the number directly via your device to make a call.

2 Accept a call

Tap the multi-function touch sensor (4) on the left or right earphone twice to accept an incoming call.

3 Reject a call

To reject an incoming call, tap and hold the multi-function touch sensor (4) on the left or right earphone for around 2 seconds.

4 End a call

During the call, tap the multi-function touch sensor (4) on the left or right earphone twice to end the call.

5 Last number redial

You can redial the last number you called via the voice assistant function (7.1).

7.3 Audio playback

1 Start playback on your device.

2 Play / Pause

Tap the multi-function touch sensor (4) on the left or right earphone twice to start or stop audio playback.

3 Next track

Tap the multi-function touch sensor (4) on the right earphone three times to skip to the next track. You will hear a brief signal tone.

4 Previous track

Tap the multi-function touch sensor (4) on the left earphone three times to skip to the previous track. You will hear a brie signal tone.

7.4 Volume control

The volume is controlled by the voice assistant function (7.1).

Alternatively, you can also control the volume via your device.

1. Technical data

Bluetooth® earphones
Bluetooth technology Bluetooth	® v5.1
Profiles supported A2DP V1.3,	AVRCP V1.5, HFP V1.5, SPP V1.0
Frequency for Bluetooth transmissions	2402 - 2480 MHz
Range < 10 m
Rechargeable battery
Battery type 3.7 V Li polymer
Min. capacity Earphones / charging box	43mAh / 290mAh
Power consumption max. 5 V	220mA ---
Charging time / earphones ~ 1.5 - 2 h
Charging time / charging box ~ 1.5 - 2 h
Standby * ~ 150 h
Music time (charging box)* ~ 7 h (28h)
Talk time (charging box)* ~ 5 h (20h)
Weight of earphones	approx. 4 g per earphone
Weight of charging tray incl. earphones	approx. 40g

* Once fully charged

9. Care and maintenance

Only clean this product with a slightly damp, lint-free cloth and do not use aggressive cleaning agent

10. Warranty disclaimer

Hama GmbH & Co KG assumes no liability and provides no warranty for damage resulting from improper installation/mounting, improper use of the product or from failure to observe the operating instructions and/or safety notes.

11. Service and Support

Please contact Hama Product Consulting if you have any questions about this product.

Hotline: [phone] (German/English)

Further support information can be found here: www.hama.com

12. Recycling information

Note on environmental protection:

After the implementation of the European Directives 2012/19/EU and 2006/66/EU in the national legal system, the following applies:

Electrical and electronic devices as well as batteries must not be disposed of with household waste. Consumers are obliged by law to return electrical and electronic devices as well as

batteries to the designated public collection points or to the point of sale at the end of their service. Detailed information on this topic is defined in the national laws of the respective country. This prese of the above symbol on the product, operating instructions or package indicates that the product is subject to these regulations. By recycling, reusing the materials or other forms of utilising old devices/batteries, you are making an important contribution to protecting our environment.

13. Declaration of Conformity

CE Hama GmbH & Co KG hereby declares that the radio equipment type [00184067, 00184068, 00184074, 00184075, 00184076, 001884077] is in compliance with Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following Internet addre www.hama.com->00184067, 00184068, 00184074, 00184075, 00184076, 001884077-> Downloads.

Frequency band(s) 2402MHz - 2480MHz

Maximum radio-frequency power transmitted 2.5mW E.I.R.P.

Simple line drawing of a cup with two handles and a lid (no text or symbols)

Line drawing of two types of wireless earbuds (no text or symbols)

3 Akkukapazität

Ladebox

Simple line drawing of a cup with two handles and a lid (no text or symbols)

Line drawing of two types of wireless earbuds (no text or symbols)

Remarque - Google Assistant

Simple line drawing of a cup with two handles and a lid (no text or symbols)

Line drawing of two types of wireless earbuds (no text or symbols)

Nota - Google Assistant

Illustration of various electronic devices including a hardcover, warning sign, open book, and earbuds (no text or symbols present)

3 Accucapaciteit

Oplaadbox

1 Controleer de status van de status-led (3)

Simple line drawing of a cup with two handles and a lid (no text or symbols)

Line drawing of two types of earbuds (no text or symbols)

Simple line drawing of a container with two handles and a handle (no text or symbols)

Line drawing of two types of wireless earbuds (no text or symbols)

Simple line drawing of a cup with two handles and a lid (no text or symbols)

Line drawing of two types of wireless earbuds (no text or symbols)

3 Akkukapacitás

Töltödoboz

Simple line drawing of a cup with two handles and a lid (no text or symbols)

Line drawing of two types of wireless earbuds (no text or symbols)

Indicatie – Google Assistant

Simple line drawing of a cup with two handles and a lid (no text or symbols)

Line drawing of two types of earbuds (no text or symbols)

Simple line drawing of a cup with two handles and a lid (no text or symbols)

Line drawing of two types of earbuds (no text or symbols)

3 Kapacita batérie

Nabíjací box

Simple line drawing of a cup with two handles and a lid (no text or symbols)

Line drawing of two types of wireless earbuds (no text or symbols)

3 Capacidade do acumulador

Caixa carregadora

1 Verifique o estado do LED de estado (3)

Se o LED de estado (3) de um auricular piscar de forma intermitente e se apagar de seguida:

Simple line drawing of a cup with two handles and a lid (no text or symbols)

Line drawing of two types of wireless earbuds (no text or symbols)

3 Batterikapacitet

Laddningsbox

Information – Google Assistant

Simple line drawing of a handbag with two handles and a handle, no text or symbols present.

Line drawing of two types of earbuds (no text or symbols)

Simple line drawing of a container with two handles and a handle (no text or symbols)

Line drawing of two types of earbuds (no text or symbols)

3. Указания за безопасност

1 Проверете статуса на светодиода за статус (3)

Simple line drawing of a cup with two handles and a lid (no text or symbols)

Line drawing of two types of earbuds (no text or symbols)

Simple line drawing of a cup with two handles and a lid (no text or symbols)

Line drawing of two types of earbuds (no text or symbols)

Batarya kapasitesi

Şarj kutusu

Simple line drawing of a cup with two handles and a lid (no text or symbols)

Line drawing of two types of earbuds (no text or symbols)

3 Akun kapasiteetti

Latauskotelo

1 Tarkista tila-LEDin (3) tila.
