USER MANUAL LARY Air&Me

CAUTION, RISK OF FIRE

• Make sure the unit is in the upright position for at least 24 hours before turning it on.
• Make sure that the product is placed on a dry flat surface.
• Leave at least 50cm behind, around and in front of the appliance and make sure that the air inlet and outlet are not obstructed.
• Make sure the removable filter and the tank are properly positioned and pushed in.
• Do not remove the float from the tank because it will prevent the appliance from starting.
• If you want, you can add rubber shock absorbing pads under the dehumidifier to reduce vibrations, noise and marks on a wooden floor.

REFRIGERANT GAS NOTE FOR THE APPLIANCE: R290 - 60 G

Extremely flammable gas. Contains gas under pressure; may explode if heated.

Precautionary statements: Keep away from heat, sparks, open flames, hot surfaces, in a nonsmoking environment. In case of fire gas leak: Do not extinguish unless the leak can be stopped safely. Eliminate all sources of ignition if it is safe. Store in a well-ventilated area.

• Do not exceed an impedance of more than 0.236 .
• Only persons who have an accredited body and certify their competence in handling copyright in accordance with the sector's legislation, must work on the refrigerant circuit.
• Ally are add to a guidelines to available.
• The maintenance and treatment of the general gas flammables.
• Do not puncture the components of the refrigerant circuit.
• Be careful, the refrigerant gas may be odorless.

VORSICHTSMASSNAHMSN

VOORZORGSGMAATREGELEN

Dimensions (H x L x P) 500 x 280 x 200 mm

Poids net 12kg

ACCESSIONE (NON-INCLUS)

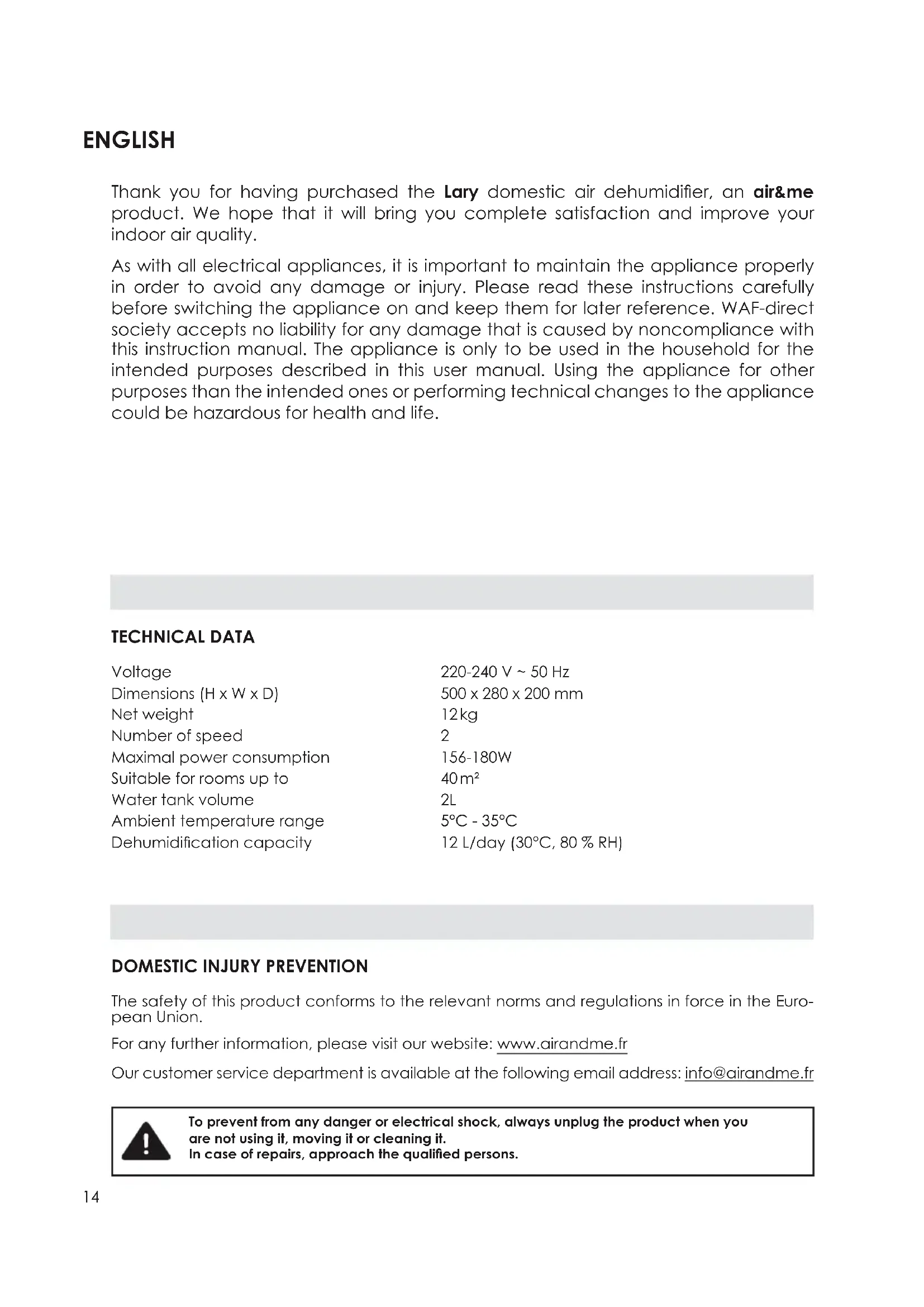

Thank you for having purchased the Lary domestic air dehumidifier, an air&me product. We hope that it will bring you complete satisfaction and improve your indoor air quality.

As with all electrical appliances, it is important to maintain the appliance properly in order to avoid any damage or injury. Please read these instructions carefully before switching the appliance on and keep them for later reference. WAF-direct society accepts no liability for any damage that is caused by noncompliance with this instruction manual. The appliance is only to be used in the household for the intended purposes described in this user manual. Using the appliance for other purposes than the intended ones or performing technical changes to the appliance could be hazardous for health and life.

TECHNICAL DATA

Voltage 220-240 V ~ 50 Hz

Dimensions (H x W x D) 500 x 280 x 200 mm

Net weight 12kg

Number of speed 2

Maximal power consumption 156-180W

Suitable for rooms up to 40m^2

Water tank volume 2L

Ambient temperature range 5^ - 35^

Dehumidification capacity 12 L/day (30°C, 80% RH)

DOMESTIC INJURY PREVENTION

The safety of this product conforms to the relevant norms and regulations in force in the European Union.

For any further information, please visit our website: www.airandme.fr

Our customer service department is available at the following email address: [e-mail]

To prevent from any danger or electrical shock, always unplug the product when you are not using it, moving it or cleaning it.

In case of repairs, approach the qualified persons.

IMPORTANT SAFETY INSTRUCTIONS

1. Please read all the instructions carefully before using Lary.
2. Any use that is not recommended by the reseller can lead to fire, power surge or can hurt people.
3. Remove the packaging and make sure that Lary is not damaged. If in doubt, do not use the appliance and contact your reseller.
4. Do not let children play with the different pieces of the packaging.
5. Before using Lary, make sure that the voltage indicated on the product is in accordance with your electrical installation.
6. Pay special attention when using the appliance near a child.
7. Using an extension electric cable can create overheating and fire.
8. Do not pull on the power cord to unplug the appliance. Always unplug Lary by holding and pulling on the socket.
9. Do not insert object inside the fan. It can cause electrical shock or damage the appliance. Do not cover or put objects that can obstruct the air flow.
10. Always unplug Lary when you are not using it.
11. Never use Lary if it can fall into a liquid.
12. During operation, leave at least 20cm behind, around and in front of the appliance.
13. Make sure the product is on a dry flat and horizontal surface.

14. Do not use Lary outdoors.

15. Always unplug Lary when moving it.

16. Keep the product clean and in good condition.
17. Only use the recommended spare parts (non official parts could be dangerous and invalidate the warranty).
18. Store Lary in a dry and safe place, away from children.
19. If the power cord is damaged, it can be changed by the reseller. Only qualified persons can make this repair.
20. This product cannot be used by children less than 8 years old. Please read carefully this user manual and use Lary with caution.

COMPONENTS (SEE PAGE 2)

① Air outlet
② Digital display
③ ON/OFF button
Pre-filter
⑤ Air inlet

Continuous drainage outlet
⑦Tank
Tank handle
Multidirectional casters
10 Continuous drainage hose

DIGITAL DISPLAY (SEE PAGE 2)

Hygrosmart Function
Clothes dryer mode
Night mode
Fan operating indicator light
"Full tank" alert

Display of the humidity rate of room air:

• Between 40 and 60% , the display is green to indicate an ideal humidity rate.
• Below 40% , the display is blue to indicate a too dry air.
• Above 60% , the display is red to indicate a too humid air.

USE PRECAUTIONS

• Make sure the product is placed on a dry, level surface.
• Leave at least 50~cm space behind, on the sides and in front of the unit.
• Make sure that the removable filter and the tank are correctly positioned and depressed.
• Do not remove the float from the tank, as this will prevent the unit from starting.

OPERATING INSTRUCTIONS

Make sure that the product is placed on a dry flat surface. Leave at least 20cm behind, around and in front of the appliance. Make sure that the pre-filter and the tank are correctly placed.

1. Plug the appliance.

2. Press the ON/OFF button:

3. The digital display will flicker during the stabilisation time and then, it will display the humidity rate of the room air.

4. Lary automatically starts in HYGROSMAR® FUNCTION.

5. Press ON/OFF twice to select "CLOTHES DRYER" MODE.

6. Press ON/OFF a third time to select NIGHT MODE.
7. Press ON/OFF for a long time to turn the appliance off. The fan will stop after 30 seconds.

MAIN FUNCTIONS

A HYGROSMART FUNCTION: This mode allows you, at maximum speed, to maintain an ideal humidity level in the air (between 47% and 53% ). When the humidity level is below 47% , the unit goes into standby mode: the compressor stops immediately and the fan stops after 30 seconds. If the humidity level is above 53% , the appliance automatically switches on again; the compressor starts up again 3 seconds after the fan.
CLOTHES DRYER MODE: In "clothes dryer" mode, the appliance works at maximum speed. It is the perfect mode for laundry drying which needs significant air dehumidification.
© "NIGHT" MODE: Identical to the Hygrosmar® function, this mode allows you to maintain a humidity level between 47 and 53% . However, the appliance works more quietly, at low speed, and it does not produce sound signal once the tank is full.

TANK DRAIN (SEE PAGE 3)

"FULL TANK" ALERT: The appliance produces a sound signal once the tank is full. The appliance turns off and the indicator becomes red. To empty the tank:

① Turn off the appliance and pull out the tank using the handle provided.
② Drain the condensate.
③ Reposition the tank.
④ Press the ON/OFF button and choose the desired operating mode.

The dehumidifier is equipped with a tank positioning sensor. As a matter of security, the product turns off if the tank is missing or not properly placed.

ADDITIONAL FUNCTIONS (SEE PAGE 3)

CONTINUOUS DRAINAGE: Thanks to the continuous drainage hose, the appliance will work independently without having to empty the tank. Make sure the hose is not bent and that it is placed on a downward slope so that water can easily drain away. Do not modify or extend the drainage hose.

① Remove the tank.
② Connect the drainage hose.
③ Pass the hose through the opening provided for this purpose before repositioning the tank.

NEGATIVE IONISATION: For your well-being, when it is in operation, the appliance diffuses negative ions into the room. These are created by the corona effect, i.e. an electric current rich in negative ions is applied to very fine carbon fibres. This means that your air dehumidifier DOESN'T produce ozone.

AUTOMATIC ANTIFREEZE FUNCTION (DEFROST): The appliance automatically enters in defrost function if the ambient temperature is between 5^ and 15^ . Every now and then, the compressor stops but the fan continues to work.

MAINTENANCE

CLEANING THE PRE-FILTER: The pre-filter captures dust and extends the appliance efficiency. It is recommended to clean it every month. Unclip the pre-filter and clean it with warm water and a soft brush.

CLEANING THE APPLIANCE:

1. Unplug the appliance before doing any manipulation.
2. Do not immerse the appliance into water or any other liquid.
3. Do not use corrosive, abrasive or flammable products to clean the appliance.
4. Use a soft cloth to remove dust at the air inlets and outlets.
5. To avoid calc deposit, clean the tank at least once a month with an appropriate product or with white vinegar.

STOCKAGE:

To avoid any bacteria or virus proliferation, never store the appliance with water inside the tank and be sure that the appliance is perfectly dry.

1. Empty and clean the tank.
2. Clean the pre-filter.
3. Store the product in a place that is protected against dust and that is clean and dry.

ACCESSORY (NOT INCLUDED)

In order to empty the tank in a high level drain, you can easily add the Pump It Up by air&me lift pump in Lary's tank. Small and easy to handle, it is easy to install and enables the dehumidifier to work independently.

PUMP IT UP

www.airandme.fr/en

FAQ

Circumstance Reason Solution
The product does not work	> The product is not correctly plug or there is an electrical problem.	> Plug the socket correctly and check the voltage and the good functioning of your electrical system. Avoid multi sockets.
	> There is a problem on the electrical system of your house.
	> The tank is full. > Empty the tank.
	> The tank is not properly placed.	> Push and place the tank properly.
Drop in the appliance performance (less water in the tank)	> The pre-filter is dirty what obstructs the air flow.	> Clean the pre-filter.
	> The air inlet or outlet is obstructed by something.	> Leave at least 20cm behind, around and in front of the appliance.
	> Temperature is too low.	> Below 15°C the product works in Defrost Mode. It cannot therefore dehumidify to a maximum of its capacity.
	> Humidity rate is already low.
Abnormal noise	> Something obstructs the fan.	> Make sure that no object obstructs the air flow.
	> The product has a functioning problem.	> Contact your reseller for service support.
E2 display	> Hygrometry sensor problem.	> Contact your reseller for service support.
LO display	> The ambient humidity is less than 35%. The device stops for safety.	> Increase the room humidity rate with an air humidifier (www. airandme.fr/en/air-humidifier).
HI display	> The ambient humidity level is greater than 95%. The device stops for safety.
CL display	> The ambient temperature is below 5°C. The device stops for safety.	> Increase the room temperature with a space heater (www. airandme.fr/en/fan-heater-air).
CH display	> The ambient temperature is above 35°C. The device stops for safety.

DEUTSCH

VOORZORGSGMAATREGELEN

SÄILION TYHJENNYS (KATSO SIVU 3)

LISÄTOIMINNOT(KATSO SIVU 3)

The appliances are under warranty for a 2-year period from the purchase date. The warranty covers all failures resulting from hidden manufacturing or raw material defects. This warranty does not cover failures or damages resulting from an inadequate setup or usage, or from the normal wear and tear of the product. Spare parts are also available for a period of 2 years after the date of purchase.

Air&me cannot be held liable in case of an inadequate or dangerous use of the products.

DEEE

Disposal of Electric and Electronic Equipment (Applicable in the countries of the European Union and other European countries with separate collection systems appropriate). This symbol on the product indicates that this product shall not be treated as household waste. It should be handed over to the applicable collection point for the recycling of EEE (Electrical and Electromagnetic Equipment). By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health. The recycling of materials will help to conserve natural resources. For additional information about recycling of this product, please contact the municipality, the waste or the retailer.

Garantie
