GotaKid - Humidifier Air&Me - Free user manual and instructions

Product type	Cold mist humidifier
Brand	Air&Me
Model	GotaKid
Dimensions (H x W x D)	404 x 230 x 230 mm
Net weight	1.57 kg
Power consumption	30 W
Tank capacity	3 L
Maximum efficiency area	30 m²
Noise level	≤ 35 dB
Humidity control	Electronic hygrostat with HygroSmart® function
Power settings	Variable speed (Off / Min / Max)
Additional functions	HygroSmart® (automatic regulation), integrated night light
Automatic shut-off	Yes, when tank is empty
Power supply	220 - 240 V
Base material	ABS (use of essential oils not recommended)
Cleaning and maintenance	Clean the tank with fresh water every 72 hours; weekly descaling with white vinegar; clean the ultrasonic plate with a soft brush
Storage	In a dry place, in original packaging, away from high temperatures
Warranty	2 years against manufacturing defects (upon presentation of the invoice)
Spare parts available	Yes, for 2 years after purchase
Optional accessory	Filter cartridge (screws into the tank cap)
Child safety	Appliance and cord out of reach of children under 8 years; use under supervision for ages 8+

Frequently Asked Questions - GotaKid Air&Me

How to fill the tank of the GotaKid?

Lift the tank from the top, turn it over and unscrew the cap (follow the WATER arrow). Fill with cold water only, then screw the cap back on and place the tank back on the base using the float as a guide.

How to activate the HygroSmart® function?

Press the corresponding side button once: the green button lights up. The automatic humidity regulation is then active. Press again to deactivate.

What to do if the device does not produce moisture?

Check that the power cord is plugged in, the tank is correctly positioned and contains water. Make sure the power variable control is not set to the minimum position.

How to clean the humidifier?

Unplug the appliance. For daily maintenance, empty and rinse the tank with fresh water. For weekly descaling, fill the tank with 200 mL of water and 30 mL of white vinegar, let it sit for 15 minutes, then rinse and dry. Also clean the ultrasonic plate with a soft brush.

Can essential oils be used with the GotaKid?

No, the use of essential oils is strongly discouraged because the base is made of ABS. Damage caused by essential oils is not covered by the warranty.

Why is there condensation around the device?

At full power, the mist can create condensation, especially if the device is near a cold surface. To avoid this, reduce the diffusion power or place the humidifier on a piece of furniture more than one meter high.

What to do in case of abnormal noise?

An abnormal noise may be due to a lack of water in the tank or an unstable surface. Check the water level and place the device on a flat, stable surface.

How to maintain the filter cartridge?

The filter cartridge screws into the inside of the tank cap. It should be replaced at least once a year, depending on the frequency of use and water hardness.

Is the humidifier suitable for a child's room?

Yes, but with precautions. The device must be placed out of reach of children under 8 years. Children over 8 years can use it under adult supervision.

How to store the humidifier in summer?

Clean it with white vinegar and let it dry completely. Store it in a dry place, preferably in its original packaging, away from high temperatures.

USER MANUAL GotaKid Air&Me

Illustration of a yellow cartoon character with large eyes and a star-shaped design, labeled 'naturel' (no text or symbols on the character itself)

Légende

Vue de dessus

Caractéristiques

Alimentation 220 - 240 V \~ 50 Hz

Humidification 350 mL/h

Technical line drawing of a mechanical component with gears and a curved arrow indicating rotation (no text or symbols)

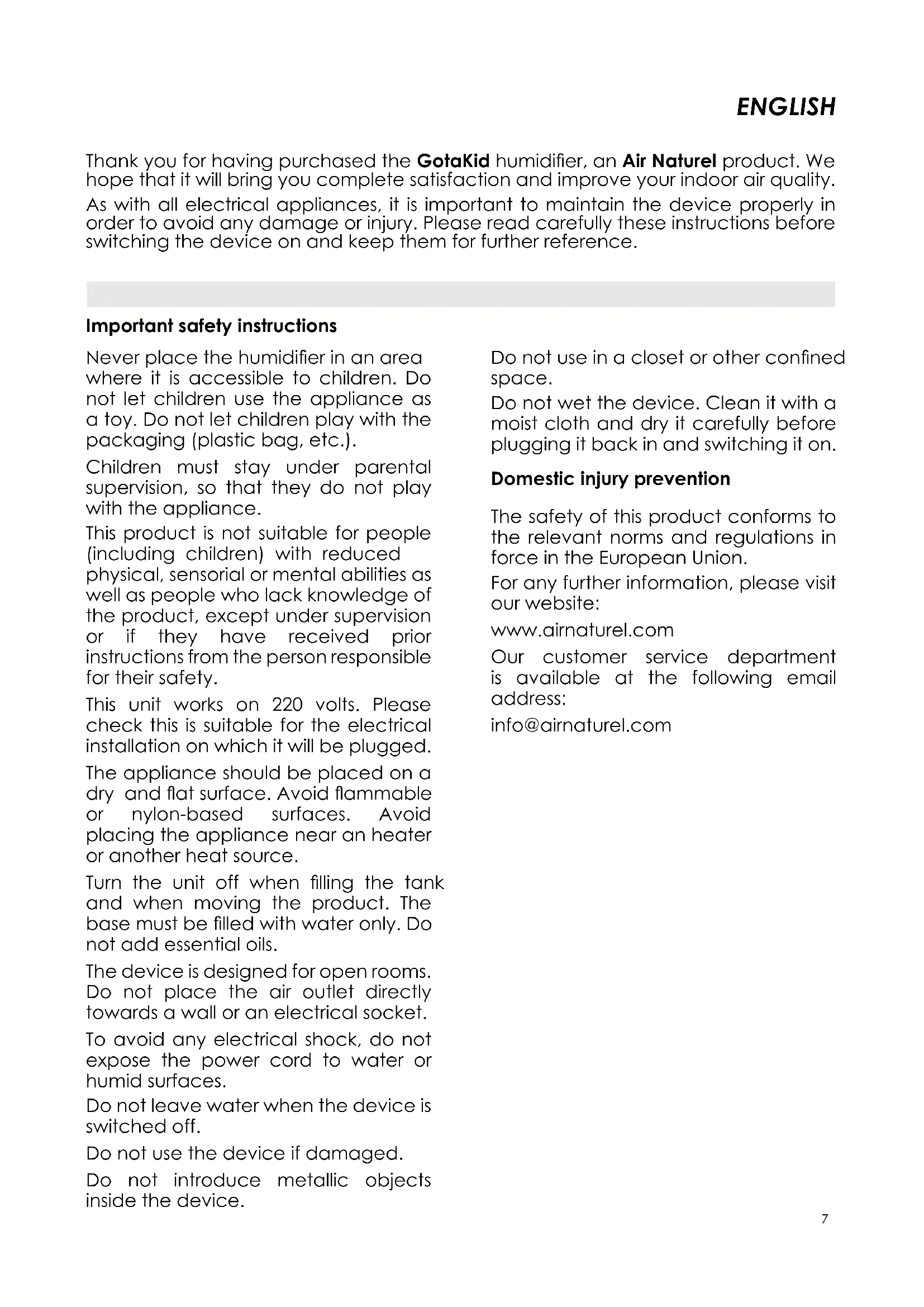

Thank you for having purchased the GotaKid humidifier, an Air Naturel product. We hope that it will bring you complete satisfaction and improve your indoor air quality.

As with all electrical appliances, it is important to maintain the device properly in order to avoid any damage or injury. Please read carefully these instructions before switching the device on and keep them for further reference.

Important safety instructions

Never place the humidifier in an area where it is accessible to children. Do not let children use the appliance as a toy. Do not let children play with the packaging (plastic bag, etc.).

Children must stay under parental supervision, so that they do not play with the appliance.

This product is not suitable for people (including children) with reduced physical, sensorial or mental abilities as well as people who lack knowledge of the product, except under supervision or if they have received prior instructions from the person responsible for their safety.

This unit works on 220 volts. Please check this is suitable for the electrical installation on which it will be plugged.

The appliance should be placed on a dry and flat surface. Avoid flammable or nylon-based surfaces. Avoid placing the appliance near an heater or another heat source.

Turn the unit off when filling the tank and when moving the product. The base must be filled with water only. Do not add essential oils.

The device is designed for open rooms. Do not place the air outlet directly towards a wall or an electrical socket.

To avoid any electrical shock, do not expose the power cord to water or humid surfaces.

Do not leave water when the device is switched off.

Do not use the device if damaged.

Do not introduce metallic objects inside the device.

Do not use in a closet or other confined space.

Do not wet the device. Clean it with a moist cloth and dry it carefully before plugging it back in and switching it on.

Domestic injury prevention

The safety of this product conforms to the relevant norms and regulations in force in the European Union.

For any further information, please visit our website:

www.airnaturel.com

Our customer service department is available at the following email address:

[e-mail]

GotaKid

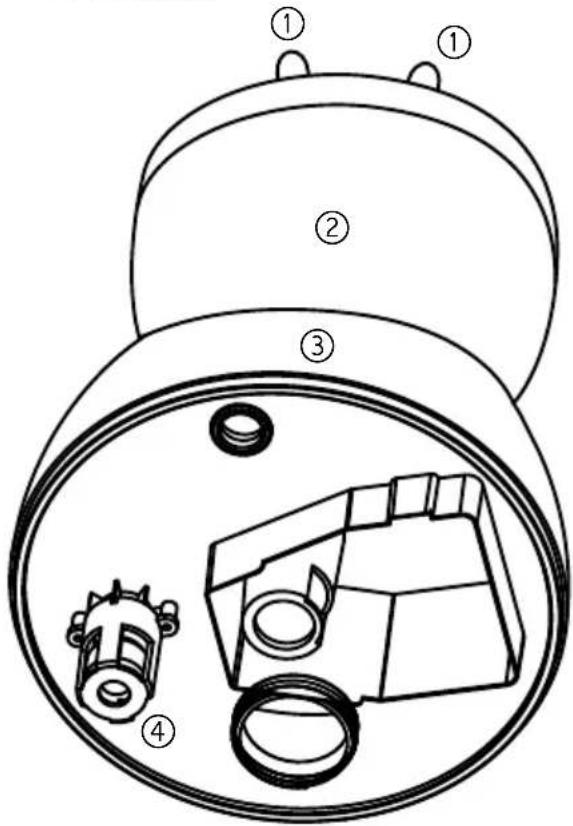

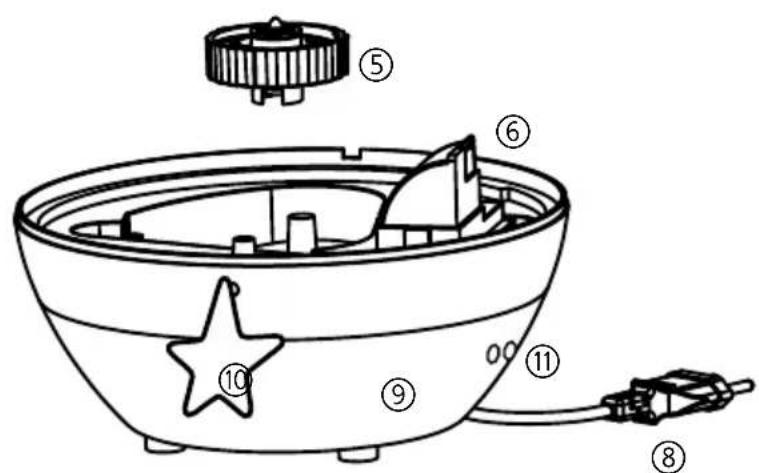

Caption

① Mist outlet
② Device nozzle
③ Water tank
④ Floating switch
⑤Water tank cork
⑥ Fan air outlet
⑦ Ultrasonic membrane
⑧ Power cord
⑨ Housing (base)
⑩ On/off switch, Variable output controller
⑪ HygroSmart® and Night-light knobs
⑫ LED

Diagram of a mechanical device with numbered components (no text or symbols)

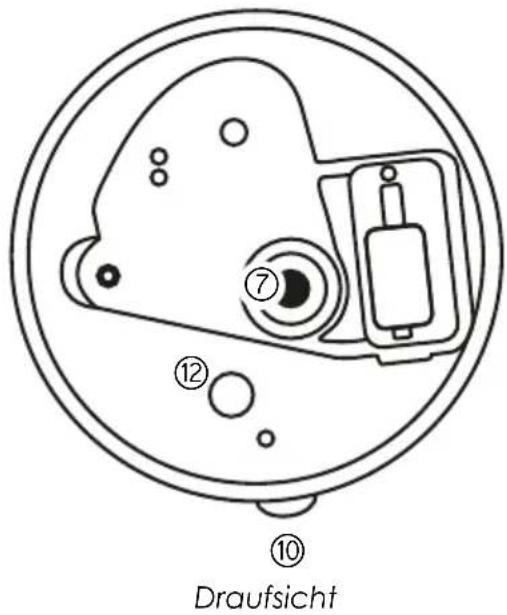

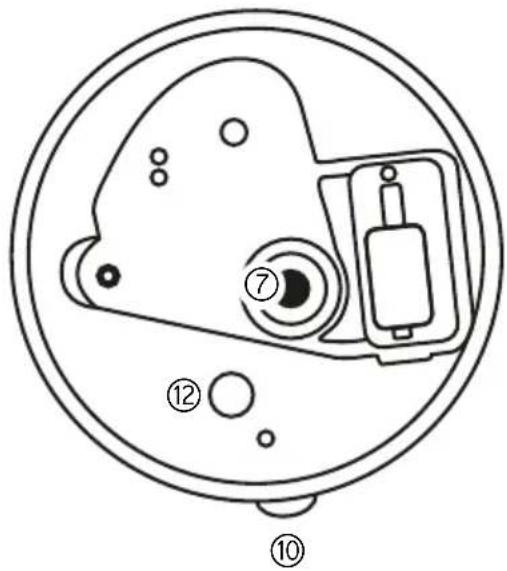

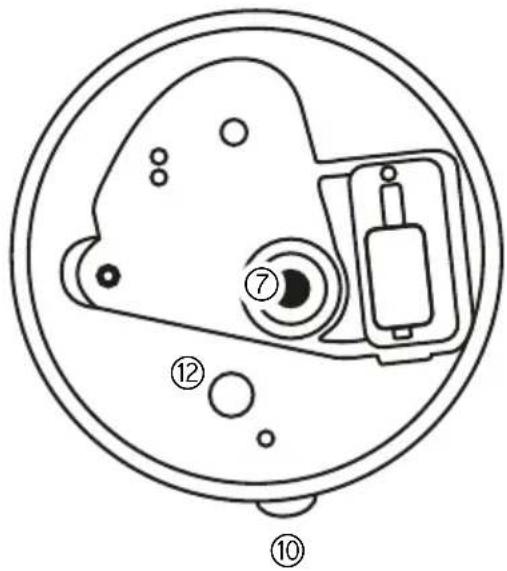

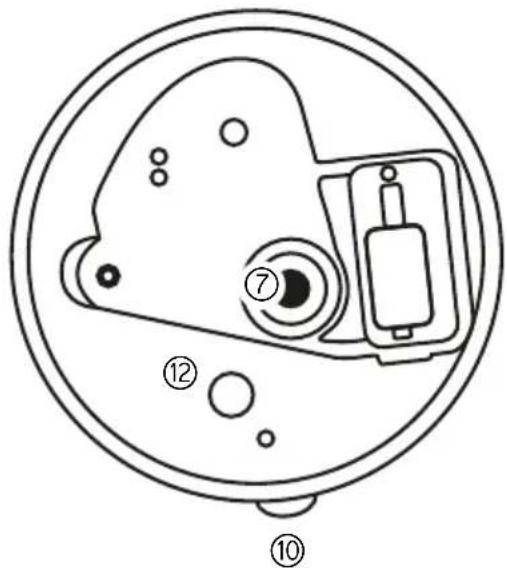

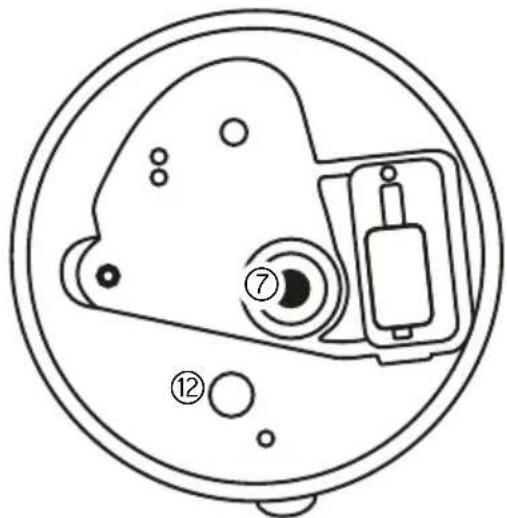

⑩ Plan view

Specifications

Rated voltage 220 - 240 V \~ 50 Hz

Humidification 350 mL/h

Dimensions 404 x 230 x 230 mm (H x L x D)

Weight 1.57 kg

Power output 30 W

Water tank capacity 3 L

Suitable for rooms up to 30 m²

Sound level ≤ 35 dB

Humidity controlled by an electronic hygrostat

HygroSmart® Function - Switchable night light

GotaKid helps in preventing from dry air symptoms by humidifying the ambient air thanks to a thin and cold steam. An air humidifier fights against dried mucus membranes, nose bleeding, rhinitis, eyes picks, skin, dry cough or nocturnal thirsts. In terms of hygiene and comfort, Air Naturel recommends a relative humidity between 40 and 60%.

Starting the GotaKid

A Before switching on the GotaKid device, check that the product is turned off and the front knob is in the «OFF» position.

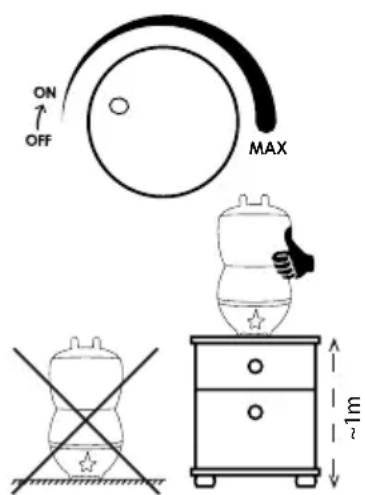

• Place the humidifier on a flat surface, at least 60 cm above the floor and 10 cm from the wall.
• Fill in the tank (see instructions below).

• Plug the cord in an electrical socket.

• Turn the product on using the front knob and select the desired power.

• Press the side controllers to activate the HygroSmart® and night light functions (see “controls” section).
• The GotaKid humidifier switches itself off automatically when the tank is empty.

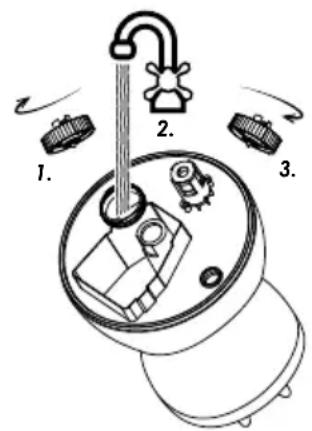

Tank filling

• Remove the tank (upper part of the device).
• Turn over the tank, unscrew the cover (follow the "WATER" arrow) and fill the tank with cold water. Never use hot water as it could create leakage.
• Screw back the cover clockwise.
• Replace the water tank on the device, using the floater as a guide.

Controls

Humidifier output

By turning the variable output controller, you can adjust the humidifier output as you wish.

• Off position : the unit is switched off
• On position: minimum output (sharp sound)
  • Max position : maximum output

Caution : while using the unit at maximum output, it can happen that the steam falls back and creates condensation around the unit which could be wrongly identified as a leak. In order to avoid that, reduce the output level and/or place the humidifier near a heating source, on a furniture more than one meter height.

HygroSmart®

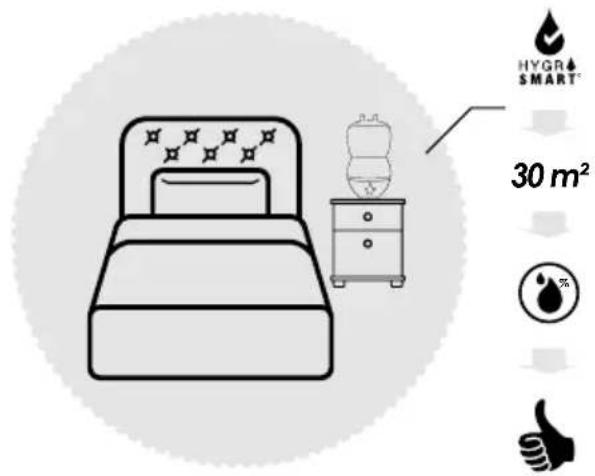

HygroSmart® function allows maximum comfort for the user. When this function is engaged, the unit will automatically control the relative humidity on a comfortable range.

• Press to enable (the green knob lights).
• Press once more to disable (the knob turns off)

Night-light

The built-in night-light sublimates the design of GotaKid thanks to special treatment of its water tank. The soft colour will blends naturally into your interior decoration through the diffused light effect.

• Press to enable (the red knob lights).
• Press once more to disable (the knob turns off)

Caution

• Check that the housing is not swamped.
• Do not use solvents or abrasive products when cleaning the device.
  • The housing is made of ABS plastic, the use of essential oils is not recommended. Any damage

following the use of essential oils will not be covered under warranty.

- Change the water in the tank at least once every 72 hours (in case of occasional usage) in order to avoid any bacteria growth.

Maintenance and storage

Daily maintenance

• Before any operation, unplug the device.
• Empty the water from the tank and rinse off with clear water in order to remove any eventual scale deposit.
  • Dry the tank with absorbent tissue.

Storage

• Clean as previously recommended with a white vinegar-based solution.
• Let the device dry.
• Store in a dry place, preferably in its original packaging. Avoid high temperatures

Weekly maintenance

• Fill the tank with 200 mL of water added with a 30 mL of white vinegar.
• Dry the ultrasonic plate, clean it with a soft brush and wipe it with a soft tissue

Extra products

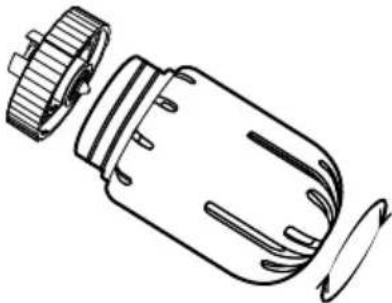

Filtration cartridge

The filtration cartridge prevents scale deposits. It screws itself inside the tank cover and stays immersed in water. It should be replaced once or twice a year depending on usage and water hardness.

Technical line drawing of a mechanical component with gears and a handle (no text or symbols)

The product does not work properly

Situation Solution
The on/off light is on but no mist is produced	Check the power cord.Check that the tank is correctly positioned.
The on/off light is on but no mist is produced	Check that the tank is filled.Check that the power knob is not set at minimum power.
The mist produced has an unpleasant smell.	On a new device, open the water tank and leave it aerated for 12 hours. On a used device, the smell is due to stagnant or dirty water.Clean the tank and the housing thoroughly and replace the water.
The on/off light is on but the device does not work.	Too much water on the ultrasonic plate: remove some water.It may also happen when moving a device full of water.
Mist is produced in insufficient quantity.	Dirty ultrasonic plate: clean the ultrasonic plate.Dirty or stagnant water: clean the tank and change the water.
Abnormal noise.	If the device has insufficient water or is not on a stable surface, a resonance can be heard.
Water leakage.	Check that the tank is tightly screwed and the seal (inside the tank cover) is correctly placed. The seal could have fallen when filling the device. If necessary, clean the cover with water and soap.

Bildunterschrift

Black-and-white pictogram showing four symbols: a brush, a cube, thermometer, and a thumbs-up (no text or labels)

Zubehör

Wasserfilterpatrone

Technical line drawing of a mechanical component with gears and a curved arrow indicating rotation (no text or symbols)

Problem Lösung

Keine

Leggenda

Vista da sopra

Caratteristiche

Voltaggio 220 - 240 V \~ 50 Hz

Black-and-white pictogram showing four symbols: a brush, a cube, a thermometer, and a thumbs-up (no text or labels)

Accessori

Cartuccia filtrante

Technical line drawing of a mechanical component with gears and a housing (no text or symbols)

Leyenda

Vista desde arriba

Características

Alimentación 220 - 240 V \~ 50 Hz

Black-and-white pictogram showing four symbols: a brush, a cube, thermometer, and a thumbs-up (no text or labels)

Technical line drawing of a mechanical component with gears and a housing (no text or symbols)

The appliances are under warranty for a 2-year period from the purchase date. The warranty covers all failures resulting from hidden manufacturing or raw material defects. This warranty does not cover failures or damages resulting from an inadequate setup or usage, or from the normal wear and tear of the product. Spare parts are also available for a period of 2 years after the date of purchase.

Air Naturel cannot be held liable in case of an inadequate or dangerous use of the products.

DEEE

Disposal of Electric and Electronic Equipment (Applicable in the countries of the European Union and other European countries with separate collection systems appropriate). This symbol on the product indicates that this product shall not be treated as household waste. It should be handed over to the applicable collection point for the recycling of EEE (Electrical and Electromagnetic Equipment). By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health. The recycling of materials will help to conserve natural resources. For additional information about recycling of this product, please contact the municipality, the waste or the retailer.

Garantie
