USER MANUAL STM10 H.KOENIG

handheld garment steamerENGLISH

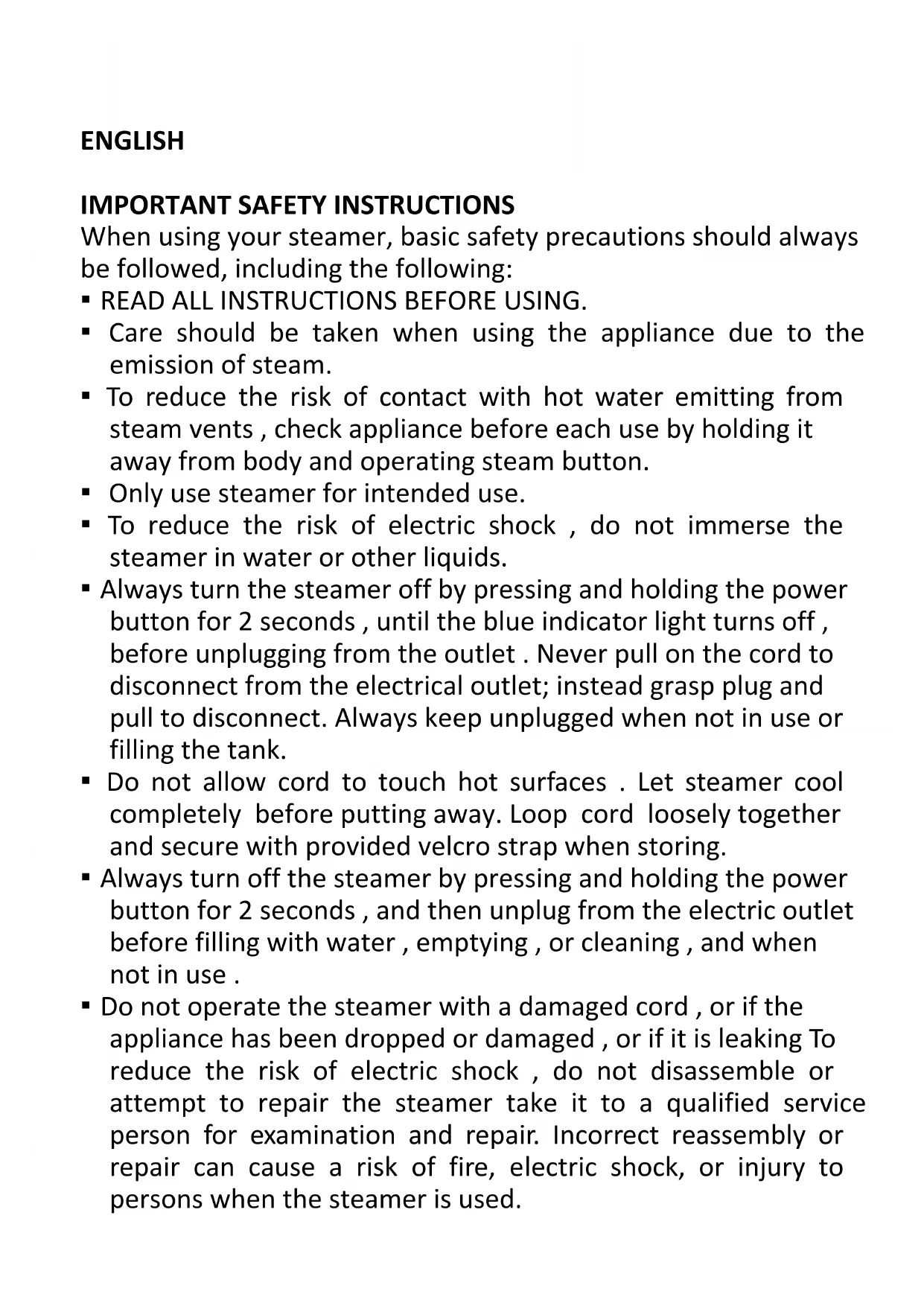

IMPORTANT SAFETY INSTRUCTIONS

When using your steamer, basic safety precautions should always be followed, including the following:

• READ ALL INSTRUCTIONS BEFORE USING.

• Care should be taken when using the appliance due to the emission of steam.

• To reduce the risk of contact with hot water emitting from steam vents , check appliance before each use by holding it away from body and operating steam button.

• Only use steamer for intended use.

• To reduce the risk of electric shock , do not immerse the steamer in water or other liquids.

• Always turn the steamer off by pressing and holding the power button for 2 seconds , until the blue indicator light turns off , before unplugging from the outlet . Never pull on the cord to disconnect from the electrical outlet; instead grasp plug and pull to disconnect. Always keep unplugged when not in use or filling the tank.

• Do not allow cord to touch hot surfaces . Let steamer cool completely before putting away. Loop cord loosely together and secure with provided velcro strap when storing.

• Always turn off the steamer by pressing and holding the power button for 2 seconds , and then unplug from the electric outlet before filling with water , emptying , or cleaning , and when not in use .

• Do not operate the steamer with a damaged cord , or if the appliance has been dropped or damaged , or if it is leaking To reduce the risk of electric shock , do not disassemble or attempt to repair the steamer take it to a qualified service person for examination and repair. Incorrect reassembly or repair can cause a risk of fire, electric shock, or injury to persons when the steamer is used.▪ Close supervision is necessary for any appliance being used by or near children . Do not leave the steamer unattended while connected.

• Burns can occur from touching hot metal parts , hot water or steam . Use care when you turn a steam appliance upside down - there may be hot water in the reservoir. Avoid rapid movement of steamer to minimize hot water spillage.

• To reduce the likelihood of circuit overload , do not operate another high wattage appliance on the same circuit.

• If an extension cord is absolutely necessary , a minimum 12 - ampere cord should be used . Cords rated for less amperage can result in a risk of fire or electrical shock du to overheating. Care should be taken to arrange the cord so that it cannot be pulled or tripped over.

• Do not use outdoors.

• Do not use anything other than water in the steamer while in use or during cleaning.

• Never steam clothing while on a body.

• Never aim the steam directly towards people , animals or plants . The steam is very hot and can results in burns. Burns can occur from touching hot parts (including the steamer head and frames), hot water, or steam.

• Never hold the steam head down while at rest or tilt it in a backward position as this may result in hot water discharge and possibly injury.

• This appliance may be used by persons with reduced physical, sensory or mental capabilities or lack of experience or knowledge, provided that they are supervised or instructed in the safe use of the appliance and that they fully understand the potential hazards.

• To avoid burns , when putting on or taking off attachments , be sure the unit is off and no steam is being emitted.

• Children should be supervised to ensure that they do not play with the appliance.

• The steamer must be used and rested on a stable surface.▪ The steam must not be aimed directly at electrical equipment, mains cables or parts containing electrical components (for example inside ovens, fridges, switches and lights, microwave ovens, screens).

• This appliance may be used by children of at least 8 years of age, as long as they are supervised and have been given instructions about using the appliance safely and are fully aware of the dangers involved.

• Cleaning and maintenance should not be carried out by children unless they are at least 8 years of age and are supervised by an adult.

• Keep the appliance and its power cord out of reach of children under 8 years of age.

• When using electrical equipment, safety precautions must always be taken to prevent the risk of fire, electric shock and/or injury in the event of misuse.

• Make sure that the voltage rating on the typeplate corresponds to your main voltage of your installation. If this is not the case, contact the dealer and do not connect the unit.

• Never leave the unit unattended while in operation.

• The device must not be used if it has been dropped, it obvious signs of damage are visible or if it has leaks.

• Please keep this document at hand and give it to the future owner in case of transfer of your device.

• The device is not intended to be operated by external timer means or a remote control system.

• Your appliance has been designed for domestic use only. It is not intended for use in the following situations which are not covered by the warranty: - in staff kitchen areas in shops, offices and other professional environments, - in farm hostels, - by guests in hotels, motels and other residentialenvironments, - in bed and breakfast type environments. This appliance may be used by children aged 8 and over and by persons with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, provided that they have been placed under supervision or have received instructions concerning the use of the appliance in complete safety and that they understand the dangers involved. Children must not play with the appliance. Cleaning and maintenance by the user must not be carried out by unsupervised children. When using the appliance, be aware of the emission of steam. Unplug device when filling and cleaning; The fabric steamer must not be left unattended when connected to the mains supply. Do not use the device if it has been dropped, shows visible signs of damage or is leaking. Keep the device and its cord out of the reach of children under 8 when it is switched on or cooling.

SAVE THESE INSTRUCTIONS▪

This product is for household use only. Polarized plug Into a mains circuit with voltage between 220V and 240V. Into an earthed electrical socket. Connecting to the wrong voltage may cause irreparable damage to the appliance and will invalidate your guarantee. If using a mains extension lead, ensure that it is correctly rated (16A) with an earth, and is fully extended. TAMPER-RESISTANT SCREW

Warning: this appliance is equipped with a tamper-resistant screw to prevent removal of the outer cover .

To reduce the risk of fire or electrical shock, do not attempt to remove the outer cover . There are no user- serviceable parts inside. repair should be done only by authorized service personnel. Note: If the supply cord is damaged, it must be replaced by the manufacturer or its service agent or a similarly qualified person in order to avoid a hazard.1 Plate

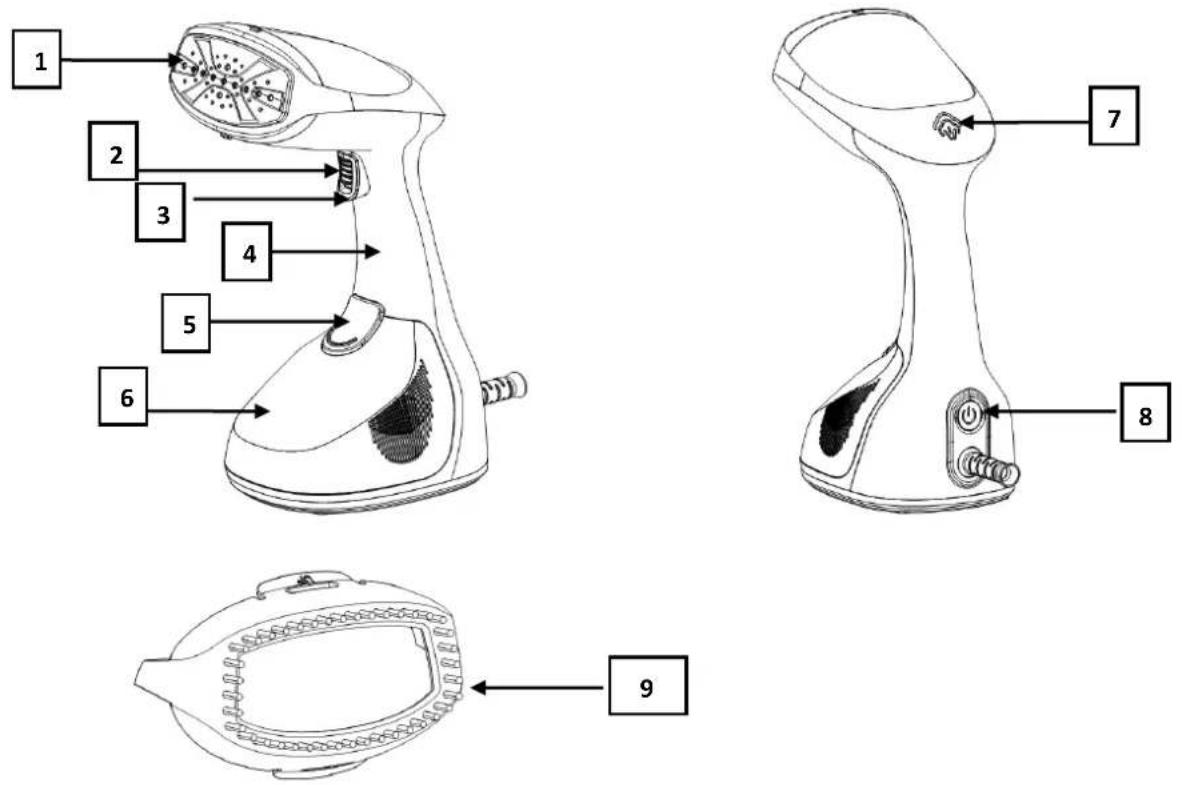

Removable water tank

Continuous steam switch

This product is for household use only. GETTING STARTED

• Remove all labels , tags and stickers attached to the body , or cord of the steamer and the plastic band around the power plug.

• Remove and save literature .

• Read all the instructions before using your steamer . IMPORTANT NOTES

• Using distilled , purified or filtered water is highly recommended to maintain optimal performance . Tap water contains minerals that build up over time.

• Any water droplets visible inside the tank are from individual quality control tests done to ensure every steamer meets our high standards for product performance.

• Do not use perfume , oils , or other additives.

9▪ Always review the garment manufacturers care label instructions before steaming , and always test fabrics forcolorfastness in inconspicuous areas (such as an inseam) . Steamers are not recommended for use on leather, suede, vinyl, plastic, or other steam sensitive fabrics.

• During use the steamer and accessories will become hot . Avoid attaching or removing frames while still hot.

• After preheating , prime water pump by holding the steam trigger until steam forms.

• It is normal to feel or hear the water pump in the handle .

• The water pump may become louder when the water level in the tank is low . Check and refill tank , as needed . BRUSH FRAMES

1. While the frame and steamer are cool, gently attach the top of the frame over the top the steamer head

and then click the bottom of the frame into place. (A) Note: Picture①side up,Frame tab points down when in correct position.

2. Allow steamer to cool prior to removing frame. Gently pull on the tab. (B)

Note: Be careful when removing frames as condensation may build up during use.

Frame Usage Brush frame Garment Care Label: For any garments that call for medium to high heat and allow for use of steam. Tip:Frame helps remove lint, hair, and animal fur.

1 . Place the steamer on its base on a stable surface. 2 . Hold the handle to stabilize and pull out the removable water tank with the other hand. (C) 3 . Gently pull out the rubber water tank cover at the top of the tank. (D) TIP: Using distilled, purified, or filtered water is highly recommended and will reduce mineral buildup. Do not use oils, perfumes, or scented additives. 4 . Using a clean measuring cup, pour water into opening until water reaches the “MAX” level mark on the top of the tank. ( E) do not overfill . Close the rubber cover securely. 5 . Dry off any excess water from the tank. Push water tank back into the steamer base click into place.

B6 . To refill at any time during use, turn steamer off by pressing the power button until the blue indicator light is off, unplug from outlet, and follow the above procedure. Tie: After feiling alo to reheat for 45 seconds and then prime pump by holding steam, trigger until steam forms.

1 . Read the manufacturers fabric label to make sure the fabrics are suitable for steaming.

• If you see “do not iron” or this icon , do not press the plate against the garment. Instead, attach the delicate fabric frame and make sure to test on an inconspicuous area prior to steaming the entire garment.

• If you see “do not steam” or this icon , do not steam the garment. 2 . Refer to the “Attaching Frames” section for determining whether to use a frame. Attach or remove frames while the steamer and frames are cool. 3 . Plug the steamer into an outlet and then press the power button. (F) The blue power button light will slowly blink, indicating that the steamer is heating. 4 . After about 35 seconds the power light will stay on, indicating the steamer is preheated. 5 . Prime the water pump by holding steam trigger until steam forms. 6 . To generate steam, press down on the steam trigger with your index finger. (G) As long as the trigger is held down, steam will emit from the steamer. When the trigger is released, the steam will stop.

• To generate a constant flow of steam without holding the trigger , press the steam trigger and then slide the continuous steam switch down .(H) This will activate the continuous steam feature. To turn the steam off, press the trigger, push the continuous steam witch up and then release trigger. Note: It is normal to feel of hear the water pump in the handle.

8. To iron using the plate with the ironing pad, start steaming and then lightly press the metal plate against

the garment on the ironing pad.( M ) Drag the plate up and down the fabric, being careful to keep hands away from the steam and never leaving the plate in one section for too long; similar to how an iron is used. Note if the steamer is left inactive, the auto shut-off feature will activate, indicated by the rapidly blinking Power button. to resume steaming after the auto shut-off is activated , either press the steam trigger or press the power button . Allow the steamer to preheat if needed. 9 . When finished steaming press and hold the power button until its blue light turns off and unplug from outlet 10 . Stand steamer on its base and allow it to completely cool off before storing to avoid mineral buildup,

Eempty the tank after each use.

F G H M SPECIAL FEATURES Auto Shut-Off The steamer will automatically itch to auto shut-off mode after being left inactive for 15 minutes. The heating plate, boiler, and water pump will turn off until reactivated. To resume steaming, press the steam trigger or power button and wait for steamer to fully reheat. Steam cleaning around the home Using steam to clean household items that can tolerate hot, damp steam without damage is non-toxic, and inexpensive. This natural cleaning method is beneficial to those sensitive to chemical cleaners or trying to reduce chemicals in the home. Steam upholstery, draperies, linens and home textiles to clean and refresh.

This product contains no user serviceable parts. Refer to qualified service personnel.

CLEANING STEAMER EXTERIOR

1 . Make sure steamer is off, unplugged and completely cool. 2 . Wipe the plate and outer surface with soft, damp cloth. Water and small amounts of gentle household soaps, such as dishwashing liquid, can be used on the exterior. Never use heavy-duty cleaner, or abrasive scouring pads that may scratch or discolor the steamer. 3 . After the steamer has been thoroughly dried, turn it back on and lightly steam over an old cloth. This will help remove any reside left in the steam holes. 4 . When finished cleaning, turn the steamer off by pressing the power button until the blue power light turns off (about 2 seconds). Unplug, empty tank, and allow time to cool beforestoring.

5. Unplug the appliance during filling and cleaning.

CLEANING FRAMES AND ACCESSORIES

For all accessories, allow to fully dry before using again or storing Accessories are not suitable for cleaning in a washing machine.

• Brush frame : Wipe with damp cloth to clean.

• Delicate frame : Wash with cold water and small amounts of gentle cleanser if needed . The fabric in the frame cannot be removed.

• Ironing pad : spot treat as needed with cold water and gentle cleanser.

1. Check that the steamer is unplugged and

2. Gather the cord into even ovals and then gently

cinch with the strip of hook and loop .( Q )

3. Always store steamer upright on its base to prevent water

leakage. Tip: emptying the tank after each use is recommended because standing water can leave a residue over time.

STEAMING TIPS AND TRICKS

• This steamer is designed to use distilled , purified , or filtered water . Tap water contains minerals that build up. Using water with perfumes or scented additives is also not recommended.

• Always test garments by steaming a small hidden area to make sure the garment takes well to steam.

• Always read garment care label instructions . Low heat settings require the delicate fabric frame.

• Small amounts of dripping might occur during use . If excessive, either the steamer needs time to get back up to full temperature. Just allow the steamer a minute to reheat.

• Wearing clothes immediately after ironing or steaming can actually create wrinkles . Always allow clothing to cool for about 5 minutes after ironing or steaming to set the press.TROUBLESHOOTING Problem Possible Cause Solution The steamer is plugged in but not heating. There’s a power supply issue. Check that the plug is properly inserted into the outlet or try plugging the steamer into a different outlet. The auto shut-off has activated. Press the steam trigger or press the power button to activate the steamer. Not enough steam or no steam is coming out of the steamer. The steamer isn’t heated up to full temperature. Always allow steamer to preheat at least 35 seconds, or until the power button light is a steady blue. There is not enough water in the water tank. Follow the instructions under the “filling the water tank” section and fill to MAX level marker. The water pump hasn’t been primed. After preheating, always prime the water pump by holding the steam trigger until steam forms to ensure enough water is in the boiler. Discolored water is coming through the holes and staining the fabric. Residue has built up in the water tank or on the plate. Empty the water tank after each use. Only use distilled, filtered, or purified water. Perfumed or scented additives were used. Regularly clean steamer and refrain from using perfumed or scented additives. Steamer is leaking or spitting. Steamer is not hot enough. Allow the steamer to heat for about35 seconds. Water tank is running low. Follow the instructions under the “Filling the Water Tank” section and fill to Max level marker.WARRANTY The warranty period for our products is 2 years. If you have any problems or questions, you can easily access our help pages, troubleshooting tips, FAQ, and user manuals on our service site: https://sav.hkoenig.com. By typing the reference name of your device in the search bar, you can access all available online support, designed to best meet your needs. If you still cannot find an answer to your question or problem, then click on “Did the answer solve your problem?”. This will direct you to the Customer Support Request Form, which you can fill out to validate your request and get help. WARRANTY CONDITIONS The warranty covers all failures occurring under normal use, in accordance with the usage and specifications in the user's manual. This warranty does not apply to packaging or transportation problems during shipment of the product by the owner. It also does not include normal wear and tear of the product, nor maintenance or replacement of consumable parts.

EXCLUSION OF WARRANTY

- Accessories and wearing parts (*). - Normal maintenance of the device. - All breakdowns resulting from improper use (shocks, failure to comply with power supply recommendations, poor conditions of use, etc.), insufficient maintenance or misuse of the device, as well as the use of unsuitable accessories. - Damage of external origin: fire, water damage, electrical surge, etc. - Any equipment that has been disassembled, even partially, by persons other than those authorized to do so (notably the user). - The products whose serial number would be missing, deteriorated or illegible that would not allow its identification. - The products subjected to leasing, demonstration, or exhibition. (*) Some parts of your device, called wear parts or consumables, deteriorate with time and frequency of use of your device. This wear and tear are normal but can be accentuated by poor conditions of use or maintenance of your device. These parts are therefore not covered by the warranty. The accessories supplied with the device are also excluded from the warranty. They cannot be exchanged or refunded. However, some accessories can be purchased directly through our website: https://sav.hkoenig.com/.ENVIRONMENT CAUTION: Do not dispose of this product as it has with other household products. There is a separation of this waste product into communities, you will need to inform your local authorities about the places where you can return this product. In fact, electrical and electronic products contain hazardous substances that have harmful effects on the environment or human health and should be recycled. The symbol here indicates that electrical and electronic equipment should be chosen carefully, a wheeled waste container is marked with a cross. Adeva SAS / H.Koenig Europe - 8 rue Marc Seguin, 77290 Mitry-Mory, France www.hkoenig.com - https://en.hkoenig.com - Tél: +33 1 64 67 00 05FRANÇAIS
