USER MANUAL V32 H.KOENIG

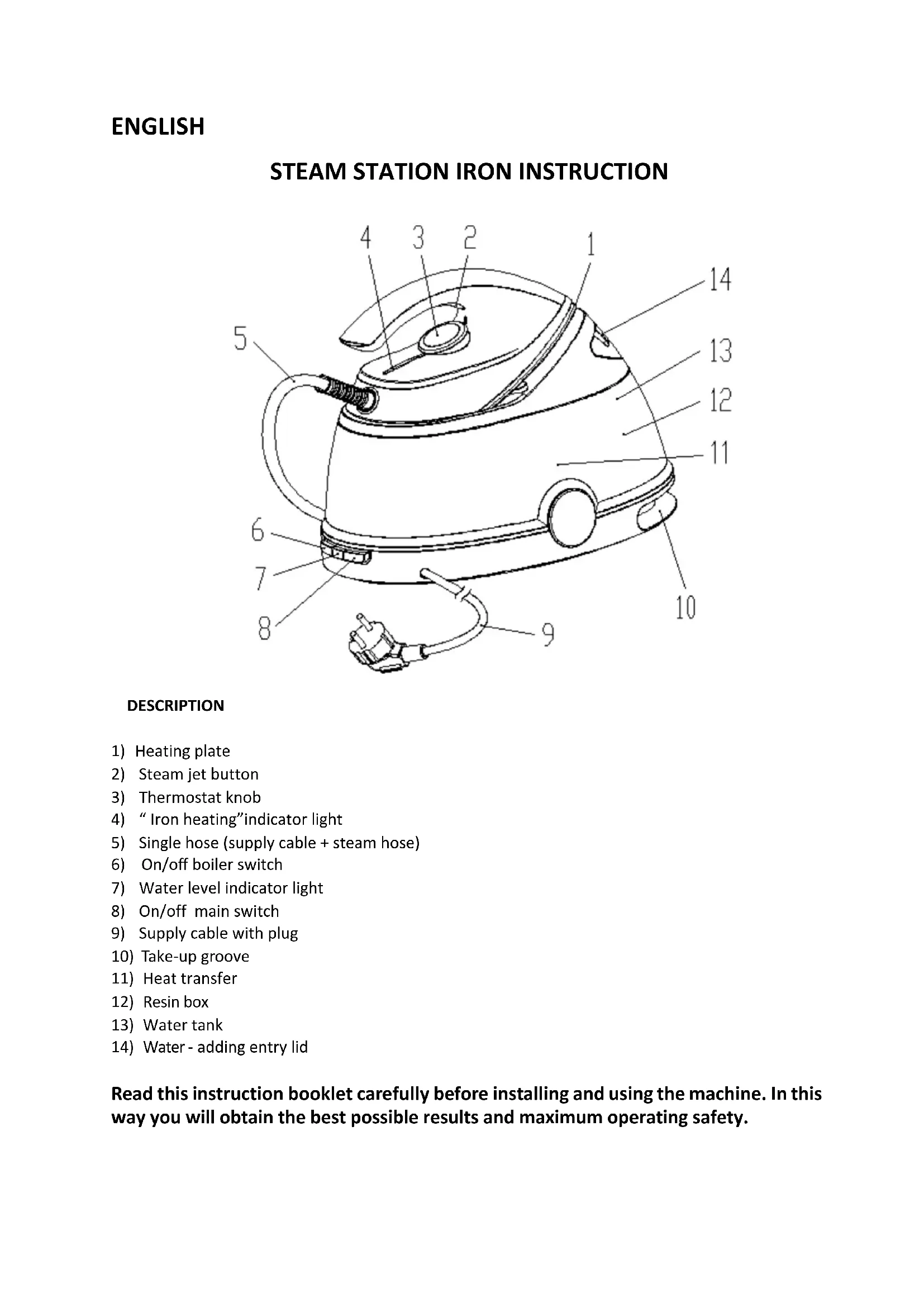

5) Single hose (supply cable + steam hose)

6) On/off boiler switch

9) Supply cable with plug

Read this instruction booklet carefully before installing and using the machine. In this way you will obtain the best possible results and maximum operating safety.Safety warnings Read the following instructions carefully: - Before use, check that the power supply corresponds to the voltage shown on the serial number plate. Connect the appliance only to a properly earthed power outlet (minimum 10A). - In the event of incompatibility between the plug and you socket, have the socket replaced by a qualified electrician. - The electrical safety of this appliance is only guaranteed when it is properly earthed according to current electrical safety regulations. The manufacturer declines all responsibility for any damage resulting from inadequate earthing of the appliance. If in doubt, consult a qualified electrician. - Do not leave water in the machine when the room temperature is 0℃ or below. - After unpacking, check the appliance for damage if in doubt, do not use the appliance; contact a qualified technician. - Packaging materials (plastic bags, polystyrene foam, etc.) are a potential source of danger and must be kept out of reach of children. It is inadvisable to use adapters, multiple sockets and/or extensions. In cases in which this is unavoidable, always use adapters, multiple sockets and extensions which comply with current safety regulations. Do not exceed the maximum power rating shown on the adapter. - This appliance is designed for domestic use only. Any other use of the appliance is considered improper and therefore dangerous. - The manufacturer declines all responsibility for any damage resulting from improper, incorrect or careless use of the appliance. - When using any electrical appliance, a few basic rulesshould be observed: - If the supply cord is damaged, it must be replaced by the manufacturer or its service agent or a similarly qualified person in order to avoid a hazard. - This appliance is not intended for use by persons (include children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. In particular: - Do not touch the appliance with wet or damp hands or feet. - Do not use the appliance in bathrooms. - Do not pull the supply cable or the appliance to remove the plug form the socket. - Do not leave the appliance exposed to atmospheric agents (rain, sun, frost, etc.). - Do not allow the appliance to be used by children or irresponsible persons unless under supervision. - Do not immerse the appliance in water. - Do not leave the iron unattended when it is switched on, as this may be a source of danger. - Before carrying out any cleaning or maintenance operations, always disconnect the appliance from the mains power supply by removing the plug . - In the event of failure or malfunction, switch off the appliance and do not attempt to carry out repairs. Contact an authorized Service Centre and insist on original spare parts. Failure to observe the above points may affect the safety of the appliance. - Should you decide not to use the appliance again, remove the plug from the socket and cut the supply cable to render the appliance completely inoperative. - The supply cable must not be replaced by the user, as thisrequires the use of special tools, if the supply cable is damaged, contact an authorized Service Centre. - Do not allow the supply cable to come into contact with the ironing plate. - If the safety cut-out intervenes, the iron will no longer function. To restore normal operation. Contac a qualified electrician. - Never direct the steam jet in the direction of persons, as this may be extremely dangerous. - Do not use the iron on very wet fabrics. - Do not place the iron to the person on the stand when the plate is hot. - Do not overfill the water tank and do not add stain- removers of similar products to water. - Remove the plug from the mains socket when the appliance is not in use. Do not leave the appliance switched on unnecessarily. - EEC Directive 87/308(D.M. 13/04/89)。Keep this booklet in safe place for future reference. This appliance complies with EEC Directive 87/308(D.M. 13/04/89) regarding the suppression of radio disturbance

The appliance uses ordinary tap water. If the water is very hard (hardness higher than27 degrees French).we suggest using distilled or de- mineralized water. Before using equipment, open the flap of water (14), added just the right amount of water to the water tank (13), first is less than the MAX water level. Connect the appliance to the power supply. Press the main switch (8) and the boiler switch(6) ,the indicator light of the master switch (8) and the boiler switch(6) lights up to indicate that the heat transfer and the iron are switched on. Select the desired temperature by turning the thermostat knobs(3).The colored part indicates the steam ironing sector. It takes about 90 seconds. While the iron heating indicator light (4) goes off, the machine is ready to deliver steam.

INSTRUCTIONS FOR UES

Cheak the manufacturer’s label on the garment, and interpret the symbol on the label as followsSTEAM IRONING When using the iron for the first time, iron a plain cloth first. It takes about 30 secs to obtain steam after pressing the steam jet button (2). NOTE:It is normal, keeping a little steam for a moment comes out of the iron soleplate, when release the steam jet button (2) after. CAUTION! Please don’t cut off the power immediately if there is still steam from the soleplate. You must wait till no steam comes from the soleplate and then cut off the power. Otherwise, when you turn on power next time, steam or water droppings will come out. This appliance is also able to generate steam in a vertical position and can therefore be used to refresh fabrics easily with a jet of steam. If the production give the buzzer and at the same time the water level indicator light(7) flashes while you are ironing , this means that there is no water inside the water tank(13). To continue ironing. Please pour enough water in the water tank (13).Once the water tank is filled again the buzzer will stop and the water level indicator light (7) will goes off. DRY IRONING Connect the appliance to the mains supply, only press the master switch (8), the master switch (8) indicator light lights up, then select the desired temperature by turning the thermostat knob(3).Wait until the iron heating indicator light(4) goes off, indicating that the desired temperature has been reached.

PUTTING THE APPLIANCE AWAR

After use, always allow the iron to cool before putting it away. - Empty the water tank. - Position the Steam flexible hose- Power cable get together in the base of the appliance（10）. - Always keep the surface the ironing plate perfectly clean. To clean it, just wipe the cold surface with a damp cloth. The appliance must not be cleaned with descaling agents. -Do not iron over zippers, hooks, rings, etc; as these may scratch the plate. - When you have finished ironing. Place the iron correctly on its stand. Ensure that there are no traces of water under the plate, as these may cause stains. - Store the appliance in a dry place. SUGGESTIONS - Divide the washing according to the correct ironing temperatures. Start by ironing those garments that require a lower temperature. For fuller details, refer to the chart at end of this booklet. - Fabrics such as velvet and wool, and accessories such as gloves, handbags, etc. will regain their brand-new look and texture by simply passing the iron near the surface of the fabric and pressing the steam button. - Imprints left in carpets by furniture can be removed by applying steam on the parts where the pile is crushed and the brushing lightly. If the carpet is made of synthetic material, do not select a high temperature.How to get a professional ironing finish A normal iron generates only a small quantity of steam. In this case it is necessary to products steam constantly in order to eliminate crease in the fabric being ironed. A professional ironing system works rather differently. The fabric is first made damp by the steam and then, in a second phase, dry-ironed in the normal way. This means that every. Tiniest crease is removed and your garments are ironed to perfection. In the first phase (steam-damping of the fabric),hold the iron about 20 cm above the fabric and press the steam(2). Pass the iron over the garment in a circular movement so that the powerful jet of steam damps the fabric. Lightly creased garments require only a few moments of steaming. While very heavy fabrics or garments with particularly difficult creases must be damper, so steam must be applied for a few seconds more. During the second phase (dry ironing), check that the thermostat knob is in the correct position for the type of fabrics; dry-iron the garment. The special ironing plate will prevent the fabrics from becoming shiny. Using this ironing technique, and following the suggestions in the chart below, you will find it easy to give your garments a really professional ironing finish.

Guide to perfect ironing Type of fabric Position of thermostat knob Ironing instructions Acetate Acrylic Nylon

Dry ironing Follow the instructions on the label of the garment. This type of fabric generally requires very light ironing. Pollester Rayon

Dry ironing Iron inside out. When ironing mixed fabrics. Select the Lowest recommended temperature. Silk

Dry ironing Iron inside out. Wool Light cotton Light linen

Steam ironing Iron inside out. Place a thin cloth over the fabric in order to avoid a shiny finish Cotton Fine linen Starched fabrics

Steam ironing Dampen the fabric before ironing. Heavier fabrics and tarched fabrics can be ironed on the front; darker colours and embroidered garments should be ironed inside out. Linen

Steam ironing Use plenty of steam and iron dark fabrics inside out in order to avoid a shiny finish, Iron lapels and cuffs on the right side for better finish.

WARRANTY The warranty period for our products is 2 years, unless otherwise stated, starting from the date of initial purchase or the date of delivery. If you have any problems or questions, you can easily access our help pages, troubleshooting tips, FAQ, and user manuals on our service site: https://sav.hkoenig.com. By typing the reference name of your device in the search bar, you can access all available online support, designed to best meet your needs.If you still cannot find an answer to your question or problem, then click on “Did the answer solve your problem?”. This will direct you to the Customer Support Request Form, which you can fill out to validate your request and get help. WARRANTY CONDITIONS The warranty covers all failures occurring under normal use, in accordance with the usage and specifications in the user's manual. This warranty does not apply to packaging or transportation problems during shipment of the product by the owner. It also does not include normal wear and tear of the product, nor maintenance or replacement of consumable parts.

EXCLUSION OF WARRANTY

- Accessories and wearing parts (*). - Normal maintenance of the device. - All breakdowns resulting from improper use (shocks, failure to comply with power supply recommendations, poor conditions of use, etc.), insufficient maintenance or misuse of the device, as well as the use of unsuitable accessories. - Damage of external origin: fire, water damage, electrical surge, etc. - Any equipment that has been disassembled, even partially, by persons other than those authorized to do so (notably the user). - The products whose serial number would be missing, deteriorated or illegible that would not allow its identification. - The products subjected to leasing, demonstration, or exhibition. (*) Some parts of your device, called wear parts or consumables, deteriorate with time and frequency of use of your device. This wear and tear are normal but can be accentuated by poor conditions of use or maintenance of your device. These parts are therefore not covered by the warranty. The accessories supplied with the device are also excluded from the warranty. They cannot be exchanged or refunded. However, some accessories can be purchased directly through our website: https://sav.hkoenig.com/.

ENVIRONMENT CAUTION: Do not dispose of this product as it has with other household products. There is a separation of this waste product into communities, you will need to inform your local authorities about the places where you can return this product. In fact, electrical and electronic products contain hazardous substances that have harmful effects on the environment or human health and should be recycled. The symbol here indicates that electrical and electronic equipment should be chosen carefully, a wheeled waste container is marked with a cross. Adeva SAS / H.Koenig Europe - 8 rue Marc Seguin - 77290 Mitry Mory - France www.hkoenig.com - sav@hkoenig.com - contact@hkoenig.com - Tél : +33 1 64 67 00 05FRANÇAIS
