USER MANUAL Z87 Extreme6 ASROCK

Copyright©2013 ASRock INC. All rights reserved.

Copyright Notice:

No part of this documentation may be reproduced, transcribed, transmitted, or translated in any language, in any form or by any means, except duplication of documentation by the purchaser for backup purpose, without written consent of ASRock Inc.

Products and corporate names appearing in this documentation may or may not be registered trademarks or copyrights of their respective companies, and are used only for identification or explanation and to the owners' benefit, without intent to infringe.

Disclaimer:

Specifications and information contained in this documentation are furnished for informational use only and subject to change without notice, and should not be constructed as a commitment by ASRock. ASRock assumes no responsibility for any errors or omissions that may appear in this documentation.

With respect to the contents of this documentation, ASRock does not provide warranty of any kind, either expressed or implied, including but not limited to the implied warranties or conditions of merchantability or fitness for a particular purpose.

In no event shall ASRock, its directors, officers, employees, or agents be liable for any indirect, special, incidental, or consequential damages (including damages for loss of profits, loss of business, loss of data, interruption of business and the like), even if ASRock has been advised of the possibility of such damages arising from any defect or error in the documentation or product.

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:

(1) this device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that may cause undesired operation.

CALIFORNIA, USA ONLY

The Lithium battery adopted on this motherboard contains Perchlorate, a toxic substance controlled in Perchlorate Best Management Practices (BMP) regulations passed by the California Legislature. When you discard the Lithium battery in California, USA, please follow the related regulations in advance.

"Perchlorate Material-special handling may apply, see www.dtsc.ca.gov/hazardouswaste/perchlorate"

ASRock Website: http://www.asrock.com

The terms HDMI^TM and HDMI High-Definition Multimedia Interface, and the HDMI logo are trademarks or registered trademarks of HDMI Licensing LLC in the United States and other countries.

Manufactured under license under U.S. Patent Nos: 5,956,674; 5,974,380; 6,487,535; 7,003,467 & other U.S. and worldwide patents issued & pending. DTS, the Symbol, & DTS and the Symbol together is a registered trademark & DTS Connect, DTS Interactive, DTS Neo:PC are trademarks of DTS, Inc. Product includes software.

DTS, Inc., All Rights Reserved.

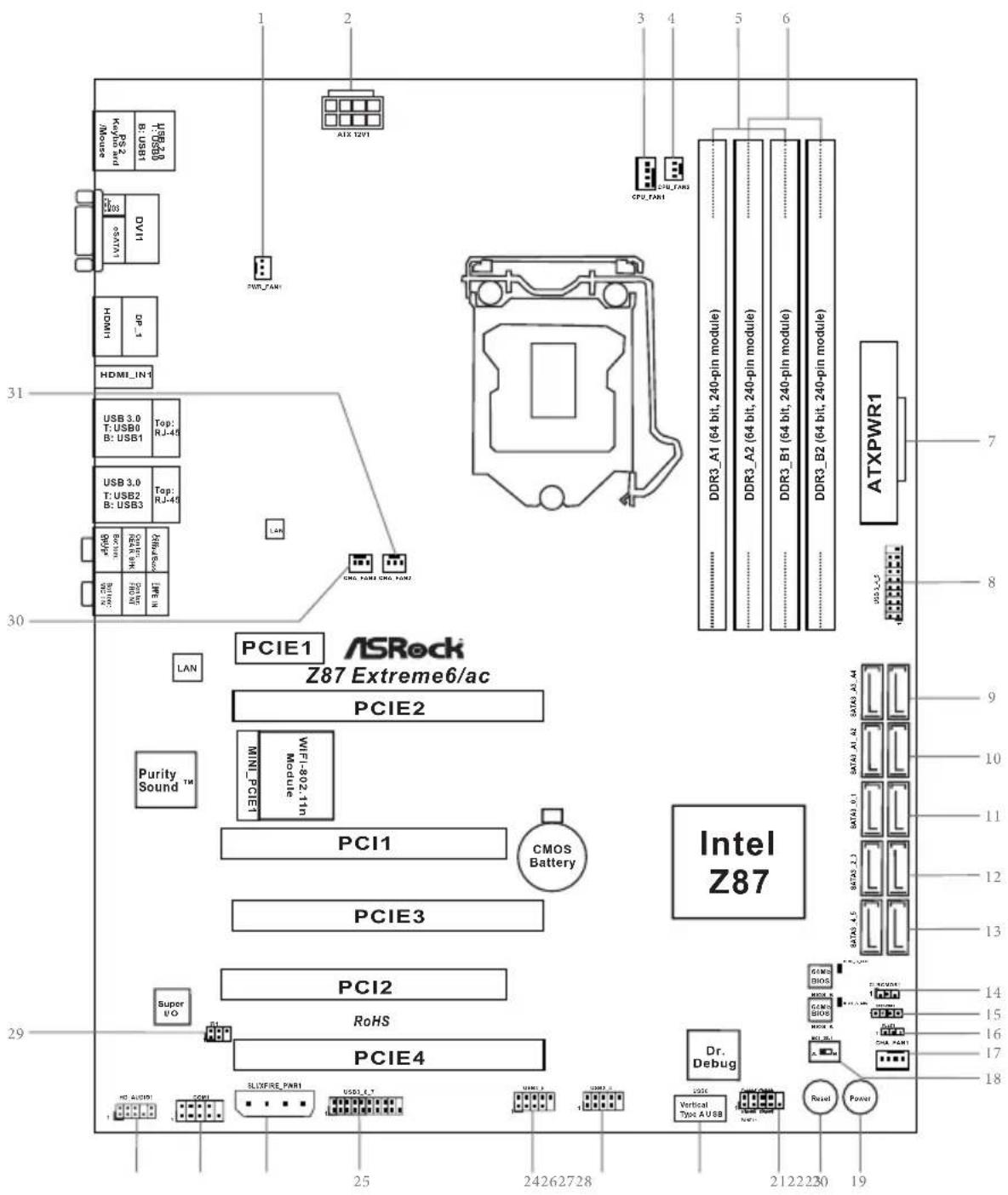

Motherboard Layout

Z87 Extreme6/ac

Z87 Extreme6

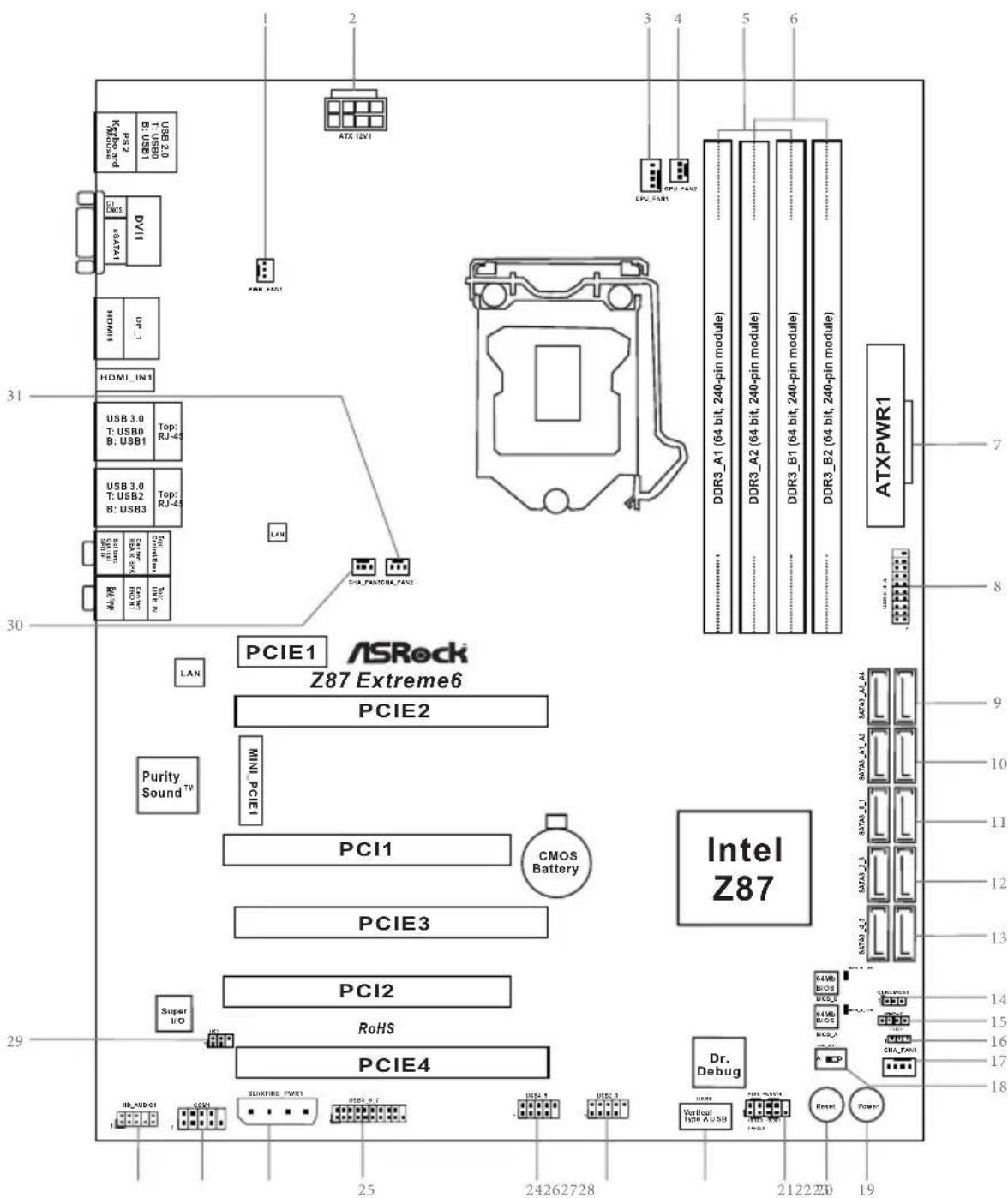

No.Description

1 Power Fan Connector (PWR_FAN1)
2ATX12VPowerConnector(ATX12V1)
3 CPU Fan Connector (CPU_FAN1)
4 CPU Fan Connector (CPU_FAN2)
52x240-pin DDR3 DIMM Slots (DDR3_A1, DDR3_B1)
62x240-pin DDR3 DIMM Slots (DDR3_A2, DDR3_B2)
7 ATX Power Connector (ATXPWR1)

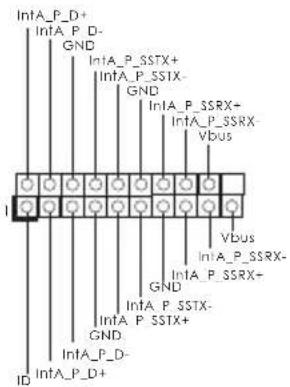

8 USB 3.0 Header (USB3_4_5)
9 SATA3 Connectors (SATA3_A3_A4)
10 SATA3 Connectors (SATA3_A1_A2)
11 SATA3 Connectors (SATA3_0_1)
12 SATA3 Connectors (SATA3_2_3)
13 SATA3 Connectors (SATA3_4_5)

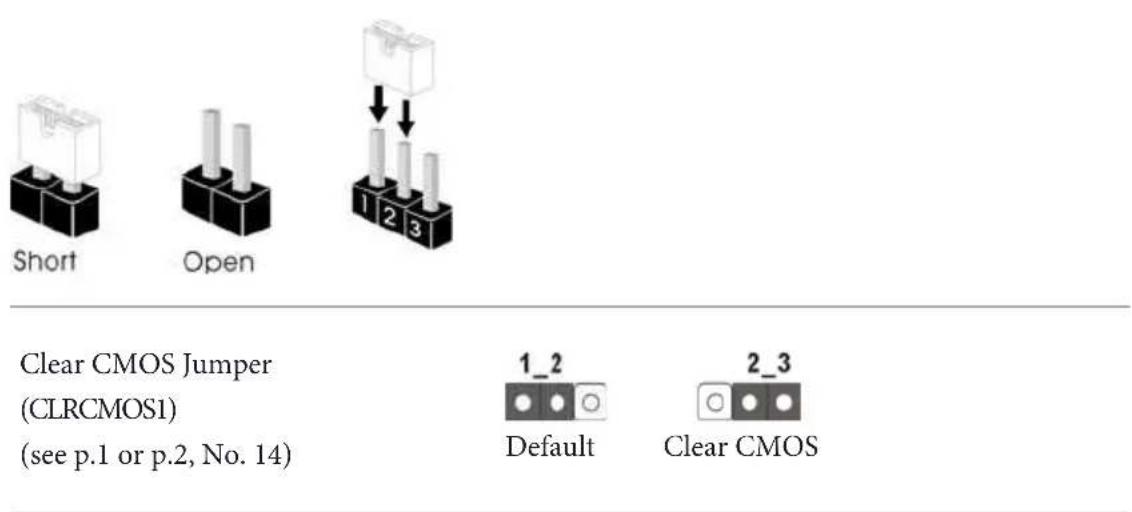

14 Clear CMOS Jumper (CLRCMOS1)
15 Chassis Speaker Header (SPEAKER1)
16 Power LED Header (PLED1)
17 Chassis Fan Connector (CHA_FAN1)
18 BIOS Selection Switch (BIOS_SEL1)
19 Power Switch (PWRBTN1)
20 Reset Switch (RSTBTN1)
21 System Panel Header (PANEL1)
22 Vertical Type A USB 2.0 (USB6)
23 USB 2.0 Header (USB2_3)
24 USB 2.0 Header (USB4_5)
25 USB 3.0 Header (USB3_6_7)
26 SLI/XFIRE Power Connector (SLI/XFIRE_PWR1)
27 COM Port Header (COM1)
28 Front Panel Audio Header (HD AUDIO1)
29 Infrared Module Header (IR1)
30 Chassis Fan Connector (CHA_FAN3)
31 Chassis Fan Connector (CHA_FAN2)

I/O Panel

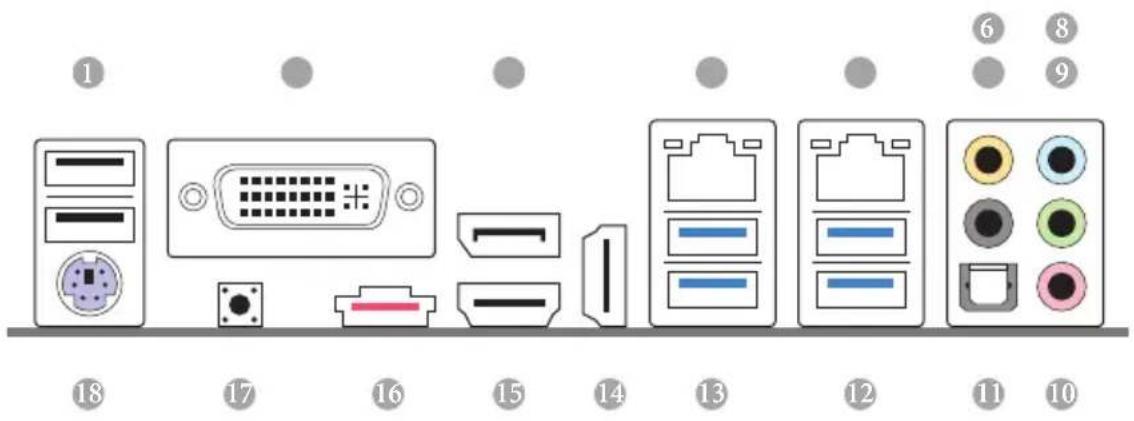

No.Description No.Description

1 USB 2.0 Ports (USB01) 11 Optical SPDIF Out Port
2 DVI-I Port 12 USB 3.0 Ports (USB3_23)
3 Display Port (ASMedia Hub)
4 LAN RJ-45 Port (Intel I217V) 13 USB 3.0 Ports (USB3_01)
5 LAN RJ-45 Port (Intel® I211AT)* (ASMedia Hub)
6 Central / Bass (Orange) 14 HDMI-In Port
7 Rear Speaker (Black) 15 HDMI-Out Port
8 Line In (Light Blue)
9 Front Speaker (Lime)**
10 Microphone (Pink)

16 eSATA Connector***
17 Clear CMOS Switch
18 PS/2 Mouse/Keyboard Port

• There are two LEDs on each LAN port. Please refer to the table below for the LAN port LED indications.

Activity / Link LED Speed LED
Status Description Status Description
Off No Link Off	10Mbps connection
Blinking	Data Activity
On Link Green	Gbps connection

Orange	100Mbps connection

** If you use a 2-channel speaker, please connect the speaker's plug into "Front Speaker Jack". See the table below for connection details in accordance with the type of speaker you use.

Audio Output Channels	Front Speaker (No. 9)	Rear Speaker (No. 7)	Central / Bass (No. 6)	Line In (No. 8)
2 V ---
4 V V ---
6 V V V ---
8 V V V V

To enable Multi-Streaming, you need to connect a front panel audio cable to the front panel audio header. After restarting your computer, you will find the "Mixer" tool on your system. Please select "Mixer ToolBox", click "Enable playback multi-streaming", and click "ok". Choose "2CH", "4CH", "6CH", or "8CH" and then you are allowed to select "Realtek HDA Primary output" to use the Rear Speaker, Central/Bass, and Front Speaker, or select "Realtek HDA Audio 2nd output" to use the front panel audio.

*** The eSATA connector supports SATA with cables within 1 meters.

Chapter 1 Introduction

Thank you for purchasing ASRock Z87 Extreme6/ac / Z87 Extreme6 motherboard, a reliable motherboard produced under ASRock's consistently stringent quality control. It delivers excellent performance with robust design conforming to ASRock's commitment to quality and endurance.

Because the motherboard specifications and the BIOS software might be updated, the content of this documentation will be subject to change without notice. In case any modifications of this documentation occur, the updated version will be available on ASRock's website without further notice. If you require technical support related to this motherboard, please visit our website for specific information about the model you are using. You may find the latest VGA cards and CPU support list on ASRock's website as well. ASRock website http://www.asrock.com.

1.1 Package Contents

ASRock Z87 Extreme6/ac / Z87 Extreme6 Motherboard (ATX Form Factor)

ASRock Z87 Extreme6/ac / Z87 Extreme6 Quick Installation Guide

ASRock Z87 Extreme6/ac / Z87 Extreme6 Support CD

6 x Serial ATA (SATA) Data Cables (Optional)

1 x I/O Panel Shield
1 x ASRock SLI_Bridge_2S Card
1 x Front USB 3.0 Panel with 2.5" HDD/SSD Rack
4 x HDD Screws
6 x Chassis Screws
1 x Rear USB 3.0 Bracket
1 x ASRock WiFi 2.4/5GHz Antenna (for Z87 Extreme6/ac only)
2 x SMA Wi-Fi Antenna Cables (for Z87 Extreme6/ac only)
1 x WiFi Module Screw (for Z87 Extreme6 only)

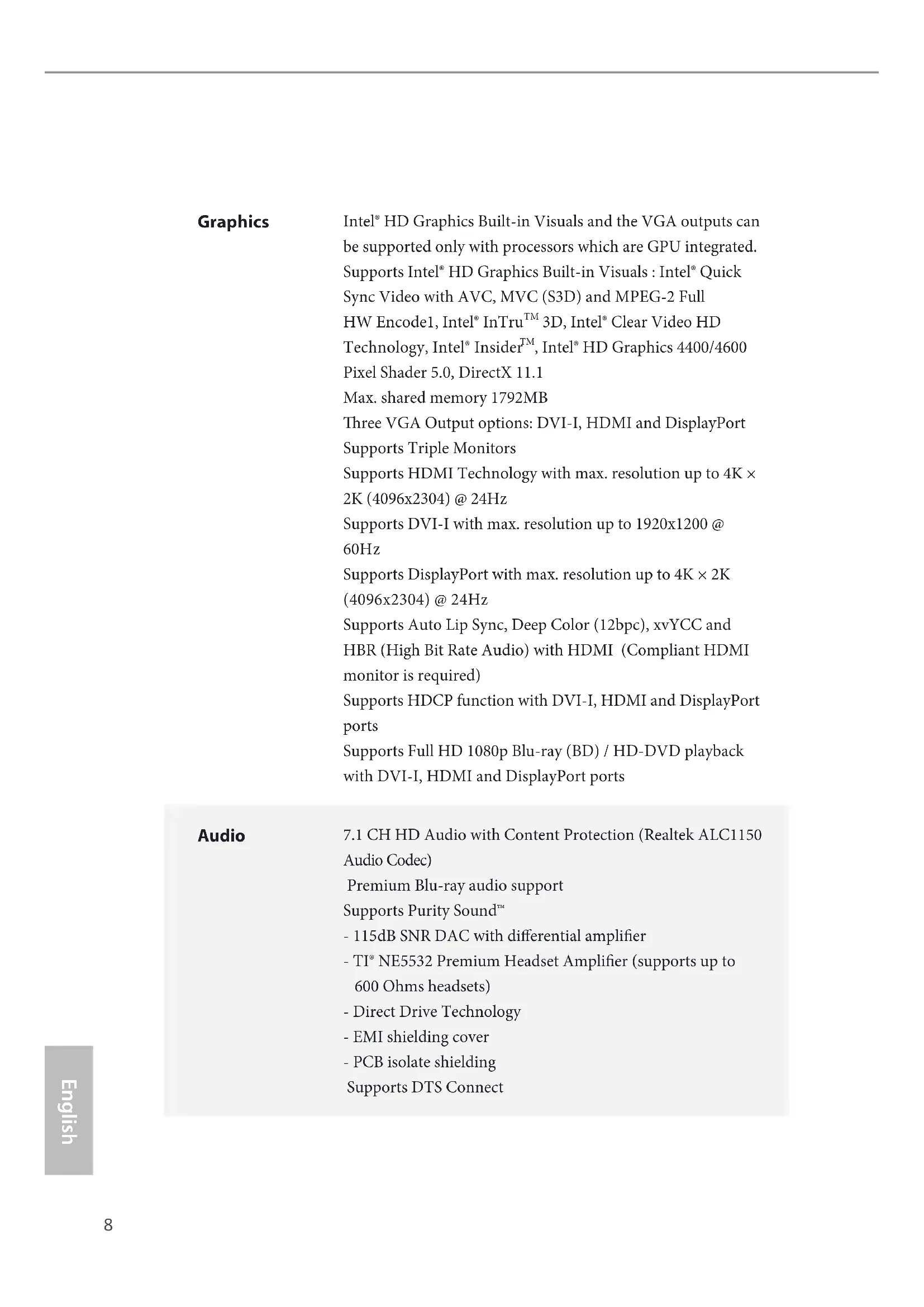

1.2 Specifications

Platform	ATX Form Factor Premium Gold Capacitor design (100% Japan-made high-quality Conductive Polymer Capacitors)
A-Style	Home Cloud 802.11ac WiFi (for Z87 Extreme6/ac only) Purity Sound™ HDMI-In
CPU	Socket LGA1150 to support 4thGen Intel® Core™ Processor Digi Power Design 12 Power Phase Design Dual-Stack MOSFET (DSM) Supports Intel® Turbo Boost 2.0 Technology Supports Intel® K-Series unlocked CPUsupports ASRock BCLK Full-range Overclocking
Chipset	Intel® Z87
Memory	Dual Channel DDR3 Memory Technology 4 x DDR3 DIMM slots Supports DDR3 2933+(OC)/2800(OC)/2400(OC)/2133(OC)/1866(OC)/1600/1333/1066 non-ECC, un-buffered memory Max. capacity of system memory: 32GB (see CAUTION) Supports Intel® Extreme Memory Profile (XMP)1.3/1.2 Distortion-Free Slot
Expansion Slot	3 x PCI Express 3.0 x16 slots (PCIE2/PCIE3/PCIE4: single at x16 (PCIE2); dual at x8 (PCIE2) / x8 (PCIE3); triple at x8 1 x PCI Express 2.0 x1 slot 2 x PCI slots 1 x mini-PCI Express slot Supports AMD Quad CrossFireX™, 3-Way CrossFireX™ and CrossFireX™ Supports NVIDIA® Quad SLI™ and SLI™

Graphics

Intel® HD Graphics Built-in Visuals and the VGA outputs can be supported only with processors which are GPU integrated. Supports Intel® HD Graphics Built-in Visuals: Intel® Quick Sync Video with AVC, MVC (S3D) and MPEG-2 Full HW Encode1, Intel® InTru™ 3D, Intel® Clear Video HD Technology, Intel® Insider™, Intel® HD Graphics 4400/4600 Pixel Shader 5.0, DirectX 11.1 Max. shared memory 1792MB Three VGA Output options: DVI-I, HDMI and DisplayPort Supports Triple Monitors Supports HDMI Technology with max. resolution up to 4K× 2K (4096x2304) @ 24Hz Supports DVI-I with max. resolution up to 1920x1200 @ 60Hz Supports DisplayPort with max. resolution up to 4K× 2K (4096x2304) @ 24Hz Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI (Compliant HDMI monitor is required) Supports HDCP function with DVI-I, HDMI and DisplayPort ports Supports Full HD 1080p Blu-ray (BD) / HD-DVD playback with DVI-I, HDMI and DisplayPort ports

Audio

7.1 CH HD Audio with Content Protection (Realtek ALC1150
Audio Codec)
Premium Blu-ray audio support
Supports Purity SoundTM
- 115dB SNR DAC with differential amplifier
TI NE5532 Premium Headset Amplifier (supports up to
600 Ohms headsets)
Direct Drive Technology
EMI shielding cover
PCB isolate shielding
Supports DTS Connect

LAN

Gigabit LAN 10/100/1000 Mb/s

1 x Giga PHY Intel® I217V, 1 x GigaLAN Intel® I211AT

Supports Intel® Remote Wake Technology (on Intel® I217V)

Supports Wake-On-LAN

Supports Dual LAN with Teaming

Supports Energy Efficient Ethernet 802.3az

Supports PXE

Wireless

Supports IEEE 802.11a/b/g/n/ac

LAN

Supports Dual-Band (2.4/5 GHz)

(for Z87

Supports High speed wireless connection up to 867Mbps

Extreme6/

2 antennas to support 2 (Transmit) x 2 (Receive) diversity

aconly)

technology

Supports Bluetooth 4.0 / 3.0 + High speed class II

Rear Panel

1 x PS/2 Mouse/Keyboard Port

1/0

1xDVI-IPort

1 x HDMI-Out Port

1 x HDMI-In Port

1xDisplayPort

1 x Optical SPDIF Out Port

1 x eSATA Connector

2xUSB2.0Ports

4xUSB3.0Ports(ASMediaHub)

2 x RJ-45 LAN Ports with LED (ACT/LINK LED and SPEED

LED)

1 x Clear CMOS Switch

HD Audio Jack: Rear Speaker / Central / Bass / Line in / Front

Speaker / Microphone

Storage	6 x SATA3 6.0 Gb/s connectors by Intel® Z87, support RAID (RAID 0, RAID 1, RAID 5, RAID 10, Intel Rapid Storage Technology 12 and Intel Smart Response Technology), NCQ, AHCI and “Hot Plug”
	4 x SATA3 6.0 Gb/s connectors by ASMia ASM1061, support NCQ, AHCI and “Hot Plug” functions (SATA3_A4 connector is shared with the eSATA port)
	1 x eSATA connector by ASMia ASM1061, supports NCQ, AHCI, “Hot Plug” and Port Multiplier functions
Connector	1 x IR header
	1 x COM port header
	1 x Power LED header
	2 x CPU Fan connectors (1 x 4-pin, 1 x 3-pin)
	3 x Chassis Fan connectors (1 x 4-pin, 2 x 3-pin)
	1 x Power Fan connector (3-pin)
	1 x 24 pin ATX power connector
	1 x 8 pin 12V power connector (Hi-Density Power Connector)
	1 x SLI/XFire power connector
	1 x Front panel audio connector
	2 x USB 2.0 headers (support 4 USB 2.0 ports)
	1 x Vertical Type A USB 2.0
	2 x USB 3.0 headers (support 4 USB 3.0 ports)
	1 x Dr. Debug with LED
	1 x Power Switch with LED
	1 x Reset Switch with LED
BIOS Feature	2 x 64Mb AMI UEFI Legal BIOS with Multilingual GUI support (1 x Main BIOS and 1 x Backup BIOS)
	Supports Secure Backup UEFI Technology
	ACPI 1.1 Compliance Wake Up Events
	SMBIOS 2.3.1 Support
	CPU, DRAM, PCH 1.05V, PCH 1.5V Voltage Multi-adjust-ment
Support CD	Drivers, Utilities, AntiVirus Software (Trial Version), Cyber-Link MediaEspresso 6.5 Trial, Google Chrome Browser and Toolbar, Start8, MeshCentral, Splashtop Streamer

Hardware

CPU/Chassis Temperature Sensing

CPU/Chassis/Power Fan Tachometer

CPU/Chassis Quiet Fan (Allow Chassis Fan Speed Auto

Adjust by CPU Temperature)

CPU/Chassis Fan Multi-Speed Control

Voltage Monitoring: +12V, + 5V, + 3.3V CPU Vcore

os

Microsoft Windows 8/864-bit/7/764-bit compliant

Certifica

FCC,CE,WHQL

tions

ErP/EuP Ready (ErP/EuP ready power supply is required)

*For detailed product information, please visit our website: http://www.asrock.com

Please realize that there is a certain risk involved with overclocking, including adjusting the setting in the BIOS, applying Untied Overclocking Technology, or using third-party overclocking tools. Overclocking may affect your system's stability, or even cause damage to the components and devices of your system. It should be done at your own risk and expense. We are not responsible for possible damage caused by overclocking.

Due to limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows® 32-bit operating systems. Windows® 64-bit operating systems do not have such limitations. You can use ASRock XFast RAM to utilize the memory that Windows® cannot use.

1.3 Unique Features

ASRock A-Tuning

A-Tuning is ASRock's multi purpose software suite with a new interface, more new features and improved utilities, including XFast RAM, Dehumidifier, Good Night LED, FAN-Tastic Tuning, OC Tweaker and a whole lot more.

ASRock Instant Flash

ASRock Instant Flash is a BIOS flash utility embedded in Flash ROM. This convenient BIOS update tool allows you to update the system BIOS in a few clicks without preparing an additional floppy diskette or other complicated flash utility. Just save the new BIOS file to your USB storage and launch this tool by pressing <F6> or <F2> during POST to enter the BIOS setup menu to access ASRock Instant Flash. Please be noted that the USB flash drive or hard drive must use FAT32/16/12 file system.

ASRock APP Charger

Simply by installing the ASRock APP Charger makes your iPhone/iPad/iPod Touch charge up to 40% faster than before on your computer. ASRock APP Charger allows you to quickly charge many Apple devices simultaneously and even supports continuous charging when your PC enters into Standby mode (S1), Suspend to RAM (S3), hibernation mode (S4) or power off (S5).

ASRock XFast USB

ASRock XFast USB can boost the performance of your USB storage devices. The performance may depend on the properties of the device.

ASRock XFast LAN

ASRock XFast LAN provides faster internet access, which includes the benefits listed below. LAN Application Prioritization: You can configure your application's priority ideally and add new programs to the list. Lower Latency in Game: After setting online game's priority higher, it can lower the latency in games. Traffic Shaping: You can watch Youtube HD videos and download simultaneously. Real-Time Analysis of Your Data: With the status window, you can easily recognize which data streams you are currently transferring.

ASRock XFast RAM

ASRock XFast RAM is included in A-Tuning. It fully utilizes the memory space that cannot be used under Windows® 32-bit operating systems. ASRock XFast RAM shortens the loading time of previously visited websites, making web surfing faster than ever. And it also boosts the speed of Adobe Photoshop 5 times faster. Another advantage of ASRock XFast RAM is that it reduces the frequency of accessing your SSDs or HDDs in order to extend their lifespan.

ASRock Crashless BIOS

ASRock Crashless BIOS allows users to update their BIOS without fear of failing. If power loss occurs during the BIOS updating process, ASRock Crashless BIOS will automatically finish the BIOS update procedure after regaining power. Please note that BIOS files need to be placed in the root directory of your USB disk. Only USB 2.0 ports support this feature.

ASRock OMG (Online Management Guard)

Administrators are able to establish an internet curfew or restrict internet access at specified times via OMG. You may schedule the starting and ending hours of internet access granted to other users. In order to prevent users from bypassing OMG, guest accounts without permission to modify the system time are required.

ASRock Internet Flash

ASRock Internet Flash downloads and updates the latest UEFI firmware version from our servers for you without entering Windows OS. Please setup network configuration before using Internet Flash.

ASRock UEFI System Browser

ASRock System Browser shows the overview of your current PC and the devices connected.

ASRock Dehumidifier Function

Users may prevent motherboard damages due to dampness by enabling "Dehumidifier Function". When enabling Dehumidifier Function, the computer will power on automatically to dehumidify the system after entering S4/S5 state.

ASRock Easy RAID Installer

ASRock Easy RAID Installer can help you to copy the RAID driver from the support CD to your USB storage device. After copying the RAID driver to your USB storage device, please change "SATA Mode" to "RAID", then you can start installing the OS in RAID mode.

ASRock Easy Driver Installer

For users that don't have an optical disk drive to install the drivers from our support CD, Easy Driver Installer is a handy tool in the UEFI that installs the LAN driver to your system via an USB storage device, then downloads and installs the other required drivers automatically.

ASRock Interactive UEFI

ASRock Interactive UEFI is a blend of system configuration tools, cool sound effects and stunning visuals. The unprecedented UEFI provides a more attractive interface and more amusement.

ASRock Fast Boot

With ASRock's exclusive Fast Boot technology, it takes less than 1.5 seconds to logon to Windows 8 from a cold boot. No more waiting! The speedy boot will completely change your user experience and behavior.

ASRock Restart to UEFI

Windows® 8 brings the ultimate boot up experience. The lightning boot up speed makes it hard to access the UEFI setup. ASRock Restart to UEFI allows users to enter the UEFI automatically when turning on the PC. By enabling this function, the PC will enter the UEFI directly after you restart.

ASRock Good Night LED

ASRock Good Night LED technology offers you a better sleeping environment by extinguishing the unessential LEDs. By enabling Good Night LED in the BIOS, the Power/HDD LEDs will be switched off when the system is powered on. Good Night LED will automatically switch off the Power and Keyboard LEDs when the system enters into Standby/Hibernation mode as well.

ASRock USB Key

In a world where time is money, why waste precious time everyday typing usernames to log in to Windows? Why should we even bother memorizing those foot long passwords? Just plug in the USB Key and let your computer log in to windows automatically!

ASRock Home Cloud

This motherboard supports remote wake with the onboard Intel LAN, so you can connect with your PC from anywhere in the world. You will be able to power your PC on or turn it off, monitor and take control of it remotely with another smartphone, tablet or computer.

ASRock FAN-Tastic Tuning

ASRock FAN-Tastic Tuning is included in A-Tuning. Configure up to five different fan speeds using the graph. The fans will automatically shift to the next speed level when the assigned temperature is met.

ASRock Distortion-Free Slot

ASRock's new pin design for the memory slots and PCIe slots may appear to be the same as former designs, but actually effectively reduces distortion and promotes performance, because we strive for perfection even in the most trivial details.

1.4 WiFi-802.11n Module and ASRock WiFi 2.4GHz Antenna (for Z87 Extreme6/ac only)

WiFi + BT Module

This motherboard comes with an exclusive WiFi 802.11 a/b/g/n/ac + BT v4.0 module that offers support for WiFi 802.11 a/b/g/n/ac connectivity standards and Bluetooth v4.0. WiFi + BT module is an easy-to-use wireless local area network (WLAN) adapter to support WiFi + BT. Bluetooth v4.0 standard features Smart Ready technology that adds a whole new class of functionality into the mobile devices including Apple's most recent iPhone 4S. BT 4.0 also includes Low Energy Technology and ensures extraordinary low power consumption for PCs. The 2T2R WiFi solution sets a WiFi high speed standard and offers max link rate up to 867Mbps.

• The transmission speed may vary according to the environment.

• The WiFi + BT module is supported under Windows® 8 / 8 64-bit / 7 / 7 64-bit only.

ASRockWiFi2.4GHz Antenna

Installing the SMA Wi-Fi Antenna Cables

Step 1

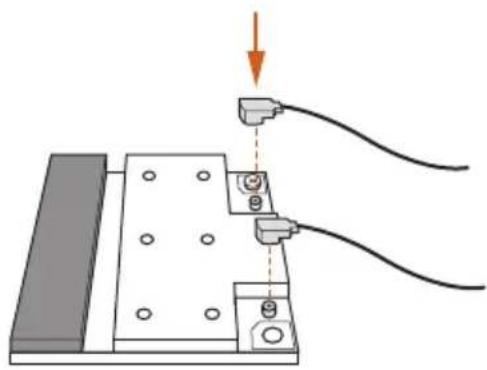

Prepare the SMA Wi-Fi Antenna Cables that come with the package.

Step 2

Locate the WiFi Module that is installed on the motherboard's mini-PCIe slot. Then attach the SMA Wi-Fi Antenna Cables to the WiFi Module.

Step3

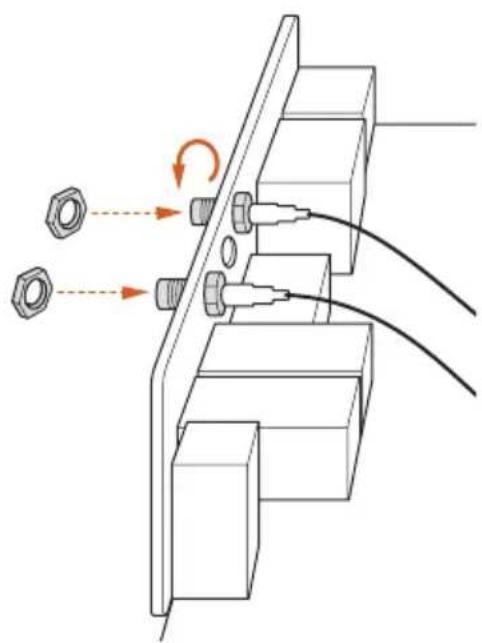

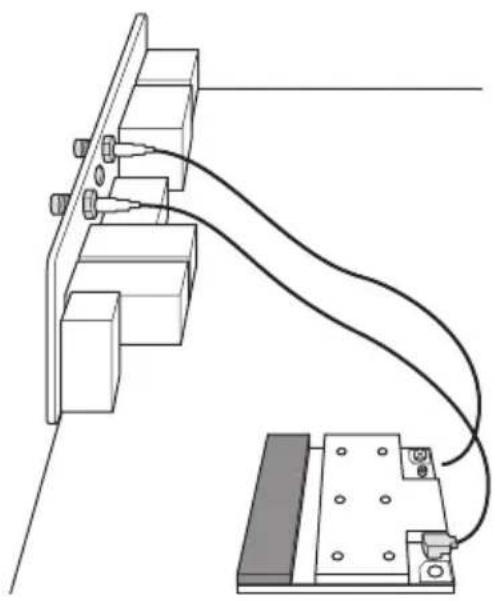

Insert the RP-SMA Wi-Fi Antenna Connectors to the antenna ports on the I/O shield

Step 4

Fasten the screw nuts to secure the connectors.

Chapter 2 Installation

This is an ATX form factor motherboard. Before you install the motherboard, study the configuration of your chassis to ensure that the motherboard fits into it.

Pre-installation Precautions

Take note of the following precautions before you install motherboard components or change any motherboard settings.

Make sure to unplug the power cord before installing or removing the motherboard.

Failure to do so may cause physical injuries to you and damages to motherboard components.

In order to avoid damage from static electricity to the motherboard's components,

NEVER place your motherboard directly on a carpet. Also remember to use a grounded wrist strap or touch a safety grounded object before you handle the components.

Hold components by the edges and do not touch the ICs.

Whenever you uninstall any components, place them on a grounded anti-static pad or in the bag that comes with the components.

When placing screws to secure the motherboard to the chassis, please do not overtighten the screws! Doing so may damage the motherboard.

2.1 Installing the CPU

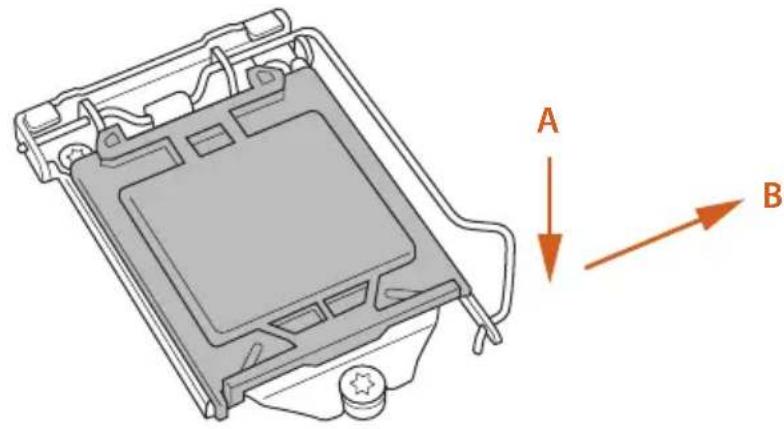

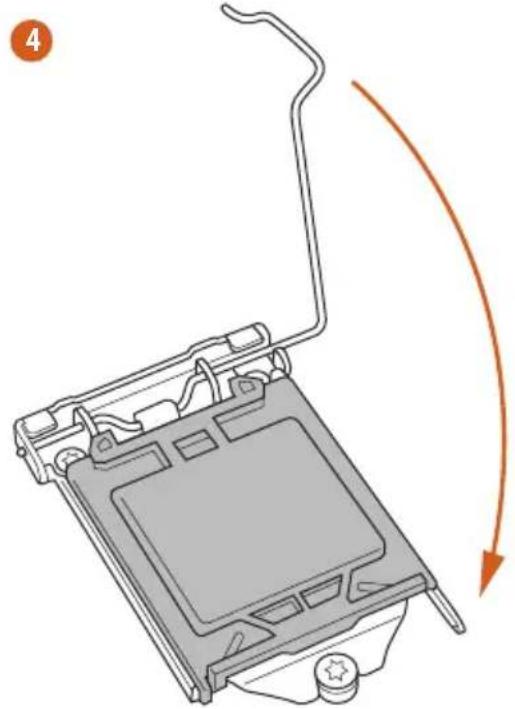

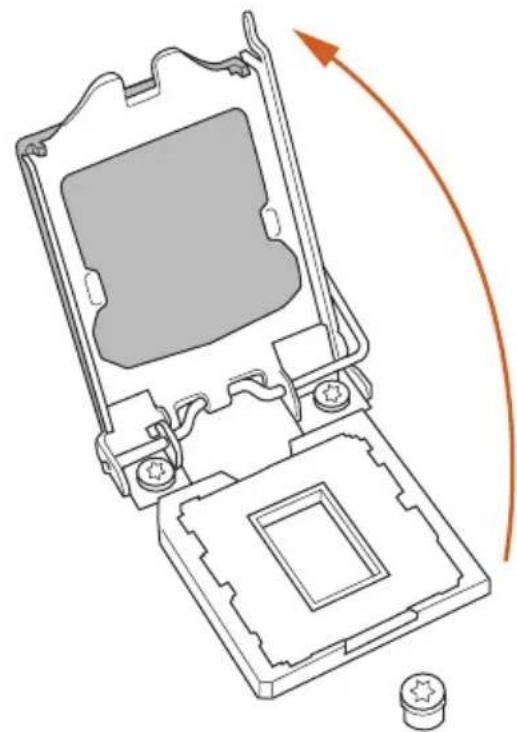

1. Before you insert the 1150-Pin CPU into the socket, please check if the PnP cap is on the socket, if the CPU surface is unclean, or if there are any bent pins in the socket. Do not force to insert the CPU into the socket if above situation is found. Otherwise, the CPU will be seriously damaged.
2. Unplug all power cables before installing the CPU.

1

2

3

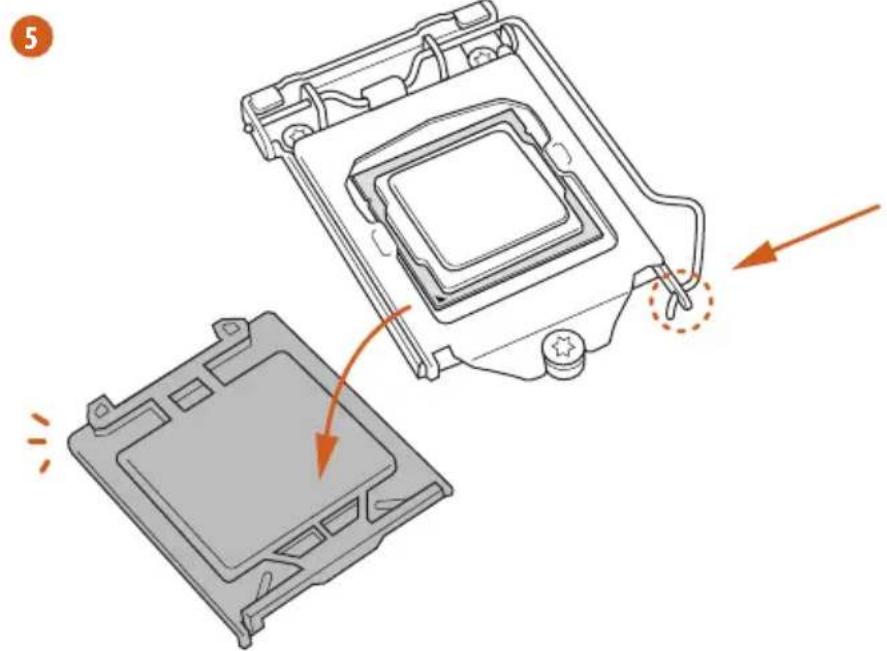

Please save and replace the cover if the processor is removed. The cover must be placed if you wish to return the motherboard for after service.

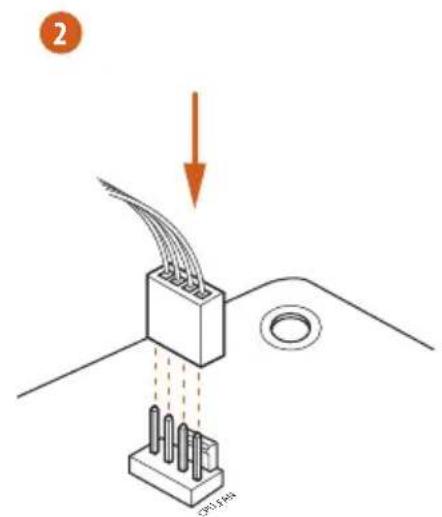

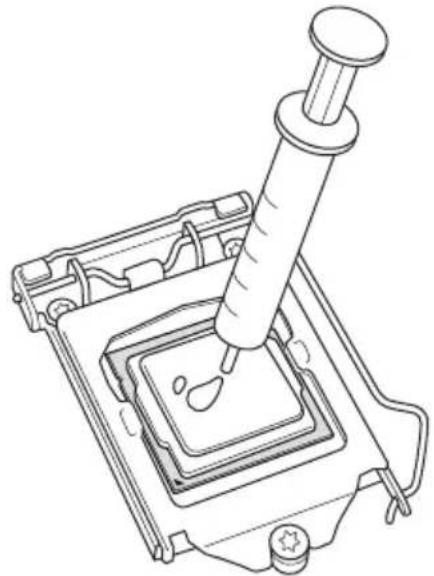

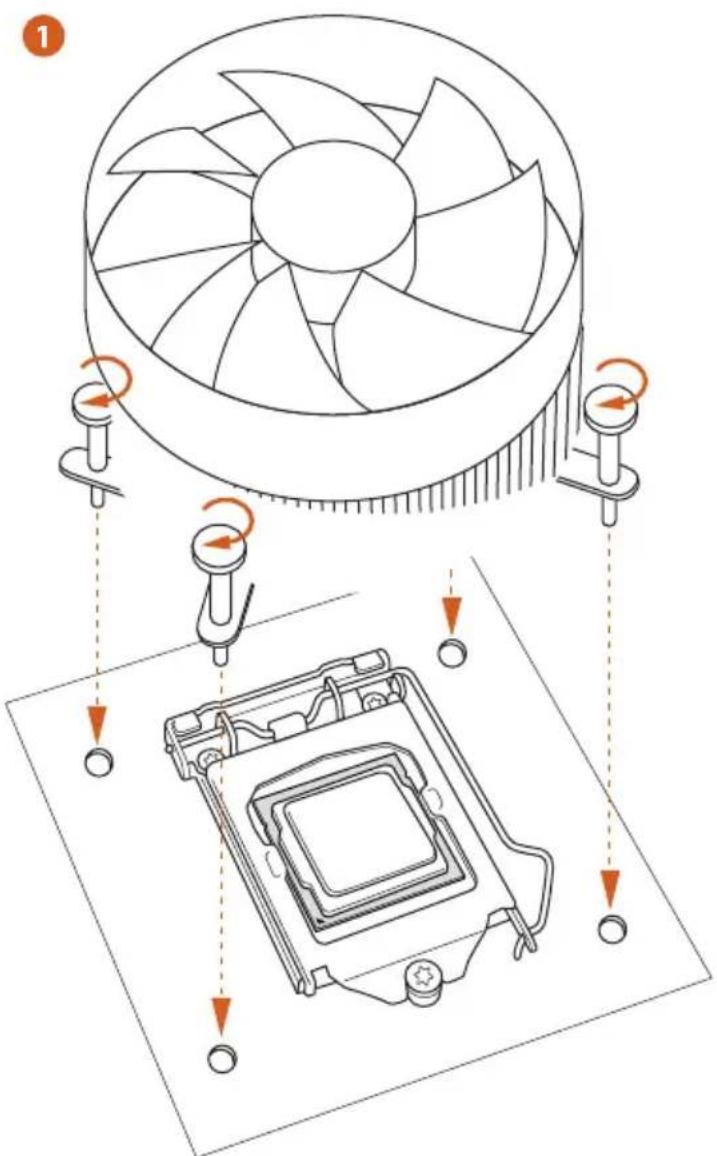

2.2 Installing the CPU Fan and Heatsink

2.3 Installing Memory Modules (DIMM)

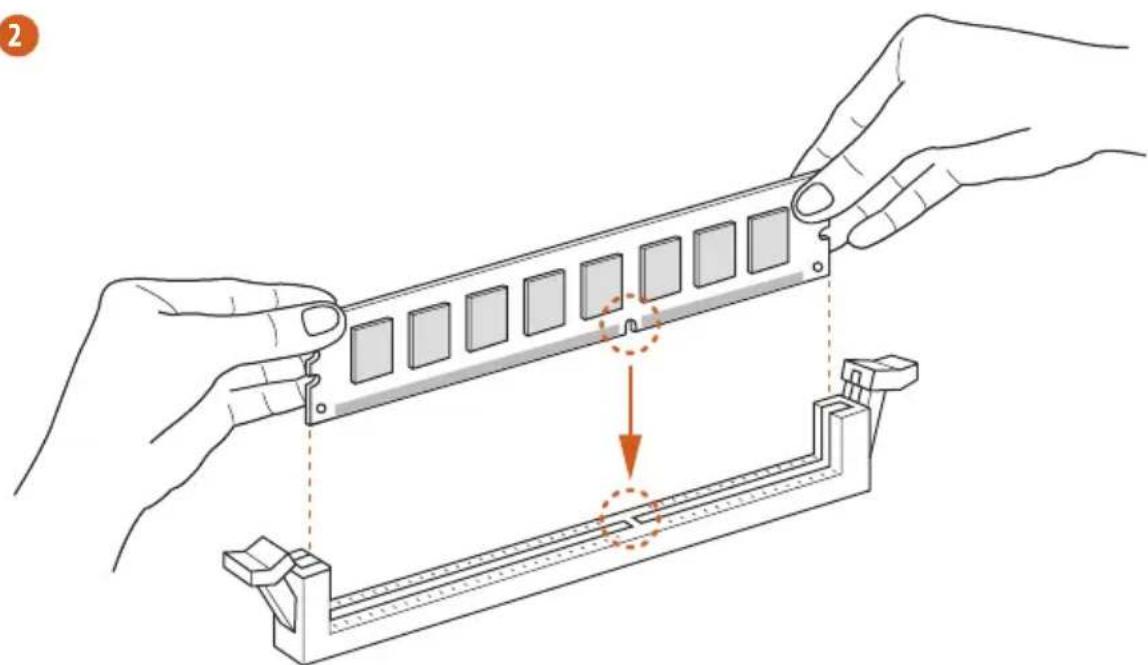

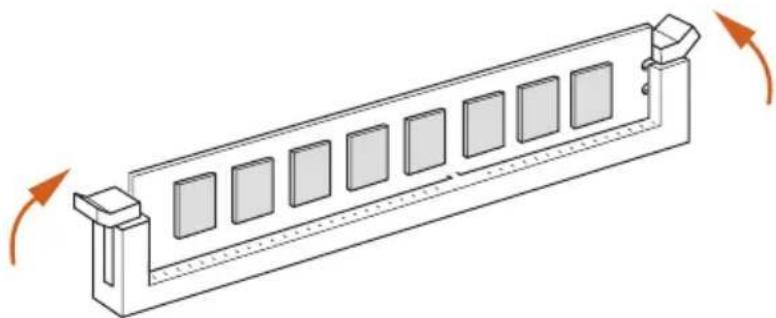

This motherboard provides four 240-pin DDR3 (Double Data Rate 3) DIMM slots, and supports Dual Channel Memory Technology.

1. For dual channel configuration, you always need to install identical (the same brand, speed, size and chip-type) DDR3 DIMM pairs.
2. It is unable to activate Dual Channel Memory Technology with only one or three memory module installed.
3. It is not allowed to install a DDR or DDR2 memory module into a DDR3 slot; otherwise, this motherboard and DIMM may be damaged.

Dual Channel Memory Configuration

Priority DDR3_A1 DDR3_A2 DDR3_B1 DDR3_B2

1 Populated	Populated
2 Populated	Populated
3 Populated	Populated	Populated	Populated

The DIMM only fits in one correct orientation. It will cause permanent damage to the motherboard and the DIMM if you force the DIMM into the slot at incorrect orientation.

1

2

3

2.4 Expansion Slots (PCI and PCI Express Slots)

There are 2 PCI slots, 4 PCI Express slots, and 1 mini-PCI Express slot on the motherboard.

Before installing an expansion card, please make sure that the power supply is switched off or the power cord is unplugged. Please read the documentation of the expansion card and make necessary hardware settings for the card before you start the installation.

PCI slot:

The PCI1 and PCI2 slots are used to install expansion cards that have 32-bit PCI interface.

PCIe slots:

PCIE1 (PCIe 2.0 x1 slot) is used for PCI Express x1 lane width cards.

PCIE2 (PCIe 3.0 x16 slot) is used for PCI Express x16 lane width graphics cards.

PCIE3 (PCIe 3.0 x16 slot) is used for PCI Express x8 lane width graphics cards.

PCIE4 (PCIe 3.0 x16 slot) is used for PCI Express x4 lane width graphics cards.

mini-PCIe slots:

MINI_PCIE1 (mini-PCie slot) is used for WiFi module.

PCIe Slot Configurations

PCIE2 PCIE3 PCIE4
Single Graphics Card x16 N/AN/A
Two Graphics Cards in CrossFireXTM or SLTMD mode	x8 x8 N/A
Three Graphics Cards in 3-Way CrossFireXTM Mode	x8 x4 x4

For a better thermal environment, please connect a chassis fan to the motherboard's chassis fan connector (CHA_FAN1, CHA_FAN2 or CHA_FAN3) when using multiple graphics cards.

2.5 Jumpers Setup

The illustration shows how jumpers are setup. When the jumper cap is placed on the pins, the jumper is "Short". If no jumper cap is placed on the pins, the jumper is "Open". The illustration shows a 3-pin jumper whose pin1 and pin2 are "Short" when a jumper cap is placed on these 2 pins.

CLRCMOS1 allows you to clear the data in CMOS. To clear and reset the system parameters to default setup, please turn off the computer and unplug the power cord from the power supply. After waiting for 15 seconds, use a jumper cap to short pin2 and pin3 on CLRCMOS1 for 5 seconds. However, please do not clear the CMOS right after you update the BIOS. If you need to clear the CMOS when you just finish updating the BIOS, you must boot up the system first, and then shut it down before you do the clear-CMOS action. Please be noted that the password, date, time, and user default profile will be cleared only if the CMOS battery is removed.

2.6 Onboard Headers and Connectors

Onboard headers and connectors are NOT jumpers. Do NOT place jumper caps over these headers and connectors. Placing jumper caps over the headers and connectors will cause permanent damage to the motherboard.

System Panel Header (9-pin PANEL1) (see p.1 or p.2, No. 21)

Connect the power switch, reset switch and system status indicator on the chassis to this header according to the pin assignments below. Note the positive and negative pins before connecting the cables.

PWRBTN (Power Switch):

Connect to the power switch on the chassis front panel. You may configure the way to turn off your system using the power switch.

RESET (Reset Switch):

Connect to the reset switch on the chassis front panel. Press the reset switch to restart the computer if the computer freezes and fails to perform a normal restart.

PLED (System Power LED):

Connect to the power status indicator on the chassis front panel. The LED is on when the system is operating. The LED keeps blinking when the system is in S1/S3 sleep state. The LED is off when the system is in S4 sleep state or powered off (S5).

HDLED (Hard Drive Activity LED):

Connect to the hard drive activity LED on the chassis front panel. The LED is on when the hard drive is reading or writing data.

The front panel design may differ by chassis. A front panel module mainly consists of power switch, reset switch, power LED, hard drive activity LED, speaker and etc. When connecting your chassis front panel module to this header, make sure the wire assignments and the pin assignments are matched correctly.

Power LED Header

(3-pin PLED1)

(see p.1 or p.2, No. 16)

Serial ATA3 Connectors

(SATA3_0_1:

see p.1 or p.2, No. 11)

(SATA3_2_3:

see p.1 or p.2, No. 12)

(SATA3_4_5:

see p.1 or p.2, No. 13)

(SATA3_A1_A2:

see p.1 or p.2, No. 10)

(SATA3_A3_A4:

see p.1 or p.2, No. 9)

SATA3_0_1SATA3_4_5 SATSAJA2A3A4SATA3_A1_A2

Please connect the chassis power LED to this header to indicate the system's power status.

These ten SATA3 connectors support SATA data cables for internal storage devices with up to 6.0 Gb/s data transfer rate. If the eSATA port on the rear I/O has been connected, the internal SATA3_A4 will not function.

To minimize the boot time, use Intel® Z87 SATA ports (SATA3_0) for your bootable devices.

USB 2.0 Headers

(9-pin USB2_3)

(see p.1 or p.2, No. 23)

(9-pin USB4_5)

(see p.1 or p.2, No. 24)

Besides four USB 2.0 ports on the I/O panel, there are three headers and one port on this motherboard. Each USB 2.0 header can support two ports.

(USB6)

(see p.1 or p.2, No. 22)

USB 3.0 Headers

(19-pin USB3_4_5)

(see p.1 or p.2, No. 8)

Besides four USB 3.0 ports on the I/O panel, there are two headers on this motherboard. Each USB 3.0 header can support two ports.

(19-pin USB3_6_7)

(see p.1 or p.2, No. 25)

Front Panel Audio Header

(9-pin HD AUDIO01)

(see p.1 or p.2, No. 28)

This header is for

connecting audio devices

to the front audio panel.

1. High Definition Audio supports Jack Sensing, but the panel wire on the chassis must support HDA to function correctly. Please follow the instructions in our manual and chassis manual to install your system.
2. If you use an AC'97 audio panel, please install it to the front panel audio header by the steps below:

A. Connect Mic_IN (MIC) to MIC2_L
B. Connect Audio_R (RIN) to OUT2_R and Audio_L (LIN) to OUT2_L.
C. Connect Ground (GND) to Ground (GND).
D. MIC_RET and OUT_RET are for the HD audio panel only. You don't need to connect them for the AC'97 audio panel.
E. To activate the front mic, go to the "FrontMic" Tab in the Realtek Control panel and adjust "Recording Volume".

Chassis Speaker Header

(4-pin SPEAKER1)

(see p.1 or p.2, No. 15)

DUMMY SPEAKER

Please connect the chassis

speaker to this header.

Chassis and Power Fan Connectors

(4-pin CHA_FAN1)

(see p.1 or p.2, No. 17)

FAN_SPEED_CONTROL

Please connect fan cables to the fan connectors and match the black wire to the ground pin.

(3-pin CHA_FAN2)

(see p.1 or p.2, No. 31)

(3-pin CHA_FAN3)

(see p.1 or p.2, No. 30)

(3-pin PWR_FAN1)

(see p.1 or p.2, No. 1)

FAN_SPEED

GND
+ 12V
CHA_FAI_SPEED

CPU Fan Connectors

(4-pinCPU_FAN1)

(see p.1 or p.2, No. 3)

This motherboard provides a 4-Pin CPU fan

(Quiet Fan) connector.

If you plan to connect a

3-Pin CPU fan, please

connect it to Pin 1-3.

(3-pin CPU_FAN2)

(see p.1 or p.2, No. 4)

ATX Power Connector

(24-pinATXPWR1)

(see p.1 or p.2, No. 7)

This motherboard provides a 24-pin ATX power

connector. To use a 20-pin ATX power supply, please

plug it along Pin 1 and Pin 13.

ATX 12V Power

Connector

(8-pinATX12V1)

(see p.1 or p.2, No. 2)

This motherboard provides an 8-pin ATX 12V

power connector. To use a 4-pin ATX power supply, please plug it along Pin 1 and Pin 5.

SLI/XFIRE Power

Connector

(4-pin SLI/XFIRE_

PWR1)

(see p.1 or p.2, No. 26)

Please connect this

connector with a hard

disk power connector

when two graphics cards

are installed on this

motherboard.

Infrared Module Header

(5-pin IR1)

(see p.1 or p.2, No. 29)

This header supports an optional

wireless transmitting and

receiving infrared module.

Serial Port Header

(9-pin COM1)

(see p.1 or p.2, No. 27)

This COM1 header

supports a serial port

module.

2.7 Smart Switches

The motherboard has three smart switches: Power Switch, Reset Switch and Clear CMOS Switch, allowing users to quickly turn on/off the system, reset the system or clear the CMOS values.

Power Switch

(PWRBTN)

(see p.1 or p.2, No. 19)

Power Switch allows users to quickly turn on/off the system.

Reset Switch

(RSTBTN)

(see p.1 or p.2, No. 20)

Reset Switch allows users to quickly reset the system.

Clear CMOS Switch

(CLRCBTN)

(see p.1 or p.2, No. 14)

Clear CMOS Switch allows users to quickly clear the CMOS values.

This function is workable only when you power off your computer and unplug the power supply.

BIOS Selection Switch

(BIOS_SEL1)

(see p.1 or p.2 No. 18)

BIOS Selection Switch allows the system to boot from either BIOS A or BIOS B.

This motherboard has two BIOS chips, a primary BIOS (BIOS_A) and a backup BIOS (BIOS_B), which enhances the safety and stability of your system. Normally, the system will work on the primary BIOS. However, if the primary BIOS is corrupted or damaged, just flip the BIOS Selection Switch to "B", then the backup BIOS will take over on the next system boot. After that, use "Secure Backup UEFI" in the UEFI Setup Utility to duplicate a working copy of the BIOS files to the primary BIOS to ensure normal system operation. For safety issues, users are not able to update the backup BIOS manually. Users may refer to the BIOS LEDs (BIOS_A_LED or BIOS_B_LED) to identify which BIOS is currently activated.

1 Einleitung

• Extreme Memory Profile (XMP)1.3/1.2

Extreme Memory Profile (XMP)1.3/1.2

Fente

d'expansion

mode x16 (PCIE2); double en mode x8 (PCIE2) / x8 (PCIE3);

triple en mode x8 (PCIE2) / x4 (PCIE3) / x4 (PCIE4))

CrossFireX™ et CrossFireX™

TM, 3-Way

TM et SLI

Graphiques

(RAID 0, RAID 1, RAID 5, RAID 10, Intel Rapid Storage Technology 12 e Intel Smart Response Technology), NCQ, AHCI e "Hot Plug"

BbIBOJaHaMaTePnHcKoI

IIaTe TaKKe eCTb IBe

KoIOnKn.KaJnaJ

KoIOnKa USB 3.0 MoKeT

IIOJIepKINBaTb IBa IOpTa.

(19-KoHTaKTHa,USB3_6_7)

BbIKJIIOUeHnCNCTeMbI.

KhoIIka IIpe3aIpy3KN (RSTBTN)

(Cm. cTp. 1 nnn 2, Ne 20)

Reset

KhoIIka IIepe3aIpy3Kn

IpeHa3NaueHa IJIa

6bICTpoI Ipe3aRpy3KN

CNUCTeMbI.

KhoIIka c6poca HacTpoeK CMOS

(CLRCBTN)

(Cm. cTp. 1 nnn 2, Ne 14)

KhoIIka c6poca HacTpoek

CMOS npedeHa3HaueHa

ДябICTPOrO O6HyJEnHЯ

3NaueHn CMOS.

Ima fynkuua paobaem moIbko, eIu numanur KOMnbomepa bbloueno u on omknlouen om cemu numanur.

CenekTopbI

IpekeKIOUaTeBBIOS

(BIOS_SEL1)(CM.cTp.1

n nn 2, Ne 18)

CeIeKTopHbI NepeKIIouaTeIb

BIOS npeHa3HaueH nA 3ayncKa

CNCTeMbICNIOJIb3OBaHHeM

BIOS A uIN BIOS B.

3ma mamepunckaa nama chabkeha 6yma mukpocxemamu BIOS - ochobho BIOS (BIOS_A) u BIOS pe3epbnoo konupobanra (BIOS_B), - umo noebuuaem ypoebh 3aumtu u cmaubnocmu cuscembl. ObuHNo cuscema ucnonb3yem ochobnyo BIOS. Ipu nopekdehuu uu c6oe ochobhoi BIOS npocmo ycmanobume ceneKmOpnbu nepeknouamelb BIOS 8 noonokhenue B , u npu cnedyuiez 3anycke cuscembl bydem ucnonb30bamcbr pe3epbna BIOS. Pocne 3mo2o 6 ymunme hacmpouku UEFI ucnonb3yume onuio Secure Backup UEFI, umobu bnuonhm b konupobanue paobux faaiIOB BIOS o ochobnyo BIOS dnn oecneuenu hopmaibnoi paobomu cuscembl. Ipan oecneuenu bezonacnoco puynoe obnobnienue pe3epbnoi Konuu BIOS noIb30bamelem omKnIOeHo. Onpedenlmb, kakaB BIOS ucnonb3yemcB hacmonuee bpmr, moKHO no cbemoduoohm undukamopam BIOS (BIOS_ A_LED uU BIOS_B_LED).

1 Introdução

PLED (Sistem Güç LED')

Guc durumu gõstergesini kasa on paneline baglayin. Sistem calisirken LED isigt yanacaktir. Sistem S1/S3 uyku durumdayken LED isigt yanip söner. Sistem S4 uyku durumunda ya da kapalyken (S5) LED isik kapanir.

HDLED (Sabit Disk Etkinlik LED'i):

• Extreme Memory Profile (XMP)1.3/1.2

扩充槽

(PCIE2)：双-x8(PCIE2)/x8(PCIE3)：三-x8(PCIE2)/x4

(Voltage Multi-adjustment)

支持光盘

MediaEspresso 6.5 试用版、Google Chrome 浏览器和工具栏、Start8、MeshCentral、Splashtop Streamer

硬件

扇速度）

操作系统

认证

• Extreme Memory Profile (XMP)1.3/1.2

擴充插槽

(PCIE2)：雙x8(PCIE2)/x8(PCIE3)：三x8(PCIE2)/x4(PCIE3)/x4(PCIE4))

CrossFireX™

TM、3-Way CrossFireXTM 及

TM 及 SLI

顯示卡

ASRock BCLK Full-range Overclocking

Chipset

Z87

Memori

(OC)/1866(OC)/1600/1333/1066 non-ECC, memori tanpa buffer

PERHATIAN)

• Extreme Memory Profile (XMP)1.3/1.2

Slot Ekspansi

x16 (PCIE2); sua pada x8 (PCIE2) / x8 (PCIE3); tiga pada x8

(PCIE2) / x4 (PCIE3) / x4 (PCIE4))

dan CrossFireXTM

TM,3-Way CrossFireXTM

TM dan SLI TM

Grafis

RAID (RAID 0, RAID 1, RAID 5, RAID 10, Intel Rapid Storage Technology 12, dan Intel Smart Response Technology), NCQ, AHCI, dan "Hot Plug"

mendukung fungsi NCQ, AHCI, dan "Hot Plug" (konektor SATA3_A4 digunakan bersama port eSATA)

fungsi NCQ, AHCI, "Hot Plug", dan Pengganda Port.

Konektor

Kerapatan Tinggi)

Fitur BIOS

Clear CMOS Jumper (CLRCMOS1)

RESET (Switch Atur Ulang):

If you need to contact ASRock or want to know more about ASRock, you're welcome to visit ASRock's website at http://www.asrock.com; or you may contact your dealer for further information. For technical questions, please submit a support request form at http://www.asrock.com/support/tsd.asp

ASRock Incorporation

2F., No.37, Sec. 2, Jhongyang S. Rd., Beitou District,

Taipei City 112, Taiwan (R.O.C.)

ASRock EUROPE B.V.

Bijsterhuizen 3151

6604 LV Wijchen

The Netherlands

Phone: [phone]

Fax: [phone]

ASRock America, Inc.

13848 Magnolia Ave, Chino, CA91710

U.S.A.

Phone: [phone]

Fax: [phone]

For the following equipment:

Motherboard

(Product Name)

Z87 Extreme6/ac / Z87 Extreme6 / ASRock

(Model Designation / Trade Name)

ASRock Incorporation

(Manufacturer Name)

2F., No.37, Sec. 2, Jhongyang S. Rd., Beitou District, Taipei City 112, Taiwan (R.O.C.)

(Manufacturer Address)

is herewith confirmed to comply with the requirements set out in the Council Directive on the Approximation of the Laws of the Member States relating to Electromagnetic Compatibility Directive (2004/108/EC) and Safety Directive (2006/95/ EC), the following standards are applied:

EN 55022: 2006+A1:2007
EN 61000-3-2: 2009
EN 61000-3-3:2008
EN 55024:1998 + A1:2001 + A2:2003

IEC 61000-4-2: 2008;

IEC 61000-4-3: 2010; IEC 61000-4-4: 2010;

IEC 61000-4-5:2005; IEC 61000-4-6:2008

IEC 61000-4-8:2009;IEC 61000-4-11:2004

EN 60950-1:2005 + A1:2009

IEC 60950-1:2006 + A11:2009 + A1:2010 + A12:2011

The following manufacturer / importer or authorized representative established within the EUT is responsible for this declaration:

ASRock EUROPE B.V.

(Company Name)

Bijsterhuizen 3151 6604 LV Wijchen The Netherlands

(Company Address)

Person responsible for making this declaration:

(Name, Surname)

A.V.P

(Position / Title)

May 10, 2013

(Date)
