USER MANUAL Model SUB TIVOLI AUDIO

ART BY TIVOLI AUDIO

MODEL SUB

Manual

Table of Contents

Welcome 4

Guide to Features....5

WiFi Mode....6

Setup....6

Creating a Zone 9

Selecting Speaker or Speakers for a Zone....10

All Zones Page 11

Zone Player Page 12

Zone Speaker List 13

Speaker Details Page....13

Sources 14

Music Screen 14

Settings Page 15

Devices Page 16

Speaker Configuration Page....16

Updating Firmware....17

Care 19

Troubleshooting and FAQ 19

Troubleshooting....19

FAQ 21

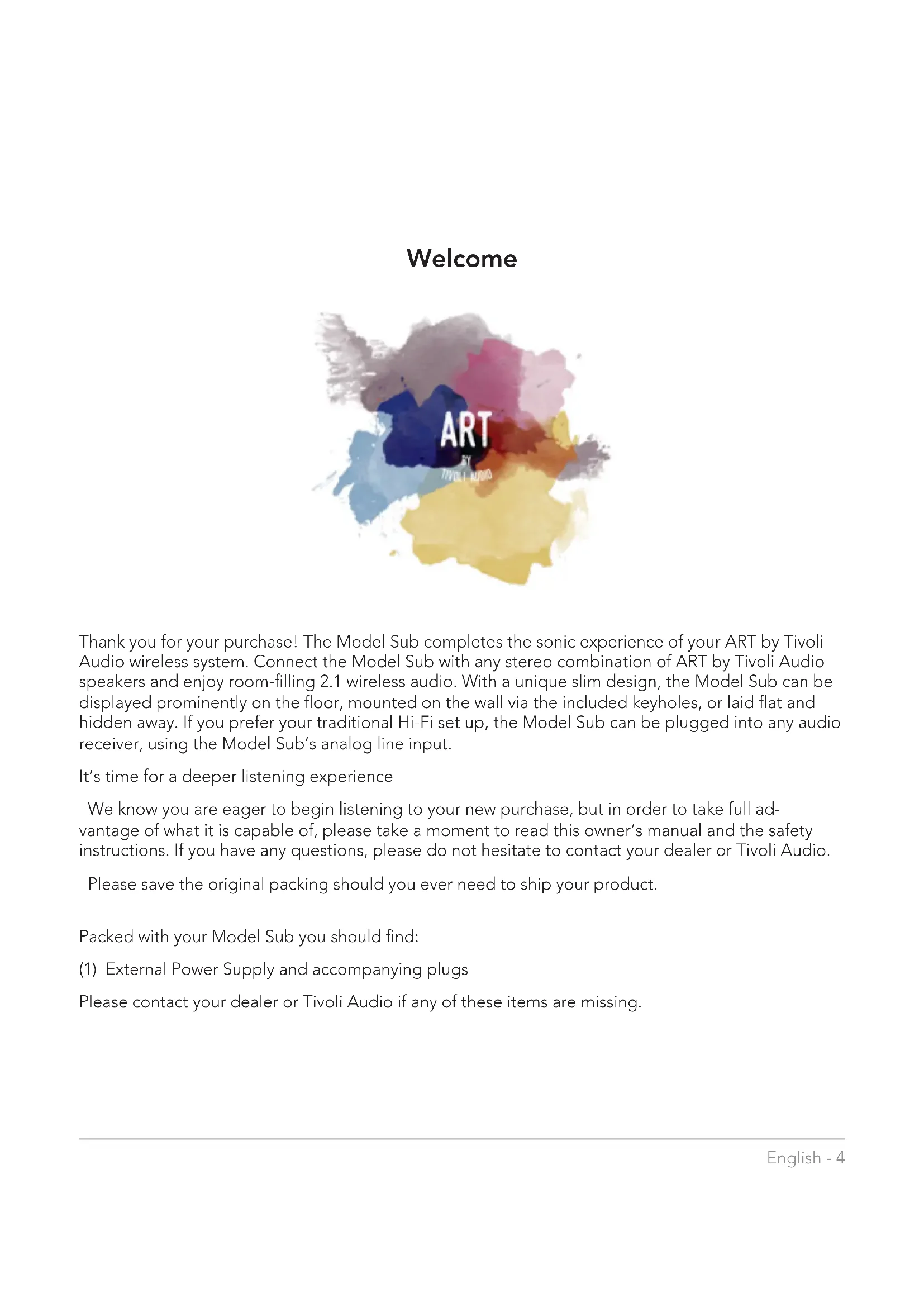

Welcome

ART BY 77011 MUNO

Thank you for your purchase! The Model Sub completes the sonic experience of your ART by Tivoli Audio wireless system. Connect the Model Sub with any stereo combination of ART by Tivoli Audio speakers and enjoy room-filling 2.1 wireless audio. With a unique slim design, the Model Sub can be displayed prominently on the floor, mounted on the wall via the included keyholes, or laid flat and hidden away. If you prefer your traditional Hi-Fi set up, the Model Sub can be plugged into any audio receiver, using the Model Sub's analog line input.

It's time for a deeper listening experience

We know you are eager to begin listening to your new purchase, but in order to take full advantage of what it is capable of, please take a moment to read this owner's manual and the safety instructions. If you have any questions, please do not hesitate to contact your dealer or Tivoli Audio.

Please save the original packing should you ever need to ship your product.

Packed with your Model Sub you should find:

(1) External Power Supply and accompanying plugs

Please contact your dealer or Tivoli Audio if any of these items are missing.

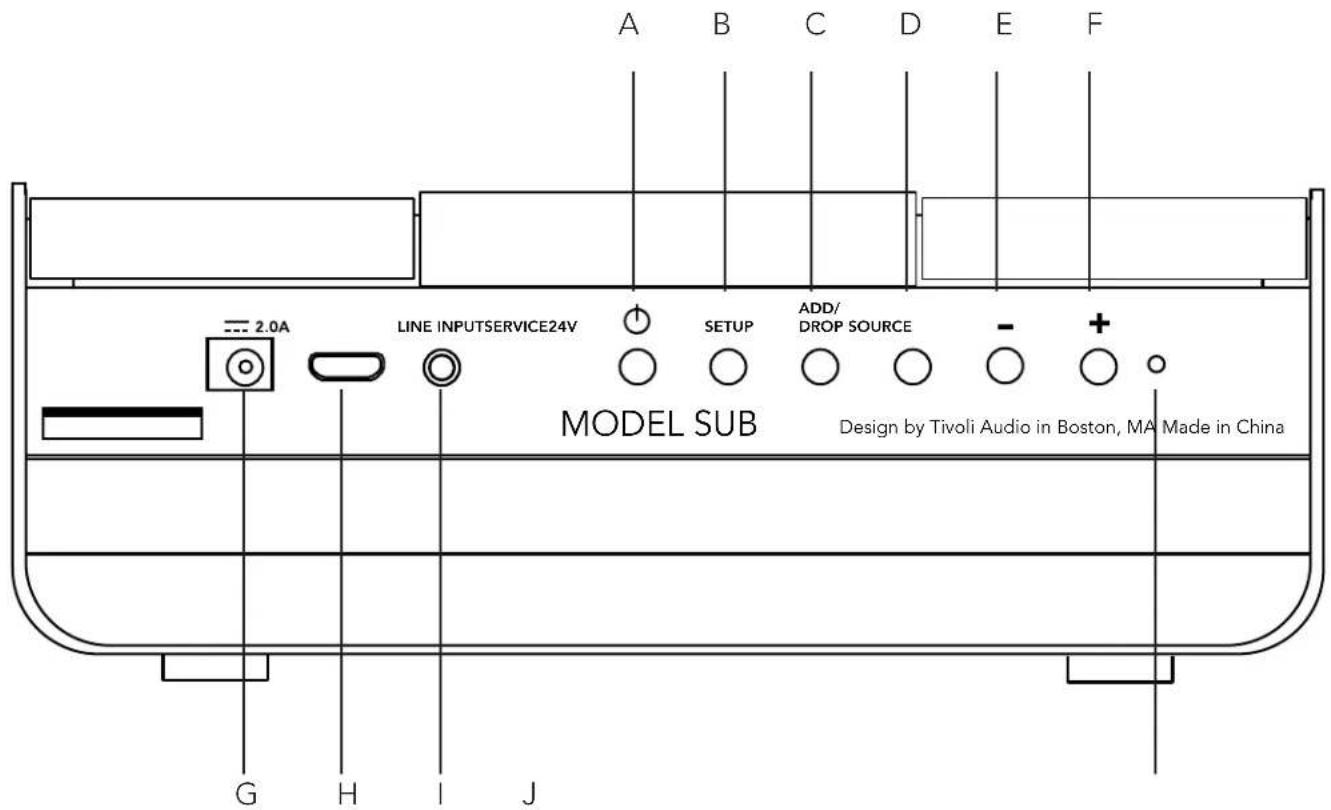

Guide to Features

A B C D E F 2.0A LINE INPUTSERVICE24V SETUP ADD/ DROP SOURCE - + MODEL SUB Design by Tivoli Audio in Boston, MA Made in China G H I J

A. POWER: Press to turn on the unit. Hold to turn off.
B. SETUP: Press to enable your speaker to be connected to your home network
C. ADD/DROP: If the speaker is connected to a group, holding this button removes it from the group. If the speaker is not connected to a group, pressing this button connects it to the next available group. More information can be found in the "Add/Drop" section of this manual
D. SOURCE: Tap to switch between audio sources. Audio source is indicated by the color of the LED.

Green LED color – Wi-Fi mode

Purple LED Color - Line input mode

E. VOLUME -: Press to decrease the volume.

F. VOLUME +: Press to increase the volume.

G. DC Power: Plug in your Tivoli power adapter to charge the battery or power your speaker. Use only the power supply provided with this product.

H. SERVICE: Service port. Only for use by an Authorized Tivoli service center.

I. LINE INPUT: Line in for a traditional receiver.

J. LED Indicator Light

WiFi Mode

Setup

Follow the following steps to connect your speaker to your home WiFi network.

1. Turn on your unit using the power button.
2. Download and open the Tivoli Audio Wireless App
3. Scroll left/right on the app to select the type of speaker you are setting up.

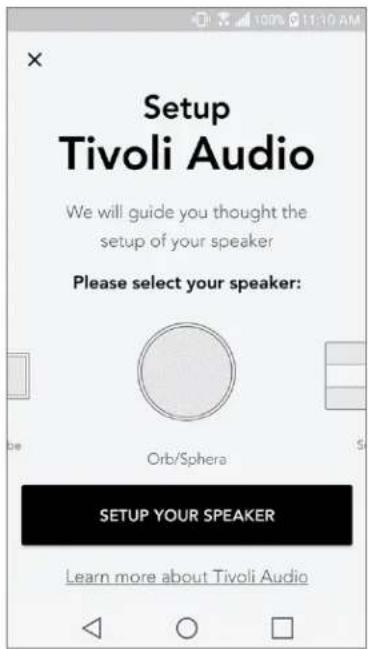

Setup Tivoli Audio We will guide you thought the setup of your speaker Please select your speaker: Orb/Sphera SETUP YOUR SPEAKER Learn more about Tivoli Audio

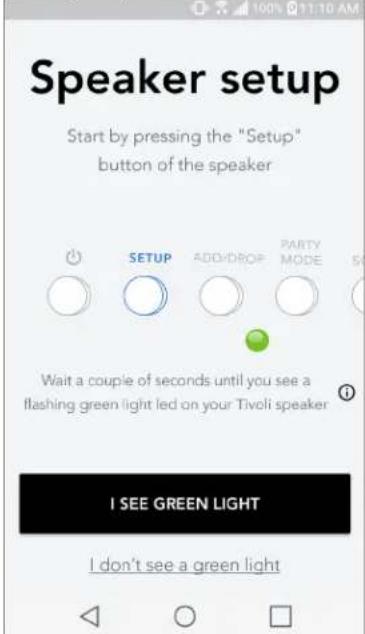

1. On the side of the unit, press the "Setup" button, then tap "I SEE GREEN LIGHT".

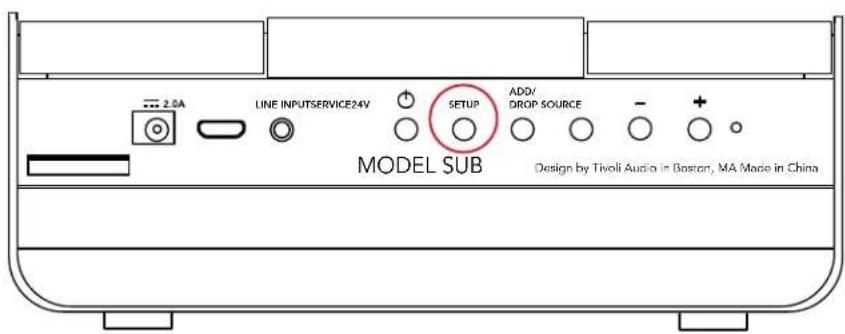

2.5A LINE INPUTSERVICE24V SETUP ADD/ DROP SOURCE - + MODEL SUB Design by Tivoli Audio in Boston, MA Made in China

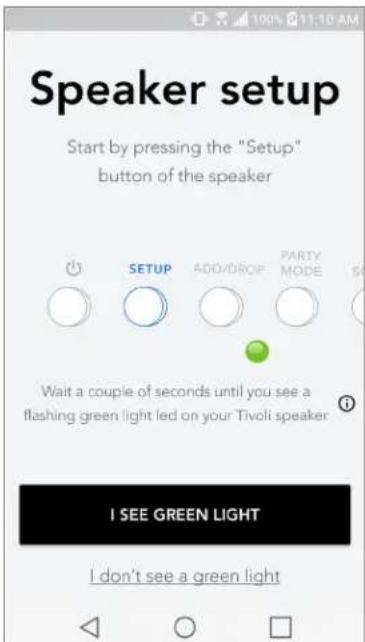

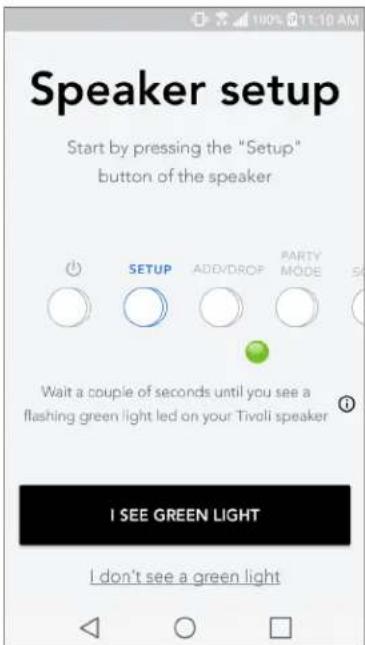

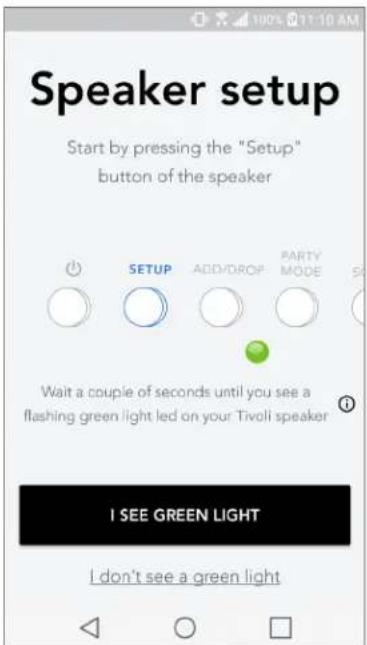

Speaker setup Start by pressing the "Setup" button of the speaker SETUP ADDVDROP PARTY MODE Wait a couple of seconds until you see a flashing green light led on your Tivoli speaker I SEE GREEN LIGHT I don't see a green light

1. Select "Go To Settings" to go to your WiFi networks to connect to the unit.

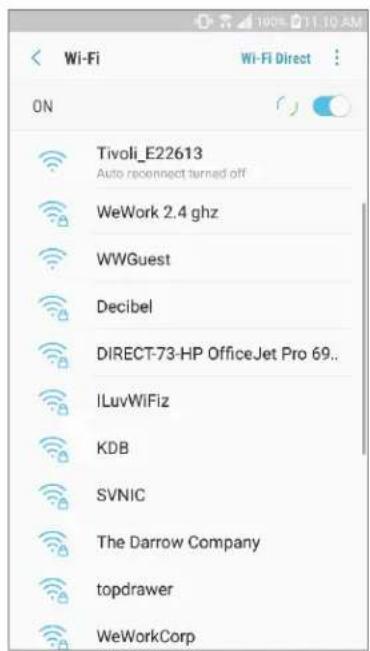

2. Select "Tivoli_XXXXXX" in your WiFi settings. After your device has confirmed connection to the Tivoli network, return to the Tivoli Audio Wireless App.

Network setup In order to find speakers first you need to go to your device's "Settings" and select Wi-Fi settings. CHOOSE A NETWORK... Tivoli_XXXX Network 2 Network 3 Connect to "Tivoli_XXXX" from the list of networks, and you are ready to search for speakers GO TO SETTINGS

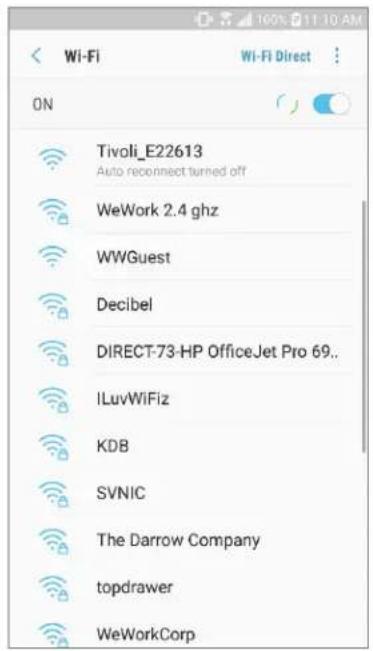

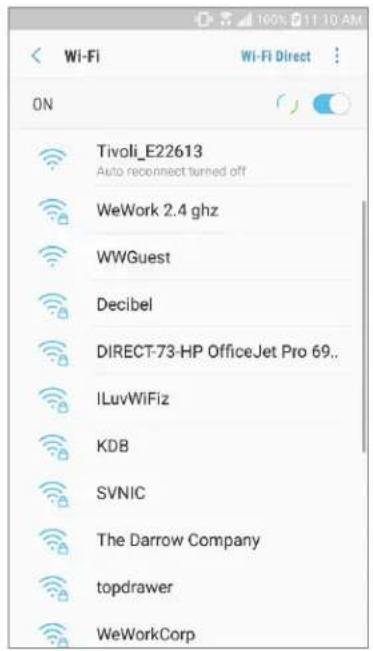

Wi-Fi ON Tivoli_E22613 Auto reconnect turned off WeWork 2.4 ghz WWGuest Decibel DIRECT-73-HP OfficeJet Pro 69.. ILuvWiFiz KDB SVNIC The Darrow Company topdrawer WeWorkCorp

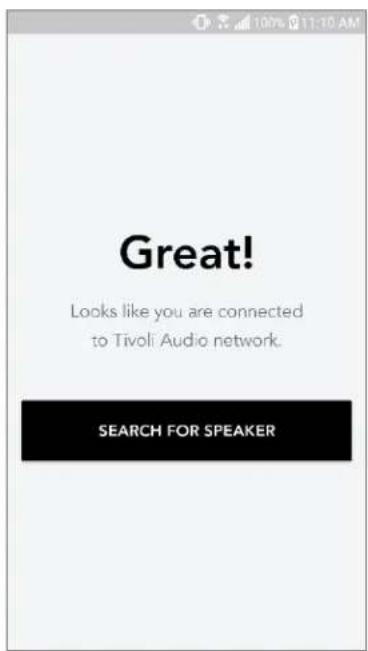

1. You should see that you are connected to the unit. Then select "Search for Speaker" to enter your WiFi settings.

Great! Looks like you are connected to Tivoli Audio network. SEARCH FOR SPEAKER

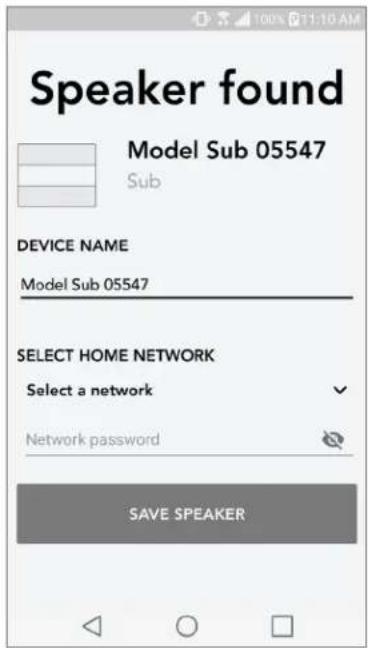

1. In the dropdown menu, select the WiFi network you will be connecting the unit to, and then enter in your password information. Please note this must be a 2.4GHz network; 5GHz networks are normally labeled and are not compatible with Tivoli Audio products. After entering your WiFi network information, select "Save Speaker".

Speaker found Model Sub 05547 Sub DEVICE NAME Model Sub 05547 SELECT HOME NETWORK Select a network Network password SAVE SPEAKER

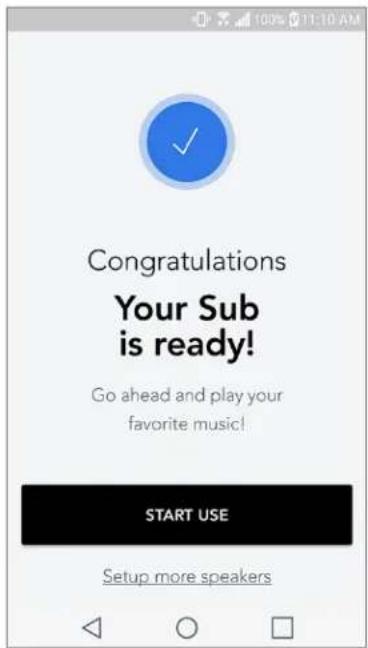

1. After you have saved your WiFi settings in the speaker, you are ready to set up a Zone. It may take approximately 30 seconds for the speaker to connect to your WiFi network.

Congratulations Your Sub is ready! Go ahead and play your favorite music! START USE Setup more speakers

Note: If the set up is not complete and you receive a failed to connect message, please start over and repeat steps 1-9.

Creating a Zone

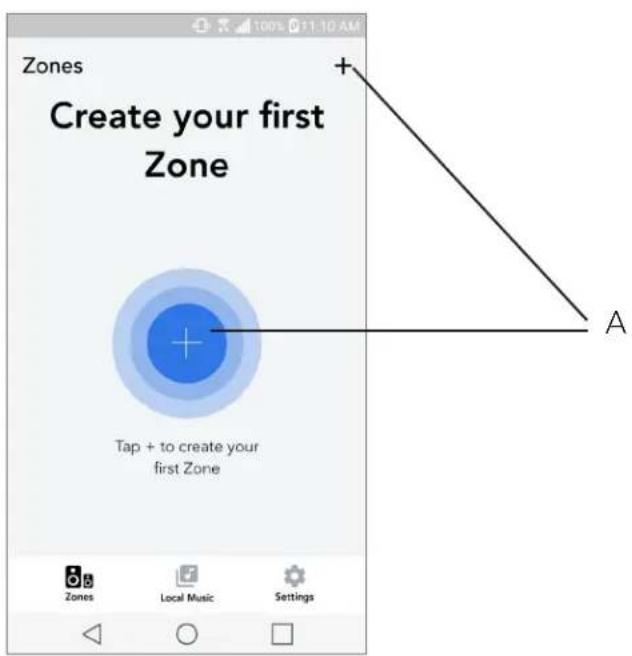

Zones Create your first Zone Tap + to create your first Zone A Zones Local Music Settings

A. Creates a zone. A zone can consist of one or more speakers.

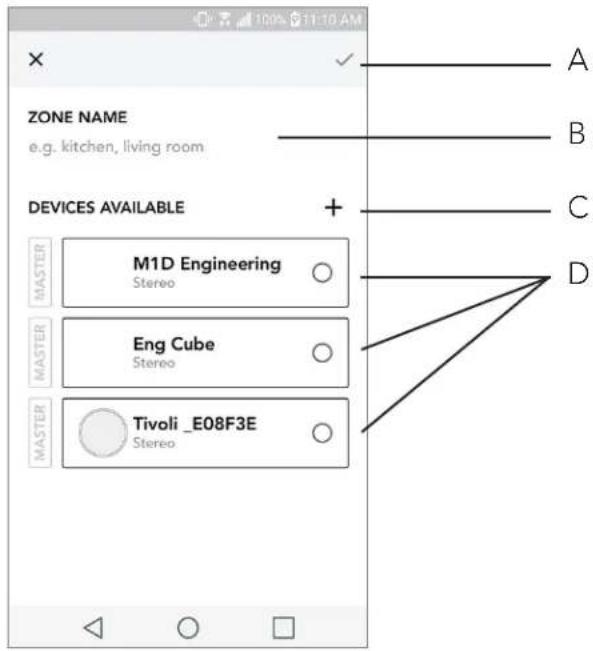

Selecting Speaker or Speakers for a Zone

ZONE NAME e.g. kitchen, living room DEVICES AVAILABLE + MASTER M1D Engineering Stereo ○ MASTER Eng Cube Stereo ○ MASTER Tivoli _E08F3E Stereo ○ A B C D

A. Saves changes
B. Names the zone
C. Goes to setup page to add an additional speaker
D. Select speakers to include in the zone

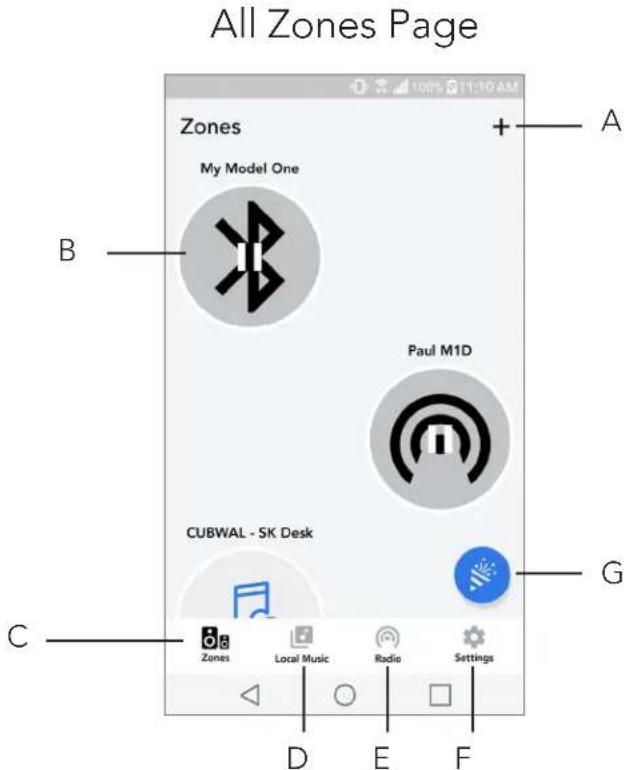

All Zones Page Zones My Model One B Paul M1D CUBWAL - SK Desk G C Zones Local Music Radio Settings A D E F

A. Creates a new zone
B. Select to open zone
C. See all zones (current screen)
D. See music locally stored on your phone or tablet to play on a zone
E. Select FM/DAB radio as a source for any zone that has a Model One Digital available.
F. Goes to Settings Page
G. Drag onto a zone to enable Party Mode. More information on party mode can be found on page 19.

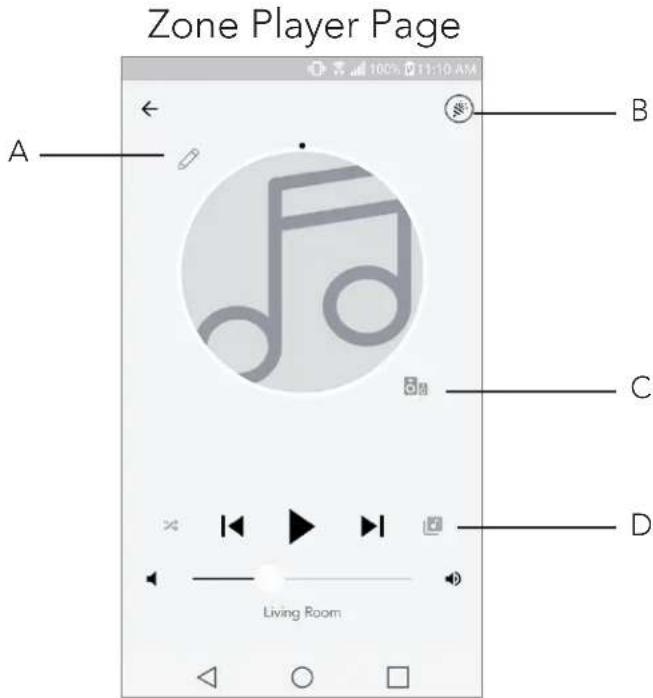

Zone Player Page A B C D Living Room

A. Changes the name of the zone
B. Activates Party Mode, joining all active speakers in playback
C. Goes to the zone speaker list.
D. Select music source to play on a zone. Please note, some in app available sources require registered account login information

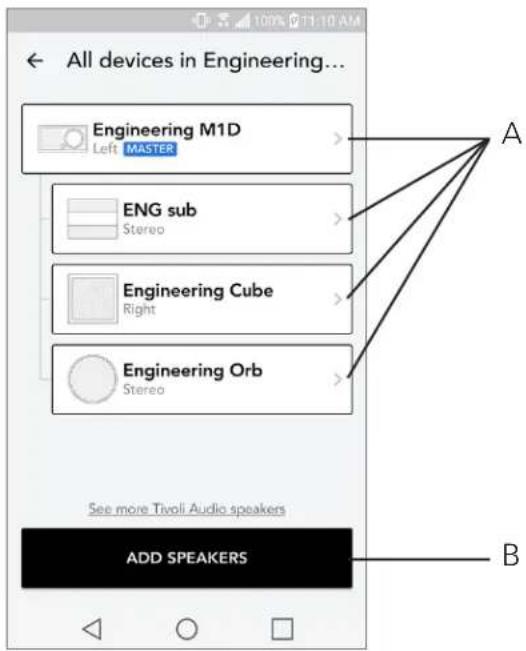

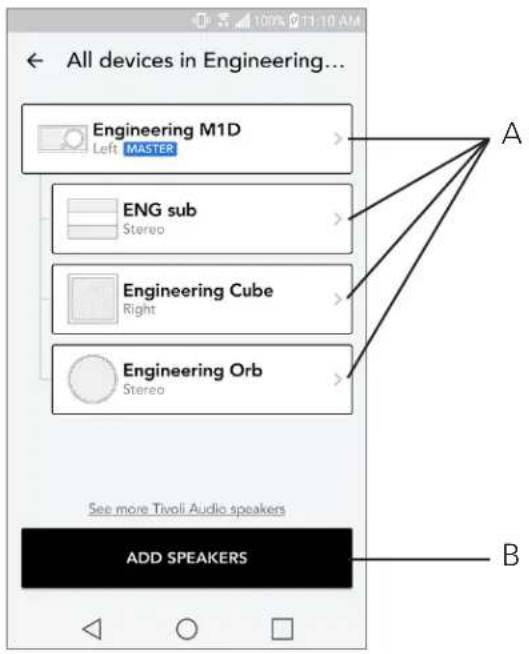

Zone Speaker List

All devices in Engineering... Engineering M1D Left MASTER ENG sub Stereo Engineering Cube Right Engineering Orb Stereo A See more Tivoli Audio speakers ADD SPEAKERS B

A. Tap a speaker to see its detail page.
B. Tap to add speakers to the zone.

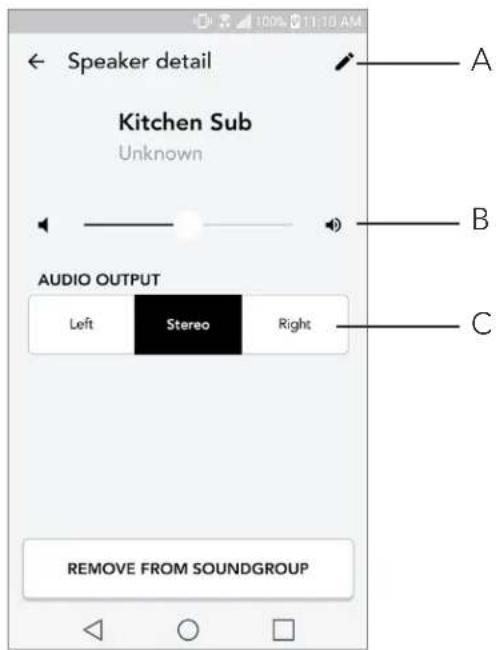

Speaker Details Page

Speaker detail Kitchen Sub Unknown AUDIO OUTPUT Left Stereo Right A B C REMOVE FROM SOUNDGROUP

A. Change the speaker name
B. Adjust speaker volume
C. Set the speaker as Right Channel only, Left Channel only, or Stereo output

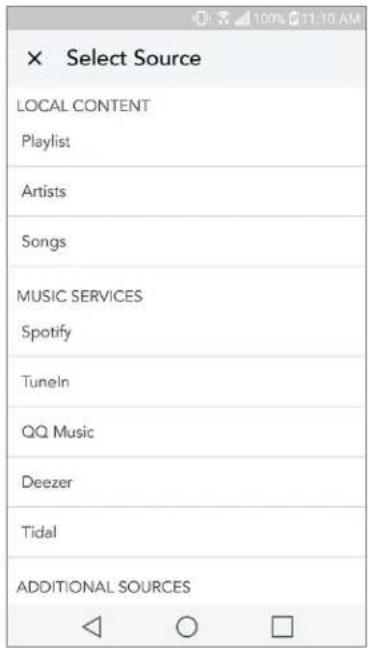

Sources

Select music source to play on a zone. Please note, some in app available sources require registered account login information. For more information on playing Bluetooth over WiFi, consult the Bluetooth over WiFi section.

× Select Source LOCAL CONTENT Playlist Artists Songs MUSIC SERVICES Spotify Tuneln QQ Music Deezer Tidal ADDITIONAL SOURCES

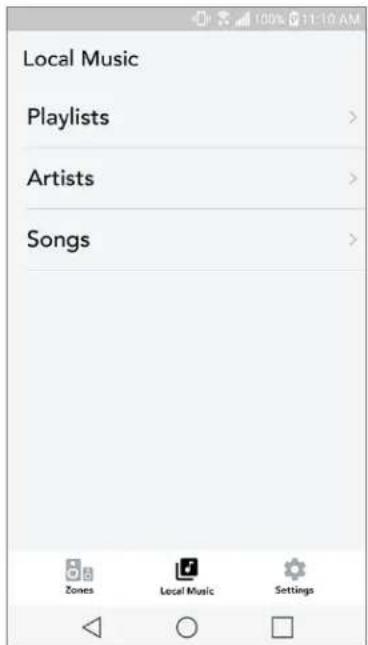

Music Screen (only applies to local content)

Browse music that is stored locally, directly on your phone or tablet.

Local Music Playlists > Artists > Songs >

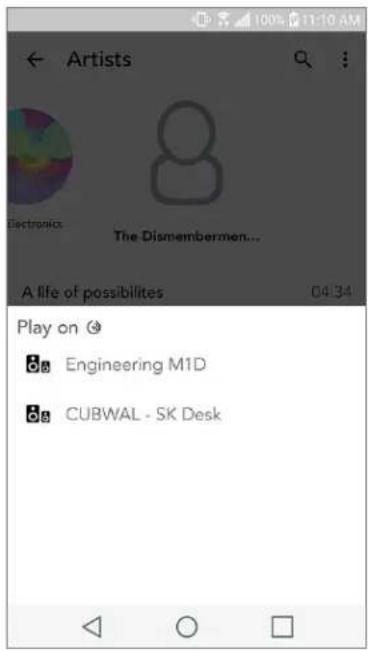

Note: After choosing a song for playback, if you have not selected a zone the app will prompt you to do so.

Artists The Dismembermen... A life of possiblites 04:34 Play on Ⓐ Engineering M1D CUBWAL - SK Desk

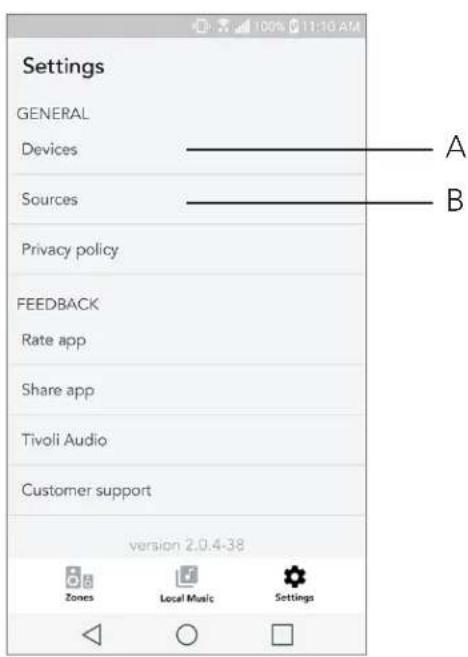

Settings Page

Settings GENERAL Devices Sources Privacy policy FEEDBACK Rate app Share app Tivoli Audio Customer support version 2.0.4-38 A B Zones Local Music Settings

A. See all speakers that have been set up
B. Manage music service account logins

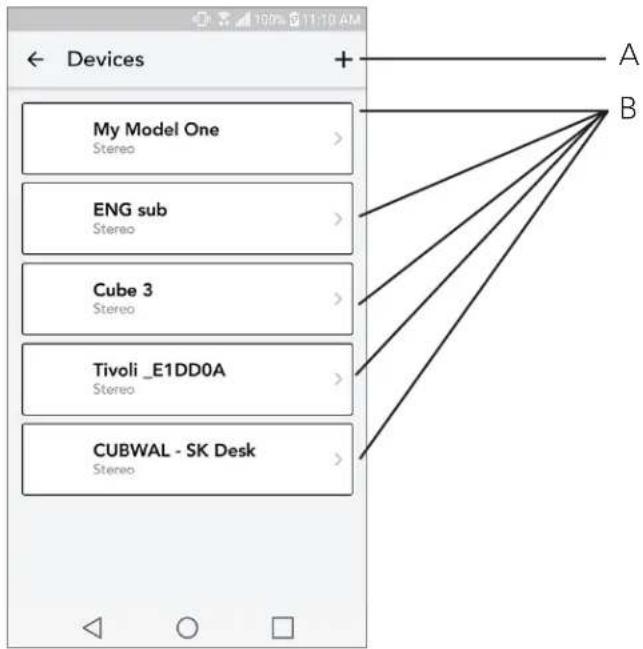

Devices Page

Devices My Model One Stereo ENG sub Stereo Cube 3 Stereo Tivoli _E1DD0A Stereo CUBWAL - SK Desk Stereo + A B

A. Setup a new speaker
B. See individual speaker's information and configuration

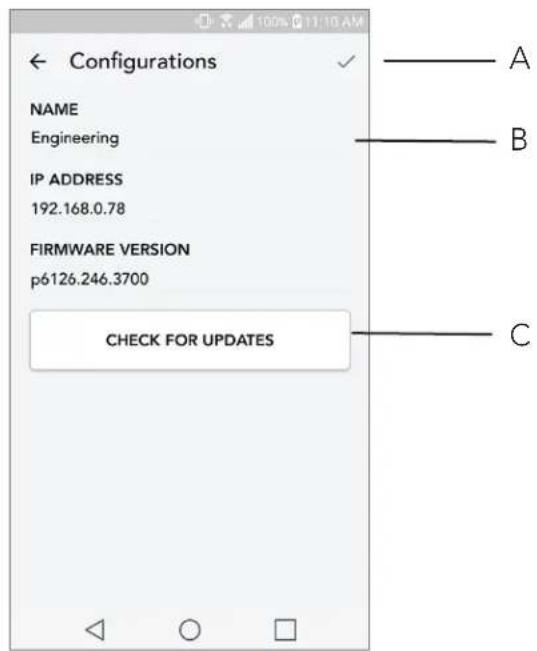

Speaker Configuration page

Configurations NAME Engineering IP ADDRESS 192.168.0.78 FIRMWARE VERSION p6126.246.3700 CHECK FOR UPDATES A B C

A. Select to save speaker name change
B. Select to rename the speaker
C. Select to check for new firmware or re-install existing firmware

Updating Firmware

Your Model Sub will have periodic software updates. It is best to check for these updates when you first use the product, and about every 4 months after. The app will notify you of new firmware updates, or you can check on the Speaker Configuration page.

To check for updates:

1. In your settings page, go to Devices.
2. Any units that need the latest firmware should be listed. Select the unit you would like to update in the list.

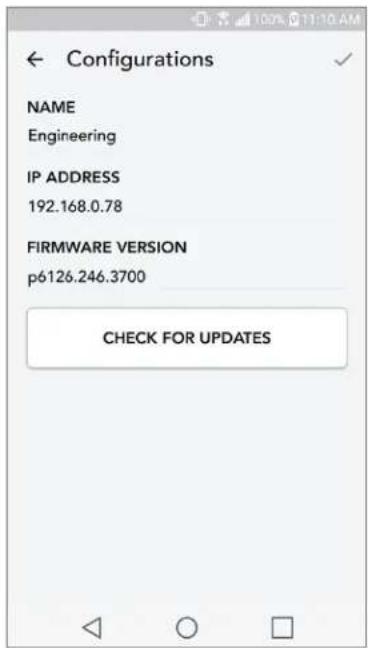

3. Once you are in the unit's page, select "Check for Updates"

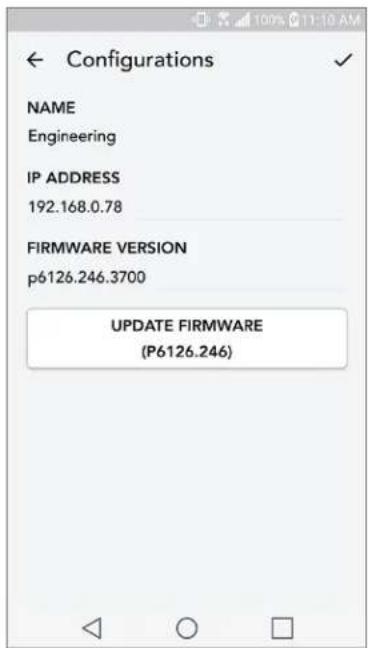

Configurations NAME Engineering IP ADDRESS 192.168.0.78 FIRMWARE VERSION p6126.246.3700 CHECK FOR UPDATES

1. If the unit IS NOT up to date, the button will say "Update Firmware". If the unit IS up to date, the button will say "Re-Install Firmware". It is not necessary to re-install firmware unless instructed to do so by a customer service agent.

Configurations NAME Engineering IP ADDRESS 192.168.0.78 FIRMWARE VERSION p6126.246.3700 UPDATE FIRMWARE (P6126.246)

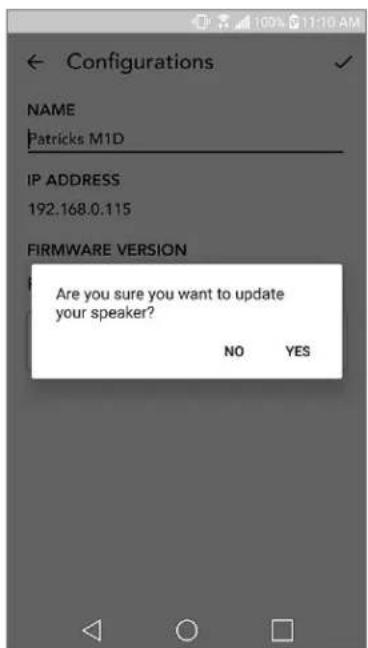

1. Confirm you would like to update your firmware.

Configurations NAME Patricks M1D IP ADDRESS 192.168.0.115 FIRMWARE VERSION Are you sure you want to update your speaker? NO YES

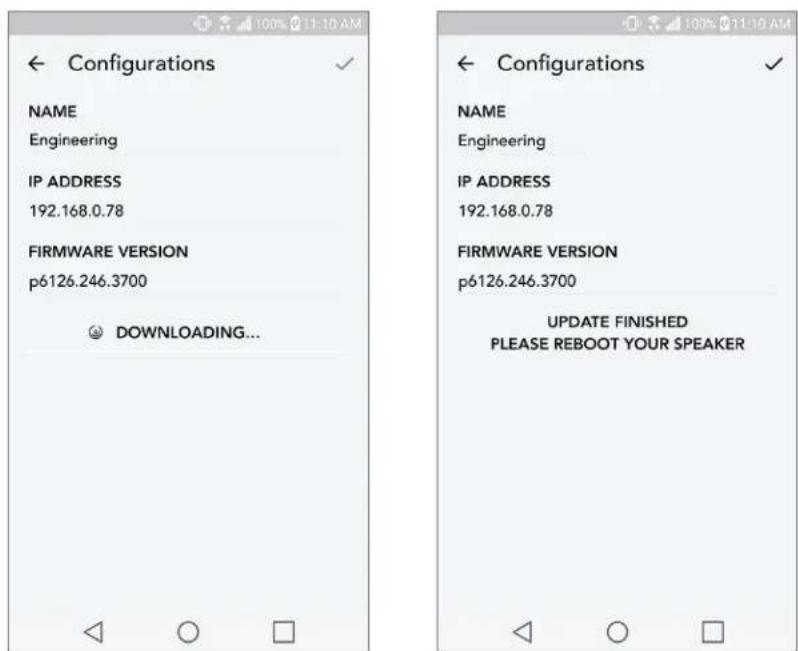

1. You will see your unit download and install the firmware update. Once the update is finished, your speaker will turn itself off. Turn your unit back on, and it is ready for use.

Configurations NAME Engineering IP ADDRESS 192.168.0.78 FIRMWARE VERSION p6126.246.3700 DOWNLOADING... Configurations NAME Engineering IP ADDRESS 192.168.0.78 FIRMWARE VERSION p6126.246.3700 UPDATE FINISHED PLEASE REBOOT YOUR SPEAKER

Care

A dry cloth is recommended to clean the back and wooden cabinet of your Model Sub. A lint roller can be used to clean the fabric on the front. Do not expose to water.

Troubleshooting and FAQs

Troubleshooting

1. The LED is blinking green slowly. Your speaker is having trouble connecting to a network it was previously set up for. Check to make sure the network is still active. If the network is still active, try turning off the speaker and turning it back on. If that does not work, perform a factory reset (hold down the Setup and Party Mode buttons for 3 seconds) and repeat the setup process for the speaker.
2. The LED is blinking green fast. Your speaker has not been set up for a wireless network and it is in setup mode. Refer to the setup directions in either the Quick Setup Guide or the Online Manual.
3. The LED is blinking blue. Your speaker is in Bluetooth pairing mode. Refer to the Bluetooth pairing directions in either the Quick Setup Guide or the Online Manual.
4. I can't find my Wireless Network (WiFi) listed in the Tivoli App. Make sure your Wireless Access Point or Wireless Router is powered on and connected to the internet. Verify that your WiFi

band is set to the standard 2.4GHz. The ART system does not support 5GHz. Make sure your device is connected to your Wireless Network. Close the Tivoli Audio App and then re-open the App. You should be able to see the Wireless Network now.

1. The music sounds unbalanced through my speaker. To check balance, open the Tivoli App, select Zone and select Speakers. Select the speaker(s) you are using. If you are using only one speaker, verify that the speaker is set to Stereo. If you are using two speakers, confirm the volume levels are the same and that they are both set to Stereo or Left/Right if you are listening to them as a stereo pair. If you are using more than two speakers, make sure all Left and Right speakers are set up in pairs (for example, do not have 2 Lefts and 1 Right).
2. I have set up the speakers, but I can't find the Model Sub listed in the App. Make sure the LED in the back of the speaker is a solid green color. Power off the unit by holding down the power button on the back of the unit until the LED turns red, then press the power button again to turn the speaker on. Restart the App and once the LED on speaker is solid green again, look for the speaker again in the "Play New" window. If green LED is flashing, refer to Troubleshooting tip #1 or #2.
3. I'm playing Spotify, but the speaker is coming through my phone. Open the Spotify App. While playing a song, at the bottom of the App, click where it says "Available Devices". Select name of the master speaker of your Zone and the sound will switch to the Tivoli system. Refer to the Spotify Connect guide that accompanies your speaker for more information, as well as your Model Sub Quick Setup Guide and Online Manual.
4. I'm playing Spotify, but I cannot see where it says "Available Devices" at the bottom of the App. Make sure you are using a Spotify Premium account. For more information, refer to the Spotify Connect guide that accompanies your speaker or visit Spotify.com. If you are using a Spotify Premium account, make sure the speaker is connected to your Wireless Network, and restart your Spotify App.
5. I don't see Apple Music or Google Play listed in the App. Not a problem! Set your Model Sub to Bluetooth mode. Pair your media device via Bluetooth to your desired Model Sub. If you want to hear the music on more than one speaker, use the Bluetooth over WiFi feature.
6. My Model Sub is on and connected but no sound is coming from the system. Increase the volume on your Model Sub using the volume knob located on the front of the unit. You can also check the volume on the Tivoli App. Next check the media volume on your phone. Make sure it is turned on and try raising the volume. Make sure nothing is touching the top of your Model Sub on the touch-sensitive area that may be pausing the system. Pause and then play your audio source, as your wireless network may have had issues affecting all of your devices.
7. My speaker is non-responsive. Perform a factory reset. Hold the Setup and Add/Drop buttons on the speaker at the same time for 3 seconds. The LED will turn red. Press the Power button. The speaker has now been restored to factory default settings. If it is still non-responsive, remove the power source (either battery or adapter) and then re-connect the power source.

Frequently Asked Questions

1. How can I play music on my new Model Sub? You can play music on your Model Sub by streaming music over WiFi via the Tivoli App, pair to the Model Sub via Bluetooth, or use the auxiliary input on the back of the unit. Refer to your Quick Setup Guide or Online Manual for more information.
2. Where can I find the App? The Tivoli Audio Wireless App can be found in both the iOS App Store and the Google Play Store.
3. What kind of power does the Model Sub require? The Model Sub is packaged with a 24 Volt DC power supply.
4. Can I use my Model Sub on a public WiFi network? Yes, but the strength of the WiFi signal and streaming capabilities may vary depending on the number of other devices using the network.
5. Can I connect my non-WiFi enabled Tivoli products to the new ART Line? Yes! Using the new ConX, you can turn any Tivoli Audio product into a WiFi speaker. It can then be connected wirelessly to your Model Sub system.
6. Can I connect my laptop or desktop computer via WiFi to my Model Sub? At this time, the Tivoli Audio App is only optimized for phone and tablet use. However, this may change in the future. You can still connect via Bluetooth or using the Auxiliary port.
7. What services are supported by the ART by Tivoli Audio system? Spotify (premium), Tidal, Deezer, QQ Music, Tune In, Network Devices/Servers, and local content. Other music services are still available to use, but via Bluetooth and the Bluetooth over WiFi feature. Refer the Bluetooth over WiFi section of your Online Manual for more information.
8. How do I clean my Model Sub? We recommend cleaning the wood finish with a dry cloth. The fabric can be cleaned with a lint roller.
9. Can I connect separate ART products together wirelessly? Yes! Once all desired speakers have been properly set up on your WiFi network, the speakers will be available for you to connect. These selected systems will be part of a zone which you can play music to simultaneously. Refer to your Quick Setup Guide and Online Manual for more information.
10. Can I play multiple sources at the same time? Yes! You can have as many sources as you have speakers. Each zone can play a different source if you wish.
11. Do I need a special internet speed or router to use my Model Sub? You will need a basic broadband connection connected to a 2.4GHz capable router/wireless access point. This is the common setup in many homes. The Model Sub does not support 5GHz routers/wireless access points at this time.
