1 /NOTICES TO THE USER

• Safety recommendations 4
• Environmental protection 9
  Description of your appliance 10

2 / INSTALLING YOUR APPLIANCE

• Environmental protection 11

3 / USING YOUR APPLIANCE

To use your cooker hood 12

4 / CARING FOR AND CLEANING YOUR APPLIANCE

• Changing and cleaning the anti-grease filters 14

• Installing the carbon filter 14

• Changing the light bulb 14

• Maintaining your appliance 15

5/TROUBLESHOOTING 16
6/ AFTER-SALES SERVICE 16

1 /NOTICES TO THE USER

Attention

Keep this user guide with your appliance. If the appliance is ever sold or transferred to another person, ensure that the new owner receives the user guide. Please become familiar with these recommendations before installing and using your appliance. They were written for your safety and the safety of others.

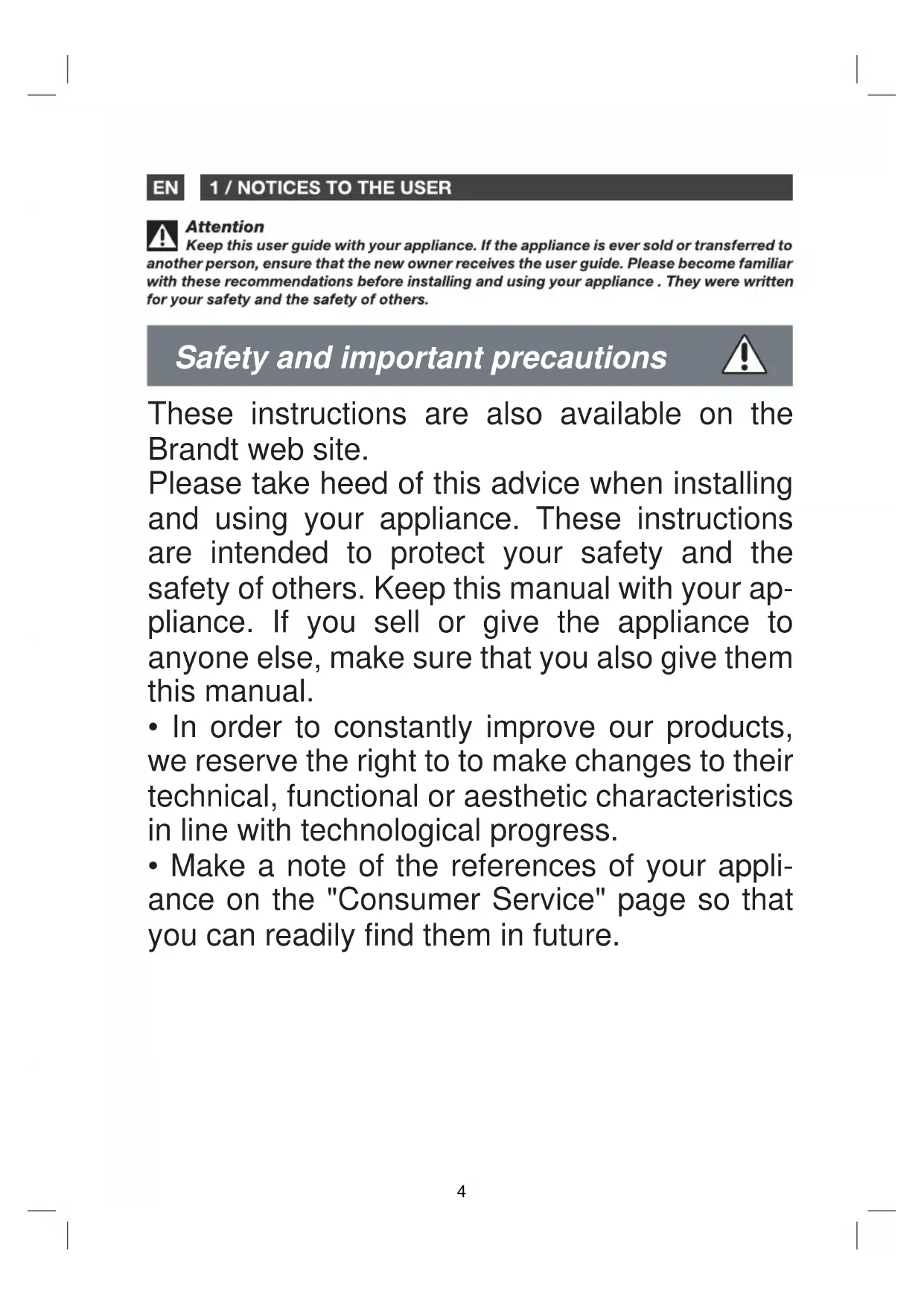

Safety and important precautions

These instructions are also available on the Brandt web site.

Please take heed of this advice when installing and using your appliance. These instructions are intended to protect your safety and the safety of others. Keep this manual with your appliance. If you sell or give the appliance to anyone else, make sure that you also give them this manual.

• In order to constantly improve our products, we reserve the right to make changes to their technical, functional or aesthetic characteristics in line with technological progress.
• Make a note of the references of your appliance on the "Consumer Service" page so that you can readily find them in future.

1 /NOTICES TO THE USER EN

Important precautions

• This appliance is designed for use by consumers in the home. Do not use it for commercial or industrial purposes or for any other purpose for which it is not intended.
• Unpack the appliance as soon as you receive it. Check its general appearance. Make a note of any reservations on the delivery slip and keep a copy.
• This appliance can be used by children aged under 8 and by persons with diminished physical, sensory or mental capacities, or persons without any experience or knowledge, provided that they are properly attended to or are given the instructions on how to use the appliance in complete safety and that any potential risks are anticipated. Children must not play with this appliance. The appliance must not be cleaned and maintained by unattended children.
• Caution: The accessible parts of this appliance may become hot when used with cooking equipment.

Electrical risks

• All the power supply circuits must be disconnected before touching the connection terminals. If the power cord is damaged, it must be

1 /NOTICES TO THE USEREN

replaced by the manufacturer, its after-sales service or a similarly qualified person in order to avoid any danger.

• The appliance can be disconnected by using an accessible power outlet or by incorporating a switch in the fixed lines, in accordance with the installation rules.
• Do not change or attempt to change the characteristics of this appliance. Doing so can be dangerous.
• The appliance must only be repaired by an approved specialist.
• Always disconnect the hood before cleaning or maintaining it.
• Never use steam or high-pressure tools to clean your appliance (for the purposes of electrical safety).
• The appliance can be disconnected by using an accessible power outlet or by incorporating a switch in the fixed lines, in accordance with the installation rules.
• Do not change or attempt to change the characteristics of this appliance. Doing so can be dangerous.
• The appliance must only be repaired by an approved specialist.
• Always disconnect the the hood before clean

1 /NOTICES TO THE USER EN

ing or maintaining it.

• Never use steam or high-pressure tools to clean your appliance (for the purposes of electrical safety).

Risk of asphyxiation

• The regulations applying to the evacuation of air must be obeyed. The air must not be sent into a duct used to evacuate fumes from appliances that use gas or other fuels (this does not apply to appliances that only emit air into the room).
• The room must be suitably ventilated when the range hood is used at the same time as appliances that use gas or other fuels (this does not apply to appliances that only emit air into the room).

Risk of fire

• It is forbidden to flambé food or to turn on gas rings that are not covered by a cooking recipient beneath the hood, as the flames may sucked in and damage the appliance.
• Keep a constant eye on fryers used beneath the hood. When heated to very high temperatures, oil and fat can catch fire.
• Clean the appliance and replace the filters at

1 /NOTICES TO THE USEREN

the recommended frequency. Accumulated deposits of grease can cause a fire.

• It is forbidden to use the hood above a fuel fire (wood, coal, etc.).
• If the hood is installed above a gas-fired appliance, leave at least 70~cm between the top of the range and the underside of the hood. If the instructions of the range installed under the hood specify a distance greater than 70~cm , then this distance must be respected.

Warning

In the case of a kitchen heated by a device connected to a chimney (a stove, for example) the "recycling" version of the hood should be installed. Do not use the hood without metal filters.

Suitable ventilation should be provided in the room when the hood is used at the same time as appliances operated by gas or another combustible fuel.

1 /NOTICES TO THE USER EN

ENVIRONMENTAL PROTECTION

• This appliance's packaging material is recyclable. Help recycle it and protect the environment by dropping it off in the municipal receptacles provided for this purpose.
• Your appliance also contains a great amount of recyclable material. It is marked with

this label to indicate the used appliances that should not be mixed with other waste. This way, the appliance recycling organised by your manufacturer will be done under the best possible conditions, in compliance with European Directive 2002/96/EC on Waste Electrical and Electronic Equipment. Contact your town hall or your retailer for the used appliance collection points closest to your home.

• We thank you doing your part to protect the environment.

Warning

Installation should only be performed by installers and quali ed technicians.

Warning

Remove the protective fi lm from the cartridge fi lter before use.

1 /NOTICES TO THE USEREN

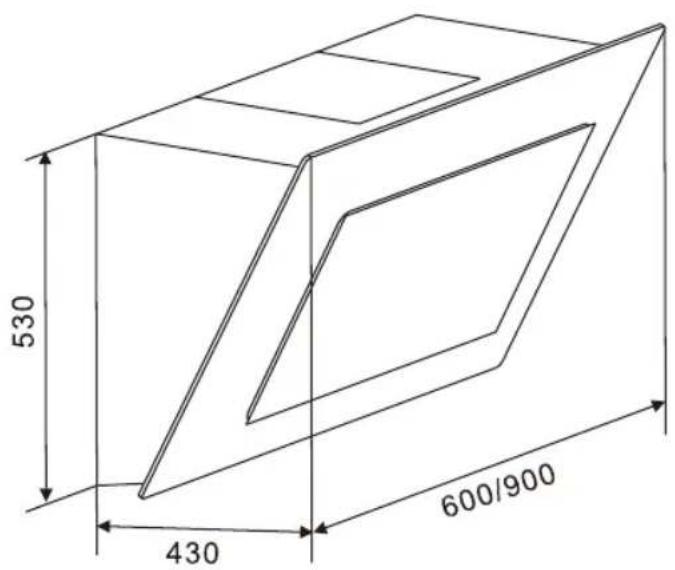

DESCRIPTION OF YOUR APPLIANCE

2 / INSTALLING YOUR APPLIANCE EN

ENVIRONMENTAL PROTECTION

The cooker hood should be placed at a distance of 65 - 75cm (26-30inch) from the cooking surface for the best effect. See Pic 1.
Install the hook on a suitable place once the installation height is fixed, and keep it in line. See Pic 2.
Install the extension tube and chimney on the cooker hood. See Pic 3.
Put the cooker hood on the hook. After adjusting the position, fix the body with safty screw. See Pic 4.

Note

The two safty vents are positioned on back casing, with diameter of 6mm

Note

Any installation work must be carried out by a qualified electrician or competent person.

• Do not connect the ducting system of the hood to any existing ventilation system which is being used for any other appliance, such as warmer tube, gas tube, hot wind tube.
  The angle of the bend of the ventilation pipe should not be less than 120^ ; you must direct the pipe horizontally, or, alternatively, the pipe should go up from the initial point and should be led to an outer wall.
  After the installation, make sure that the cooker hood is level to avoid grease collection at on end. See Pic. 5

Advice on how to save energy

To make optimal use of your appliance, keep the length of the duct and the number of bends in the duct to a strict minimum.

Pic 1

Pic 2
Pic 3

Pic 4

Pic 5

EN 3/USING YOUR APPLIANCE

TO USE YOUR COOKER HOOD

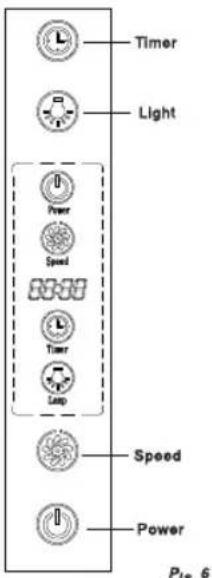

How to use the control panel, See Pic. 6:

1. Plug the hood: When power-on, the backlight is lit. Then showing the "24-hour system", the output is off, and the machine standby. Without any operation, the backlight disappear automatically after 30 seconds.
2. Press the " 一 " button once, the lamp and the " 一 " is lit. Press the button again, the lamp and the " 一 " is lit will be disappear.
3. To use the Speed press the " 串 " button. The motor has three speeds: Low, Medium, High.

Press " button once, the motor starts to work at LOW speed.
Press " button again, the motor works at MEDIUM speed.
Press " button one time more, the motor works at HIGH speed.
- When working, press "..." button can select the speed of motor: "LOW-MEDIUM HIGH - LOW - MEDIUM..." circularly

1. Press the Power " button once, the motor of hood starts to work at the speed it worked last time. Press " button again, the motor stops working.

2. To use the Timer "G" button:

The standard time setting is 12:00. When the hood is cut off, the time will return to 12:00 automatically, and you have to reset the time.

• When both " " button and " " button don't work, " " button is used for time-setting.
  Press " 念 " button for 2 to 5 seconds, time segment "88:88", and the first two number for hour setting will flash. Press " 念 " button, the number increases by degrees, and press " 念 ", the number

decreases by degrees. Namely, the variability is 01 each time when it is pressed once; And the largest digit is 23, the " button can't work when exceeded. If it is equal to 00, the " button can't work.

Press the Timer "按钮 for the second time, time segment "88:88", and the last two number for minute setting will flash. Press "按钮, the number increases by degrees, and press "，the number decreases by degrees. Namely, the variability is 01 each time when it is pressed once; And the largest digit is 59, the "按钮 can't work when exceeded. If it is equal to 00, the "按钮 can't work.

Press the Timer " 念 button for the third time, and it means time setting exit and confirmation.

• Long press the Timer "按钮 for 2-5 seconds under mode, it is for hour setting. Press it for the second time: minute setting. Press it for the third time: time setting exit and confirmation. And it will repeat the action again and again when it is pressed.(It can't run this procedure, if the first time pressing doesn't exceed 2 seconds).

Advice on how to save energy

Adjust the speed to the cooking method and the number of pans in use. It is preferable to use the rings at the back of the range.

4 / CARING FOR AND CLEANING YOUR APPLIANCEEN

CHANGING AND CLEANING THE ANTI-GREASE FILTERS

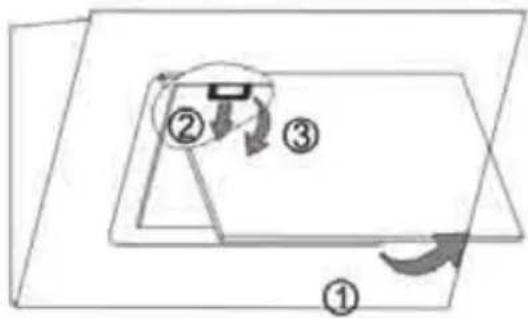

— Tear down your cooker hood as per the approach shown on Pic. 7

• You can clean the fi Iter as below:

• Soak them for about 3 minute in hot water (40-50 degrees) with a greaseloosening detergent then brush it gently with a soft brush. Please do not apply too much pressure, avoid to damage it.

• It can be put into a dishwasher with detergent, set the temperature at around 60 degrees.

• Please do not use abrasive detergent for it will damage the hood.

Pic 7

Note

Make sure that cooker hood is shut before cleaning.

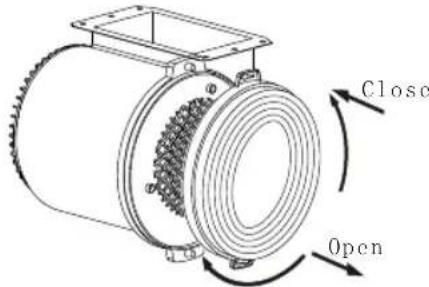

- INSTALLING THE CARBON FILTER (OPTIMAL), SEE PIC.8

• Remove the filters see Pic.7.

• The charcoal filters (Pic.8) are located at either end of the motor. Turn the charcoal fi liters anti-clockwise until they are unscrewed.

• Apply reverse procedure to uninstall the charcoal filter.

Pic 8

Warning:

the charcoal cannot be washed or re

cycled. It should be changed at at three or six months according to your cooking habit

CHANGING THE LIGHT BULB

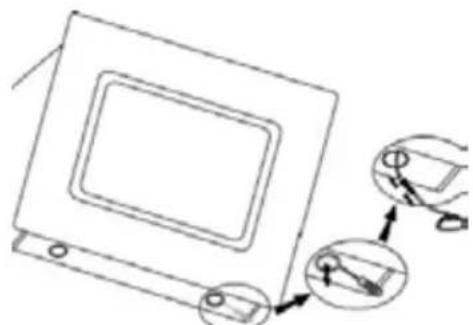

Take the bracket and glass off and then take the broken light bulb off, See Pic 9.

Fix the new light bulb, glass and bracket on. Attention: Before changing the lights, ensure that the appliance is not live.

Pic 9

4 / CARING FOR AND CLEANING YOUR APPLIANCE EN

Warning

Before carrying out any work, the power supply to the hood must be turned off, either

by unplugging it or by using the circuit breaker switch.

MAINTAINING YOUR APPLIANCE

MAINTENANCE WHAT TO DO		PRODUCTS / ACCESSORIES TO USE
Top surface and accessories	Never use metal scouring pads, abrasive products or excessively stiff brushes.	To clean the body and the lighting port, you should use only commercial household cleaning products diluted in water and then rinse using clean water, drying with a soft cloth.
Filter cartridge	This fi iter traps fatty vapours and dust. This component plays an important role in ensuring the effectiveness of your hood. In the event of tough stains, use a non-abrasive cream, then rinse with clean water.	Use a commercial household cleaning product then rinse abundantly and dry. These fi Iters can be cleaned in a vertical position in your dishwasher. (Do not allow them to touch dirty dishes or silverware.)
Activated carbon fi Itler	This fi iter traps odours and must be changed at least once a year depending on your level of use. You should order these fi Iters from your dealer (quoting the reference shown on the identifi cation plate located inside the hood) and note the date the fi Itier was changed.

To preserve your appliance, we recommend that you use Clearit cleaning products.

Professional expertise

serving individuals

Clearit offers you professional products and solutions designed for the daily care of your household appliances and kitchens.

They are on sale at your regular retailer, along with a complete line of accessories and consumable products.

5/TROUBLESHOOTINGEN

SYMPTOMS	SOLUTIONS
The hood is not working...	Ensure that: • The power is not cut off. • A speed has been selected.
The hood is not operating effectively...	Ensure that: • The selected motor speed is sufficient for the quantity of smoke and vapours to be cleared. • The kitchen is suffiently ventilated to allow for fresh air intake. • The carbon fiiter is not worn (hood operating in recycling mode).
The hood stopped working	Ensure that: • The power is not cut off. • The single-pole cut-off device was not activated.

6/ AFTER-SALES SERVICEEN

Any maintenance on your equipment should be undertaken by:

• either your dealer,
• or another quali ed mechanic who is an authorized agent for the brand appliances.

When making an appointment, state the full reference of your equipment (model, type and serial number). This information appears on the manufacturer's nameplate attached to your equipment.

This device complies with the delegated regulations (EU) 65/2014 and 66/2014 of the European Commission on the eco design requirements and energy labeling of household hoods.

symbol Value Unit

Brand	Brandt
Model number	AD1576B
Annual energy consumption	AEC	90.8	kWh/annum
Energy efficiency index	EEi	82.7	-
Fluid dynamic efficiency index	FDE	15.4	-
Lighting efficiency index	LE	47.0	-
Grease filtering efficiency	GFE	53.6	-
Time increase factor	f	1.4	-
Maximum volumetric airflow of the cooker hood	Qmax	591.0	m³/h
Volumetric airflow at best efficiency point	QBEP	309.6	m³/h
Static pressure at the best efficiency point	PBEP	307	P
Power consumption at the best efficiency point	W BEP	170.9	W
Nominal power consumption of lighting system	WL	1.0	W
Average illumination of the lighting system	Emiddle	47	Lux/W
Power consumption in off mode	Po	--	W
Power consumption in standby mode	Ps	0.41	W
Volumetric airflow at the highest speed setting in normal use -		555.0	m³/h
Volumetric airflow at the lowest speed setting in normal use -		412.2	m³/h
Volumetric airflow in intensive or boost mode -		--	m³/h
Sound power emissions at the highest speed setting in normal use -		70	dB(Lwa)
Sound power emissions at the lowest speed setting in normal use -		63	dB(Lwa)
Sound power emissions in intensive / boost mode -		--	dB(Lwa)

EN

Ecodesign information / Technical product fiche

symbol Value Unit

Brand	Brandt
Model number	AD1579B
Annual energy consumption	AEC	89.1	kWh/annum
Energy efficiency index	EEI	79.6	-
Fluid dynamic efficiency index	FDE	17.1	-
Lighting efficiency index	LE	49.6	-
Grease filtering efficiency	GFE	54.7	-
Time increase factor	f	1.4	-
Maximum volumetric airflow of the cooker hood	Qmax	610.0	m3/h
Volumetric airflow at best efficiency point	QBEP	354.6	m3/h
Static pressure at the best efficiency point	P BEP	303	P
Power consumption at the best efficiency point	W BEP	174.8	W
Nominal power consumption of lighting system	WL	1.0	W
Average illumination of the lighting system	Emiddle	50	Lux/W
Power consumption in off mode	Po	--	W
Power consumption in standby mode	Ps	0.34	W
Volumetric airflow at the highest speed setting in normal use -		482.0	m3/h
Volumetric airflow at the lowest speed setting in normal use -		396.0	m3/h
Volumetric airflow in intensive or boost mode -		--	m3/h
Sound power emissions at the highest speed setting in normal use -		69	dB(LWA)
Sound power emissions at the lowest speed setting in normal use -		63	dB(LWA)
Sound power emissions in intensive / boost mode -		--	dB(LWA)

FRS

1 / A L'ATTENTION DE L'UTILISATEUR

RELATIONS CONSOMMATEURS

m = 311

2 / INSTALACE VAŠEHO PRISTROJE

· Ochrana zivotniho prostredi 77

3 /POUZITI VASEHO PRISTROJE

m = 311

2 / INSTALLATION AF APPARATET

AMAHHTOYΦIATPOY ANOPAKA

(προαιρετική)

AVTKataaotnTo aTTOePiou 120 wpeS AetoupyiaC.

-forked hogs, pigs and pigs.
-Include the ingredients of the food in the preparation.
-Include the ingredients of the food in the preparation.
-Include the ingredients of the food in the preparation.
-Include the ingredients of the food in the preparation.
-Include the ingredients of the food in the preparation.
-Include the ingredients of the food in the preparation.
-Include the ingredients of the food in the preparation.
-Include the ingredients of the food in the preparation.
-Include the ingredients of the food in the preparation.
-Exclude all other ingredients from the preparation.

Extension tube
Pic 3

Pic 4

Pic 5

3 / USO DE SU APARATO

ES

- PARA USAR SU CAMPANA DE COCINA
