USER MANUAL MMC1000RLR GORENJE

Red and silver model of a modern kitchen mixer (no visible text or symbols)

MMC1000RLR

Kuhinjski robot	Navodila za uporabo	SI
Kuhinjski robot	Upute za uporabu	BIH HR
Kuhinjski robot	Uputstvo za upotrebu	BIH SRB MNE
Кујнски робот	Упатства за употреба	MK
Kitchen robot mixer	Instruction manual	GB
Кухненски робот	Инструкции за употреба	BG
Robot de bucătărie	Manual de utilizare	RO
Konyhai robotgép	Használati utasítás	H
Robot kuchenny	Instrukcja obsługi	PL
Kuchynské roboty	Návod na obsluhu	SK
Kuchyňské roboty a procesory	Návod na použití	CZ
Küchenmaschine	Gebrauchsanweisung	D
Кухонний комбайн	Інцтрукція з експлуатації	UA
Кухонный комбайн	Инструкция по эксплуатации	RUS
Robot pâtissier	Notice d'utilisation	F
Køkkenmaskine	Brugsanvisning	DK
Yleiskone	Käyttöohje	FI
Kjøkkenmaskin	Bruksanvisning	NO
Köksrobot	Bruksanvisning	SE

SL Navodila za uporabo ....3

HR; BIH Upute za uporabu 8

SRB MNE BIH Uputstvo za upotrebu 13

Technical diagram showing a 3D model of a kitchen mixer with mechanical components and red arrows indicating process steps.

Priprava klobas - napotki in opozorila

Najprej vedno zmeljite meso.

Four-step illustration of a manual hand tool in a food processor, showing mechanical assembly and red directional arrows (no text or symbols)

Priprava keksov - napotki in opozorila

Testo narežite na 3 cm široke trakove.

Four-step illustration of a kitchen mixer with tool manipulation, showing step-by-step assembly and rotation (no text or symbols)

Rezalec zelenjave

Izberite nastavek za rezanje, ki ga potrebujete. Vstavite nastavek za rezanje v ohišje rezalnika.

Ohišje rezalnika nataknite na večfunkcijsko glavo (priključek), tako da ga obrnete v nasprotni smeri urnega kazalca, dokler ne stoji navpično (pri tem se zasliši klik.

Four-step diagram showing a kitchen mixer with tool manipulation, no text or symbols present

Illustration of a kitchen mixer blending liquid into a bowl with red arrows indicating motion (no text or symbols)

3D rendering of a kitchen mixer with red directional arrows indicating motion (no text or symbols)

3D rendering of a gray kitchen mixer with red directional arrows indicating flow or movement (no text or symbols)

Exterior view of a modern kitchen mixer (no text or symbols visible)

Technical diagram showing a 3D model of a kitchen mixer with tool manipulation steps and component disassembly.

Four-step illustration of a hairdryer with mechanical components and red arrows indicating motion (no text or symbols)

Mechanical assembly diagram showing a motor and gear assembly (no text or labels)

Two identical gray industrial kitchen equipment with red arrows indicating downward motion, no text or symbols present.

Rezalica za povrće

Odaberite nastavak za rezanje koji vam je potreban.

Nastavak za rezanje gurnite u kućište rezalice.

Four-step diagram showing a kitchen mixer with mechanical components and red arrows indicating motion (no text or symbols)

Čišćenje

1. Uređaj isključite i iskopčajte iz električne instalacije.
2. Motor nikad nemojte uranjati u vodu, i nemojte ga stavljati ispod tekuće vode. Obrišite ga da bude suh koristeći meku suhu ili malo navlaženu krpu.
3. Za lakše čišćenje nastavke na brzinu isperite odmah nakon uporabe. Svaki nastavak skroz odstranite. Pažljivo rukujte oštricama, jer su vrlo oštre i na rubovima se možete ozlijediti.
4. Ukoliko dođe do promjene boje na nastavcima zbog djelovanja prirodnih boja u namirnicama (npr. mrkva, naranče, itd.), nježno ih izribajte

kuhinjskim ubrusom namočenim u jestivo ulje, a zatim ih dalje čistite kao i obično.

Briga za okolinu

Ova oznaka znači da u granicama Europske unije

čovaj uređaj ne smijete odbaciti zajedno s ostalim kućanskim otpadom. Da bi espriječili možebitno štetno djelovanje na okolinu i čovjekovo zdravlje koje bi moglo biti posljedica nekontroliranog odlaganja ovakvih otpadaka, istrošeni uređaj morate zbrinuti na pravilan način, dakle pobrinuti se da bude pravilno recikliran, čime ćete pridonijeti održivoj ponovnoj uporabi materijalnih izvora. Preko sustava za vraćanje i zbrinjavanje uređaj predajte takvom centru, ili se obratite prodavaču kod kojeg ste uređaj kupili. Prodavač će se pobrinuti za recikliranje aparata na način koji je siguran za okolinu.

Garancija i servisne usluge

Ukoliko trebate informacije u vezi popravaka, ili ako naletite na kakav problem pri uporabi uređaja molimo vas da nazovete Gorenje Centar za pomoć korisnicima Gorenje u vašoj državi (njihov telefonski broj naći ćete u garancijskoj brošuri). Ukoliko u vašoj državi ne postoji takav centar, povežite se s lokalnim prodavačem Gorenje proizvoda, ili pozovite središnju servisnu službu Gorenja za kućanske aparate

Samo za osobnu uporabu!

GORENJE VAM ŽELI MNOGO ZADOVOLJSTVA U RADU S VAŠIM UREĐAJEM!

3D illustration of a kitchen mixer blending into a bowl with red arrows indicating motion (no text or symbols)

3D rendering of a gray kitchen mixer with red directional arrows indicating motion (no text or symbols)

3D rendering of a gray kitchen mixer with red directional arrows indicating motion (no text or symbols)

Exterior view of a modern kitchen mixer (no text or symbols visible)

Ovisno o sastojcima, činija (7) s poklopcem omogućuje vam da napravite i do 1kg testa.

Dugme za otpuštanje višenamenske glave (8) gurnite nagore. Podignite višenamensku glavu, i namestite činiju (7) na postolje aparata. Zatim je okrenite tako da se uglavi u svoj položaj. U činiju sada možete stavljati sastojke.

Činiju iz nerđajućeg čelika pokrijte poklopcem i namestite nastavak za mešanje, kuku (spiralu) za mešenje testa, ili metlicu za mućenje – ovisno o sastojcima i o traženoj teksturi. Okretanjem osovine regulišite idealnu visinu montiranog nastavka.

Višenamensku glavu (8) aparata gurnite u smeru nadole, dok ne začujete da se je uglavila (čuje se klik).

Tokom pripreme možete dodavati sastojke ubacujući ih kroz otvor u poklopcu.

Ukoliko želite zaustaviti rad aparata, dugme za regulisanje (1) obrnite nazad u položaj "0".

Pre prve upotrebe sve delove aparata operite sapunicom, a zatim ih isperite i obrišite da budu suvi.

Technical diagram illustrating the step-by-step assembly of a hairdryer, showing tool positioning and component disassembly.

Priprema kobasica – saveti i upozorenja

Four-step illustration of a manual kitchen tool, showing step-by-step assembly and disassembly (no text or symbols)

Pravljenje keksa - saveti i upozorenja

Testo isecite na trake široke oko 3 cm. Proverite da li žleb separatora za kekse ulazi u istureni deo na kućištu rezača.

Four-step illustration of a kitchen feeder's mechanical assembly, showing step-by-step assembly and disassembly (no text or symbols)

Seckalica za povrće

Odaberite nastavak za sečenje koji vam je potreban. Nastavak za sečenje gurnite u kućište seckalice. Kućište seckalice nataknite na multifunkcijsku glavu (priključak), obrnuvši ga u suprotnim smeru od kazaljki

Four-step diagram showing a kitchen mixer with tool manipulation, no text or symbols present

Briga za životnu sredinu

Ova oznaka znači da u granicama Evropske unije

Illustration of a kitchen mixer blending liquid into a bowl with red arrows indicating motion (no text or symbols)

3D rendering of a white kitchen mixer with red directional arrows indicating motion (no text or symbols)

3D rendering of a kitchen mixer with red directional arrows indicating motion (no text or symbols)

Exterior view of a modern kitchen mixer (no text or symbols visible)

Technical diagram showing a 3D model of a kitchen mixer with mechanical components and directional arrows indicating assembly or operation.

Mechanical assembly diagram showing a shaft, bolts, and pipe connection (no text or labels)

3D rendering of a gray electric shaver with a red arrow indicating motion (no text or symbols)

3D rendering of a gray manual hand tool with a red arrow indicating downward motion (no text or symbols)

3D rendering of a gray manual hand tool with a red arrow indicating force or movement (no text or symbols)

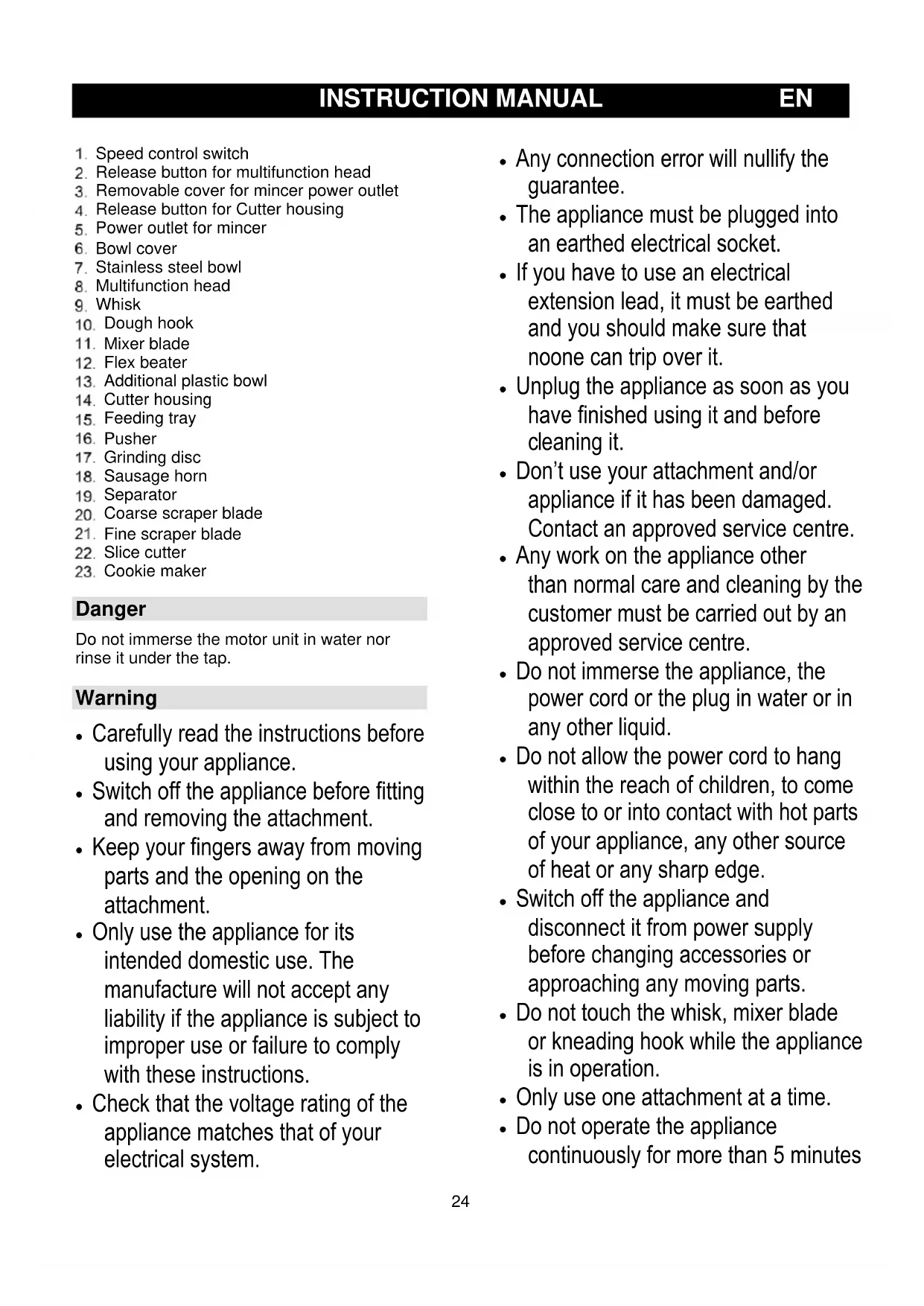

1. Speed control switch
2. Release button for multifunction head
3. Removable cover for mincer power outlet
4. Release button for Cutter housing
5. Power outlet for mincer
6. Bowl cover
7. Stainless steel bowl
8. Multifunction head
9. Whisk
10. Dough hook
11. Mixer blade
12. Flex beater
13. Additional plastic bowl
14. Cutter housing
15. Feeding tray
16. Pusher
17. Grinding disc
18. Sausage horn
19. Separator
20. Coarse scraper blade
21. Fine scraper blade
22. Slice cutter
23. Cookie maker

Danger

Do not immerse the motor unit in water nor rinse it under the tap.

Warning

• Carefully read the instructions before using your appliance.
• Switch off the appliance before fitting and removing the attachment.
• Keep your fingers away from moving parts and the opening on the attachment.
• Only use the appliance for its intended domestic use. The manufacture will not accept any liability if the appliance is subject to improper use or failure to comply with these instructions.

• Check that the voltage rating of the appliance matches that of your electrical system.

• Any connection error will nullify the guarantee.

• The appliance must be plugged into an earthed electrical socket.
• If you have to use an electrical extension lead, it must be earthed and you should make sure that noone can trip over it.
• Unplug the appliance as soon as you have finished using it and before cleaning it.
• Don't use your attachment and/or appliance if it has been damaged. Contact an approved service centre.
• Any work on the appliance other than normal care and cleaning by the customer must be carried out by an approved service centre.
• Do not immerse the appliance, the power cord or the plug in water or in any other liquid.
• Do not allow the power cord to hang within the reach of children, to come close to or into contact with hot parts of your appliance, any other source of heat or any sharp edge.
• Switch off the appliance and disconnect it from power supply before changing accessories or approaching any moving parts.
• Do not touch the whisk, mixer blade or kneading hook while the appliance is in operation.
• Only use one attachment at a time.
• Do not operate the appliance continuously for more than 5 minutes

at a time. Allow 30 minutes rest before next use.

• Appliances can be used by persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and if they understand the hazards involved.
• Children should be supervised to ensure that they do not play with the appliance.
• If the supply cord is damaged, it must be replaced by the manufacturer, service agent or a similarly qualified person, in order to avoid a hazard.
• This appliance may not be used by children. Keep the appliance and its cord out of reach of children.
  • Children may not play with the appliance.
• Children may not clean the appliance or perform user maintenance tasks on it without supervision.
• This appliance is intended to be used in household and similar applications.
• There is a potential injury from misuse. Please handle it with care.
• Care should be taken when handling the sharp cutting blades, emptying the bowl and during cleaning.

• WARNING: AFTER DETACHING THE ACCESSORY, DO NOT TOUCH THE MOVING SHAFT.

• Be careful if hot liquid is poured into the blender as it can be ejected out of the appliance due to a sudden steaming.

• Always disconnect the appliance from the supply if it is left unattended and before assembling, disassembling or cleaning.
• The appliance should be cool down to the room temperature after each process.
• Noise level: 82 dB(A)

This appliance is marked according to the European directive 2012/19/EU on Waste Electrical and Electronic

Equipment (WEEE). This guideline is the frame of a European-wide validity of return and recycling on Waste Electrical and Electronic Equipment.

Caution

Always place the appliance on a flat, stable surface.

Do not use the citrus press longer than 5 minutes without interruption.

This appliance is intended for household use only.

Never use any accessories or parts from other manufacturers unless they are authorized by Gorenje. In case you use these accessories, the warranty will be canceled.

Before use

Clean all detachable parts before using the appliance for the first time (see chapter 'Cleaning').

Make sure the appliance is assembled properly (see chapter 'General description') before you plug it in the wall socket.

Put the plug in the wall socket.

Using the appliance

MIXER BLADE/ WISK/ DOUGH HOOK

Illustration of a kitchen mixer blending liquid into a bowl with red arrows indicating motion (no text or symbols)

3D rendering of a modern kitchen mixer with red directional arrows indicating motion (no text or symbols)

3D rendering of a kitchen mixer with red directional arrows indicating motion (no text or symbols)

Exterior view of a modern kitchen mixer (no text or symbols visible)

Depending on the nature of the ingredients, the bowl (7) with its cover can be used to prepare up to 1kg of dough.

1. Press the release button for the multifunction head (8) up, lift the multifunction head then fit the bowl (7) onto the appliance by turning until it locks into position. Place the ingredients in bowl first.

2. Put the stainless steel bowl cover onto the stainless bowl and insert the mixer blade, hook or whisk (depending on the consistency you prefer). Adjust the height by turning the shaft: adjust the accessories to the ideal position.

3. Press the multifunction head (8) of the appliance down until a click is heard.

4. During preparation, you can add ingredients through the opening in the cover.

5. To stop appliance operation, turn the knob (1) back to 0.

6. Before using for the first time, clean all parts of the accessories with soapy water, rinse and dry.

7. Place the appliance on a flat, clean and dry surface and then plug in your appliance.

Accessory	Food	Maximum amount	Operation time	Speeds	Preparation
Whisk	Cream (38% fat)	500 ml	3-5 minutes	5-6	/
	Egg white	12 pcs	3 minutes	5-6	/
Dough hook	Flour	450 g	Operation 1 minute and 30 seconds at MIN speed, and then 3 minutes and 30 seconds at I speed. Don't operate the appliance for more than 5 minutes.		/
	Salt	5 g
	Yeast	7 g
	Sugar	3 g
	Water(43°C)	312 ml
	Lard	7 g
Mixer blade	Flour	200 g	5 minutes	3-4	/
	Caster sugar	200 g
	Margarine	200 g
	Eggs	4 pcs

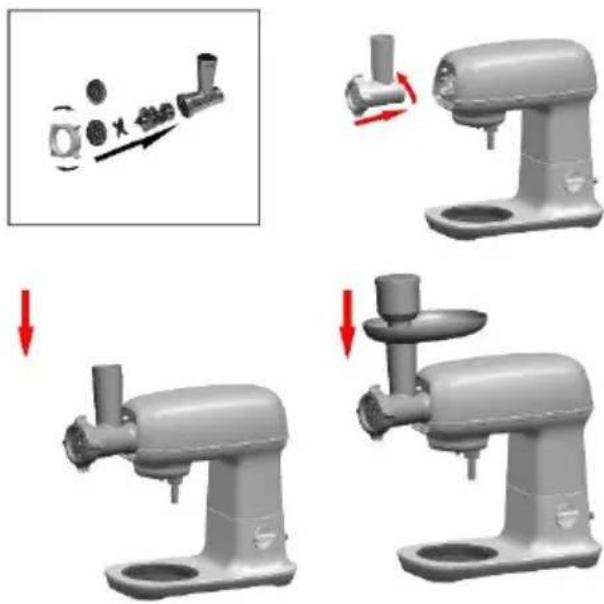

Mincing meat - tips and warnings

• Make sure the cutting edges of the cutter unit are pointing outwards.
• Make sure the notch of the grinding disc fits onto the projection of the cutter housing.
  • Never use frozen meat!
• Do not overload the appliance during use by pushing too much meat into the cutter housing.
• Cut the meat into 10cm-long, 2cm-thick strips.
• Remove bones, gristles and sinews as much as possible.
• Put the prepared meat on the feeding tray.
• Press the on/off button to switch the appliance on.
• Use the pusher to gently push the meat into the cutter housing.
• For steak tartare, mince the meat with the medium grinding disc twice.

Technical diagram showing a 3D model of a hairdryer with mechanical components and directional arrows indicating assembly steps.

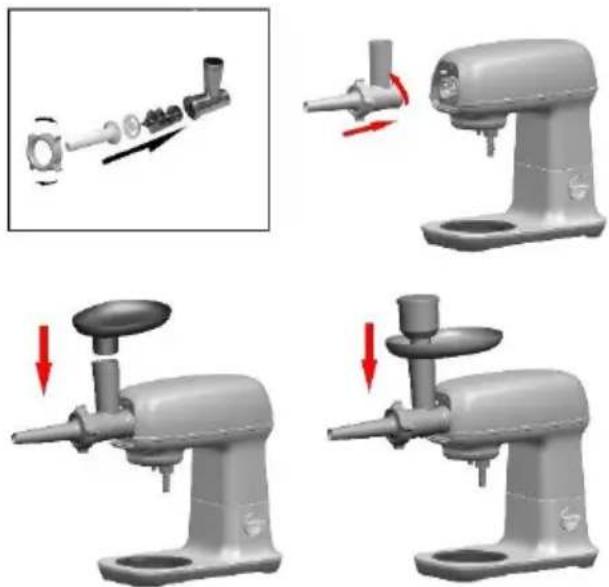

Making sausages - tips and warnings

Always mince the meat first.

• Let the sausage skin soak in lukewarm water for 10 minutes. Then slide the wet skin onto the sausage horn. Do not block the air outlet grooves of the horn.
• Put the minced meat of the feeding tray. Press Speed control switch to the appliance on.
• If the skin gets stuck on the sausage horn, wet it with some later.

Four-step illustration of a hairdryer with mechanical components and red arrows indicating motion (no text or symbols)

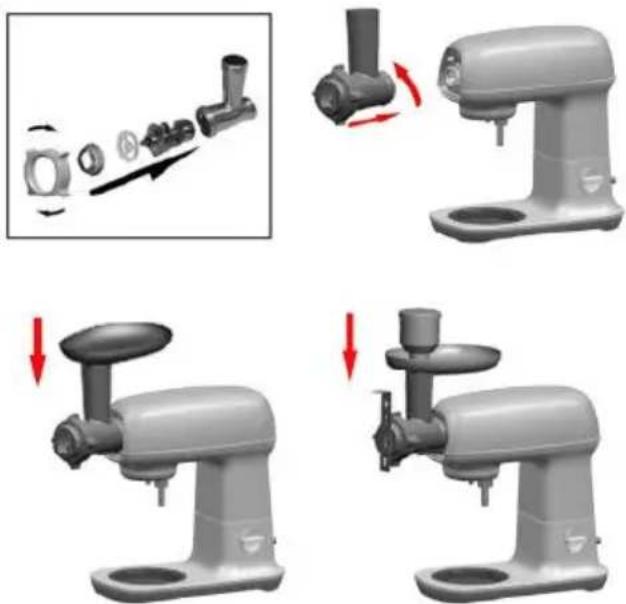

Making cookies - tips and warnings

Cut the dough into approx. 3cm-wide strips.

Make sure the notch of the cookie separator fits onto the projection of the cutter housing.

Place one strip of dough on the feeding tray.

Press the on/off button to switch the appliance on. Push the dough gently into the cutter housing with the pusher.

Guide the dough sausage coming out of the appliance onto a baking plate. Then cut the sausage into slices or strips and distribute them over the baking plate.

Four-step illustration of a kitchen feeder's mechanical assembly, showing step-by-step assembly and disassembly (no text or symbols)

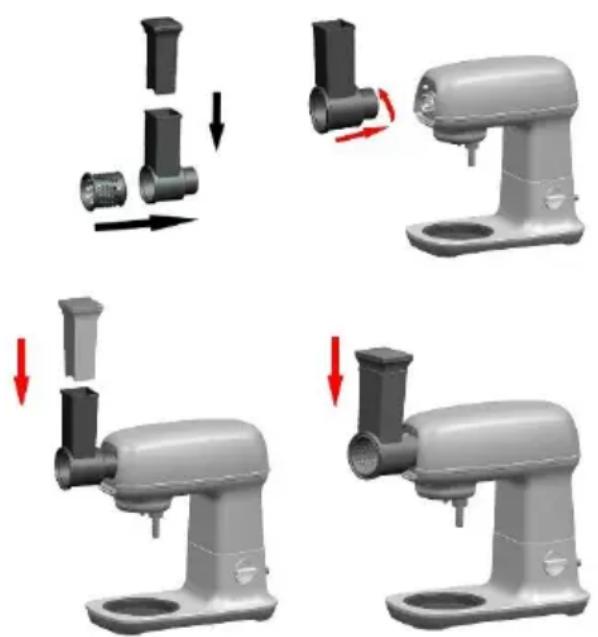

Slicer for vegetables

Choose the cutter and cutter housing your need. Inser the cutter into the cutter housing.

Put the Cutter housing into the multifunction head by turning it anticlockwise in the vertical position (a click should be heard).

Now the appliance is ready for slicing.

1. Cut the potato or other vegetable for processing it to pieces, for processing it to pieces, which size is suitable for cutter housing.
2. Choose the different kind of cutter as requested.
3. Put the pieces into cutter housing and press slightly by pusher.

Caution:

1. When you dissemble the body (Cutter housing), you must press the release button for cutter housing first.
2. Insert the food in the feed tube with the pusher. Never push the food with the finger or any other utensil.
3. After use, always turn the switch to the "OFF" position

Four-step diagram showing a kitchen mixer with tool manipulation, no text or symbols present

Cleaning

1. Unplug the appliance.
2. Never immerse the motor unit in water or put it under running water. Wipe it with a soft dry or slightly damp cloth.
3. For easier cleaning, quickly rinse the accessories after use. Completely dismantle the mixer attachment. Handle the blades with care, as some have sharp cutting edges.
4. If your accessories are discoloured by food (carrots, oranges etc.), rub them gently with a kitchen towel dipped in cooking oil and then clean in the usual way.

Environment

This marking indicates that this product should not be disposed of with other household waste throughout the EU. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources. To return your used device, please use the return and collection systems or contact the retailer where the product was purchased. They can take this product for environmentally safe recycling.

Guarantee & service

If you need information or if you have a problem, please contact the Gorenje Customer Care Centre in your country (you find its phone number in the worldwide guarantee leaflet). If there is no Customer Care Centre in your country, go to your local Gorenje dealer or contact the Service department of Gorenje domestic appliances.

For personal use only!

GORENJE WISHES YOU A LOT OF PLEASURE WHEN USING YOUR APPLIANCE

We reserve the right to any modifications!

Illustration of a kitchen mixer blending liquid into a bowl with red arrows indicating motion (no text or symbols)

3D rendering of a kitchen mixer with red directional arrows indicating motion (no text or symbols)

3D rendering of a gray kitchen mixer with red directional arrows indicating motion (no text or symbols)

Exterior view of a modern kitchen mixer (no text or symbols visible)

Technical diagram showing a 3D model of a hairdryer with mechanical components and red arrows indicating process steps.

Four-panel illustration of a K-froda motor with tool manipulation and red arrows indicating action (no text or symbols)

Four-step illustration of a kitchen feeder's mechanical assembly, showing step-by-step assembly and disassembly (no text or symbols)

Four-panel illustration of a kitchen mixer with arrows indicating motion, showing mechanical components and assembly (no text or symbols)

Околна среда

Exploded view diagram of a mechanical assembly showing components like bolts, parts, and a T-junction (no text or labels)

Exterior view of a modern kitchen electric shaver with a hand gesture showing red motion (no text or symbols visible)

3D rendering of a gray manual kitchen brush with a red downward arrow indicating compression (no text or symbols)

3D rendering of a gray manual washing machine with a red downward arrow indicating force or adjustment (no text or symbols)

Four-step diagram of a kitchen mixer with arrows indicating press or adjustment steps (no text or symbols present)

Curățare

Illustration of a kitchen mixer blending liquid into a bowl with red arrows indicating motion (no text or symbols)

White kitchen mixer with red directional arrows indicating motion (no text or symbols)

3D rendered model of a kitchen mixer with red arrows indicating force or movement (no text or symbols)

Exterior view of a modern kitchen mixer (no text or symbols visible)

Technical diagram showing a 3D model of a kitchen mixer with red arrows indicating process steps, including assembly and disassembly.

Four-step illustration of a hairdryer tool with mechanical components and red arrows indicating motion (no text or symbols)

Four-step illustration of a kitchen mixer with mechanical components and red directional arrows indicating motion (no text or symbols)

Zöldségaprítás

Four-panel illustration of a kitchen mixer with mechanical components and red directional arrows indicating motion (no text or symbols)

Környezetvédelem

Diagram showing mechanical components and motion direction (no text or symbols)

3D rendering of a gray kitchen mixer with a red directional arrow indicating rotation (no text or symbols)

3D rendered image of a gray kitchen mixer with a red downward arrow indicating compression (no text or symbols)

3D rendering of a gray manual kitchen tool with a red arrow indicating force or movement (no text or symbols visible)

Four-panel illustration of a kitchen mixer with arrows indicating motion, showing mechanical components and movement (no text or symbols)

Czyszczenie

Mechanical assembly diagram showing components like bolts, gears, and a pipe (no text or labels)

3D rendered image of a gray kitchen blender with a red arrow indicating rotation (no text or symbols)

3D rendering of a gray kitchen mixer with a red downward arrow indicating compression (no text or symbols)

3D rendering of a gray manual kitchen tool with a red arrow indicating force or cutting direction (no text or symbols)

Mechanical assembly diagram showing a bolt, nut, and pipe connection (no text or labels)

3D rendering of a gray electric shaver with a red arrow indicating motion (no text or symbols)

3D rendering of a gray manual hand tool with a red arrow indicating downward motion (no text or symbols)

3D rendering of a gray manual hand tool with a red arrow indicating force or adjustment (no text or symbols)

Exploded view diagram of a mechanical assembly showing components like bolts, gears, and a T-shaped component (no text or labels)

3D rendering of a gray kitchen mixer with a pipe fitting and red directional arrows indicating motion (no text or symbols)

3D rendering of a gray manual kitchen tool with a red downward arrow indicating compression (no text or symbols)

3D rendering of a gray industrial sewing machine with a red arrow indicating downward motion (no text or symbols)

Krájač na zeleninu

Four-step diagram showing a kitchen mixer with directional arrows indicating motion (no text or symbols)

Čistenie

Illustration of a kitchen mixer blending liquid into a bowl with red arrows indicating motion (no text or symbols)

3D rendering of a kitchen mixer with red directional arrows indicating motion (no text or symbols)

3D rendering of a gray kitchen mixer with red directional arrows indicating motion (no text or symbols)

Exterior view of a modern kitchen mixer (no text or symbols visible)

Exploded view diagram of a mechanical assembly showing bolt, nut, and T-shaped component (no text or labels)

3D rendering of a gray kitchen electric shaver with a pipe fitting and red directional arrows indicating motion (no text or symbols)

3D rendering of a gray manual kitchen brush (no text or symbols visible)

3D rendering of a gray manual kitchen tool with a red arrow indicating downward motion (no text or symbols)

Kráječ zeleniny

Four-step diagram of a kitchen mixer with arrows indicating motion, showing step-by-step assembly and rotation (no text or symbols)

Čištění

Illustration of a kitchen mixer blending liquid into a bowl with red arrows indicating motion (no text or symbols)

3D rendering of a gray kitchen mixer with red directional arrows indicating motion (no text or symbols)

3D rendering of a gray kitchen mixer with red directional arrows indicating flow or movement (no text or symbols)

3D rendered image of a modern kitchen mixer with a side bowl (no text or symbols visible)

Technical diagram showing a 3D model of a hairdryer with mechanical components and directional arrows indicating process steps.

Four-step illustration of a hairdryer with mechanical components and red arrows indicating motion (no text or symbols)

Four-panel diagram showing a kitchen mixer with adjustment arrows, no text or symbols present

Reinigung

Illustration of a kitchen mixer blending liquid into a bowl with red arrows indicating motion (no text or symbols)

Modern kitchen mixer with red directional arrows indicating motion (no text or symbols visible)

3D rendered image of a gray kitchen mixer with red directional arrows indicating flow or movement (no text or symbols)

Exterior view of a modern kitchen mixer (no text or symbols visible)

Exploded view diagram of a mechanical assembly showing components like bolts, gears, and a valve (no text or labels)

3D rendering of a gray kitchen mixer with red directional arrows indicating motion (no text or symbols)

3D rendered image of a gray kitchen mixer with a red downward arrow indicating force or motion (no text or symbols)

3D rendering of a gray manual kitchen tool with a red arrow indicating force or movement (no text or symbols)

Exploded view diagram of a mechanical assembly showing components like bolts, gears, and a valve (no text or labels)

3D rendering of a gray electric shaver with a red-handled tool, shown from front and side views (no text or symbols visible)

3D rendering of a gray manual hand tool with a red arrow indicating downward motion (no text or symbols)

3D rendering of a gray manual hand tool with red arrow indicating force or movement (no text or symbols)

Exploded view diagram of a mechanical assembly showing bolt, nut, and T-shaped component (no text or labels)

3D rendering of a gray kitchen hand mixer with red directional arrows indicating motion (no text or symbols)

3D rendering of a gray manual kitchen brush with a red downward arrow indicating compression (no text or symbols)

3D rendering of a gray manual washing machine with a red downward arrow indicating force or motion (no text or symbols)

Слайсер для овочів

Diagram showing mechanical components and motion, no text or symbols present

3D rendered image of a gray kitchen mixer with a red arrow indicating rotation (no text or symbols)

3D rendered image of a gray kitchen mixer with a red downward arrow indicating force or motion (no text or symbols)

3D rendering of a gray manual kitchen tool with a red arrow indicating force or movement (no text or symbols visible)

Four-step illustration of a hairdryer tool, showing step-by-step assembly and disassembly (no text or symbols)

Four-step illustration of a kitchen feeder's mechanical assembly, showing step-by-step assembly and disassembly (no text or symbols)

Овощерезка

Four-step diagram of a kitchen mixer with black adjustment arrows indicating motion (no text or symbols)

ОЧИСТКА

Diagram showing mechanical components and a directional arrow, no text or symbols present

3D rendering of a gray kitchen mixer with a red directional arrow indicating rotation (no text or symbols)

3D rendered image of a gray kitchen spatula with a red downward arrow indicating force or motion (no text or symbols)

3D rendering of a gray manual kitchen tool with a red arrow indicating downward motion (no text or symbols)

Mechanical assembly diagram showing a shaft, bolts, and pipe connection (no text or labels)

3D rendering of a gray electric shaver with a red arrow indicating motion (no text or symbols)

3D rendering of a gray manual hand tool with a red arrow indicating downward motion (no text or symbols)

3D rendering of a gray manual hand tool with a red arrow indicating force or movement (no text or symbols)

Four-panel illustration of a kitchen mixer with arrows indicating motion, showing mechanical components and movement (no text or symbols)

Illustration of a kitchen mixer blending liquid into a bowl with red arrows indicating motion (no text or symbols)

3D rendering of a white kitchen mixer with red directional arrows indicating motion (no text or symbols)

3D rendering of a kitchen mixer with red directional arrows indicating motion (no text or symbols)

Exterior view of a modern kitchen mixer (no text or symbols visible)

Mechanical assembly diagram showing a motor and a valve mechanism (no text or symbols)

3D rendering of a gray manual kitchen tool with a red downward arrow indicating compression (no text or symbols)

3D rendering of a gray industrial sewing machine with a red downward arrow indicating force or adjustment (no text or symbols)

Four-step diagram showing a kitchen mixer with mechanical components and red arrows indicating motion (no text or symbols)

Rengøring

Technical diagram showing a motor and a component being processed, with Chinese annotations indicating process steps.

Four-step illustration of a manual hand tool in a food processor, showing mechanical assembly and red directional arrows (no text or symbols)

Four-step illustration of a kitchen mixer with tool manipulation, showing step-by-step assembly and rotation (no text or symbols)

Vihannesleikkuri

Four-step industrial sewing machine operation diagram showing mechanical assembly and red-hand valve mechanism (no text or labels)

Puhdistus

Four-panel illustration of a kitchen mixer with red directional arrows indicating motion (no text or symbols)

Technical diagram showing a 3D model of a kitchen mixer with red arrows indicating process steps.

Four-step illustration of a food vendor's manual tool, showing step-by-step assembly and disassembly (no text or symbols)

GORENJE ∅NSKER DEG LYKKE TIL MED DET NYE APPARATET

Four-panel illustration of a kitchen mixer with red directional arrows indicating motion (no text or symbols)

Technical diagram showing a 3D model of a kitchen mixer with red arrows indicating process steps and component details.

Four-step illustration of a manual hand tool in a food processor, showing mechanical assembly and red directional arrows (no text or symbols)

Four-step illustration of a kitchen feeder's mechanical assembly, showing step-by-step assembly and rotation (no text or symbols)

Grönsaksskivare

Four-step diagram of a kitchen mixer with arrows indicating rotation and adjustment (no text or symbols)
