Product type	Manual stapler
Brand	Powerfix
Model	IAN 300513
Intended use	Stapling cardboard, insulating material, leather, textile (textile or natural fiber) and similar thin materials onto hardwood, softwood, chipboard or plywood. Non-professional use.
Compatible staple types	Staples: length A = 4 to 14 mm, width B = 11.3 mm, thickness C = 1.2 to 1.3 mm
Compatible U-staple types	U-staples: length A = 10 to 12 mm, width B = 6.3 mm, thickness C = 1.2 to 1.3 mm
Compatible T-nail types	T-nails: length A = 10 to 14 mm, width B = 1.8 to 2.0 mm, thickness C = 1.2 to 1.3 mm
Delivery contents	1 manual stapler, 500 staples 8 mm, 500 U-staples 12 mm, 500 T-nails 10 mm, 1 instruction manual
Striking power adjustment	Adjustment screw (1): turn clockwise to increase, counterclockwise to decrease. Do not unscrew completely.
Magazine capacity	Bottom loading magazine (5): allows loading multiple staples/nails (exact quantity not specified, but delivered with 500 pieces per type)
Safety mechanism	Do not place hands near or in front of the ejection opening. Always wear safety glasses. Keep children away.
Maintenance and cleaning	Clean with a slightly damp, lint-free cloth. Do not use abrasive products. Keep clean and free of oil/grease.
Spare parts / repairability	Use only original parts. In case of serious malfunction, have it repaired by a qualified technician. Precision parts are compatible with standard commercial staple types.
Additional functions	Hook (4) for removing staples/nails. Pusher (3) to guide staples. Side wings (6) to unlock the magazine.
Stapling materials	Hardwood, softwood, chipboard, plywood, cardboard, insulation, leather, textile, plastic films.
Safety pictograms	Read the instruction manual; danger of death for children; heed warnings; wear protective clothing and glasses.
Power source	Manual (lever force)
Recycling	Packaging recyclable. Used product: check with local municipality.

Frequently Asked Questions - IAN 300513 POWERFIX

How to load staples or nails into the stapler?

Push the pusher (3) inward and pull it downward, then remove it completely from the bottom magazine (5). Insert the staples or T-nails into the magazine in the indicated direction (see illustrations B, C, D). Replace the pusher by pushing it inward and pulling it upward to lock it.

How to adjust the striking power?

Use the adjustment screw (1) located on top of the stapler. Turn it clockwise to increase power, counterclockwise to decrease. Caution: never unscrew the screw completely.

What types of staples and nails can I use?

The stapler accepts three types: staples (length 4-14 mm, width 11.3 mm, thickness 1.2-1.3 mm), U-staples (length 10-12 mm, width 6.3 mm, thickness 1.2-1.3 mm) and T-nails (length 10-14 mm, width 1.8-2.0 mm, thickness 1.2-1.3 mm). Use only the types recommended in the manual.

How to remove a jammed staple or nail from the stapler?

First remove the pusher (3) and the magazine (5) by pressing the side wings (6). Remove jammed staples from the magazine. Then reassemble the magazine by pushing it downward until it clicks. Never press the lever (2) during this operation.

How to remove a staple already fixed on a material?

Use the hook (4) located at the rear of the stapler. Push the hook under the staple or nail head, then pull the rear part of the stapler upward to detach the element from the workpiece.

What safety precautions must I follow?

Always wear safety glasses. Never place hands near or in front of the ejection opening. Keep children away. Before transport or storage, make sure the magazine is empty. Read all safety instructions in the manual carefully.

How to clean the stapler?

Use a slightly damp, lint-free cloth. Never use abrasive products or solvents. The stapler must remain clean and free of oil or lubricating grease.

What to do if the stapler no longer works properly?

First check if staples are jammed (see corresponding question). If the problem persists or the housing is damaged, have the stapler repaired by a qualified technician using only original parts.

Can I use this stapler for professional applications?

No, the stapler is designed for domestic, non-professional use. It should only be used for the materials and supports described in the manual (wood, cardboard, textile, etc.).

How many staples are supplied with the stapler?

The delivery includes 500 staples of 8 mm, 500 U-staples of 12 mm and 500 T-nails of 10 mm, a total of 1500 pieces.

USER MANUAL IAN 300513 POWERFIX

HANDTACKER-SET/HAND-HELD STAPLER SET/AGRAFEUSE MANUELLE

DE AT CH

HANDTACKER-SET

HAND-HELD STAPLER SET

Operation and Safety Notes

NL BE

NIETPISTOOLSET

Before reading, unfold both pages containing illustrations and familiarise yourself with all functions of the device.

FR BE

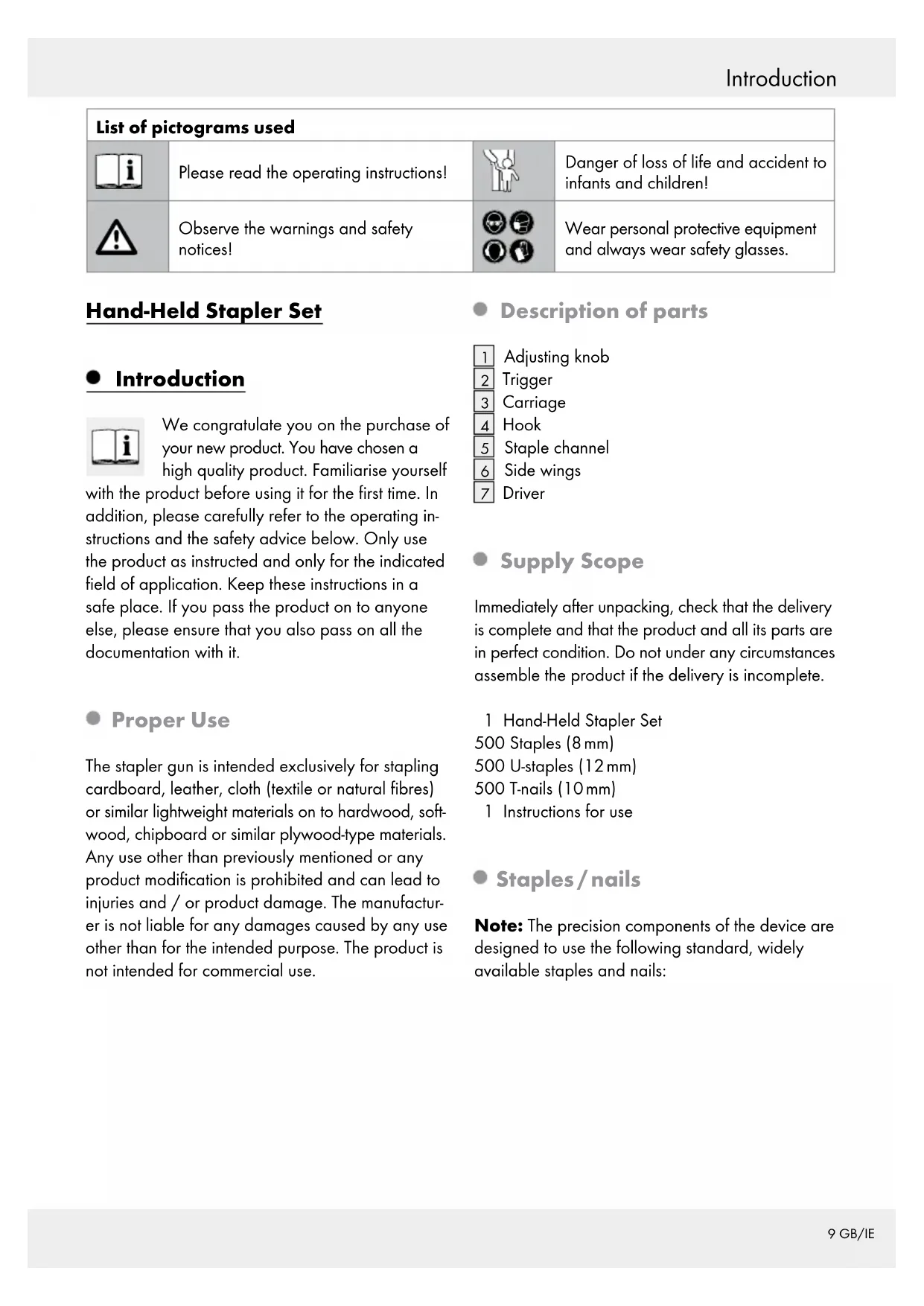

GB/IEOperation and Safety NotesPage 9

List of pictograms used
i	Please read the operating instructions!		Danger of loss of life and accident to infants and children!
	Observe the warnings and safety notices!		Wear personal protective equipment and always wear safety glasses.

Hand-Held Stapler Set

Introduction

We congratulate you on the purchase of your new product. You have chosen a high quality product. Familiarise yourself

with the product before using it for the first time. In addition, please carefully refer to the operating instructions and the safety advice below. Only use the product as instructed and only for the indicated field of application. Keep these instructions in a safe place. If you pass the product on to anyone else, please ensure that you also pass on all the documentation with it.

- Proper Use

The stapler gun is intended exclusively for stapling cardboard, leather, cloth (textile or natural fibres) or similar lightweight materials on to hardwood, softwood, chipboard or similar plywood-type materials. Any use other than previously mentioned or any product modification is prohibited and can lead to injuries and / or product damage. The manufacturer is not liable for any damages caused by any use other than for the intended purpose. The product is not intended for commercial use.

Description of parts

1	Adjusting knob
2	Trigger
3	Carriage
4	Hook
5	Staple channel
6	Side wings
7	Driver

Supply Scope

Immediately after unpacking, check that the delivery is complete and that the product and all its parts are in perfect condition. Do not under any circumstances assemble the product if the delivery is incomplete.

1 Hand-Held Stapler Set

500 Staples (8 mm)

500 U-staples (12 mm)

500 T-nails (10 mm)

1 Instructions for use

Staples/nails

Note: The precision components of the device are designed to use the following standard, widely available staples and nails:

Type	A (mm)	B (mm)	C (mm)
Flat crown staples	4 to max. 14	11,3 1.2	to max. 1.3
Round crown staples	10 to max. 12	6.3 1.2	to max. 1.3
T-nails	10 to max. 14	1.8 to 2.0	1.2 to max. 1.3

Safety advice

KEEP ALL THE SAFETY ADVICE AND INSTRUCTIONS IN A SAFE PLACE FOR FUTURE REFERENCE!

DANGYONG

LOSS OF LIFE AND ACCIDENT TO INFANTS AND CHILDREN!

Never leave children unsupervised with the packaging materials. Danger of suffocation. Keep out of the reach of children. It is not a toy.

This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

Always keep the product out of reach of children. Children often underestimate danger. Store the device indoors in an enclosed, dry place where it cannot be reached by children.
Ensure that staples and nails cannot under any circumstances strike people or animals. Failure to observe this advice may lead to injury.

Year personal protective equipment and always wear safety glasses. This also applies to people who may be with the work by supporting or holding kpiece.

CAUTION! Do not support yourself with your hands under any circumstances near or in front the stapler gun or on the surface being tacked. One slip may result in injury.

Every time before you use the device, check that it is in perfect condition. Damage to any of its components may lead to injury.
Check that all parts have been assembled and fitted properly. Incorrect assembly or fitting may lead to injury.
Remain alert at all times and always watch what you are doing. Proceed with caution. Just one moment of inattention during assembly may lead to injury.
Before moving or putting away the stapler gun, check that there are no staples or nails still in the device.

Operation

- Filling with staples/nails

CAUTION! Use only the staples and nails described in these operating instructions (see "Staples / nails"). Failure to observe this advice may result in damage to the device.

Note: You can use three different types of staples / nails in the stapler gun; flat crown staples, round crown staples and T-nails.

Follow these steps:

1. Press in the staple pusher 3 slightly and then pull it downwards. Then pull the staple pusher 3 completely out of the magazine 5 (see Fig. A).

2. Push the staples or the T-nails into the magazine 5.
   CAUTION! Ensure that the staples or T-nails are correctly inserted (see Figs. B, C, D).

3. Push the staple pusher 3 back into the magazine 5. Press in the staple pusher 3 slightly and then pull it slightly upwards to fix it in place.

- Setting the impact force

CAUTION! Never screw the adjusting screw completely out of the stapler gun. This could result in damage to the device.

Screw out the adjusting screw 1 do reduce the impact force.

Screw in the adjusting screw 1 do increase the impact force.

- Stapling

CAUTION! Never support yourself by placing your hands near or in front of the stapler gun or the workpiece surface. A slip can result in injury.

Follow these steps:

1. Press the staple eject opening 7 on the spot where you wish to staple.
2. Adjust the impact force to suit the materials, staples or nails.
3. Press the operating lever 2 down firmly.

Examples of use:

The stapler gun is suitable for the following purposes:

• Attaching coverings to the seating surface of chairs.
• Attaching a skirting at the joint between wall and floor coverings.
• Stretching and stapling canvasses to frames.
• Attaching protective films to insulation materials when installing thermal insulation.
• Attaching decorative materials.

- Removing staples

To avoid the risk of injury!

Ensure that the operating handle 2 will not be pressed.
Push the hook 4 under the staple or nail head (see Fig. F).
Pull the rear part of the stapler gun upwards to draw out the staple or nail from the workpiece.

- Removing jammed staples from the stapler gun

Staples or nails may become jammed in the stapler gun during operation. Remove jammed staples as follows:

1. Press in the staple pusher 3 slightly and then pull it downwards. Then pull the staple pusher 3 completely out of the magazine 5.
2. Turn the stapler gun over so that the magazine 5 is pointing upwards.
3. Press the magazine 5 at the side wings 6 backwards and pull the magazine 5 upwards (see Fig. E).
4. Now remove the jammed staples from the magazine 5.
5. Press the magazine 5 at the side wings 6 backwards and press it downwards until it engages to fix the magazine 5 back in place.

Note: Do not use the stapler gun if it shows more serious defects (damage to body etc.). If necessary have your stapler repaired by a qualified specialist. Take note that the manufacturer's original spare parts only should be used in any repair.

- Tips

1. In order to have a good quality of stapling, it is suggested to fill only one of staple / nail type in the staple gun in each time.
2. When you want to change other types of staples, please make sure all remaining staples / nails are used up or not in staple gun before insert other types of staples / nails.

- Cleaning and care

• Never use corrosive or abrasive cleaning agents. These may damage the surface of the product.
  The product must be kept clean, dry and free of oil or lubricants at all times.
  Clean the product with a slightly dampened, non-fluffing cloth.

Service

• Securely pack the product or use the original packaging to prevent transport damage.

Meister Werkzeuge products are submitted to strict quality control. If a malfunction occurs, however, please send the product to our service address. A brief description of the defect will speed up troubleshooting and repairs. Please include the sales receipt with the product during the warranty period. If the repair is not covered by warranty, we will invoice you for the repair.

Important! We expressly state that according to the Product Liability Act, we are not liable for damages caused by our products, if these were caused by improper repair, or if parts were replaced not using our original parts or parts approved by us.

Please have your receipt and the item number (e.g. IAN 12345) ready as your proof of purchase when enquiring about your product.

Disposal

The packaging is made entirely of recyclable materials, which you may dispose of at local recycling facilities.

Contact your local refuse disposal authority for more details of how to dispose of your worn-out product.
