USER MANUAL Omega CS 12 MAGNAT

At the end of the product's useful life, please dispose of it at appropriate collection points provided in your country.

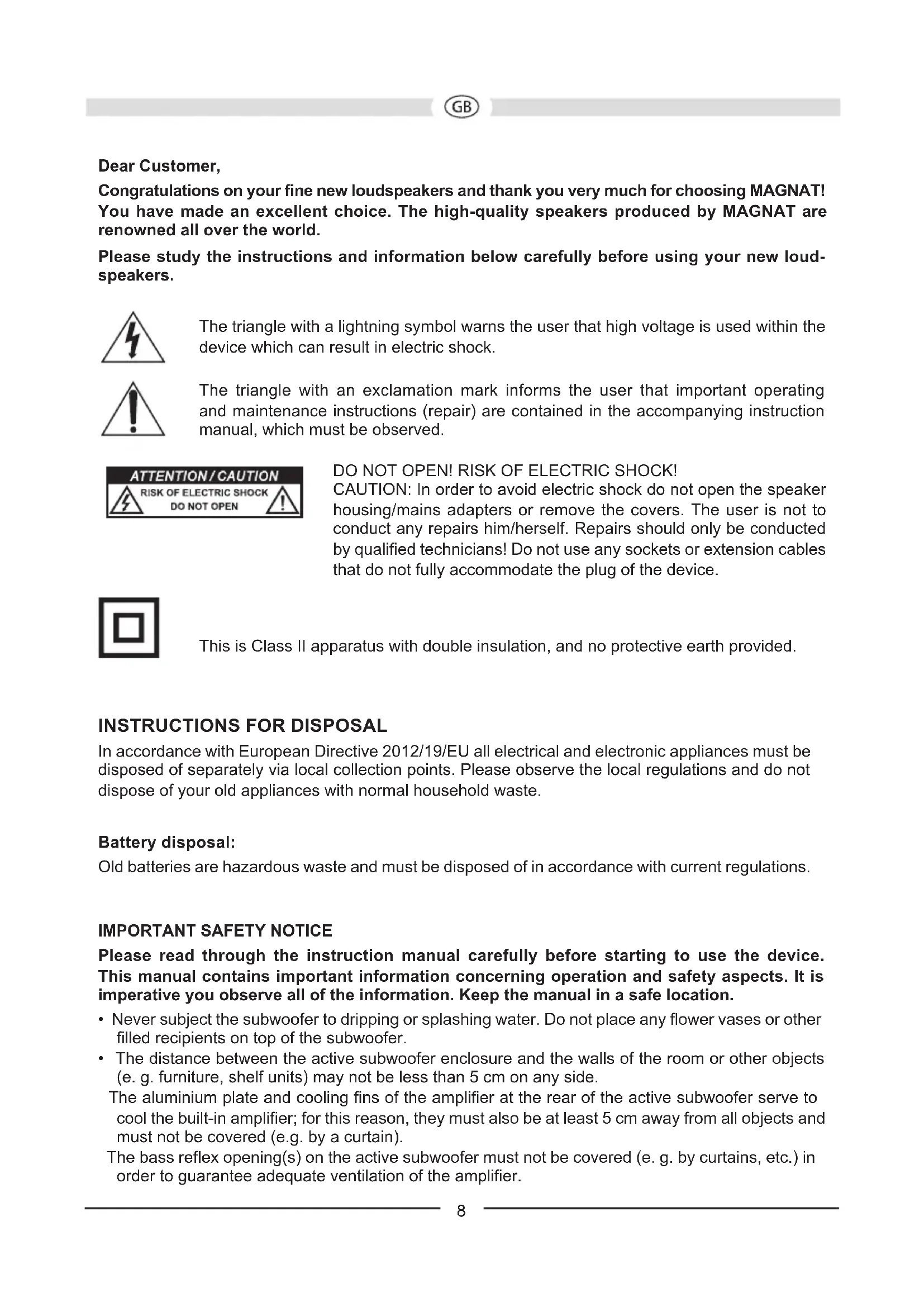

Congratulations on your fine new loudspeakers and thank you very much for choosing MAGNAT! You have made an excellent choice. The high-quality speakers produced by MAGNAT are renowned all over the world.

Please study the instructions and information below carefully before using your new loud-speakers.

The triangle with a lightning symbol warns the user that high voltage is used within the device which can result in electric shock.

The triangle with an exclamation mark informs the user that important operating and maintenance instructions (repair) are contained in the accompanying instruction manual, which must be observed.

DO NOT OPEN! RISK OF ELECTRIC SHOCK!

CAUTION: In order to avoid electric shock do not open the speaker housing/mains adapters or remove the covers. The user is not to conduct any repairs him/herself. Repairs should only be conducted by qualified technicians! Do not use any sockets or extension cables that do not fully accommodate the plug of the device.

This is Class II apparatus with double insulation, and no protective earth provided.

INSTRUCTIONS FOR DISPOSAL

In accordance with European Directive 2012/19/EU all electrical and electronic appliances must be disposed of separately via local collection points. Please observe the local regulations and do not dispose of your old appliances with normal household waste.

Battery disposal:

Old batteries are hazardous waste and must be disposed of in accordance with current regulations.

IMPORTANT SAFETY NOTICE

Please read through the instruction manual carefully before starting to use the device. This manual contains important information concerning operation and safety aspects. It is imperative you observe all of the information. Keep the manual in a safe location.

• Never subject the subwoofer to dripping or splashing water. Do not place any flower vases or other filled recipients on top of the subwoofer.
• The distance between the active subwoofer enclosure and the walls of the room or other objects (e.g. furniture, shelf units) may not be less than 5 cm on any side.

The aluminium plate and cooling fins of the amplifier at the rear of the active subwoofer serve to cool the built-in amplifier; for this reason, they must also be at least 5 cm away from all objects and must not be covered (e.g. by a curtain).

The bass reflex opening(s) on the active subwoofer must not be covered (e.g. by curtains, etc.) in order to guarantee adequate ventilation of the amplifier.

• The subwoofer should not be positioned near heat sources (heaters, ovens, radiant heaters, naked flames, etc.).
• Only operate the subwoofer at an ambient/room temperature from 10°C to 40°C. The active subwoofer may not be used in very humid rooms.
• Please do not place any items with naked flames (e.g. candles) on the active subwoofer.
• Please do not touch or connect the mains cable when your hands are damp.
• Keep the mains cable away from heaters.
• The device should not continue to be operated if there is visible damage to the mains cable. A damaged cable should not be repaired, but must be replaced.
• Never place heavy items on the mains cable.
• The mains plug is used as the disconnecting device. Disconnecting devices shall remain readily operable.
• If the device is not going to be used for a prolonged period (e.g. when on holiday), it should be disconnected from the mains by removing the plug. The device should also be disconnected from the mains in the event of a thunderstorm. Doing this will prevent damage caused by lightning and overvoltage.
• Do not use any cleaning agents or chemical solvents when cleaning, as these could damage the surface of the device.
• Repairs must always be conducted by qualified specialists, as you might otherwise be exposed to dangerous high voltage levels or other hazards.

THE ACTIVE SUBWOOFER MAGNAT OMEGA CS 12

This subwoofer has been adapted to provide the best visual and acoustic match to the MAGNAT range of loudspeakers. However, it goes without saying that it may be combined with other loudspeakers.

POSITIONING

The frequency range reproduced by the subwoofer cannot be pinpointed by the human ear. That's why positioning generally doesn't present any problems. However, it is preferable to place the speaker close to the front loudspeaker in front of the listening position. You should also make sure that the distance from the sides and from the rear to items and walls is at least 20 centimetres as otherwise bass reproduction may be impaired.

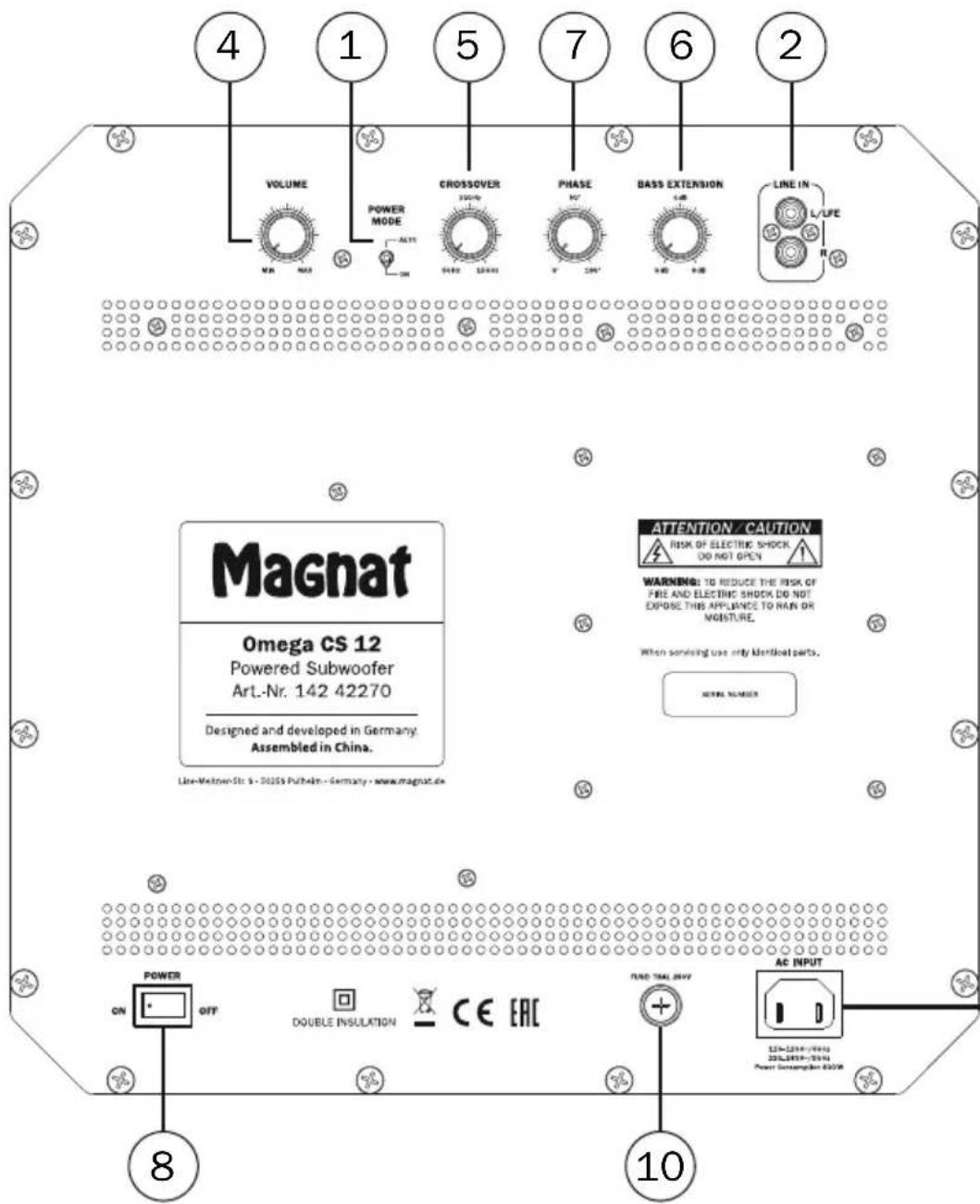

THE SUBWOOFER'S OPERATING ELEMENTS (FIG. 1)

Mains connection (9)

The subwoofer is equipped with an integrated amplifier and needs to be connected to a mains outlet by means of the supplied mains cable.

Operating mode switch (1), operating state LED (3), power switch (8)

	Power switch ON Power switch OFF
Operating mode switch ON	Subwoofer in continuous operation; the display is switched on.Favourable setting for the reproduction of programmes with long quiet passages (this prevents the subwoofer from switching off unintentionally).	The subwoofer is switched off, LED is off.This is the setting for when subwoofer isn’t used over long periods.
Operating mode AUTO	The automatic switching on/off is activated (recommended setting).If the subwoofer receives a signal from the receiver, it turns on automatically and the display is switched on.If the subwoofer no longer receives a signal, it will automatically switch back to the standby mode after approx. 20 minutes. The display is switched off the LED turns red.

Line inputs (2)

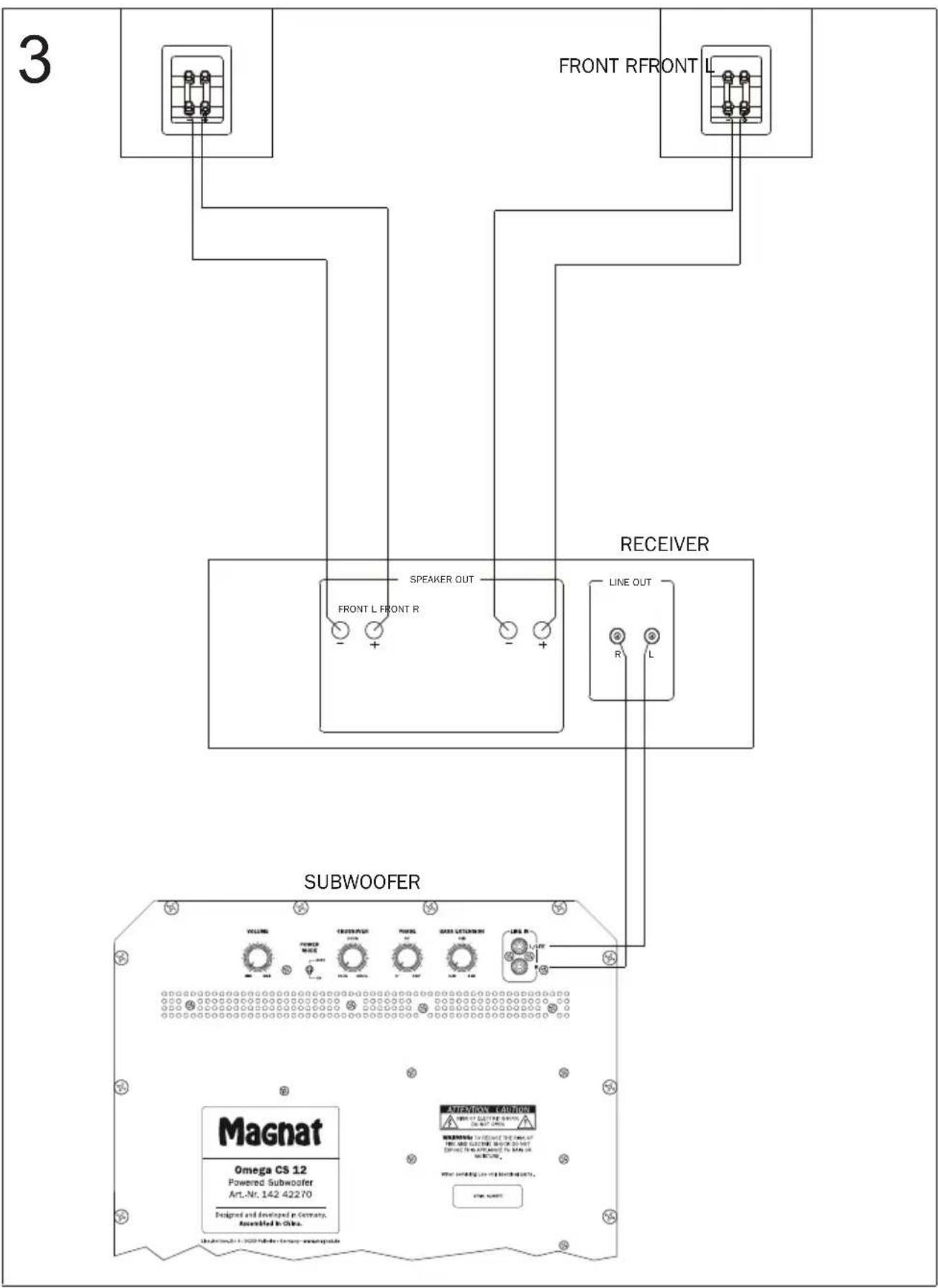

For connecting to level outputs on a receiver/amplifier (stereo mode), see Fig. 3.

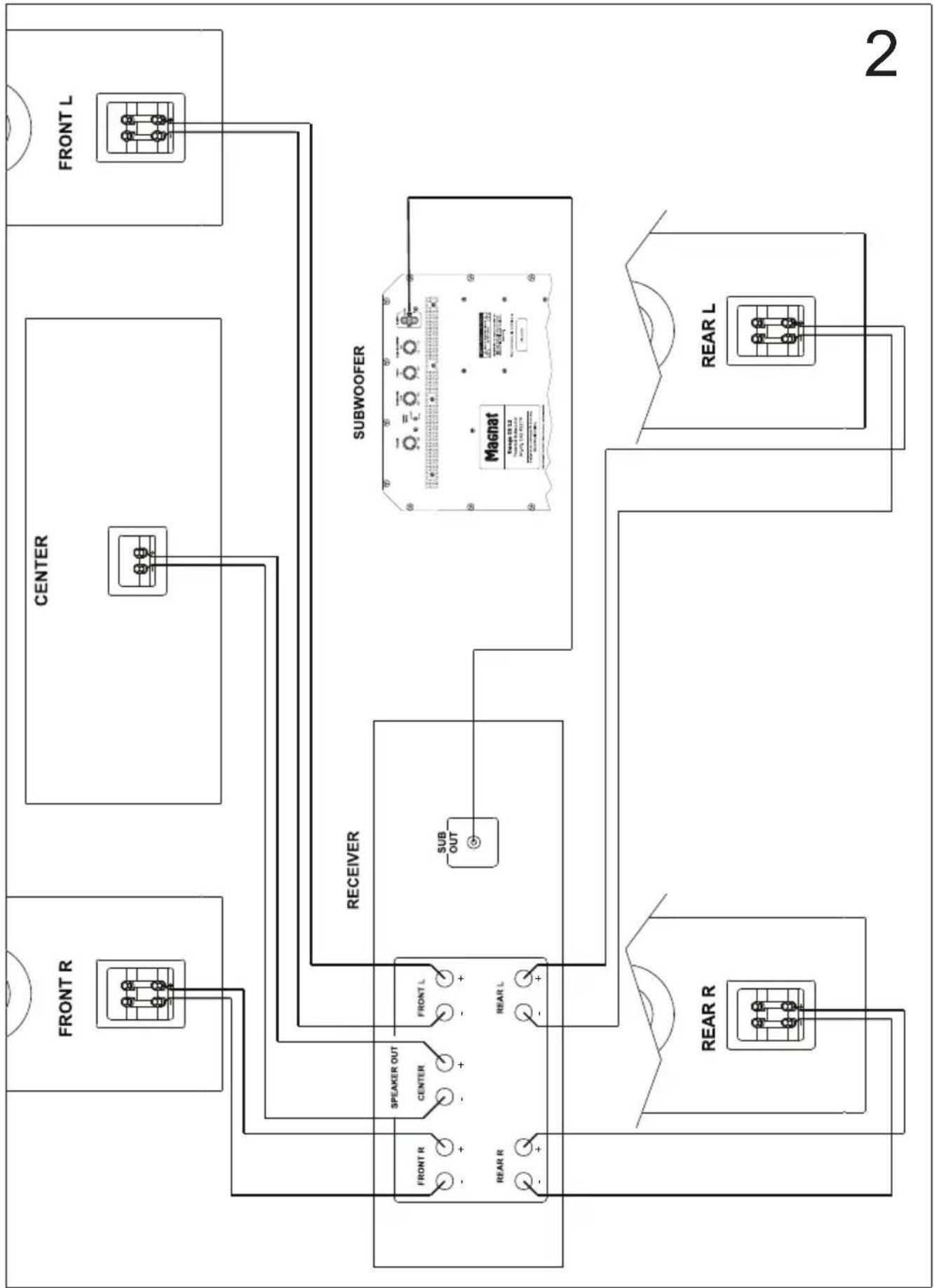

For connecting to an AV receiver with low-level subwoofer output, see Fig. 2.

Volume control (4) and remote control (11)

This control is used to set the bass volume according to your preferences. Proceed as follows:

1. The controller (4) and the - and + buttons on the remote control (11) can be used independently of one another to adjust the volume of the subwoofer.
2. Important: Set the level control to its left stop (lowest volume).
3. Now, play back some music and set the volume control of the receiver to the desired level.
4. Set the subwoofer level control to the desired bass level.

The volume can be set between 0–40 (via the volume controller at the rear and/or via the +/- volume buttons on the remote control).

Cross-over frequency control (5)

Used to set the upper limit of the subwoofer operating range. The cross-over frequency should be set to 50 to 150 Hz when the system is used in combination with shelf loudspeakers or 50 to 100 Hz when used with stand loudspeakers.

Setting range: 50 – 150 Hz.

Bass Extension control (6)

The level of the lower bass range (approx. 28 Hz) can be increased by 0 – 8 dB by using this controller.

It is therefore easy to adapt the deep bass range to the setup of the room, as well as to your own personal taste.

Phase switch (7)

In normal use the phase switch should be set to 0^ . However, in rare cases it may be advantageous to set the phase to 180^ (e.g. if the subwoofer is far away from the front loudspeakers or in the event of unfavourable acoustics in the room). Generally speaking: the setting where the lower base tone area has a fuller sound is the correct one.

Fuse (10)

Only use a fuse with the parameters indicated inside the triangle next to the fuse holder, on the rear of the amplifier.

Remote control (STBY/ON) (11)

You can use the STBY/ON button to switch on the Omega CS 12 manually or switch it to the standby mode.

MAINTENANCE

The surface is best cleaned with a mild household cleaner. On no account use furniture polish or similar products.

SPECIFICATIONS

Omega CS 12

Configuration: Powered closed subwoofer, Front-Fire

Equipment: 300 mm woofer

Output power RMS/Max.: 500 / 1150 watts

Frequency range: 18 – 200 Hz

Cross-over frequency: 50 – 150 Hz, adjustable

Dimensions (WxHxD): 385 x 400 x 465 mm

Accessories: Mains cable

Remote control including battery (2 x AAA)

Subject to technical change.

Très cher client,

COMPOSITION DU SUBWOOFER (FIG. 1)

Régulateur de bass extension (6)

STREP/UN HOLD/NE - + Magnet Omega CS 1.2 RCI 11

RCFRONT

4 1 5 7 6 2 VOLUME POWER MODE CROSSOVER PHASE BASS EXTENSION LINE IN L/LFE Magnat Omega CS 12 Powered Subwoofer Art.-Nr. 142 42270 Designed and developed in Germany Assembled in China. Line-Magnat-Stc 5 - 30SS Sulheim - Germany - www.magnat.de ATTENTION - CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN WARNING: TO REDUCE THE RISK OF FIRE AND ELECTRIC SHOCK DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE. When solving use only identical parts. NOTE NUMBER POWER ON OFF DOUBLE INSULATION CE EAC FUND TAIL NAVY AC INPUT 12-12-19-19/19 22L2819-2819 Power Consumption 800W 8 10

3 FRONT RFRONT L RECEIVER SPEAKER OUT FRONT L FRONT R LINE OUT R L SUBWOOFER Magnet Omega C5 12 Powered Subwoofer Art.-Nr. 142 42270 Designed and developed in Germany. Annotated in China. Subwoofer: 1988 Federal Energy Management

GB Congratulations! You have made a wise selection in becoming the owner of a MAGNAT HiFi equipment. Due to high quality MAGNAT HiFi products have earned an excellent reputation through the western world. And this high quality standard enables us to grant a 5-years warranty for MAGNAT HiFi speakers and a 2-years warranty for MAGNAT HiFi-electronic components.

The equipments are checked and tested continuously during the entire production process. In case you have problems with your MAGNAT HiFi equipment, kindly observe the following:

1. The guarantee period commences with the purchase of the component and is applicable only to the original owner.
2. During the guarantee period we will rectify any defects due to faulty material or workmanship by replacing or repairing the defective part at our discretion. Further claims, and in particular those for price reduction, cancellation of sale, compensation for damages or subsequential damages, are excluded.
3. Unauthorized tampering with the equipment will invalidate this guarantee.
4. Consult your authorized dealer first, if guarantee service is needed. Should it prove necessary to return the component to the factory, please insure that • the component is packed in original factory packing in good condition • your enclose your receipt as proof of purchase.
5. Excluded from the guarantee are: • Illuminates • Wear parts • Shipping damages, either readily apparent or concealed (claims for such damages must be lodged immediately with forwarding agent, the railway express office or post office). • Scratches in cases, metal components, front panels, etc. (You must notify your dealer directly of such defects within three days of purchase.) • Defects caused by incorrect installation or connection, by operation errors (see operating instructions), by overloading or by external force. • Equipments which have been repaired incorrectly or modified or where the case has been opened by persons other than us. • Consequential damages to other equipments. • Reimbursement of cools, without our prior consent, when repairing damages by third parties.
