USER MANUAL B450 CRIVIT

Operation and Safety Notes

SHOCK! Do not touch the plug with wet or perspiring hands.

CAUTION! RISK OF ELECTRIC

SHOCK! Pull the plug of the mains lead from the power source before any cleaning and after every use.

RISK OF DAMAGE TO THE

PRODUCT OR PROPERTY! RISK OF OVERHEATING! Do not operate the product if it is damaged. This product may be used by children aged 8 years and up, as well as by persons with reduced physical, sensory or mental ca- pacities, or lacking experience and / or knowledge, so long as they are supervised or instructed in the safe use of the product and understand the associated risks. Do not allow children to play with the product. Cleaning and user maintenance should not be performed by children without supervision. Only connect the device using the 12 V connecting cable included in the scope of delivery to a 12 V connector in a car, boat or caravan. Only allow qualified personnel to carry out repairs. Improper re- pairs may result in considerable danger to the user. If the connecting cable for this product or the product itself is damaged, it must be replaced by a qualified person to avoid hazards. CAUTION! RISK OF INJURY! Check the product for damage before use. Do not use the produ

under any circumstances if you detect any kind of damage. Completely unwind the connec- ting cable. Safety while operating the product

CAUTION! RISK OF ELECTRIC

SHOCK! Before putting the product into operation, ensure the mains lead and plug are dry. Always be sure to operate the electric cool box with the correct voltage. The electric voltage is16 GB/IE/CY General safety instructions stated on the data plate on the electric cool box. CAUTION! EXPLOSION HAZARD! Do not store inflam- mable liquids, gases and / or other explosive substances such as aer- osol containers with flammable propellants inside this product. CAUTION! RISK OF FIRE! Never place the product in direct proximity to naked flames or other sources of heat. Attention! RISK OF OVER- HEATING! Be sure never to block the heat exchange opening and ensure heat generated during operation is discharged adequately

Ensure adequate clearance between the product and the wall or objects to allow air to circulate freely. Only set up the product in well ventilated rooms. Ensure good circulation of the air inside the product. Be sure to unroll the connecting cables all the way when using the product. Otherwise there is a risk of a cable fire. Protect the product and the mains lead from heat, rain and moisture, and other damage. Do not directly fill the interior with liquid or ice. Doing so could re- sult in property damage. Never place hot foods or bever- ages inside the electric cool box. The electric cool box is not suitable to transport substances containing corrosive solvents. Never immerse the product in water. Doing so could damage the electrical equipment. When travelling by car, do not transport the product in the pas- senger compartment. When operating the product, always ensure the 12 V plug is placed firmly and safely in the 12 V socket, and that the socket is free of dirt. Improper contact between the plug and socket may result in the power supply fre- quently switching on and off due to vibration from the vehicle. This can result in overheating. The manufacturer is not liable for damages due to improper use or incorrect operation. General information on use Dry the surfaces of the items to be refrigerated to prevent condensation. Be careful not to switch the vehicle engine on and off frequently so as not to constantly inter- rupt the power supply to the cool box. Please also note the car battery may be severely drained when the engine is off.17 GB/IE/CY … / Before use / Start-up / Replacing the 12 V fuse / Troubleshooting Securing the cool box lid with the handle Fold the handle

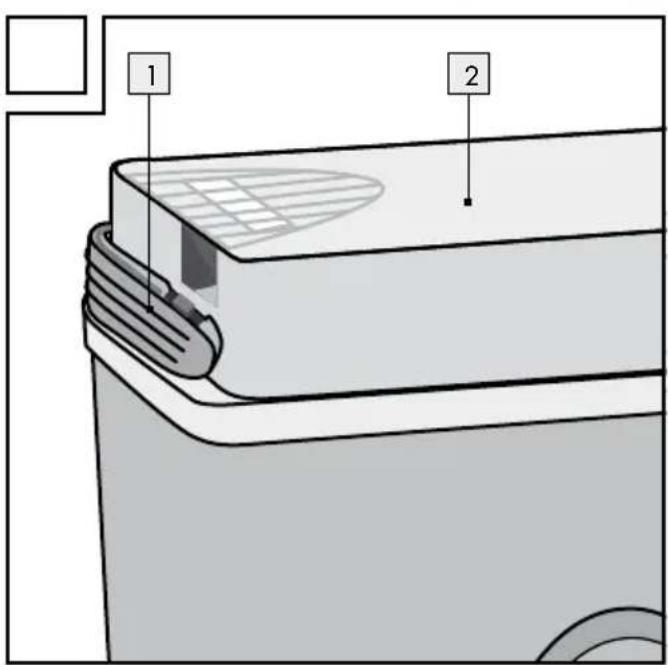

forward (in the direction of the “LOCK“ mark) to close the cool box lid

tightly (see Fig. C1). Fold the carrying handle

is closed tightly (see Fig. C2). Fold the handle to the back (in the direction of the “OPEN“ mark) to open the cool box lid

(see Fig. C3). Tips for best cooling output and energy savings The cool box works in ambient temperatures between -10 °C and 43 °C with a relative humidity of 90 %. The minimum temperature may not be reached at an external temperature of over 30 °C. Select a well ventilated location protected from the sun. Only place pre-cooled items in the electric cool box. Do not open the electric cool box longer than necessary. Do not leave the lid

open longer than nec- essary. Be sure not to overfill the electric cool box and air can circulate sufficiently between the items being cooled. Before use Place the electric cool box on a level surface. Clean the electric cool box with a damp cloth. Start-up Note: When powered by car battery be sure the car engine is running. Operating the electric cool box with the engine off may drain your car battery and you will be unable to start the engin

Plug the DC connecting cable on the electric cool box into the cigarette lighter socket in your car, boat or caravan. Close the electric cool box tightly using the electric lid

, the product will start cooling. After a short while you will be verify the electric cool box is operating correctly by placing your hand up to the aluminium vent inside the lid. Note: The plug does not have a status indicator. Be sure not to accidentally leave the cool box on as this will drain the car battery. Remove the plug from the 12 V socket of your car, boat or caravan to switch off the cool box. Replacing the 12 V fuse Also see Figure B. To replace the fuse

Note: If the thin metal connection between the two metal tips is broken, the fuse

is defective and must be replaced. Insert the new fuse

with care. Reassemble the plug and screw in the screw

The plug is now ready for operation. Troubleshooting In the event the electric cool box malfunctions, unplug and perform the following tests: – Is the connection cable correctly connected and does the cigarette lighter of your vehicle function properly? – Did you set up the electric cool box so air can circulate freely to ensure the cooling unit is ven- tilated? – Is the fuse

inside the plug on the 12 V con- necting cable defective? – A fuse on the socket in your car, caravan or boat may be defective. Most vehicles require the ignition to be on to supply electricity. – Is the electric cool box level?18 GB/IE/CY Troubleshooting / Cleaning and Care / Disposal / Warranty and Service – Did you overfill the cool box with food / bever- ages? Arrange the food / beverages so air can easily circulate inside the electric cool box. Cleaning and Care Do not use abrasive, solvent-based or aggres- sive cleaners. Doing so may result in property damage. Always unplug the connecting cable from the cigarette lighter before cleaning. Otherwise there is a risk of electric shock. Never clean the electric cool box under running water. Doing so could damage the electrical equipment. Clean the electric cool box with a damp cloth and a mild soap solution. Rinse the parts cleaned with dishwater with clear water. The box should be cleaned and dried before storing for extended periods. Leave the lid

slightly open when storing the electric cool box to prevent any bothersome odour. Disposal The packaging is made of environmen- tally friendly materials, which may be disposed of through your local recycling facilities. Please contact your local authority for information on collection points and their opening hours. Do not dispose of electric equip- ment in the household waste!
