| Product type | Electric cooler (portable refrigerator) with hot/cold function |
| Brand | Crivit (manufactured by Targa GmbH) |
| Model | CEK 29 B (BS 1029) |
| Useful volume | Approximately 29 liters |
| Dimensions (H x W x D) | Approximately 482 x 414 x 327 mm |
| Weight | Approximately 4.8 kg |
| Power supply | 220-240 V~ (mains) and 12 V= (cigarette lighter) |
| Power in cold mode | 55 W (230 V) / 45 W (12 V) |
| Power in hot mode | 50 W (230 V) / 41 W (12 V) |
| Annual energy consumption | 69 kWh/year |
| Energy efficiency class | E |
| Noise level (ECO mode) | 34 dB(A) |
| Noise level (MAX mode) | 54 dB(A) |
| Climate class | ST (suitable from 16°C to 38°C) |
| Maximum internal temperature (hot) | Approximately 65°C |
| Temperature difference (cold, max) | Up to 20°C below ambient |
| Maximum food load capacity | 14,500 g |
| 12 V fuse | 5 A (replaceable) |
| ECO mode available | Yes (energy-saving) |
| Keep warm function | Yes |
| Maintenance and cleaning | Unplug before cleaning; damp cloth, no solvents; removable lid |
| Safety | Overheat protection, do not cover vents, do not immerse |
| Warranty | 3 years (Targa GmbH) |
| Spare parts and repairability | Spare parts available for at least 3 years after purchase |
Frequently Asked Questions - CEK 29 B CRIVIT
User questions about CEK 29 B CRIVIT
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Fridge in PDF format for free! Find your manual CEK 29 B - CRIVIT and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. CEK 29 B by CRIVIT.
USER MANUAL CEK 29 B CRIVIT
DE AT
ELEKTRO-KUHLBOX
Operating instructions and safety instructions
NL BE
ELEKTRISCHE KOELBOX
Handling
(2)
ELEKTRICKÝ CHLADÍCÍ BOX
Nárovsk o
[Unreadable]
(85)
NEVERA ELECTRICA PORTAHL
English....22
Français....41
Nederlands 64
Polski 84
Česky 104
Slovenčina....122
Español....142
Dansk 162
Italiano....181
Magyar 201
Slovenščina 221
Inhaltsverzeichnis
- Package contents.... 24
- Technical Data.... 25
3.1 Product datasheet....26 - Safety instructions .... 28
- Copyright.... 33
- Before initial use.... 33
- Initial use 33
7.1 Filling the Cool Box....33
7.2 Transporting the Cool Box....33
7.3 Switching the Cool Box On and Off.... 34
7.3.1 12 V Mode .... 34
7.3.2 230 V Mode....34
7.4 Energy-Saving Tips....35 - Maintenance/cleaning 35
8.1 Maintenance 35
8.2 Replacing the 12 V Fuse....35
8.3 Cleaning 36 - Storing the device when not in use 36
- Troubleshooting.... 37
- Environmental and waste disposal information.... 37
- Marks of conformity 38
- Food contact authenticity 38
- Notes on Guarantee and Service 39

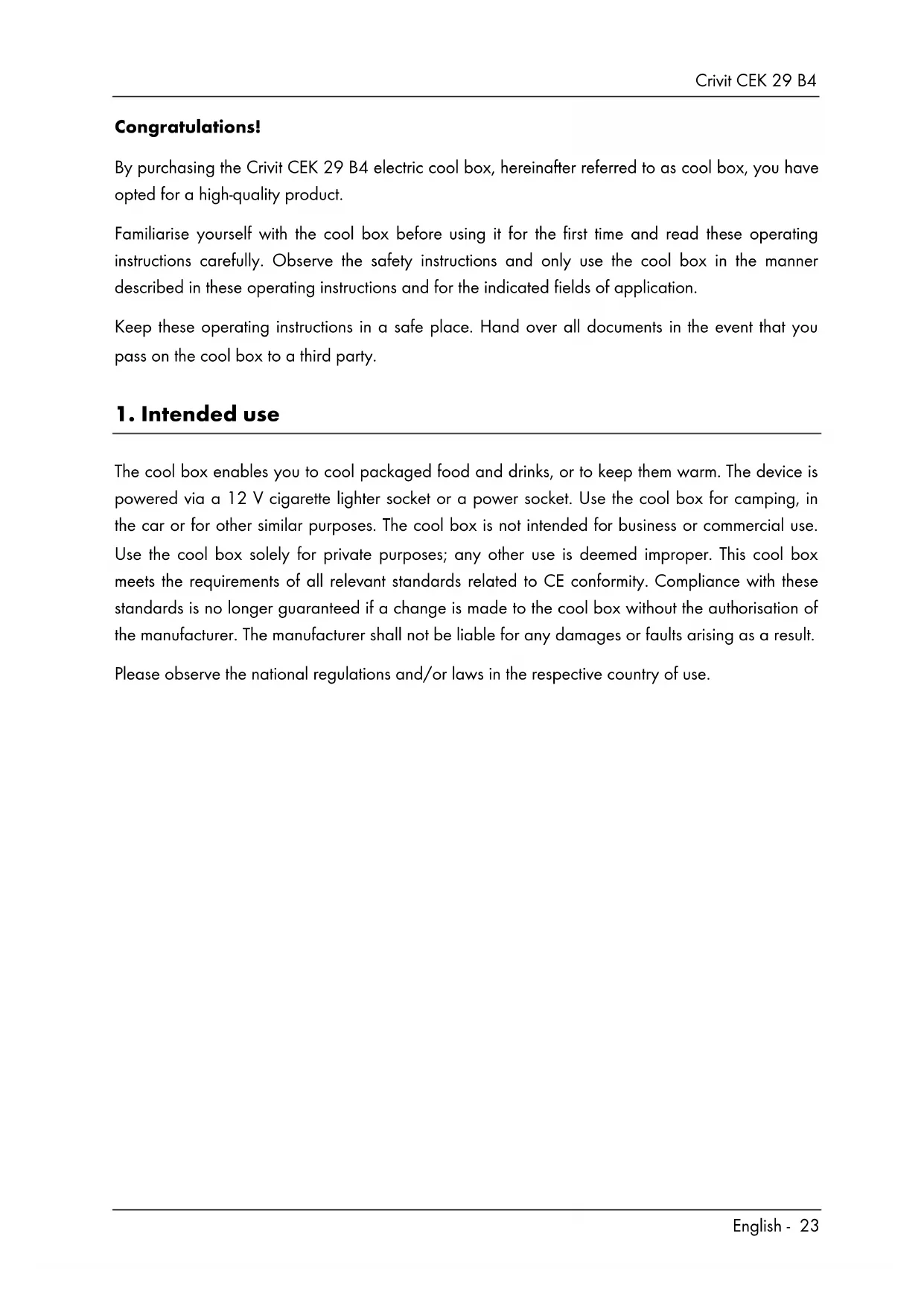

Congratulations!
By purchasing the Crivit CEK 29 B4 electric cool box, hereinafter referred to as cool box, you have opted for a high-quality product.
Familiarise yourself with the cool box before using it for the first time and read these operating instructions carefully. Observe the safety instructions and only use the cool box in the manner described in these operating instructions and for the indicated fields of application.
Keep these operating instructions in a safe place. Hand over all documents in the event that you pass on the cool box to a third party.
1. Intended use
The cool box enables you to cool packaged food and drinks, or to keep them warm. The device is powered via a 12 V cigarette lighter socket or a power socket. Use the cool box for camping, in the car or for other similar purposes. The cool box is not intended for business or commercial use. Use the cool box solely for private purposes; any other use is deemed improper. This cool box meets the requirements of all relevant standards related to CE conformity. Compliance with these standards is no longer guaranteed if a change is made to the cool box without the authorisation of the manufacturer. The manufacturer shall not be liable for any damages or faults arising as a result.
Please observe the national regulations and/or laws in the respective country of use.
2. Package contents
- Cool box
• These instructions (These instructions are also available at www.lidl-service.com)
These instructions contain a cover that can be unfolded. The inside of the cover provides a schematic of the cool box and a number legend. The numbers identify the following parts/functions:
1 Cigarette lighter socket connection
2 Lid
3 Cable box (cigarette lighter connecting cable)
4 Cable box (power cord)
5 Handle
6 Operating mode selection switch
7 Output controller
8 Plug

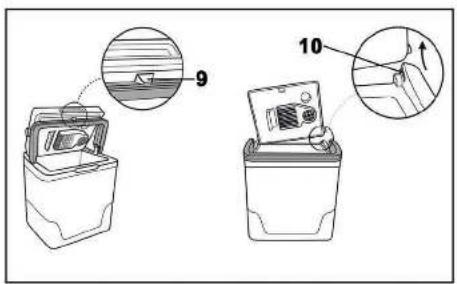

9 Locking mechanism
10 Recess
11 Fuse
3. Technical Data
| Name of supplier: | Targa GmbH |
| Model code: | Crivit CEK 29 B4/ BS 1029 |
| Category: | Pantry |
| Annual energy consumption based on results from standard testing over 24 hours. Actual energy consumption depends on the use and location of the device: | 69 kWh |
| Capacity: | approx. 29 L |
| Design temperature: | 18 °C |
| Climate class: | ST |
| Airborne sound - Eco mode: | 34 dB |
| Airborne sound - Max mode: | 54 dB |
| Total dimensions: | approx. 482 x 414 x 327 mm (W x H x D) |
| Total space required in operation: | approx. 800 x 520 x 430 mm (W x H x D)* |
| Net nominal content: | approx. 30 L |
| Max. load of goods: | 14,500 g |
| Weight: | approx. 4.8 kg |
| Energy consumption: | 0.189 kWh / 24 h (230 V) |
| Supply voltage: | 220 V - 240 V~, 12 V~ |
| Output: | 55 W (at 220 V - 240 V~), 45 W (at 12 V~) |
| Output: | 50 W (at 220 V - 240 V~), 41 W (at 12 V~) |
| Fuse (for 12 V mode): | 5 A |
| Protection class: | II |
| Insulation: | PU foam - propellant: water |
*Information corresponds to the amount of space required to be able to guarantee sufficient air circulation and allow access to the chilled items when the lid is open.
The specifications and design are subject to change without notice.
3.1 Product datasheet
| Supplier name or brand: TARGA GmbH | |||
| Supplier address: Coesterweg 45, 59494 Soest, GERMANY | |||
| Model name: Crivit CEK 29 B4, IAN: 384301_2107 | |||
| Type of cooling device: | |||
| Low-noise device: no Model: free-standing | |||
| Wine storage cabinet: no Other cooling device: no | |||
General product parameters:
| Parameter | Value | Parameter | ||
| Overall dimensions (in millimetres) | Height | 482 | Total capacity (in dm3 or l) 29 | |
| Width | 414 | |||
| Depth | 327 | |||
| EEI | 90.5% | Energy | ||
| Acoustic noise emission (in dB(A) re 1 pW) | 34 Acoustic noise emission class B | |||
| Annual energy consumption (in kWh/a) | 69.00 Climatic category: | Subtropical zone | ||
| Minimum ambient temperature (in °C) for which the cooling device is suitable | 16°C | Maximum ambient temperature (in °C) for which the cooling device is suitable | 38°C | |
| Winter mode | no | |||
Compartment parameters:
| Compartment type | Compartment parameters and values | ||||
| Capacity of compartment (in dm3 or l) | Recommended temperature setting for optimum food storage (in °C) | Freezing capability (in kg/24h) | Defrost type (automatic defrost = A, manual defrost = M) | ||
| Food compartment | yes | 29 | ECO | - | |
| Wine storage compartment | no | x,x | x | ||
| Cellar compartment | no | x,x | x | ||
| Compartment for fresh food | no | x,x | x | ||
| Chill compartment | no | x,x | x | ||
| Zero star or ice-making compartment | no | x,x | x | ||
| One star compartment | no | x,x | x | ||
| Two star compartment | no | x,x | x | ||
| Three star compartment | no | x,x | x | ||
| Four star compartment | no | x,x | x | ||
| Two star section | no | x,x | x | ||
| Variable temperature compartment | Compartment types | x,x | x | x,xx (for four star compartments) or - | [A/M] |
This table is available for download from this link: www.targa.gmbh/downloads/erp/384301_2107.pdf
4. Safety instructions
Before using the cool box for the first time, read the following instructions carefully and observe all warnings, even if you are familiar with using electronic devices. Keep this safe place for future reference. If you give the cool box away or sell it, please ensure that you also pass on this manual. It is part of the product.
DANGER! This icon, in conjunction with the word 'Danger', indicates an impending dangerous situation which, if not prevented, may lead to serious injuries or even death.
WARNING! This icon, in conjunction with the word 'Warning', indicates important information for the safe operation of the device and user safety.
This icon indicates that further information on the topic is available.
⚠️DANGER! This device can be used by children aged eight and over, as well as by people with reduced physical sensory or mental abilities or who lack experience and knowledge, providing they are supervised or have been instructed in the safe use of the device and understand the resulting dangers. Children must not play with the device. Cleaning and user maintenance must not be carried out by
children unless they are supervised. Children aged 3 to 8 can load or unload the coolbox. Also keep the packaging film away from children. There is a risk of suffocation.
DANGER! If you notice any smoke, unusual noises or smells, disconnect the cool box from the mains immediately. If this happens, you must stop using the cool box until it has been checked by a specialist. Do not inhale smoke possibly caused by a burning device. If you have inhaled smoke, consult a physician. Inhaling smoke can be harmful to your health.
⚠️ DANGER! Do not store explosive substances such as aerosol containers containing flammable propellants in this device.
⚠️ DANGER! Do not transport the cool box in the passenger compartment of a vehicle while driving.
⚠️ DANGER! Position the connection cable in the vehicle such that it does not obstruct the driver, otherwise this could result in an accident.
⚠️ DANGER! Protect the cool box from uncontrolled movement so that if an accident should occur or the brakes are applied suddenly, the passengers are not at risk. To ensure this does not happen, store the cool box in the boot of the vehicle.
WARNING! The cool box should not be operated by both connecting cables at the same time. This could damage the cool box.
⚠ WARNING! In order to avoid hazards, the cool box must not become damaged.
⚠ WARNING! Make sure there are no naked flames (for example, burning candles) placed on or near the cool box.. There is a risk of fire!
WARNING! The cool box must not be exposed to direct sources of heat (for example, heaters), direct sunlight or strong artificial light. Also avoid contact with rain, splashing and dripping water as well as aggressive liquids. Do not operate the cool box in the vicinity of water. In particular, the cool box must never be immersed (do not place any objects filled with liquids, for example vases or drinks, on the cool box). Also make sure that the cool box is not exposed to excessive shocks and vibrations. Furthermore, no foreign bodies should penetrate into the device. This could damage the cool box.
⚠ WARNING! The ventilation slots must not be covered. Also leave enough space between the device and walls or objects so that air can circulate freely. Otherwise there is a risk of overheating.
⚠ WARNING! Do not pour liquids or ice directly into the cool box. This could damage the cool box.
⚠ WARNING! This coolbox is not designed as a built-in unit.
⚠ WARNING! This coolbox is not suitable for freezing food.
⚠ WARNING! This coolbox is designed to be used at ambient temperatures of between 16 °C and 38 °C.
Connecting cable
⚠️ DANGER! Do not use an adapter plug or extension cable and do not perform any procedures on the connecting cable yourself. If the connecting cable of this device is damaged, it must be replaced by the manufacturer, their service department or by a similarly qualified person in order to avoid hazards. There is a risk of electric shock!
⚠️ DANGER! Always keep the connecting cable dry. There is a risk of electric shock!
⚠️ DANGER! Never touch the connecting cable with wet hands. There is risk of electric shock!
⚠️ DANGER! Disconnect the connecting cable before cleaning the power source. There is a risk of electric shock!
⚠ WARNING! Always take hold of the connecting cable by the cigarette lighter socket connection or plug and do not pull on the connecting cable itself.
⚠ WARNING! Do not place the cool box, items of furniture or other heavy objects on the connecting cable, and make sure that the cable is not bent.
⚠ WARNING! Never make a knot in the connecting cable
and do not connect it with other cables. The connecting cables should be positioned in such a way that no one steps on or is obstructed by them.
IMPORTANT NOTE ON STORING FOOD
- The proper use of the coolbox, correct packaging of food, maintenance of suitable temperatures and food hygiene all effect the quality of food storage.
- Note the expiry date quoted on the food packaging.
- Food stored in the coolbox must be in sealed containers or appropriate packaging to ensure it does not absorb moisture or smells.
- Bottles with a high alcohol content must be properly sealed and stored upright.
- Store heavy foods at the bottom and light or easily damaged foods (e.g. fruit) on top in order to prevent spoilage.
Follow the instructions below to prevent food contamination:
- Leaving the lid [2] open for a long time can considerable increase the temperature in the coolbox.
- Clean any surfaces which come into regular contact with food.
- Store raw meat and fish in suitable containers in the coolbox so that the do not come into contact with or drip on other food.
- If you are leaving the coolbox empty for a long time, clean it and leave the lid [2] open to prevent mould forming.
5. Copyright
All contents of these instructions are subject to copyright law, and are provided to the user solely as a source of information. Any form of copying or reproduction of data and information without the express written permission of the author is prohibited. This also concerns commercial use of the content and data. The text and illustrations correspond to the technical standards at the time of printing. Subject to alterations.
6. Before initial use
Unpack the cool box.
Check the cool box for signs of damage. If the cool box is damaged, it must not be put into operation.
7. Initial use
For hygiene reasons, we recommend cleaning the cool box before using it for the first time. Refer to the chapter section "8.3. Cleaning" for this.
The cool box is not suitable for continuous use! The maximum operating time is six days. Switch off the cool box for at least two hours when it reaches the maximum operating time.
An odour typical for the product due to the materials used may be noticeable on the inside of the cool box before it is used for the first time. While this odour is no cause for concern, we recommend washing the inside and outside of the cool box with a damp cloth for hygiene reasons before it is put into use (also see section '8.3. Cleaning'). Also do not store unpackaged food.
The cool box turns off in warming mode when an interior temperature of about 65 °C is reached.
7.1 Filling the Cool Box
Fold the handle [5] to the front so the embossed 'OPEN' is visible. Then open the lid [2]. Place the food and drinks inside the cool box. It is best to use pre-chilled food and drinks if you intend to cool them. Close the lid [2] after filling. Fold the handle [5] to the back so the embossed 'CLOSED' is visible.
7.2 Transporting the Cool Box
You can carry the cool box using the handle [5].
7.3 Switching the Cool Box On and Off
7.3.1 12 V Mode
WARNING! You must ensure that your vehicle has a 12 V in-car electrical system. The cool box must not be put into operation with a 24 V in-car electrical system.
Take the connecting cable with cigarette lighter socket connection [1] out of the cable box [3]. Unwind the connecting cable fully. Set the operating mode selection switch [6] to 'COLD' for cooling food or 'HOT' to keep food warm. Now plug the cigarette lighter socket connection [1] into a suitable cigarette lighter socket in your vehicle. The cool box is now switched on. To switch off the cool box, remove the cigarette lighter socket connection [1] from the cigarette lighter socket in your vehicle.
The output controller [7] on the front of the cool box does not function in 12 V mode. The cool box operates at maximum output. An interior temperature that is at most 20^ C cooler than the ambient temperature can be achieved (based on an ambient temperature of 23^ C). In warming mode, an interior temperature no higher than 65^ C can be achieved (based on an ambient temperature of 23^ C).
As cigarette lighter sockets in some vehicles still provide power when the ignition is switched off, the cigarette lighter socket connection [1] should always be disconnected from the cigarette lighter socket when leaving your vehicle. Otherwise this could significantly drain your vehicle's battery and therefore prevent the engine from starting up again.
To prevent items in the cool box from freezing, do not use the cool box in 12 V cooling mode below an ambient temperature of 18^ C.
7.3.2 230 V Mode
Remove the connection cable with the mains plug [8] from the cable box [4]. Unwind the connection cable completely. Plug the mains plug [8] into an easily accessible mains socket. Set the operating mode selector switch [6] to "COLD" to keep food cold or "HOT" to keep it warm. Turn the power adjustment knob [7] on the front of the coolbox clockwise to the ECO position to switch the coolbox on. Set the power you want using the power adjustment knob [7]. Turn the power adjustment knob [7] clockwise to increase the power and anticlockwise to reduce the power.
In cooling mode, turn the output controller [7] to the 'MAX' position to obtain maximum cooling. An interior temperature that is at most 20°C cooler than the ambient temperature can be achieved (based on an ambient temperature of 23°C).
In warming mode, turn the output controller [7] to the 'MAX' position to obtain maximum warming. An interior temperature no higher than about 65 °C can be achieved (based on an ambient temperature of 23°C).
To switch off the cool box, turn the output controller [7] anti-clockwise to the 'OFF' position until it snaps into place.
Set the output controller [7] to the 'ECO' position. Now the cool box operates in energy-saving mode. An interior temperature that is at most 8-11°C cooler than the ambient temperature can be achieved in this mode.
7.4 Energy-Saving Tips
Do not expose the cool box to direct sunlight in cooling mode.
Only use pre-chilled food and drinks in cooling mode.
Do not open the cool box for any longer than necessary and close the lid [2] properly.
Make sure that enough air can circulate between the food. The cool box can also hold a maximum of 36 upright 0.33 L drinks cans (W 67 mm x H 115 mm).
8. Maintenance/cleaning
8.1 Maintenance
WARNING! Maintenance work is required if the cool box has been damaged, liquids or objects have got inside the housing, the cool box has been exposed to rain or moisture or if the cool box is not functioning properly or has been dropped. If you notice any smoke, unusual noises or smells, disconnect the cool box from the mains immediately. If this happens, you must stop using the cool box until it has been checked by a specialist. All maintenance work should only be carried out by qualified specialists. Never open the housing of the cool box.
8.2 Replacing the 12 V Fuse
Proceed as follows to replace the fuse [11]:
- Remove the cigarette lighter socket connection [1] from the cigarette lighter socket.
- Loosen the screw on the fuse box and pull off the cap.
- Replace the fuse [11] with a new fuse [11] of the same type. You can purchase a suitable replacement fuse [11] at an electronic goods retailer.
- Now replace the cap and tighten the screw again.
8.3 Cleaning
⚠️ DANGER! Disconnect the connecting cable before cleaning the power source. There is a risk of electric shock!
⚠️ DANGER! In order to avoid risk, ensure that no liquids enter the lid.
Remove the lid [2] for cleaning by opening it as far as it will go and then pressing it from the right rear recess [10].
To clean the lid [2], use a slightly damp cloth and never use solvents or cleaning agents that react with plastics. You can carefully clean the ventilation slots in the lid [2] with a soft brush.
Clean the inside of the cool box using detergent and then clean water. Dry the cool box thoroughly.
After cleaning, insert the lid [2] again by bringing it into an upright position to the cool box. Now first insert the lid [2] into the left opening and then press it into the right recess [10].
9. Storing the device when not in use
If you do not want to use the cool box for a long period of time, please remove all items from the cool box. Disconnect the cool box from the mains and store the connecting cables in the cable boxes [3], [4]. Make sure that the cool box is stored in a clean, dry place away from direct sunlight. Allow the lid [2] to stay open when storing the cool box to ensure good ventilation. The lid [2] can be fixed open using the locking mechanism [9].
10. Troubleshooting
The cool box doesn't seem to be working
- Check whether the cigarette lighter socket connection [1] is plugged into the cigarette lighter socket correctly or the plug [8] is correctly inserted into the power socket.
- In 12 V mode: Turn on the ignition of your vehicle, as some vehicles will only power the cigarette lighter socket when the ignition is on.
- In 12 V mode: The fuse [11] is faulty. Change the fuse [11]: When doing so, refer to Section "8.2. Replacing the 12 V fuse".
The cool box is not chilling properly
- Place the cool box in a cooler place. When doing so, make sure that the cool box is not exposed to direct sunlight.
- Ensure that the ventilation slots are not covered and a sufficient amount of air is able to circulate.
- In 230 V mode: Check the position of the output controller [7] on the front of the cool box and turn this clockwise to increase the output if necessary.
The cool box is not warming properly
- Ensure that the ventilation slots are not covered and a sufficient amount of air is able to circulate.
- In 230 V mode: Check the position of the output controller [7] on the front of the cool box and turn this clockwise to increase the output if necessary.
11. Environmental and waste disposal information
Please note the markings on the packaging material when disposing of it, it is labelled with abbreviations (a) and numbers (b), the meanings of which are as follows:
1-7: plastic / 20-22: paper and cardboard / 80-98: composite materials
The packaging material of the coolbox is made from polyethylene (low density).
Only relevant for France:
The product can be recycled, is subject to an extended producer responsibility and is collected separately.
12. Marks of conformity
The cool box complies with the fundamental requirements and other relevant regulations of the EMV Directive 2014/30/EU, the Low-Voltage Directive 2014/35/EU, the EMC Directive 2009/125/EC and the RoHS Directive 2011/65/EU.
This product fulfils the requirements specified in the applicable national policies for the Republic of Serbia.
This product fulfils the requirements specified in the applicable national policies for the United Kingdom.
You can download the full EU declaration of conformity at the following link: https://www.targa.gmbh/downloads/conformity/384301_2107.pdf
13. Food contact authenticity
This icon indicates products that have been tested in relation to their physical and chemical composition and that in accordance with EC 1935/2004 have been regarded as harmless to health in terms of contact with foodstuffs.
14. Notes on Guarantee and Service
Warranty of TARGA GmbH
Dear Customer,
This device is sold with three years warranty from the date of purchase. In the event of product defects, you have legal rights towards the seller. These statutory rights are not restricted by our warranty as described below.
Warranty conditions
The warranty period commences upon the date of purchase. Please keep the original receipt in a safe place as it is required as proof of purchase. If any material or manufacturing faults occur within three years of purchase of this product, we will repair or replace the product free of charge as we deem appropriate.
Warranty period and legal warranty rights
The warranty period is not extended in the event of a warranty claim. This also applies to replaced and repaired parts. Any damage or defects discovered upon purchase must be reported immediately when the product has been unpacked. Any repairs required after the warranty period will be subject to charge.
Scope of warranty
The device was carefully manufactured in compliance with stringent quality guidelines and subjected to thorough testing before it left the works. The warranty applies to material and manufacturing faults. This warranty does not cover product components which are subject to normal wear and which can therefore be regarded as wearing parts, or damage to fragile components such as switches, rechargeable batteries or components made of glass. This warranty is void if the product is damaged, incorrectly used or serviced. To ensure correct use of the product, always comply fully with all instructions contained in the user manual. The warnings and recommendations in the user manual regarding correct and incorrect use and handling of the product must always be observed and complied with. The product is solely designed for private use and is not suitable for commercial applications. The warranty is rendered void in the event of incorrect handling and misuse, if it is subjected to force, and also if any person other than our authorised service technicians interfere with the device. No new warranty period commences if the product is repaired or replaced.
Submitting warranty claims
To ensure speedy handling of your complaint, please note the following:
Before using your product for the first time, please read the enclosed documentation carefully. Should any problems arise which cannot be solved in this way, please call our hotline.
- Always have your receipt, the product article number as well as the serial number (if available) to hand as proof of purchase.
- If it is not possible to solve the problem on the phone, our hotline support staff will initiate further servicing procedures depending on the fault.
Spare parts availability
Spare parts to repair this device will be available for at least 3 years from the purchase date.
Service / Spare parts request / Repair request
Phone: 0800 404 7657
E-Mail: targa@lidl.co.uk
Phone: 1890 930 034
E-Mail: targa@lidl.ie
Phone: 800 62230
E-Mail: targa@lidl.com.mt
Phone: 8009 4409
E-Mail: targa@lidl.com.cy
IAN: 384301_2107
Manufacturer
Please note that the following address is not a service address. First contact the service point stated above.
TARGA
GmbH
Coesterweg 45
59494 Soest
GERMANY
Table des matières
Symbolic illustration of a person disposing of paper into a trash bin and recycling symbol (no text or labels)Cher client, chère cliente,
Cher client, chère cliente,
Symbol of a trash bin crossed out by two diagonal lines, with a solid black rectangle below (no text or labels)natural_image
Symbol of a trash bin crossed with no text or labels, accompanied by a horizontal line and a rectangular block below (no text or symbols present)natural_image
Symbolic illustration of a person sorting documents into a bin and recycling symbol (no text or labels)natural_image
Symbol of a trash bin crossed with no text or labels, accompanied by a solid black rectangle below (no text or symbols present)natural_image
Symbol of a trash bin crossed with no visible text or labelsnatural_image
Symbolic illustration of a person disposing of paper into a trash bin, with a recycling symbol below (no text or labels)text_image
b a 04 PE-LDtext_image
A ΔΔ UK CAnatural_image
Symbol of a trash bin crossed with no text or labels, accompanied by a black rectangular block below (no readable text or symbols)text_image
Three recycling symbols: a person sorting a trash bin, a recycling cycle, and a recycling symbol with 'b' and 'a' labels.natural_image
Symbol of a trash bin with crossed lines indicating no waste or discharge, and a solid black rectangle below (no text or labels)natural_image
Symbolic illustration of a person disposing of paper into a trash bin and recycling symbol (no text or labels)text_image
A ΔΔ UK CAhttps://www.targa.gmbh/downloads/conformity/384301_2107.pdf
