USER MANUAL IAN 351556 CRIVIT

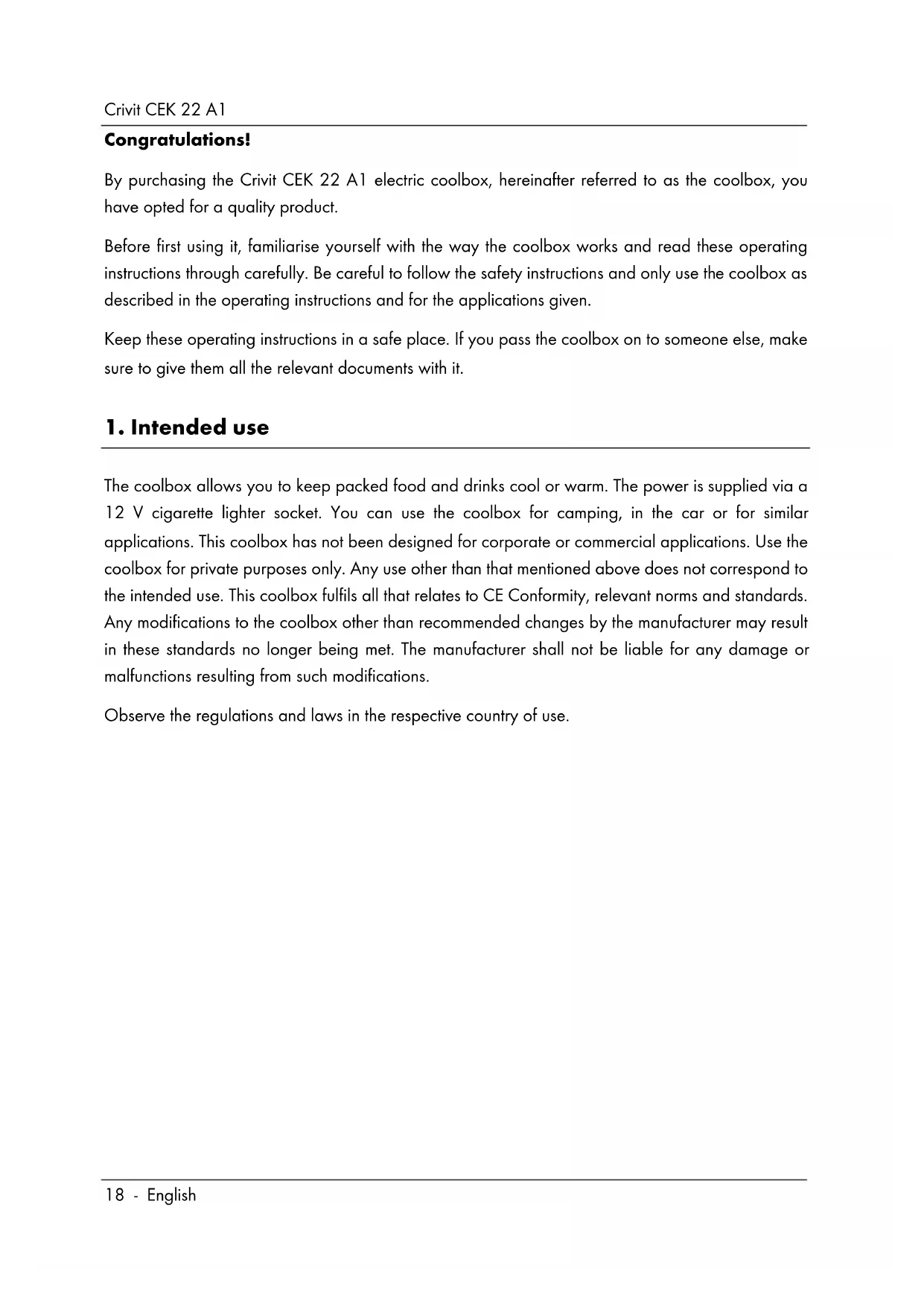

Congratulations! By purchasing the Crivit CEK 22 A1 electric coolbox, hereinafter referred to as the coolbox, you have opted for a quality product. Before first using it, familiarise yourself with the way the coolbox works and read these operating instructions through carefully. Be careful to follow the safety instructions and only use the coolbox as described in the operating instructions and for the applications given. Keep these operating instructions in a safe place. If you pass the coolbox on to someone else, make sure to give them all the relevant documents with it.

The coolbox allows you to keep packed food and drinks cool or warm. The power is supplied via a 12 V cigarette lighter socket. You can use the coolbox for camping, in the car or for similar applications. This coolbox has not been designed for corporate or commercial applications. Use the coolbox for private purposes only. Any use other than that mentioned above does not correspond to the intended use. This coolbox fulfils all that relates to CE Conformity, relevant norms and standards. Any modifications to the coolbox other than recommended changes by the manufacturer may result in these standards no longer being met. The manufacturer shall not be liable for any damage or malfunctions resulting from such modifications. Observe the regulations and laws in the respective country of use.Crivit CEK 22 A1 English - 19

• These instructions (these instructions are also available at www.lidl-service.com) These operating instructions have a fold-out cover. On the inside of the cover, the coolbox is shown with figures indicated. The meanings of the numbers are as follows: 1 Cigarette lighter connector 2 Lid 3 Cable box 4 Operating mode selector switch 5 Handle 6 Lock 7 Recess 8 Fuse

3. Technical specifications

Name of supplier: Targa GmbH Model name: Crivit CEK 22 A1/ BS-1022 Category: Pantry Usable capacity: approx. 21 l Design temperature: 18 °C Climatic category: ST Acoustic noise emission: 54 dB Overall dimensions: approx. 35.5 x 49.5 x 24 cm (W x H x D) Total space required in use: approx. 46 x 70 x 34 cm (W x H x D)* Gross nominal content: approx. 22 l Weight: approx. 3.2 kg Supply voltage: 12 V Cooling power: 45 W Heating power: 40 W Fuse (for 12 V operation): 5 A Insulation: PU foam - Refrigerant: Cyclopentane

• Figures correspond to the space required to guarantee sufficient air circulation and access the contents with the lid open. The technical data and design may be changed without prior notice.Crivit CEK 22 A1

Before you use the coolbox for the first time, please read the following notes and heed all warnings, even if you are familiar with handling electronic devices. Keep these operating instructions in a safe place for future reference. If you sell or pass the coolbox on to another person, it is imperative that you also hand over these operating instructions. The operating instructions are part of the product. DANGER! This symbol and the word “Danger” alert you to a potentially dangerous situation. Ignoring it can lead to severe injury or even death. WARNING! This symbol and the word “Warning” denote important information required for the safe operation of the product and for the safety of its users. This symbol denotes further information on the topic.

DANGER! This device may be used by children of 8 years or over or by persons with physical, sensory or mental impairments or those with no knowledge or experience providing they are supervised or they have been given instructions on the proper use of the device and they understand the associated risks. This device is not a toy. TheCrivit CEK 22 A1 English - 21 product must not be cleaned or maintained by unsupervised children. Children aged 3 to 8 can load or unload the coolbox. Keep the packaging materials out of the reach of children. There is a risk of suffocation. DANGER! If smoke, unusual noises or smells are noticed, disconnect the coolbox from the power supply immediately. If this occurs, the coolbox should not be used before it has been inspected by authorised service personnel. Never inhale smoke from a possible device fire. If you do inadvertently inhale smoke, seek medical attention. Smoke inhalation can be damaging to your health. DANGER! Do not store explosive materials such as aerosol containers with flammable propellants in the device. DANGER! To prevent traffic accident risks, arrange the connection cable in the vehicle so that it does not impede the driver. DANGER! When in the vehicle, secure the coolbox against sudden movements, so it does not present a risk to the vehicle occupants in the event or hard braking or an accident. Store the coolbox in the boot. WARNING! The coolbox must not be damaged in order to avoid any further risks.Crivit CEK 22 A1

WARNING! Make sure that no fire hazards (e.g. burning candles) are placed on or near the coolbox. Fire hazard! WARNING! Do not expose the coolbox to any direct heat sources (e.g. heaters), direct sunlight or strong artificial light. The device must not be exposed to rain, spray or dripping water or abrasive liquids. Do not use the coolbox near water. The coolbox must especially never be immersed (do not place any containers containing liquids such as drinks, vases, etc. on the coolbox). Make sure that the coolbox is not subject to excessive impacts or vibrations. Do not introduce any foreign bodies into the device, as these could damage the coolbox. WARNING! The ventilation slots must not be covered. Keep sufficient clearance to walls or other objects to allow air to circulate freely. Otherwise, there is a risk of overheating. WARNING! Do not put liquids or ice directly into the coolbox. This could damage the coolbox. Connection cable DANGER! Never use adapter plugs or extension cables and do not tamper with the cable. If the connection cable of this device is damaged, it must be replaced by the manufacturer, its customer service or a similarly qualified person, in order to avoid any possible danger. There is a risk of short circuits!Crivit CEK 22 A1 English - 23 DANGER! Keep the connection cable dry at all times. There is a risk of short circuits! DANGER! Do not touch the connection cable with wet hands. There is a risk of short circuits! DANGER! Make sure the device is disconnected from the power source before cleaning. There is a risk of short circuits! WARNING! Always hold the connection cable on the cigarette lighter connector and do not pull the connection cable itself. WARNING! Never place the coolbox, furniture or other heavy objects on the connection cable and make sure it does not get kinked. WARNING! Never tie knots in the connection cable and do not tie it to other cables. The connection cable must be laid so that nobody can trip over it or be obstructed by it.

All the contents of this user manual are protected by copyright and provided to the reader for information only. Copying data and information without the prior explicit written consent of the author is strictly forbidden. This also applies to any commercial use of the contents and information. All texts and diagrams are up-to-date as of the date of printing. Subject to change without notice.

Remove the coolboxfrom the packaging. Check the coolbox for damage. If the coolbox is damaged, do not use it.Crivit CEK 22 A1

Prior to using the coolbox for the first time, it is recommended that you clean it for hygiene reasons. See also the chapter 8.3 “Cleaning”. Because of the materials used, there can be a slight product-specific smell inside the coolbox before it is used for the first time. This smell is perfectly harmless, but, for hygiene reasons, we recommend wiping the inside and outside of the coolbox with a damp cloth before using it for the first time (see also Chapter “8.3 Cleaning”). Do not store unwrapped food in it. In keep-warm mode, the coolbox switches off when the internal temperature reaches around 65 °C.

IMPORTANT NOTE ON STORING FOOD

• The proper use of the coolbox, correct packaging of food, maintenance of suitable temperatures and food hygiene all effect the quality of food storage.

• Note the expiry date quoted on the food packaging.

• Food stored in the coolbox must be in sealed containers or appropriate packaging to ensure it does not absorb moisture or smells.

• Bottles with a high alcohol content must be properly sealed and stored upright.

• Store heavy foods at the bottom and light or easily damaged foods (e.g. fruit) on top in order to prevent spoilage. Follow the instructions below to prevent food contamination:

• Leaving the lid [2] open for a long time can considerable increase the temperature in the coolbox.

• Clean any surfaces which come into regular contact with food.

• Store raw meat and fish in suitable containers in the coolbox so that the do not come into contact with or drip on other food.

• If you are leaving the coolbox empty for a long time, clean it and leave the lid [2] open to prevent mould forming.

7.1 Loading the coolbox

Move the carry handle [5] forwards. Now open the lid [2]. Place the food and drinks in the coolbox. If you wish to keep food cool, it is best to use pre-chilled food and drink. Close the lid [2] after loading. Move the carry handle [5] backwards.

7.2 Transporting the coolbox

You can use the carry handle [5] to transport the coolbox.Crivit CEK 22 A1 English - 25

7.3 Switching the coolbox on and off

WARNING! Make sure that your vehicle has a 12 V battery. Never operate the coolbox on 24 V vehicle power. Remove the connection cable with the cigarette lighter plug [1] from the cable box [3]. Unwind the connection cable completely. Set the operating mode selector switch [4] to “COLD” to keep food cold or “HOT” to keep it warm. Then connect the cigarette lighter plug [1] to a suitable cigarette lighter socket in your vehicle. The coolbox is now switched on. To switch the coolbox off, disconnect the cigarette lighter plug [1] from the cigarette lighter socket in your vehicle. The coolbox always works at full power. It can cool contents down to a maximum of 18 °C cooler inside the box than the ambient temperature (for 23 °C ambient temperature). In keep- warm mode, the maximum internal temperature is around 65 °C (for 23 °C ambient temperature). As the cigarette lighter sockets in some vehicles are still live even when the ignition is off, you should disconnect the cigarette lighter plug [1] from the cigarette lighter socket of your vehicle when you leave the vehicle. Otherwise, the drain on your vehicle battery could be so high that the engine will no longer start. Do not use the coolbox in cooling mode if the ambient temperature is below 18 °C to prevent the contents freezing.

7.4 Energy-saving tips

When in cooling mode, do not expose the coolbox to direct sunlight. Always load with chilled food and drinks when in cool mode. Do not open the coolbox for longer than necessary and close the lid [2] fully. Make sure that air can circulate between the food. The coolbox can be loaded with a maximum of 22 upright 330 ml drink cans (Ø 67 mm x H 115 mm).Crivit CEK 22 A1

8. Maintenance/cleaning

WARNING! Servicing is required if the coolbox is damaged in any way, for example, if liquid or objects have entered the casing, if the coolbox is exposed to rain or moisture, if it is not working properly or if it has been dropped. If smoke, unusual noises or smells are noticed, disconnect the coolbox from the power supply immediately. If this occurs, the coolbox should not be used before it has been inspected by authorised service personnel. All servicing work must be carried out by qualified specialist personnel. Never open the casing of the coolbox.

8.2 Replacing the fuse

Proceed as follows to replace the fuse [8]:

• Unplug the cigarette lighter plug [1] from the cigarette lighter socket.

• Undo the screw on the fuse box and pull off the cap.

• Replace the fuse [8] with a new fuse [8] of the same type. You can purchase a suitable fuse [8] from any electrical retailer.

• Replace the cap and retighten the screw.

DANGER! Make sure the device is disconnected from the power source before cleaning. There is a risk of short circuits! DANGER! Make sure that no liquid gets into the lid, in order to prevent hazards. Remove the lid [2] for cleaning by opening it and pressing it off the recess [7] to the back right.Crivit CEK 22 A1 English - 27 To clean the lid [2], use a slightly dampened cloth. Never use any solvents or cleaners that may damage the plastic. You can clean the ventilation slots on the lid [2] carefully with a soft brush. Clean the inside of the coolbox with washing-up liquid and then rinse out with clean water. Then dry the coolbox off thoroughly. After cleaning, replace the lid [2] by moving it towards the coolbox in a 45° angle. Place the lid [2] first into the left-hand opening and then push it down into the right-hand recess [7].

9. Storage when not in use

If you do not wish to use the coolbox for an extended period, remove all contents. Disconnect the coolbox from the power supply and store the connection cable in the cable box [3]. Store the coolbox in a clean, dry place out of direct sunlight. Leave the lid [2] open when in storage to ensure the coolbox is well ventilated. You can hold the lid open [2] using the lock [6]. Refer to the illustration on the manual cover.

The coolbox does not work.

• Check that the cigarette lighter plug [1] is correctly inserted into the cigarette lighter socket.

• Switch on your vehicle ignition as many vehicles only supply electricity to the cigarette lighter socket when the ignition is on.

• The fuse [8] is faulty. Replace the fuse [8] by following the instruction in chapter “8.2 Replacing the fuse”. The coolbox is not cooling properly.

• Move the coolbox to a cooler position. Make sure that the coolbox is not exposed to direct sunlight.

• Make sure that the ventilation slots are not covered and there is sufficient room for air to circulate. The coolbox is not warming properly.

• Make sure that the ventilation slots are not covered and there is sufficient room for air to circulate.Crivit CEK 22 A1

11. Environmental regulations and disposal information

Devices marked with this symbol are subject to the European Directive 2012/19/EU. All electrical and electronic devices must be disposed of separately from household waste at official disposal centres. The product contains the gas cyclopentane, which must be considered when disposing of it. Avoid hazards to the environment and dangers to your personal health by disposing of the device properly. For further information about proper disposal, contact your local council, disposal bodies or the shop where you bought the device. Dispose of all packaging in an environmentally friendly manner. Cardboard packaging can be taken to paper recycling centres or public collection points for recycling. Any film or plastic contained in the packaging should be taken to your public collection points for disposal. Please note the markings on the packaging material when disposing of it, it is labelled with abbreviations (a) and numbers (b), the meanings of which are as follows: 1–7: plastic / 20–22: paper and cardboard / 80-98: composite materials. The product can be recycled, is subject to an extended producer responsibility and is collected separately.

12. Conformity notes

The product complies with the requirements of the applicable European and national directives. Evidence of conformity has been provided. The manufacturer has the relevant declarations and documentation. The complete EU Declaration of Conformity is available for download from this link: https://www.targa.gmbh/downloads/conformity/351556_2007.pdf

This symbol designates products whose physical and chemical composition has been tested and found to be non-hazardous to health when used in contact with food in accordance with the requirements of Regulation EU 1935/2004.Crivit CEK 22 A1 English - 29

14. Warranty and service information

Warranty of TARGA GmbH Dear Customer, This device is sold with three years warranty from the date of purchase. In the event of product defects, you have legal rights towards the seller. These statutory rights are not restricted by our warranty as described below. Warranty conditions The warranty period commences upon the date of purchase. Please keep the original receipt in a safe place as it is required as proof of purchase. If any material or manufacturing faults occur within three years of purchase of this product, we will repair or replace the product free of charge as we deem appropriate. Warranty period and legal warranty rights The warranty period is not extended in the event of a warranty claim. This also applies to replaced and repaired parts. Any damage or defects discovered upon purchase must be reported immediately when the product has been unpacked. Any repairs required after the warranty period will be subject to charge. Scope of warranty The device was carefully manufactured in compliance with stringent quality guidelines and subjected to thorough testing before it left the works. The warranty applies to material and manufacturing faults. This warranty does not cover product components which are subject to normal wear and which can therefore be regarded as wearing parts, or damage to fragile components such as switches, rechargeable batteries or components made of glass. This warranty is void if the product is damaged, incorrectly used or serviced. To ensure correct use of the product, always comply fully with all instructions contained in the user manual. The warnings and recommendations in the user manual regarding correct and incorrect use and handling of the product must always be observed and complied with. The product is solely designed for private use and is not suitable for commercial applications. The warranty is rendered void in the event of incorrect handling and misuse, if it is subjected to force, and also if any person other than our authorised service technicians interfere with the device. No new warranty period commences if the product is repaired or replaced. Submitting warranty claims To ensure speedy handling of your complaint, please note the following: - Before using your product for the first time, please read the enclosed documentation carefully. Should any problems arise which cannot be solved in this way, please call our hotline. - Always have your receipt, the product article number as well as the serial number (if available) to hand as proof of purchase.Crivit CEK 22 A1

- If it is not possible to solve the problem on the phone, our hotline support staff will initiate further servicing procedures depending on the fault.

Manufacturer Please note that the following address is not a service address. First contact the service point stated above. TARGA GmbH Coesterweg 45 59494 Soest GERMANYCrivit CEK 22 A1 Français - 31 Table des matières
