USER MANUAL Hecate GM5 EDIFIER

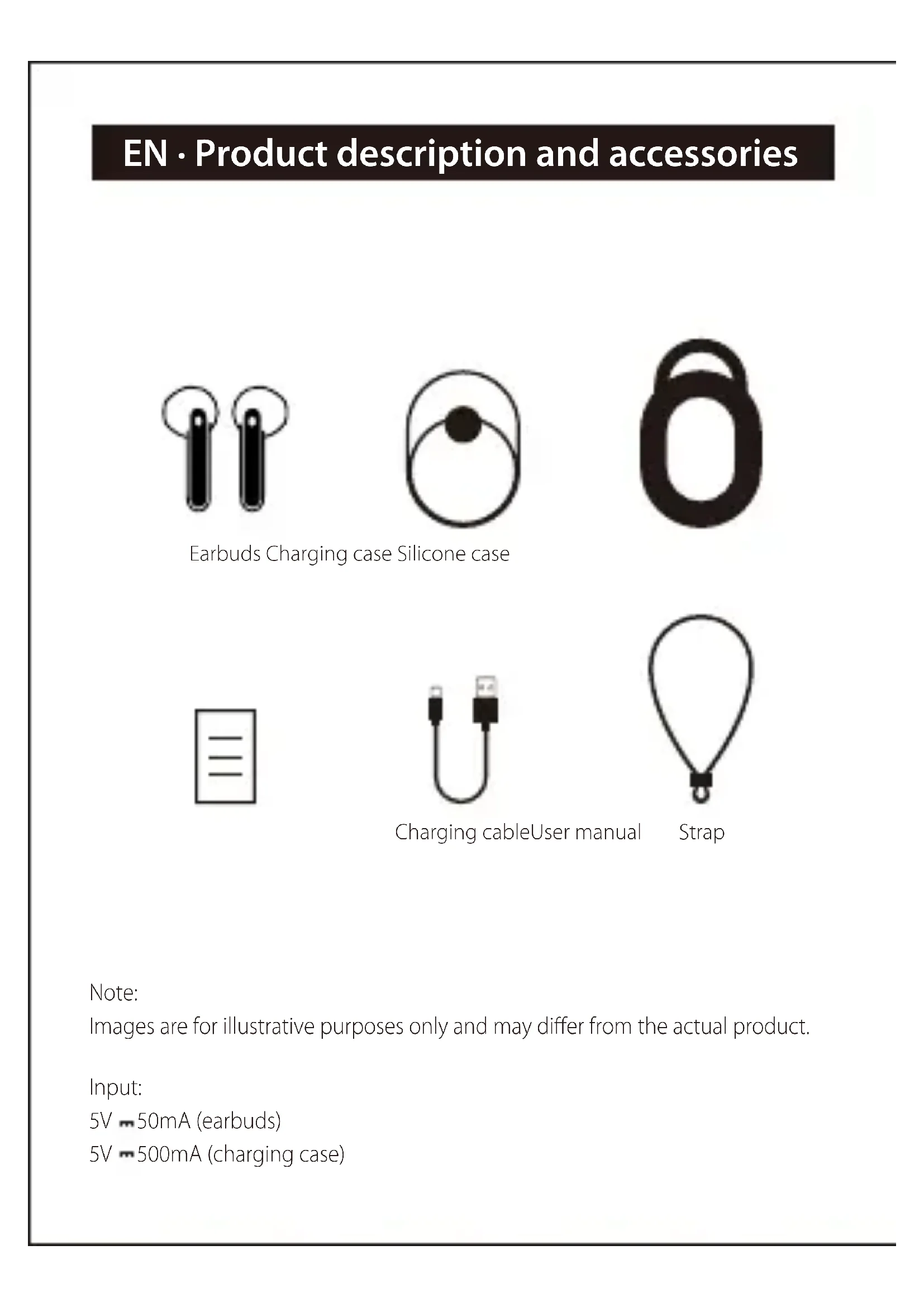

www.edif ier.comEN · Product description and accessories Earbuds Charging case Silicone case Strap Charging cableUser manual Note: Images are for illustrative purposes only and may dier from the actual product. Input: 5V 50mA (earbuds) 5V 500mA (charging case)■ Take earbuds out Take the earbuds out of the charging case and tear insulating lms o. ■ Charge For initial use, place the earbuds in the charging case and close the case, then connect the case to power source with the included Type-C charging cable for charging.

• You may hear a warning tone when the earbuds are at low battery level, please place the earbuds in the case for charging;

• Ice blue indicator steady lit = charging

• Ice blue indicator o = fully charged

• Open the charging case to show its battery level. If red light of the charging case ashes rapidly, it indicates the charging case is at a low battery level, please charge it in time.

• LED light of the charging case ashing = charging

• Three LED lights steady lit = fully charged

Charge the charging case

Warning: The rechargeable batteries that provide power for this product must be

disposed properly for recycling. Do not dispose of batteries in re to prevent an explosion. If it is not used for long periods of time, please charge the product with lithium battery every three months.■ Power on/o

• Power on automatically when taken out of the charging case;

• Power o automatically while placed in the charging case.

• For initial use, take the earbuds out of the charging case and they will auto-on (the white lights lit for around 2 seconds); then the left and right earbuds will auto-pair with each other, after pairing is successful, the earbuds will enter Bluetooth pairing state (the white and ice blue lights of the earbuds ashing alternately);

• Set Bluetooth device to search for and connect to "HECATE GM5", after pairing is successful, the indicators of the earbuds will ash once per around 4 seconds.

• If use one earbud only, please take the left or right earbud out of the charging case, and refer to the procedures mentioned in "Two earbuds mode" to pair with Bluetooth devices.

• When powered o, respectively press and hold the touch zones of the left and right earbuds for around 3 seconds to power on;

• When powered on, respectively press and hold the touch zones of the left and right earbuds for around 5 seconds to power o.

Manually• Take the earbuds out of the charging case, they will auto-connect to the Bluetooth device connected last time.

• When the earbuds are disconnected from Bluetooth device for not at the eective distance, they can auto-connect to the Bluetooth device again if return to the eective distance within 5 minutes.

Reconnect automatically The left and right earbuds have nished TWS pairing before leaving factory. If the wireless connection fails to resume, please follow the steps below to re-pair:

• After powered on, simultaneously double click the touch zones of the left and right earbuds to start TWS pairing(the white lights of the earbuds ashing in a breathing pattern);

• After TWS pairing is done, the earbuds will enter Bluetooth pairing state (the white and ice blue lights of the earbuds ashing alternately).

• Please refer to the procedures mentioned in "Two earbuds mode" to pair with Bluetooth devices again.

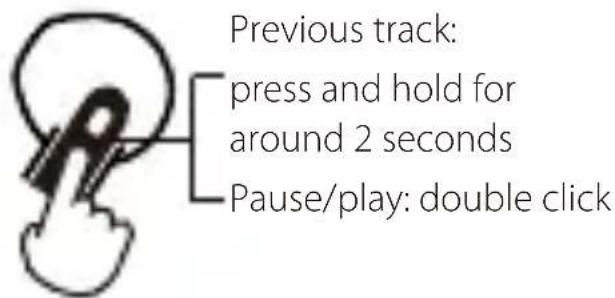

TWS pairing of the left and right earbuds■ Functional operation Previous track: press and hold for around 2 seconds Pause/play: double click

Music playback mode Left earbud

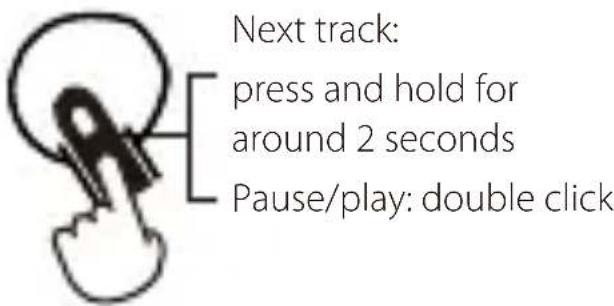

Voice assistant Except when you are in a conversation, quadruple click the touch zone of the left earbud to enable the voice assistant function(please ensure the connected Bluetooth device supports this function). Next track: press and hold for around 2 seconds Pause/play: double click Right earbud

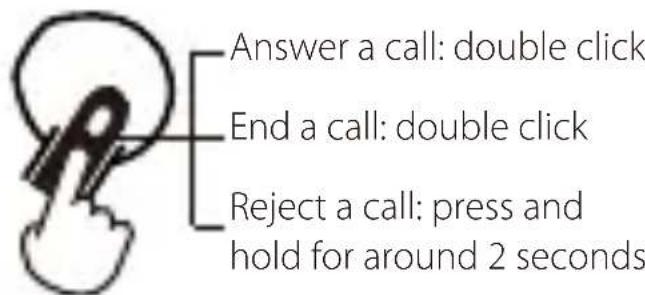

Call mode Left/right earbud

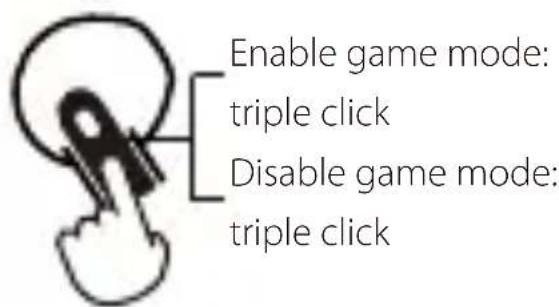

● Low-latency game mode Enable game mode: triple click Disable game mode: triple click Right earbud(music mode)

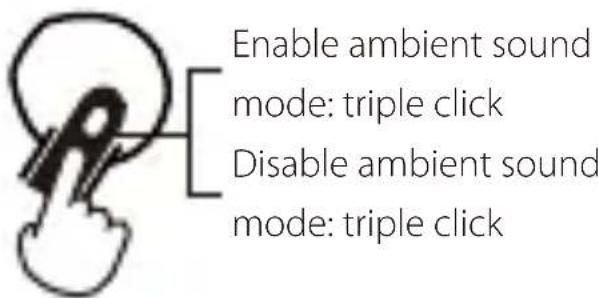

Enable ambient sound mode: triple click Disable ambient sound mode: triple click ● Enable/disable ambient sound mode Left earbud L■ Restore to factory settings (use with caution) ● Restoring to factory settings will clear all pairing records of the earbuds.

• When powered o, respectively press and hold the touch zones of the left and right earbuds for 8 seconds; when the indicator is steady lit, double click the touch zone and the indicator ashes twice, then the factory settings have been restored.

• Please refer to the procedures mentioned in "TWS pairing of the left and right earbuds" to complete TWS pairing again. ■ FAQs ● No sound

• Check if the earbuds are operating.

• Check if the earbuds volume are at an appropriate level.

• Check if the earbuds are correctly connected with Bluetooth device.

• Check if the earbuds are operating within a normal working range.

The call quality of the earbuds are not good.

• Check if Bluetooth device is in an area with strong signal.

• Please ensure the earbuds are within eective distance (10m) and no obstacle between the earbuds and Bluetooth device.

When playing music, cannot control pause/play/previous track/next track via the earbuds.

• Please ensure the paired Bluetooth device supports AVRCP (Audio/Video Remote Control Prole) prole.■ Maintenance

• Do not put the product in places exposed to sun or with high temperature. High temperature will shorten service life of electronic components, damage battery and make plastic components deformed.

• Do not put the product in cold places to avoid damaging internal circuit board.

• Do not dismantle the product. Non-professional personnel may damage the product.

• Do not drop, strongly vibrate, strike the product with hard object to avoid damaging internal circuit.

• Do not use drastic chemicals or cleaner to clean the product.
