Product Type	Earplug (wireless earbuds)
Model	W180T
Brand	Edifier
Dimensions (earbud)	Approx. 25 x 20 x 20 mm (estimated)
Weight (earbud)	Approx. 4 g (estimated)
Dimensions (charging case)	Approx. 60 x 40 x 25 mm (estimated)
Weight (charging case)	Approx. 30 g (estimated)
Power supply	Rechargeable via built-in battery (earbuds) and battery in charging case
Charge input (earbud)	5V — 200mA
Charge input (case)	5V — 1A
Connectivity	Bluetooth (pairing with smartphone)
Main functions	Wireless audio playback, automatic pairing, touch controls, charging via case
LED indicators	Blue, red, green depending on status (charging, pairing, battery)
Battery life	Not specified (estimated: 4-6 hours per charge, case provides multiple charges)
Operating temperature	Not specified
Maintenance and cleaning	Clean with a soft, dry cloth; do not immerse in water; avoid dirt in the charging port
Safety	Do not charge if liquids are present in the charging port; use only the supplied Type-C cable
Spare parts and repairability	Not specified by the manufacturer
General information	Model: EDF200075; Website: www.edifier.com; Made in China

Frequently Asked Questions - W180T EDIFIER

How to pair the W180T earbuds with my phone?

Take the earbuds out of the case. The red and blue LEDs will flash. Select "EDIFIER W180T L" or "EDIFIER W180T R" in your phone's Bluetooth settings to establish the connection.

How to reset the W180T earbuds?

Take the earbuds out of the case. Make sure they are not connected to each other or to a Bluetooth device. Touch the touch area of each earbud for 8 seconds until the blue LED flashes 6 times and then turns off. The pairing memory will be cleared.

How to connect the left and right earbuds to each other?

Take the earbuds out of the case, make sure they are not connected. Touch the touch area of both earbuds 2 times quickly and hold until the blue LEDs flash rapidly. The earbuds will connect automatically. Once connected, the green LED will flash twice every 5 seconds.

How to charge the W180T earbuds?

When the battery is low, place the earbuds in the charging case. The earbud LED stays on continuously during charging and turns off when the battery is full. To charge the case, connect it to a power source via the supplied Type-C cable (input 5V/1A). The case LED is red during charging and turns off when fully charged.

Are the W180T earbuds water-resistant?

The manual does not mention water resistance. It is not recommended to expose them to moisture or excessive sweat. Be careful not to charge if liquids are present in the charging port.

How to clean the W180T earbuds?

Use a soft, dry cloth to clean the earbuds and case. Avoid using water or chemicals. Make sure the charging port is free of dirt.

What to do if only one earbud works?

Try resetting both earbuds (touch for 8 seconds) and then reconnecting them. If the problem persists, check that each earbud is properly paired separately with your phone. You can also try reconnecting them manually by following the left-right pairing procedure.

Can the earbuds work independently?

Yes, after pairing one earbud to your phone, you can repeat the operation for the other earbud so that they work independently (e.g., for hands-free calls).

How to turn on/off the W180T earbuds?

The earbuds turn on automatically when taken out of the case and turn off when placed back in. There is no manual power button.

Where to find the full manual?

The full manual is available for free download in PDF format on notice-facile.com for the Edifier W180T reference.

USER MANUAL W180T EDIFIER

True Wireless In-Ear Headphones

— Manual —

EN

Power ON/OFF

Diagram showing a device with labeled parts and an equivalence arrow, possibly illustrating a transformation or labeling process.

Blue LED lit for 1s

1. Power ON when taken out of the case.
2. Power OFF when placed in the case.

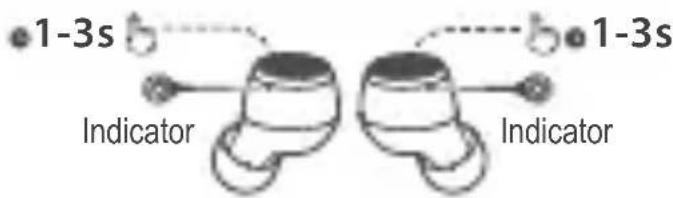

Pairing

1-3s Indicator Indicator 1-3s

1. Taken out of the case.
2. Press and hold the touch panel on either earbud for 1-3s. Red and Blue LED will blink rapidly.
3. Select "EDIFIER W180T L" or "EDIFIER W180T R" in your device setting to connect.

Pairing for the first time

1. Taken out of the case. Red and Blue LED will blink rapidly.
2. Select "EDIFIER W180T L" or "EDIFIER W180T R" in your device setting to connect.

Note:

1. For subsequent use, the earbuds will auto-connect to device used last time.
2. After you complete the Bluetooth pairing between the one earbud and the mobile phone, you can also repeat the above steps to pair the other earbud with the mobile phone to realize the operation of any single earbud.

Reset

8s Indicator Indicator 8s

1. Taken out of the case.
2. The earbuds are not connected and not connected with any Bluetooth devices.
3. Respectively press and hold the touch panel on earbuds for 8s, Blue LED blinks 6 times rapidly and turn off, then the pairing record will be cleared.

Left & Right connection

x2 Indicator Indicator x2

1. Taken out of the case.
2. The earbuds are not connected and not connected with any Bluetooth devices.
3. Quickly tap the touch panel on both earbuds 2 times and hold to wait until the blue LEDs blink rapidly, then left & right will start connecting. Blue LED will blink twice in 5s after connected.

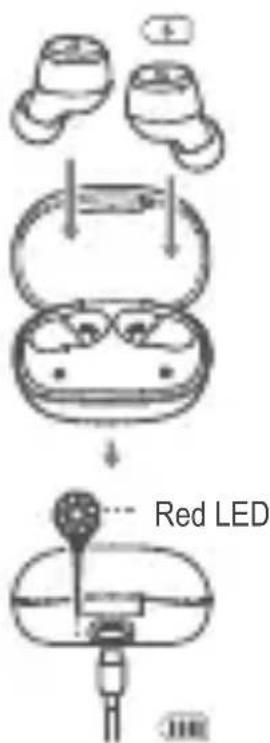

Charge

Red LED

Earbuds

1. When hearing low battery prompt tone, please place the earbuds in the case for charging.
2. Red LED is steady lit when charging and off when fully charged.

Charging case

1. Please connect the case to power source with the included Type-C charging cable for charging.
2. Red LED is steady lit when charging and off when fully charged.

Input: 5V =200mA(Earbuds) 5V =1A(Charging case)

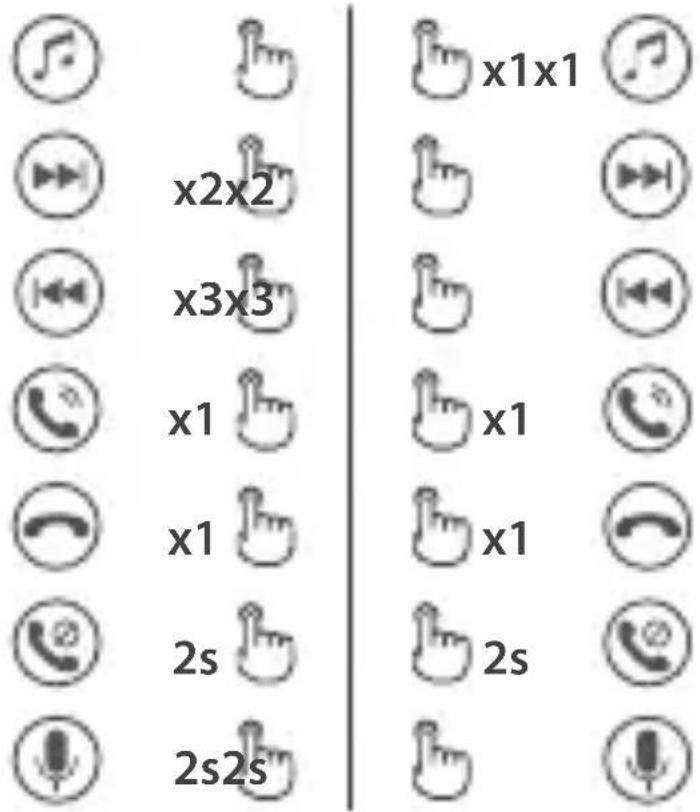

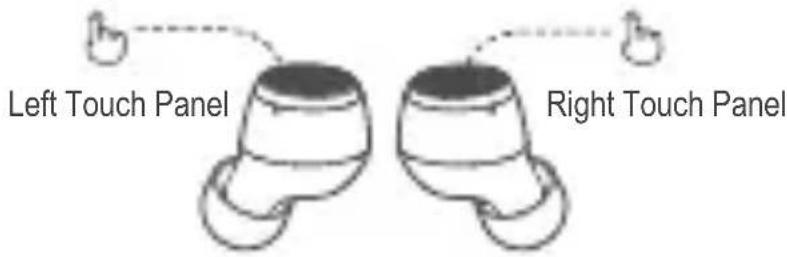

Controls

Left Touch Panel Right Touch Panel

x1x1 x2x2 x3x3 x1 x1 x1 2s 2s2s

Note:

1. Please do not charge the product when there is sweat or other liquids inside the charging port, which may damage the product.
2. Images are for illustrative purposes only and may differ from the actual product.

For more information, please visit our website:

www.edifier.com

@Edifierglobal

@Edifier_Global

@Edifier_Global

Model: EDF2000725

Edifier International Limited

P.O. Box 6264

General Post Office

Hong Kong

www.edifier.com

© 2021 Edifier International Limited. All rights reserved.

Printed in China

NOTICE:

For the need of technical improvement and system upgrade, information contained herein may be subject to change from time to time without prior notice.

Products of EDIFIER will be customized for different applications.

Pictures and illustrations shown on this manual may be slightly different from actual product. If any difference is found, the actual product prevails.
