USER MANUAL TO-U2 mini EDIFIER

True Wireless Earbuds Headphones

— Manual —

BC

EN

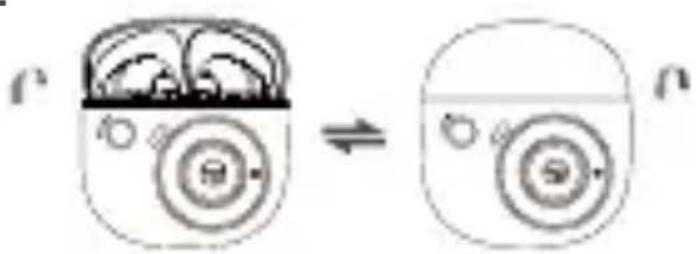

Power ON/OFF

c ⇌ n

1. Power ON when the case is opened.
2. Power OFF when placed in the case and the case is closed.

Pairing

3s

1. Earbuds in the case and the case is opened.
2. Press and hold the button on the case for 3s. The display will show " ×" icon.
3. Select "EDIFIER TO-U2 mini" in your device setting to connect.

1st Pairing

1. Earbuds power ON when the case is opened. The display will show " ✗" icon.
2. Select "EDIFIER TO-U2 mini" in your device setting to connect.

Note:

For subsequent use, the earbuds will auto-connect to device used last time.

Left & Right connection/Reset

x3

1. Earbuds in the case and the case is opened.
2. Press 3 times the button on the case. The display will show " 🔍 " icon.
3. After the earbuds are connected, The display will show " 🔍 " icon.
4. Enter pairing mode.

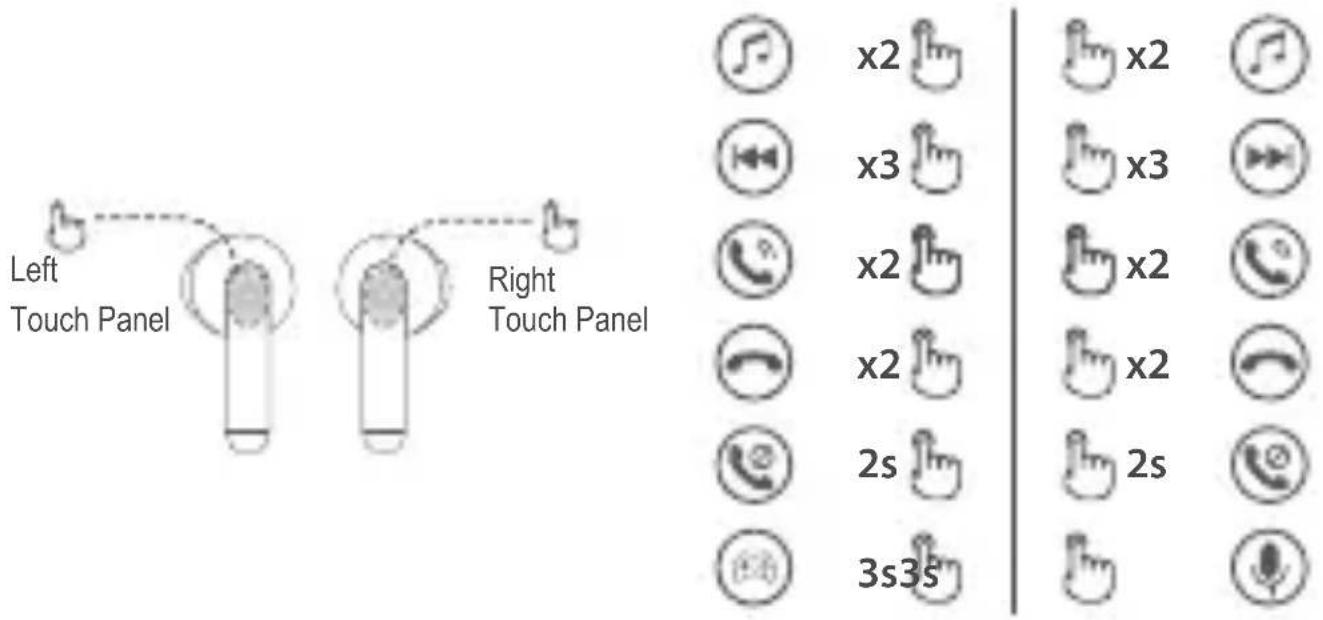

Controls

Left Touch Panel Right Touch Panel x2 x2 x3 x3 x2 x2 x2 2s 2s 3s3s

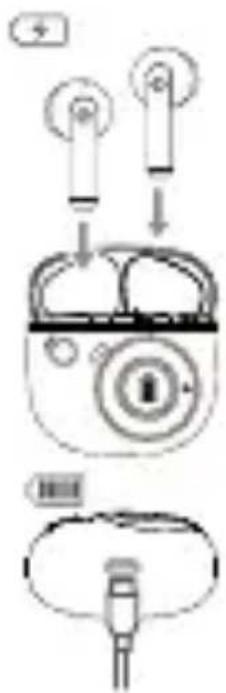

Battery status & charging

Diagram showing three-step installation of a device with labeled components and directional arrows indicating assembly or operation.

Battery Status

1. Earbuds in the case and the case is opened.
2. Tap 1 time the button on the case. The display will first show the battery level of the charging case then the earbuds.

Charging

Earbuds

1. Earbuds in the case and close the case for charging.
   Charging case
2. Plug the charging case into a USB-C power supply.
3. The display will show the charging status for 5s.

Input: 5V = 200mA(Earbuds)

5V = 1A(Charging case)

Note:

1. Please do not charge the product when there is sweat or other liquids inside the charging port, which may damage the product.
2. Images are for illustrative purposes only and may differ from the actual product.

Icons Description

Functions	Icons Display
Open the case
Close the case
Place earbuds in the case
Bluetooth pairing
Left & Right connecting
Pairing successful
Pairing failed
Charging case battery
Earbuds battery
Low battery
Charging

For more information, please visit our website:

www.edifier.com

@Edifierglobal

@Edifier_Global

@Edifier_Global

Model: EDF280004

Edif ier International Limited

P.O. Box 6264

General Post Office

Hong Kong

www.edifier.com

© 2022 Edifier International Limited. All rights reserved.

Printed in China

NOTICE:

For the need of technical improvement and system upgrade, information contained herein may be subject to change from time to time without prior notice.

Products of EDIFIER will be customized for different applications.

Pictures and illustrations shown on this manual may be slightly different from actual product. If any difference is found, the actual product prevails.

FR

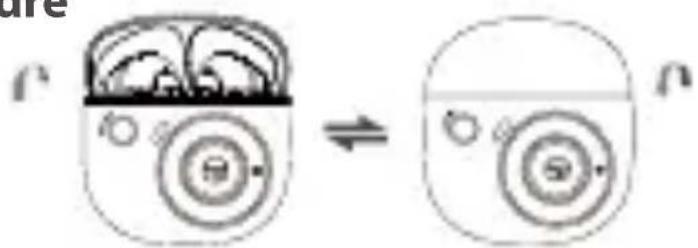

Allumer/Éteindre
